学习分布式——ActiveMQ 消息中间件(十)

本文链接：https://blog.youkuaiyun.com/weixin_41713731/article/details/105206811

ActiveMQ集成spring boot

一、整合Springboot队列模式

pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.2.6.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.study</groupId>
	<artifactId>ActiveMQ-springboot</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>ActiveMQ-springboot</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-activemq</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-devtools</artifactId>
			<scope>runtime</scope>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-configuration-processor</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.junit.platform</groupId>
			<artifactId>junit-platform-launcher</artifactId>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

application.yml

spring:
  activemq:
    broker-url: tcp://0.0.0.0:61616
    user: admin
    password: admin
    pool:
      max-connections: 100
  jms:
    pub-sub-domain: false  #false代表队列  true代表主题
#目标的名字
myQueue: activeMQ-springboot-queue

配置类

package com.study.demo.config;

import javax.jms.Queue;

import org.apache.activemq.command.ActiveMQQueue;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.stereotype.Component;
/**
 *
 * 创建配置类
 *
 */
@Component
public class QueueConfig {

	@Value("${myQueue}")
	private String myQueue;

	@Bean
	public  Queue queue() {
		return new ActiveMQQueue(myQueue);
	}
}

创建队列生产者

package com.study.demo.queue;

import java.util.Date;

import javax.jms.Queue;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jms.core.JmsMessagingTemplate;
import org.springframework.stereotype.Component;

/**
 *
 * 创建生产者
 *
 */
@Component
public class QueueProducer {

	@Autowired
	private JmsMessagingTemplate jmsMessagingTemplate;

	@Autowired
	private Queue queue;

	@SuppressWarnings("deprecation")
	public void produceMsg() {
		jmsMessagingTemplate.convertAndSend(queue,"message"+new Date().toLocaleString());
	}
}

创建监听

package com.study.demo.queue;

import javax.jms.JMSException;
import javax.jms.TextMessage;

import org.springframework.jms.annotation.JmsListener;
import org.springframework.stereotype.Component;

/*
 * 创建监听器
 */
@Component
public class QueueConsumer {

	@JmsListener(destination = "${myQueue}")
	public void receive(TextMessage  textMessage) {
		try {
			System.err.println(textMessage.getText());
		} catch (JMSException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}
}

测试类

package com.study.demo;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import com.study.demo.queue.QueueProducer;
/*
 * 测试类
 */
@SpringBootTest
class ActiveMqSpringbootApplicationTests {

	@Autowired
	QueueProducer  queueProducer;

	@Test
	void contextLoads() {
		queueProducer.produceMsg();
	}
}

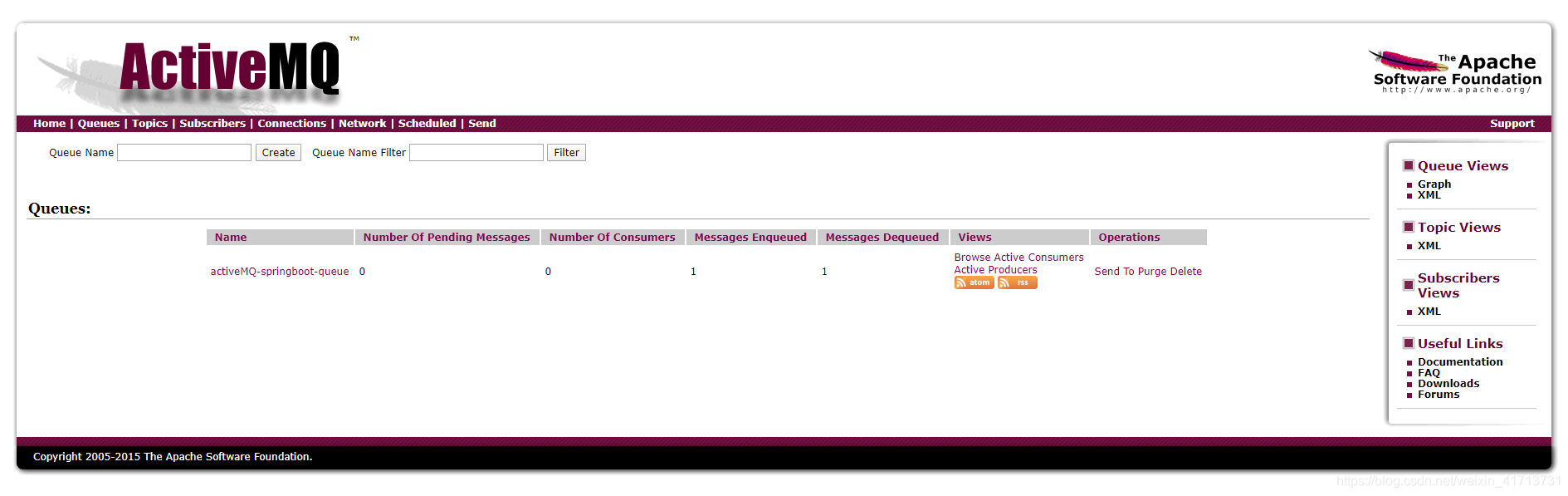

测试结果

在这里插入图片描述

延时发送

修改生产者类

package com.study.demo.queue;

import java.util.Date;

import javax.jms.Queue;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jms.core.JmsMessagingTemplate;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;

/**
 *
 * 创建生产者
 *
 */
@Component
public class QueueProducer {

	@Autowired
	private JmsMessagingTemplate jmsMessagingTemplate;

	@Autowired
	private Queue queue;

	@SuppressWarnings("deprecation")
	public void produceMsg() {
		jmsMessagingTemplate.convertAndSend(queue,"message"+new Date().toLocaleString());
	}

	//延迟发送
	@SuppressWarnings("deprecation")
	@Scheduled(fixedDelay = 3000)
	public void produceMsgScheduled(){
		jmsMessagingTemplate.convertAndSend(queue,"message"+new Date().toLocaleString());
	}
}

测试，启动类启动程序

package com.study.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.jms.annotation.EnableJms;
import org.springframework.scheduling.annotation.EnableScheduling;

@SpringBootApplication
@EnableJms
@EnableScheduling
public class ActiveMqSpringbootApplication {

	public static void main(String[] args) {
		SpringApplication.run(ActiveMqSpringbootApplication.class, args);
	}
}

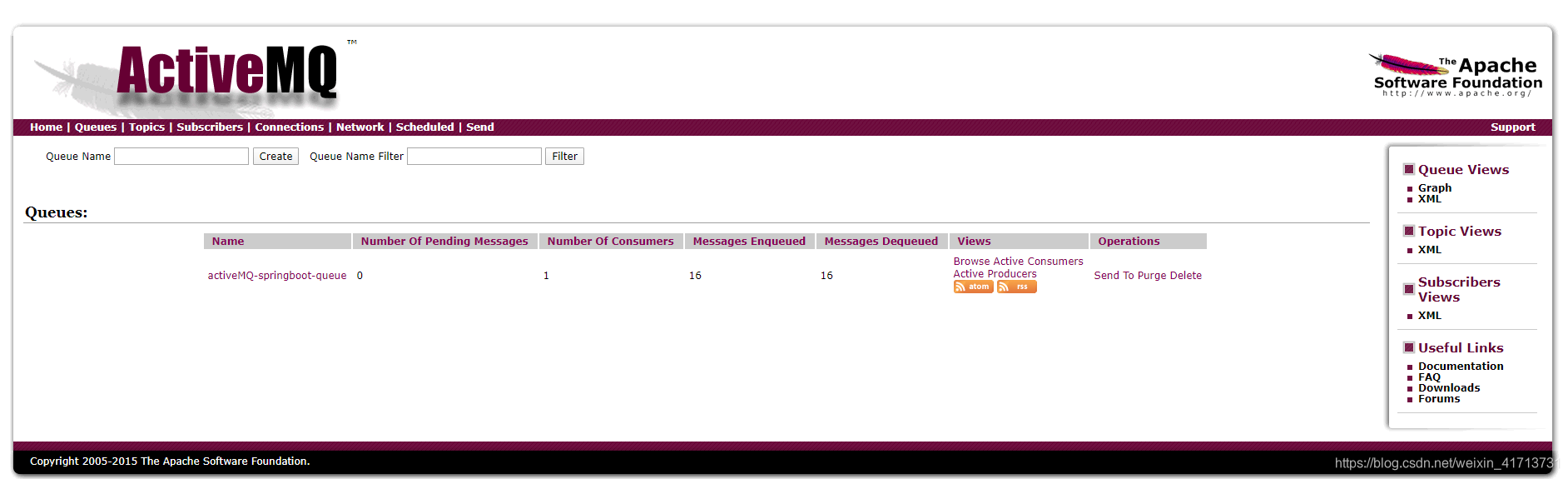

3秒钟发送一次
在这里插入图片描述

二、整合Springboot发布/订阅模式

配置application.yml

spring:
  activemq:
    broker-url: tcp://0.0.0.0:61616
    user: admin
    password: admin
    pool:
      max-connections: 100
  jms:
    pub-sub-domain: true  #false代表队列  true代表主题
#目标的名字
myTopic: activeMQ-springboot-topic

创建配置类

package com.study.demo.config;

import javax.jms.Topic;

import org.apache.activemq.command.ActiveMQTopic;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.stereotype.Component;
/**
 *
 * 创建配置类
 *
 */
@Component
public class TopicConfig {

	@Value("${myTopic}")
	private String myTopic;

	@Bean
	public  Topic topic() {
		return new ActiveMQTopic(myTopic);
	}
}

创建生产者

package com.study.demo.topic;

import java.util.Date;

import javax.jms.Topic;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jms.core.JmsMessagingTemplate;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;

/**
 *
 * 创建主题生产者
 *
 */
@Component
public class TopicProducer {
	@Autowired
	private JmsMessagingTemplate jmsMessagingTemplate;

	@Autowired
	private Topic topic;

	@SuppressWarnings("deprecation")
	public void produceMsg() {
		jmsMessagingTemplate.convertAndSend(topic,"message"+new Date().toLocaleString());
	}

	//延迟发送
	@SuppressWarnings("deprecation")
	@Scheduled(fixedDelay = 3000)
	public void produceMsgScheduled(){
		jmsMessagingTemplate.convertAndSend(topic,"message"+new Date().toLocaleString());
	}
}

创建监听器

package com.study.demo.topic;

import javax.jms.JMSException;
import javax.jms.TextMessage;

import org.springframework.jms.annotation.JmsListener;
import org.springframework.stereotype.Component;

/*
 * 创建主题监听器
 */
@Component
public class TopciConsumer {

	@JmsListener(destination = "${myTopic}")
	public void receive(TextMessage  textMessage) {
		try {
			System.err.println(textMessage.getText());
		} catch (JMSException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}
}

测试

因为是主题模式，要先启动消费者，然后在启动生产者
所以要先启动启动类，然后在启动测试类
启动类代码

package com.study.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.jms.annotation.EnableJms;
import org.springframework.scheduling.annotation.EnableScheduling;

@SpringBootApplication
@EnableJms
@EnableScheduling
public class ActiveMqSpringbootApplication {
	public static void main(String[] args) {
		SpringApplication.run(ActiveMqSpringbootApplication.class, args);
	}
}

测试类代码

package com.study.demo;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import com.study.demo.topic.TopicProducer;
/*
 * 测试类
 */
@SpringBootTest
class ActiveMqSpringbootApplicationTests {

	@Autowired
	TopicProducer  topicProducer;

	@Test
	void contextLoads() {
		topicProducer.produceMsg();
	}
}

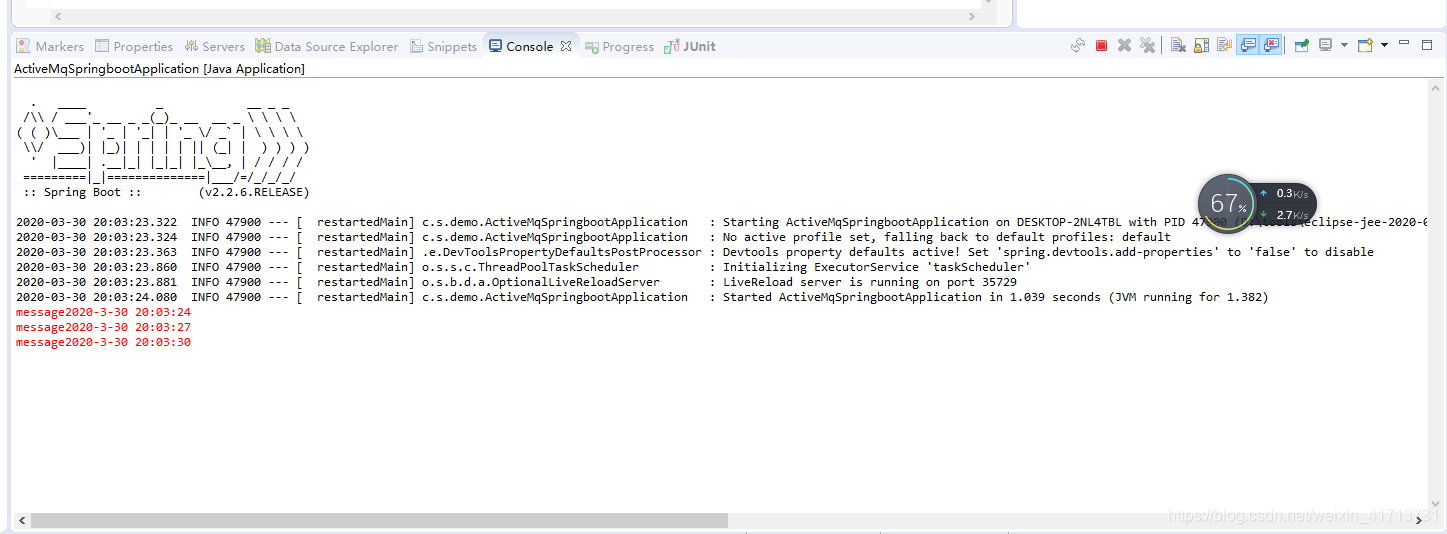

在这里插入图片描述
