本文详细列举了Kinect.h中定义的骨骼点类型，包括脊椎基部、脊椎中部、颈部等在内的25种人体关键骨骼点，为理解和使用Kinect传感器进行人体姿势识别提供了基础。

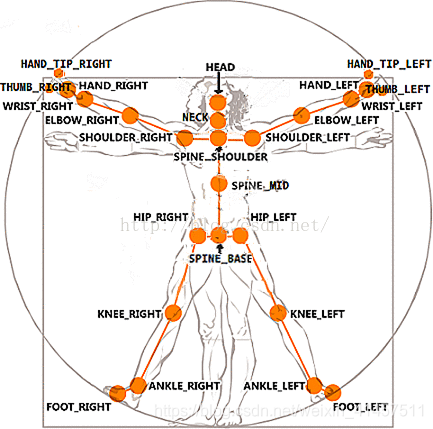

在这里插入图片描述

图片来源

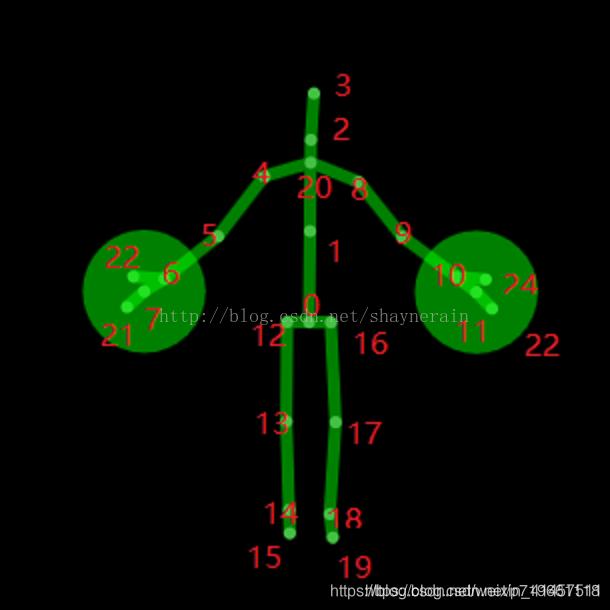

Kinect.h 骨骼点的枚举定义

enum _JointType
    {
        JointType_SpineBase	= 0,
        JointType_SpineMid	= 1,
        JointType_Neck	= 2,
        JointType_Head	= 3,
        JointType_ShoulderLeft	= 4,
        JointType_ElbowLeft	= 5,
        JointType_WristLeft	= 6,
        JointType_HandLeft	= 7,
        JointType_ShoulderRight	= 8,
        JointType_ElbowRight	= 9,
        JointType_WristRight	= 10,
        JointType_HandRight	= 11,
        JointType_HipLeft	= 12,
        JointType_KneeLeft	= 13,
        JointType_AnkleLeft	= 14,
        JointType_FootLeft	= 15,
        JointType_HipRight	= 16,
        JointType_KneeRight	= 17,
        JointType_AnkleRight	= 18,
        JointType_FootRight	= 19,
        JointType_SpineShoulder	= 20,
        JointType_HandTipLeft	= 21,
        JointType_ThumbLeft	= 22,
        JointType_HandTipRight	= 23,
        JointType_ThumbRight	= 24,
        JointType_Count	= ( JointType_ThumbRight + 1 )
    } ;
typedef enum _JointType JointType;
