二叉树链式存储之 前序,中序 ,后序遍历 查找

关于二叉树顺序存储和遍历的概念可以参考 :二叉树的顺序存储

接下来我们讲解一下二叉数的链表存储结构:

二叉树每个结点最多有两个孩子,所以为它设计一个数据域和两个指针域,我们称这样的链表为二叉链表。

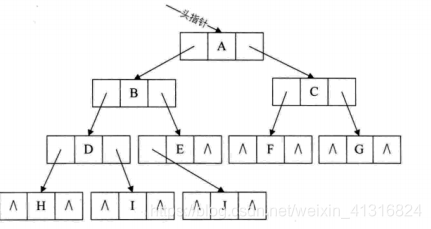

以该树为例

节点结构:

数结构:

我们当然还可以多开辟一个区域用来存放当前节点的父节点:



二叉排序树

二叉排序树,又称为二叉查找树。它或者是一棵空树,或者是具有下列性质的二叉树。

  若它的左子树不为空,则左子树上所有的结点的值均小于根结构的值;

  若它的右子树不为空,则右字数上所有结点的值均大于它的根结点的值;

  它的左右子树也分别为二叉排序树。

1,排序方便

2,方便查找

3,方便插入和删除



当我们用中序遍历的时候,责输出的是从小到大的值

节点对象:

    class BSNode
    {
        public BSNode LeftChild { get; set; }
        public BSNode RightChild { get; set; }
        public BSNode Parent { get; set; }

        public int data { get; set; }


        public BSNode()
        {

        }

        public BSNode(int data)
        {
            this.data = data;
        }
    }
 class BSTree
    {
        private BSNode root = null;

        public void Add(BSNode node)
        {
            if (root == null)
            {
                root = node;
                return;
            }
            BSNode tmp = root;
            while (true)
            {
                if (node.data > tmp.data)
                {
                    if (tmp.RightChild == null)
                    {
                        tmp.RightChild = node;
                        node.Parent = tmp;
                        break;
                    }
                    else
                    {
                        tmp = tmp.RightChild;
                    }
                }
                else
                {
                    if (tmp.LeftChild == null)
                    {
                        tmp.LeftChild = node;
                        node.Parent = tmp;
                        break;
                    }
                    else
                    {
                        tmp = tmp.LeftChild;
                    }
                }
            }
        }

        // 前序遍历
        public void PreorderTraversal()
        {
            PreorderTraversal(root);
        }
        private void PreorderTraversal(BSNode node)
        {
            if (null == node) return;
            Console.Write(node.data + " ");

            if (null != node.LeftChild)
            {
                PreorderTraversal(node.LeftChild);
            }

            if (null != node.RightChild)
            {
                PreorderTraversal(node.RightChild);
            }
        }
        // 中序遍历
        public void SequentialTraversal()
        {
            SequentialTraversal(root);
        }
        private void SequentialTraversal(BSNode node)
        {
            if (null == root) return;

            if (null != node.LeftChild)
            {
                SequentialTraversal(node.LeftChild);
            }
            Console.Write(node.data + " ");
            if (null != node.RightChild)
            {
                SequentialTraversal(node.RightChild);
            }
        }
        // 后序遍历
        public void PostOrderTraversal()
        {
            PostOrderTraversal(root);
        }
        private void PostOrderTraversal(BSNode node)
        {
            if (null == root) return;

            if (null != node.LeftChild)
            {
                PostOrderTraversal(node.LeftChild);
            }
            if (null != node.RightChild)
            {
                PostOrderTraversal(node.RightChild);
            }

            Console.Write(node.data + " ");
        }

        public bool Find(int data)
        {
            return Find(root,data);
        }

        public bool Find(BSNode node,int data)
        {
            if (node == null) return false;

            if (node.data == data)
            {
                return true;
            }
            else
            {
                if (data < node.data)
                {
                    return Find(node.LeftChild, data);

                }
                else
                {
                    return Find(node.RightChild, data);

                }
            }

        }

        public bool Find2(int data)
        {
            BSNode tmp = root;
            while(true)
            {
                if (null == tmp) return false;

                if (tmp.data == data)
                {
                    return true;
                }
                else
                {
                    if (data < tmp.data)
                    {
                        tmp = tmp.LeftChild;
                    }
                    else
                    {
                        tmp = tmp.RightChild;
                    }
                }
            }
        }

        public void Delete(int data)
        {
            BSNode tmp = root;
            while (true)
            {
                if (null == tmp) return;

                if (tmp.data == data)
                {
                    Delete(tmp);
                    break;
                }
                else
                {
                    if (data < tmp.data)
                    {
                        tmp = tmp.LeftChild;
                    }
                    else
                    {
                        tmp = tmp.RightChild;
                    }
                }
            }
        }

        public void Delete(BSNode node)
        {
            // 删除的节点 node
            // 没有左右子节点时  直接将父节点,指向该节点 置空
            if (null == node.LeftChild && null == node.RightChild)
            {
                if (node.Parent == null)
                {
                    root = null;
                }

                if (node.Parent.LeftChild == node)
                {
                    node.Parent.LeftChild = null;
                }
                if (node.Parent.RightChild == node)
                {
                    node.Parent.RightChild = null;
                }
            }
            // 只有左孩子节点时  将node的父节点指向node的左孩子节点
            if (null != node.LeftChild && null == node.RightChild)
            {
                if (node.Parent.LeftChild == node)
                {
                    node.Parent.LeftChild = node.LeftChild;
                }
                if (node.Parent.RightChild == node)
                {
                    node.Parent.RightChild = node.LeftChild;
                }
                node.LeftChild.Parent = node.Parent;
                node.Parent = null;
            }
            // 只有右孩子节点时  将node的父节点指向node的右孩子节点
            else if (null == node.LeftChild && null != node.RightChild)
            {
                if (node.Parent.LeftChild == node)
                {
                    node.Parent.LeftChild = node.RightChild;
                }
                if (node.Parent.RightChild == node)
                {
                    node.Parent.RightChild = node.RightChild;
                }
                node.RightChild.Parent = node.Parent;
                node.Parent = null;
            }
            // 即有右孩子又有左孩子  两种解决方法
            // (一) 找出该节点下的右子树中最小值的节点填到要删除的节点的位置  (根据二叉树排序树的特点 右子树下 遍历左孩子直到没有左孩子时即找到了最小节点)
            // (二) 找出该节点下的左子树中最大值的节点填到要删除的节点的位置  (根据二叉树排序树的特点 左子树下 遍历右孩子直到没有左孩子时即找到了最大节点)
            else if (null != node.LeftChild && null != node.RightChild)
            {
                BSNode minRight = node.RightChild;
                while (true)
                {
                    if (null == minRight.LeftChild)
                    {
                        break;
                    }
                    else
                    {
                        minRight = minRight.LeftChild;
                    }
                }
                node.data = minRight.data;
                Delete(minRight);
            }
        }
    }
    class Program
    {
        static void Main(string[] args)
        {
            BSTree tree = new BSTree();

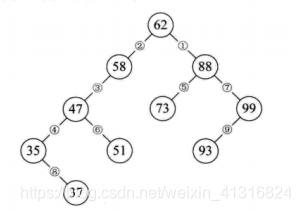

            int[] arr = { 62, 58, 88, 47, 73, 99, 35, 51, 93, 37 };
            for (int i = 0; i < arr.Length; i++)
            {
                BSNode node = new BSNode(arr[i]);
                tree.Add(node);
                // Console.Write(arr[i] + " ");
            }
            Console.WriteLine();
            Console.WriteLine("前序遍历:");
            tree.PreorderTraversal();
            Console.WriteLine();
            Console.WriteLine("中序遍历:");
            tree.SequentialTraversal();
            Console.WriteLine();
            Console.WriteLine("后序遍历:");
            tree.PostOrderTraversal();

            Console.WriteLine();
            tree.Delete(35);
            tree.Delete(37);
            Console.WriteLine("查找到:" + tree.Find2(88));
            tree.SequentialTraversal();
            Console.ReadKey();
        }
    }
