【Openlayers+百度地图】准确加载百度地图

ミーム

已于 2024-09-12 21:00:34 修改

阅读量2k

点赞数 8

分类专栏： OpenLayers 文章标签： vue

于 2024-09-12 19:48:44 首次发布

本文链接：https://blog.youkuaiyun.com/weixin_41027083/article/details/142184433

版权

OpenLayers 专栏收录该内容

6 篇文章

订阅专栏

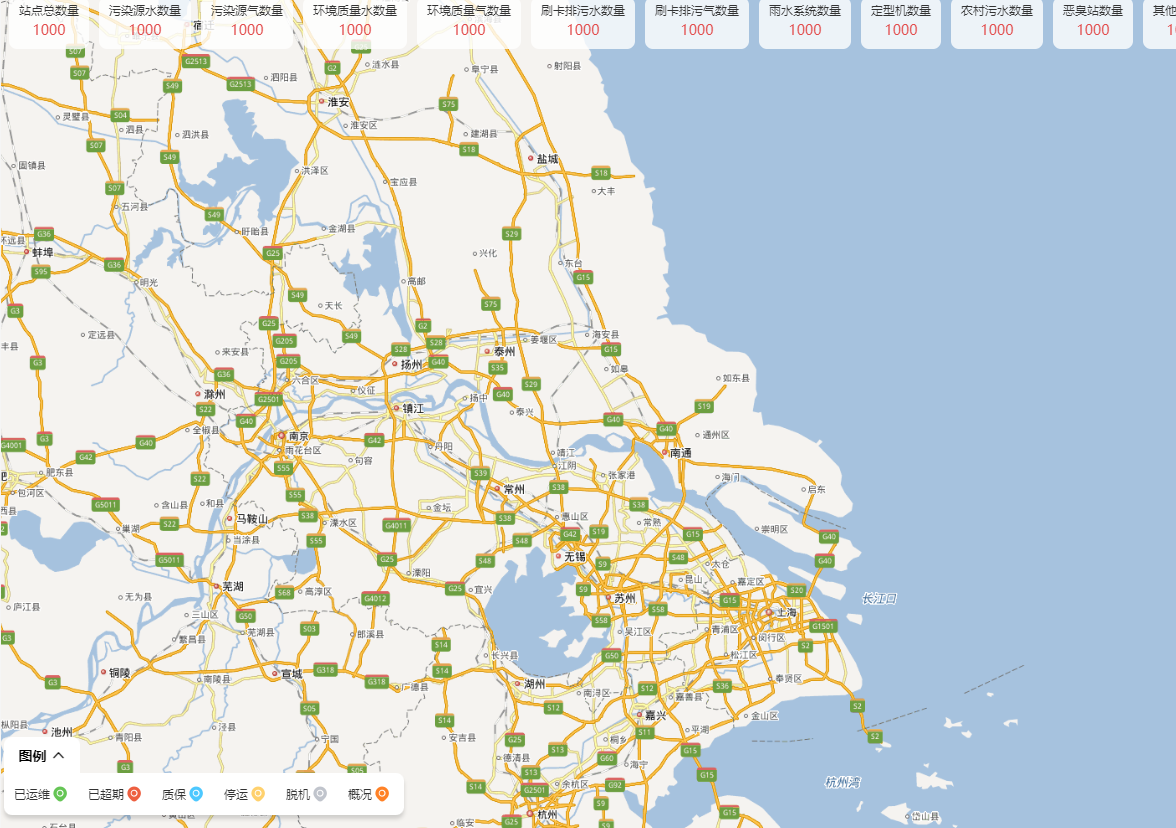

地图展示

由于ol没有DB09的坐标系，当需要使用openlayers加载百度地图的瓦片资源时，地图的projection最好是DB09，如果使用EPSG:3857也是可以加载出底图的，但会出现点位偏移，位置不准确等问题，点位也会随着zoom变化而移动。

以下是通过DB:09的方式加载百度底图，然后再将需要展示的点位数据转为百度墨卡即可。

创建百度地图的source

/*
 * @Description:BaiDuSource.js
 * @Author: zm
 * @Date: 2024-07-16 14:06:26
 * @LastEditTime: 2024-09-11 15:32:37
 * @LastEditors: zm 1540588534@qq.com
 */
import { TileImage } from "ol/source";
import TileGrid from "ol/tilegrid/TileGrid";

export default class BaiDuDiTu extends TileImage {
  constructor(opt) {
    const options = opt || {};
    const tileGrid =
      options.tileGrid ||
      BaiDuDiTu.getTileGrid(options.projection || "EPSG:3857");
    const superOptions = {
      projection: options.projection || "EPSG:3857",
      tileGrid,
      tileUrlFunction: function (tileCoord) {
        if (!tileCoord) return "";
        let z = tileCoord[0];
        let x = tileCoord[1];
        let y = -tileCoord[2] - 1; //ol6版本有偏移问题
        // 对编号xy处理
        let baiduX = x < 0 ? "M" + -x : x;
        let baiduY = y < 0 ? "M" + -y : y;
        return (
          "/onlinelabel/?qt=tile&x=" +
          baiduX +
          "&y=" +
          baiduY +
          "&z=" +
          z +
          "&styles=pl&udt=20151021&scaler=1&p=1"
        );
      },
    };
    super(superOptions);
  }

  /**
   * @function BaiDuDiTu.getTileGrid
   * @description 获取瓦片网格
   * @param {Object} projection - 投影参考对象
   * @returns {ol.tilegrid.WMTS} 返回瓦片网格对象
   */
  static getTileGrid(projection) {
    if (projection === "EPSG:4326" || projection === "EPSG:4490") {
      return BaiDuDiTu.default4326TileGrid();
    }
    if (projection === "BD:09") {
      return BaiDuDiTu.defaultBD09TileGrid();
    }
    return BaiDuDiTu.default3857TileGrid();
  }

  /**
   * @function BaiDuDiTu.default4326TileGrid
   * @description 获取默认 4326 网格瓦片
   * @returns {ol.tilegrid.WMTS} 返回默认 4326 网格瓦片对象
   */
  static default4326TileGrid() {
    const tdtWgs84Resolutions = [];
    const matrixIds = [];
    for (let i = 1; i < 19; i += 1) {
      tdtWgs84Resolutions.push((0.703125 * 2) / 2 ** i);
      matrixIds.push(i);
    }
    const tileGird = new TileGrid({
      extent: [-180, -90, 180, 90],
      resolutions: tdtWgs84Resolutions,
      origin: [-180, 90],
      matrixIds,
      minZoom: 1,
    });
    return tileGird;
  }

  /**
   * @function Tianditu.default3857TileGrid
   * @description 获取默认 3857 网格瓦片
   * @returns {ol.tilegrid.WMTS} 返回默认 3857 网格瓦片对象
   */
  static default3857TileGrid() {
    const resolutions = [];
    const matrixIds = [];
    for (let i = 1; i < 19; i += 1) {
      resolutions[i] = Math.pow(2, 18 - i);
      matrixIds.push(i);
    }
    const tileGird = new TileGrid({
      resolutions,
      matrixIds,
      origin: [0, 0],
      minZoom: 1,
    });
    return tileGird;
  }
  /**
   * @function BaiDuDiTu.defaultBD09TileGrid
   * @description
   * @returns {ol.tilegrid.WMTS}
   */
  static defaultBD09TileGrid() {
    const resolutions = [];
    for (let i = 1; i < 19; i += 1) {
      resolutions[i] = Math.pow(2, 18 - i);
    }
    const tileGird = new TileGrid({
      resolutions,
      origin: [0, 0],
      minZoom: 1,
    });
    return tileGird;
  }
}

创建地图map

/*
 * @Description:BaiDuMap.js
 * @Author: zm
 * @Date: 2024-07-15 09:59:35
 * @LastEditTime: 2024-09-11 18:43:05
 * @LastEditors: zm 1540588534@qq.com
 */
import "ol/ol.css";
import Map from "ol/Map.js";
import View from "ol/View.js";
import TileLayer from "ol/layer/Tile.js";
import BaiDuDiTu from "@/common/map/baidu/BaiDuSource.js";
import { PROJECTION_DB09, getProjBD09 } from "@/common/map/projects.js";
import { BASEMAP_IMAGE_LAYER } from "@/common/map/layer-ids.js";
import { lngLatToMercator } from "./BD09.js";

const baiduMap = new Map({
  controls: [],
  layers: [
    new TileLayer({
      id: BASEMAP_IMAGE_LAYER,
      source: new BaiDuDiTu({ projection: PROJECTION_DB09 }),
      visible: true,
    }),
  ],
  view: new View({
    projection: getProjBD09(PROJECTION_DB09),
    center: lngLatToMercator([120.098926, 29.343227]),
    maxZoom: 20,
    minZoom: 5,
    zoom: 8,
  }),
});

export default baiduMap;

在vue组件中使用

TheHomeGis.vue

<div :class="$style['map']" id="BaiDuMap"></div>

绑定容器即可

import baiduMap from "@/common/map/baidu/BaiDuMap.js";

  mounted() {
    this.baiduMap.setTarget("BaiDuMap");
  },
  beforeDestroy() {
    this.baiduMap.setTarget("");
	}

引用的其他文件

/*
 * @Description:@/common/map/projects.js
 * @Author: zm
 * @Date: 2024-09-05 16:35:23
 * @LastEditTime: 2024-09-12 19:34:15
 * @LastEditors: zm 1540588534@qq.com
 */
import { get as ProjGet, addProjection, Projection } from "ol/proj";

export const PROJECTION_4326 = "EPSG:4326";
export const PROJECTION_3857 = "EPSG:3857";
export const PROJECTION_DB09 = "BD:09";
export const getProjBD09 = (projCode) => {
  let projection = ProjGet(projCode);
  if (projection) {
    return projection;
  }
  let projBD09 = new Projection({
    code: "BD:09",
    extent: [-20037726.37, -11708041.66, 20037726.37, 12474104.17],
    units: "m",
    axisOrientation: "neu",
    global: false,
  });
  addProjection(projBD09);
  return projection;
};

export const BASEMAP_IMAGE_LAYER = 'BASEMAP_IMAGE_LAYER';

BD09.js
