前言

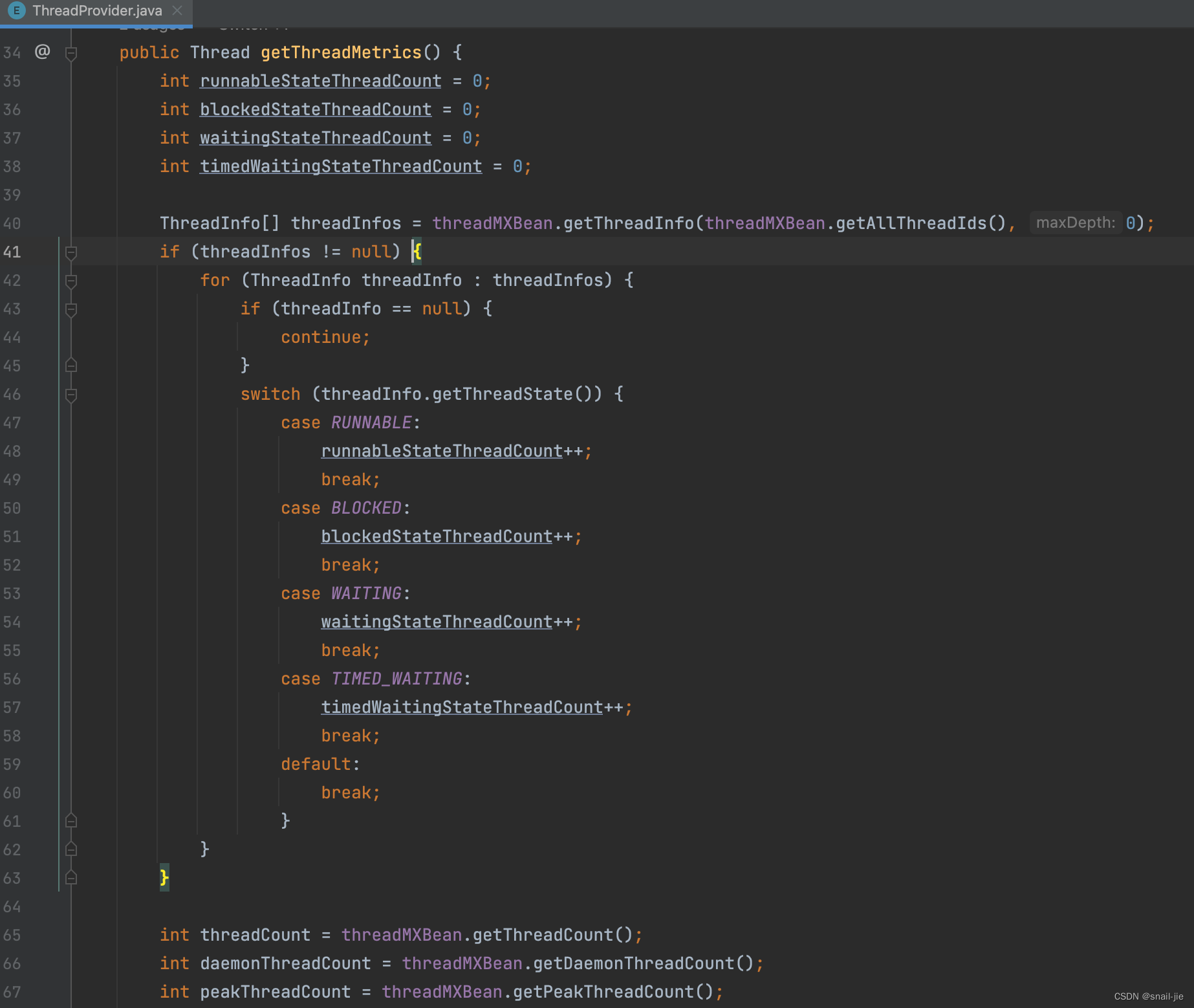

在看skywalking-agent源码时发现agent会采集线程的状态，但这些状态是什么场景触发的呢？当线程数超过阈值后，我们怎样去更快地定位问题呢？带上这样的疑问进行下面的分析
在这里插入图片描述

线程状态分析

在java.lang.Thread类的内部枚举类State中定义了Java线程的六个状态

 public enum State {
    /**
     * Thread state for a thread which has not yet started.
     */
    NEW,

    /**
     * Thread state for a runnable thread.  A thread in the runnable
     * state is executing in the Java virtual machine but it may
     * be waiting for other resources from the operating system
     * such as processor.
     */
    RUNNABLE,

    /**
     * Thread state for a thread blocked waiting for a monitor lock.
     * A thread in the blocked state is waiting for a monitor lock
     * to enter a synchronized block/method or
     * reenter a synchronized block/method after calling
     * {@link Object#wait() Object.wait}.
     */
    BLOCKED,

    /**
     * Thread state for a waiting thread.
     * A thread is in the waiting state due to calling one of the
     * following methods:
     * <ul>
     *   <li>{@link Object#wait() Object.wait} with no timeout</li>
     *   <li>{@link #join() Thread.join} with no timeout</li>
     *   <li>{@link LockSupport#park() LockSupport.park}</li>
     * </ul>
     *
     * <p>A thread in the waiting state is waiting for another thread to
     * perform a particular action.
     *
     * For example, a thread that has called <tt>Object.wait()</tt>
     * on an object is waiting for another thread to call
     * <tt>Object.notify()</tt> or <tt>Object.notifyAll()</tt> on
     * that object. A thread that has called <tt>Thread.join()</tt>
     * is waiting for a specified thread to terminate.
     */
    WAITING,

    /**
     * Thread state for a waiting thread with a specified waiting time.
     * A thread is in the timed waiting state due to calling one of
     * the following methods with a specified positive waiting time:
     * <ul>
     *   <li>{@link #sleep Thread.sleep}</li>
     *   <li>{@link Object#wait(long) Object.wait} with timeout</li>
     *   <li>{@link #join(long) Thread.join} with timeout</li>
     *   <li>{@link LockSupport#parkNanos LockSupport.parkNanos}</li>
     *   <li>{@link LockSupport#parkUntil LockSupport.parkUntil}</li>
     * </ul>
     */
    TIMED_WAITING,

    /**
     * Thread state for a terminated thread.
     * The thread has completed execution.
     */
    TERMINATED;
}

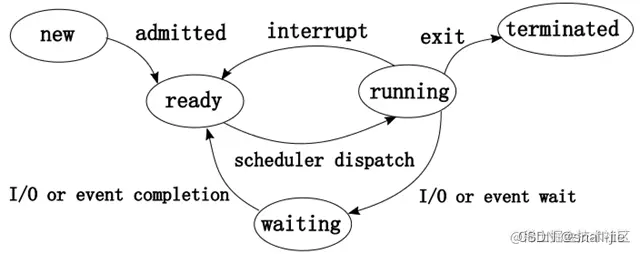

在操作系统层面，线程存在五类状态（状态流转如下图)

2.1 Java中的RUNNABLE包含了OS中的RUNNING和READY
2.2 Java中的WAITING、TIMED_WAITING、BLOCKED对应OS中的WAITING
下面按照java.lang.Thread$State中对状态的描述场景去模拟测试，主要分析WAITING、TIMED_WAITING、BLOCKED

BLOCKED状态模拟

BLOCKED状态注释翻译：线程阻塞等待监视器锁的线程状态。处于阻塞状态的线程正在等待监视器锁进入同步块/方法或调用 Object.wait 后重新进入同步块/方法

场景1：处于阻塞状态的线程正在等待监视器锁进入同步块/方法
2.1 模拟代码如下

@Test
public void testSynchronizedWaitBlock(){
    Object monitor = new Object();
    Thread thread1 = new Thread(()->{
        synchronized (monitor){
            try {
                monitor.wait();
            } catch (InterruptedException e) {
                System.out.println("捕获到InterruptedException");
                throw new RuntimeException(e);
            }
            System.out.println("执行thread1方法");
        }
    },"thread1");

    Thread thread2 = new Thread(()->{
        synchronized (monitor){
            monitor.notifyAll();
            System.out.println("执行thread2方法");
        }
    },"thread2");
    thread1.start();
    thread2.start();

    System.out.println("断点暂停主线程");
}

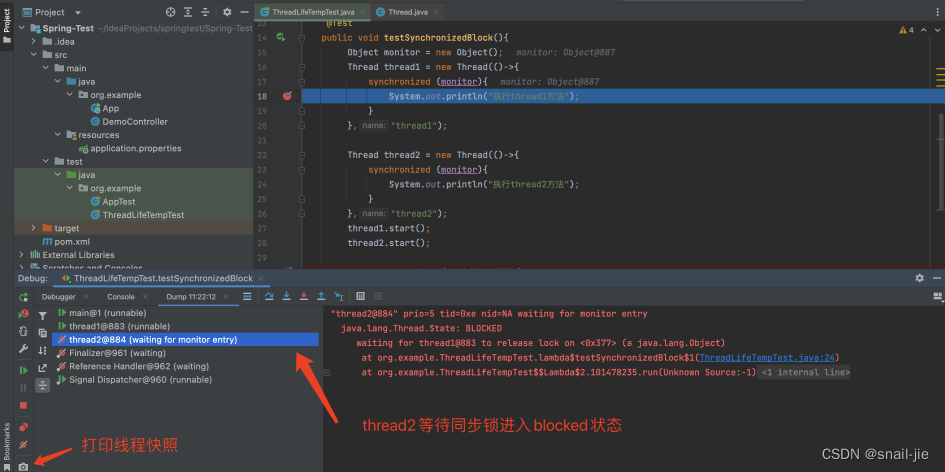

2.2 thread1执行monitor.wait()前，thread2因要等待监视器所有权BLOCKED住了
在这里插入图片描述

场景2：调用Object.wait 后重新进入同步块/方法

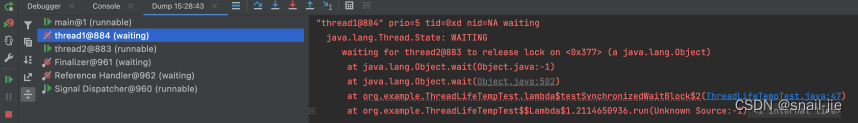

3.1 thread1执行monitor.wait()后并且thread2执行为monitor.notifyAll()前，thread1释放监视器所有权并等待，线程状态为WAITING。thread2的状态为RUNNABLE

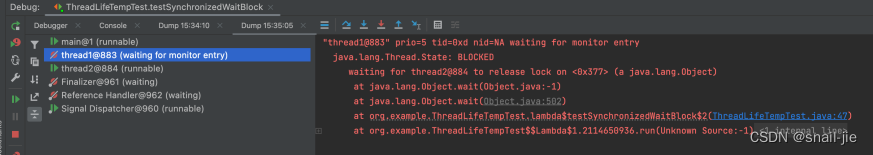

3.2 thread2执行为monitor.notifyAll()后，thread1等待获取监视器的所有权并恢复执行，状态变为BLOCKED

WAITING状态模拟

WAITING状态注释翻译：处于等待状态的线程正在等待另一个线程执行特定操作，调用以下方法之一，线程处于等待状态：
1.1 没有超时参数的Object.wait
1.2 没有超时参数的Thread.join
1.3 LockSupport.park

场景1：没有超时参数的Thread.join
2.1 模拟代码如下

// Thread.join 等待这个线程死掉
@Test
public void testJoin(){
    Thread thread1 = new Thread(()->{
        System.out.println("执行thread1方法.....");

    },"thread1");

    Thread thread2 = new Thread(()->{
        try {
            thread1.join();
        } catch (InterruptedException e) {
            throw new RuntimeException(e);
        }
        System.out.println("执行thread2方法.....");

    },"thread2");

    thread1.start();
    thread2.start();

    System.out.println("断点暂停主线程");
}

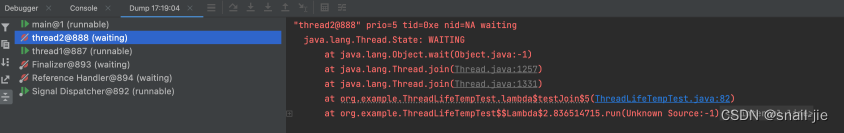

2.2 thread2执行thread1.join等待thread1执行完，此时thread2的状态为WAITING
在这里插入图片描述

场景2：LockSupport.park
3.1 模拟代码如下

/**
 * 除非许可可用，否则禁用当前线程以进行线程调度
 *  --> 当前线程将出于线程调度目的而被禁用并处于休眠状态，直到发生以下三种情况之一：
 *  1. 其他一些线程以当前线程为目标调用unpark
 *  2. 其他一些线程中断当前线程
 * @throws Exception
 */
@Test
public void testLockSupport(){
    Thread thread1 = new Thread(() -> {
        System.out.println("do something start");
        LockSupport.park();
        System.out.println("do something end");
    },"thread1");

    thread1.start();

    System.out.println("给子线程thread增加一个许可");
    LockSupport.unpark(thread1);
    System.out.println("主线程执行完毕");
}

3.2 thread1调用LockSupport.park()将当前线程thread1处于休眠状态，状态为WAITING
在这里插入图片描述
3.3 主线程调用LockSupport.unpark(thread1)将thread1唤醒，thread1继续执行，状态为RUNNABLE

TIME_WAITING状态模拟

TIME_WAITING状态注释翻译：具有指定等待时间的等待线程的线程状态，调用以下方法之一，线程处于定时等待状态：
1.1 Thread.sleep
1.2 带有超时参数的Object.wait
1.3 带有超时参数的Thread.join
1.4 LockSupport.parkNanos
1.5 LockSupport.parkUntil

场景1：Thread.sleep
2.1 模拟代码如下：

  /**
 * 使当前执行的线程休眠（暂时停止执行）指定的毫秒数，
 * 取决于系统计时器和调度程序的精度和准确性。 该线程不会失去任何监视器的所有权
 */
@Test
public void testSleep(){
    Object monitor = new Object();
    Thread thread1 = new Thread(()->{
        synchronized (monitor){
            try {
                Thread.sleep(1000 * 10);
            } catch (InterruptedException e) {
                System.out.println("捕获到InterruptedException");
                throw new RuntimeException(e);
            }
            System.out.println("执行thread1方法");
        }
    },"thread1");

    Thread thread2 = new Thread(()->{
        synchronized (monitor){
            System.out.println("执行thread2方法");
        }
    },"thread2");
    thread1.start();
    thread2.start();

    System.out.println("断点暂停主线程");
}

2.2 thread1获取monitor监视器的所有权，调用sleep使当前线程休眠，但不会丢失监视器的所有权，所以thread1的状态为TIMED_WAITING，thread2的状态为BLOCKED
在这里插入图片描述

线程数预警后如何排查问题

线程最大数量由JVM的堆(-Xmx,-Xms)大小、Thread的栈(-Xss)内存大小、系统最大可创建的线程数的限制参数三个方面影响。不考虑系统限制，可以通过这个公式估算：
线程数量 = (机器本身可用内存 - JVM分配的堆内存) / Xss的值

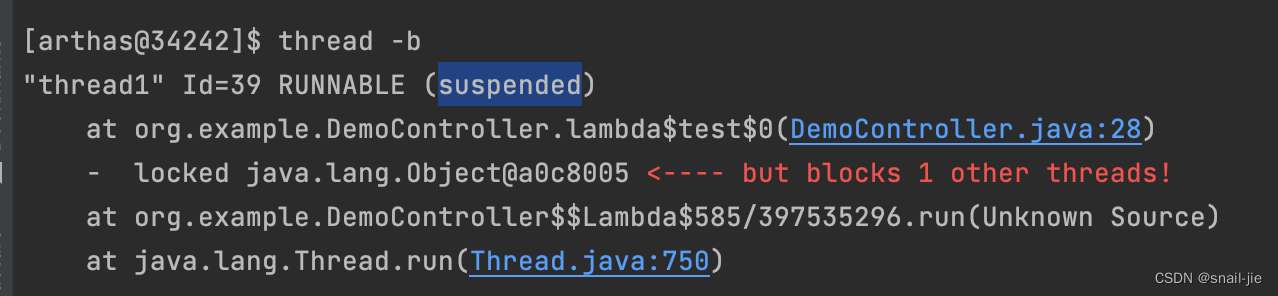

当线程数超过阈值后，通过arthas的thread -b命令找出当前阻塞其他线程的线程
