Spring源码（六）Spring AOP

了解专栏完整的内容，请点击跳转：
Spring Framework专栏导航页

gitee注释版源码

Aop就是面向切面编程，通过生成代理对象，将与业务代码无关的逻辑织入到代理对象中，减少了代码冗余，降低耦合度，极大地提高了开发的便利性。比如全局异常处理、日志记录等都可以通过Aop进行优雅的实现。

Spring Aop的实现过程中，有三个重要的环节

• 切面解析
• 创建动态代理
• 动态代理调用

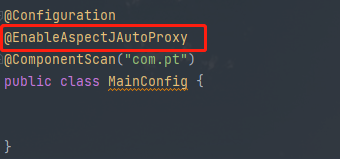

注解方式开启Aop

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(AspectJAutoProxyRegistrar.class)
public @interface EnableAspectJAutoProxy {

	/**
	 * Indicate whether subclass-based (CGLIB) proxies are to be created as opposed
	 * to standard Java interface-based proxies. The default is {@code false}.
	 */
	boolean proxyTargetClass() default false;

	/**
	 * Indicate that the proxy should be exposed by the AOP framework as a {@code ThreadLocal}
	 * for retrieval via the {@link org.springframework.aop.framework.AopContext} class.
	 * Off by default, i.e. no guarantees that {@code AopContext} access will work.
	 * @since 4.3.1
	 */
	boolean exposeProxy() default false;

}

接着看看@Import导入的这个类究竟做了啥

class AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar {

	/**
	 * Register, escalate, and configure the AspectJ auto proxy creator based on the value
	 * of the @{@link EnableAspectJAutoProxy#proxyTargetClass()} attribute on the importing
	 * {@code @Configuration} class.
	 */
	@Override
	public void registerBeanDefinitions(
			AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {

		// 这里注册了一个后置处理器
		AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);

		AnnotationAttributes enableAspectJAutoProxy =
				AnnotationConfigUtils.attributesFor(importingClassMetadata, EnableAspectJAutoProxy.class);
		if (enableAspectJAutoProxy != null) {
			if (enableAspectJAutoProxy.getBoolean("proxyTargetClass")) {
				AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
			}
			if (enableAspectJAutoProxy.getBoolean("exposeProxy")) {
				AopConfigUtils.forceAutoProxyCreatorToExposeProxy(registry);
			}
		}
	}

}

这是一个ImportBeanDefinitionRegistrar的实现类，他可以通过@Import导入，导入的是一个bean定义，@Import还可以导入普通类和ImportSelector的实现类。

@Nullable
	public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(
			BeanDefinitionRegistry registry, @Nullable Object source) {

		// 这里注册了该后置处理器
		return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);
	}

@Nullable
	private static BeanDefinition registerOrEscalateApcAsRequired(
			Class<?> cls, BeanDefinitionRegistry registry, @Nullable Object source) {

		Assert.notNull(registry, "BeanDefinitionRegistry must not be null");

		if (registry.containsBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME)) {
			BeanDefinition apcDefinition = registry.getBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME);
			if (!cls.getName().equals(apcDefinition.getBeanClassName())) {
				int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());
				int requiredPriority = findPriorityForClass(cls);
				if (currentPriority < requiredPriority) {
					apcDefinition.setBeanClassName(cls.getName());
				}
			}
			return null;
		}

		RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
		beanDefinition.setSource(source);
		beanDefinition.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE);
		beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
		registry.registerBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME, beanDefinition);
		return beanDefinition;
	}

这个bean定义又是在什么时候被实例化成processor呢?肯定是要在Bean实例化前呗，不然怎么处理Bean呢

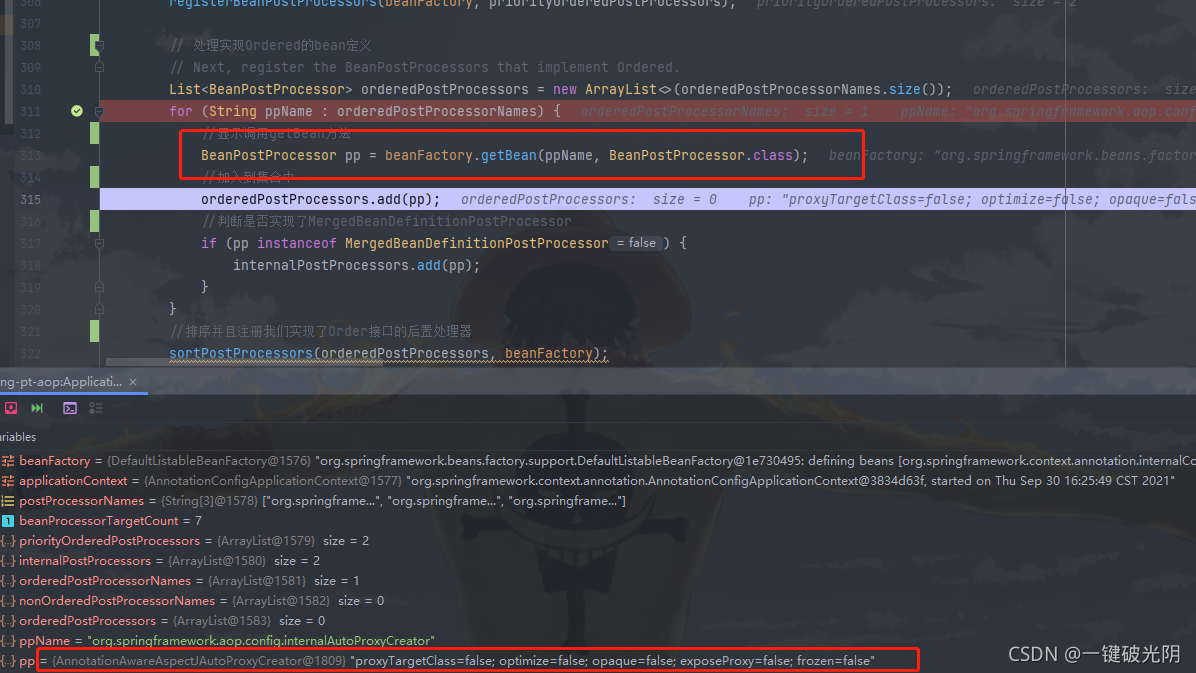

在refresh().registerBeanPostProcessors(beanFactory)进行实例化的，这样就算是开启了Aop功能

切面解析

createBean.resolveBeforeInstantiation(beanName, mbdToUse);

try {
			/**
			 * 第1个bean后置处理器
			 * aop和事务的关键，因为在这里解析我们的aop切面信息进行缓存
			 */
			// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
			Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
			if (bean != null) {
				return bean;
			}
		}

@Nullable
	protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
		Object bean = null;
		if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
			// Make sure bean class is actually resolved at this point.
			//判断容器中是否有InstantiationAwareBeanPostProcessors
			if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
				Class<?> targetType = determineTargetType(beanName, mbd);
				if (targetType != null) {
					/**
					 * 后置处理器的【第一次】调用 总共有九处调用 事务在这里不会被调用，aop的才会被调用
					 * 为啥aop在这里调用了，因为在此处需要解析出对应的切面放到缓存中
					 */
					bean = applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);

					// 一般情况下返回的都是null
					// 如果不为null说明生成了代理对象那么我们就调用
					if (bean != null) {
						/**
						 * 后置处理器的第二处调用，该后置处理器若被调用的话，那么第一处的处理器肯定返回的不是null
						 * InstantiationAwareBeanPostProcessors后置处理器postProcessAfterInitialization
						 */
						bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
					}
				}
			}
			mbd.beforeInstantiationResolved = (bean != null);
		}
		return bean;
	}

	@Nullable
	protected Object applyBeanPostProcessorsBeforeInstantiation(Class<?> beanClass, String beanName) {
		for (InstantiationAwareBeanPostProcessor bp : getBeanPostProcessorCache().instantiationAware) {
			Object result = bp.postProcessBeforeInstantiation(beanClass, beanName);
			if (result != null) {
				return result;
			}
		}
		return null;
	}

创建动态代理

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
		//已经被处理过（解析切面时targetSourcedBeans出现过） 就是自己实现创建动态代理逻辑
		if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
			return bean;
		}
		//不需要增强的
		if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
			return bean;
		}
		//是不是基础的bean 是不是需要跳过的 重复判断 （ 因为循环依赖是可以改变bean的，如果把bean改成了advisor呢）
		if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
			this.advisedBeans.put(cacheKey, Boolean.FALSE);
			return bean;
		}

		// 根据当前bean找到匹配的advisor
		// Create proxy if we have advice.
		Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
		// 当前bean匹配到了advisor
		if (specificInterceptors != DO_NOT_PROXY) {
			// 标记为已处理
			this.advisedBeans.put(cacheKey, Boolean.TRUE);
			//创建我们的真正的代理对象
			Object proxy = createProxy(
					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
			this.proxyTypes.put(cacheKey, proxy.getClass());
			return proxy;
		}

		this.advisedBeans.put(cacheKey, Boolean.FALSE);
		return bean;
	}

	protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
			@Nullable Object[] specificInterceptors, TargetSource targetSource) {

		if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
			AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
		}

		//创建一个代理对象工厂
		ProxyFactory proxyFactory = new ProxyFactory();
		proxyFactory.copyFrom(this);

		// 为proxyFactory设置创建jdk代理还是cglib代理
		// 如果设置了 <aop:aspectj-autoproxy proxy-target-class="true"/>不会进if，说明强制使用cglib
		if (proxyFactory.isProxyTargetClass()) {
			// Explicit handling of JDK proxy targets (for introduction advice scenarios)
			if (Proxy.isProxyClass(beanClass)) {
				// Must allow for introductions; can't just set interfaces to the proxy's interfaces only.
				for (Class<?> ifc : beanClass.getInterfaces()) {
					proxyFactory.addInterface(ifc);
				}
			}
		}
		else {
			// No proxyTargetClass flag enforced, let's apply our default checks...
			if (shouldProxyTargetClass(beanClass, beanName)) {
				proxyFactory.setProxyTargetClass(true);
			}
			else {
				// 检查有没有接口
				evaluateProxyInterfaces(beanClass, proxyFactory);
			}
		}

		// advisor就是一种拦截器
		// 把我们的specificInterceptors数组中的Advisor转化为数组形式的
		Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
		// 为我们的代理工厂加入advisors，
		proxyFactory.addAdvisors(advisors);
		// 设置targetSource对象
		proxyFactory.setTargetSource(targetSource);
		customizeProxyFactory(proxyFactory);

		proxyFactory.setFrozen(this.freezeProxy);
		// 代表之前是否筛选advise.
		// 因为继承了AbstractAdvisorAutoProxyCreator，并且之前调用了findEligibleAdvisors进行筛选， 所以是true
		if (advisorsPreFiltered()) {
			proxyFactory.setPreFiltered(true);
		}

		// Use original ClassLoader if bean class not locally loaded in overriding class loader
		ClassLoader classLoader = getProxyClassLoader();
		if (classLoader instanceof SmartClassLoader && classLoader != beanClass.getClassLoader()) {
			classLoader = ((SmartClassLoader) classLoader).getOriginalClassLoader();
		}
		//真正的创建代理对象
		return proxyFactory.getProxy(classLoader);
	}

public Object getProxy(@Nullable ClassLoader classLoader) {
		return createAopProxy().getProxy(classLoader);
	}

// JDK方式
@Override
	public Object getProxy(@Nullable ClassLoader classLoader) {
		if (logger.isTraceEnabled()) {
			logger.trace("Creating JDK dynamic proxy: " + this.advised.getTargetSource());
		}
		return Proxy.newProxyInstance(classLoader, this.proxiedInterfaces, this);
	}

// cglib方式
@Override
	public Object getProxy(@Nullable ClassLoader classLoader) {
		if (logger.isTraceEnabled()) {
			logger.trace("Creating CGLIB proxy: " + this.advised.getTargetSource());
		}

		try {
			Class<?> rootClass = this.advised.getTargetClass();
			Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");

			Class<?> proxySuperClass = rootClass;
			if (rootClass.getName().contains(ClassUtils.CGLIB_CLASS_SEPARATOR)) {
				proxySuperClass = rootClass.getSuperclass();
				Class<?>[] additionalInterfaces = rootClass.getInterfaces();
				for (Class<?> additionalInterface : additionalInterfaces) {
					this.advised.addInterface(additionalInterface);
				}
			}

			// Validate the class, writing log messages as necessary.
			validateClassIfNecessary(proxySuperClass, classLoader);

			// Configure CGLIB Enhancer...
			Enhancer enhancer = createEnhancer();
			if (classLoader != null) {
				enhancer.setClassLoader(classLoader);
				if (classLoader instanceof SmartClassLoader &&
						((SmartClassLoader) classLoader).isClassReloadable(proxySuperClass)) {
					enhancer.setUseCache(false);
				}
			}
			enhancer.setSuperclass(proxySuperClass);
			enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
			enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
			enhancer.setStrategy(new ClassLoaderAwareGeneratorStrategy(classLoader));

			Callback[] callbacks = getCallbacks(rootClass);
			Class<?>[] types = new Class<?>[callbacks.length];
			for (int x = 0; x < types.length; x++) {
				types[x] = callbacks[x].getClass();
			}
			// fixedInterceptorMap only populated at this point, after getCallbacks call above
			enhancer.setCallbackFilter(new ProxyCallbackFilter(
					this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset));
			enhancer.setCallbackTypes(types);

			// Generate the proxy class and create a proxy instance.
			return createProxyClassAndInstance(enhancer, callbacks);
		}
		catch (CodeGenerationException | IllegalArgumentException ex) {
			throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
					": Common causes of this problem include using a final class or a non-visible class",
					ex);
		}
		catch (Throwable ex) {
			// TargetSource.getTarget() failed
			throw new AopConfigException("Unexpected AOP exception", ex);
		}
	}

动态代理调用

Spring对动态代理的调用是采用责任链调用的方式，一层一层递归调用，为什么呢？因为aop间存在嵌套，所以要按一定顺序去调。
cglib调用和JDK方式逻辑是一样的，都是封装成调用链然后递归调用，这里以JDK方式为例说明。

	@Override
	@Nullable
	public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
		Object oldProxy = null;
		boolean setProxyContext = false;

		// 获取到我们的目标对象
		TargetSource targetSource = this.advised.targetSource;
		Object target = null;

		try {
			// 若执行代理对象的equals方法不需要代理
			if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
				// The target does not implement the equals(Object) method itself.
				return equals(args[0]);
			}
			// 若执行的是hashCode方法 不需要代理
			else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
				// The target does not implement the hashCode() method itself.
				return hashCode();
			}
			// 若执行的class对象是DecoratingProxy 则不会对其应用切面进行方法的增强。返回源目标类型
			else if (method.getDeclaringClass() == DecoratingProxy.class) {
				// There is only getDecoratedClass() declared -> dispatch to proxy config.
				return AopProxyUtils.ultimateTargetClass(this.advised);
			}
			// 如果目标对象实现的Advised接口，则不会对其应用切面进行方法的增强。 直接执行方法
			else if (!this.advised.opaque && method.getDeclaringClass().isInterface() &&
					method.getDeclaringClass().isAssignableFrom(Advised.class)) {
				// Service invocations on ProxyConfig with the proxy config...
				return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
			}

			Object retVal;

			/**
			 * 这个配置很重要很实用【暴露我们的代理对象到线程变量中】需要搭配@EnableAspectJAutoProxy(exposeProxy = true) 一起使用.
			 * 在本类中调用本类方法 用AopContext调用 可以走代理
			 * int retVal = ((Calculate) AopContext.currentProxy()).add(numA,numB);
			 */
			if (this.advised.exposeProxy) {
				// 把我们的代理对象暴露到线程变量中
				// Make invocation available if necessary.
				oldProxy = AopContext.setCurrentProxy(proxy);
				setProxyContext = true;
			}

			// Get as late as possible to minimize the time we "own" the target,
			// in case it comes from a pool.
			// 获取我们的目标对象
			target = targetSource.getTarget();
			Class<?> targetClass = (target != null ? target.getClass() : null);

			// 把我们的aop的advisor 全部转化为拦截器， 通过责任链模式 依此调用
			// Get the interception chain for this method.
			List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

			// Check whether we have any advice. If we don't, we can fallback on direct
			// reflective invocation of the target, and avoid creating a MethodInvocation.
			if (chain.isEmpty()) {
				// We can skip creating a MethodInvocation: just invoke the target directly
				// Note that the final invoker must be an InvokerInterceptor so we know it does
				// nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
				// 通过反射直接调用执行
				Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
				retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
			}
			else {
				// 创建一个方法调用对象
				// We need to create a method invocation...
				MethodInvocation invocation =
						new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
				// 调用执行
				// Proceed to the joinpoint through the interceptor chain.
				retVal = invocation.proceed();
			}

			// Massage return value if necessary.
			Class<?> returnType = method.getReturnType();
			if (retVal != null && retVal == target &&
					returnType != Object.class && returnType.isInstance(proxy) &&
					!RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
				// Special case: it returned "this" and the return type of the method
				// is type-compatible. Note that we can't help if the target sets
				// a reference to itself in another returned object.
				retVal = proxy;
			}
			else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
				throw new AopInvocationException(
						"Null return value from advice does not match primitive return type for: " + method);
			}
			return retVal;
		}
		finally {
			if (target != null && !targetSource.isStatic()) {
				// Must have come from TargetSource.
				targetSource.releaseTarget(target);
			}
			if (setProxyContext) {
				// Restore old proxy.
				AopContext.setCurrentProxy(oldProxy);
			}
		}
	}

调用顺序如下：

• <Around前置通知>
• <前置通知>
• 业务代码
• <返回通知>
• <后置通知>
• <Around后置通知>

为什么本类调用代理方法会代理失效

不考虑Spring框架情况下，使用JDK动态代理的话，那一定会失效的，因为JDK方式调用是用反射机制实现，所以只会把本类的方法当作普通方法去调。

若使用cglib动态代理去调本类的方法是可以调用到代理方法的，因为调用其他方法时候会去走FastClass路由出代理方法并执行。

但是在Spring的AOP环境下，无论哪种动态代理，在本类中调用其他方法，都是当作普通方法对待，这也就是为什么我们在Service层中不要嵌套调用事务方法的原因。

如果非要嵌套使用代理方法有办法么?有的

在配置类中，将代理对象暴露到当前线程中：@EnableAspectJAutoProxy(exposeProxy = true)

@Configuration
@EnableAspectJAutoProxy(exposeProxy = true)
@ComponentScan("com.pt")
public class MainConfig {

}

使用AopContext拿到代理对象

@Component
public class Calculate implements ICalculate {

	@Override
	public int add(int numA, int numB) {
		System.out.println("业务代码");
		// min(numA, numB);
		ICalculate proxy = (ICalculate) AopContext.currentProxy();
		proxy.min(numA, numB);
		return numA + numB;
	}

	@Override
	public int min(int numA, int numB) {
		System.out.println("减法");
		return numA - numB;
	}
}
