UKF 原理及仿真
UKF的优势
- EKF是线性卡尔曼滤波,会引入线性化误差
- EKF需要计算Jacobian矩阵,不易实现
UKF的问题
- 低维状态仿真效果超好,实际生产过程中的高维状态使用ukf非常不稳定
- 此方法在非线性程度小的时候,可以削弱非线性的影响。弱点是当非线性程度强的时候,协方差的更新容易出现负定矩阵的情况。
UKF原理

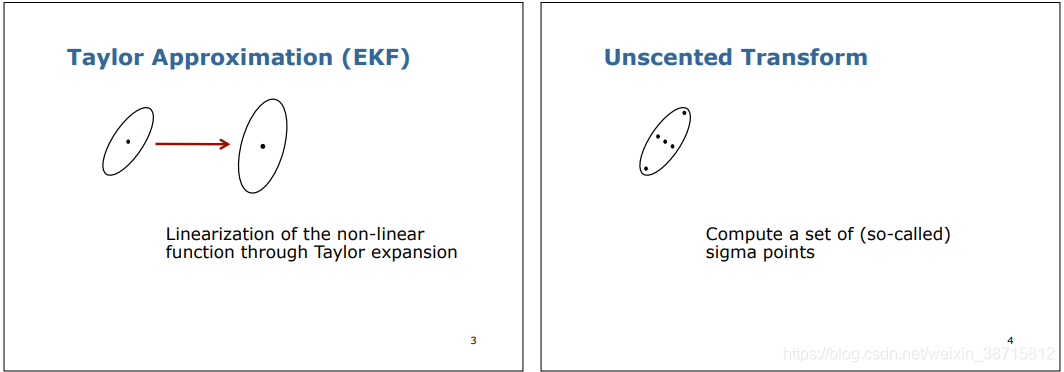

并不对非线性方程f和h在估计点处做线性化逼近,而是利用无迹变换在估计点附近确定采样点,用这些点的高斯密度来近似状态的概率密度函数
In general,
n
+
1
\bm{n+1}
n+1 sigma points are necessary and sufficient to define a discrete distribution having a given mean and covariance in
n
\bm{n}
n dimensions.

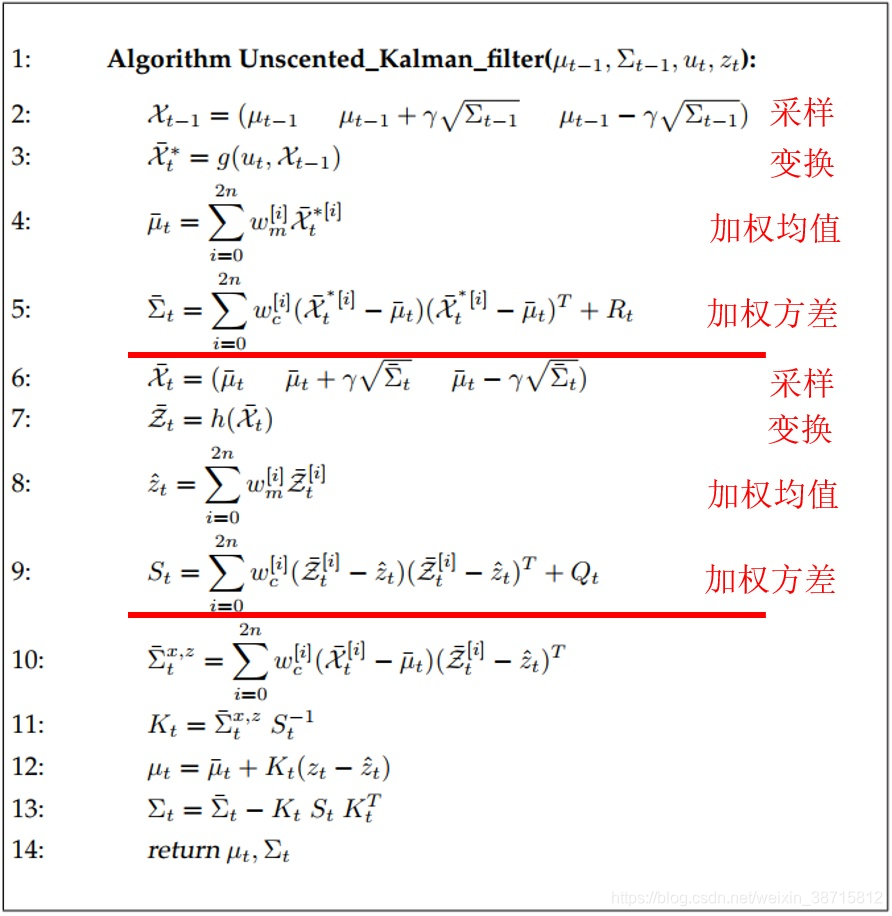

UKF 步骤
steps
- Compute a set of sigma points(这些点的均值和协方差等于原状态分布的均值和协方差)

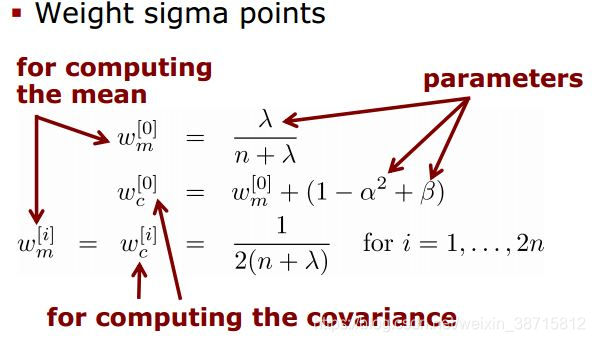

- Each sigma points has a weight
- Transform the point through the nonlinear function(状态方程)

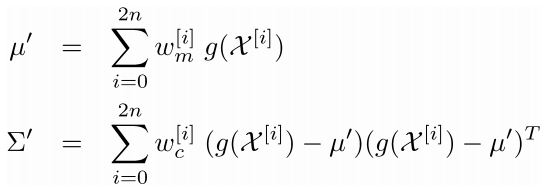

- Compute a Gaussian from weighted points
two problems
How to choose the sigma points?
A canonical set of sigma points is the symmetric set originally proposed by Uhlmann.

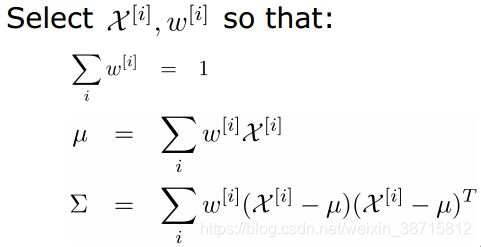

- 选择的sigma点满足以下式子:
- 第一个点选择均值,其余点根据另外两个式子选择:
