常用技能：http://www.cnblogs.com/dunitian/p/4822808.html#skill

逆天博客：http://dnt.dkil.net

逆天通用水印支持Winform，WPF，Web，WP，Win10。支持位置选择（9个位置 ==》[X]）：http://www.cnblogs.com/dunitian/p/4939369.html

本次添加了一些新东西，比如剪贴板之类的水印操作。完善了部分功能（比如文件过滤，非Bitmap图片的处理，以及一些其他玩意等待你的发现）

先贴下新增的效果：

单个图片水印

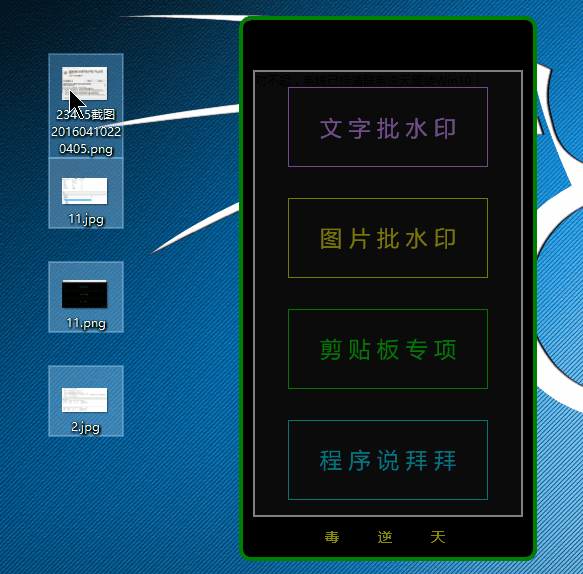

多文件直接水印

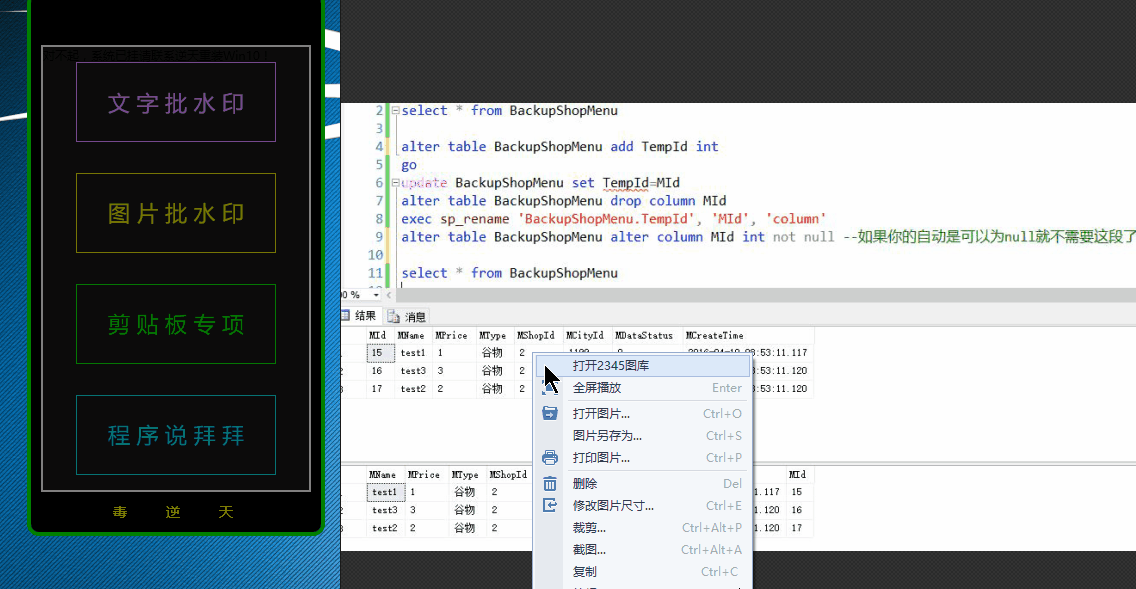

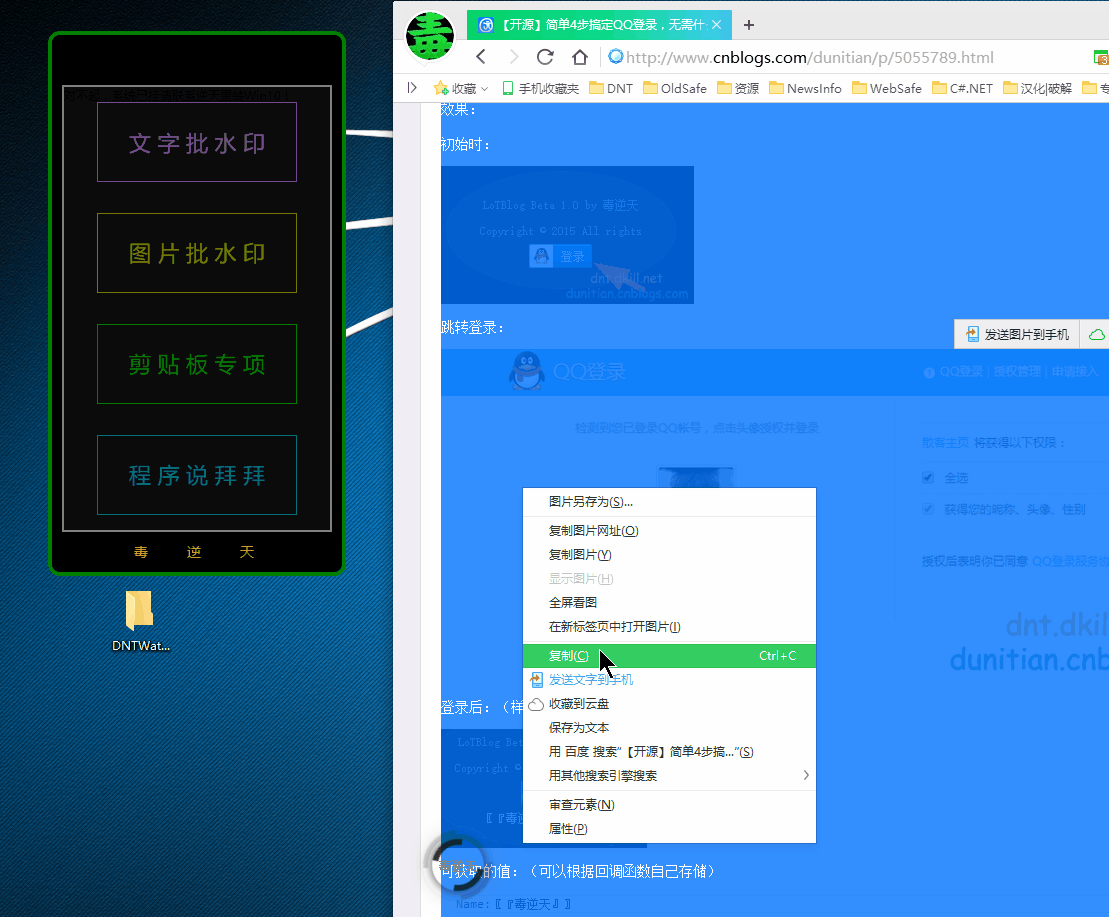

网页图片批量转

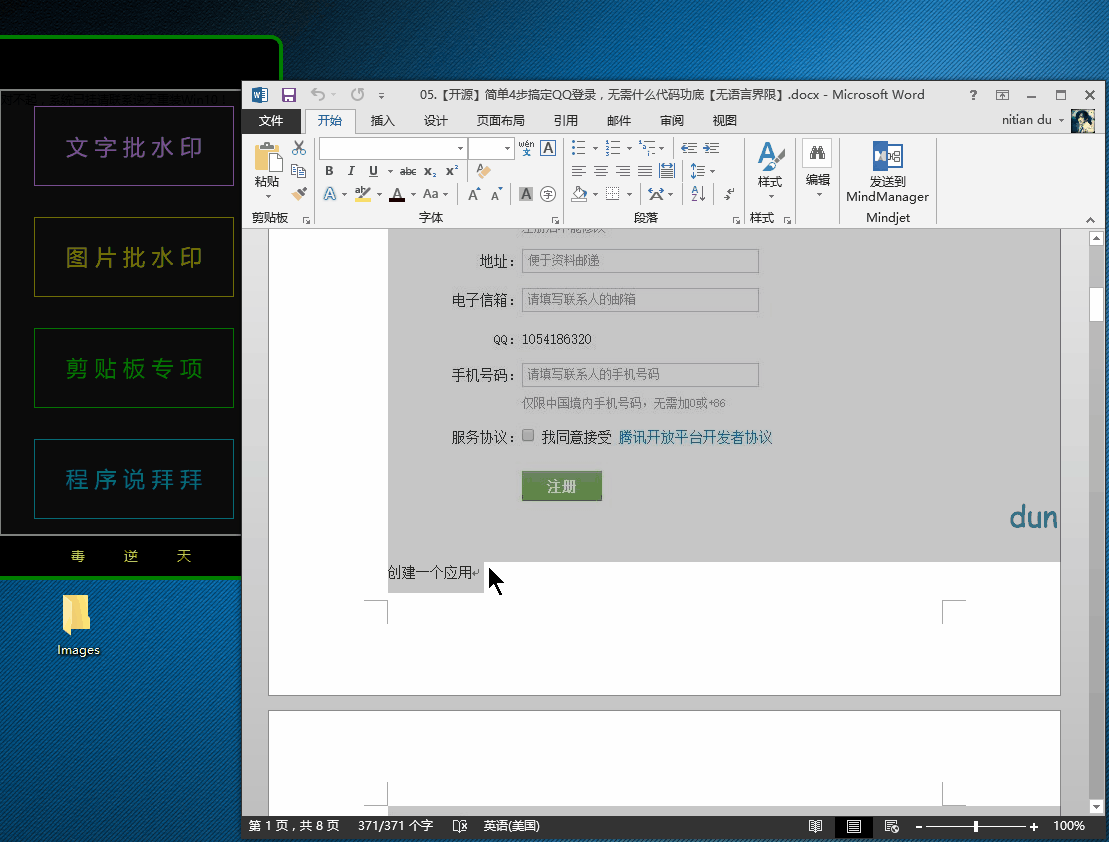

word文档图片批量转

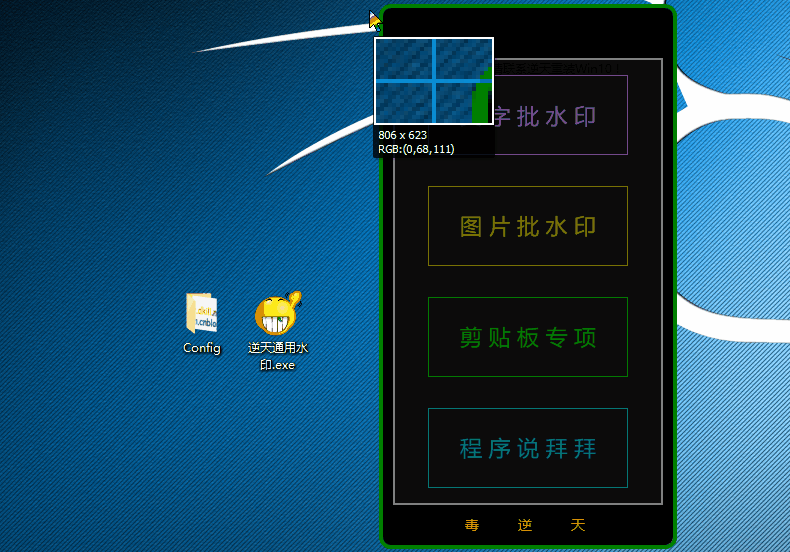

剪贴板图片水印

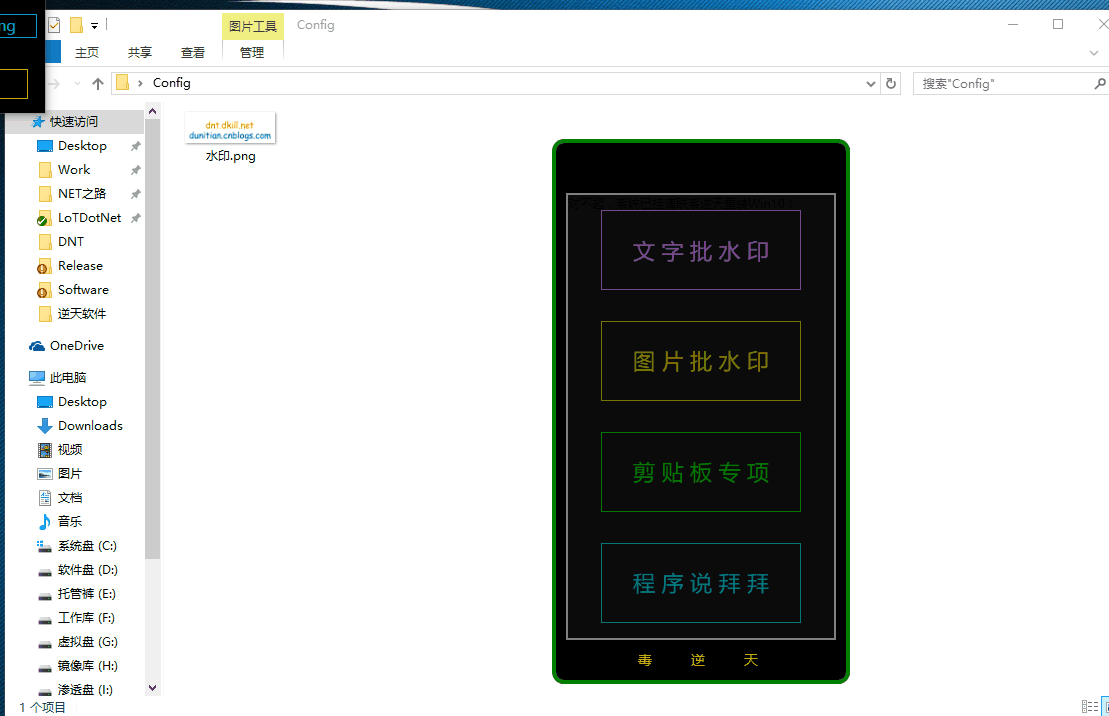

自动化配置

上篇重复的技术点我就不继续说了，这次主要贴一下剪贴板系列的code

using System;
using System.Collections.Generic;
using System.Drawing;
using System.Drawing.Imaging;
using System.IO;
using System.Net;
using System.Text;
using System.Text.RegularExpressions;
using System.Windows;

namespace WaterMarkAPP.Common
{
    public class ClipboardHelper
    {
        /// <summary>
        /// 获取剪贴板里的图片
        /// </summary>
        /// <returns></returns>
        public static IEnumerable<string> GetImagePathList()
        {
            var imgPathList = new List<string>();
            var data = Clipboard.GetDataObject();
            var formats = data.GetFormats();
            //二进制存储 (存储在剪贴板的截图|画画图内的图片)
            if (data.GetDataPresent(DataFormats.Dib, true))
            {
                var imgSorce = Clipboard.GetImage();
                Bitmap bmp = new Bitmap(imgSorce.PixelWidth, imgSorce.PixelHeight, PixelFormat.Format32bppPArgb);
                BitmapData bmpdata = bmp.LockBits(new Rectangle(System.Drawing.Point.Empty, bmp.Size), ImageLockMode.WriteOnly, PixelFormat.Format32bppPArgb);
                imgSorce.CopyPixels(Int32Rect.Empty, bmpdata.Scan0, bmpdata.Height * bmpdata.Stride, bmpdata.Stride);
                bmp.UnlockBits(bmpdata);
                CreateDirectory();
                string filePath = string.Format(@"Images\{0}.png", Guid.NewGuid());
                bmp.Save(filePath, ImageFormat.Png);
                imgPathList.Add(filePath);
            }
            //图片文件
            if (data.GetDataPresent(DataFormats.FileDrop, true))
            {
                string[] objs = (string[])data.GetData(DataFormats.FileDrop, true);
                if (objs != null)
                {
                    for (int i = 0; i < objs.Length; i++)
                    {
                        imgPathList.Add(objs[i]);
                    }
                }
            }
            //剪贴板内单文件
            if (data.GetDataPresent(DataFormats.Bitmap, true))
            {
                string filePath = SaveImg(data.GetData(DataFormats.Bitmap, true) as Bitmap);
                if (filePath != null) { imgPathList.Add(filePath); }
            }
            //HTML页面里面的图片（网页 + word）
            if (data.GetDataPresent(DataFormats.Html, true))
            {
                var obj = data.GetData(DataFormats.Html, true);
                if (obj != null)
                {
                    string dataStr = obj.ToString();
                    imgPathList.AddRange(DownloadImg(dataStr));
                }

            }
            return imgPathList;
        }

        /// <summary>
        /// 保存图片，返回图片地址
        /// </summary>
        /// <param name="bitmap"></param>
        /// <returns></returns>
        private static string SaveImg(Bitmap bitmap)
        {
            if (bitmap == null) { return null; }
            CreateDirectory();
            string filePath = string.Format(@"Images\{0}.png", Guid.NewGuid());
            try { bitmap.Save(filePath, ImageFormat.Png); return filePath; }
            catch (Exception ex) { DNTLog(ex); return null; }
        }

        /// <summary>
        /// 批量下载图片
        /// </summary>
        /// <param name="dataStr">页面字符串</param>
        /// <param name="i">成功条数</param>
        /// <returns></returns>
        private static IEnumerable<string> DownloadImg(string dataStr)
        {
            var imgPathList = new List<string>();
            var collection = Regex.Matches(dataStr, @"<img([^>]*)\s*src=('|\"")([^'\""]+)('|\"")", RegexOptions.ECMAScript);
            WebClient webClient = new WebClient();
            foreach (Match item in collection)
            {
                string imgPath = item.Groups[3].Value;
                try
                {
                    CreateDirectory();
                    string filePath = string.Format(@"Images\{0}", Path.GetFileName(imgPath));
                    webClient.DownloadFile(item.Groups[3].Value, filePath);//剪贴板的图片没有相对路径
                    imgPathList.Add(string.Format(@"{0}\{1}", Directory.GetCurrentDirectory(), filePath));
                }
                catch (Exception ex) { DNTLog(ex); }
            }
            return imgPathList;
        }

        private static void DNTLog(Exception ex)
        {
            File.WriteAllText("log.dnt", ex.ToString(), Encoding.UTF8);
        }

        /// <summary>
        /// 创建文件夹
        /// </summary>
        private static void CreateDirectory()
        {
            if (!Directory.Exists("Images"))
            {
                Directory.CreateDirectory("Images");
            }
        }
    }
}

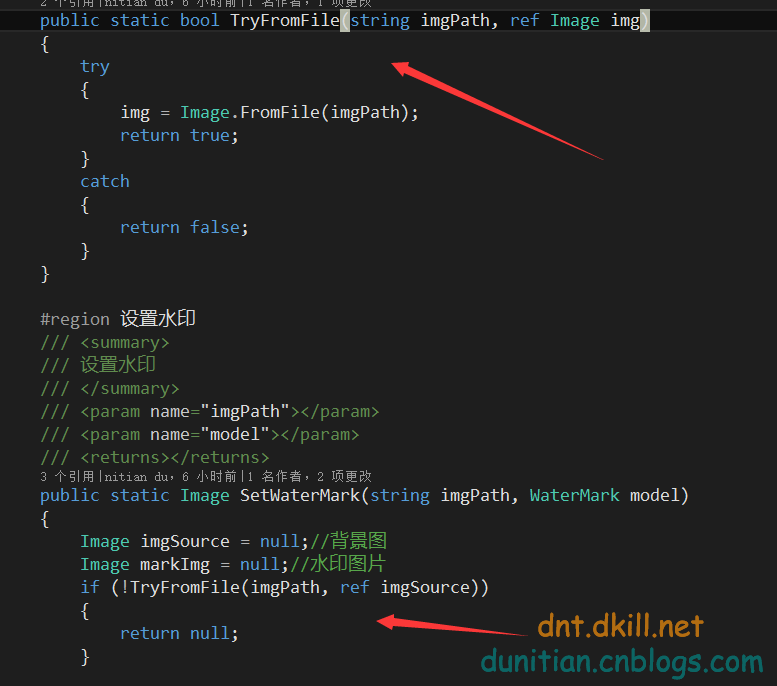

水印帮助类注意点

using System.Drawing;
using System.Drawing.Drawing2D;
using System.Drawing.Imaging;
using System.Text;
using WaterMarkAPP.Enums;
using WaterMarkAPP.Model;

namespace WaterMarkAPP.Common
{

    /// <summary>
    /// 水印帮助类
    /// </summary>
    public class WaterMarkHelper
    {
        public static bool TryFromFile(string imgPath, ref Image img)
        {
            try
            {
                img = Image.FromFile(imgPath);
                return true;
            }
            catch
            {
                return false;
            }
        }

        #region 设置水印
        /// <summary>
        /// 设置水印
        /// </summary>
        /// <param name="imgPath"></param>
        /// <param name="model"></param>
        /// <returns></returns>
        public static Image SetWaterMark(string imgPath, WaterMark model)
        {
            Image imgSource = null;//背景图
            Image markImg = null;//水印图片
            if (!TryFromFile(imgPath, ref imgSource))
            {
                return null;
            }

            //水印检验（文字，图片[路径下是否存在图片]）
            #region 水印校验+水印处理
            if (model == null) { return null; }
            if (!System.IO.File.Exists(imgPath)) { return null; }//看看原图是否存在
            //根据水印类型校验+水印处理
            switch (model.WaterMarkType)
            {
                case WaterMarkTypeEnum.Text:
                    if (string.IsNullOrEmpty(model.Text))
                    {
                        return null;
                    }
                    else
                    {
                        markImg = TextToImager(model);//水印处理-如果是文字就转换成图片
                    }
                    break;
                case WaterMarkTypeEnum.Image:
                    if (!System.IO.File.Exists(model.ImgPath))
                    {
                        return null;
                    }
                    else
                    {
                        if (!TryFromFile(model.ImgPath, ref markImg))//获得水印图像
                        {
                            return imgSource;
                        }
                    }
                    break;
                case WaterMarkTypeEnum.NoneMark:
                    return imgSource;
            }
            #endregion

            #region 创建颜色矩阵
            //创建颜色矩阵
            float[][] ptsArray ={
                                 new float[] {1, 0, 0, 0, 0},
                                 new float[] {0, 1, 0, 0, 0},
                                 new float[] {0, 0, 1, 0, 0},
                                 new float[] {0, 0, 0, model.Transparency, 0}, //注意：0.0f为完全透明，1.0f为完全不透明
                                 new float[] {0, 0, 0, 0, 1}};
            ColorMatrix colorMatrix = new ColorMatrix(ptsArray);
            //新建一个Image属性
            ImageAttributes imageAttributes = new ImageAttributes();
            //将颜色矩阵添加到属性
            imageAttributes.SetColorMatrix(colorMatrix, ColorMatrixFlag.Default, ColorAdjustType.Default);
            #endregion

            //原图格式检验+水印
            #region 原图格式检验+水印
            //判断是否是索引图像格式
            if (imgSource.PixelFormat == PixelFormat.Format1bppIndexed || imgSource.PixelFormat == PixelFormat.Format4bppIndexed || imgSource.PixelFormat == PixelFormat.Format8bppIndexed)
            {
                #region 索引图片,转成位图再加图片
                //转成位图,这步很重要
                Bitmap bitmap = new Bitmap(imgSource.Width, imgSource.Height);
                Graphics graphic = Graphics.FromImage(bitmap);

                #region 缩放处理
                //如果原图小于水印图片 等比缩放水印图
                if (markImg.Width >= imgSource.Width || markImg.Height >= imgSource.Height)
                {
                    markImg = ImageShrink(imgSource, markImg);
                }
                #endregion

                #region 水印位置
                //水印位置
                int x;
                int y;
                WaterMarkLocations(model, imgSource, markImg, out x, out y);
                #endregion

                //将原图画在位图上
                graphic.DrawImage(imgSource, new Point(0, 0));

                //将水印加在位图上
                graphic.DrawImage(markImg, new Rectangle(x, y, markImg.Width, markImg.Height), 0, 0, markImg.Width, markImg.Height, GraphicsUnit.Pixel, imageAttributes);

                graphic.Dispose();
                return bitmap;
                #endregion
            }
            else
            {
                #region 非索引图片,直接在上面加上水印
                Graphics graphic = Graphics.FromImage(imgSource);

                #region 缩放处理
                //如果原图小于水印图片 等比缩放水印图
                if (markImg.Width >= imgSource.Width || markImg.Height >= imgSource.Height)
                {
                    markImg = ImageShrink(imgSource, markImg);
                }
                #endregion

                #region 水印位置
                //水印位置
                int x;
                int y;
                WaterMarkLocations(model, imgSource, markImg, out x, out y);
                #endregion

                //将水印加在原图上
                graphic.DrawImage(markImg, new Rectangle(x, y, markImg.Width, markImg.Height), 0, 0, markImg.Width, markImg.Height, GraphicsUnit.Pixel, imageAttributes);

                graphic.Dispose();
                return imgSource;
                #endregion
            }
            #endregion
        }
        #endregion

        #region 水印处理-文字转图片
        /// <summary>
        /// 水印处理-文字转图片
        /// </summary>
        /// <param name="model"></param>
        /// <returns></returns>
        private static Image TextToImager(WaterMark model)
        {
            Font f = new Font(model.FontFamily, model.FontSize, model.FontStyle);
            Bitmap fbitmap = new Bitmap(Encoding.GetEncoding("GBK").GetByteCount(model.Text) / 2 * f.Height, f.Height);
            Graphics gh = Graphics.FromImage(fbitmap);//创建一个画板;
            gh.SmoothingMode = SmoothingMode.AntiAlias;
            gh.DrawString(model.Text, f, model.BrushesColor, 0, 0);//画字符串
            return fbitmap as Image;
        }
        #endregion

        #region 水印位置
        /// <summary>
        /// 水印位置
        /// </summary>
        /// <param name="model"></param>
        /// <param name="imgSource"></param>
        /// <param name="markImg"></param>
        /// <param name="x"></param>
        /// <param name="y"></param>
        private static void WaterMarkLocations(WaterMark model, Image imgSource, Image markImg, out int x, out int y)
        {
            x = 0;
            y = 0;
            switch (model.WaterMarkLocation)
            {
                case WaterMarkLocationEnum.TopLeft:
                    x = 0;
                    y = 0;
                    break;
                case WaterMarkLocationEnum.TopCenter:
                    x = imgSource.Width / 2 - markImg.Width / 2;
                    y = 0;
                    break;
                case WaterMarkLocationEnum.TopRight:
                    x = imgSource.Width - markImg.Width;
                    y = 0;
                    break;
                case WaterMarkLocationEnum.CenterLeft:
                    x = 0;
                    y = imgSource.Height / 2 - markImg.Height / 2;
                    break;
                case WaterMarkLocationEnum.CenterCenter:
                    x = imgSource.Width / 2 - markImg.Width / 2;
                    y = imgSource.Height / 2 - markImg.Height / 2;
                    break;
                case WaterMarkLocationEnum.CenterRight:
                    x = imgSource.Width - markImg.Width;
                    y = imgSource.Height / 2 - markImg.Height / 2;
                    break;
                case WaterMarkLocationEnum.BottomLeft:
                    x = 0;
                    y = imgSource.Height - markImg.Height;
                    break;
                case WaterMarkLocationEnum.BottomCenter:
                    x = imgSource.Width / 2 - markImg.Width / 2;
                    y = imgSource.Height - markImg.Height;
                    break;
                case WaterMarkLocationEnum.BottomRight:
                    x = imgSource.Width - markImg.Width;
                    y = imgSource.Height - markImg.Height;
                    break;
            }
        }
        #endregion

        #region 缩放水印
        /// <summary>
        /// 等比缩放水印图（缩小到原图的1/3）
        /// </summary>
        /// <param name="imgSource"></param>
        /// <param name="successImage"></param>
        /// <returns></returns>
        private static Image ImageShrink(Image imgSource, Image markImg)
        {
            int w = 0;
            int h = 0;

            Image.GetThumbnailImageAbort callb = null;

            //对水印图片生成缩略图,缩小到原图的1/3(以短的一边为准)
            if (imgSource.Width < imgSource.Height)
            {
                w = imgSource.Width / 3;
                h = markImg.Height * w / markImg.Width;
            }
            else
            {
                h = imgSource.Height / 3;
                w = markImg.Width * h / markImg.Height;
            }
            markImg = markImg.GetThumbnailImage(w, h, callb, new System.IntPtr());
            return markImg;
        }
        #endregion
    }
}



源码参考：https://github.com/dunitian/DNTLive/tree/master/Software/WaterMarkAPP
