本文介绍了一种IPv6 Overlay Tunnel的配置方法，并通过实验验证了其有效性。配置包括基础IPv6路由设置及Tunnel的创建过程。然而，该方案在面对多个IPv6网络互访时存在局限性。

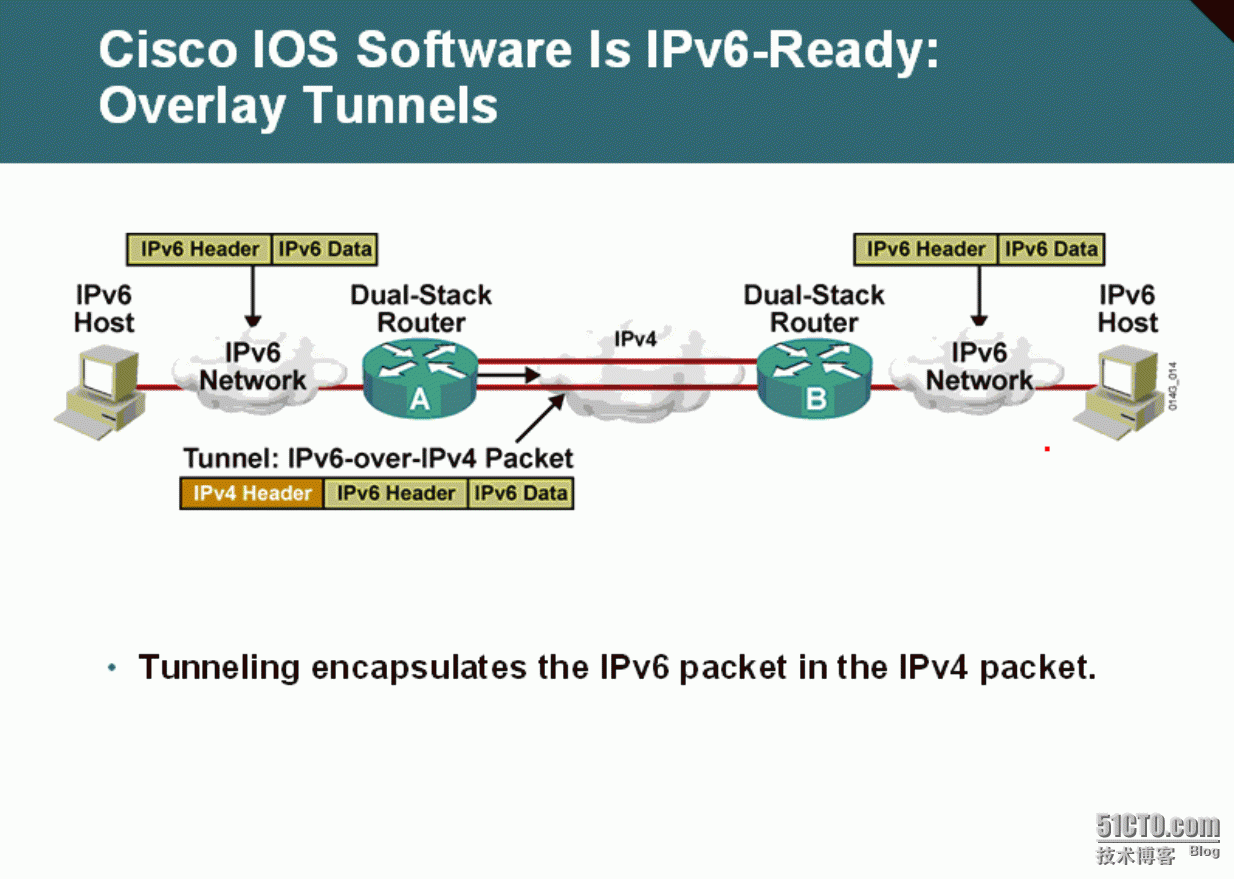

1、Overlay Tunnel解析

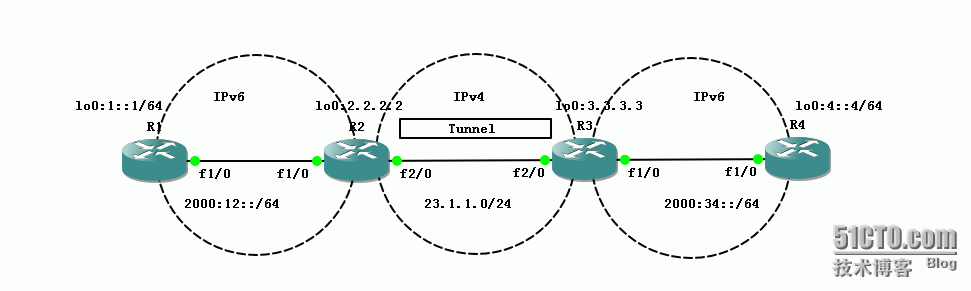

2、实验拓扑
3、基础配置
R1配置
ipv6 unicast-routing
interface Loopback0
ipv6 address 1::1/64
interface FastEthernet1/0
ipv6 address 2000:12::1/64
R2配置
ipv6 unicast-routing
interface Loopback0
ip address 2.2.2.2 255.255.255.0
interface FastEthernet2/0
ip address 23.1.1.2 255.255.255.0
ip route 3.3.3.0 255.255.255.0 23.1.1.3
R3配置
ipv6 unicast-routing
interface Loopback0
ip address 3.3.3.3 255.255.255.0
interface FastEthernet2/0
ip address 23.1.1.3 255.255.255.0
ip route 2.2.2.0 255.255.255.0 23.1.1.2
R4配置
ipv6 unicast-routing
interface Loopback0
ipv6 address 4::4/64
interface FastEthernet1/0
ipv6 address 2000:34::4/64
4、配置Overlay Tunnel
R1配置
interface Loopback0
ipv6 ospf 110 area 0
interface FastEthernet1/0
ipv6 ospf 110 area 0
ipv6 router ospf 110
router-id 1.1.1.1
R2配置
interface Tunnel2
ipv6 enable
ipv6 ospf 110 area 0
tunnel source 2.2.2.2
tunnel destination 3.3.3.3
tunnel mode ipv6ip
interface FastEthernet1/0
ipv6 ospf 110 area 0
ipv6 router ospf 110
router-id 2.2.2.2
R3配置
interface Tunnel3
ipv6 enable
ipv6 ospf 110 area 0
tunnel source 3.3.3.3
tunnel destination 2.2.2.2
tunnel mode ipv6ip
interface FastEthernet1/0
ipv6 ospf 110 area 0
ipv6 router ospf 110
router-id 3.3.3.3
R4配置
interface Loopback0
ipv6 ospf 110 area 0
interface FastEthernet1/0
ipv6 ospf 110 area 0
ipv6 router ospf 110
router-id 4.4.4.4

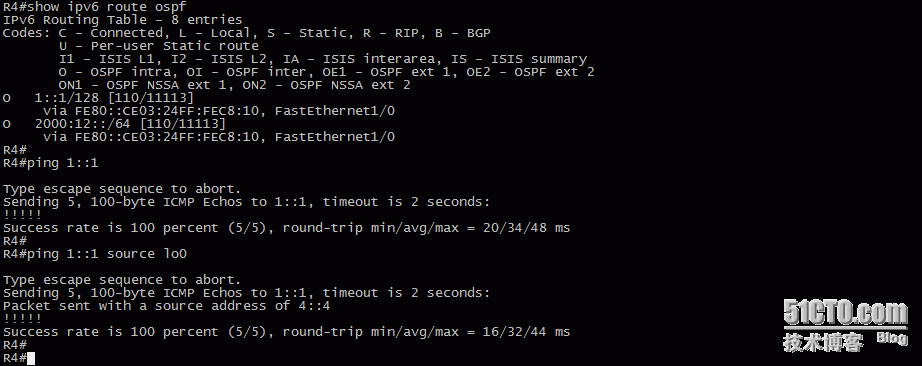

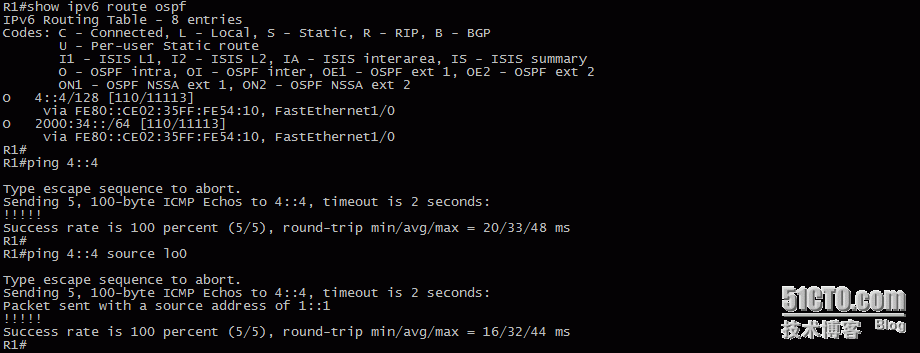

5、实验测试
此时方法的不足之处在于，当有多个IPv6网络需要互访是，我们需要两两之间都建立Tunnel，工作量将非常大。
本文转自开源殿堂 51CTO博客，原文链接：http://blog.51cto.com/kaiyuandiantang/1727061，如需转载请自行联系原作者
