VGA的verilog驱动

本文详细介绍了 VGA 控制器的工作原理,包括行同步信号、帧同步信号、数据有效信号的定义,以及如何使用 Verilog 语言实现一个控制 VGA 显示设备的控制器。控制器通过控制水平和垂直参数来生成正确的显示信号,确保了显示器能够正确显示图像。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

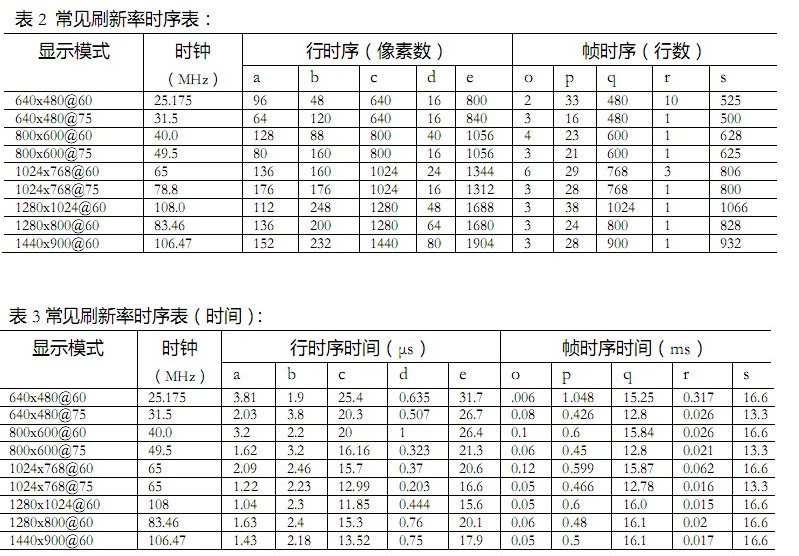

行同步信号:a时=0其他时候为1

帧同步信号:o时=0其他时候为1

数据有效:只有处于,c与q时数据有效

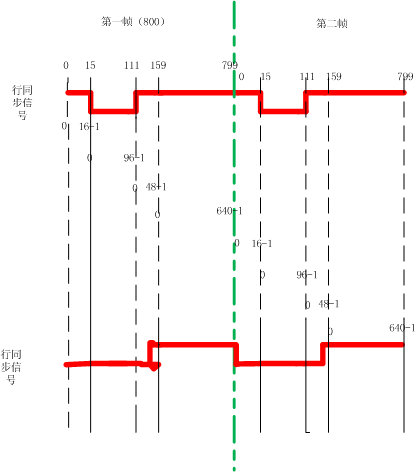

verilog:计数的时序图:行计数为0---799共800个像素点其中只有640个有效像素点,其余为消隐



erilog:参考程序(DE2-115)

module VGA_Ctrl ( // Host Side
iRed,
iGreen,
iBlue,
oCurrent_X,
oCurrent_Y,
oAddress,
oRequest,
// VGA Side
oVGA_R,
oVGA_G,
oVGA_B,
oVGA_HS,
oVGA_VS,
oVGA_SYNC,
oVGA_BLANK,
oVGA_CLOCK,
// Control Signal
iCLK,
iRST_N );
// Host Side
input [9:0] iRed;
input [9:0] iGreen;
input [9:0] iBlue;
output [21:0] oAddress;
output [10:0] oCurrent_X;
output [10:0] oCurrent_Y;
output oRequest;
// VGA Side
output [9:0] oVGA_R;
output [9:0] oVGA_G;
output [9:0] oVGA_B;
output reg oVGA_HS;
output reg oVGA_VS;
output oVGA_SYNC;
output oVGA_BLANK;
output oVGA_CLOCK;
// Control Signal
input iCLK;
input iRST_N;
// Internal Registers
reg [10:0] H_Cont;xv
reg [10:0] V_Cont;
////////////////////////////////////////////////////////////
// Horizontal Parameter
parameter H_FRONT = 16;
parameter H_SYNC = 96;
parameter H_BACK = 48;
parameter H_ACT = 640;
parameter H_BLANK = H_FRONT+H_SYNC+H_BACK;
parameter H_TOTAL = H_FRONT+H_SYNC+H_BACK+H_ACT;
////////////////////////////////////////////////////////////
// Vertical Parameter
parameter V_FRONT = 11;
parameter V_SYNC = 2;
parameter V_BACK = 31;
parameter V_ACT = 480;
parameter V_BLANK = V_FRONT+V_SYNC+V_BACK;
parameter V_TOTAL = V_FRONT+V_SYNC+V_BACK+V_ACT;
////////////////////////////////////////////////////////////
assign oVGA_SYNC = 1'b1; // This pin is unused.
assign oVGA_BLANK = ~((H_Cont<H_BLANK)||(V_Cont<V_BLANK));
assign oVGA_CLOCK = ~iCLK;
assign oVGA_R = iRed;
assign oVGA_G = iGreen;
assign oVGA_B = iBlue;
assign oAddress = oCurrent_Y*H_ACT+oCurrent_X;
assign oRequest = ((H_Cont>=H_BLANK && H_Cont<H_TOTAL) &&
(V_Cont>=V_BLANK && V_Cont<V_TOTAL));
assign oCurrent_X = (H_Cont>=H_BLANK) ? H_Cont-H_BLANK : 11'h0 ;
assign oCurrent_Y = (V_Cont>=V_BLANK) ? V_Cont-V_BLANK : 11'h0 ;

// Horizontal Generator: Refer to the pixel clock
always@(posedge iCLK or negedge iRST_N)
begin
if(!iRST_N)
begin
H_Cont <= 0;
oVGA_HS <= 1;
end
else
begin
if(H_Cont<H_TOTAL)
H_Cont <= H_Cont+1'b1;
else
H_Cont <= 0;
// Horizontal Sync
if(H_Cont==H_FRONT-1) // Front porch end
oVGA_HS <= 1'b0;
if(H_Cont==H_FRONT+H_SYNC-1) // Sync pulse end
oVGA_HS <= 1'b1;
end
end
//|--------|
//____|-------------
// Vertical Generator: Refer to the horizontal sync
always@(posedge oVGA_HS or negedge iRST_N)
begin
if(!iRST_N)
begin
V_Cont <= 0;
oVGA_VS <= 1;
end
else
begin
if(V_Cont<V_TOTAL)
V_Cont <= V_Cont+1'b1;
else
V_Cont <= 0;
// Vertical Sync
if(V_Cont==V_FRONT-1) // Front porch end
oVGA_VS <= 1'b0;
if(V_Cont==V_FRONT+V_SYNC-1) // Sync pulse end
oVGA_VS <= 1'b1;
end
end

endmodule

转载于:https://www.cnblogs.com/TFH-FPGA/archive/2012/11/15/2771639.html
