【2014-11-23】Heterogeneous Parallel Programming – Section 1

1. Latency devices(CPU cores)
2. Throughput devices(GPU cores)

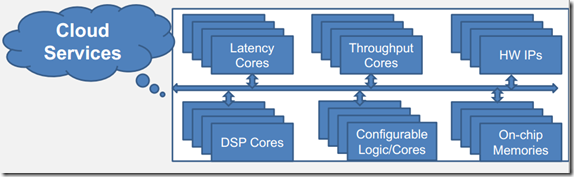

3. Use the best match for the job (heterogeneity in mobile SOC
4.

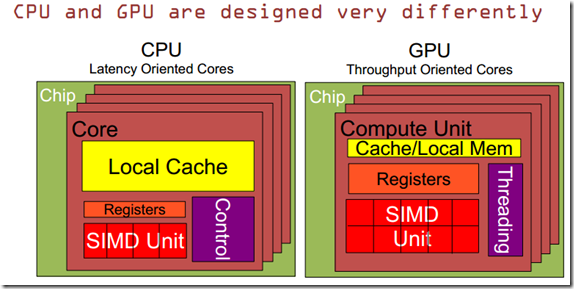

5.
6. CPU: Latency Oriented Design

• Powerful ALU
  • Reduced operation latency
• Large caches
  • convert long latency memory accesses to short latency cache accesses
• Sophisticated control
  • Branch prediciton for reduced branch latency
  • Data forwarding for reduced data latency

GPU: Throughput Oriented Design

• Small caches
  • To boost memory throughput
• Simple control
  • No branch prediction
  • No data forwarding
• Energy efficient ALUs
  • Many long latency but heavily pipelined for high throughput

Scalability

•

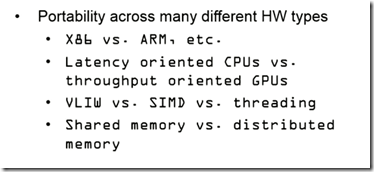

Portability

•

SPMD – Single Program, Multiple Data Threads within a block cooperate via shared memory, atomic operation, barrier synchronization
