组件与继承映射

1.组件：component(一个表)

（1）

public class Student
{
    private String id;
    private String name;
    private Address address;

public class Address
{
    private String homeAddress;
    private String schoolAddress;

<hibernate-mapping >
        <class name="com.liule.hibernate.Student" table="student">
            <id name="id" column="id" type="string" >
                <generator class="uuid"></generator> <!--  主键生成方式 -->
            </id>

            <property name="name"  type="string">
                <column name="name" length="50"></column>
            </property>

            <component name="address" class="com.liule.hibernate.Address">
                <property name="homeAddress" type="string"></property>
                <property name="schoolAddress" type="string"></property>
            </component>
        </class>
</hibernate-mapping>

插入信息：

public static void main(String[] args)
    {
        Student student1 = new Student();

        student1.setName("sad");

        Address ad = new Address();
        ad.setHomeAddress("shanghai");
        ad.setSchoolAddress("guangzhou");

        student1.setAddress(ad);


        Session session = sf.openSession();
        Transaction tx = null;
        try
        {

（2）集合类型的组件，本质上于one-to-many相同（不推荐使用）

public class Contact
{
    private String student_id; //新增加的
    private String method;
    private String address;


public class Student
{
    private String id;
    private String name;

    private Set contacts = new HashSet();

<hibernate-mapping>
    <class name="com.liule.hibernate.Student" table="Student">
        <id name="id" column="id" type="string">
            <generator class="uuid"></generator> <!-- 生成32位的字符串 -->
        </id>
        <property name="name" column="name" type="string"></property>

        <set name="contacts" table="contacts">
            <key column="student_id"></key>
            <composite-element class="com.liule.hibernate.Contact">  <!-- class为组合元素的类的类型 -->
                <property name="address" type="string"></property>
                <property name="method" type="string"></property>
            </composite-element>
        </set>

    </class>
</hibernate-mapping>

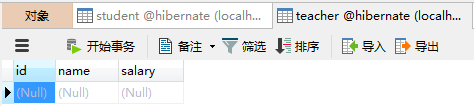

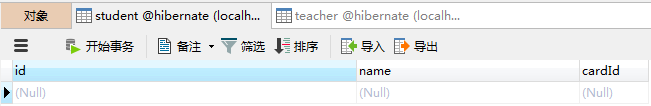

生成的表：

2.继承映射（三种方式）

（1）每个子类一张表

public class Person
{
    private String id;
    private String name;

public class Student extends Person
{
    private String cardId;

public class Teacher
{
    private String salary;

<hibernate-mapping>
    <class name="com.liule.hibernate.Student" table="Student">
        <id name="id" column="id" type="string">
            <generator class="uuid"></generator> <!-- 生成32位的字符串 -->
        </id>
        <property name="name" column="name" type="string"></property><!-- 通过get、set方法获得父类的属性 -->


        <property name="cardId" column="cardId"   type="string"></property>



    </class>
</hibernate-mapping>

<hibernate-mapping>
    <class name="com.liule.hibernate.Teacher" table="Teacher">
        <id name="id" column="id" type="string">
            <generator class="uuid"></generator> <!-- 生成32位的字符串 -->
        </id>
        <property name="name" column="name" type="string"></property><!-- 通过get、set方法获得父类的属性 -->


                <property name="salary" column="salary"   type="string"></property>



    </class>
</hibernate-mapping

数据的查询：

public static void main(String[] args)
    {
        Session session = sf.openSession();
        Transaction ts = null;
        try
        {
            Query query = session.createQuery("from com.liule.hibernate.Person");//多态查询，会将Person内的子类的记录都查询出来.
            //若父类没有hbm文件，必须填写完整的包名

            java.util.Iterator it =query.iterate();
            while(it.hasNext())
            {
                Person person = (Person)it.next();
                System.out.println(person.getName());
            }



            ts = session.beginTransaction();
            ts.commit();
        }
        catch(Exception ex)
        {

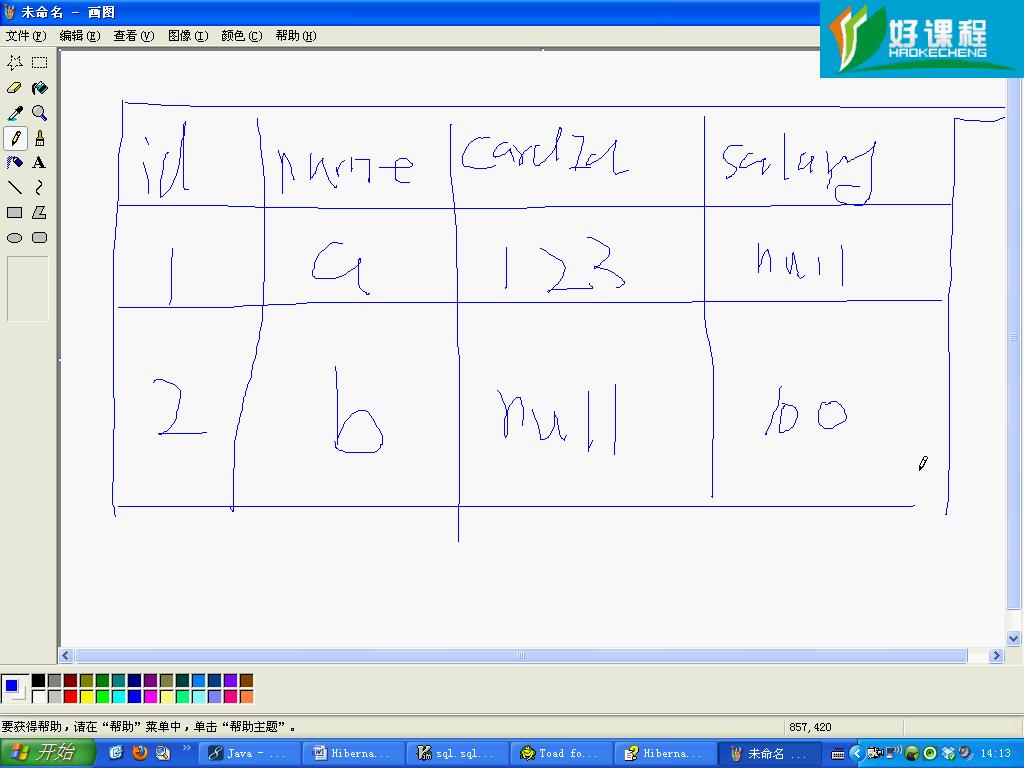

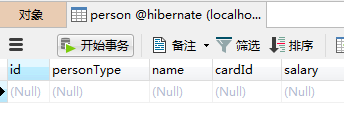

（2）一张表存储继承体系中所有类的信息（数据库表实际上是继承体系中所有类的属性的并集所构成的字段。）（一张表对应一个hbm文件）



public class Person
{
    private String id;
    private String name;

public class Teacher extends Person
{
    private String salary;

public class Student extends Person
{
    private String cardId;

<hibernate-mapping>
    <class name="com.liule.hibernate.Person" table="person">
        <id name="id" column="id" type="string">
            <generator class="uuid"></generator> <!-- 生成32位的字符串 -->
        </id>
        <!-- 用于区分student、teacher的列 -->
        <discriminator column="personType"  type="string" ></discriminator>

        <property name="name" column="name" type="string"></property><!-- 通过get、set方法获得父类的属性 -->



        <subclass name="com.liule.hibernate.Student" discriminator-value="student">
            <property name="cardId"  type="string"></property>
        </subclass>
        <subclass name="com.liule.hibernate.Teacher" discriminator-value="teacher">
            <property name="salary"  type="string"></property>
        </subclass>

    </class>
</hibernate-mapping>

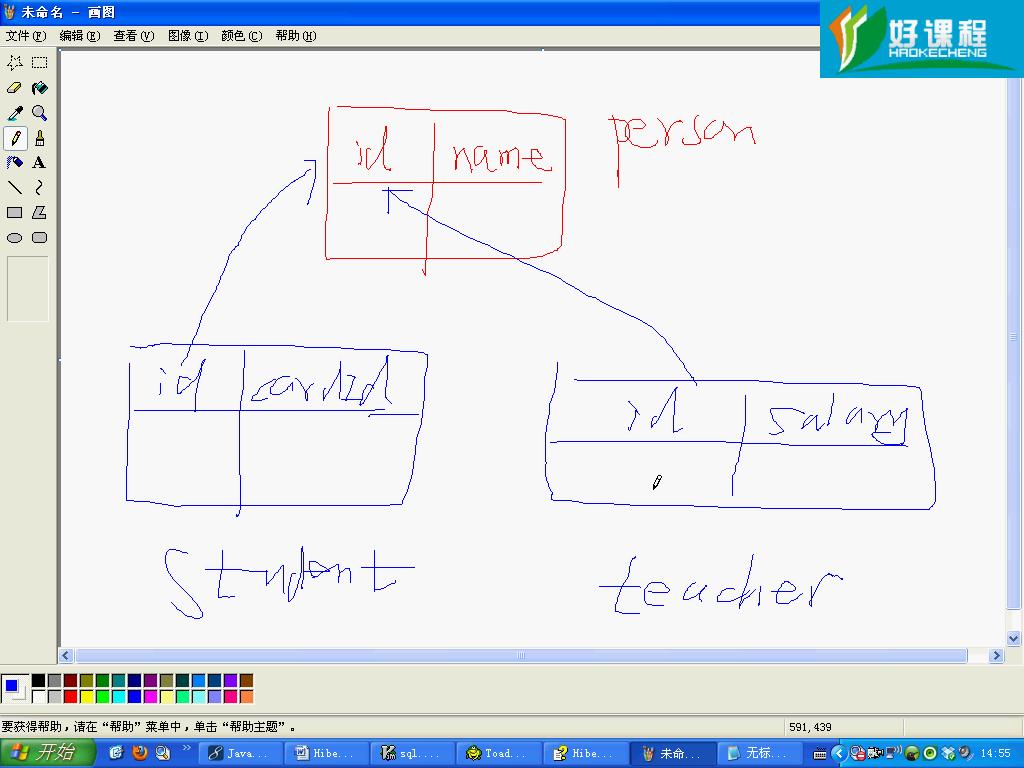

（3）公共信息放在父类表中，独有信息放在子类，每个子类对应一张表

<hibernate-mapping>
    <class name="com.liule.hibernate.Person" table="person">
        <id name="id" column="id" type="string">
            <generator class="uuid"></generator> <!-- 生成32位的字符串 -->
        </id>
        <!-- 用于区分student、teacher的列 -->


        <property name="name" column="name" type="string"></property><!-- 通过get、set方法获得父类的属性 -->



        <joined-subclass name="com.liule.hibernate.Student" table="student">
            <key column="id"></key>
            <property name="cardId" type="string"></property>
        </joined-subclass>

        <joined-subclass name="com.liule.hibernate.Teacher" table="teacher">
            <key column="id"></key>
            <property name="salary" type="string"></property>
        </joined-subclass>

    </class>
</hibernate-mapping>
