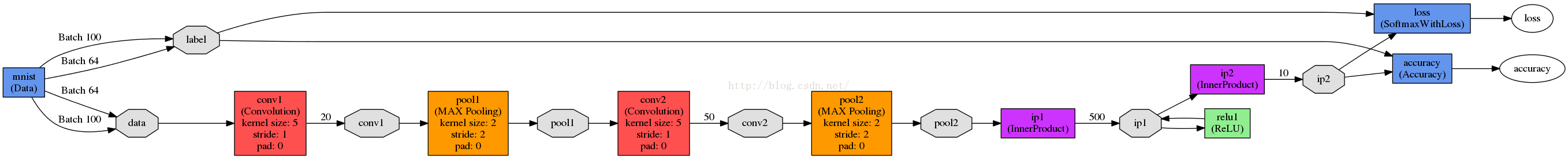

ubuntu 绘制lenet网络结构图遇到的问题汇总

最新推荐文章于 2025-08-23 20:28:56 发布

转载最新推荐文章于 2025-08-23 20:28:56 发布 · 112 阅读

0 ·

CC 4.0 BY-SA版权

原文链接：http://www.cnblogs.com/is-Tina/p/7694298.html

文章标签：

#python #人工智能

本文详细介绍了如何解决Python中pydot模块的导入问题，并通过安装特定版本的pyparsing及pydot来确保能够正常加载dot文件，最终实现使用Caffe绘制神经网络结构图。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

Couldn't import dot_parser, loading of dot files will not be possible的问题

1 .sudo pip uninstall pyparsing

2. sudo pip install -Iv https://pypi.python.org/packages/source/p/pyparsing/pyparsing-1.5.7.tar.gz#md5=9be0fcdcc595199c646ab317c1d9a709

    writing dependency_links to pyparsing.egg-info/dependency_links.txt
    writing manifest file 'pyparsing.egg-info/SOURCES.txt'
    reading manifest file 'pyparsing.egg-info/SOURCES.txt'
    writing manifest file 'pyparsing.egg-info/SOURCES.txt'
    Copying pyparsing.egg-info to /usr/local/lib/python2.7/dist-packages/pyparsing-1.5.7-py2.7.egg-info
    running install_scripts
    writing list of installed files to '/tmp/pip-58Jx3A-record/install-record.txt'
done
  Removing source in /tmp/pip-I3FlLc-build
Successfully installed pyparsing-1.5.7
Cleaning up...

3. sudo pip install pydot

The directory '/home/tina/.cache/pip/http' or its parent directory is not owned by the current user and the cache has been disabled. Please check the permissions and owner of that directory. If executing pip with sudo, you may want sudo's -H flag.
The directory '/home/tina/.cache/pip' or its parent directory is not owned by the current user and caching wheels has been disabled. check the permissions and owner of that directory. If executing pip with sudo, you may want sudo's -H flag.
Requirement already satisfied: pydot in /usr/lib/python2.7/dist-packages
