基于snat和dnat的跳板机安全架构服务

本文详细描述了在CentOS7.9环境中配置iptables、TCPWrappers和SSH,实现地址转换和安全性服务的过程,包括SNAT和DNAT策略设置、防火墙规则、ssh服务调整及验证连接流程。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

实验环境: centos 7.9 iptables tcpwrappers ssh

实验目的: 深入领会地址转换以及安全性服务

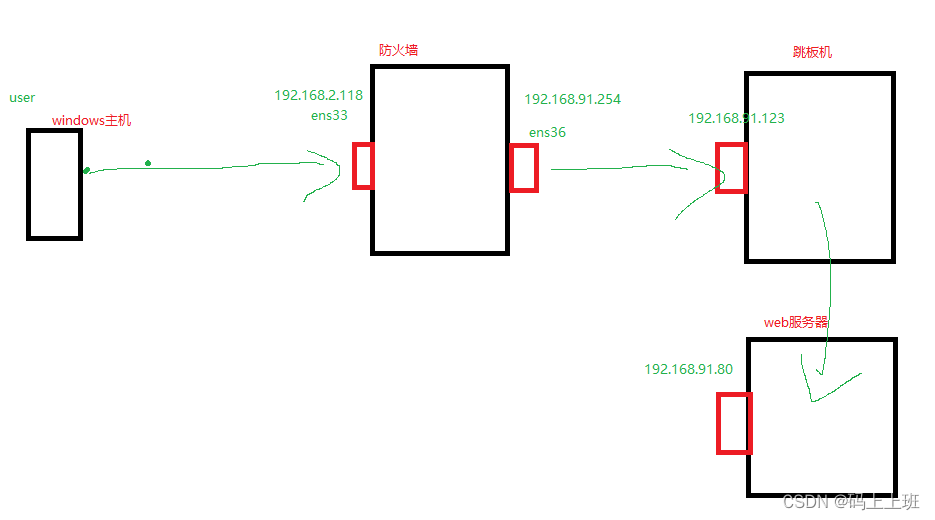

实现拓扑图形:



实现步骤:

1.准备3台linux虚拟机,其中一台作为防火墙,两块网卡。另外两台分别做跳板机和web服务器

手工配置ip地址

防火墙ens33ip地址为:  192.168.2.119

          ens36ip地址为:   192.168.91.254



跳板机ip地址为:            192.168.91.123

web服务器ip地址为:      192.168.91.80

2.分别关闭三台机器的防火墙iptables以及selinux

[root@localhost ~]# iptables -F -t nat
[root@localhost ~]# iptables -F
[root@localhost ~]# systemctl stop firewalld
[root@localhost ~]# setenforce 0

3.在防火墙上配置对应的snat策略和dnat策略

[root@localhost ~]# iptables -t nat -A PREROUTING -i ens33 -d 192.168.2.119 -p tcp --dport 2288  -j DNAT --to-destination 192.168.91.123:6677

#DNAT策略 这条命令表示将访问网卡ens33 目标地址为192.168.2.119 tcp协议 端口为2288

访问以映射到内网的 192.168.91.123:6677 这台机器

[root@localhost ~]# iptables -t nat -A POSTROUTING -o ens33 -s 192.168.91.0/24 -j SNAT --to-source 192.168.2.119
#SNAT策略 这条命令表示将内网为192.168.91.0网段通过ens33的取访问外网的请求,将源地址改为192.168.2.119进行访问

4.开启防火墙对应的路由功能,可以转发流量

echo 1 >/proc/sys/net/ipv4/ip_forward  //临时修改

 5.修改web服务器上的tcpwrapper黑白名单

[root@localhost /]# vim /etc/hosts.allow

sshd:192.168.91.123  //放开来自192.168.91.123 的主机

[root@localhost /]# vim /etc/hosts.deny

sshd:ALL   //限制所有访问sshd服务的主机

6.在跳板机上修改ssh服务的端口以及禁止root用户远程登录创建一个新的用户superman

[root@server shell]# vim /etc/ssh/sshd_config

Port 6677

PermitRootLogin no

[root@server shell]# useradd superman
[root@server shell]# echo 123456|passwd superman --stdin

7.验证防火墙的SNAT策略是否成功以及内网机器是否能够上网 #使用ping命令

[root@server shell]# ping www.baidu.com
PING www.a.shifen.com (14.119.104.254) 56(84) bytes of data.
64 bytes from 14.119.104.254 (14.119.104.254): icmp_seq=1 ttl=54 time=21.2 ms
64 bytes from 14.119.104.254 (14.119.104.254): icmp_seq=2 ttl=54 time=24.1 ms
64 bytes from 14.119.104.254 (14.119.104.254): icmp_seq=3 ttl=54 time=20.9 ms
^C
--- www.a.shifen.com ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2003ms
rtt min/avg/max/mdev = 20.954/22.122/24.165/1.459 ms


[root@localhost /]# ping www.baidu.com
PING www.a.shifen.com (14.119.104.254) 56(84) bytes of data.
64 bytes from 14.119.104.254 (14.119.104.254): icmp_seq=1 ttl=54 time=23.6 ms
64 bytes from 14.119.104.254 (14.119.104.254): icmp_seq=2 ttl=54 time=23.0 ms

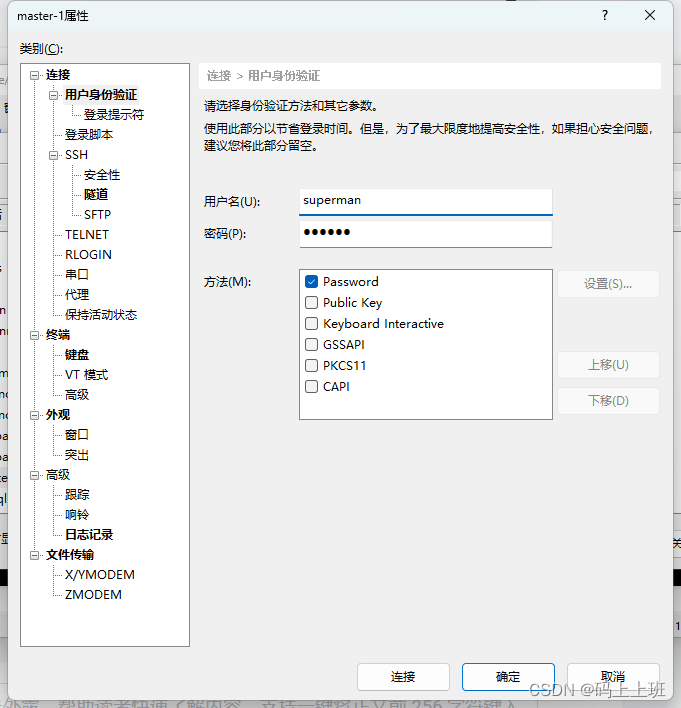

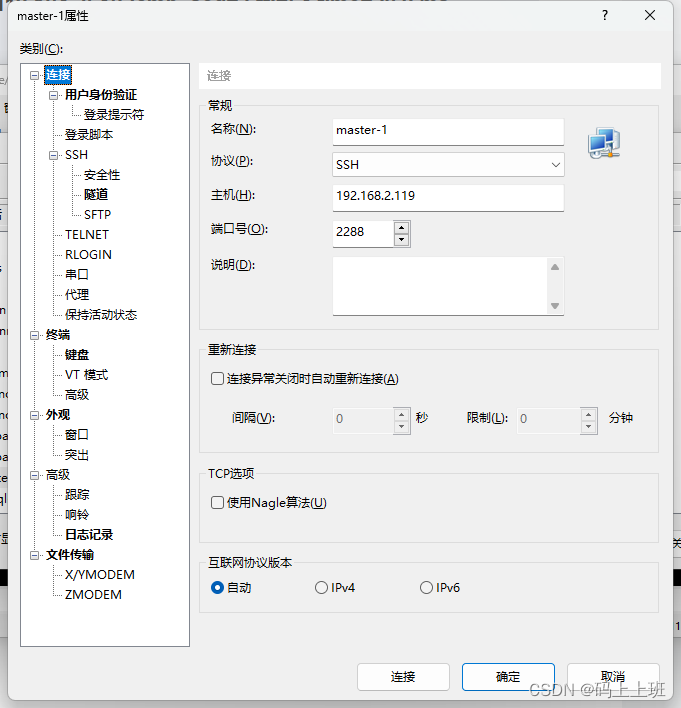

8.在windows主机上使用xshell进行连接防火墙的ip地址 192.168.2.119:2288 用户为superman用户







 9.最后验证:此时已经ssh连接到跳板机,使用ssh命令连接到web服务器

superman@server ~]$ ssh root@192.168.91.80
The authenticity of host '192.168.91.80 (192.168.91.80)' can't be established.
ECDSA key fingerprint is SHA256:asAWgGKcP+VYplhgeJLzJfKqqtfCKOKMrQhGEzq/YSE.
ECDSA key fingerprint is MD5:21:fa:59:d6:69:f7:b9:6a:66:97:41:d4:39:73:36:ce.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.91.80' (ECDSA) to the list of known hosts.
root@192.168.91.80's password:
Last login: Wed Aug  2 17:27:15 2023 from 192.168.91.123
