20250424解决荣品的PRO-RK3566核心板在buildroot系统下使用adb的时候出现dwc3 fcc00000.dwc3 device reset
2025/4/24 10:41
结论：一般认为是ROckchip的USB接口不太稳定/驱动能力不足？。

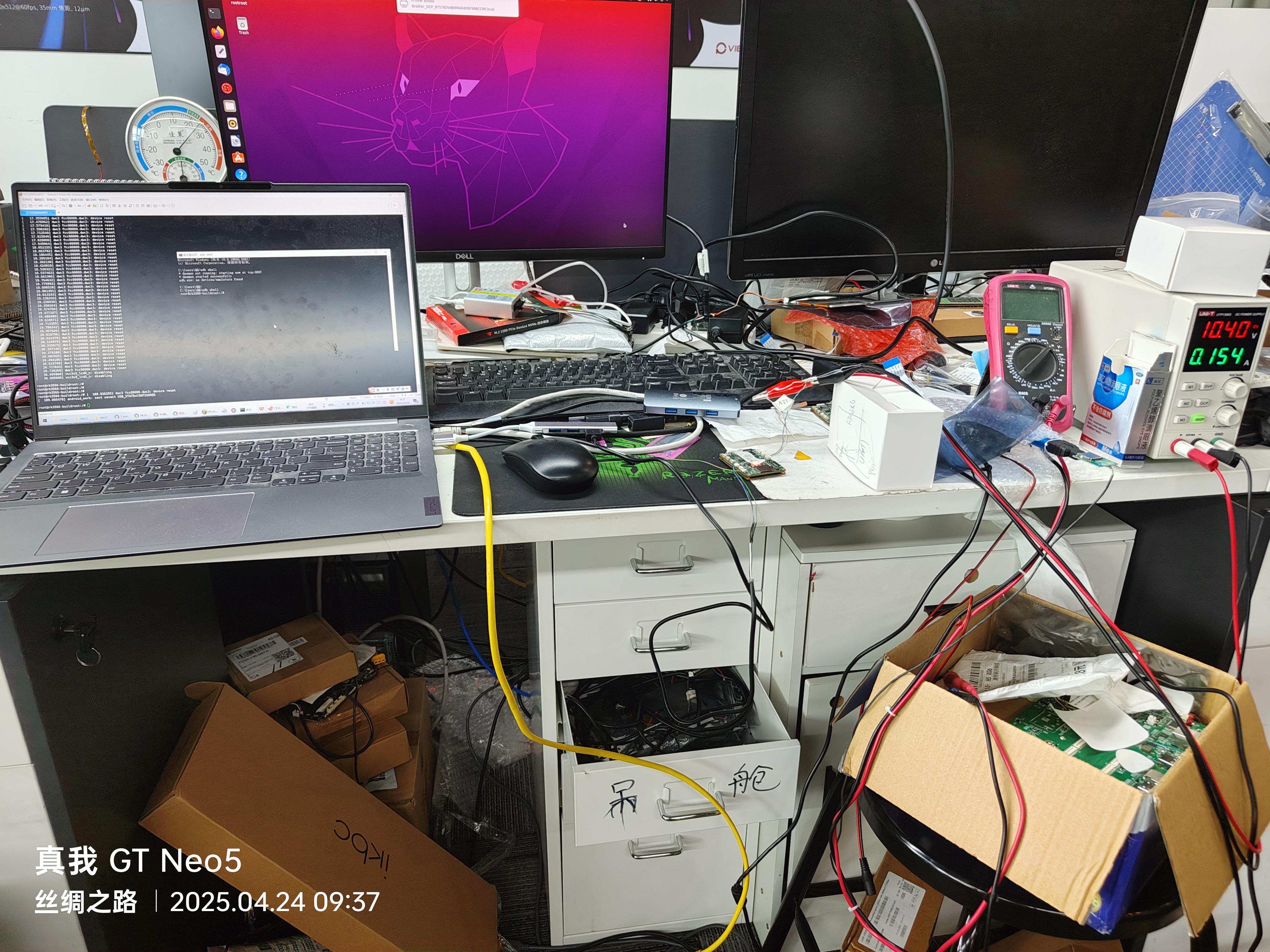

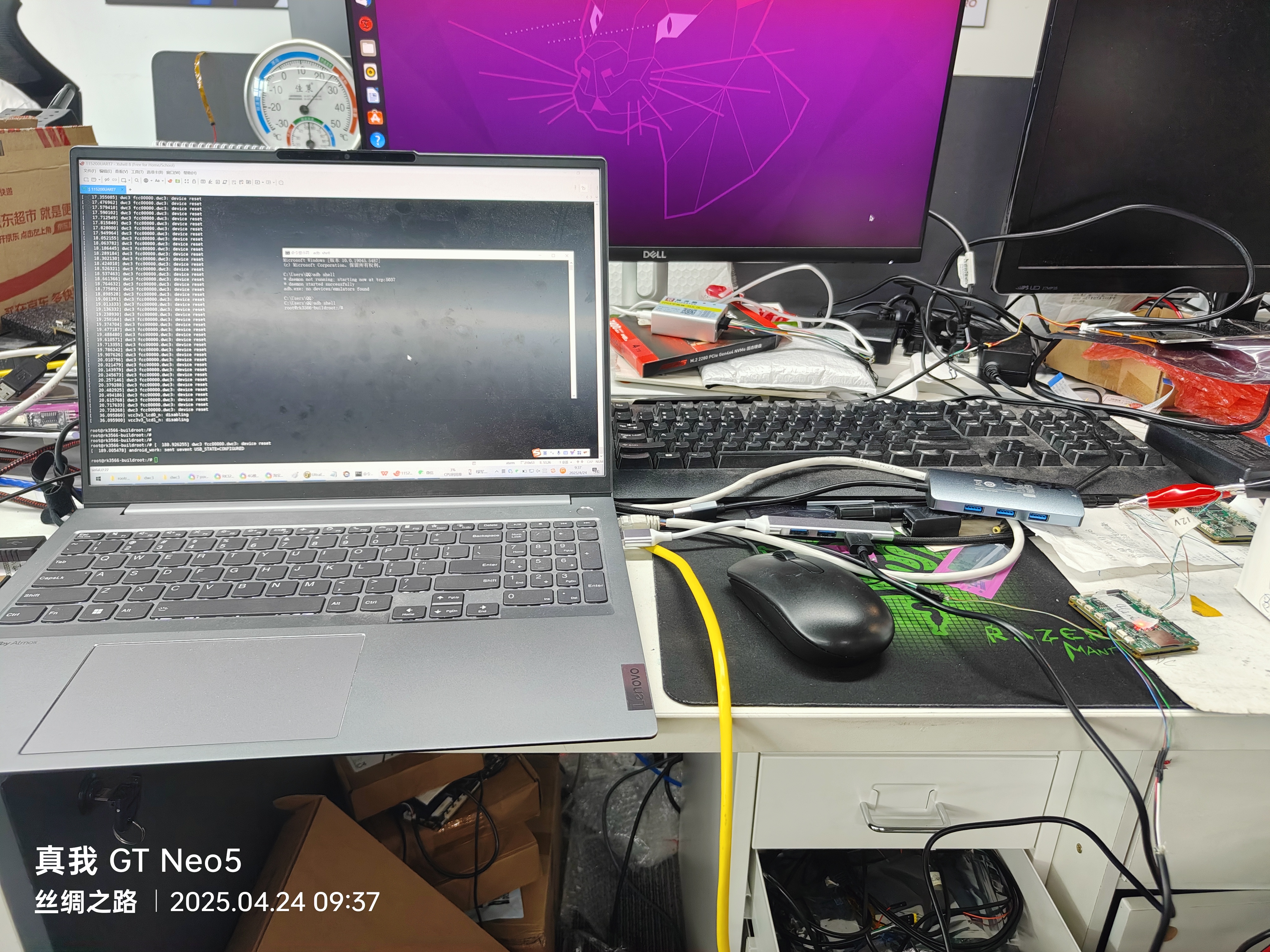

需要一个商业化的USB3.0的HUB桥接过渡一下。
兼容性不够！
【使用荣品的PRO-RK3566开发板一切正常。】
硬件布线的问题？阻抗匹配的问题？
【我司使用的USB线是MICRO-USB，把头剪掉了，然后接的小座子。相当于直连了，什么参数都没有考虑的！】

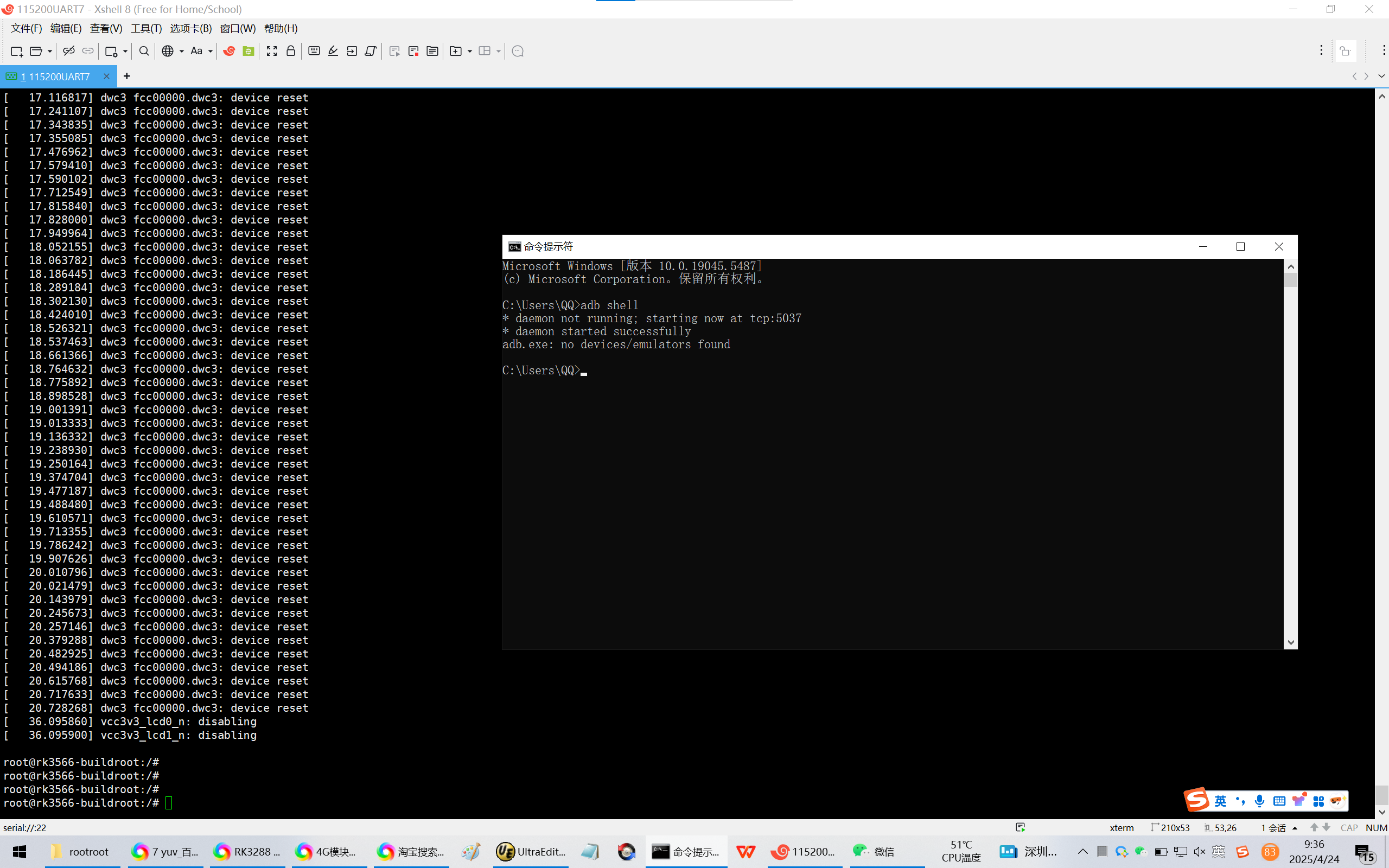

[ 20.482925] dwc3 fcc00000.dwc3: device reset
[ 20.494186] dwc3 fcc00000.dwc3: device reset
[ 20.615768] dwc3 fcc00000.dwc3: device reset
[ 20.717633] dwc3 fcc00000.dwc3: device reset
[ 20.728268] dwc3 fcc00000.dwc3: device reset
[ 36.095860] vcc3v3_lcd0_n: disabling
[ 36.095900] vcc3v3_lcd1_n: disabling
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#

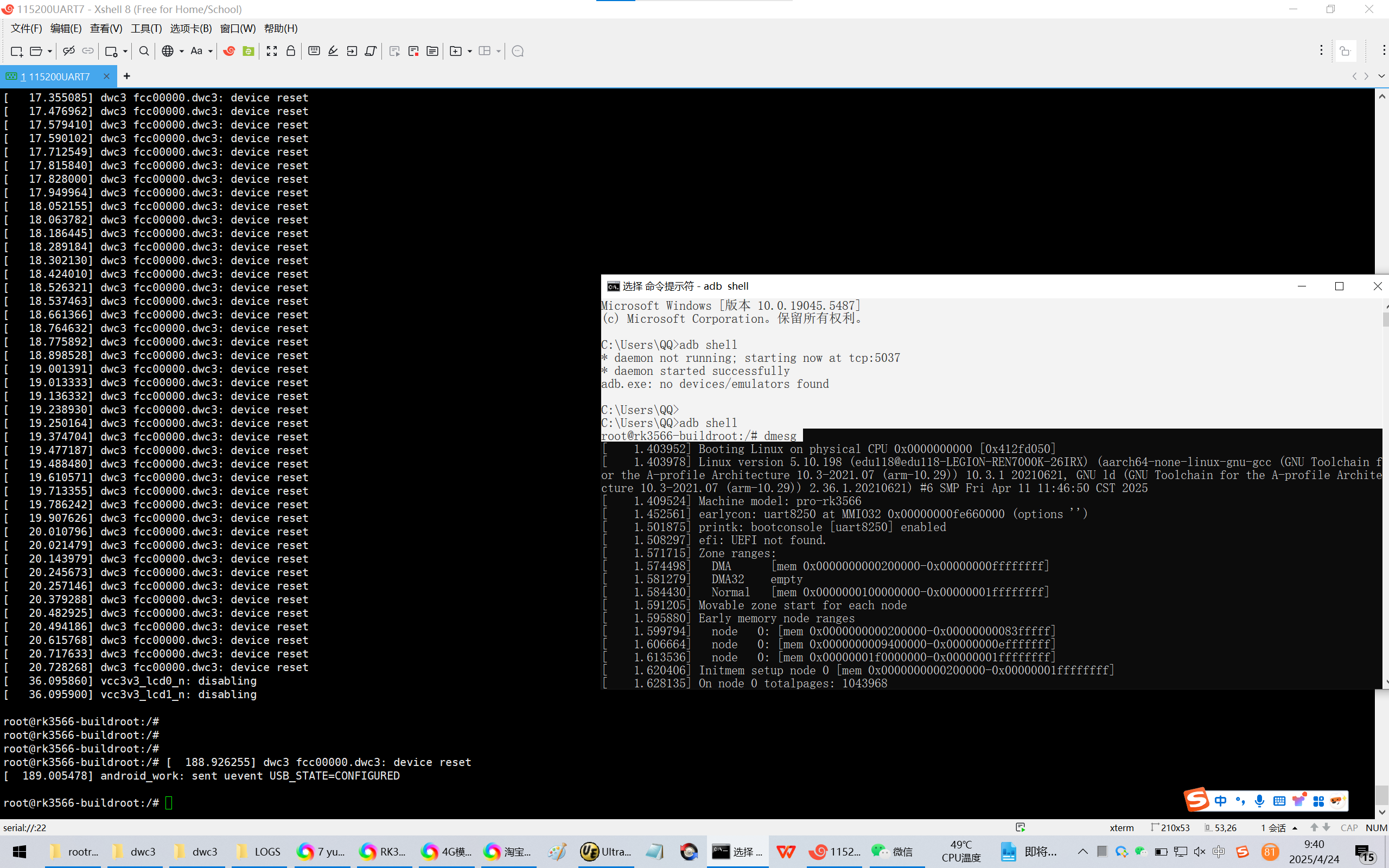

root@rk3566-buildroot:/# [ 188.926255] dwc3 fcc00000.dwc3: device reset
[ 189.005478] android_work: sent uevent USB_STATE=CONFIGURED
root@rk3566-buildroot:/#
Microsoft Windows [版本 10.0.19045.5487]
(c) Microsoft Corporation。保留所有权利。
C:\Users\QQ>adb shell
* daemon not running; starting now at tcp:5037
* daemon started successfully
adb.exe: no devices/emulators found
C:\Users\QQ>
C:\Users\QQ>adb shell
root@rk3566-buildroot:/#
完整的LOG：
[BEGIN] 2025/4/24 9:33:39
DDR V1.18 f366f69a7d typ 23/07/17-15:48:58
ln
LP4/4x derate en, other dram:1x trefi
ddrconfig:7
LPDDR4X, 324MHz
BW=32 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=4096MB
tdqss: cs0 dqs0: 24ps, dqs1: -96ps, dqs2: -48ps, dqs3: -192ps,
tdqss: cs1 dqs0: 24ps, dqs1: -120ps, dqs2: -48ps, dqs3: -168ps,
change to: 324MHz
clk skew:0x63
change to: 528MHz
clk skew:0x58
change to: 780MHz
clk skew:0x58
change to: 1056MHz(final freq)
PHY drv:clk:36,ca:36,DQ:29,odt:60
vrefinner:16%, vrefout:22%
dram drv:40,odt:80
vref_ca:00000071
clk skew:0x3f
cs 0:
the read training result:
DQS0:0x3f, DQS1:0x40, DQS2:0x45, DQS3:0x38,
min : 0xc 0xd 0xf 0xc 0x2 0x4 0x6 0x5 , 0xa 0xa 0x3 0x1 0xb 0xb 0xe 0xa ,
0x15 0x13 0x10 0xe 0x7 0x2 0x5 0x8 , 0xa 0x6 0x5 0x2 0xc 0xb 0x7 0xd ,
mid :0x2b 0x2b 0x2e 0x2b 0x21 0x23 0x25 0x23 ,0x28 0x29 0x23 0x21 0x2a 0x2a 0x2b 0x29 ,
0x32 0x31 0x2d 0x2c 0x25 0x21 0x22 0x26 ,0x29 0x25 0x23 0x20 0x2a 0x2b 0x26 0x2c ,
max :0x4a 0x4a 0x4d 0x4a 0x40 0x42 0x44 0x42 ,0x47 0x48 0x43 0x42 0x49 0x49 0x49 0x48 ,
0x50 0x50 0x4b 0x4a 0x44 0x40 0x40 0x45 ,0x48 0x44 0x41 0x3e 0x48 0x4b 0x46 0x4b ,
range:0x3e 0x3d 0x3e 0x3e 0x3e 0x3e 0x3e 0x3d ,0x3d 0x3e 0x40 0x41 0x3e 0x3e 0x3b 0x3e ,
0x3b 0x3d 0x3b 0x3c 0x3d 0x3e 0x3b 0x3d ,0x3e 0x3e 0x3c 0x3c 0x3c 0x40 0x3f 0x3e ,
the write training result:
DQS0:0x42, DQS1:0x33, DQS2:0x39, DQS3:0x26,
min :0x65 0x69 0x69 0x69 0x5b 0x5c 0x5f 0x61 0x61 ,0x58 0x54 0x51 0x4e 0x59 0x58 0x57 0x58 0x54 ,
0x5d 0x5c 0x5c 0x5c 0x54 0x51 0x51 0x56 0x59 ,0x51 0x4d 0x4d 0x4a 0x52 0x53 0x4f 0x54 0x4d ,
mid :0x81 0x84 0x84 0x83 0x76 0x77 0x7b 0x7b 0x7c ,0x72 0x6f 0x6b 0x69 0x73 0x73 0x72 0x72 0x6f ,
0x7a 0x79 0x76 0x77 0x70 0x6b 0x6d 0x72 0x75 ,0x6c 0x68 0x65 0x64 0x6e 0x6e 0x6a 0x6f 0x69 ,
max :0x9d 0x9f 0xa0 0x9d 0x92 0x93 0x97 0x96 0x97 ,0x8c 0x8b 0x85 0x85 0x8e 0x8e 0x8e 0x8c 0x8a ,
0x98 0x96 0x91 0x93 0x8c 0x86 0x89 0x8e 0x91 ,0x88 0x84 0x7d 0x7e 0x8a 0x8a 0x85 0x8a 0x85 ,
range:0x38 0x36 0x37 0x34 0x37 0x37 0x38 0x35 0x36 ,0x34 0x37 0x34 0x37 0x35 0x36 0x37 0x34 0x36 ,
0x3b 0x3a 0x35 0x37 0x38 0x35 0x38 0x38 0x38 ,0x37 0x37 0x30 0x34 0x38 0x37 0x36 0x36 0x38 ,
cs 1:
the read training result:
DQS0:0x3f, DQS1:0x40, DQS2:0x44, DQS3:0x3a,
min : 0xc 0xe 0xf 0xc 0x2 0x3 0x6 0x6 , 0x9 0xa 0x3 0x1 0xc 0xc 0xe 0xa ,
0x12 0x10 0xd 0xb 0x6 0x0 0x3 0x6 , 0xb 0x7 0x5 0x1 0xc 0xb 0x7 0xc ,
mid :0x2b 0x2c 0x2e 0x2b 0x20 0x22 0x25 0x23 ,0x28 0x29 0x22 0x21 0x2a 0x2a 0x2b 0x29 ,
0x30 0x2e 0x2a 0x29 0x24 0x1f 0x21 0x24 ,0x29 0x25 0x23 0x1f 0x2a 0x2b 0x27 0x2b ,
max :0x4a 0x4a 0x4d 0x4a 0x3f 0x42 0x44 0x41 ,0x47 0x48 0x42 0x42 0x49 0x48 0x49 0x48 ,
0x4f 0x4d 0x48 0x48 0x43 0x3f 0x3f 0x43 ,0x48 0x44 0x42 0x3d 0x48 0x4b 0x47 0x4b ,
range:0x3e 0x3c 0x3e 0x3e 0x3d 0x3f 0x3e 0x3b ,0x3e 0x3e 0x3f 0x41 0x3d 0x3c 0x3b 0x3e ,
0x3d 0x3d 0x3b 0x3d 0x3d 0x3f 0x3c 0x3d ,0x3d 0x3d 0x3d 0x3c 0x3c 0x40 0x40 0x3f ,
the write training result:
DQS0:0x42, DQS1:0x33, DQS2:0x39, DQS3:0x26,
min :0x67 0x69 0x6b 0x68 0x5c 0x5d 0x60 0x63 0x63 ,0x52 0x52 0x4d 0x4b 0x56 0x54 0x55 0x54 0x52 ,
0x5c 0x5c 0x59 0x5a 0x54 0x4e 0x50 0x55 0x59 ,0x51 0x50 0x4e 0x4c 0x55 0x54 0x52 0x55 0x50 ,
mid :0x83 0x85 0x87 0x84 0x77 0x79 0x7c 0x7d 0x7e ,0x6e 0x6e 0x68 0x67 0x71 0x70 0x70 0x70 0x6e ,
0x79 0x78 0x75 0x76 0x6e 0x69 0x6b 0x70 0x74 ,0x6d 0x6a 0x68 0x66 0x70 0x70 0x6c 0x71 0x6b ,
max :0xa0 0xa1 0xa4 0xa0 0x92 0x95 0x99 0x98 0x99 ,0x8a 0x8a 0x84 0x84 0x8c 0x8c 0x8c 0x8c 0x8a ,
0x96 0x95 0x91 0x93 0x89 0x84 0x87 0x8b 0x8f ,0x8a 0x85 0x83 0x81 0x8c 0x8c 0x86 0x8d 0x86 ,
range:0x39 0x38 0x39 0x38 0x36 0x38 0x39 0x35 0x36 ,0x38 0x38 0x37 0x39 0x36 0x38 0x37 0x38 0x38 ,
0x3a 0x39 0x38 0x39 0x35 0x36 0x37 0x36 0x36 ,0x39 0x35 0x35 0x35 0x37 0x38 0x34 0x38 0x36 ,
CA Training result:
cs:0 min :0x45 0x43 0x3b 0x36 0x3d 0x38 0x40 ,0x43 0x3e 0x39 0x34 0x38 0x32 0x3c ,
cs:0 mid :0x82 0x84 0x79 0x77 0x7b 0x79 0x70 ,0x80 0x7e 0x76 0x75 0x75 0x73 0x6d ,
cs:0 max :0xc0 0xc5 0xb7 0xb9 0xb9 0xbb 0xa1 ,0xbe 0xbf 0xb3 0xb7 0xb3 0xb5 0x9f ,
cs:0 range:0x7b 0x82 0x7c 0x83 0x7c 0x83 0x61 ,0x7b 0x81 0x7a 0x83 0x7b 0x83 0x63 ,
cs:1 min :0x42 0x47 0x3a 0x3b 0x3b 0x3b 0x3d ,0x40 0x40 0x37 0x36 0x35 0x35 0x3b ,
cs:1 mid :0x83 0x85 0x7b 0x79 0x7a 0x79 0x70 ,0x80 0x7e 0x77 0x75 0x76 0x74 0x6e ,
cs:1 max :0xc4 0xc4 0xbc 0xb7 0xba 0xb8 0xa4 ,0xc1 0xbc 0xb7 0xb4 0xb7 0xb3 0xa1 ,
cs:1 range:0x82 0x7d 0x82 0x7c 0x7f 0x7d 0x67 ,0x81 0x7c 0x80 0x7e 0x82 0x7e 0x66 ,
out
U-Boot SPL board init
U-Boot SPL 2017.09-ge4e124926e-230922 #lxh (Sep 25 2023 - 11:07:45), fwver: v1.13
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
Card did not respond to voltage select!
mmc_init: -95, time 12
spl: mmc init failed with error: -95
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x00040000 ... sha256(b5946ac63d...) + OK
## Checking uboot 0x00a00000 ... sha256(eb65270df2...) + OK
## Checking fdt 0x00b487d8 ... sha256(036cca5880...) + OK
## Checking atf-2 0xfdcc1000 ... sha256(b8dca786b4...) + OK
## Checking atf-3 0x0006b000 ... sha256(2f91089eb7...) + OK
## Checking atf-4 0xfdcce000 ... sha256(86ef885748...) + OK
## Checking atf-5 0xfdcd0000 ... sha256(0b2b146c60...) + OK
## Checking atf-6 0x00069000 ... sha256(a9a1e63bef...) + OK
## Checking optee 0x08400000 ... sha256(6c92ef6a0e...) + OK
Jumping to U-Boot(0x00a00000) via ARM Trusted Firmware(0x00040000)
Total: 205.208/697.359 ms
INFO: Preloader serial: 2
NOTICE: BL31: v2.3():v2.3-645-g8cea6ab0b:cl, fwver: v1.44
NOTICE: BL31: Built : 16:36:43, Sep 19 2023
INFO: GICv3 without legacy support detected.
INFO: ARM GICv3 driver initialized in EL3
INFO: pmu v1 is valid 220114
INFO: l3 cache partition cfg-0
INFO: dfs DDR fsp_param[0].freq_mhz= 1056MHz
INFO: dfs DDR fsp_param[1].freq_mhz= 324MHz
INFO: dfs DDR fsp_param[2].freq_mhz= 528MHz
INFO: dfs DDR fsp_param[3].freq_mhz= 780MHz
INFO: Using opteed sec cpu_context!
INFO: boot cpu mask: 0
INFO: BL31: Initializing runtime services
INFO: BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-743-gb5340fd65 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #5 Mon Aug 28 15:15:17 CST 2023 aarch64
I/TC: Primary CPU initializing
E/TC:0 0 hal_algo_version_init:296 CRYPTO_CRYPTO_VERSION_NEW no support. Skip all algo mode check.
I/TC: Primary CPU switching to normal world boot
INFO: BL31: Preparing for EL3 exit to normal world
INFO: Entry point address = 0xa00000
INFO: SPSR = 0x3c9
U-Boot 2017.09 (Apr 11 2025 - 11:46:40 +0800)
Model: Rockchip RK3568 Evaluation Board
MPIDR: 0x81000000
PreSerial: 2, raw, 0xfe660000
DRAM: 4 GiB
Sysmem: init
Relocation Offset: ed217000
Relocation fdt: eb9f94a8 - eb9fecd0
CR: M/C/I
Using default environment
optee api revision: 2.0
dwmmc@fe2b0000: 1, dwmmc@fe2c0000: 2, sdhci@fe310000: 0
Bootdev(atags): mmc 0
MMC0: HS200, 200Mhz
PartType: EFI
TEEC: Waring: Could not find security partition
DM: v1
boot mode: None
RESC: 'boot', blk@0x0001c5de
resource: sha256+
FIT: no signed, no conf required
DTB: rk-kernel.dtb
HASH(c): OK
I2c0 speed: 100000Hz
PMIC: RK8090 (on=0x40, off=0x00)
vdd_logic init 950000 uV
vdd_gpu init 900000 uV
vdd_npu init 900000 uV
vsel-gpios- not found! Error: -2
vdd_cpu init 1000000 uV
io-domain: OK
INFO: ddr dmc_fsp already initialized in loader.
Could not find baseparameter partition
Model: pro-rk3566
MPIDR: 0x81000000
ethaddr = e6:0d:f6:05:7e:00
eth1addr = e2:0d:f6:05:7e:00
eth2addr = 46:be:72:36:5b:33
eth3addr = fe:97:a5:2b:ad:71
rp_power not have children !
rp_power have node!
rp_power: pwr_5v_3v3 gpio set output
rp_power: led gpio function is 3, not realize!
rp_power: usb_pwr gpio set output
rp_power: otg_pwr gpio set output
rp_power: usb_rst gpio set output
rp_power: spk_en gpio set output
rp_power: spk_mute gpio set output
rp_power: usb_mode gpio set output
rp_power: Equipment_EN gpio set output
Rockchip UBOOT DRM driver version: v1.0.1
VOP have 1 active VP
vp0 have layer nr:6[0 2 4 1 3 5 ], primary plane: 4
vp1 have layer nr:0[], primary plane: 0
vp2 have layer nr:0[], primary plane: 0
hdmi@fe0a0000 disconnected
CLK: (sync kernel. arm: enter 816000 KHz, init 816000 KHz, kernel 0N/A)
apll 1104000 KHz
dpll 528000 KHz
gpll 1188000 KHz
cpll 1000000 KHz
npll 1200000 KHz
vpll 24000 KHz
hpll 24000 KHz
ppll 200000 KHz
armclk 1104000 KHz
aclk_bus 150000 KHz
pclk_bus 100000 KHz
aclk_top_high 500000 KHz
aclk_top_low 400000 KHz
hclk_top 150000 KHz
pclk_top 100000 KHz
aclk_perimid 300000 KHz
hclk_perimid 150000 KHz
pclk_pmu 100000 KHz
Net: eth1: ethernet@fe010000
Hit key to stop autoboot('CTRL+C'): 0
ANDROID: reboot reason: "(none)"
Not AVB images, AVB skip
No valid android hdr
Android image load failed
Android boot failed, error -1.
## Booting FIT Image zhangpeng enter 20250408
at 0xe8f3c880 with size 0x028bbc00
Fdt Ramdisk skip relocation
## Loading kernel from FIT Image at e8f3c880 ...
Using 'conf' configuration
## Verified-boot: 0
Trying 'kernel' kernel subimage
Description: unavailable
Type: Kernel Image
Compression: uncompressed
Data Start: 0xe8f66a80
Data Size: 42539520 Bytes = 40.6 MiB
Architecture: AArch64
OS: Linux
Load Address: 0x00280000
Entry Point: 0x00280000
Hash algo: sha256
Hash value: 28fe062ac40b7c62da0f591cd5b66ee297843d519ccbc56455b701e88a1bb6d2
Verifying Hash Integrity ... sha256+ OK
## Loading fdt from FIT Image at e8f3c880 ...
Using 'conf' configuration
Trying 'fdt' fdt subimage
Description: unavailable
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0xe8f3d080
Data Size: 170133 Bytes = 166.1 KiB
Architecture: AArch64
Load Address: 0x08300000
Hash algo: sha256
Hash value: d707ed3fd0c09c254f10c8b0d7ad1f02fbe9caff62f30427cc74eebfd928041a
Verifying Hash Integrity ... sha256+ OK
Loading fdt from 0x08300000 to 0x08300000
Booting using the fdt blob at 0x08300000
Loading Kernel Image from 0xe8f66a80 to 0x00280000 ... OK
kernel loaded at 0x00280000, end = 0x02b11a00
Using Device Tree in place at 0000000008300000, end 000000000832c894
vp0, plane_mask:0x3f, primary-id:4, curser-id:-1
vp1, plane_mask:0x0, primary-id:0, curser-id:-1
vp2, plane_mask:0x0, primary-id:0, curser-id:-1
WARNING: could not set reg FDT_ERR_BADOFFSET.
## reserved-memory:
drm-logo@00000000: addr=edf00000 size=b8000
drm-cubic-lut@00000000: addr=eff00000 size=8000
ramoops@110000: addr=110000 size=f0000
Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)
Adding bank: 0x09400000 - 0xf0000000 (size: 0xe6c00000)
Adding bank: 0x1f0000000 - 0x200000000 (size: 0x10000000)
No RNG device
== DO RELOCATE == Kernel from 0x00280000 to 0x00200000
Total: 1261.993/1394.159 ms
Starting kernel ...
[ 1.403952] Booting Linux on physical CPU 0x0000000000 [0x412fd050]
[ 1.403978] Linux version 5.10.198 (edu118@edu118-LEGION-REN7000K-26IRX) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #6 SMP Fri Apr 11 11:46:50 CST 2025
[ 1.409524] Machine model: pro-rk3566
[ 1.452561] earlycon: uart8250 at MMIO32 0x00000000fe660000 (options '')
[ 1.501875] printk: bootconsole [uart8250] enabled
[ 1.508297] efi: UEFI not found.
[ 1.571715] Zone ranges:
[ 1.574498] DMA [mem 0x0000000000200000-0x00000000ffffffff]
[ 1.581279] DMA32 empty
[ 1.584430] Normal [mem 0x0000000100000000-0x00000001ffffffff]
[ 1.591205] Movable zone start for each node
[ 1.595880] Early memory node ranges
[ 1.599794] node 0: [mem 0x0000000000200000-0x00000000083fffff]
[ 1.606664] node 0: [mem 0x0000000009400000-0x00000000efffffff]
[ 1.613536] node 0: [mem 0x00000001f0000000-0x00000001ffffffff]
[ 1.620406] Initmem setup node 0 [mem 0x0000000000200000-0x00000001ffffffff]
[ 1.646966] cma: Reserved 16 MiB at 0x00000000eec00000
[ 1.652684] psci: probing for conduit method from DT.
[ 1.658228] psci: PSCIv1.1 detected in firmware.
[ 1.663288] psci: Using standard PSCI v0.2 function IDs
[ 1.669016] psci: Trusted OS migration not required
[ 1.674361] psci: SMC Calling Convention v1.2
[ 1.679478] percpu: Embedded 31 pages/cpu s88344 r8192 d30440 u126976
[ 1.686647] Detected VIPT I-cache on CPU0
[ 1.691075] CPU features: detected: GIC system register CPU interface
[ 1.698135] CPU features: detected: Virtualization Host Extensions
[ 1.704915] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
[ 1.712567] alternatives: patching kernel code
[ 1.719477] Built 1 zonelists, mobility grouping on. Total pages: 1027656
[ 1.727023] Kernel command line: storagemedia=emmc androidboot.storagemedia=emmc androidboot.mode=normal androidboot.verifiedbootstate=orange rw rootwait earlycon=uart8250,mmio32,0xfe660000 console=ttyFIQ0 root=PARTUUID=614e0000-0000 androidboot.fwver=spl-v1.13,bl31-v1.44,uboot-04/11/2025
[ 1.756397] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[ 1.765565] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[ 1.774059] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 1.796694] software IO TLB: mapped [mem 0x00000000e9f00000-0x00000000edf00000] (64MB)
[ 1.850650] Memory: 3969040K/4175872K available (22144K kernel code, 3846K rwdata, 7876K rodata, 7552K init, 878K bss, 190448K reserved, 16384K cma-reserved)
[ 1.866220] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 1.873412] ftrace: allocating 67078 entries in 263 pages
[ 1.965633] ftrace: allocated 263 pages with 4 groups
[ 1.971475] rcu: Hierarchical RCU implementation.
[ 1.976635] rcu: RCU event tracing is enabled.
[ 1.981598] rcu: RCU dyntick-idle grace-period acceleration is enabled.
[ 1.988943] rcu: RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.
[ 1.996099] Rude variant of Tasks RCU enabled.
[ 2.001059] Tracing variant of Tasks RCU enabled.
[ 2.006309] rcu: RCU calculated value of scheduler-enlistment delay is 30 jiffies.
[ 2.014608] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4
[ 2.026732] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 2.034396] GICv3: GIC: Using split EOI/Deactivate mode
[ 2.040132] GICv3: 320 SPIs implemented
[ 2.044331] GICv3: 0 Extended SPIs implemented
[ 2.049230] GICv3: Distributor has no Range Selector support
[ 2.055440] GICv3: 16 PPIs implemented
[ 2.059579] GICv3: CPU0: found redistributor 0 region 0:0x00000000fd460000
[ 2.067231] ITS [mem 0xfd440000-0xfd45ffff]
[ 2.071883] ITS@0x00000000fd440000: allocated 8192 Devices @2c10000 (indirect, esz 8, psz 64K, shr 0)
[ 2.082026] ITS@0x00000000fd440000: allocated 32768 Interrupt Collections @2c20000 (flat, esz 2, psz 64K, shr 0)
[ 2.093190] ITS: using cache flushing for cmd queue
[ 2.098922] GICv3: using LPI property table @0x0000000002c30000
[ 2.105526] GIC: using cache flushing for LPI property table
[ 2.111733] GICv3: CPU0: using allocated LPI pending table @0x0000000002c40000
[ 2.119711] rcu: Offload RCU callbacks from CPUs: (none).
[ 2.154460] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[ 2.161154] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 2.172988] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 2.182842] Console: colour dummy device 80x25
[ 2.187760] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=80000)
[ 2.199033] pid_max: default: 32768 minimum: 301
[ 2.204178] LSM: Security Framework initializing
[ 2.209305] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 2.217436] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 2.227620] rcu: Hierarchical SRCU implementation.
[ 2.233661] Platform MSI: interrupt-controller@fd440000 domain created
[ 2.241317] PCI/MSI: /interrupt-controller@fd400000/interrupt-controller@fd440000 domain created
[ 2.251275] EFI services will not be available.
[ 2.256608] smp: Bringing up secondary CPUs ...
I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
[ 2.269943] Detected VIPT I-cache on CPU1
[ 2.269975] GICv3: CPU1: found redistributor 100 region 0:0x00000000fd480000
[ 2.269996] GICv3: CPU1: using allocated LPI pending table @0x0000000002c50000
[ 2.270049] CPU1: Booted secondary processor 0x0000000100 [0x412fd050]
[ 2.278414] Detected VIPT I-cache on CPU2
[ 2.278440] GICv3: CPU2: found redistributor 200 region 0:0x00000000fd4a0000
[ 2.278459] GICv3: CPU2: using allocated LPI pending table @0x0000000002c60000
[ 2.278498] CPU2: Booted secondary processor 0x0000000200 [0x412fd050]
[ 2.286834] Detected VIPT I-cache on CPU3
[ 2.286861] GICv3: CPU3: found redistributor 300 region 0:0x00000000fd4c0000
[ 2.286879] GICv3: CPU3: using allocated LPI pending table @0x0000000002c70000
[ 2.286916] CPU3: Booted secondary processor 0x0000000300 [0x412fd050]
[ 2.287009] smp: Brought up 1 node, 4 CPUs
[ 2.373116] SMP: Total of 4 processors activated.
[ 2.378276] CPU features: detected: Privileged Access Never
[ 2.384388] CPU features: detected: LSE atomic instructions
[ 2.390501] CPU features: detected: User Access Override
[ 2.396328] CPU features: detected: 32-bit EL0 Support
[ 2.401966] CPU features: detected: Common not Private translations
[ 2.408841] CPU features: detected: RAS Extension Support
[ 2.414763] CPU features: detected: Data cache clean to the PoU not required for I/D coherence
[ 2.424213] CPU features: detected: CRC32 instructions
[ 2.429848] CPU features: detected: Speculative Store Bypassing Safe (SSBS)
[ 2.437486] CPU features: detected: RCpc load-acquire (LDAPR)
[ 2.477021] CPU: All CPU(s) started at EL2
[ 2.483014] devtmpfs: initialized
[ 2.508537] Registered cp15_barrier emulation handler
[ 2.514115] Registered setend emulation handler
[ 2.519263] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns
[ 2.529972] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[ 2.538082] pinctrl core: initialized pinctrl subsystem
[ 2.544358] DMI not present or invalid.
[ 2.548968] NET: Registered protocol family 16
[ 2.555358] DMA: preallocated 512 KiB GFP_KERNEL pool for atomic allocations
[ 2.563240] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 2.571837] audit: initializing netlink subsys (disabled)
[ 2.577939] audit: type=2000 audit(0.246:1): state=initialized audit_enabled=0 res=1
[ 2.580059] Registered FIQ tty driver
[ 2.590832] thermal_sys: Registered thermal governor 'fair_share'
[ 2.590837] thermal_sys: Registered thermal governor 'step_wise'
[ 2.597532] thermal_sys: Registered thermal governor 'user_space'
[ 2.604123] thermal_sys: Registered thermal governor 'power_allocator'
[ 2.611108] thermal thermal_zone1: power_allocator: sustainable_power will be estimated
[ 2.627119] cpuidle: using governor menu
[ 2.631727] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 2.639291] ASID allocator initialised with 65536 entries
[ 2.647355] ramoops: dmesg-0 0x20000@0x0000000000110000
[ 2.653128] ramoops: console 0x80000@0x0000000000130000
[ 2.658875] ramoops: pmsg 0x50000@0x00000000001b0000
[ 2.664675] printk: console [ramoops-1] enabled
[ 2.669648] pstore: Registered ramoops as persistent store backend
[ 2.676431] ramoops: using 0xf0000@0x110000, ecc: 0
[ 2.718147] rockchip-gpio fdd60000.gpio0: probed /pinctrl/gpio0@fdd60000
[ 2.726017] rockchip-gpio fe740000.gpio1: probed /pinctrl/gpio1@fe740000
[ 2.733827] rockchip-gpio fe750000.gpio2: probed /pinctrl/gpio2@fe750000
[ 2.741693] rockchip-gpio fe760000.gpio3: probed /pinctrl/gpio3@fe760000
[ 2.749507] rockchip-gpio fe770000.gpio4: probed /pinctrl/gpio4@fe770000
[ 2.756972] rockchip-pinctrl pinctrl: probed pinctrl
[ 2.840111] raid6: neonx8 gen() 2453 MB/s
[ 2.900178] raid6: neonx8 xor() 1945 MB/s
[ 2.960253] raid6: neonx4 gen() 2513 MB/s
[ 3.020322] raid6: neonx4 xor() 1930 MB/s
[ 3.080396] raid6: neonx2 gen() 2280 MB/s
[ 3.140466] raid6: neonx2 xor() 1770 MB/s
[ 3.200544] raid6: neonx1 gen() 1858 MB/s
[ 3.260616] raid6: neonx1 xor() 1417 MB/s
[ 3.320693] raid6: int64x8 gen() 1663 MB/s
[ 3.380764] raid6: int64x8 xor() 897 MB/s
[ 3.440842] raid6: int64x4 gen() 1798 MB/s
[ 3.500912] raid6: int64x4 xor() 967 MB/s
[ 3.560986] raid6: int64x2 gen() 1596 MB/s
[ 3.621058] raid6: int64x2 xor() 864 MB/s
[ 3.681119] raid6: int64x1 gen() 1156 MB/s
[ 3.741202] raid6: int64x1 xor() 586 MB/s
[ 3.745886] raid6: using algorithm neonx4 gen() 2513 MB/s
[ 3.751808] raid6: .... xor() 1930 MB/s, rmw enabled
[ 3.757254] raid6: using neon recovery algorithm
[ 3.763799] fiq_debugger fiq_debugger.0: IRQ fiq not found
[ 3.769840] fiq_debugger fiq_debugger.0: IRQ wakeup not found
[ 3.776154] fiq_debugger_probe: could not install nmi irq handler
[[ 3.782924] printk: console [ttyFIQ0] enabled
3.782924] printk: console [ttyFIQ0] enabled
[ 3.792051] printk: bootconsole [uart8250] disabled
[ 3.792051] printk: bootconsole [uart8250] disabled
[ 3.797593] Registered fiq debugger ttyFIQ0
[ 3.798312] vcc3v3_sys: supplied by dc_12v
[ 3.798563] vcc5v0_sys: supplied by dc_12v
[ 3.799084] vcc3v3_lcd0_n: supplied by vcc3v3_sys
[ 3.799378] vcc3v3_lcd1_n: supplied by vcc3v3_sys
[ 3.800218] iommu: Default domain type: Translated
[ 3.803625] SCSI subsystem initialized
[ 3.803843] usbcore: registered new interface driver usbfs
[ 3.803895] usbcore: registered new interface driver hub
[ 3.803935] usbcore: registered new device driver usb
[ 3.804034] mc: Linux media interface: v0.10
[ 3.804063] videodev: Linux video capture interface: v2.00
[ 3.804174] pps_core: LinuxPPS API ver. 1 registered
[ 3.804182] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 3.804201] PTP clock support registered
[ 3.804238] EDAC MC: Ver: 3.0.0
[ 3.805173] arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
[ 3.805238] arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
[ 3.807384] Advanced Linux Sound Architecture Driver Initialized.
[ 3.807874] Bluetooth: Core ver 2.22
[ 3.807912] NET: Registered protocol family 31
[ 3.807921] Bluetooth: HCI device and connection manager initialized
[ 3.807934] Bluetooth: HCI socket layer initialized
[ 3.807944] Bluetooth: L2CAP socket layer initialized
[ 3.807962] Bluetooth: SCO socket layer initialized
[ 3.808322] rockchip-cpuinfo cpuinfo: SoC : 35662000
[ 3.808334] rockchip-cpuinfo cpuinfo: Serial : 5a655501c85e6274
[ 3.809057] clocksource: Switched to clocksource arch_sys_counter
[ 4.249618] NET: Registered protocol family 2
[ 4.249875] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 4.251597] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
[ 4.251657] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 4.251817] TCP bind hash table entries: 32768 (order: 7, 524288 bytes, linear)
[ 4.252211] TCP: Hash tables configured (established 32768 bind 32768)
[ 4.252329] UDP hash table entries: 2048 (order: 4, 65536 bytes, linear)
[ 4.252428] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes, linear)
[ 4.252616] NET: Registered protocol family 1
[ 4.253073] RPC: Registered named UNIX socket transport module.
[ 4.253084] RPC: Registered udp transport module.
[ 4.253091] RPC: Registered tcp transport module.
[ 4.253096] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 4.254026] PCI: CLS 0 bytes, default 64
[ 4.256640] rockchip-thermal fe710000.tsadc: tsadc is probed successfully!
[ 4.257626] hw perfevents: enabled with armv8_cortex_a55 PMU driver, 7 counters available
[ 4.261910] Initialise system trusted keyrings
[ 4.262077] workingset: timestamp_bits=46 max_order=20 bucket_order=0
[ 4.267169] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 4.267925] NFS: Registering the id_resolver key type
[ 4.267962] Key type id_resolver registered
[ 4.267970] Key type id_legacy registered
[ 4.268009] ntfs: driver 2.1.32 [Flags: R/O].
[ 4.268164] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[ 4.268386] fuse: init (API version 7.32)
[ 4.268747] SGI XFS with security attributes, no debug enabled
[ 4.299941] NET: Registered protocol family 38
[ 4.299965] xor: measuring software checksum speed
[ 4.303596] 8regs : 2738 MB/sec
[ 4.306564] 32regs : 3339 MB/sec
[ 4.309834] arm64_neon : 3028 MB/sec
[ 4.309841] xor: using function: 32regs (3339 MB/sec)
[ 4.309854] Key type asymmetric registered
[ 4.309864] Asymmetric key parser 'x509' registered
[ 4.309907] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
[ 4.310057] io scheduler mq-deadline registered
[ 4.310075] io scheduler kyber registered
[ 4.310766] rockchip-csi2-dphy-hw fe870000.csi2-dphy-hw: csi2 dphy hw probe successfully!
[ 4.311520] rockchip-csi2-dphy csi2-dphy0: csi2 dphy0 probe successfully!
[ 4.321598] pwm-backlight backlight: supply power not found, using dummy regulator
[ 4.322081] iep: Module initialized.
[ 4.322151] mpp_service mpp-srv: 292c8a74f3 author: lixin 2024-02-20 update sdk to linux5.10-rkr7(v1.4.0_20231220). commit on 20240220
[ 4.322162] mpp_service mpp-srv: probe start
[ 4.324022] mpp_vdpu2 fdea0400.vdpu: Adding to iommu group 1
[ 4.324228] mpp_vdpu2 fdea0400.vdpu: probe device
[ 4.324697] mpp_vdpu2 fdea0400.vdpu: probing finish
[ 4.325175] mpp_vepu2 fdee0000.vepu: Adding to iommu group 3
[ 4.325356] mpp_vepu2 fdee0000.vepu: probing start
[ 4.325836] mpp_vepu2 fdee0000.vepu: probing finish
[ 4.326396] mpp-iep2 fdef0000.iep: Adding to iommu group 4
[ 4.326580] mpp-iep2 fdef0000.iep: probe device
[ 4.326849] mpp-iep2 fdef0000.iep: allocate roi buffer failed
[ 4.327059] mpp-iep2 fdef0000.iep: probing finish
[ 4.327498] mpp_jpgdec fded0000.jpegd: Adding to iommu group 2
[ 4.327662] mpp_jpgdec fded0000.jpegd: probe device
[ 4.328081] mpp_jpgdec fded0000.jpegd: probing finish
[ 4.329513] mpp_service mpp-srv: probe success
[ 4.334443] dma-pl330 fe530000.dmac: Loaded driver for PL330 DMAC-241330
[ 4.334467] dma-pl330 fe530000.dmac: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[ 4.336318] dma-pl330 fe550000.dmac: Loaded driver for PL330 DMAC-241330
[ 4.336334] dma-pl330 fe550000.dmac: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[ 4.337065] rockchip-pvtm fde00000.pvtm: pvtm@0 probed
[ 4.337204] rockchip-pvtm fde80000.pvtm: pvtm@1 probed
[ 4.337314] rockchip-pvtm fde90000.pvtm: pvtm@2 probed
[ 4.337940] rockchip-system-monitor rockchip-system-monitor: system monitor probe
[ 4.338716] arm-scmi firmware:scmi: Failed. SCMI protocol 22 not active.
[ 4.338985] Serial: 8250/16550 driver, 10 ports, IRQ sharing disabled
[ 4.339845] fe650000.serial: ttyS1 at MMIO 0xfe650000 (irq = 65, base_baud = 1500000) is a 16550A
[ 4.340439] fe670000.serial: ttyS3 at MMIO 0xfe670000 (irq = 66, base_baud = 1500000) is a 16550A
[ 4.340940] fe6a0000.serial: ttyS6 at MMIO 0xfe6a0000 (irq = 67, base_baud = 1500000) is a 16550A
[ 4.341441] fe6b0000.serial: ttyS7 at MMIO 0xfe6b0000 (irq = 68, base_baud = 1500000) is a 16550A
[ 4.341929] fe6d0000.serial: ttyS9 at MMIO 0xfe6d0000 (irq = 69, base_baud = 1500000) is a 16550A
[ 4.344311] random: crng init done
[ 4.345154] rockchip-vop2 fe040000.vop: Adding to iommu group 8
[ 4.352201] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp0 assign plane mask: 0x3f, primary plane phy id: 4
[ 4.352225] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp1 assign plane mask: 0x0, primary plane phy id: -1
[ 4.352236] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp2 assign plane mask: 0x0, primary plane phy id: -1
[ 4.352357] rockchip-vop2 fe040000.vop: [drm:vop2_bind] VP1 plane_mask is zero, so ignore register crtc
[ 4.352370] rockchip-vop2 fe040000.vop: [drm:vop2_bind] VP2 plane_mask is zero, so ignore register crtc
[ 4.352471] [drm] failed to init overlay plane Cluster0-win1
[ 4.352561] rockchip-drm display-subsystem: bound fe040000.vop (ops 0xffffffc0096d8fb8)
[ 4.352841] dwhdmi-rockchip fe0a0000.hdmi: Detected HDMI TX controller v2.11a with HDCP (DWC HDMI 2.0 TX PHY)
[ 4.353380] dwhdmi-rockchip fe0a0000.hdmi: registered DesignWare HDMI I2C bus driver
[ 4.353629] dwhdmi-rockchip fe0a0000.hdmi: IRQ index 1 not found
[ 4.354064] rockchip-drm display-subsystem: bound fe0a0000.hdmi (ops 0xffffffc0096e7b48)
[ 4.354363] rockchip-drm display-subsystem: route-hdmi: failed to get logo,offset
[ 4.354377] rockchip-drm display-subsystem: can't not find any logo display
[ 4.354387] rockchip-drm display-subsystem: failed to show kernel logo
[ 4.354481] rockchip-drm display-subsystem: [drm] Cannot find any crtc or sizes
[ 4.354563] rockchip-drm display-subsystem: [drm] Cannot find any crtc or sizes
[ 4.355200] [drm] Initialized rockchip 3.0.0 20140818 for display-subsystem on minor 0
[ 4.363648] input: hdmi_cec_key as /devices/platform/fe0a0000.hdmi/dw-hdmi-cec.1.auto/input/input0
[ 4.364615] cacheinfo: Unable to detect cache hierarchy for CPU 0
[ 4.365291] brd: module loaded
[ 4.370326] loop: module loaded
[ 4.370758] zram: Added device: zram0
[ 4.371014] lkdtm: No crash points registered, enable through debugfs
[ 4.371992] system_heap: orders[0] = 6
[ 4.372003] system_heap: orders[1] = 4
[ 4.372010] system_heap: orders[2] = 0
[ 4.373763] ahci fc800000.sata: supply ahci not found, using dummy regulator
[ 4.373907] ahci fc800000.sata: supply phy not found, using dummy regulator
[ 4.374030] ahci fc800000.sata: supply target not found, using dummy regulator
[ 4.374161] ahci fc800000.sata: forcing port_map 0x0 -> 0x1
[ 4.374204] ahci fc800000.sata: AHCI 0001.0300 32 slots 1 ports 6 Gbps 0x1 impl platform mode
[ 4.374216] ahci fc800000.sata: flags: ncq sntf pm led clo only pmp fbs pio slum part ccc apst
[ 4.374234] ahci fc800000.sata: port 0 is not capable of FBS
[ 4.375139] scsi host0: ahci
[ 4.375423] ata1: SATA max UDMA/133 mmio [mem 0xfc800000-0xfc800fff] port 0x100 irq 19
[ 4.378144] rockchip-spi fe620000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
[ 4.379407] rockchip-spi fe630000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
[ 4.380994] register spi return v = :0
[ 4.382241] CAN device driver interface
[ 4.384406] rk_gmac-dwmac fe010000.ethernet: IRQ eth_lpi not found
[ 4.384628] rk_gmac-dwmac fe010000.ethernet: supply phy not found, using dummy regulator
[ 4.384763] rk_gmac-dwmac fe010000.ethernet: clock input or output? (input).
[ 4.384775] rk_gmac-dwmac fe010000.ethernet: TX delay(0x3a).
[ 4.384785] rk_gmac-dwmac fe010000.ethernet: RX delay(0x29).
[ 4.384798] rk_gmac-dwmac fe010000.ethernet: integrated PHY? (no).
[ 4.384844] rk_gmac-dwmac fe010000.ethernet: clock input from PHY
[ 4.385090] rk_gmac-dwmac fe010000.ethernet: init for RGMII
[ 4.385312] rk_gmac-dwmac fe010000.ethernet: User ID: 0x30, Synopsys ID: 0x51
[ 4.385326] rk_gmac-dwmac fe010000.ethernet: DWMAC4/5
[ 4.385336] rk_gmac-dwmac fe010000.ethernet: DMA HW capability register supported
[ 4.385344] rk_gmac-dwmac fe010000.ethernet: RX Checksum Offload Engine supported
[ 4.385350] rk_gmac-dwmac fe010000.ethernet: TX Checksum insertion supported
[ 4.385356] rk_gmac-dwmac fe010000.ethernet: Wake-Up On Lan supported
[ 4.385417] rk_gmac-dwmac fe010000.ethernet: TSO supported
[ 4.385425] rk_gmac-dwmac fe010000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[ 4.385433] rk_gmac-dwmac fe010000.ethernet: TSO feature enabled
[ 4.385441] rk_gmac-dwmac fe010000.ethernet: Using 32 bits DMA width
[ 4.521920] PPP generic driver version 2.4.2
[ 4.522109] PPP BSD Compression module registered
[ 4.522121] PPP Deflate Compression module registered
[ 4.522144] PPP MPPE Compression module registered
[ 4.522152] NET: Registered protocol family 24
[ 4.522259] usbcore: registered new interface driver rtl8150
[ 4.522305] usbcore: registered new interface driver r8152
[ 4.522345] usbcore: registered new interface driver asix
[ 4.522424] usbcore: registered new interface driver ax88179_178a
[ 4.522473] usbcore: registered new interface driver cdc_ether
[ 4.522518] usbcore: registered new interface driver net1080
[ 4.522559] usbcore: registered new interface driver cdc_subset
[ 4.522597] usbcore: registered new interface driver zaurus
[ 4.522644] usbcore: registered new interface driver cdc_ncm
[ 4.522684] usbcore: registered new interface driver qmi_wwan_q
[ 4.532806] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 4.532858] ehci-pci: EHCI PCI platform driver
[ 4.532953] ehci-platform: EHCI generic platform driver
[ 4.533397] phy phy-fe8b0000.usb2-phy.3: illegal mode
[ 4.535433] ehci-platform fd800000.usb: EHCI Host Controller
[ 4.535603] ehci-platform fd800000.usb: new USB bus registered, assigned bus number 1
[ 4.535776] ehci-platform fd800000.usb: irq 20, io mem 0xfd800000
[ 4.549081] ehci-platform fd800000.usb: USB 2.0 started, EHCI 1.00
[ 4.549257] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[ 4.549269] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.549277] usb usb1: Product: EHCI Host Controller
[ 4.549284] usb usb1: Manufacturer: Linux 5.10.198 ehci_hcd
[ 4.549290] usb usb1: SerialNumber: fd800000.usb
[ 4.549712] hub 1-0:1.0: USB hub found
[ 4.549749] hub 1-0:1.0: 1 port detected
[ 4.552438] ehci-platform fd880000.usb: EHCI Host Controller
[ 4.552623] ehci-platform fd880000.usb: new USB bus registered, assigned bus number 2
[ 4.552762] ehci-platform fd880000.usb: irq 22, io mem 0xfd880000
[ 4.565734] ehci-platform fd880000.usb: USB 2.0 started, EHCI 1.00
[ 4.565913] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[ 4.565925] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.565933] usb usb2: Product: EHCI Host Controller
[ 4.565940] usb usb2: Manufacturer: Linux 5.10.198 ehci_hcd
[ 4.565947] usb usb2: SerialNumber: fd880000.usb
[ 4.566346] hub 2-0:1.0: USB hub found
[ 4.566381] hub 2-0:1.0: 1 port detected
[ 4.567059] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 4.567083] ohci-platform: OHCI generic platform driver
[ 4.567386] phy phy-fe8b0000.usb2-phy.3: illegal mode
[ 4.567398] ohci-platform fd840000.usb: Generic Platform OHCI controller
[ 4.567550] ohci-platform fd840000.usb: new USB bus registered, assigned bus number 3
[ 4.567674] ohci-platform fd840000.usb: irq 21, io mem 0xfd840000
[ 4.626543] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[ 4.626556] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.626565] usb usb3: Product: Generic Platform OHCI controller
[ 4.626572] usb usb3: Manufacturer: Linux 5.10.198 ohci_hcd
[ 4.626578] usb usb3: SerialNumber: fd840000.usb
[ 4.626993] hub 3-0:1.0: USB hub found
[ 4.627030] hub 3-0:1.0: 1 port detected
[ 4.627550] ohci-platform fd8c0000.usb: Generic Platform OHCI controller
[ 4.627734] ohci-platform fd8c0000.usb: new USB bus registered, assigned bus number 4
[ 4.627861] ohci-platform fd8c0000.usb: irq 23, io mem 0xfd8c0000
[ 4.686523] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[ 4.686535] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.686542] usb usb4: Product: Generic Platform OHCI controller
[ 4.686549] usb usb4: Manufacturer: Linux 5.10.198 ohci_hcd
[ 4.686556] usb usb4: SerialNumber: fd8c0000.usb
[ 4.686959] hub 4-0:1.0: USB hub found
[ 4.686993] hub 4-0:1.0: 1 port detected
[ 4.688253] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[ 4.688445] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 5
[ 4.688580] xhci-hcd xhci-hcd.4.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000800002010010
[ 4.688640] xhci-hcd xhci-hcd.4.auto: irq 83, io mem 0xfd000000
[ 4.688762] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[ 4.688786] ata1: SATA link down (SStatus 0 SControl 300)
[ 4.688902] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 6
[ 4.688921] xhci-hcd xhci-hcd.4.auto: Host supports USB 3.0 SuperSpeed
[ 4.689089] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[ 4.689101] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.689109] usb usb5: Product: xHCI Host Controller
[ 4.689115] usb usb5: Manufacturer: Linux 5.10.198 xhci-hcd
[ 4.689122] usb usb5: SerialNumber: xhci-hcd.4.auto
[ 4.689539] hub 5-0:1.0: USB hub found
[ 4.689583] hub 5-0:1.0: 1 port detected
[ 4.689921] usb usb6: We don't know the algorithms for LPM for this host, disabling LPM.
[ 4.690014] usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.10
[ 4.690025] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.690033] usb usb6: Product: xHCI Host Controller
[ 4.690040] usb usb6: Manufacturer: Linux 5.10.198 xhci-hcd
[ 4.690046] usb usb6: SerialNumber: xhci-hcd.4.auto
[ 4.690422] hub 6-0:1.0: USB hub found
[ 4.690459] hub 6-0:1.0: 1 port detected
[ 4.690880] usbcore: registered new interface driver cdc_acm
[ 4.690890] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 4.690947] usbcore: registered new interface driver usblp
[ 4.690993] usbcore: registered new interface driver cdc_wdm
[ 4.691256] usbcore: registered new interface driver uas
[ 4.691343] usbcore: registered new interface driver usb-storage
[ 4.691437] usbcore: registered new interface driver usbserial_generic
[ 4.691462] usbserial: USB Serial support registered for generic
[ 4.691507] usbcore: registered new interface driver ch341
[ 4.691527] usbserial: USB Serial support registered for ch341-uart
[ 4.691575] usbcore: registered new interface driver cp210x
[ 4.691600] usbserial: USB Serial support registered for cp210x
[ 4.691662] usbcore: registered new interface driver ftdi_sio
[ 4.691684] usbserial: USB Serial support registered for FTDI USB Serial Device
[ 4.691799] usbcore: registered new interface driver keyspan
mount: /oem: can't find PARTLABEL=oem.
[ 4.691821] usbserial: USB Serial support registered for Keyspan - (without firmware)
mount: /userdata: can't find PARTLABEL=userdata.
[ 4.691842] usbserial: USB Serial support registered for Keyspan 1 port adapter
[ 4.691862] usbserial: USB Serial support registered for Keyspan 2 port adapter
[ 4.691883] usbserial: USB Serial support registered for Keyspan 4 port adapter
[ 4.691929] usbcore: registered new interface driver option
[ 4.691955] usbserial: USB Serial support registered for GSM modem (1-port)
[ 4.692104] usbcore: registered new interface driver oti6858
[ 4.692125] usbserial: USB Serial support registered for oti6858
[ 4.692170] usbcore: registered new interface driver pl2303
[ 4.692192] usbserial: USB Serial support registered for pl2303
[ 4.692247] usbcore: registered new interface driver qcserial
[ 4.692270] usbserial: USB Serial support registered for Qualcomm USB modem
Start mounting all internal partitions in /etc/fstab
[ 4.692331] usbcore: registered new interface driver sierra
Log saved to /var/log/mount-all.log
[ 4.692354] usbserial: USB Serial support registered for Sierra USB modem
Note: Will skip fsck, remove /.skip_fsck to enable
[ 4.693772] usbcore: registered new interface driver xpad
[ 4.693865] <<-GTP-INFO->> GTP driver installing...
[ 4.694118] usbcore: registered new interface driver usbtouchscreen
[ 4.694651] i2c /dev entries driver
[ 4.697776] rk808 0-0020: chip id: 0x8090
[ 4.697830] rk808 0-0020: No cache defaults, reading back from HW
[ 4.721522] rk808 0-0020: source: on=0x40, off=0x00
[ 4.721540] rk808 0-0020: support dcdc3 fb mode:-22, 1
[ 4.721550] rk808 0-0020: support pmic reset mode:0,0
[0]: Handling /dev/mmcblk0p6 / ext4 rw,noauto 1
[ 4.727177] rk808-regulator rk808-regulator: there is no dvs0 gpio
[ 4.727209] rk808-regulator rk808-regulator: there is no dvs1 gpio
[ 4.727625] vdd_logic: supplied by vcc3v3_sys
[ 4.728604] vdd_gpu: supplied by vcc3v3_sys
[ 4.729248] vcc_ddr: supplied by vcc3v3_sys
[ 4.729841] vdd_npu: supplied by vcc3v3_sys
[ 4.730761] vcc_1v8: supplied by vcc3v3_sys
[ 4.731337] vdda0v9_image: supplied by vcc3v3_sys
[ 4.732799] vdda_0v9: supplied by vcc3v3_sys
[ 4.733874] vdda0v9_pmu: supplied by vcc3v3_sys
[ 4.734966] vccio_acodec: supplied by vcc3v3_sys
[ 4.736396] vccio_sd: supplied by vcc3v3_sys
[0]: Already resized /dev/mmcblk0p6(ext4)
[ 4.737483] vcc3v3_pmu: supplied by vcc3v3_sys
[ 4.738917] vcca_1v8: supplied by vcc3v3_sys
[ 4.740009] vcca1v8_pmu: supplied by vcc3v3_sys
[ 4.741085] vcca1v8_image: supplied by vcc3v3_sys
[ 4.742515] vcc_3v3: supplied by vcc3v3_sys
[ 4.743420] vcc3v3_sd: supplied by vcc3v3_sys
Starting syslogd: OK
[ 4.743984] rk817-charger: Failed to locate of_node [id: -1]
[ 4.744144] rk817-charger rk817-charger: Failed to find matching dt id
Starting klogd: [ 4.747320] input: rk805 pwrkey as /devices/platform/fdd40000.i2c/i2c-0/0-0020/rk805-pwrkey/input/input1
OK
[ 4.749191] fan53555-regulator 0-001c: Failed to get chip ID!
Running sysctl: [ 4.952407] rk3x-i2c fe5d0000.i2c: timeout, ipd: 0x11, state: 2
[ 4.952435] rtc-hym8563 4-0051: could not init device, -110
OK
[ 4.952456] rtc-hym8563: probe of 4-0051 failed with error -110
[ 5.036222] ov5645 1-003c: OV5645 detected at address 0x3c
Populating /dev using udev: [ 5.036255] [ov5645_probe, 1742]: zhangpeng enter
[ 5.036978] rkcifhw fdfe0000.rkcif: Adding to iommu group 7
[ 5.037480] rkcifhw fdfe0000.rkcif: can't request region for resource [mem 0xfdfe0000-0xfdfe7fff]
[ 5.037566] rkcifhw fdfe0000.rkcif: No reserved memory region assign to CIF
[ 5.037756] rkcif rkcif_mipi_lvds: rkcif driver version: v00.02.00
[ 5.037888] rkcif rkcif_mipi_lvds: attach to cif hw node
[ 5.037898] rkcif rkcif_mipi_lvds: rkcif wait line 0
[ 5.037909] : terminal subdev does not exist
[ 5.037917] : terminal subdev does not exist
[ 5.037923] : terminal subdev does not exist
[ 5.037929] : terminal subdev does not exist
[ 5.039276] rkcif rkcif_mipi_lvds: No memory-region-thunderboot specified
[ 5.040466] rockchip-mipi-csi2-hw fdfb0000.mipi-csi2-hw: enter mipi csi2 hw probe!
[ 5.040617] rockchip-mipi-csi2-hw fdfb0000.mipi-csi2-hw: probe success, v4l2_dev:mipi-csi2-hw!
[ 5.041094] rockchip-mipi-csi2 mipi-csi2: attach to csi2 hw node
[ 5.041208] rkcif rkcif_mipi_lvds: Entity type for entity rockchip-mipi-csi2 was not initialized!
[ 5.041222] rockchip-mipi-csi2: Async registered subdev
[ 5.041245] rockchip-csi2-dphy csi2-dphy0: dphy0 matches m00_b_ov5645 1-003c:bus type 5
[ 5.041679] rkcif_mipi_lvds: Async subdev notifier completed
[ 5.041690] rockchip-mipi-csi2: probe success, v4l2_dev:rkcif_mipi_lvds!
[ 5.043930] usbcore: registered new interface driver uvcvideo
[ 5.043941] USB Video Class driver (1.1.1)
[ 5.045940] device-mapper: ioctl: 4.44.0-ioctl (2021-02-01) initialised: dm-devel@redhat.com
[ 5.046350] Bluetooth: HCI UART driver ver 2.3
[ 5.046364] Bluetooth: HCI UART protocol H4 registered
[ 5.046371] Bluetooth: HCI UART protocol ATH3K registered
[ 5.046446] usbcore: registered new interface driver bfusb
[ 5.046498] usbcore: registered new interface driver btusb
[ 5.047459] cpu cpu0: bin=0
[ 5.047522] cpu cpu0: leakage=22
[ 5.047564] cpu cpu0: pvtm = 88110, from nvmem
[ 5.047580] cpu cpu0: pvtm-volt-sel=2
[ 5.047639] cpu cpu0: soc version=0, speed=2
[ 5.049895] sdhci: Secure Digital Host Controller Interface driver
[ 5.049912] sdhci: Copyright(c) Pierre Ossman
[ 5.049918] Synopsys Designware Multimedia Card Interface Driver
[ 5.050825] sdhci-pltfm: SDHCI platform and OF driver helper
[ 5.051347] dwmmc_rockchip fe000000.dwmmc: No normal pinctrl state
[ 5.051363] dwmmc_rockchip fe000000.dwmmc: No idle pinctrl state
[ 5.051413] dwmmc_rockchip fe2b0000.dwmmc: No normal pinctrl state
[ 5.051426] dwmmc_rockchip fe2b0000.dwmmc: No idle pinctrl state
[ 5.051485] dwmmc_rockchip fe000000.dwmmc: IDMAC supports 32-bit address mode.
[ 5.051517] dwmmc_rockchip fe000000.dwmmc: Using internal DMA controller.
[ 5.051530] dwmmc_rockchip fe000000.dwmmc: Version ID is 270a
[ 5.051543] dwmmc_rockchip fe2b0000.dwmmc: IDMAC supports 32-bit address mode.
[ 5.051573] dwmmc_rockchip fe2b0000.dwmmc: Using internal DMA controller.
[ 5.051585] dwmmc_rockchip fe2b0000.dwmmc: Version ID is 270a
[ 5.051592] dwmmc_rockchip fe000000.dwmmc: DW MMC controller at irq 49,32 bit host data width,256 deep fifo
[ 5.051632] dwmmc_rockchip fe2b0000.dwmmc: DW MMC controller at irq 50,32 bit host data width,256 deep fifo
[ 5.052002] dwmmc_rockchip fe000000.dwmmc: allocated mmc-pwrseq
[ 5.052019] mmc_host mmc3: card is non-removable.
[ 5.052496] arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.
[ 5.052599] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
[ 5.053519] cryptodev: driver 1.12 loaded.
[ 5.053587] hid: raw HID events driver (C) Jiri Kosina
[ 5.053997] usbcore: registered new interface driver usbhid
[ 5.054008] usbhid: USB HID core driver
[ 5.059370] rp_power prepare build 9 gpio
[ 5.059528] rp_power request pwr_5v_3v3
[ 5.059554] success request gpio75 out
[ 5.059572] rp_power request led
[ 5.059586] success request gpio114 flash
[ 5.059601] rp_power request usb_pwr
[ 5.059614] success request gpio6 out
[ 5.059631] rp_power request otg_pwr
[ 5.059643] success request gpio5 out
[ 5.059658] rp_power request usb_rst
[ 5.059670] success request gpio8 out
[ 5.059768] rp_power request spk_en
[ 5.059785] success request gpio148 out
[ 5.059808] rp_power request spk_mute
[ 5.059821] success request gpio0 out
[ 5.059838] rp_power request usb_mode
[ 5.059849] success request gpio18 out
[ 5.059863] rp_power request Equipment_EN
[ 5.059876] success request gpio97 out
[ 5.060003] input: gpio_event as /devices/platform/rp_power/input/input2
[ 5.060360] input: gpio_event as /devices/platform/rp_power/input/input3
[ 5.060592] rpdzkj wake lock
[ 5.061272] rp_gpio prepare build 11 gpio
[ 5.061395] rp_gpio request gpio1d0
[ 5.061414] success request gpio56 out
[ 5.061433] rp_gpio request gpio1d1
[ 5.061445] success request gpio57 out
done
[ 5.061462] rp_gpio request gpio1d2
[ 5.061474] success request gpio58 out
[ 5.061490] rp_gpio request gpio1d3
Starting irqbalance: [ 5.061501] success request gpio59 out
[ 5.061517] rp_gpio request gpio1d4
[ 5.061528] success request gpio60 out
[ 5.061546] rp_gpio request gpio4a0
[ 5.061560] success request gpio128 out
[ 5.061576] rp_gpio request gpio4a1
[ 5.061588] success request gpio129 out
OK
[ 5.061603] rp_gpio request gpio4a2
[ 5.061615] success request gpio130 out
[ 5.061631] rp_gpio request gpio4a3
[ 5.061643] success request gpio131 out
[ 5.061659] rp_gpio request gpio1a4
[ 5.061671] success request gpio36 out
[ 5.061686] rp_gpio request gpio3c1
[ 5.061699] success request gpio113 out
[ 5.061980] mhi_init Quectel_Linux_PCIE_MHI_Driver_V1.3.1
[ 5.062189] sprd_pci_ep_dev_init Quectel_Linux&Android_SPRD_PCIE_Driver_V1.1.8
[ 5.062855] mmc_host mmc1: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)
Initializing random number generator: OK
[ 5.062874] sipc: name=sprd,sipc
Saving random seed: [ 5.062885] sipc: type=1
[ 5.062890] sipc: dst =1
[ 5.062895] sipc: ep_dev=0
[ 5.062899] sipc: smem_type = 0
[ 5.063704] sipc: smem_base=0x3000000, dst_smem_base=0x3000000, smem_size=0x300000
OK
[ 5.063711] sipc: high_offset=0x0n
[ 5.063714] smsg_ipc_create: sprd,sipc
[ 5.064193] smem_init: pool addr = 0x3000000, size = 0x300000 added.
[ 5.064209] smsg_ipc_smem_init: ring_base = 0x3000000, ring_size = 0x1000
Starting system message bus: [ 5.065228] spipe_probe!
[ 5.065240] spipe: after parse device tree, name=spipe_nr, dst=1, channel=4, ringnr=15, rxbuf_size=0x1000, txbuf_size=0x1000
[ 5.065252] sbuf_host_init: channel 1-4, offset = 0x0!
[ 5.065594] smsg_ch_open: channel 1-4 send open msg!
[ 5.067617] spipe_probe!
[ 5.067630] spipe: after parse device tree, name=sdiag_nr, dst=1, channel=21, ringnr=1, rxbuf_size=0x8000, txbuf_size=0x40000
done
[ 5.067643] sbuf_host_init: channel 1-21, offset = 0x0!
[ 5.067934] smsg_ch_open: channel 1-21 send open msg!
Starting iptables: [ 5.068074] spipe_probe!
[ 5.068085] spipe: after parse device tree, name=stty_nr, dst=1, channel=6, ringnr=32, rxbuf_size=0x800, txbuf_size=0x800
[ 5.068096] sbuf_host_init: channel 1-6, offset = 0x0!
OK
[ 5.068487] smsg_ch_open: channel 1-6 send open msg!
[ 5.071343] spipe_probe!
[ 5.071359] spipe: after parse device tree, name=snv_nr, dst=1, channel=40, ringnr=1, rxbuf_size=0x1000, txbuf_size=0x40400
[ 5.071371] sbuf_host_init: channel 1-40, offset = 0x0!
[ 5.071572] smsg_ch_open: channel 1-40 send open msg!
Starting bluetoothd: [ 5.072263] spool: name=slog_nr, dst=1, channel=5, pre_cfg=0
OK
[ 5.072274] spool: tx_num=0, tx_size=0, rx_num=32, rx_size=65536
[ 5.072592] smsg_ch_open: channel 1-5 send open msg!
[ 5.073219] usbcore: registered new interface driver snd-usb-audio
[ 5.076341] rk817-codec rk817-codec: DMA mask not set
Starting network: [ 5.082504] mmc0: SDHCI controller on fe310000.sdhci [fe310000.sdhci] using ADMA
[ 5.083086] rk-multicodecs rk809-sound: Failed to get ADC channel
[ 5.083249] rk-multicodecs rk809-sound: ASoC: Property 'rockchip,audio-routing' does not exist or its length is not even
[ 5.084372] rk817-codec rk817-codec: rk817_probe: chip_name:0x80, chip_ver:0x95
[ 5.088971] rk-multicodecs rk809-sound: Don't need to map headset detect gpio to irq
[ 5.092532] IPVS: Registered protocols (TCP, UDP)
[ 5.092596] IPVS: Connection hash table configured (size=4096, memory=32Kbytes)
[ 5.092735] IPVS: ipvs loaded.
[ 5.092752] IPVS: [rr] scheduler registered.
[ 5.093020] Initializing XFRM netlink socket
[ 5.093459] NET: Registered protocol family 10
[ 5.094359] Segment Routing with IPv6
ln: failed to create symbolic link '': No such file or directory
[ 5.094453] NET: Registered protocol family 17
Failed to detect Wi-Fi/BT chip!
[ 5.094478] NET: Registered protocol family 15
[ 5.094542] Bridge firewalling registered
[ 5.094551] can: controller area network core
[ 5.094593] NET: Registered protocol family 29
[ 5.094602] can: raw protocol
[ 5.094612] can: broadcast manager protocol
[ 5.094625] can: netlink gateway - max_hops=1
[ 5.094964] Bluetooth: RFCOMM socket layer initialized
[ 5.095003] Bluetooth: RFCOMM ver 1.11
[ 5.095021] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[ 5.095034] Bluetooth: HIDP socket layer initialized
[ 5.095505] NET: Registered protocol family 41
[ 5.095622] 8021q: 802.1Q VLAN Support v1.8
[ 5.095652] [BT_RFKILL]: Enter rfkill_rk_init
[ 5.095660] [WLAN_RFKILL]: Enter rfkill_wlan_init
[ 5.096596] [WLAN_RFKILL]: Enter rfkill_wlan_probe
[ 5.096650] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi_chip_type = ap6398s
[ 5.096658] [WLAN_RFKILL]: wlan_platdata_parse_dt: enable wifi power control.
[ 5.096664] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi power controled by gpio.
ln: failed to create symbolic link '': No such file or directory
[ 5.096701] [WLAN_RFKILL]: wlan_platdata_parse_dt: WIFI,host_wake_irq = 124, flags = 0.
[ 5.096713] [WLAN_RFKILL]: wlan_platdata_parse_dt: The ref_wifi_clk not found !
[ 5.096720] [WLAN_RFKILL]: rfkill_wlan_probe: init gpio
[ 5.096728] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 1
[ 5.096736] [WLAN_RFKILL]: Exit rfkill_wlan_probe
[ 5.097704] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 142.
[ 5.097753] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,reset_gpio = 133.
[ 5.097770] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 134.
[ 5.097784] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 137.
[ 5.097852] [BT_RFKILL]: Request irq for bt wakeup host
[ 5.097947] [BT_RFKILL]: ** disable irq
[ 5.098043] [BT_RFKILL]: bt_default device registered.
[ 5.098195] Key type dns_resolver registered
[ 5.100195] Loading compiled-in X.509 certificates
[ 5.102316] Btrfs loaded, crc32c=crc32c-generic
[ 5.102586] pstore: Using crash dump compression: deflate
[ 5.103837] rga: rga2, irq = 31, match scheduler
[ 5.104453] rga: rga2 hardware loaded successfully, hw_version:3.2.63318.
OK
[ 5.104486] rga: rga2 probe successfully
[ 5.104862] rga_iommu: IOMMU binding successfully, default mapping core[0x4]
[ 5.105139] rga: Module initialized. v1.3.1
[ 5.125930] mmc0: Host Software Queue enabled
[ 5.125976] mmc0: new HS200 MMC card at address 0001
[ 5.126815] mmcblk0: mmc0:0001 SPeMMC 29.0 GiB
Starting dhcpcd...
[ 5.127068] mmcblk0boot0: mmc0:0001 SPeMMC partition 1 4.00 MiB
[ 5.127309] mmcblk0boot1: mmc0:0001 SPeMMC partition 2 4.00 MiB
[ 5.127634] mmcblk0rpmb: mmc0:0001 SPeMMC partition 3 4.00 MiB, chardev (236:0)
dhcpcd-9.4.1 starting
[ 5.131217] mmcblk0: p1 p2 p3 p4 p5 p6
dev: loaded udev
[ 5.204565] vendor storage:20190527 ret = 0
DUID 00:01:00:01:21:16:f4:de:46:ef:c3:3f:47:09
[ 5.269515] mmc_host mmc3: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)
[ 5.283272] mpp_rkvenc fdf40000.rkvenc: Adding to iommu group 5
[ 5.283559] mpp_rkvenc fdf40000.rkvenc: probing start
[ 5.284038] mpp_rkvenc fdf40000.rkvenc: bin=0
[ 5.284066] mpp_rkvenc fdf40000.rkvenc: Failed to get leakage
[ 5.284118] mpp_rkvenc fdf40000.rkvenc: pvtm = 88110, from nvmem
[ 5.284133] mpp_rkvenc fdf40000.rkvenc: pvtm-volt-sel=1
[ 5.284310] mpp_rkvenc fdf40000.rkvenc: avs=0
[ 5.284468] mpp_rkvenc fdf40000.rkvenc: failed to find power_model node
[ 5.284479] mpp_rkvenc fdf40000.rkvenc: failed to initialize power model
[ 5.284487] mpp_rkvenc fdf40000.rkvenc: failed to get dynamic-coefficient
[ 5.285190] mpp_rkvenc fdf40000.rkvenc: probing finish
[ 5.285614] mpp_rkvdec2 fdf80200.rkvdec: Adding to iommu group 6
[ 5.285875] mpp_rkvdec2 fdf80200.rkvdec: rkvdec, probing start
[ 5.286257] mpp_rkvdec2 fdf80200.rkvdec: shared_niu_a is not found!
[ 5.286268] rkvdec2_init:1022: No niu aclk reset resource define
[ 5.286278] mpp_rkvdec2 fdf80200.rkvdec: shared_niu_h is not found!
[ 5.286285] rkvdec2_init:1025: No niu hclk reset resource define
[ 5.286498] mpp_rkvdec2 fdf80200.rkvdec: bin=0
[ 5.286600] mpp_rkvdec2 fdf80200.rkvdec: leakage=46
[ 5.286614] mpp_rkvdec2 fdf80200.rkvdec: leakage-volt-sel=0
[ 5.286652] mpp_rkvdec2 fdf80200.rkvdec: pvtm = 88110, from nvmem
[ 5.286665] mpp_rkvdec2 fdf80200.rkvdec: pvtm-volt-sel=1
[ 5.286842] mpp_rkvdec2 fdf80200.rkvdec: avs=0
no interfaces have a carrier
[ 5.286972] mpp_rkvdec2 fdf80200.rkvdec: failed to find power_model node
forked to background, child pid 487
[ 5.286983] mpp_rkvdec2 fdf80200.rkvdec: failed to initialize power model
Starting ntpd: [ 5.286990] mpp_rkvdec2 fdf80200.rkvdec: failed to get dynamic-coefficient
[ 5.287118] mpp_rkvdec2 fdf80200.rkvdec: sram_start 0x00000000fdcc0000
[ 5.287129] mpp_rkvdec2 fdf80200.rkvdec: rcb_iova 0x0000000010000000
[ 5.287136] mpp_rkvdec2 fdf80200.rkvdec: sram_size 45056
[ 5.287143] mpp_rkvdec2 fdf80200.rkvdec: rcb_size 65536
OK
[ 5.287151] mpp_rkvdec2 fdf80200.rkvdec: min_width 512
[ 5.287212] mpp_rkvdec2 fdf80200.rkvdec: link mode probe finish
[ 5.287287] mpp_rkvdec2 fdf80200.rkvdec: probing finish
starting weston... done.
[ 5.288577] rockchip-iodomain fdc20000.syscon:io-domains: pmuio2(3300000 uV) supplied by vcc3v3_pmu
[ 5.288630] mali fde60000.gpu: Kernel DDK version g18p0-01eac0
[ 5.288760] rockchip-iodomain fdc20000.syscon:io-domains: vccio1(3000000 uV) supplied by vccio_acodec
Starting dropbear sshd: [ 5.288903] rockchip-iodomain fdc20000.syscon:io-domains: vccio3(3300000 uV) supplied by vccio_sd
OK
[ 5.289096] rockchip-iodomain fdc20000.syscon:io-domains: vccio4(3300000 uV) supplied by vcc_3v3
Starting pulseaudio: OK
[ 5.289163] rockchip-iodomain fdc20000.syscon:io-domains: vccio5(3300000 uV) supplied by vcc_3v3
[ 5.289171] mali fde60000.gpu: bin=0
[ 5.289225] mali fde60000.gpu: leakage=6
[ 5.289268] mali fde60000.gpu: pvtm = 88110, from nvmem
[ 5.289286] mali fde60000.gpu: pvtm-volt-sel=2
Starting dnsmasq: [ 5.289304] mali fde60000.gpu: soc version=0, speed=2
[ 5.289308] rockchip-iodomain fdc20000.syscon:io-domains: vccio6(1800000 uV) supplied by vcc_1v8
[ 5.289382] rockchip-iodomain fdc20000.syscon:io-domains: vccio7(3300000 uV) supplied by vcc_3v3
[ 5.289915] mali fde60000.gpu: avs=0
[ 5.289941] W : [File] : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; [Line] : 143; [Func] : kbase_platform_rk_init(); power-off-delay-ms not available.
OK
[ 5.290028] input: adc-keys as /devices/platform/adc-keys/input/input4
/bin/list-iodomain.sh version: V1.0.1
[ 5.290430] mali fde60000.gpu: GPU identified as 0x2 arch 7.4.0 r1p0 status 0
[ 5.290529] mali fde60000.gpu: No priority control manager is configured
[ 5.290926] mali fde60000.gpu: No memory group manager is configured
[ 5.292233] mali fde60000.gpu: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
W: [pulseaudio] main.c: This program is not intended to be run as root (unless --system is specified).
[ 5.293784] mali fde60000.gpu: Probed as mali0
W: [pulseaudio] main.c: Compiled with DEPRECATED libsamplerate support!
[ 5.303493] rk808-rtc rk808-rtc: registered as rtc0
Get CHIP ID: rk356x
[ 5.305539] rk808-rtc rk808-rtc: setting system clock to 2017-08-04T09:00:05 UTC (1501837205)
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[ 5.305638] rkcif rkcif_mipi_lvds: clear unready subdev num: 0
XXXXXXXXXX PLEASE CHECK IO-DOMAIN !!!!!!!!!!!!!!!
[ 5.306912] rockchip_headset rk-headset: headset_gpio request fail
XXXXXXXXXX 请务必检查IO电源域配置 !!!!!!!!!!!!!!!
[ 5.306961] rockchip_headset: probe of rk-headset failed with error -16
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[ 5.307345] RKNPU fde40000.npu: Adding to iommu group 0
Get IO DOMAIN VALUE:
[ 5.307893] RKNPU fde40000.npu: RKNPU: rknpu iommu is enabled, using iommu mode
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[ 5.308179] RKNPU fde40000.npu: can't request region for resource [mem 0xfde40000-0xfde4ffff]
注意事项：PMUIO1/PMUIO2 固定不可配
[ 5.308691] [drm] Initialized rknpu 0.9.3 20231121 for fde40000.npu on minor 1
VCCIO2电平由硬件FLASH_VOL_SEL决定:
[ 5.309374] RKNPU fde40000.npu: bin=0
当VCCIo2供电是1.8V,则FLASH_VOL_SEL管脚必须保持为高电平;
[ 5.309442] RKNPU fde40000.npu: leakage=3
当VCCIO2供电是3.3V,则FLASH_VOL_SEL管脚必须保持为低电平;
[ 5.309483] RKNPU fde40000.npu: pvtm = 88110, from nvmem
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[ 5.309502] RKNPU fde40000.npu: pvtm-volt-sel=2
pmuio2_vsel: 3.3V
[ 5.309517] RKNPU fde40000.npu: soc version=0, speed=2
vccio7_vsel: 3.3V
[ 5.310106] RKNPU fde40000.npu: avs=0
vccio6_vsel: 1.8V
[ 5.310299] RKNPU fde40000.npu: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
vccio5_vsel: 3.3V
[ 5.310900] RKNPU fde40000.npu: failed to find power_model node
vccio4_vsel: 3.3V
[ 5.310914] RKNPU fde40000.npu: RKNPU: failed to initialize power model
vccio3_vsel: 3.3V
[ 5.310921] RKNPU fde40000.npu: RKNPU: failed to get dynamic-coefficient
vccio2_vsel: 3.3V
[ 5.312659] cfg80211: Loading compiled-in X.509 certificates for regulatory database
vccio1_vsel: 3.3V
[ 5.314952] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[ 5.315694] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
The camera soft link is automatically createdDate: 2017-08-04 CST
[ 5.315785] cfg80211: failed to load regulatory.db
[17:00:07.729] weston 13.0.0
[ 5.316229] rockchip-pm rockchip-suspend: not set pwm-regulator-config
https://wayland.freedesktop.org
[ 5.316775] rockchip-suspend not set sleep-mode-config for mem-lite
Bug reports to: https://gitlab.freedesktop.org/wayland/weston/issues/
[ 5.316784] rockchip-suspend not set wakeup-config for mem-lite
Build: linux5.10-rkr7.1(v1.4.0_20231220)-395-gad3330a33b+
[ 5.316793] rockchip-suspend not set sleep-mode-config for mem-ultra
[17:00:07.730] Command line: /usr/bin/weston
[ 5.316798] rockchip-suspend not set wakeup-config for mem-ultra
[17:00:07.730] OS: Linux, 5.10.198, #6 SMP Fri Apr 11 11:46:50 CST 2025, aarch64
[ 5.317896] I : [File] : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; [Line] : 406; [Func] : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '20:03:43', on 'Apr 7 2025'.
[17:00:07.730] Flight recorder: enabled
[ 5.318364] Mali:
[17:00:07.730] warning: XDG_RUNTIME_DIR "/var/run" is not configured
[ 5.318367] Mali device driver loaded
correctly. Unix access mode must be 0700 (current mode is 0755),
[ 5.318772] ALSA device list:
and must be owned by the user UID 0 (current owner is UID 0).
[ 5.318784] #0: rockchip-rk809
Refer to your distribution on how to get it, or
[ 5.318790] #1: rockchip,hdmi
http://www.freedesktop.org/wiki/Specifications/basedir-spec
[ 5.424679] EXT4-fs (mmcblk0p6): recovery complete
on how to implement it.
[ 5.424832] EXT4-fs (mmcblk0p6): mounted filesystem with ordered data mode. Opts: (null)
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
[ 5.424903] VFS: Mounted root (ext4 filesystem) on device 179:6.
[17:00:07.733] Using config file '/etc/xdg/weston/weston.ini'
[ 5.425629] devtmpfs: mounted
[17:00:07.734] Output repaint window is -1 ms maximum.
[ 5.431442] Freeing unused kernel memory: 7552K
[17:00:07.736] Loading module '/usr/lib/libweston-13/drm-backend.so'
[ 5.431617] Run /sbin/init as init process
[17:00:07.740] initializing drm backend
[ 5.502633] EXT4-fs (mmcblk0p6): re-mounted. Opts: (null)
[17:00:07.740] Entering mirror mode.
[ 5.519255] mmc_host mmc3: Bus speed (slot 0) = 375000Hz (slot req 375000Hz, actual 375000HZ div = 0)
[17:00:07.740] Trying direct launcher...
[ 5.968749] udevd[302]: starting version 3.2.10
[17:00:07.742] using /dev/dri/card0
[ 5.992868] udevd[306]: starting eudev-3.2.10
[17:00:07.742] DRM: does not support atomic modesetting
[ 6.297209] stream_cif_mipi_id0: open video, entity use_countt 1
[17:00:07.743] DRM: does not support GBM modifiers
[ 6.297458] stream_cif_mipi_id0: close video, entity use_count 0
[17:00:07.743] DRM: does not support async page flipping
[ 6.298880] stream_cif_mipi_id2: open video, entity use_countt 1
[17:00:07.743] DRM: supports picture aspect ratio
[ 6.299506] stream_cif_mipi_id2: close video, entity use_count 0
[17:00:07.747] Loading module '/usr/lib/libweston-13/gl-renderer.so'
[ 6.302830] stream_cif_mipi_id1: open video, entity use_countt 1
arm_release_ver: g13p0-01eac0, rk_so_ver: 10
[ 6.305327] stream_cif_mipi_id3: open video, entity use_countt 1
OK
[ 6.305529] stream_cif_mipi_id3: close video, entity use_count 0
[17:00:07.792] EGL version: 1.4 Bifrost-"g13p0-01eac0"
[ 6.313772] stream_cif_mipi_id1: close video, entity use_count 0
[17:00:07.792] EGL vendor: ARM
[ 6.889239] rk_gmac-dwmac fe010000.ethernet eth0: PHY [stmmac-1:00] driver [RTL8211F Gigabit Ethernet] (irq=POLL)
[17:00:07.792] EGL client APIs: OpenGL_ES
[ 6.891429] dwmac4: Master AXI performs any burst length
[17:00:07.792] EGL features:
[ 6.891473] rk_gmac-dwmac fe010000.ethernet eth0: No Safety Features support found
EGL Wayland extension: yes
[ 6.891507] rk_gmac-dwmac fe010000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported
context priority: yes
[ 6.891900] rk_gmac-dwmac fe010000.ethernet eth0: registered PTP clock
buffer age: no
[ 6.892452] rk_gmac-dwmac fe010000.ethernet eth0: configuring for phy/rgmii link mode
partial update: yes
[ 7.548511] dwhdmi-rockchip fe0a0000.hdmi: Rate 0 missing; compute N dynamically
swap buffers with damage: no
[ 7.549278] dwhdmi-rockchip fe0a0000.hdmi: Rate 0 missing; compute N dynamically
configless context: yes
[ 7.570179] dwhdmi-rockchip fe0a0000.hdmi: Rate 0 missing; compute N dynamically
surfaceless context: yes
[ 7.570643] dwhdmi-rockchip fe0a0000.hdmi: Rate 0 missing; compute N dynamically
dmabuf support: modifiers
[ 7.966679] file system registered
[17:00:07.818] GL version: OpenGL ES 3.2 v1.g13p0-01eac0.98c5dad4e3309b873e3189000b74ea36
[ 8.053469] read descriptors
[17:00:07.818] GLSL version: OpenGL ES GLSL ES 3.20
[ 8.053507] read strings
[17:00:07.818] GL vendor: ARM
[17:00:07.818] GL renderer: Mali-G52
E: [pulseaudio] module-rescue-streams.c: module-rescue-stream is obsolete and should no longer be loaded. Please remove it from your configuration.
E: [pulseaudio] module-console-kit.c: GetSessionsForUnixUser() call failed: org.freedesktop.DBus.Error.ServiceUnknown: The name org.freedesktop.ConsoleKit was not provided by any .service files
E: [pulseaudio] module.c: Failed to load module "module-console-kit" (argument: ""): initialization failed.
W: [pulseaudio] server-lookup.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
W: [pulseaudio] main.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
[17:00:08.044] GL ES 3.2 - renderer features:
read-back format: ARGB8888
glReadPixels supports y-flip: no
wl_shm 10 bpc formats: yes
wl_shm 16 bpc formats: no
wl_shm half-float formats: no
internal R and RG formats: yes
OES_EGL_image_external: yes
wl_shm sub-image to texture: yes
[17:00:08.045] Using GL renderer
[17:00:08.073] event4 - adc-keys: is tagged by udev as: Keyboard
[17:00:08.073] event4 - adc-keys: device is a keyboard
[17:00:08.075] event1 - rk805 pwrkey: is tagged by udev as: Keyboard
[17:00:08.075] event1 - rk805 pwrkey: device is a keyboard
[17:00:08.077] event0 - hdmi_cec_key: is tagged by udev as: Keyboard
[17:00:08.078] event0 - hdmi_cec_key: device is a keyboard
[17:00:08.079] event2 - gpio_event: not tagged as supported input device
[17:00:08.114] event2 - not using input device '/dev/input/event2'
[17:00:08.115] event3 - gpio_event: is tagged by udev as: Keyboard
[17:00:08.115] event3 - gpio_event: device is a keyboard
[17:00:08.176] libinput: configuring device "adc-keys".
[17:00:08.176] libinput: configuring device "rk805 pwrkey".
[17:00:08.176] libinput: configuring device "hdmi_cec_key".
[17:00:08.176] libinput: configuring device "gpio_event".
[17:00:08.176] Registered plugin API 'weston_drm_output_api_v1' of size 40
[17:00:08.176] Color manager: no-op
[17:00:08.176] Compositor capabilities:
arbitrary surface rotation: yes
screen capture uses y-flip: yes
cursor planes: yes
arbitrary resolutions: no
view mask clipping: yes
explicit sync: yes
color operations: no
presentation clock: CLOCK_MONOTONIC, id 1
presentation clock resolution: 0.000000001 s
[17:00:08.178] Loading module '/usr/lib/weston/desktop-shell.so'
[17:00:08.181] DRM: head 'HDMI-A-1' found, connector 114 is disconnected.
[17:00:08.181] Output 'DUMMY' attempts EOTF mode: SDR
[17:00:08.181] Output 'DUMMY' using color profile: stock sRGB color profile
[17:00:08.181] Chosen EGL config details: id: 9 rgba: 8 8 8 0 buf: 24 dep: 0 stcl: 0 int: 0-1 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[17:00:08.181] Output 'DUMMY' enabled with head(s) DUMMY
[17:00:08.181] launching '/usr/libexec/weston-keyboard'
[17:00:08.184] launching '/usr/libexec/weston-desktop-shell'
Failed to process Wayland connection: Broken pipe
failed to create display: Broken pipe
Failed to process Wayland connection: Broken pipe
failed to create display: Broken pipe
alsa-lib main.c:1541:(snd_use_case_mgr_open) error: failed to import hw:1 use case configuration -2
-i use default asound.conf
Starting mobilenet:OK
Starting input-event-daemon: done
viewlink_app start
Starting lighttpd: OK
root@rk3566-buildroot:/# [ 10.750932] dwc3 fcc00000.dwc3: device reset
[ 10.852371] android_work: sent uevent USB_STATE=CONNECTED
[ 10.928988] android_work: sent uevent USB_STATE=CONFIGURED
[ 10.932908] dwc3 fcc00000.dwc3: device reset
[ 10.943702] dwc3 fcc00000.dwc3: device reset
[ 11.065918] dwc3 fcc00000.dwc3: device reset
[ 11.180267] android_work: sent uevent USB_STATE=CONFIGURED
[ 11.182759] dwc3 fcc00000.dwc3: device reset
[ 11.192617] dwc3 fcc00000.dwc3: device reset
[ 11.314811] dwc3 fcc00000.dwc3: device reset
[ 11.417868] dwc3 fcc00000.dwc3: device reset
[ 11.430188] dwc3 fcc00000.dwc3: device reset
[ 11.552626] dwc3 fcc00000.dwc3: device reset
[ 11.670558] android_work: sent uevent USB_STATE=CONFIGURED
[ 11.676020] dwc3 fcc00000.dwc3: device reset
[ 11.693532] dwc3 fcc00000.dwc3: device reset
[ 11.815783] dwc3 fcc00000.dwc3: device reset
[ 11.918305] dwc3 fcc00000.dwc3: device reset
[ 11.929889] dwc3 fcc00000.dwc3: device reset
[ 12.051729] dwc3 fcc00000.dwc3: device reset
[ 12.166891] android_work: sent uevent USB_STATE=CONFIGURED
[ 12.171518] dwc3 fcc00000.dwc3: device reset
[ 12.185502] dwc3 fcc00000.dwc3: device reset
[ 12.308947] dwc3 fcc00000.dwc3: device reset
[ 12.411401] dwc3 fcc00000.dwc3: device reset
[ 12.423757] dwc3 fcc00000.dwc3: device reset
[ 12.545414] dwc3 fcc00000.dwc3: device reset
[ 12.648607] dwc3 fcc00000.dwc3: device reset
[ 12.660405] dwc3 fcc00000.dwc3: device reset
[ 12.784026] dwc3 fcc00000.dwc3: device reset
[ 12.885709] dwc3 fcc00000.dwc3: device reset
[ 12.896765] dwc3 fcc00000.dwc3: device reset
[ 13.019784] dwc3 fcc00000.dwc3: device reset
[ 13.122092] dwc3 fcc00000.dwc3: device reset
[ 13.195609] dwc3 fcc00000.dwc3: device reset
[ 13.317850] dwc3 fcc00000.dwc3: device reset
[ 13.431846] android_work: sent uevent USB_STATE=CONFIGURED
[ 13.432299] dwc3 fcc00000.dwc3: device reset
[ 13.446942] dwc3 fcc00000.dwc3: device reset
[ 13.570092] dwc3 fcc00000.dwc3: device reset
[ 13.674313] dwc3 fcc00000.dwc3: device reset
[ 13.691037] dwc3 fcc00000.dwc3: device reset
[ 13.814272] dwc3 fcc00000.dwc3: device reset
[ 13.920307] dwc3 fcc00000.dwc3: device reset
[ 13.938591] dwc3 fcc00000.dwc3: device reset
[ 14.060928] dwc3 fcc00000.dwc3: device reset
[ 14.166833] dwc3 fcc00000.dwc3: device reset
[ 14.184170] dwc3 fcc00000.dwc3: device reset
[ 14.305950] dwc3 fcc00000.dwc3: device reset
[ 14.408146] dwc3 fcc00000.dwc3: device reset
[ 14.425541] dwc3 fcc00000.dwc3: device reset
[ 14.547364] dwc3 fcc00000.dwc3: device reset
[ 14.652946] dwc3 fcc00000.dwc3: device reset
[ 14.697732] dwc3 fcc00000.dwc3: device reset
[ 14.820218] dwc3 fcc00000.dwc3: device reset
[ 14.922189] dwc3 fcc00000.dwc3: device reset
[ 14.934394] dwc3 fcc00000.dwc3: device reset
[ 15.055842] dwc3 fcc00000.dwc3: device reset
[ 15.163680] dwc3 fcc00000.dwc3: device reset
[ 15.181997] dwc3 fcc00000.dwc3: device reset
[ 15.303862] dwc3 fcc00000.dwc3: device reset
[ 15.411383] dwc3 fcc00000.dwc3: device reset
[ 15.428197] dwc3 fcc00000.dwc3: device reset
[ 15.550988] dwc3 fcc00000.dwc3: device reset
[ 15.655641] dwc3 fcc00000.dwc3: device reset
[ 15.674487] dwc3 fcc00000.dwc3: device reset
[ 15.798741] dwc3 fcc00000.dwc3: device reset
[ 15.902157] dwc3 fcc00000.dwc3: device reset
[ 15.913694] dwc3 fcc00000.dwc3: device reset
[ 16.036927] dwc3 fcc00000.dwc3: device reset
[ 16.143124] dwc3 fcc00000.dwc3: device reset
[ 16.159410] dwc3 fcc00000.dwc3: device reset
[ 16.281932] dwc3 fcc00000.dwc3: device reset
[ 16.388613] dwc3 fcc00000.dwc3: device reset
[ 16.407918] dwc3 fcc00000.dwc3: device reset
[ 16.530407] dwc3 fcc00000.dwc3: device reset
[ 16.633806] dwc3 fcc00000.dwc3: device reset
[ 16.644604] dwc3 fcc00000.dwc3: device reset
[ 16.767268] dwc3 fcc00000.dwc3: device reset
[ 16.869213] dwc3 fcc00000.dwc3: device reset
[ 16.881162] dwc3 fcc00000.dwc3: device reset
[ 17.003282] dwc3 fcc00000.dwc3: device reset
[ 17.105625] dwc3 fcc00000.dwc3: device reset
[ 17.116817] dwc3 fcc00000.dwc3: device reset
[ 17.241107] dwc3 fcc00000.dwc3: device reset
[ 17.343835] dwc3 fcc00000.dwc3: device reset
[ 17.355085] dwc3 fcc00000.dwc3: device reset
[ 17.476962] dwc3 fcc00000.dwc3: device reset
[ 17.579410] dwc3 fcc00000.dwc3: device reset
[ 17.590102] dwc3 fcc00000.dwc3: device reset
[ 17.712549] dwc3 fcc00000.dwc3: device reset
[ 17.815840] dwc3 fcc00000.dwc3: device reset
[ 17.828000] dwc3 fcc00000.dwc3: device reset
[ 17.949964] dwc3 fcc00000.dwc3: device reset
[ 18.052155] dwc3 fcc00000.dwc3: device reset
[ 18.063782] dwc3 fcc00000.dwc3: device reset
[ 18.186445] dwc3 fcc00000.dwc3: device reset
[ 18.289184] dwc3 fcc00000.dwc3: device reset
[ 18.302130] dwc3 fcc00000.dwc3: device reset
[ 18.424010] dwc3 fcc00000.dwc3: device reset
[ 18.526321] dwc3 fcc00000.dwc3: device reset
[ 18.537463] dwc3 fcc00000.dwc3: device reset
[ 18.661366] dwc3 fcc00000.dwc3: device reset
[ 18.764632] dwc3 fcc00000.dwc3: device reset
[ 18.775892] dwc3 fcc00000.dwc3: device reset
[ 18.898528] dwc3 fcc00000.dwc3: device reset
[ 19.001391] dwc3 fcc00000.dwc3: device reset
[ 19.013333] dwc3 fcc00000.dwc3: device reset
[ 19.136332] dwc3 fcc00000.dwc3: device reset
[ 19.238930] dwc3 fcc00000.dwc3: device reset
[ 19.250164] dwc3 fcc00000.dwc3: device reset
[ 19.374704] dwc3 fcc00000.dwc3: device reset
[ 19.477187] dwc3 fcc00000.dwc3: device reset
[ 19.488480] dwc3 fcc00000.dwc3: device reset
[ 19.610571] dwc3 fcc00000.dwc3: device reset
[ 19.713355] dwc3 fcc00000.dwc3: device reset
[ 19.786242] dwc3 fcc00000.dwc3: device reset
[ 19.907626] dwc3 fcc00000.dwc3: device reset
[ 20.010796] dwc3 fcc00000.dwc3: device reset
[ 20.021479] dwc3 fcc00000.dwc3: device reset
[ 20.143979] dwc3 fcc00000.dwc3: device reset
[ 20.245673] dwc3 fcc00000.dwc3: device reset
[ 20.257146] dwc3 fcc00000.dwc3: device reset
[ 20.379288] dwc3 fcc00000.dwc3: device reset
[ 20.482925] dwc3 fcc00000.dwc3: device reset
[ 20.494186] dwc3 fcc00000.dwc3: device reset
[ 20.615768] dwc3 fcc00000.dwc3: device reset
[ 20.717633] dwc3 fcc00000.dwc3: device reset
[ 20.728268] dwc3 fcc00000.dwc3: device reset
[ 36.095860] vcc3v3_lcd0_n: disabling
[ 36.095900] vcc3v3_lcd1_n: disabling
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# [ 188.926255] dwc3 fcc00000.dwc3: device reset
[ 189.005478] android_work: sent uevent USB_STATE=CONFIGURED
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
[END] 2025/4/24 9:41:50
扫一扫
1626
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
