数据类型列表：就是展现出可以绘制的数据类型，以图形或者文字的方式展现出来。而且展现出来的图形是能实时的反映出当前配置要素的显示风格。通过鼠标的单机实现类型的选择。

数据列表：用于显示当前用户已经绘制的内容，以树形列表的形式表现出来，鼠标打击其中元素可以高亮显示单机的对象，双击可以居中显示所选的图形要素；可以显示某个元素或者某类元素的显隐状态.

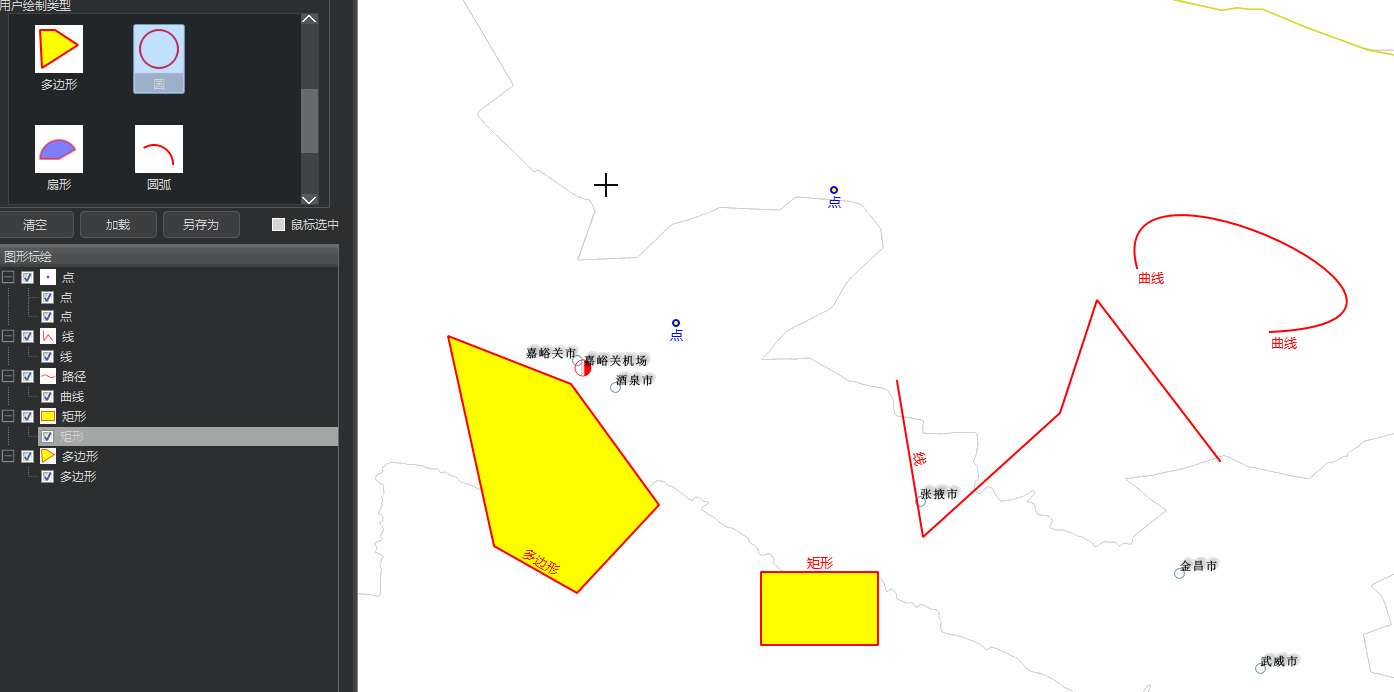

在这里插入图片描述
数据显示的要素定义文本（xml）

<?xml version="1.0" encoding="UTF-8"?>

<!--
 用户自定义标绘的属性配置
-->
<UserDefineDraw>
	<DrawPoint radius="3" outerWidth="2" outerColor="0,0,255" fillColor="255,255,0" alpha="255" showName="1">
	<DrawLine lineWidth="2" lineStyle="1" lineColor="255,0,0" alpha="255" showName="1">
	<DrawPath lineWidth="2" lineStyle="1" lineColor="255,0,0" alpha="255" showName="1">
	<DrawRect lineWidth="2" lineStyle="1" lineColor="255,0,0" fillColor="255,255,0" useFillColor="1" alpha="255" showName="1">
	<DrawPolygon lineWidth="2" lineStyle="1" lineColor="255,0,0" fillColor="255,255,0" useFillColor="1" alpha="255" showName="1">
	<DrawCircle lineWidth="2" lineStyle="1" lineColor="255,0,0" fillColor="255,255,0" useFillColor="0" alpha="255" showName="1">
	<DrawPie lineWidth="2" lineStyle="1" lineColor="255,0,0" fillColor="0,0,255" useFillColor="1" alpha="129" showName="1">
	<DrawCircleArc lineWidth="2" lineStyle="1" lineColor="255,0,0" alpha="255" showName="1">
	<DrawText fontName="宋体" fontSize="15" fontColor="255,0,0" fontBlod="0" fontItalics="0" fontAlpha="128" useBoder="1" lineWidth="2" lineStyle="1" lineColor="255,0,0" lineAlpha="158" useBKColor="0" bkColor="255,255,0" bkAlpha = "0">
</UserDefineDraw>

每添加一项数据内容就要添加一条文本内容，用来保存显示数据的显示风格。同时也会有对这些文本要素的读取和修改操作。
首先定义要素属性的基类：

//几何图形的基本属性

class GeoBaseProp {
public:
	GeoBaseProp();
	~GeoBaseProp();

	virtual void cleanData();
};


GeoBaseProp::GeoBaseProp() {
}

GeoBaseProp::~GeoBaseProp() {
}

void GeoBaseProp::cleanData() {

}

具体的图形要素（点、线其他要素不在列出）

GeoBaseProp::GeoBaseProp() {
}

GeoBaseProp::~GeoBaseProp() {
}

void GeoBaseProp::cleanData() {

}


GeoPointProp::GeoPointProp() {
}

GeoPointProp::~GeoPointProp() {
}

void GeoPointProp::setRadius(int r) {
	_radius = r;
}

int& GeoPointProp::getRadius() {
	return _radius;
}

void GeoPointProp::setOuterWidth(int w) {
	_outerWidth = w;
}

int& GeoPointProp::getOuterWidth() {
	return _outerWidth;
}

void GeoPointProp::setOuterColor(QColor color) {
	_clrOuter = color;
}

QColor& GeoPointProp::getOuterColor() {
	return _clrOuter;
}

void GeoPointProp::setFillColor(QColor color) {
	_clrFill = color;
}

QColor& GeoPointProp::getFillColor() {
	return _clrFill;
}

void GeoPointProp::setAlpha(int a) {
	_clrOuter.setAlpha(a);
	_clrFill.setAlpha(a);
	_alpha = a;
}

int& GeoPointProp::getAlpha() {
	return _alpha;
}

void GeoPointProp::setShowName(bool b) {
	_showName = b;
}

bool& GeoPointProp::getShowName() {
	return _showName;
}

线要素风格：

//线的显示属性

class GeoLineProp :	public GeoBaseProp {
public:
	GeoLineProp();
	~GeoLineProp();

	void setLineWidth(int w);
	int&getLineWidth();

	void setLineType(int type);
	int getLineType();

	void setLineColor(QColor color);
	QColor&getLineColor();

	void setLineAlpha(int a);
	int&getLineAlpha();

	void setShowName(bool b);
	bool&getShowName();

private:
	int _lineWidth = 2;//线宽
	Qt::PenStyle _lineType = Qt::SolidLine;//线型
	QColor _lineColor = QColor(255, 0, 0);//线色

	int _alpha = 128;//透明度
	bool _showName = true;//是否显示文本
};

GeoLineProp::GeoLineProp() {
}


GeoLineProp::~GeoLineProp() {
}

void GeoLineProp::setLineWidth(int w) {
	_lineWidth = w;
}

int& GeoLineProp::getLineWidth() {
	return _lineWidth;
}

void GeoLineProp::setLineType(int type) {
	_lineType = (Qt::PenStyle)type;
}

int GeoLineProp::getLineType() {
	return int(_lineType);
}

void GeoLineProp::setLineColor(QColor color) {
	_lineColor = color;
}

QColor& GeoLineProp::getLineColor() {
	return _lineColor;
}

void GeoLineProp::setLineAlpha(int a) {
	_lineColor.setAlpha(a);
	_alpha = a;
}

int& GeoLineProp::getLineAlpha() {
	return _alpha;
}

void GeoLineProp::setShowName(bool b) {
	_showName = b;
}

bool& GeoLineProp::getShowName() {
	return _showName;
}

要素文件的读取和保存
文件的基类：

class UserGeoCfg {
public:
	UserGeoCfg();
	~UserGeoCfg();

	virtual void loadGeoCfg(CMarkup* markUp);
	virtual void saveGeoCfg(CMarkup* markUp);

	GeoBaseProp* getGeoProp() {
		return _geoProp;
	}
protected:
	GeoBaseProp* _geoProp = nullptr;
};

UserGeoCfg::UserGeoCfg() {
}


UserGeoCfg::~UserGeoCfg() {
}

void UserGeoCfg::loadGeoCfg(CMarkup* markUp) {

}

void UserGeoCfg::saveGeoCfg(CMarkup* markUp) {

}

点要素属性的读写：

//用户自定义标绘 - 点的配置

class UserGeoPointCfg : public UserGeoCfg {
public:
	UserGeoPointCfg();
	~UserGeoPointCfg();

	virtual void loadGeoCfg(CMarkup* markUp);
	virtual void saveGeoCfg(CMarkup* markUp);
};


UserGeoPointCfg::UserGeoPointCfg() {
	_geoProp = new GeoPointProp;
}

UserGeoPointCfg::~UserGeoPointCfg() {

}

void UserGeoPointCfg::loadGeoCfg(CMarkup* markUp) {
	markUp->IntoElem();
	if (markUp->FindElem("DrawPoint") && _geoProp != nullptr) {
		//半径
		std::string r = markUp->GetAttrib("radius");
		GeoPointProp* pointProp = dynamic_cast<GeoPointProp*>(_geoProp);
		pointProp->setRadius(atoi(r.c_str()));

		//线宽
		std::string w = markUp->GetAttrib("outerWidth");
		pointProp->setOuterWidth(atoi(w.c_str()));

		//圆点外圈颜色
		std::string oc = markUp->GetAttrib("outerColor");
		pointProp->setOuterColor(CommTools::string2Color(oc));

		//圆圈的填充色
		std::string fc = markUp->GetAttrib("fillColor");
		pointProp->setFillColor(CommTools::string2Color(fc));

		//透明度
		std::string a = markUp->GetAttrib("alpha");
		pointProp->setAlpha(atoi(a.c_str()));

		//显示文本
		std::string sn = markUp->GetAttrib("showName");
		pointProp->setShowName(atoi(sn.c_str()));
	}
	markUp->OutOfElem();
}

void UserGeoPointCfg::saveGeoCfg(CMarkup* markUp) {
	markUp->IntoElem();
	if (markUp->FindElem("DrawPoint") && _geoProp != nullptr) {
		GeoPointProp* pointProp = dynamic_cast<GeoPointProp*>(_geoProp);
		markUp->SetAttrib("radius", pointProp->getRadius());
		markUp->SetAttrib("outerWidth", pointProp->getOuterWidth());
		markUp->SetAttrib("outerColor", CommTools::color2QString(pointProp->getOuterColor()));
		markUp->SetAttrib("fillColor", CommTools::color2QString(pointProp->getFillColor()));
		markUp->SetAttrib("alpha", pointProp->getAlpha());
		markUp->SetAttrib("showName", pointProp->getShowName());
	}
	markUp->OutOfElem();

}

线要素属性的读写：

//用户自定义标绘 - 线的配置

class UserGeoLineCfg : public UserGeoCfg {
public:
	UserGeoLineCfg();
	~UserGeoLineCfg();

	virtual void loadGeoCfg(CMarkup* markUp);
	virtual void saveGeoCfg(CMarkup* markUp);
};


UserGeoLineCfg::UserGeoLineCfg() {
	_geoProp = new GeoLineProp;
}

UserGeoLineCfg::~UserGeoLineCfg() {
}

void UserGeoLineCfg::loadGeoCfg(CMarkup* markUp) {
	markUp->IntoElem();
	if (markUp->FindElem("DrawLine") && _geoProp != nullptr) {
		GeoLineProp* lineProp = dynamic_cast<GeoLineProp*>(_geoProp);
		//线宽
		std::string w = markUp->GetAttrib("lineWidth");
		lineProp->setLineWidth(atoi(w.c_str()));

		//线型
		std::string s = markUp->GetAttrib("lineStyle");
		lineProp->setLineType(atoi(s.c_str()));

		//线色
		std::string c = markUp->GetAttrib("lineColor");
		lineProp->setLineColor(CommTools::string2Color(c));

		//透明度
		std::string a = markUp->GetAttrib("alpha");
		lineProp->setLineAlpha(atoi(a.c_str()));

		//显示文本
		std::string sn = markUp->GetAttrib("showName");
		lineProp->setShowName(atoi(sn.c_str()));
	}
	markUp->OutOfElem();
}

void UserGeoLineCfg::saveGeoCfg(CMarkup* markUp) {
	markUp->IntoElem();
	if (markUp->FindElem("DrawLine") && _geoProp != nullptr) {
		GeoLineProp* lineProp = dynamic_cast<GeoLineProp*>(_geoProp);
		markUp->SetAttrib("lineWidth", lineProp->getLineWidth());
		markUp->SetAttrib("lineStyle", lineProp->getLineType());
		markUp->SetAttrib("lineColor", CommTools::color2QString(lineProp->getLineColor()));
		markUp->SetAttrib("alpha", lineProp->getLineAlpha());
		markUp->SetAttrib("showName", lineProp->getShowName());
	}
	markUp->OutOfElem();
}

通过以上的数据信息可以保存显示要素的基本信息，然后通过文件读取获取要素的基本信息。修改之后的效果可以在类型列表中展现出来。

UserGeoLineCfg::UserGeoLineCfg() {
	_geoProp = new GeoLineProp;
}


UserGeoLineCfg::~UserGeoLineCfg() {
}

void UserGeoLineCfg::loadGeoCfg(CMarkup* markUp) {
	markUp->IntoElem();
	if (markUp->FindElem("DrawLine") && _geoProp != nullptr) {
		GeoLineProp* lineProp = dynamic_cast<GeoLineProp*>(_geoProp);
		//线宽
		std::string w = markUp->GetAttrib("lineWidth");
		lineProp->setLineWidth(atoi(w.c_str()));

		//线型
		std::string s = markUp->GetAttrib("lineStyle");
		lineProp->setLineType(atoi(s.c_str()));

		//线色
		std::string c = markUp->GetAttrib("lineColor");
		lineProp->setLineColor(CommTools::string2Color(c));

		//透明度
		std::string a = markUp->GetAttrib("alpha");
		lineProp->setLineAlpha(atoi(a.c_str()));

		//显示文本
		std::string sn = markUp->GetAttrib("showName");
		lineProp->setShowName(atoi(sn.c_str()));
	}
	markUp->OutOfElem();
}

void UserGeoLineCfg::saveGeoCfg(CMarkup* markUp) {
	markUp->IntoElem();
	if (markUp->FindElem("DrawLine") && _geoProp != nullptr) {
		GeoLineProp* lineProp = dynamic_cast<GeoLineProp*>(_geoProp);
		markUp->SetAttrib("lineWidth", lineProp->getLineWidth());
		markUp->SetAttrib("lineStyle", lineProp->getLineType());
		markUp->SetAttrib("lineColor", CommTools::color2QString(lineProp->getLineColor()));
		markUp->SetAttrib("alpha", lineProp->getLineAlpha());
		markUp->SetAttrib("showName", lineProp->getShowName());
	}
	markUp->OutOfElem();
}


QtGuiUserDrawType::QtGuiUserDrawType(QWidget *parent)
	: QWidget(parent) {
	ui.setupUi(this);
	CurrentDrawFinishMgr()->saveDrawFinish(this);
	init();
}

QtGuiUserDrawType::~QtGuiUserDrawType() {

}

QPixmap& QtGuiUserDrawType::getGeoPixmap(USER_DRAW_TYPE&t) {
	switch (t) {
		case USER_DRAW_POINT:
		return _pointIcon;
		case USER_DRAW_LINE://线
		return _lineIcon;
		case USER_DRAW_PATH://路径
		return _pathIcon;
		case USER_DRAW_RECT://矩形
		return _rectIcon;
		case USER_DRAW_POLYGON://多边形
		return _polygonIcon;
		case USER_DRAW_CIRCLE://圆
		return _circleIcon;
		case USER_DRAW_PIE://扇形
		return _pieIcon;
		case USER_DRAW_CIRCLE_ARC://圆弧
		return _circleArcIcon;
		case USER_DRAW_TEXT://文本
		return _textIcon;
		default:
		break;
	}
	return _pointIcon;
}

void QtGuiUserDrawType::updateIcon() {
	setIcon();
}

void QtGuiUserDrawType::drawFinish(USER_DRAW_TYPE t) {
	//保存当前绘制的类型
	DrawGeoMapInst()->setCurrentUserDrawType(USER_DRAW_NULL);

	//设置鼠标操作互斥
	DrawGeoMapInst()->setEventUse(false);

	//设置鼠标为箭头
	setCursor(Qt::ArrowCursor);
	//设置地图鼠标为箭头
	GlobalUseInst()->load2DMapUpdate()->setCursor(Qt::ArrowCursor);
}

void QtGuiUserDrawType::init() {
	_slm = new QStandardItemModel;

	ui.listView->setViewMode(QListView::IconMode);
	ui.listView->setMovement(QListView::Static);
	ui.listView->setIconSize(QSize(100, 100));
	ui.listView->setResizeMode(QListView::Adjust);
	ui.listView->setWordWrap(true);
	ui.listView->setGridSize(QSize(100, 100));

	ui.listView->setContextMenuPolicy(Qt::CustomContextMenu);
	connect(ui.listView, SIGNAL(customContextMenuRequested(const QPoint&)),	this, SLOT(slotContextMenu(const QPoint&)));
	QObject::connect(ui.listView, SIGNAL(clicked(QModelIndex)), this, SLOT(slotItemClicked(QModelIndex)));

	ui.listView->setModel(_slm);
	setIcon();

	_rightTypeMenuFactory = new RightTypeMenuFactory;
}

void QtGuiUserDrawType::setIcon() {
	_slm->clear();

	_slm->appendRow(iconPoint());
	_slm->appendRow(iconLine());
	_slm->appendRow(iconPath());
	_slm->appendRow(iconRect());
	_slm->appendRow(iconPolygon());
	_slm->appendRow(iconCircle());
	_slm->appendRow(iconPie());
	_slm->appendRow(iconCircleArc());
	_slm->appendRow(iconText());
}

QStandardItem* QtGuiUserDrawType::iconPoint() {
	_pointIcon = QPixmap(_iconWidth, _iconHeight);
	_pointIcon.fill(Qt::white);
	QPainter painter(&_pointIcon);
	painter.setRenderHint(QPainter::Antialiasing, true);

	//根据属性配置显示内容
	GeoPointProp*pointProp = dynamic_cast<GeoPointProp*>(UserGeoCfgMgr()->getGeoProp(USER_DRAW_POINT));
	if (pointProp != nullptr){
		painter.setPen(QPen(pointProp->getOuterColor(), pointProp->getOuterWidth(), Qt::SolidLine));
		painter.setBrush(pointProp->getFillColor());

		painter.drawEllipse(_iconWidth / 2 - pointProp->getRadius()
			, _iconHeight / 2 - pointProp->getRadius()
			, pointProp->getRadius() * 2
			, pointProp->getRadius() * 2);
	}

	QStandardItem *item = new QStandardItem(QIcon(_pointIcon), QStringLiteral("点"));
	item->setEditable(false);
	item->setData(USER_DRAW_POINT);
	return item;
}

QStandardItem* QtGuiUserDrawType::iconLine() {
	_lineIcon = QPixmap(_iconWidth, _iconHeight);
	_lineIcon.fill(Qt::white);
	QPainter painter(&_lineIcon);
	painter.setRenderHint(QPainter::Antialiasing, true);
	GeoLineProp*lineProp = dynamic_cast<GeoLineProp*>(UserGeoCfgMgr()->getGeoProp(USER_DRAW_LINE));
	if (lineProp != nullptr) {
		QPen pen;
		pen.setColor(lineProp->getLineColor());
		pen.setWidth(lineProp->getLineWidth());
		pen.setStyle((Qt::PenStyle)lineProp->getLineType());
		painter.setPen(pen);
	}
	painter.drawLine(10, 10, 12, _iconHeight - 10);
	painter.drawLine(12, _iconHeight - 10, 25, 20);
	painter.drawLine(25, 20, _iconWidth - 10, _iconHeight - 10);
	QStandardItem *item = new QStandardItem(QIcon(_lineIcon), QStringLiteral("线"));
	item->setEditable(false);
	item->setData(USER_DRAW_LINE);
	return item;
}

QStandardItem* QtGuiUserDrawType::iconPath() {
	_pathIcon = QPixmap(_iconWidth, _iconHeight);
	_pathIcon.fill(Qt::white);
	QPainter painter(&_pathIcon);
	painter.setRenderHint(QPainter::Antialiasing, true);
	GeoPathProp*pathProp = dynamic_cast<GeoPathProp*>(UserGeoCfgMgr()->getGeoProp(USER_DRAW_PATH));
	if (pathProp != nullptr) {
		QPen pen;
		pen.setColor(pathProp->getLineColor());
		pen.setWidth(pathProp->getLineWidth());
		pen.setStyle((Qt::PenStyle)pathProp->getLineType());
		painter.setPen(pen);
	}
	QPainterPath path(QPoint(5, 25));

	path.cubicTo(QPointF(20, 10), QPointF(30, 40), QPointF(45,24));

	painter.drawPath(path);
	QStandardItem *item = new QStandardItem(QIcon(_pathIcon), QStringLiteral("曲线"));
	item->setEditable(false);
	item->setData(USER_DRAW_PATH);
	return item;
}

QStandardItem* QtGuiUserDrawType::iconRect() {
	_rectIcon = QPixmap(_iconWidth, _iconHeight);
	_rectIcon.fill(Qt::white);
	QPainter painter(&_rectIcon);
	painter.setRenderHint(QPainter::Antialiasing, true);
	GeoRectProp*rectProp = dynamic_cast<GeoRectProp*>(UserGeoCfgMgr()->getGeoProp(USER_DRAW_RECT));
	if (rectProp != nullptr) {
		painter.setPen(QPen(rectProp->getLineColor(), rectProp->getLineWidth(), (Qt::PenStyle)rectProp->getLineType()));
		if (rectProp->getUseFillColor()){
			painter.setBrush(rectProp->getFillColor());
		} else {
			painter.setBrush(Qt::NoBrush);
		}
		painter.drawRect(5, 10, _iconWidth - 10, _iconHeight - 20);
	}
	QStandardItem *item = new QStandardItem(QIcon(_rectIcon), QStringLiteral("矩形"));
	item->setEditable(false);
	item->setData(USER_DRAW_RECT);
	return item;
}

QStandardItem* QtGuiUserDrawType::iconPolygon() {
	_polygonIcon = QPixmap(_iconWidth, _iconHeight);
	_polygonIcon.fill(Qt::white);
	QPainter painter(&_polygonIcon);
	painter.setRenderHint(QPainter::Antialiasing, true);
	GeoPolygonProp*polygonProp = dynamic_cast<GeoPolygonProp*>(UserGeoCfgMgr()->getGeoProp(USER_DRAW_POLYGON));
	if (polygonProp != nullptr) {
		painter.setPen(QPen(polygonProp->getLineColor(), polygonProp->getLineWidth(), (Qt::PenStyle)polygonProp->getLineType()));
		if (polygonProp->getUseFillColor()){
			painter.setBrush(polygonProp->getFillColor());
		} else {
			painter.setBrush(Qt::NoBrush);
		}
	}
	QPolygon poiygon;
	poiygon.push_back(QPoint(5, 5));
	poiygon.push_back(QPoint(7, _iconHeight-5));
	poiygon.push_back(QPoint(_iconWidth-5, 20));
	poiygon.push_back(QPoint(20, 5));
	painter.drawPolygon(poiygon);
	QStandardItem *item = new QStandardItem(QIcon(_polygonIcon), QStringLiteral("多边形"));
	item->setEditable(false);
	item->setData(USER_DRAW_POLYGON);
	return item;
}


QStandardItem* QtGuiUserDrawType::iconCircle() {
	_circleIcon = QPixmap(_iconWidth, _iconHeight);
	_circleIcon.fill(Qt::white);
	QPainter painter(&_circleIcon);
	painter.setRenderHint(QPainter::Antialiasing, true);
	GeoCircleProp*circleProp = dynamic_cast<GeoCircleProp*>(UserGeoCfgMgr()->getGeoProp(USER_DRAW_CIRCLE));
	if (circleProp != nullptr) {
		painter.setPen(QPen(circleProp->getLineColor(), circleProp->getLineWidth(), (Qt::PenStyle)circleProp->getLineType()));
		if (circleProp->getUseFillColor()) {
			painter.setBrush(circleProp->getFillColor());
		} else {
			painter.setBrush(Qt::NoBrush);
		}
	}

	painter.drawEllipse(5, 5, _iconWidth - 10, _iconHeight - 10);
	QStandardItem *item = new QStandardItem(QIcon(_circleIcon), QStringLiteral("圆"));
	item->setEditable(false);
	item->setData(USER_DRAW_CIRCLE);
	return item;
}

QStandardItem* QtGuiUserDrawType::iconPie() {
	_pieIcon = QPixmap(_iconWidth, _iconHeight);
	_pieIcon.fill(Qt::white);
	QPainter painter(&_pieIcon);
	painter.setRenderHint(QPainter::Antialiasing, true);
	GeoPieProp*pieProp = dynamic_cast<GeoPieProp*>(UserGeoCfgMgr()->getGeoProp(USER_DRAW_PIE));
	if (pieProp != nullptr) {
		painter.setPen(QPen(pieProp->getLineColor(), pieProp->getLineWidth(), (Qt::PenStyle)pieProp->getLineType()));
		if (pieProp->getUseFillColor()) {
			painter.setBrush(pieProp->getFillColor());
		} else {
			painter.setBrush(Qt::NoBrush);
		}
	}
	painter.drawPie(5, 15, _iconWidth - 10, _iconHeight - 10, 30 * 16, 150 * 16);
	QStandardItem *item = new QStandardItem(QIcon(_pieIcon), QStringLiteral("扇形"));
	item->setEditable(false);
	item->setData(USER_DRAW_PIE);
	return item;
}

QStandardItem* QtGuiUserDrawType::iconCircleArc() {
	_circleArcIcon = QPixmap(_iconWidth, _iconHeight);
	_circleArcIcon.fill(Qt::white);
	QPainter painter(&_circleArcIcon);
	painter.setRenderHint(QPainter::Antialiasing, true);

	GeoCircleArcProp*circlePieProp = dynamic_cast<GeoCircleArcProp*>(UserGeoCfgMgr()->getGeoProp(USER_DRAW_CIRCLE_ARC));
	if (circlePieProp != nullptr) {
		painter.setPen(QPen(circlePieProp->getLineColor(), circlePieProp->getLineWidth(), (Qt::PenStyle)circlePieProp->getLineType()));
	}

	painter.drawArc(0, 20, _iconWidth - 10, _iconHeight - 10, 0, 120 * 16);
	QStandardItem *item = new QStandardItem(QIcon(_circleArcIcon), QStringLiteral("圆弧"));
	item->setEditable(false);
	item->setData(USER_DRAW_CIRCLE_ARC);
	return item;
}

QStandardItem* QtGuiUserDrawType::iconText() {
	_textIcon = QPixmap(_iconWidth, _iconHeight);
	_textIcon.fill(Qt::white);
	QPainter painter(&_textIcon);
	painter.setRenderHint(QPainter::Antialiasing, true);

	QRect rect;

	rect.setX(3);
	rect.setTop(3);
	rect.setWidth(42);
	rect.setHeight(42);
	GeoTextProp*textProp = dynamic_cast<GeoTextProp*>(UserGeoCfgMgr()->getGeoProp(USER_DRAW_TEXT));

	if (textProp->getUseBoder()) {//使用边框
		QPen penLine(QBrush(textProp->getLineColor()), textProp->getLineWidth(), Qt::PenStyle(textProp->getLineType()));
		painter.setPen(penLine);
		painter.setBrush(Qt::NoBrush);
		painter.drawRect(rect);
	}

	if (textProp->getUseBKColor()) {//绘制背景色
		QBrush brush(textProp->getBKColor());
		painter.setBrush(brush);
		painter.setPen(Qt::NoPen);
		painter.drawRect(rect);
	}

	if (textProp != nullptr) {
		painter.setPen(QPen(textProp->getFontColor(), 2, Qt::SolidLine));
		QFont font(textProp->getFontFamily(), textProp->getFontSize());
		font.setBold(textProp->getBold());
		font.setItalic(textProp->getItalics());
		painter.setFont(font);
	}

	painter.drawText(5, 30, QStringLiteral("文本"));
	QStandardItem *item = new QStandardItem(QIcon(_textIcon), QStringLiteral("文本"));
	item->setEditable(false);
	item->setData(USER_DRAW_TEXT);
	return item;
}

void QtGuiUserDrawType::slotItemClicked(QModelIndex idx) {
	QStandardItem *curItem = _slm->itemFromIndex(idx);
	int userType = curItem->data().toInt();
	//保存当前绘制的类型
	DrawGeoMapInst()->setCurrentUserDrawType(USER_DRAW_TYPE(userType));

	//设置鼠标操作互斥
	MutualMouse()->setAllMouseEventUse(false);
	DrawGeoMapInst()->setEventUse(true);

	//鼠标选中几何图形
	MouseSelectMgr()->useMouseSelect(false);
}

void QtGuiUserDrawType::slotContextMenu(const QPoint&pt) {
	QModelIndex idx = ui.listView->indexAt(pt);
	QStandardItem *curItem = _slm->itemFromIndex(idx);
	if (curItem == nullptr){
		return;
	}
	int userType = curItem->data().toInt();

	QtRightTypeAction* menuList = _rightTypeMenuFactory->getGeoTypeMenu(USER_DRAW_TYPE(userType), this);
	menuList->typeMenuList()->exec(QCursor::pos());//在当前鼠标位置显示

}


class QtGuiUserDrawList : public QWidget,public IMouseSelect {
	Q_OBJECT

public:
	QtGuiUserDrawList(QWidget *parent = Q_NULLPTR);
	~QtGuiUserDrawList();

	void registerItemIcon(IGeoIcon* icon);

	virtual void cancelMouseSelect()override;
	virtual void mouseSelectGeo(USER_DRAW_TYPE type, long long geoID)override;

private:
	void init();

private slots:
	void slotMouseSelect(int s);
	void slotBntClearGeo();
	void slotBntLoad();
	void slotBntSaveAs();
private:
	Ui::QtGuiUserDrawList ui;

	UserDrawTree* _userDrawTree = nullptr;
};


QtGuiUserDrawList::QtGuiUserDrawList(QWidget *parent)
	: QWidget(parent) {
	ui.setupUi(this);
	_userDrawTree = ui.treeWidget;
	init();

	MouseSelectMgr()->setMouseSelectUI(this);
}

QtGuiUserDrawList::~QtGuiUserDrawList() {

}

void QtGuiUserDrawList::registerItemIcon(IGeoIcon* icon) {
	_userDrawTree->registerItemIcon(icon);
}

void QtGuiUserDrawList::cancelMouseSelect() {
	ui.checkBoxMouseSelect->setChecked(false);
}

void QtGuiUserDrawList::mouseSelectGeo(USER_DRAW_TYPE type, long long geoID) {
	_userDrawTree->selectItem(type, geoID);
}

void QtGuiUserDrawList::init() {
	bool b = connect(ui.checkBoxMouseSelect,SIGNAL(stateChanged(int)), this, SLOT(slotMouseSelect(int)));
	b = connect(ui.pushButtonClear, SIGNAL(clicked()), this, SLOT(slotBntClearGeo()));
	b = connect(ui.pushButtonLoad, SIGNAL(clicked()), this, SLOT(slotBntLoad()));
	b = connect(ui.pushButtonSaveAs, SIGNAL(clicked()), this, SLOT(slotBntSaveAs()));
}

void QtGuiUserDrawList::slotMouseSelect(int s) {
	MouseSelectMgr()->useMouseSelect(s == Qt::Checked);
}

void QtGuiUserDrawList::slotBntClearGeo() {
	if (0 == QMessageBox::question(nullptr, QStringLiteral("删除"), QStringLiteral("确定要清空绘制数据吗？"), QStringLiteral("确定"), QStringLiteral("取消"))) {
		UserDefineDataMgr()->cleanData();
		_userDrawTree->cleanTree();
		GlobalUseInst()->load2DMapUpdate()->update2DMap();
	}
}

void QtGuiUserDrawList::slotBntLoad() {
	QString fileName = QFileDialog::getOpenFileName(this,
		QStringLiteral("加载用户绘制数据"), "", tr("Draw Data (*.wbx)"));

	if (!fileName.isNull()) {//fileName即是选择的文件名
		GeoStorageMgr()->loadFromFile(fileName);
	}
	GlobalUseInst()->load2DMapUpdate()->update2DMap();
}

void QtGuiUserDrawList::slotBntSaveAs() {
	QString fileName = QFileDialog::getSaveFileName(this, QStringLiteral("保存用户绘制数据"), "", tr("Draw Data (*.wbx)"));

	GeoStorageMgr()->saveToFile(fileName);

	QString msg = QStringLiteral("用户数据已保存，数据路径:");
	msg += fileName;
	QMessageBox::information(0, QStringLiteral("提示"), msg, QStringLiteral("确定"));
}

里面用到了一个自定义的树形控件：

class UserDrawTree : public QTreeWidget,public IUserDrawTreeOpt {
	Q_OBJECT

public:
	UserDrawTree(QWidget *parent);
	~UserDrawTree();

	void registerItemIcon(IGeoIcon* icon);

	virtual void addGeoOnTree(BaseGeo* geo)override;
	virtual void deleteGeoOnTree(BaseGeo* geo)override;
	virtual void updateTreeItem(BaseGeo* geo);

	void selectItem(USER_DRAW_TYPE type, long long geoID);

	void cleanTree();
private:
	void initTree();
	QTreeWidgetItem * addTopItem(USER_DRAW_TYPE t);
	QTreeWidgetItem * addTopItem(QString name, USER_DRAW_TYPE t);
	QString rootItemText(USER_DRAW_TYPE t);

private slots :
	void slotRClick(QPoint pt);
	void slotPressItem(QTreeWidgetItem *item);
	void slotDoubleClickItem(QTreeWidgetItem *item);
	void slotCheckChange(QTreeWidgetItem *item, int col);
private:
	IGeoIcon* _geoIcon = nullptr;
	RightGeoMenuFactory* _rightGeoMenuFactory = nullptr;//根据绘制元素的类型和ID创建菜单
	DoubleClickItemManager* _doubleClickItemManager = nullptr;
};


UserDrawTree::UserDrawTree(QWidget *parent)
	: QTreeWidget(parent) {
	UserDefineDataMgr()->registerTreeAdd(this);
	initTree();
	_rightGeoMenuFactory = new RightGeoMenuFactory;
	_doubleClickItemManager = new DoubleClickItemManager;
}

UserDrawTree::~UserDrawTree() {

}

void UserDrawTree::registerItemIcon(IGeoIcon* icon) {
	_geoIcon = icon;
}

void UserDrawTree::addGeoOnTree(BaseGeo* geo) {
	USER_DRAW_TYPE t = geo->getUserDrawDataType();
	if (t == USER_DRAW_NULL){//通过界面添加几何对象的时候，不要创建树形节点
		return;
	}
	QTreeWidgetItem* rootItem = addTopItem(t);
	rootItem->setExpanded(true);

	//保存具体的数据
	QTreeWidgetItem* childItem = new QTreeWidgetItem(rootItem, QStringList(geo->getGeoName()));
	childItem->setCheckState(0, Qt::Checked);
	childItem->setData(0, Qt::UserRole, 1);//保存当前层级

	childItem->setData(1, Qt::UserRole, geo->getGeoID());
	childItem->setExpanded(true);
}

void UserDrawTree::deleteGeoOnTree(BaseGeo* geo) {
	QTreeWidgetItemIterator it(this);
	while (*it) {
		int level = (*it)->data(0, Qt::UserRole).toInt();
		if (level == 1) {//第二层
			long long id = (*it)->data(1, Qt::UserRole).toLongLong();
			if (geo->getGeoID() == id) {
				int idx = (*it)->parent()->indexOfChild(*it);
				(*it)->parent()->takeChild(idx);
				break;
			}
		}
		it++;
	}
}

void UserDrawTree::updateTreeItem(BaseGeo* geo) {
	QTreeWidgetItemIterator it(this);
	while (*it) {
		int level = (*it)->data(0, Qt::UserRole).toInt();
		if (level == 1) {//第二层
			long long id = (*it)->data(1, Qt::UserRole).toLongLong();
			if (geo->getGeoID() == id) {
				(*it)->setText(0, geo->getGeoName());
				break;
			}
		}
		it++;
	}
}

void UserDrawTree::selectItem(USER_DRAW_TYPE type, long long geoID) {
	QTreeWidgetItemIterator it(this);
	while (*it) {
		int level = (*it)->data(0, Qt::UserRole).toInt();
		if (level == 1) {//第二层
			long long id = (*it)->data(1, Qt::UserRole).toLongLong();
			if (geoID == id){
				(*it)->setSelected(true);
			} else {
				(*it)->setSelected(false);
			}
		}
		it++;
	}
}

void UserDrawTree::cleanTree() {
	this->clear();
}

void UserDrawTree::initTree() {
	this->setContextMenuPolicy(Qt::CustomContextMenu);
	connect(this, SIGNAL(customContextMenuRequested(QPoint)), this, SLOT(slotRClick(QPoint)));
	connect(this, SIGNAL(itemPressed(QTreeWidgetItem*, int)), this, SLOT(slotPressItem(QTreeWidgetItem*)));
	connect(this, SIGNAL(itemDoubleClicked(QTreeWidgetItem*, int)), this, SLOT(slotDoubleClickItem(QTreeWidgetItem*)));
	connect(this, SIGNAL(itemClicked(QTreeWidgetItem*, int)), this, SLOT(slotCheckChange(QTreeWidgetItem *, int)));
}

QTreeWidgetItem * UserDrawTree::addTopItem(USER_DRAW_TYPE t) {
	int topNum = topLevelItemCount();
	for (int i = 0; i < topNum; i++) {
		QTreeWidgetItem *topItem = topLevelItem(i);
		int type = topItem->data(1, Qt::UserRole).toInt();
		if (type == t){//如果存在当前这个根节点
			return topItem;
		}
	}

	return addTopItem(rootItemText(t), t);
}

QTreeWidgetItem * UserDrawTree::addTopItem(QString name, USER_DRAW_TYPE t) {
	QTreeWidgetItem* rootItem = new QTreeWidgetItem(this, QStringList(name));
	rootItem->setData(0, Qt::UserRole, 0);//保存当前层级
	rootItem->setData(1, Qt::UserRole, QVariant(t));//保存当前几何类型
	if (_geoIcon != nullptr) {
		rootItem->setIcon(0, QIcon(_geoIcon->getGeoPixmap(t)));
	}
	rootItem->setCheckState(0, Qt::Checked);
	rootItem->setFlags(Qt::ItemIsTristate | rootItem->flags());

	this->addTopLevelItem(rootItem);
	return rootItem;
}

QString UserDrawTree::rootItemText(USER_DRAW_TYPE t) {
	QString name = "";
	switch (t) {
		case USER_DRAW_NULL:
		break;
		case USER_DRAW_POINT:
		name = QStringLiteral("点");
		break;
		case USER_DRAW_LINE:
		name = QStringLiteral("线");
		break;
		case USER_DRAW_PATH:
		name = QStringLiteral("路径");
		break;
		case USER_DRAW_RECT:
		name = QStringLiteral("矩形");
		break;
		case USER_DRAW_POLYGON:
		name = QStringLiteral("多边形");
		break;
		case USER_DRAW_CIRCLE:
		name = QStringLiteral("圆");
		break;
		case USER_DRAW_PIE:
		name = QStringLiteral("扇形");
		break;
		case USER_DRAW_CIRCLE_ARC:
		name = QStringLiteral("圆弧");
		break;
		case USER_DRAW_TEXT:
		name = QStringLiteral("文本");
		break;
		default:
		break;
	}
	return name;
}

void UserDrawTree::slotRClick(QPoint pt) {
	QTreeWidgetItem* clickItem = itemAt(pt);
	if (clickItem == nullptr){
		return;
	}
	int level = clickItem->data(0, Qt::UserRole).toInt();
	if (level == 1){
		int type = clickItem->parent()->data(1, Qt::UserRole).toInt();//几何类型
		long long id = clickItem->data(1, Qt::UserRole).toLongLong();//几何ID

		QtRightGeoAction*menu = _rightGeoMenuFactory->getGeoMenu((USER_DRAW_TYPE)type);
		menu->popMenu((USER_DRAW_TYPE)type, id, QCursor::pos());//在当前鼠标位置显示
	}
}

void UserDrawTree::slotPressItem(QTreeWidgetItem *item) {
	int level = item->data(0, Qt::UserRole).toInt();
	if (level == 1) {//第二层
		long long id = item->data(1, Qt::UserRole).toLongLong();
		UserDefineDataMgr()->setGeoHightLight(id);
		GlobalUseInst()->load2DMapUpdate()->update2DMap();
	}
}

void UserDrawTree::slotDoubleClickItem(QTreeWidgetItem *item) {
	int level = item->data(0, Qt::UserRole).toInt();
	if (level == 1) {//第二层
		int type = item->parent()->data(1, Qt::UserRole).toInt();//几何类型
		long long id = item->data(1, Qt::UserRole).toLongLong();//几何ID

		//双击选中的GEO
		BaseGeo* selectGeo = UserDefineDataMgr()->findGeo(USER_DRAW_TYPE(type), id);
		_doubleClickItemManager->centerGeo(selectGeo);

		GlobalUseInst()->load2DMapUpdate()->update2DMap();
	}
}

void UserDrawTree::slotCheckChange(QTreeWidgetItem *item, int col) {
	int level = item->data(0, Qt::UserRole).toInt();
	if (level == 0) {//第一层
		int type = item->data(1, Qt::UserRole).toInt();

		if (item->checkState(0) != Qt::PartiallyChecked) {
			UserDefineDataMgr()->setGeoShow((USER_DRAW_TYPE)type, item->checkState(0) == Qt::Checked);
		}
	} else if (level == 1) {//第二层
		int type = item->parent()->data(1, Qt::UserRole).toInt();//几何类型
		long long id = item->data(1, Qt::UserRole).toLongLong();//几何ID
		if (item->checkState(0) != Qt::PartiallyChecked) {
			UserDefineDataMgr()->setGeoShow((USER_DRAW_TYPE)type, id, item->checkState(0) == Qt::Checked);
		}

	}
	GlobalUseInst()->load2DMapUpdate()->update2DMap();
}

aaa

评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

wb175208

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
