gitlab集成k8s的问题

warrah

已于 2025-01-04 21:59:29 修改

阅读量1.8k

点赞数

分类专栏：岁月云——运维文章标签： kubernetes

于 2020-10-12 11:49:47 首次发布

本文链接：https://blog.youkuaiyun.com/warrah/article/details/108999386

版权

岁月云——运维专栏收录该内容

50 篇文章

订阅专栏

1 k8s中metrics不能工作影响gitlab的推进

下方是k8s中的日志

status:
  conditions:
    - lastTransitionTime: '2020-07-16T04:10:58Z'
      message: >-
        failing or missing response from
        https://10.101.30.104:4443/apis/metrics.k8s.io/v1beta1: Get
        https://10.101.30.104:4443/apis/metrics.k8s.io/v1beta1: dial tcp
        10.101.30.104:4443: connect: no route to host
      reason: FailedDiscoveryCheck
      status: 'False'
      type: Available

下方是metrics-server的日志

unable to fully collect metrics: unable to fully scrape metrics from source kubelet_summary:worker3.sh-cluster.sh-k8s.com: unable to get CPU for container "copyright-v1" in pod spider/copyright-v1-dcd6f785b-4ztkn on node "10.101.30.106", discarding data: missing cpu usage metric

参考kubernetes metrics 不能工作问题，这里面说解决方案只适用于测试环境，不适合生产环境，这是为啥呢？
根据 Metrics server 常见问题中说明，提示了两个错误原因

使用二进制安装方式安装 Kubernetes 集群，但是未在 Master 节点上启用 kube-proxy 组件；
master 节点与 metrics-server 所在的 worker 节点之间有防火墙，或者不在同一个安全组；

那么检查master节点是否启用了kube-proxy组件呢
根据K8S 资源指标监控-部署metrics-server，执行命令kubectl get pods -n kube-system，我的服务器上确实没有看到kube-proxy

在仔细阅读metrics-server采集数据失败问题排查,执行kubectl describe apiservice v1beta1.metrics.k8s.io查看apiService的状态,我报的错跟他的一模一样，但是解决方案却不是一样的，我没有增加什么额外的配置

[root@worker1 ~]# kubectl describe apiservice v1beta1.metrics.k8s.io
Name:         v1beta1.metrics.k8s.io
Namespace:
Labels:       <none>
Annotations:  kubectl.kubernetes.io/last-applied-configuration:
                {"apiVersion":"apiregistration.k8s.io/v1beta1","kind":"APIService","metadata":{"annotations":{},"name":"v1beta1.metrics.k8s.io"},"spec":{"...
API Version:  apiregistration.k8s.io/v1
Kind:         APIService
Metadata:
  Creation Timestamp:  2020-07-16T03:33:42Z
  Resource Version:    20595406
  Self Link:           /apis/apiregistration.k8s.io/v1/apiservices/v1beta1.metrics.k8s.io
  UID:                 65ebc093-4ca4-4f70-a6df-8d3babfe7a1d
Spec:
  Group:                     metrics.k8s.io
  Group Priority Minimum:    100
  Insecure Skip TLS Verify:  true
  Service:
    Name:            metrics-server
    Namespace:       kube-system
    Port:            443
  Version:           v1beta1
  Version Priority:  100
Status:
  Conditions:
    Last Transition Time:  2020-07-16T04:10:58Z
    Message:               failing or missing response from https://10.101.30.104:4443/apis/metrics.k8s.io/v1beta1: Get https://10.101.30.104:4443/apis/metrics.k8s.io/v1beta1: dial tcp 10.101.30.104:4443: connect: connection timed out
    Reason:                FailedDiscoveryCheck
    Status:                False
    Type:                  Available
Events:                    <none>

查看部署METRICS-SERVER时遇到的问题
按照metrics-server部署后服务不可用
，均无效果

参考【k8s错误处理】——unable to retrieve the complete list of server APIs,执行kubectl get apiservice,kube-system/metrics-server的状态确实是不可用，一气之下我执行了kubectl delete apiservce <service-name>,删掉了v1beta1.metrics.k8s.io

[root@master1 gitlab-runner]# kubectl get apiservice
NAME                                   SERVICE                      AVAILABLE                      AGE
v1.                                    Local                        True                           88d
v1.admissionregistration.k8s.io        Local                        True                           88d
v1.apiextensions.k8s.io                Local                        True                           88d
v1.apps                                Local                        True                           88d
v1.authentication.k8s.io               Local                        True                           88d
v1.authorization.k8s.io                Local                        True                           88d
v1.autoscaling                         Local                        True                           88d
v1.batch                               Local                        True                           88d
v1.coordination.k8s.io                 Local                        True                           88d
v1.kuboard.cn                          Local                        True                           50m
v1.networking.k8s.io                   Local                        True                           88d
v1.rbac.authorization.k8s.io           Local                        True                           88d
v1.scheduling.k8s.io                   Local                        True                           88d
v1.storage.k8s.io                      Local                        True                           88d
v1beta1.admissionregistration.k8s.io   Local                        True                           88d
v1beta1.apiextensions.k8s.io           Local                        True                           88d
v1beta1.authentication.k8s.io          Local                        True                           88d
v1beta1.authorization.k8s.io           Local                        True                           88d
v1beta1.batch                          Local                        True                           88d
v1beta1.certificates.k8s.io            Local                        True                           88d
v1beta1.coordination.k8s.io            Local                        True                           88d
v1beta1.events.k8s.io                  Local                        True                           88d
v1beta1.extensions                     Local                        True                           88d
v1beta1.metrics.k8s.io                 kube-system/metrics-server   False (FailedDiscoveryCheck)   88d
v1beta1.networking.k8s.io              Local                        True                           88d
v1beta1.node.k8s.io                    Local                        True                           88d
v1beta1.policy                         Local                        True                           88d
v1beta1.rbac.authorization.k8s.io      Local                        True                           88d
v1beta1.scheduling.k8s.io              Local                        True                           88d
v1beta1.storage.k8s.io                 Local                        True                           88d
v2alpha1.batch                         Local                        True                           88d
v2beta1.autoscaling                    Local                        True                           88d
v2beta2.autoscaling                    Local                        True                           88d

删掉之后，在执行下面的语句，就没有出现异常了。后面有时间在对metrics-server进行重新安装吧

helm install --name-template gitlab-runner -f values.yaml . --namespace gitlab-runners

Error: Could not get apiVersions from Kubernetes:
unable to retrieve the complete list of server APIs: metrics.k8s.io/v1beta1: the server is currently unable to handle the request

2 gitlab-ci.yml配置scrapy爬虫

ERROR: Job failed (system failure): prepare environment: image pull failed: Back-off pulling image "scrapy_env:0.01".
Check https://docs.gitlab.com/runner/shells/index.html#shell-profile-loading for more information

3 gitlab迁移

3.1 源服务器

# 查看gitlab版本信息
gitlab-rake gitlab:env:info
# 备份
gitlab-rake gitlab:backup:create
scp 1735885927_2025_01_03_16.0.3_gitlab_backup.tar root@10.101.10.3:/var/opt/gitlab/backups

3.2 目标服务器

源服务器版本为gitlab-ce-16.0.3-ce.0.el7，但是目标服务器没有这个版本了。

curl https://packages.gitlab.com/install/repositories/gitlab/gitlab-ce/script.rpm.sh | sudo bash
yum install gitlab-ce-16.0.3-ce.0.el9 -y
# 更改gitlab的一些默认配置
vi /etc/gitlab/gitlab.rb
external_url 'http://10.101.10.3:8083'
nginx['listen_port'] = 8083
# 设置 GitLab Shell 的仓库路径
git_data_dirs({
    "default" => {
          "path" => "/home/gitlab/gitlab-data/git-data",
              "gitaly_address" => "unix:/var/opt/gitlab/gitaly/gitaly.socket"
                }
})

# 确保 gitaly 地址是字符串
gitaly['address'] = "unix:/var/opt/gitlab/gitaly/gitaly.socket"
#
# # 设置 Redis 数据库路径
redis['dir'] = "/home/gitlab/gitlab-data/redis"
redis['port'] = 6380
redis['unixsocket'] = "/var/opt/gitlab/redis/redis.socket"
#
# # 设置 PostgreSQL 数据库路径
postgresql['data_dir'] = "/home/gitlab/gitlab-data/postgresql"
#
#
# # 如果您还安装了其他组件（如 Registry），也需要相应调整其路径
registry['storage_path'] = "/home/gitlab/gitlab-data/registry"
# 更改
chown git:git /var/opt/gitlab/backups/1735885927_2025_01_03_16.0.3_gitlab_backup.tar
# 启动
gitlab-ctl start
# 开始还原
gitlab-ctl stop unicorn
gitlab-ctl stop sidekiq
# 后面的_gitlab_backup不需要指定
gitlab-rake gitlab:backup:restore BACKUP=1735885927_2025_01_03_16.0.3
# 还原后再次启动
gitlab-ctl start
# 开启端口
firewall-cmd --zone=public --add-port=8083/tcp --permanent
firewall-cmd --reload

4 与jenkins对接

4.1 jenkins服务器

jenkins上连接git报下面的错误。

The default value has been returned
An error occurred while download data
Command "git ls-remote -h git@10.101.10.3:8083:eayc/acc/micro/acc-assets.git" returned status code 128:<br>stdout: <br>stderr: remote: <br>remote: ========================================================================<br>remote: <br>remote: The namespace you were looking for could not be found.<br>remote: <br>remote: ========================================================================<br>remote: <br>fatal: Could not read from remote repository.<br><br>Please make sure you have the correct access rights<br>and the repository exists.<br>
Please look at the Log
Please check the configuration

在jenkins服务器上执行

ssh-keygen -t rsa -b 4096 -C "root@jenkins"

等git服务器配置好后，运行下面的进行验证即可，注意下方是git协议，不是http协议，所以不用带8083端口

git ls-remote -h git@10.101.10.3:/eayc/acc/micro/acc-voucher.git

4.2 git服务器

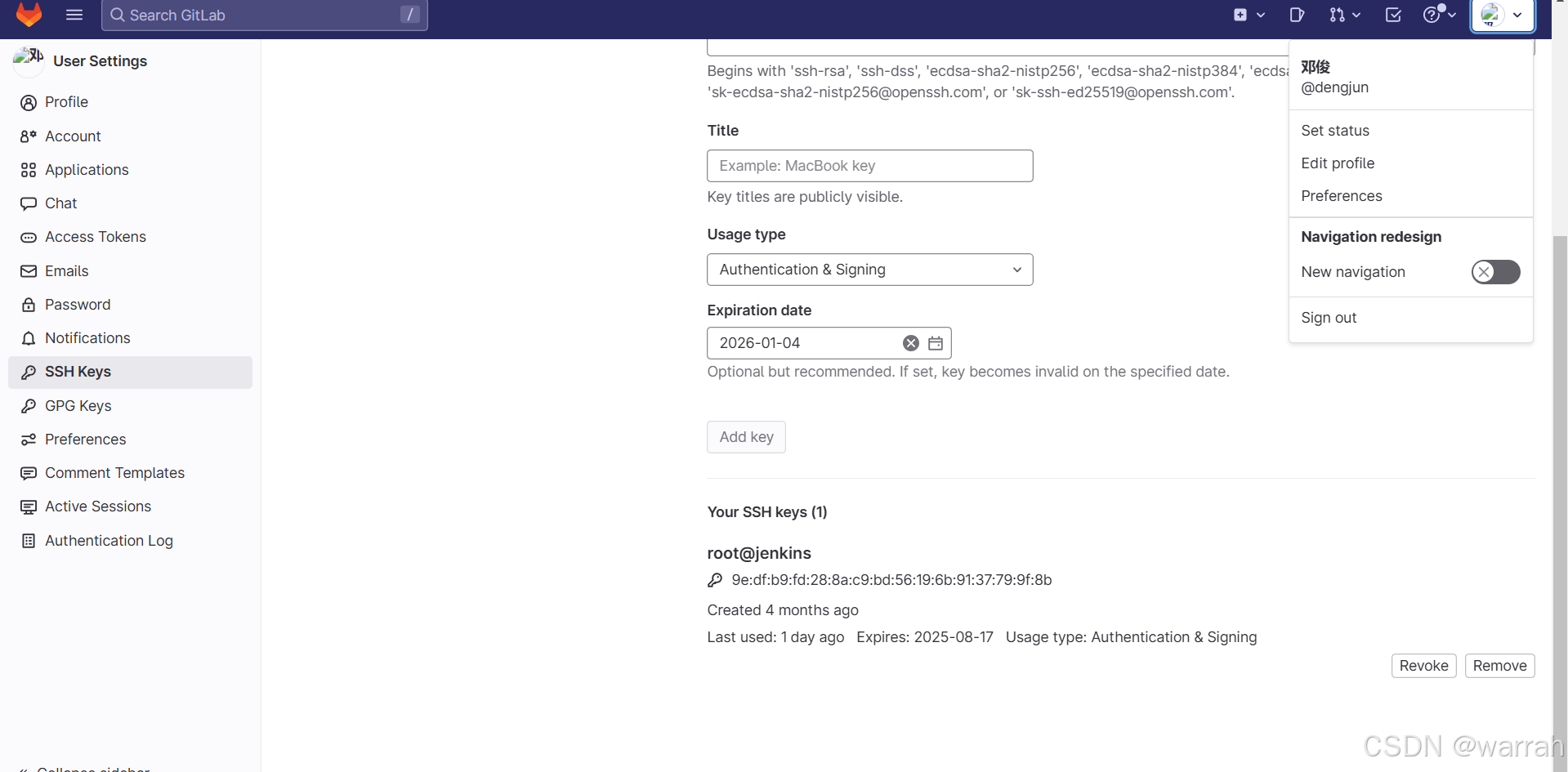

在SSH keys中添加jenkins服务器的id_rsa.pub的内容，复制添加右侧。如下面新增的root@jenkins。

在这里插入图片描述
