eclipse下spring boot 整合 mybatis

开发环境

1、 eclipse neon
2、 jdk 1.8.0_172
3、 Maven 3.5.3
4、 spring boot 版本 : 2.0.2.RELEASE
5、 mybatis generator 自动生成代码插件

开始

  • 步骤1:使用eclipse新建spring boot项目,选择eclipse工具条上的file–>new–> other–>spring boot–>Spring Starer Project;
  • *

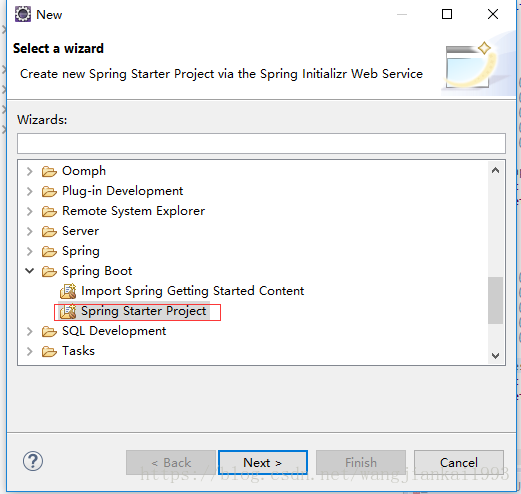

    选择spring starter project然后点击next
    这里写图片描述

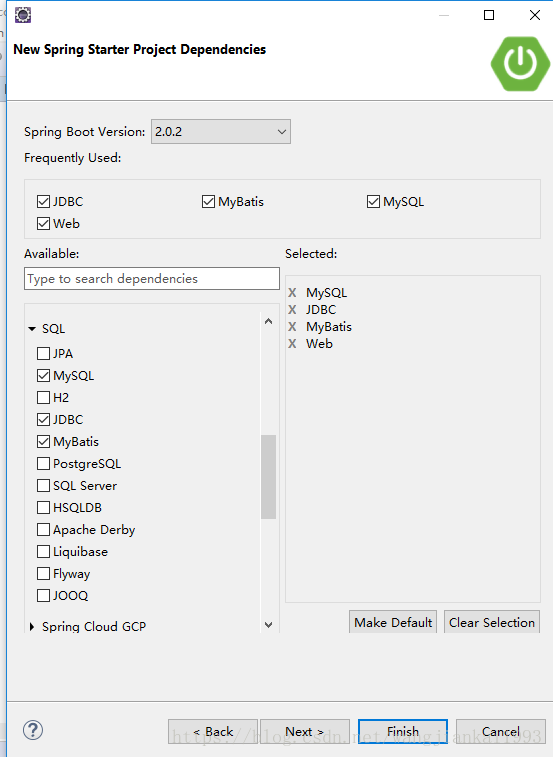

    将jdbc、mysql、web、mybatis 选上 点击finish这样 一个spring boot项目就新建好了。
    这里写图片描述
    注意:第一次新建spring boot项目时,可能没有这些选项,需要安装spring boot 相关的插件,选择工具条上的help–>Eclipse marketplace后选择popular,安装sts重启eclipse后就可以新建工程了。
    这里写图片描述

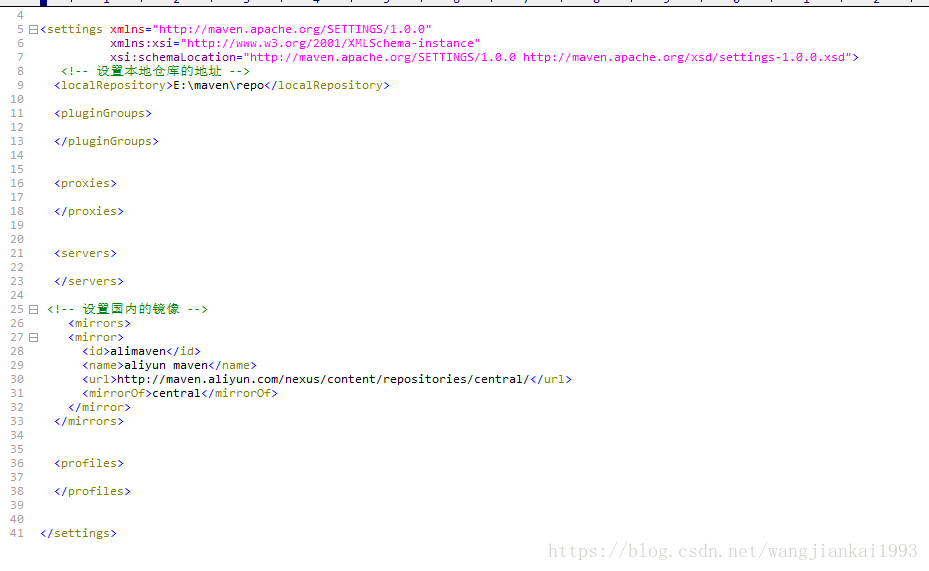

    新建工程中遇到的问题:新建好工程的pom.xml第一行报错,原因有些jar没有下载下来,将maven的 settings.xml文件的地址修改为国内的镜像地址即可解决。
    这里写图片描述

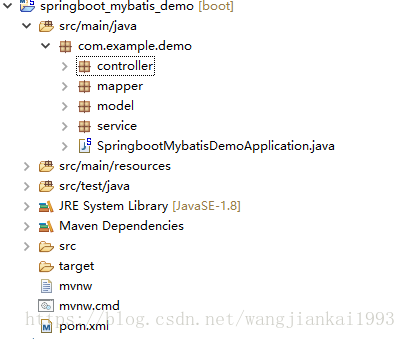

    完整的工程目录:
    这里写图片描述
  • 步骤2:创建数据库表
    创建一张城市表字段有id、city_name、city_code
CREATE TABLE `city` (
  `Id` int(11) NOT NULL AUTO_INCREMENT,
  `city_name` varchar(50) DEFAULT NULL COMMENT '城市名称',
  `city_code` varchar(255) DEFAULT NULL COMMENT '地区编码',
  PRIMARY KEY (`Id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
  • 步骤3使用mybatis generator 自动生成mapping、model、mapper

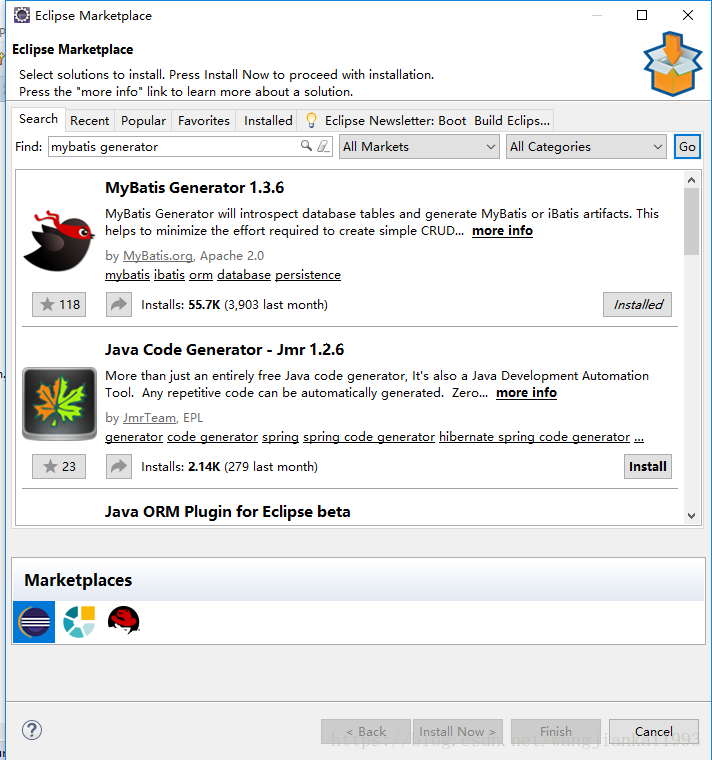

    eclipse 安装mybatis generator
    这里写图片描述
    在pom.xml文件中添加
 <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.6</version>
                <configuration>
                    <configurationFile>${basedir}/src/main/resources/generator/generatorConfig.xml</configurationFile>
                    <overwrite>true</overwrite>
                    <verbose>true</verbose>
                </configuration>
            </plugin>

generatorConfig.xml配置文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
    <!-- 数据库驱动:选择你的本地硬盘上面的数据库驱动包-->
    <classPathEntry  location="E:\mysql\mysql-connector-java-5.1.46.jar"/>
    <context id="DB2Tables"  targetRuntime="MyBatis3">
        <commentGenerator>
            <property name="suppressDate" value="true"/>
            <!-- 是否去除自动生成的注释 true:是 : false:否 -->
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>
        <!--数据库链接URL,用户名、密码 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver" connectionURL="jdbc:mysql://127.0.0.1/springboottest" userId="root" password="Qq@123456">
        </jdbcConnection>
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>
        <!-- 生成模型的包名和位置-->
        <javaModelGenerator targetPackage="com.example.demo.model" targetProject="springboot_mybatis_demo/src/main/java">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>
        <!-- 生成映射文件的包名和位置-->
        <sqlMapGenerator targetPackage="mapping" targetProject="springboot_mybatis_demo/src/main/resources">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>
        <!-- 生成DAO的包名和位置-->
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.example.demo.mapper" targetProject="springboot_mybatis_demo/src/main/java">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>
        <!-- 要生成的表 tableName是数据库中的表名或视图名 domainObjectName是实体类名-->
        <table tableName="city" domainObjectName="City" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false"></table>
    </context>
</generatorConfiguration>

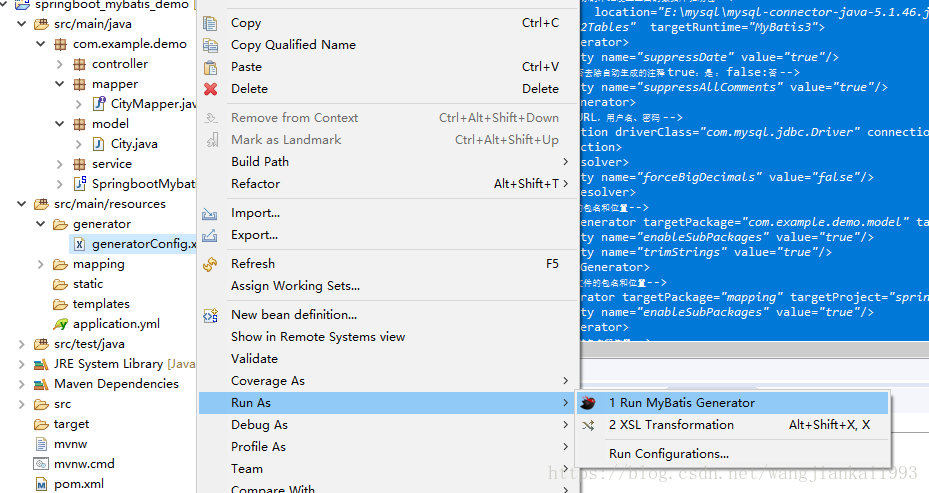

在generatorConfig.xml配置要生成代码的路径
生成文件
这里写图片描述

  • 步骤4:创建controler(控制器)、service(处理业务逻辑)
    1、在controler包下新建一个CityController类,用来处理请求;

    /**
    * @Title: CityController.java
    * @Package com.example.demo.controller
    * @Description: TODO(用一句话描述该文件做什么)
    * @author wjk
    * @date 2018年5月10日
    * @version V1.0
    */

package com.example.demo.controller;

import java.util.List;

import javax.annotation.Resource;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import com.example.demo.model.City;
import com.example.demo.service.CityService;

/**
    * @ClassName: CityController
    * @Description: CityController
    * @author wjk
    * @date 2018年5月10日
    *
    */
@RequestMapping("/city")
@RestController
public class CityController {
    @Resource
    private  CityService cityService;
    /**
     *
        * @Title: insertValus
        * @Description: 插入数据
        * @param     参数
        * @return void    返回类型
        * @throws
        * @author wjk
     */
    @GetMapping("/insertValues")
    public void insertValus() {
        City city =  new  City();
        city.setCityCode("370000");
        city.setCityName("山东");
        city.setId(2);
        cityService.insertValues(city);
    }

    /**
     *
        * @Title: listCity
        * @Description: 查询所有的记录
        * @param @return    参数
        * @return List<City>    返回类型
        * @throws
        * @author wjk
     */
    @GetMapping("/list")
    public List<City> listCity() {
        return  cityService.listCity();
    }

    /**
     *
        * @Title: selectByPrimaryKey
        * @Description: TODO(这里用一句话描述这个方法的作用)
        * @param @return    参数
        * @return City    返回类型
        * @throws
     */
    @RequestMapping("getCityById")
    public City selectByPrimaryKey() {
        return  cityService.selectByPrimaryKey(1);
    }
}

2、在service包下新建CityService类用来处理业务逻辑;


    /**
    * @Title: CityService.java
    * @Package com.example.demo.service
    * @Description: TODO(用一句话描述该文件做什么)
    * @author wjk
    * @date 2018年5月10日
    * @version V1.0
    */

package com.example.demo.service;
import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.example.demo.mapper.CityMapper;
import com.example.demo.model.City;

/**
    * @ClassName: CityService
    * @Description: CityService 业务逻辑处理类
    * @author wjk
    * @date 2018年5月10日
    *
    */
@Service
public class CityService {
    @Autowired
    private CityMapper cityMapper;
    /**
     *
        * @Title: insertValues
        * @Description: insert city
        * @param @param city    参数
        * @return void    返回类型
        * @throws
     */
    public void insertValues(City city) {
        cityMapper.insert(city);
    }

        /**
        * @Title: listCity
        * @Description: list  all
        * @param @return    参数
        * @return List<City>    返回类型
        * @throws
        */

    public List<City> listCity() {
        return (List<City>) cityMapper.selelctList();
    }

    /**
     *
        * @Title: selectByPrimaryKey
        * @Description: find city  by  id
        * @param @param primaryKey
        * @param @return    参数
        * @return City    返回类型
        * @throws
     */
    public City  selectByPrimaryKey(int primaryKey) {
        return  cityMapper.selectByPrimaryKey(primaryKey);
    }
}

CityMapper 代码

package com.example.demo.mapper;

import java.util.List;

import org.apache.ibatis.annotations.Mapper;

import com.example.demo.model.City;

@Mapper
public interface CityMapper {

    /**
     *
        * @Title: deleteByPrimaryKey
        * @Description: 根据city 表主键删�?? 数据
        * @param @param id
        * @param @return    参数
        * @return int    返回类型
        * @throws
        * @author wjk
     */
    int deleteByPrimaryKey(Integer id);

    /**
     *
        * @Title: insert
        * @Description: 插入数据
        * @param @param record
        * @param @return    参数
        * @return int    返回类型
        * @throws
        * @author wjk
     */
    int insert(City record);

    /**
     *
        * @Title: insertSelective
        * @Description: TODO(这里用一句话描述这个方法的作�??)
        * @param @param record
        * @param @return    参数
        * @return int    返回类型
        * @throws
        * @author wjk
     */
    int insertSelective(City record);

    /**
     *
        * @Title: selectByPrimaryKey
        * @Description: TODO(这里用一句话描述这个方法的作�??)
        * @param @param id
        * @param @return    参数
        * @return City    返回类型
        * @throws
        * @author wjk
     */
    City selectByPrimaryKey(Integer id);

    /**
     *
        * @Title: updateByPrimaryKeySelective
        * @Description: TODO(这里用一句话描述这个方法的作�??)
        * @param @param record
        * @param @return    参数
        * @return int    返回类型
        * @throws
        * @author wjk
     */
    int updateByPrimaryKeySelective(City record);

    /**
     *
        * @Title: updateByPrimaryKey
        * @Description: TODO(这里用一句话描述这个方法的作�??)
        * @param @param record
        * @param @return    参数
        * @return int    返回类型
        * @throws
        * @author wjk
     */
    int updateByPrimaryKey(City record);

    /**
     *
        * @Title: selelctList
        * @Description: TODO(这里用一句话描述这个方法的作�??)
        * @param @return    参数
        * @return City    返回类型
        * @throws
     */
    List<City> selelctList();

}

CityMapper.xml 文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.demo.mapper.CityMapper">
  <resultMap id="BaseResultMap" type="com.example.demo.model.City">
    <id column="Id" jdbcType="INTEGER" property="id" />
    <result column="city_name" jdbcType="VARCHAR" property="cityName" />
    <result column="city_code" jdbcType="VARCHAR" property="cityCode" />
  </resultMap>
  <sql id="Base_Column_List">
    Id, city_name, city_code
  </sql>
  <select id="selectByPrimaryKey" parameterType="java.lang.Integer" resultMap="BaseResultMap">
    select
    <include refid="Base_Column_List" />
    from city
    where Id = #{id,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer">
    delete from city
    where Id = #{id,jdbcType=INTEGER}
  </delete>
  <insert id="insert" parameterType="com.example.demo.model.City">
    insert into city (Id, city_name, city_code
      )
    values (#{id,jdbcType=INTEGER}, #{cityName,jdbcType=VARCHAR}, #{cityCode,jdbcType=VARCHAR}
      )
  </insert>
  <insert id="insertSelective" parameterType="com.example.demo.model.City">
    insert into city
    <trim prefix="(" suffix=")" suffixOverrides=",">
      <if test="id != null">
        Id,
      </if>
      <if test="cityName != null">
        city_name,
      </if>
      <if test="cityCode != null">
        city_code,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides=",">
      <if test="id != null">
        #{id,jdbcType=INTEGER},
      </if>
      <if test="cityName != null">
        #{cityName,jdbcType=VARCHAR},
      </if>
      <if test="cityCode != null">
        #{cityCode,jdbcType=VARCHAR},
      </if>
    </trim>
  </insert>
  <update id="updateByPrimaryKeySelective" parameterType="com.example.demo.model.City">
    update city
    <set>
      <if test="cityName != null">
        city_name = #{cityName,jdbcType=VARCHAR},
      </if>
      <if test="cityCode != null">
        city_code = #{cityCode,jdbcType=VARCHAR},
      </if>
    </set>
    where Id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.example.demo.model.City">
    update city
    set city_name = #{cityName,jdbcType=VARCHAR},
      city_code = #{cityCode,jdbcType=VARCHAR}
    where Id = #{id,jdbcType=INTEGER}
  </update>
  <resultMap id="BaseResultMap" type="com.example.demo.model.City">
    <id column="Id" jdbcType="INTEGER" property="id" />
    <result column="city_name" jdbcType="VARCHAR" property="cityName" />
    <result column="city_code" jdbcType="VARCHAR" property="cityCode" />
  </resultMap>
  <sql id="Base_Column_List">
    Id, city_name, city_code
  </sql>
  <select id="selectByPrimaryKey" parameterType="java.lang.Integer" resultMap="BaseResultMap">
    select
    <include refid="Base_Column_List" />
    from city
    where Id = #{id,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer">
    delete from city
    where Id = #{id,jdbcType=INTEGER}
  </delete>
  <insert id="insert" parameterType="com.example.demo.model.City">
    insert into city (Id, city_name, city_code
      )
    values (#{id,jdbcType=INTEGER}, #{cityName,jdbcType=VARCHAR}, #{cityCode,jdbcType=VARCHAR}
      )
  </insert>
  <insert id="insertSelective" parameterType="com.example.demo.model.City">
    insert into city
    <trim prefix="(" suffix=")" suffixOverrides=",">
      <if test="id != null">
        Id,
      </if>
      <if test="cityName != null">
        city_name,
      </if>
      <if test="cityCode != null">
        city_code,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides=",">
      <if test="id != null">
        #{id,jdbcType=INTEGER},
      </if>
      <if test="cityName != null">
        #{cityName,jdbcType=VARCHAR},
      </if>
      <if test="cityCode != null">
        #{cityCode,jdbcType=VARCHAR},
      </if>
    </trim>
  </insert>
  <update id="updateByPrimaryKeySelective" parameterType="com.example.demo.model.City">
    update city
    <set>
      <if test="cityName != null">
        city_name = #{cityName,jdbcType=VARCHAR},
      </if>
      <if test="cityCode != null">
        city_code = #{cityCode,jdbcType=VARCHAR},
      </if>
    </set>
    where Id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.example.demo.model.City">
    update city
    set city_name = #{cityName,jdbcType=VARCHAR},
      city_code = #{cityCode,jdbcType=VARCHAR}
    where Id = #{id,jdbcType=INTEGER}
  </update>
  <resultMap id="BaseResultMap" type="com.example.demo.model.City">
    <id column="Id" jdbcType="INTEGER" property="id" />
    <result column="city_name" jdbcType="VARCHAR" property="cityName" />
    <result column="city_code" jdbcType="VARCHAR" property="cityCode" />
  </resultMap>
  <sql id="Base_Column_List">
    Id, city_name, city_code
  </sql>
  <select id="selectByPrimaryKey" parameterType="java.lang.Integer" resultMap="BaseResultMap">
    select
    <include refid="Base_Column_List" />
    from city
    where Id = #{id,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer">
    delete from city
    where Id = #{id,jdbcType=INTEGER}
  </delete>
  <insert id="insert" parameterType="com.example.demo.model.City">
    insert into city (Id, city_name, city_code
      )
    values (#{id,jdbcType=INTEGER}, #{cityName,jdbcType=VARCHAR}, #{cityCode,jdbcType=VARCHAR}
      )
  </insert>
  <insert id="insertSelective" parameterType="com.example.demo.model.City">
    insert into city
    <trim prefix="(" suffix=")" suffixOverrides=",">
      <if test="id != null">
        Id,
      </if>
      <if test="cityName != null">
        city_name,
      </if>
      <if test="cityCode != null">
        city_code,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides=",">
      <if test="id != null">
        #{id,jdbcType=INTEGER},
      </if>
      <if test="cityName != null">
        #{cityName,jdbcType=VARCHAR},
      </if>
      <if test="cityCode != null">
        #{cityCode,jdbcType=VARCHAR},
      </if>
    </trim>
  </insert>
  <update id="updateByPrimaryKeySelective" parameterType="com.example.demo.model.City">
    update city
    <set>
      <if test="cityName != null">
        city_name = #{cityName,jdbcType=VARCHAR},
      </if>
      <if test="cityCode != null">
        city_code = #{cityCode,jdbcType=VARCHAR},
      </if>
    </set>
    where Id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.example.demo.model.City">
    update city
    set city_name = #{cityName,jdbcType=VARCHAR},
      city_code = #{cityCode,jdbcType=VARCHAR}
    where Id = #{id,jdbcType=INTEGER}
  </update>
  <select id="selelctList" resultMap="BaseResultMap">
        select * from  city
  </select>
</mapper>

application.yml 配置

server:
  port: 8088
spring:
  datasource:
    name: localhost
    url: jdbc:mysql://localhost:3306/springboottest
    username: root
    password: Qq@123456
    driver-class-name: com.mysql.jdbc.Driver
    filters: stat
    maxActive: 20
    initialSize: 1
    maxWait: 60000
    minIdle: 1
    timeBetweenEvictionRunsMillis: 60000
    minEvictableIdleTimeMillis: 300000
    validationQuery: select 'x'
    testWhileIdle: true
    testOnBorrow: false
    testOnReturn: false
    poolPreparedStatements: true
    maxOpenPreparedStatements: 20
mybatis:
  mapper-locations: classpath:mapping/*.xml
  type-aliases-package: com.example.demo.model

spring boot 的主程序入口类 文件名为项目名+Application,类里面有@SpringBootApplication 注解 在程序入口上需要加上

@MapperScan("com.example.demo.mapper")

需要将你的mapper 文件扫描进来;到此工程就已经搭建起来了。

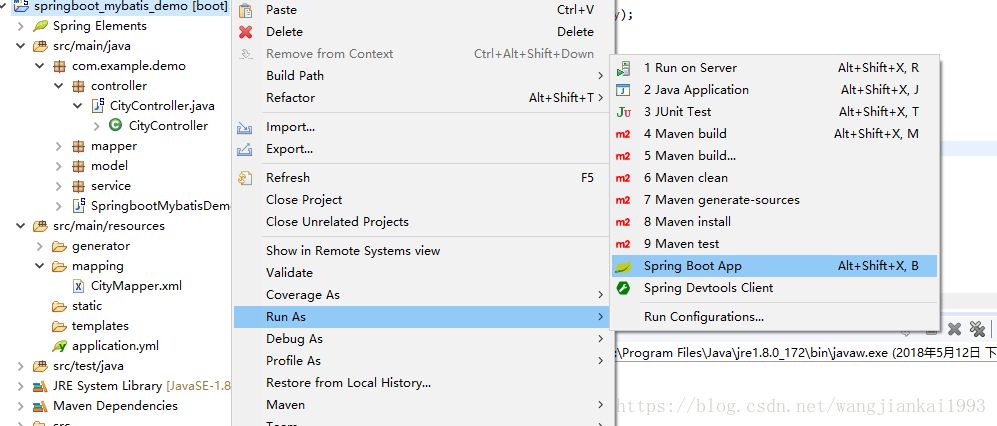

  • 步骤5 启动工程 测试

这里写图片描述

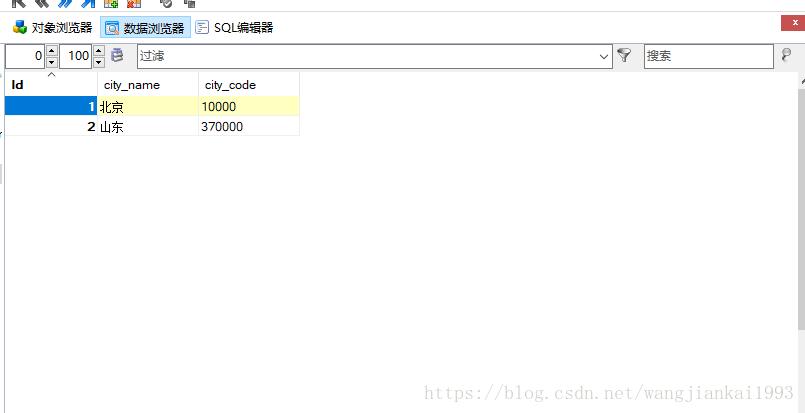

访问http:http://localhost:8088/city/insertValues 进行数据的插:
这里写图片描述

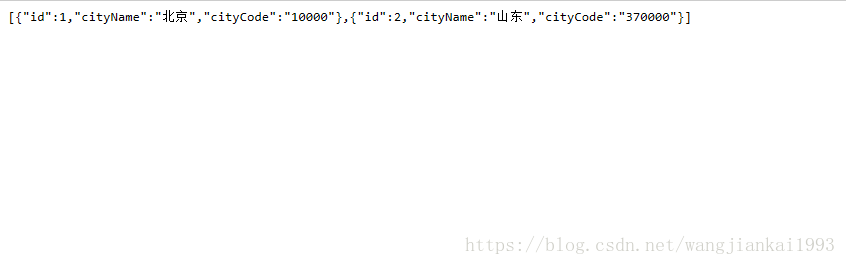

访问:http://localhost:8088/city/list 查看数据,因为使用的是@RestController注解所以界面显示的是 json
@RestController注解相当于@ResponseBody + @Controller合在一起的作用
这里写图片描述

总结

1、从代码分层、减少耦合度应该将service类定义为接口,新建一个serviceImpl来写具体的

评论 14
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
