bootloader---23.u-boot-2010.06-rc1移植之3nand flash移植

增加nand flash 特性

当可以正常启动serial可以显示之后，接下来移植nand flash

1. nand flash的初始化是在 arch/arm/lib/board.c中

1. arch/arm/lib/board.c

2. start_armboot

3. {

4.     #if defined(CONFIG_CMD_NAND)

5.     puts ("NAND: ");

6.     nand_init();        /* go init the NAND */

7.     #endif

8. }

所以需要在include/configs/smdk2410.h中添加:   #define CONFIG_CMD_NAND   1

2.nand的初始化

1.

2. #ifndef CONFIG_SYS_NAND_BASE_LIST
3. #define CONFIG_SYS_NAND_BASE_LIST { CONFIG_SYS_NAND_BASE }
4. #endif
5. static ulong base_address[CONFIG_SYS_MAX_NAND_DEVICE] = CONFIG_SYS_NAND_BASE_LIST;
6. //base_address初始化为CONFIG_SYS_NAND_BASE
7. 所以需要在include/configs/smdk2410.h中添加: #define CONFIG_SYS_NAND_BASE  0x4E000000
8. void nand_init(void)
9. {

10.     int i;

11.     unsigned int size = 0;

12.     for (i = 0; i < CONFIG_SYS_MAX_NAND_DEVICE; i++)
13.     {
14. //CONFIG_SYS_MAX_NAND_DEVICE=1所以只需要进行一次nand_init_chip
15. //初始化nand的
16.         nand_init_chip(&nand_info[i], &nand_chip[i], base_address[i]);
17.         size += nand_info[i].size / 1024;

18.         if (nand_curr_device == -1)

19.             nand_curr_device = i;

20.     }

21.     printf("%u MiB\n", size / 1024);
22. }
23.

24.

25.


3. driver/mtd/nand/nand.c L42

1. static void nand_init_chip(struct mtd_info *mtd, struct nand_chip *nand,

2.              ulong base_addr)

3. {

4.     int maxchips = CONFIG_SYS_NAND_MAX_CHIPS;

5.     int __attribute__((unused)) i = 0;

6.

7.     if (maxchips < 1)

8.         maxchips = 1;

9.     mtd->priv = nand; //以后要用到nand来控制底层寄存器,这儿先保存起nand来,这个非常重要

10.

11.     nand->IO_ADDR_R = nand->IO_ADDR_W = (void __iomem *)base_addr;//初始化读写指针为0x4E000000,以后真正读写时指针要改变

12.     if (board_nand_init(nand) == 0) { //board_nand_init寄存器纸别的初始化
13.         if (nand_scan(mtd, maxchips) == 0) { //

14.             if (!mtd->name)

15.                 mtd->name = (char *)default_nand_name;

16.         } else
17.             mtd->name = NULL;

18.     } else {

19.         mtd->name = NULL;

20.         mtd->size = 0;

21.     }

22.

23. }

4. drivers/mtd/nand/s3c2410_nand.c

1. //
2. int board_nand_init(struct nand_chip *nand)

3. {

4.     u_int32_t cfg;

5.     u_int32_t cnt;

6.     u_int8_t tacls, twrph0, twrph1;

7.     struct s3c2440_nand *nand_reg = s3c2440_get_base_nand();

8.

9.     debugX(1, "board_nand_init()\n");

10.

11.     /* initialize hardware */
12.     tacls = 0;

13.     twrph0 = 4;

14.     twrph1 = 2;

15.

16.     cfg |= S3C2440_NFCONF_TACLS(tacls);

17.     cfg |= S3C2440_NFCONF_TWRPH0(twrph0);

18.     cfg |= S3C2440_NFCONF_TWRPH1(twrph1);

19.     writel(cfg, &nand_reg->NFCONF);

20.

21.     //NAND Flash control register

22.     //bit6: Lock spare ECC

23.     //bit4: Initialize ECC decoder/encoder

24.     //bit1: enable chip_select

25.     //bit0: nand_enable

26.     cnt =(1<<6)| (1<<4)|(0<<1)|(1<<0);

27.     writel(cnt, &nand_reg->NFCONT); //不仅需要配寄存器NFCONF,而且需要配寄存器NFCONT




      //以下初始化函数指针

1.     /* initialize nand_chip data structure */

2.     nand->IO_ADDR_R = nand->IO_ADDR_W = (void *)&nand_reg->NFDATA;

3.

4.     nand->select_chip = s3c2440_nand_select_chip;

5.

6.     /* hwcontrol always must be implemented */

7.     nand->cmd_ctrl = s3c2440_hwcontrol;

8.

9.     nand->dev_ready = s3c2440_dev_ready;

10.

11.     nand->ecc.mode = NAND_ECC_SOFT; //进行软件的ECC校验

12.

13.     nand->options = 0; //BUS_WIDTH 8位

14.

15.     debugX(1, "end of nand_init\n");

16.

17.     return 0;

18. }

这儿调用了s3c2440_get_base_nand,需要在include/asm/arch-s3c24x0/s3c2410.h中添加这个函数

1. #define S3C24X0_NAND_BASE        0x4E000000

2. static inline struct s3c2440_nand *s3c2440_get_base_nand(void)

3. {

4.     return (struct s3c2440_nand *)S3C24X0_NAND_BASE;

5. }

同时 S3C2440_NFCONF_TACLS等这几个宏跟手册上的位置不匹配,所以修改一下

1. #define S3C2440_NFCONF_TACLS(x)  ((x)<<12)

2. #define S3C2440_NFCONF_TWRPH0(x)  ((x)<<8)

3. #define S3C2440_NFCONF_TWRPH1(x)  ((x)<<4)

4.

5. #define S3C2440_NFCONT_nCE      (1<<1)

6. #define S3C2440_NFCONT_MODE_DISABLE     (0<<0)
7. #define S3C2440_NFCONT_MODE_ENABLE     (1<<0)

8.

9. #define S3C2440_NFSTAT_READY      (1<<0)

10.

11. #define S3C2440_ADDR_NALE  0x0C

12. #define S3C2440_ADDR_NCLE  0x08

5. driver/mtd/nand/nand_base.c L3061

1. start_armboot-> nand_init->nand_init_chip
2. int nand_scan(struct mtd_info *mtd, int maxchips)

3. {

4.     int ret;

5.     ret = nand_scan_ident(mtd, maxchips);

6.     if (!ret)

7.         ret = nand_scan_tail(mtd);

8.     return ret;

9. }

6. driver/mtd/nand/nand_base.c    L2770

1. start_armboot-> nand_init->nand_init_chip->nand_scan
2. int nand_scan_ident(struct mtd_info *mtd, int maxchips)

3. {

4.     int i, busw, nand_maf_id;

5.     struct nand_chip *chip = mtd->priv; //函数nand_init_chip中保存的nand_chip结构体
6.     struct nand_flash_dev *type;

7.

8.     /* Get buswidth to select the correct functions */

9.     busw = chip->options & NAND_BUSWIDTH_16;

10.     /* Set the default functions */

11.     nand_set_defaults(chip, busw); //对nand_chip结构体进一步初始化

12.

13.     /* Read the flash type */

14.     type = nand_get_flash_type(mtd, chip, busw, &nand_maf_id);

15.

16.     if (IS_ERR(type)) {

17. #ifndef CONFIG_SYS_NAND_QUIET_TEST

18.         printk(KERN_WARNING "No NAND device found!!!\n");

19. #endif

20.         chip->select_chip(mtd, -1);

21.         return PTR_ERR(type);

22.     }

23.

24.     /* Check for a chip array */

25.     for (i = 1; i < maxchips; i++) {

26.         chip->select_chip(mtd, i);

27.         /* See comment in nand_get_flash_type for reset */

28.         chip->cmdfunc(mtd, NAND_CMD_RESET, -1, -1);

29.         /* Send the command for reading device ID */

30.         chip->cmdfunc(mtd, NAND_CMD_READID, 0x00, -1);

31.         /* Read manufacturer and device IDs */

32.         if (nand_maf_id != chip->read_byte(mtd) ||

33.          type->id != chip->read_byte(mtd))

34.             break;

35.     }

36. #ifdef DEBUG

37.     if (i > 1)

38.         printk(KERN_INFO "%d NAND chips detected\n", i);

39. #endif

40.

41.     /* Store the number of chips and calc total size for mtd */

42.     chip->numchips = i;

43.     mtd->size = i * chip->chipsize;

44.

45.     return 0;

46. }

6. driver/mtd/nand/nand_base.c    L2555

1. start_armboot-> nand_init->nand_init_chip->nand_scan-->nand_scan_ident
2. //设置默认的函数指针
3. static void nand_set_defaults(struct nand_chip *chip, int busw)

4. {

5.     /* check for proper chip_delay setup, set 20us if not */

6.     if (!chip->chip_delay)

7.         chip->chip_delay = 20; //设置延时=20

8.

9.     /* check, if a user supplied command function given */

10.     if (chip->cmdfunc == NULL)

11.         chip->cmdfunc = nand_command; //cmd_func=nand_command,以后就靠它发命令了

12.

13.     /* check, if a user supplied wait function given */

14.     if (chip->waitfunc == NULL)

15.         chip->waitfunc = nand_wait; //nand_wait

16.

17.     if (!chip->select_chip)

18.         chip->select_chip = nand_select_chip; //不进入

19.     if (!chip->read_byte)

20.         chip->read_byte = busw ? nand_read_byte16 : nand_read_byte; //read_byte=nand_read_byte

21.     if (!chip->read_word)

22.         chip->read_word = nand_read_word; //read_word=nand_read_word

23.     if (!chip->block_bad)

24.         chip->block_bad = nand_block_bad;

25.     if (!chip->block_markbad)

26.         chip->block_markbad = nand_default_block_markbad;

27.     if (!chip->write_buf)

28.         chip->write_buf = busw ? nand_write_buf16 : nand_write_buf;

29.     if (!chip->read_buf)

30.         chip->read_buf = busw ? nand_read_buf16 : nand_read_buf;

31.     if (!chip->verify_buf)

32.         chip->verify_buf = busw ? nand_verify_buf16 : nand_verify_buf;

33.     if (!chip->scan_bbt)

34.         chip->scan_bbt = nand_default_bbt;

35.

36.     if (!chip->controller) {

37.         chip->controller = &chip->hwcontrol;

38.

39.         /* XXX U-BOOT XXX */

40. #if 0

41.         spin_lock_init(&chip->controller->lock);

42.         init_waitqueue_head(&chip->controller->wq);

43. #endif

44.     }

45.

46. }

7.  driver/mtd/nand/nand_base.c    L2603

1. /*

2.  * Get the flash and manufacturer id and lookup if the type is supported

3.  */

4. static struct nand_flash_dev *nand_get_flash_type(struct mtd_info *mtd,                          struct nand_chip *chip, int busw, int *maf_id)
5. {

6.     struct nand_flash_dev *type = NULL;

7.     int i, dev_id, maf_idx;

8.     int tmp_id, tmp_manf;


      //以下是读取设备ID的过程:参见K9F2G08U0B的datasheet

      //1. 发送命令0x90   2.发送地址0x00  3.读取第一个字节为manufacturer 第二个字节为DEV_ID

1.     /* Select the device: 设置NFCONT D1=0 */

2.     chip->select_chip(mtd, 0);

3.

4.     /*

5.      * Reset the chip, required by some chips (e.g. Micron MT29FxGxxxxx)

6.      * after power-up

7.      */

8.     //调用nand_command-->s3c2440_hwcontrol向nandflash的NFCMMD寄存器发送0xFF(RESET指令)
9.     chip->cmdfunc(mtd, NAND_CMD_RESET, -1, -1);

10.

11.     /* Send the command for reading device ID */

12.     //1. 发送命令0x90   2.发送地址0x00
13.     chip->cmdfunc(mtd, NAND_CMD_READID, 0x00, -1);

14.

15.     /* Read manufacturer and device IDs */

16.     //返回的第一个字节为0xEC 第二个字节为0xDA
17.     *maf_id = chip->read_byte(mtd);

18.     dev_id = chip->read_byte(mtd);

19.

20.     /* Try again to make sure, as some systems the bus-hold or other

21.      * interface concerns can cause random data which looks like a

22.      * possibly credible NAND flash to appear. If the two results do

23.      * not match, ignore the device completely.

24.      */

25.      //重新读取,验证第一次读取的结果是正确的
26.     chip->cmdfunc(mtd, NAND_CMD_READID, 0x00, -1);

27.

28.     /* Read manufacturer and device IDs */

29.

30.     tmp_manf = chip->read_byte(mtd);

31.     tmp_id = chip->read_byte(mtd);

32.

33.     if (tmp_manf != *maf_id || tmp_id != dev_id) {

34.         printk(KERN_INFO "%s: second ID read did not match "

35.          "%02x,%02x against %02x,%02x\n", __func__,

36.          *maf_id, dev_id, tmp_manf, tmp_id);

37.         return ERR_PTR(-ENODEV);

38.     }

39.     //从nand_flash_ids表中查找 id=0xDA的项
40.     //   name                      id   pagesize chipsize erasesize options
41.     //  {"NAND 256MiB 3,3V 8-bit", 0xDA, 0,        256,     0,       LP_OPTIONS},
42.     /* Lookup the flash id */

43.     for (i = 0; nand_flash_ids[i].name != NULL; i++) {

44.         if (dev_id == nand_flash_ids[i].id) {

45.             type = &nand_flash_ids[i];

46.             break;

47.         }

48.     }

49.

50.     if (!type)

51.         return ERR_PTR(-ENODEV);

52.

53.     if (!mtd->name)

54.         mtd->name = type->name;

55.

56.     //设定chipsize=256M=256<<20
57.     chip->chipsize = (uint64_t)type->chipsize << 20;

58.

59.     /* Newer devices have all the information in additional id bytes */

60.     if (!type->pagesize) {

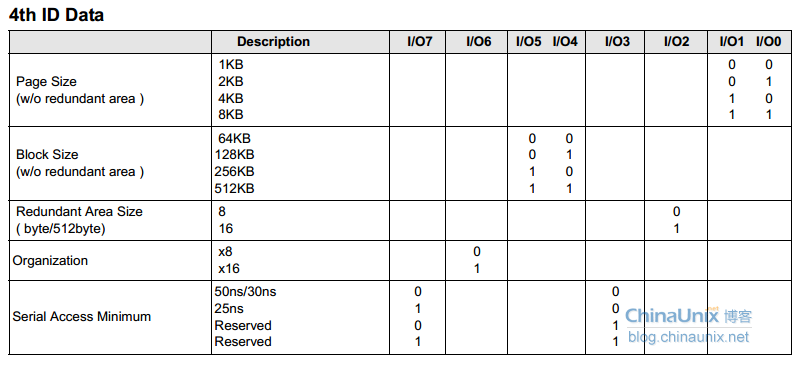

61. //根据K9F2G08U0B的datasheet P29
62.         int extid;

63.         /* The 3rd id byte holds MLC / multichip data */

64.         chip->cellinfo = chip->read_byte(mtd); //cellinfo=0x10

65.         /* The 4th id byte is the important one */

66.         extid = chip->read_byte(mtd); //extid=0x95

67.         /* Calc pagesize ,extid的D0-D1是pagesize*/

68.         mtd->writesize = 1024 << (extid & 0x3);

69.         extid >>= 2;

70.         /* Calc oobsize  extid的D2位的单位是byte/512byte,所以求oob,需要乘pagesize/512 */

71.         mtd->oobsize = (8 << (extid & 0x01)) * (mtd->writesize >> 9);

72.         extid >>= 2;

73.         /* Calc blocksize. Blocksize is multiples of 64KiB, 求block_size, exit的D4-D5位是1的话对应128K的block_size*/

74.         mtd->erasesize = (64 * 1024) << (extid & 0x03);

75.         extid >>= 2;

76.         /* Get buswidth information: extid的D6位是buswidth 0--8位的buswidth */

77.         busw = (extid & 0x01) ? NAND_BUSWIDTH_16 : 0;

78.

79.     } else {

80.         /*

81.          * Old devices have chip data hardcoded in the device id table

82.          */

83.         mtd->erasesize = type->erasesize;

84.         mtd->writesize = type->pagesize;

85.         mtd->oobsize = mtd->writesize / 32;

86.         busw = type->options & NAND_BUSWIDTH_16;

87.     }

88.

89.     /* Try to identify manufacturer */

90.     for (maf_idx = 0; nand_manuf_ids[maf_idx].id != 0x0; maf_idx++) {

91.         if (nand_manuf_ids[maf_idx].id == *maf_id)

92.             break;

93.     }

94.

95.     /*

96.      * Check, if buswidth is correct. Hardware drivers should set

97.      * chip correct !

98.      */

99.     if (busw != (chip->options & NAND_BUSWIDTH_16)) {

100.         printk(KERN_INFO "NAND device: Manufacturer ID:"

101.          " 0x%02x, Chip ID: 0x%02x (%s %s)\n", *maf_id,

102.          dev_id, nand_manuf_ids[maf_idx].name, mtd->name);

103.         printk(KERN_WARNING "NAND bus width %d instead %d bit\n",

104.          (chip->options & NAND_BUSWIDTH_16) ? 16 : 8,

105.          busw ? 16 : 8);

106.         return ERR_PTR(-EINVAL);

107.     }

108.

109.     /* Calculate the address shift from the page size */

110.     chip->page_shift = ffs(mtd->writesize) - 1;

111.     /* Convert chipsize to number of pages per chip -1. */

112.     chip->pagemask = (chip->chipsize >> chip->page_shift) - 1;

113.

114.     chip->bbt_erase_shift = chip->phys_erase_shift =

115.         ffs(mtd->erasesize) - 1;

116.     if (chip->chipsize & 0xffffffff)

117.         chip->chip_shift = ffs((unsigned)chip->chipsize) - 1;

118.     else

119.         chip->chip_shift = ffs((unsigned)(chip->chipsize >> 32)) + 31;

120.

121.     /* Set the bad block position */

122.     chip->badblockpos = mtd->writesize > 512 ?

123.         NAND_LARGE_BADBLOCK_POS : NAND_SMALL_BADBLOCK_POS;

124.

125.     /* Get chip options, preserve non chip based options */

126.     chip->options &= ~NAND_CHIPOPTIONS_MSK;

127.     chip->options |= type->options & NAND_CHIPOPTIONS_MSK;

128.

129.     /*

130.      * Set chip as a default. Board drivers can override it, if necessary

131.      */

132.     chip->options |= NAND_NO_AUTOINCR;

133.

134.     /* Check if chip is a not a samsung device. Do not clear the

135.      * options for chips which are not having an extended id.

136.      */

137.     if (*maf_id != NAND_MFR_SAMSUNG && !type->pagesize)

138.         chip->options &= ~NAND_SAMSUNG_LP_OPTIONS;

139.

140.     /* Check for AND chips with 4 page planes */

141.     if (chip->options & NAND_4PAGE_ARRAY)

142.         chip->erase_cmd = multi_erase_cmd;

143.     else

144.         chip->erase_cmd = single_erase_cmd;

145.

146.     /* Do not replace user supplied command function ! */

147.     if (mtd->writesize > 512 && chip->cmdfunc == nand_command)

148.         chip->cmdfunc = nand_command_lp;

149.

150.     MTDDEBUG (MTD_DEBUG_LEVEL0, "NAND device: Manufacturer ID:"

151.      " 0x%02x, Chip ID: 0x%02x (%s %s)\n", *maf_id, dev_id,

152.      nand_manuf_ids[maf_idx].name, type->name);

153.

154.     return type;

155. }

2. 在include/configs/smdk2410.h中添加

#define CONFIG_CMD_NAND    1

#define CONFIG_SYS_MAX_NAND_DEVICE   1

#define CONFIG_SYS_NAND_BASE     0x4E000000

3.start_armboot--> nand_init 在driver/mtd/nand/nand.c中

nand_init-->nand_init_chip-->board_nand_init

4. board_nand_init函数在driver/mtd/nand/s3c2410_nand.c中

不过这需要在 include/configs/smdk2410.h中添加

#define CONFIG_NAND_S3C2410 1

5.删除多余的文件

root@ubuntu:~/u-boot-2010.06-rc1/drivers/mtd/nand# rm atmel_nand.c bfin_nand.c davinci_nand.c fsl_elbc_nand.c fsl_upm.c kb9202_nand.c kirkwood_nand.c kmeter1_nand.c mpc5121_nfc.c mxc_nand.c ndfc.c nomadik.c  s3c64xx.c spr_nand.c omap_gpmc.c nand_plat.c

同时在driver/mtd/nand/Makefile中删除多余的东东，不删也没有关系。

root@ubuntu:~/uboot/u-boot-2010.06-rc1# vi drivers/mtd/nand/Makefile

6. 这里候就可以编译通过了，不过打印的是

DRAM:  64 MiB

Flash: 512 KiB

NAND:  No NAND device found!!!

0 MiB

*** Warning - bad CRC, using default environment

7. 修改一下driver/mtd/nand/s3c2410_nand.c中的board_nand_init函数

a.将driver/mtd/nand/s3c2410_nand.c中所有的2410替换为2440

8. 在include/asm/arch-s3c24x0/s3c2410.h中添加

#define S3C24X0_NAND_BASE 0x4E000000

static inline struct s3c2440_nand *s3c2440_get_base_nand(void)

{

return (struct s3c2440_nand *)S3C24X0_NAND_BASE;

}

9. 在driver/mtd/nand/s3c2410_nand.c中

1. int board_nand_init(struct nand_chip *nand)

2. {

3.     u_int32_t cfg;

4.     u_int32_t cnt;

5.     u_int8_t tacls, twrph0, twrph1;

6.     struct s3c2440_nand *nand_reg = s3c2440_get_base_nand();

7.

8.     debugX(1, "board_nand_init()\n");

9.

10.     //writel(readl(&clk_power->CLKCON) | (1 << 4), &clk_power->CLKCON);

11.

12.     /* initialize hardware */

13.     tacls = 0;

14.     twrph0 = 4;

15.     twrph1 = 2;

16.

17.     cfg |= S3C2440_NFCONF_TACLS(tacls);

18.     cfg |= S3C2440_NFCONF_TWRPH0(twrph0);

19.     cfg |= S3C2440_NFCONF_TWRPH1(twrph1);

20.     writel(cfg, &nand_reg->NFCONF);

21.

22.     //NAND Flash control register

23.     //bit6: Lock spare ECC

24.     //bit4: Initialize ECC decoder/encoder

25.     //bit1: enable chip_select

26.     //bit0: nand_enable

27.     cnt =(1<<6)| (1<<4)|(0<<1)|(1<<0);

28.     writel(cnt, &nand_reg->NFCONT);

29.

30.     /* initialize nand_chip data structure */

31.     nand->IO_ADDR_R = nand->IO_ADDR_W = (void *)&nand_reg->NFDATA;

32.

33.     nand->select_chip = s3c2440_nand_select_chip;

34.

35.     /* hwcontrol always must be implemented */

36.     nand->cmd_ctrl = s3c2440_hwcontrol;

37.

38.     nand->dev_ready = s3c2440_dev_ready;

39.

40.     nand->ecc.mode = NAND_ECC_SOFT;

41.

42.     nand->options = 0;

43.

44.     debugX(1, "end of nand_init\n");

45.

46.     return 0;

47. }
