下面将前端、后端部署到服务器上，dubbo注册到zk注册中心，前端通过nginx代理访问。

一、api

1、pom文件加上：

<build>
    <finalName>mysercurity-api</finalName>
    <plugins>
      <plugin>
        <artifactId>maven-release-plugin</artifactId>

      </plugin>
      <plugin>
        <artifactId>maven-assembly-plugin</artifactId>
        <version>2.2.1</version>
        <configuration>
          <descriptors>
            <descriptor>src/main/assemble/package.xml</descriptor>
          </descriptors>
        </configuration>
        <executions>
          <execution>
            <id>make-assembly</id>
            <phase>package</phase>
            <goals>
              <goal>single</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-jar-plugin</artifactId>
        <version>2.4</version>
        <configuration>
          <excludes>
            <exclude>**/*.properties</exclude>
            <exclude>**/*.xml</exclude>
            <exclude>**/*.html</exclude>
            <exclude>config</exclude>
          </excludes>
        </configuration>
      </plugin>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-compiler-plugin</artifactId>
        <version>3.5.1</version>
        <configuration>
          <source>1.8</source>
          <target>1.8</target>
        </configuration>
      </plugin>
    </plugins>
  </build>

2、src/main下新建assemble文件夹，assemble下新建package.xml：

<assembly xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/assembly-1.0.0.xsd">
    <id>package</id>
    <formats>
        <format>zip</format>
    </formats>
    <includeBaseDirectory>true</includeBaseDirectory>

   <fileSets>
        <fileSet>
            <filtered>true</filtered>
            <directory>src/main/bin</directory>
            <outputDirectory>/bin</outputDirectory>
        </fileSet>
        <fileSet>
            <filtered>false</filtered>
            <directory>src/main/resources</directory>
            <outputDirectory>/</outputDirectory>
            <includes>
                <include>**</include>
            </includes>
        </fileSet>
        <fileSet>
            <filtered>true</filtered>
            <directory>src/main</directory>
            <outputDirectory>/</outputDirectory>
            <includes>
                <include>readme.txt</include>
            </includes>
        </fileSet>
    </fileSets>

    <dependencySets>
        <dependencySet>
            <outputDirectory>lib</outputDirectory>
            <scope>runtime</scope>
            <excludes>
            	<exclude>org.springframework.boot:spring-boot-devtools</exclude>
            </excludes>
        </dependencySet>
    </dependencySets>
</assembly>

3、进入pom所在目录下，mvn clean package或者使用工具打包，打包成功后target下生成mysercurity-api.jar；

api打包完成

二、service:

1、修改application.properties中的数据库地址为测试环境数据库地址；

2、修改dubbo配置文件注册到zk注册中心：（register改完true）

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
     http://www.springframework.org/schema/beans/spring-beans.xsd
     http://code.alibabatech.com/schema/dubbo
     http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
    <dubbo:application name="mysercurity-service"/>
    <dubbo:provider timeout="3000" retries="0"/>
    <!-- register改为false只订阅不注册到注册中心 -->
    <dubbo:registry protocol="zookeeper" address="192.168.57.xxx:2181,192.168.57.xxx:2181,192.168.59.xxx:2181"
                    register="true"   check="false"/>
    <dubbo:protocol name="dubbo" port="20881"/>

    <dubbo:service interface="com.demo.service.UserService" ref="userService"></dubbo:service>
    <dubbo:service interface="com.demo.service.RoleService" ref="roleService"></dubbo:service>
</beans>

3、src/main下新建assemble目录（同上一2）和bin目录，bin下新建start.sh脚本：

#!/bin/sh
#if [ -z "$1" ]; then
#	echo "请在参数中指定进程Id文件的名称！"
#	exit 1
#fi

CURRENT_DIR=$(pwd)
PROJECT_DIR=$CURRENT_DIR"/.."

# echo $PROJECT_DIR

CLASSPATH=
CLASSPATH=$CLASSPATH:$PROJECT_DIR

CLASSPATH=$CLASSPATH:$CURRENT_DIR"/../lib/*"

# echo $CLASSPATH

APPNAME=com.demo.ServiceStart

java -Xms2048M -Xmx2048M -classpath $CLASSPATH $APPNAME start >/usr/logs/service.log 2>&1 &

echo $! > "./ServiceStart.pid"

echo "started"

4、pom文件：

加上打包配置：

 <build>
        <finalName>my-sercurity-service</finalName>
        <plugins>
            <plugin>
                <artifactId>maven-release-plugin</artifactId>

            </plugin>
            <plugin>
                <artifactId>maven-assembly-plugin</artifactId>
                <version>2.2.1</version>
                <configuration>
                    <descriptors>
                        <descriptor>src/main/assemble/package.xml</descriptor>
                    </descriptors>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-jar-plugin</artifactId>
                <version>2.4</version>
                <configuration>
                    <excludes>
                        <exclude>**/*.properties</exclude>
                        <exclude>**/*.xml</exclude>
                        <exclude>**/*.html</exclude>
                        <exclude>config</exclude>
                    </excludes>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.5.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

另外为了打包能够引入本地api jar包，在与pom同级目录创建thirdlibs目录，将步骤一中生成的api jar包拷贝进去，同时pom文件中依赖api的配置需要修改下：

  <!-- api -->
        <dependency>
            <groupId>com.demo</groupId>
            <artifactId>mysercurity-api</artifactId>
            <version>1.0.0-SNAPSHOT</version>
            <scope>system</scope>
            <!--      <systemPath>E:\workspace8\mysercurity-api\target\mysercurity-api.jar</systemPath>-->
            <systemPath>${project.basedir}/thirdlibs/mysercurity-api.jar</systemPath>
        </dependency>

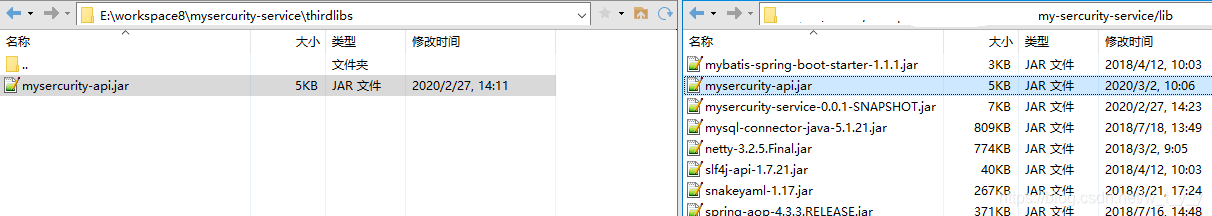

5、打service的包，将生成的zip上传到服务器上并解压，再把api包复制到bin目录下：

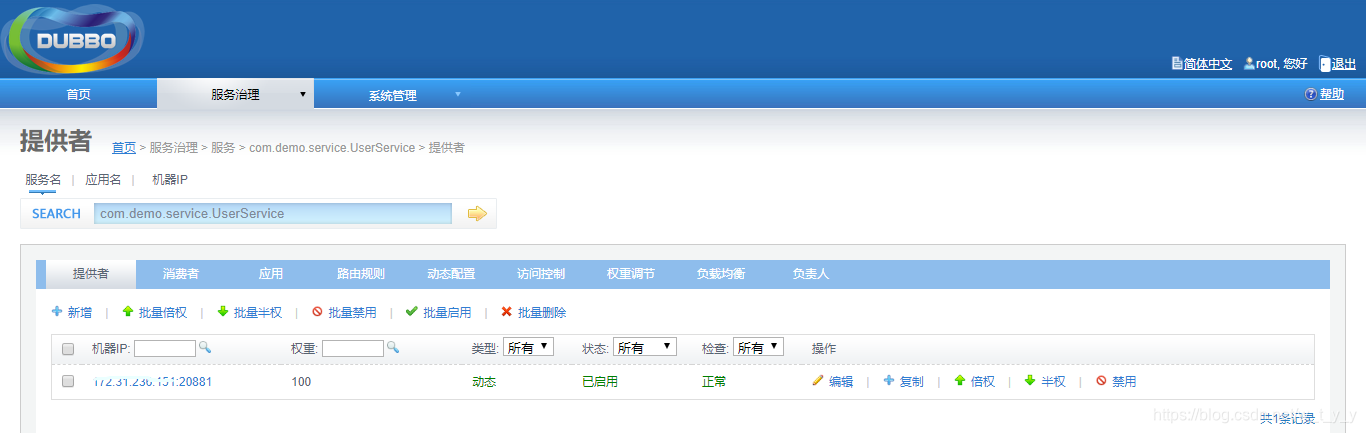

6、启动，从dubbo-admin后台管理可以看到服务注册成功：

三、rest：

1、修改application.properties、RedisClient.java的redis地址为测试环境地址；

2、修改dubbo配置文件，连接zk注册中心的服务：（去掉url="dubbo://127.0.0.1:20881"）

<?xml version="1.0" encoding="UTF-8"?>
<beans
        xmlns="http://www.springframework.org/schema/beans"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns:dubbo="http://code.alibabatech.com/schema/dubbo" xsi:schemaLocation="http://www.springframework.org/schema/beans            http://www.springframework.org/schema/beans/spring-beans-3.1.xsd            http://code.alibabatech.com/schema/dubbo            http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
    <dubbo:application name="mysercurity-test" />
    <dubbo:consumer timeout="3000" retries="0" check="false"/>
    <dubbo:registry protocol="zookeeper" address="192.168.57.xxx:2181,192.168.57.xxx:2181,192.168.59.xxx:2181" register="false"  timeout="100000"/>

    <!-- 加上 url="dubbo://127.0.0.1:20881" 表示直连本地-->
    <dubbo:reference interface="com.demo.service.UserService" id="userService"
                     />
    <dubbo:reference interface="com.demo.service.RoleService" id="roleService"
                     />
</beans>

3、src/main下新建assemble目录（同上一2）和bin目录，bin下新建start.sh脚本：

#!/bin/sh
#if [ -z "$1" ]; then
#	echo "请在参数中指定进程Id文件的名称！"
#	exit 1
#fi

CURRENT_DIR=$(pwd)
PROJECT_DIR=$CURRENT_DIR"/.."

# echo $PROJECT_DIR

CLASSPATH=
CLASSPATH=$CLASSPATH:$PROJECT_DIR

CLASSPATH=$CLASSPATH:$CURRENT_DIR"/../lib/*"

# echo $CLASSPATH

APPNAME=com.demo.RestStart

java -Xms2048M -Xmx2048M -classpath $CLASSPATH $APPNAME start >/usr/logs/rest.log 2>&1 &

echo $! > "./RestStart.pid"

echo "started"

4、pom文件加上打包配置：

<build>
    <finalName>my-sercurity-rest</finalName>
    <plugins>
      <plugin>
        <artifactId>maven-release-plugin</artifactId>

      </plugin>
      <plugin>
        <artifactId>maven-assembly-plugin</artifactId>
        <version>2.2.1</version>
        <configuration>
          <descriptors>
            <descriptor>src/main/assemble/package.xml</descriptor>
          </descriptors>
        </configuration>
        <executions>
          <execution>
            <id>make-assembly</id>
            <phase>package</phase>
            <goals>
              <goal>single</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-jar-plugin</artifactId>
        <version>2.4</version>
        <configuration>
          <excludes>
            <exclude>**/*.properties</exclude>
            <exclude>**/*.xml</exclude>
            <exclude>**/*.html</exclude>
            <exclude>config</exclude>
          </excludes>
        </configuration>
      </plugin>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-compiler-plugin</artifactId>
        <version>3.5.1</version>
        <configuration>
          <source>1.8</source>
          <target>1.8</target>
        </configuration>
      </plugin>
    </plugins>
  </build>

；

另外为了打包能够引入本地api jar包，在与pom同级目录创建thirdlibs目录，将步骤一中生成的api jar包拷贝进去，同时pom文件中依赖api的配置需要修改下：

  <!-- api -->
        <dependency>
            <groupId>com.demo</groupId>
            <artifactId>mysercurity-api</artifactId>
            <version>1.0.0-SNAPSHOT</version>
            <scope>system</scope>
            <!--      <systemPath>E:\workspace8\mysercurity-api\target\mysercurity-api.jar</systemPath>-->
            <systemPath>${project.basedir}/thirdlibs/mysercurity-api.jar</systemPath>
        </dependency>

5、打rest的包，将生成的zip上传到服务器上并解压；再把api包复制到bin目录下，同二5

6、启动。

四、前端：

执行npm run build生成dist文件夹，将dist上传到服务器，配置nginx代理这个静态目录。

访问这个代理地址即可。
