Storm+Kafka+Reids WordCount示例

一：简介

Kafka作为消息源Spout，Redis作为Bolt存储实时计算的结果。

二：启动zookeeper、Kafka服务、Redis服务

# 启动redis
redis-sever

# 启动zookeeper
./zkServer.sh start

# 启动Kafka
sudo ./bin/kafka-server-start /usr/local/etc/kafka/server.properties

# 创建test主题
./bin/kafka-topics --create --zookeeper localhost:2181 --partitions 1 --replication-factor 1 --topic test

# 生产者控制台
./bin/kafka-console-producer --broker-list localhost:9092 --topic test

三：示例

1. pom.xm

<dependency>
  <groupId>org.apache.storm</groupId>
  <artifactId>storm-redis</artifactId>
  <version>2.1.0</version>
</dependency>

<dependency>
  <groupId>org.apache.storm</groupId>
  <artifactId>storm-kafka-client</artifactId>
  <version>2.1.0</version>
</dependency>

<dependency>
  <groupId>org.apache.kafka</groupId>
  <artifactId>kafka_2.13</artifactId>
  <version>2.4.0</version>
  <exclusions>
    <exclusion>
      <groupId>org.apache.zookeeper</groupId>
      <artifactId>zookeeper</artifactId>
    </exclusion>
    <exclusion>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
    </exclusion>
  </exclusions>
</dependency>

<dependency>
  <groupId>org.apache.storm</groupId>
  <artifactId>storm-core</artifactId>
  <version>2.1.0</version>
</dependency>

<dependency>
  <groupId>org.projectlombok</groupId>
  <artifactId>lombok</artifactId>
  <version>1.18.12</version>
</dependency>
</dependencies>

2. SplitSentenceBolt

import lombok.extern.slf4j.Slf4j;
import org.apache.storm.task.OutputCollector;
import org.apache.storm.task.TopologyContext;
import org.apache.storm.topology.OutputFieldsDeclarer;
import org.apache.storm.topology.base.BaseRichBolt;
import org.apache.storm.tuple.Fields;
import org.apache.storm.tuple.Tuple;
import org.apache.storm.tuple.Values;

import java.util.Map;

/**
 * 将句子分隔成单词
 */
@Slf4j
public class SplitSentenceBolt extends BaseRichBolt {
    private OutputCollector collector;

    @Override
    public void prepare(Map<String, Object> topoConf, TopologyContext context, OutputCollector collector) {
        this.collector = collector;
    }

    @Override
    public void execute(Tuple input) {
       try {
           String sentence = input.getStringByField("sentence");
           String[] words = sentence.split(" ");

           // 将每个单词流向到下一个Bolt
           for (String word : words) {
               // 发射时携带发射过来的input
               collector.emit(input, new Values(word));
           }

           // 处理成功了给当前tuple做一个成功的标记，调用上游的ack方法
           collector.ack(input);
       } catch (Exception e) {
           log.error("SplitSentenceBolt#execute exception", e);
           // 异常做一个失败的标记，调用上游的fail方法
           collector.fail(input);
       }
    }

    @Override
    public void declareOutputFields(OutputFieldsDeclarer declarer) {
        declarer.declare(new Fields("word"));
    }
}

3. WordCountBolt

import org.apache.storm.task.OutputCollector;
import org.apache.storm.task.TopologyContext;
import org.apache.storm.topology.OutputFieldsDeclarer;
import org.apache.storm.topology.base.BaseRichBolt;
import org.apache.storm.tuple.Fields;
import org.apache.storm.tuple.Tuple;
import org.apache.storm.tuple.Values;

import java.util.HashMap;
import java.util.Map;

public class WordCountBolt extends BaseRichBolt {
    private OutputCollector collector;
    private Map<String, Long> wordCountMap = null;


    /**
     * 大部分示例变量通常在prepare中进行实例化
     * @param topoConf
     * @param context
     * @param collector
     */
    @Override
    public void prepare(Map<String, Object> topoConf, TopologyContext context, OutputCollector collector) {
        this.collector = collector;
        this.wordCountMap = new HashMap<>();
    }

    @Override
    public void execute(Tuple input) {
        String word = input.getStringByField("word");
        Long count = wordCountMap.get(word);
        if (count == null) {
            count = 0L;
        }
        count++;
        wordCountMap.put(word, count);

        collector.emit(new Values(word, count));
        collector.ack(input);
    }

    @Override
    public void declareOutputFields(OutputFieldsDeclarer declarer) {
        declarer.declare(new Fields("word", "count"));
    }
}

4. WriteRedisBolt

import org.apache.storm.redis.bolt.AbstractRedisBolt;
import org.apache.storm.redis.common.config.JedisPoolConfig;
import org.apache.storm.topology.OutputFieldsDeclarer;
import org.apache.storm.tuple.Tuple;
import redis.clients.jedis.JedisCommands;

public class WriteRedisBolt extends AbstractRedisBolt {

    public WriteRedisBolt(JedisPoolConfig config) {
        super(config);
    }


    @Override
    protected void process(Tuple tuple) {
        String word = tuple.getStringByField("word");
        Long count = tuple.getLongByField("count");

        JedisCommands jedisCommands = getInstance();
        jedisCommands.hset("wordcount", word, count.toString());
    }

    @Override
    public void declareOutputFields(OutputFieldsDeclarer declarer) {

    }
}

5. WordCountTopology

import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.storm.Config;
import org.apache.storm.LocalCluster;
import org.apache.storm.StormSubmitter;
import org.apache.storm.generated.StormTopology;
import org.apache.storm.kafka.spout.ByTopicRecordTranslator;
import org.apache.storm.kafka.spout.KafkaSpout;
import org.apache.storm.kafka.spout.KafkaSpoutConfig;
import org.apache.storm.redis.common.config.JedisPoolConfig;
import org.apache.storm.topology.TopologyBuilder;
import org.apache.storm.tuple.Fields;
import org.apache.storm.tuple.Values;
import org.example.demo.bolt.SplitSentenceBolt;
import org.example.demo.bolt.WordCountBolt;
import org.example.demo.bolt.WriteRedisBolt;


public class WordCountTopology {

    public static void main(String[] args) throws Exception {
        // Redis配置
        JedisPoolConfig jedisPoolConfig = new JedisPoolConfig.Builder()
                .setHost("127.0.0.1")
                .setPort(6379)
                .setPassword("123456")
                .setTimeout(3000)
                .build();

        String topic = "test";
        // 该类将传入的kafka记录转换为storm的tuple
        ByTopicRecordTranslator<String,String> brt = new ByTopicRecordTranslator<>(
                (r) -> new Values(r.value(), r.topic()),
                new Fields("sentence", topic));
        // 设置要消费的topic
        brt.forTopic(topic, (r) -> new Values(r.value(), r.topic()), new Fields("sentence", topic));

        KafkaSpoutConfig<String, String> kafkaSpoutConfig = KafkaSpoutConfig
                .builder("localhost:9092", topic)
                .setProp(ConsumerConfig.GROUP_ID_CONFIG, "test-group")
                .setRecordTranslator(brt)
                .build();
        KafkaSpout<String, String> kafkaSpout = new KafkaSpout<>(kafkaSpoutConfig);

        TopologyBuilder builder = new TopologyBuilder();
        builder.setSpout("kafka-spout", kafkaSpout);
        builder.setBolt("split-bolt", new SplitSentenceBolt()).shuffleGrouping("kafka-spout");
        builder.setBolt("word-count-bolt", new WordCountBolt()).shuffleGrouping("split-bolt");
        builder.setBolt("write-redis-bolt", new WriteRedisBolt(jedisPoolConfig)).globalGrouping("word-count-bolt");
        StormTopology topology = builder.createTopology();

        Config config = new Config();
        if (args == null || args.length == 0) {
            // 本地模式
            config.setDebug(true);
            LocalCluster cluster = new LocalCluster();
            cluster.submitTopology("WordCountTopology", config, topology);
        } else {
            // 集群模式
            StormSubmitter.submitTopology(args[0],config,builder.createTopology());
        }
    }
}

6. 运行 WordCountTopology#main

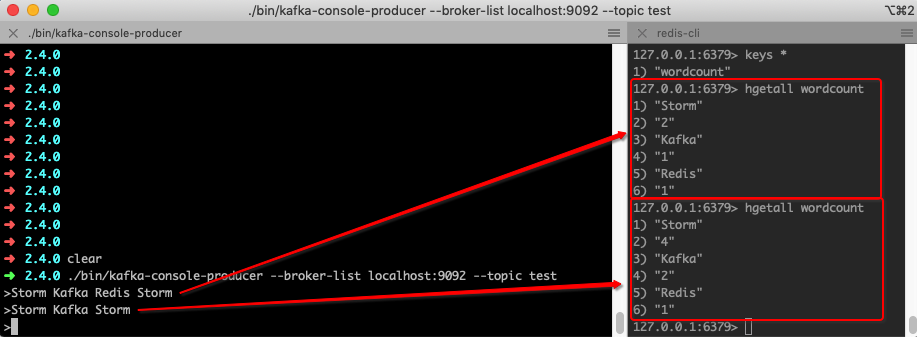

7. Kafka生产消息
