最近新换了一台机子，这次主要框架使用Spring+SpringMVC+Mybatis+Shiro。项目持久层使用Mybatis3.3.0，控制层使用SpringMVC4.3.6，使用Spring4.3.6管理控制器，使用Shiro1.2.4权限管理器，数据库连接池使用druid数据源，该项数据库暂使用MySQL5.6。环境是win10 64位 jdk1.8 tomcat8.5 Maven 3.5

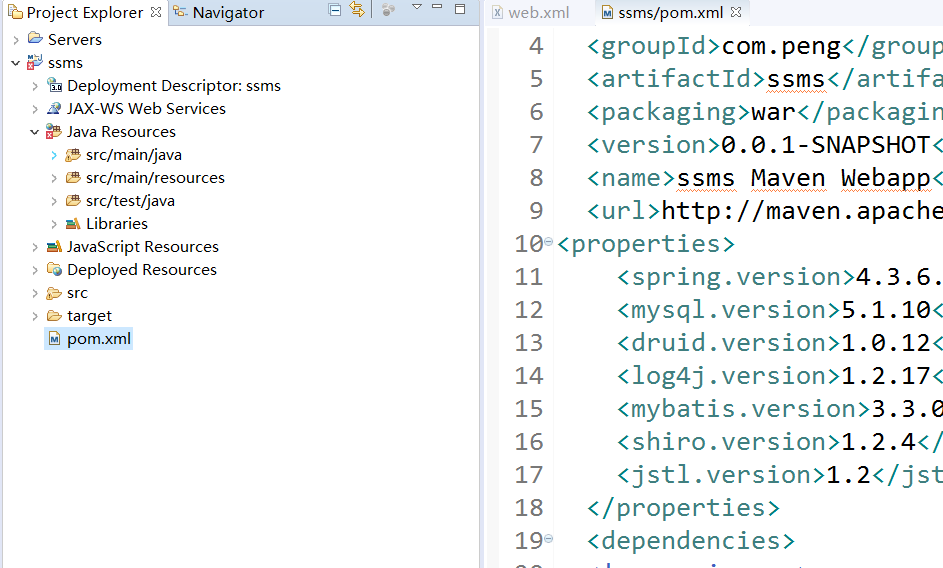

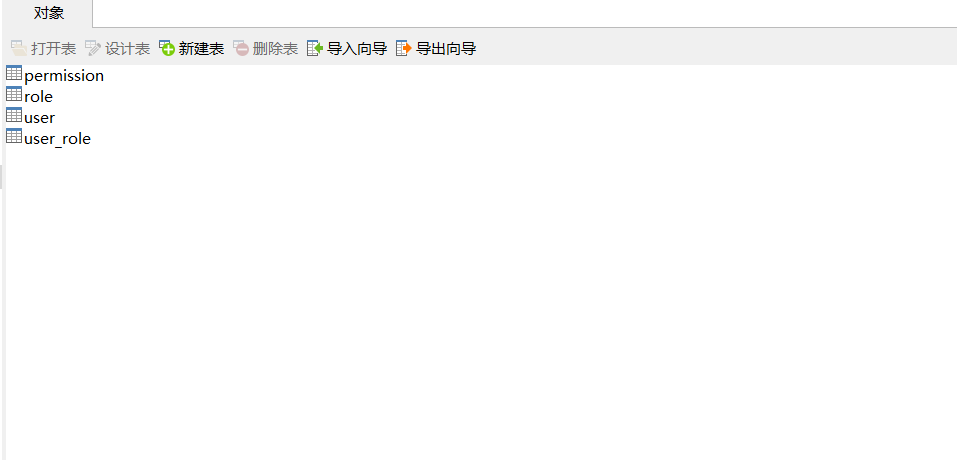

1、数据库表结构以及maven项目结构
这里写图片描述

2、修改pom.xml添加对应的包依赖
这儿将全部使用的Maven依赖贴出了，对应什么作用上面都有解释，如下：pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.peng</groupId>
  <artifactId>ssms</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>ssms Maven Webapp</name>
  <url>http://maven.apache.org</url>
<properties>
  	<spring.version>4.3.6.RELEASE</spring.version>
  	<mysql.version>5.1.10</mysql.version>
  	<druid.version>1.0.12</druid.version>
  	<log4j.version>1.2.17</log4j.version>
  	<mybatis.version>3.3.0</mybatis.version>
  	<shiro.version>1.2.4</shiro.version>
  	<jstl.version>1.2</jstl.version>
  </properties>
  <dependencies>
  <!-- spring -->
  <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- 事务 -->
     <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- 数据库驱动 mysql driver -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>
    <!-- druid -->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>${druid.version}</version>
    </dependency>
    <!-- 日志 -->
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>${log4j.version}</version>
    </dependency>
    <!-- mybatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.2.3</version>
    </dependency>
    <!-- shiro -->
    <dependency>
      <groupId>org.apache.shiro</groupId>
      <artifactId>shiro-core</artifactId>
      <version>${shiro.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.shiro</groupId>
      <artifactId>shiro-ehcache</artifactId>
      <version>${shiro.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.shiro</groupId>
      <artifactId>shiro-web</artifactId>
      <version>${shiro.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.shiro</groupId>
      <artifactId>shiro-spring</artifactId>
      <version>${shiro.version}</version>
    </dependency>
    <!-- 添加jtl支持 -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jstl</artifactId>
      <version>${jstl.version}</version>
    </dependency>
    <!-- 添加Servlet支持 -->
 <!--    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.1.0</version>
    </dependency>
    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>javax.servlet.jsp-api</artifactId>
      <version>2.3.1</version>
    </dependency>  -->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.1</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
  <build>
    <finalName>ssms</finalName>
    <!-- <plugins>
    	<plugin>
    		<groupId>org.apache.maven.plugins</groupId>
    		<artifactId>maven-compiler-plugin</artifactId>
    		<version>3.3.0</version>
    		<configuration>
    			<source>1.8</source>
    			<target>1.8</target>
    		</configuration>
    	</plugin>
    </plugins> -->
  </build>
</project>

3、引入Spring，Springmvc以及spring与mybatis集成并配置相关属性
在src/main/resources创建spring，springmvc的配置文件，这里创建了spring-mybatis.xml，spring-mvc.xml，信息如下：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
		xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
		xmlns:context="http://www.springframework.org/schema/context"
		xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.3.xsd">

	<!-- 导入配置文件 -->
	<context:property-placeholder location="classpath:jdbc.properties"/>
	<!-- druid 数据源 -->
	<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
		<property name="url"  value="${jdbc.url}"></property>
		<property name="username" value="${jdbc.username}"></property>
		<property name="password" value="${jdbc.password}"></property>
	</bean>
	<!-- 扫描mybatis 配置文件-->
	<bean name="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource" />
		<property name="mapperLocations" value="classpath:com/peng/entity/mapper/*.xml" />
	</bean>
	<!-- 扫描Mapper 配置文件-->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="com.peng.mapper" />
		<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
	</bean>
</beans>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
		xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
		xmlns:context="http://www.springframework.org/schema/context"
		xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.3.xsd">

	<!-- 使用spring组件扫描@controller -->
	<context:component-scan base-package="com.peng.web.controller"/>
	<!-- 通过annotation-driven可以替代下边的处理器映射器和适配器 -->

	<!-- 自动注解 -->
	<bean class="org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter"></bean>
	<!-- 视图解析器 -->
	<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="viewClass" value="org.springframework.web.servlet.view.JstlView" />
		<property name="prefix" value="/WEB-INF/jsp/" />
		<property name="suffix" value=".jsp" />
	</bean>
</beans>

4、引入Mybatis并配置数据连接池等信息
在src/main/resources创建配置连接池配置信息在jdbc.properties中，如下：

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssms?useUnicode=true&characterEncoding=UTF-8
jdbc.username=root
jdbc.password=root

5、引入日志配置log4j打印信息到后台
在src/main/resources创建log4j.properties，如下：

#定义LOG输出级别
log4j.rootLogger=INFO,Console,File
#定义日志输出目的地为控制台
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.Target=system.out
#可以灵活地指定日志输出格式，下面一行是指定具体的格式 %d [%t]%-5p [%c] - %m%n
log4j.appender.Console.layout = org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=[%d{yyyy-MM-dd HH\:mm\:ss}][%c]%m%n

#文件大小到达指定尺寸的时候产生一个新的文件
log4j.appender.File = org.apache.log4j.RollingFileAppender
#指定输出目录
log4j.appender.File.File = d:/logs/ssms.log
#定义文件最大大小
log4j.appender.File.MaxFileSize = 10MB
# 输出所以日志，如果换成DEBUG表示输出DEBUG以上级别日志
log4j.appender.File.Threshold = ALL
log4j.appender.File.layout = org.apache.log4j.PatternLayout
log4j.appender.File.layout.ConversionPattern =[%p] [%d{yyyy-MM-dd HH\:mm\:ss}][%c]%m%n

6、web.xml 配置spring监听器，对springmvc的支持，shiro的filter 如下：

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
         http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0">
  <display-name>ssms</display-name>
  <welcome-file-list>
    <welcome-file>index.html</welcome-file>
    <welcome-file>index.htm</welcome-file>
    <welcome-file>index.jsp</welcome-file>
    <welcome-file>default.html</welcome-file>
    <welcome-file>default.htm</welcome-file>
    <welcome-file>default.jsp</welcome-file>
  </welcome-file-list>
  <!-- Spring监听器 -->
  <context-param>
  		<param-name>contextConfigLocation</param-name>
  		<param-value>classpath:spring-shiro.xml,classpath:spring-mybatis.xml</param-value>
  </context-param>
  <listener>
  	<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <!-- shiro的filter -->
  <filter>
  	<filter-name>shiroFilter</filter-name>
  	<filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
  	<init-param>
  		<param-name>targetFilterLifecycle</param-name>
  		<param-value>true</param-value>
  	</init-param>
  	<init-param>
  		<param-name>targetBeanName</param-name>
  		<param-value>shiroFilter</param-value>
  	</init-param>
  </filter>
  <filter-mapping>
  	<filter-name>shiroFilter</filter-name>
  	<url-pattern>/*</url-pattern>
  </filter-mapping>
  <!-- 添加对springmvc的支持 -->
 <servlet>
  	<servlet-name>springmvc</servlet-name>
  	<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
  	<init-param>
  		<param-name>contextConfigLocation</param-name>
  		<param-value>classpath:spring-mvc.xml</param-value>
  	</init-param>
  	<load-on-startup>1</load-on-startup>
  	<async-supported>true</async-supported>
  </servlet>
  <servlet-mapping>
  	<servlet-name>springmvc</servlet-name>
  	<url-pattern>/</url-pattern>
  </servlet-mapping>
  <!-- post乱码处理 -->
  <filter>
  	<filter-name>CharacterEncodingFilter</filter-name>
  	<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
  	<init-param>
  		<param-name>encoding</param-name>
  		<param-value>utf-8</param-value>
  	</init-param>
  </filter>
  <filter-mapping>
  	<filter-name>CharacterEncodingFilter</filter-name>
  	<url-pattern>/*</url-pattern>
  </filter-mapping>
</web-app>

7、集成spring与shiro权限管理配置文件spring-shiro.xml
在src/main/resources创建spring-shiro.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
		xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
		xmlns:context="http://www.springframework.org/schema/context"
		xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.3.xsd">

	<!-- 使用spring组件扫描@service  -->
	<context:component-scan base-package="com.peng.service"/>
	<!-- 自定义域realm -->
	<bean id="custom_Realm" class="com.peng.realm.CustomRealm"></bean>
	<!-- 安全管理器  ref对象-->
	<bean id="securityManager" class="org.apache.shiro.web.mgt.DefaultWebSecurityManager">
		<property name="realm" ref="custom_Realm"/>
	</bean>
	<!-- shiro filter -->
	<bean id="shiroFilter" class="org.apache.shiro.spring.web.ShiroFilterFactoryBean">
		<!-- 安全管理器必须的 -->
		<property name="securityManager" ref="securityManager"/>
		<!-- 身份认证失败   认证提交的地址 -->
		<property name="loginUrl" value="/index.jsp"/>
		<!-- 权限认证失败    没有权限认证提交的地址 -->
		<property name="unauthorizedUrl" value="/unauthorized.jsp"/>
		<!-- Shiro连接约束配置,即过滤链的定义 -->
		<property name="filterChainDefinitions">
			<value>
				<!-- 对静态资源设置匿名访问 -->
				/login = anon
				<!-- /** = authc 所有url都必须认证通过才可以访问 -->
				/admin* = authc
			</value>
		</property>
	</bean>
	<!-- Shiro生命周期处理器 -->
	<bean id="lifecycleBeanPostProcessor" class="org.apache.shiro.spring.LifecycleBeanPostProcessor"></bean>
	<bean class="org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor">
		<property name="securityManager" ref="securityManager"/>
	</bean>

</beans>

8、自定义域realm

package com.peng.realm;

import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.authc.SimpleAuthenticationInfo;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;

import com.peng.entity.User;
import com.peng.service.UserService;

public class CustomRealm extends AuthorizingRealm{
	private static final Logger logger = LoggerFactory.getLogger(CustomRealm.class);
	@Autowired
	private UserService userService;
	/**
	 * 用户授权认证
	 */
	@Override
	protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
		logger.info("======用户授权认证======");
		String userName = principalCollection.getPrimaryPrincipal().toString();
		SimpleAuthorizationInfo simpleAuthorizationInfo = new SimpleAuthorizationInfo();
		simpleAuthorizationInfo.setRoles(userService.queryRolesByName(userName));
		return simpleAuthorizationInfo;
	}
	/**
	 * 用户登陆认证
	 */
	@Override
	protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
		logger.info("======用户登陆认证======");
		String userName = authenticationToken.getPrincipal().toString();
		User user = userService.queryUserByName(userName);
		if (user!=null) {
			AuthenticationInfo authenticationInfo = new SimpleAuthenticationInfo(user.getUserName(), user.getPassword(), "peng");
			return authenticationInfo;
		}
		return null;
	}

}

9、UserMapper以及UserMapper.xml相当于Dao层
UserMapper接口

public interface UserMapper {
	public User queryUserByName(String userName);
	public Set<String> queryRolesByName(String userName);
}

UserMapper.xml配置sql语句

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
			"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.peng.mapper.UserMapper">
	<select id="queryUserByName" resultType="com.peng.entity.User" parameterType="java.lang.String">
		SELECT id,userName,password FROM user WHERE userName=#{userName}
	</select>
	<select id="queryRolesByName" resultType="java.lang.String" parameterType="java.lang.String">
		SELECT name FROM role r,user_role ur,user u WHERE r.id = ur.roleId AND u.id = ur.userId AND u.userName=#{userName}
	</select>
</mapper>

10、Service层创建UserService

@Service("userService")
public class UserService {
	@Autowired
	private UserMapper userMapper;

	public User queryUserByName(String userName){
		return userMapper.queryUserByName(userName);
	}
	public Set<String> queryRolesByName(String userName){
		return userMapper.queryRolesByName(userName);
	}
}

10、Controller层创建LoginController

@Controller
public class LoginController {
	private static final Logger logger = LoggerFactory.getLogger(LoginController.class);
	@Autowired
	private UserService userService;
	@RequestMapping("/login")
	public String login(User user,Model model){
		Subject subject = SecurityUtils.getSubject();
		UsernamePasswordToken usernamePasswordToken = new
				UsernamePasswordToken(user.getUserName(),user.getPassword());
		try {
			subject.login(usernamePasswordToken);
			logger.info("======登陆成功=======");
			return "success";
		} catch (Exception e) {
			logger.error("======登陆异常=======");
			//model.addAttribute("msg", "用户名或者密码错误,登陆失败");
			e.printStackTrace();
			return "/i````
dex";
		}
	}
}

11、前段登陆界面测试

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<c:set var="ctx" value="${pageContext.request.contextPath}" />
<%@ page language="java" contentType="text/html; charset=utf-8"
    pageEncoding="utf-8"%>
<!DOCTYPE html>
<html>
<head>
	<meta charset="utf-8" />
	<meta name="viewport" content="width=device-width, initial-scale=1.0">
	<title>登录页面</title>
	<link rel="stylesheet" href="${ctx}/static/css/reset.css" />
	<link rel="stylesheet" href="${ctx}/static/css/login.css" />
    <script type="text/javascript" src="${ctx}/static/js/jquery.min.js"></script>
    <script type="text/javascript" src="${ctx}/static/js/login.js"></script>
</head>
<body>
<div class="page">
	<div class="loginwarrp">
		<div class="logo">管理员登陆</div>
        <div class="login_form">
			<form id="Login" name="Login" method="post" onsubmit="" action="login">
				<li class="login-item">
					<span>用户名：</span>
					<input type="text" id="username" name="userName" class="login_input" >
                                        <span id="count-msg" class="error"></span>
				</li>
				<li class="login-item">
					<span>密　码：</span>
					<input type="password" id="password" name="password" class="login_input" >
                                        <span id="password-msg" class="error"></span>
				</li>
				<li class="login-sub">
					<input type="submit" name="Submit" value="登录" />
                    <input type="reset" name="Reset" value="重置" />
				</li>
           </form>
		</div>
	</div>
</div>
<script type="text/javascript">
		window.onload = function() {
			var config = {
				vx : 4,
				vy : 4,
				height : 2,
				width : 2,
				count : 100,
				color : "121, 162, 185",
				stroke : "100, 200, 180",
				dist : 6000,
				e_dist : 20000,
				max_conn : 10
			}
			CanvasParticle(config);
		}
	</script>
	<script type="text/javascript" src="${ctx}/sta`
ic/js/canvas-particle.js"></script>
</body>
</html>

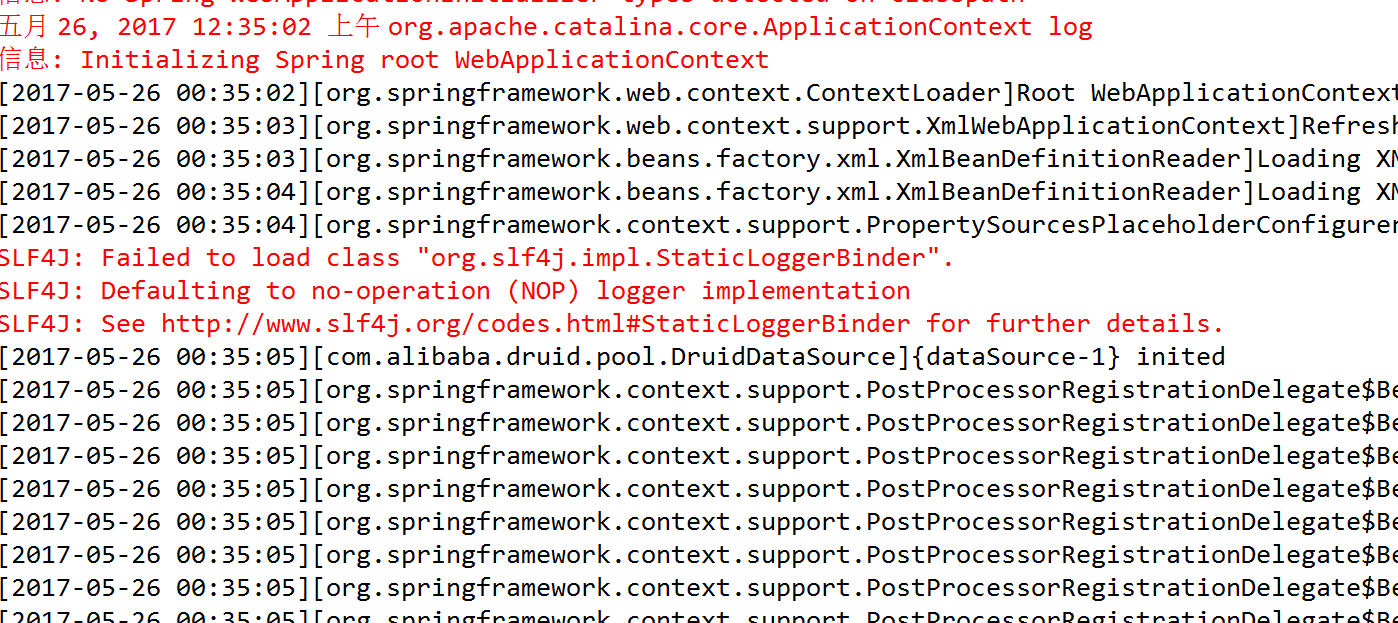

12、tomcat启动不报错情况下
这里写图片描述

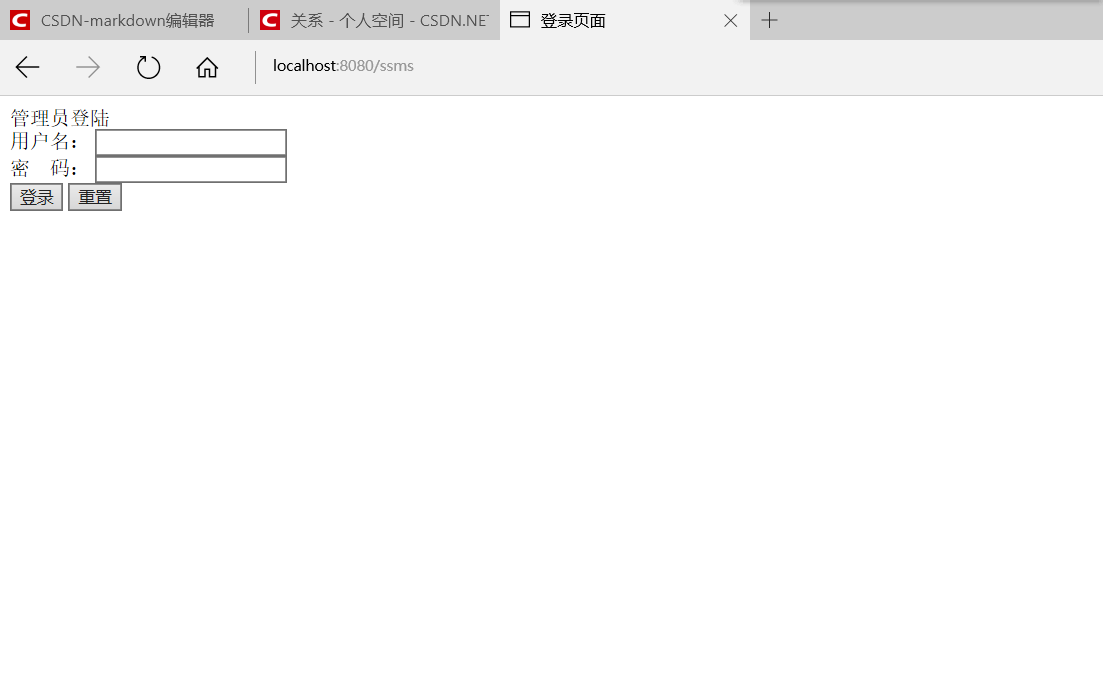

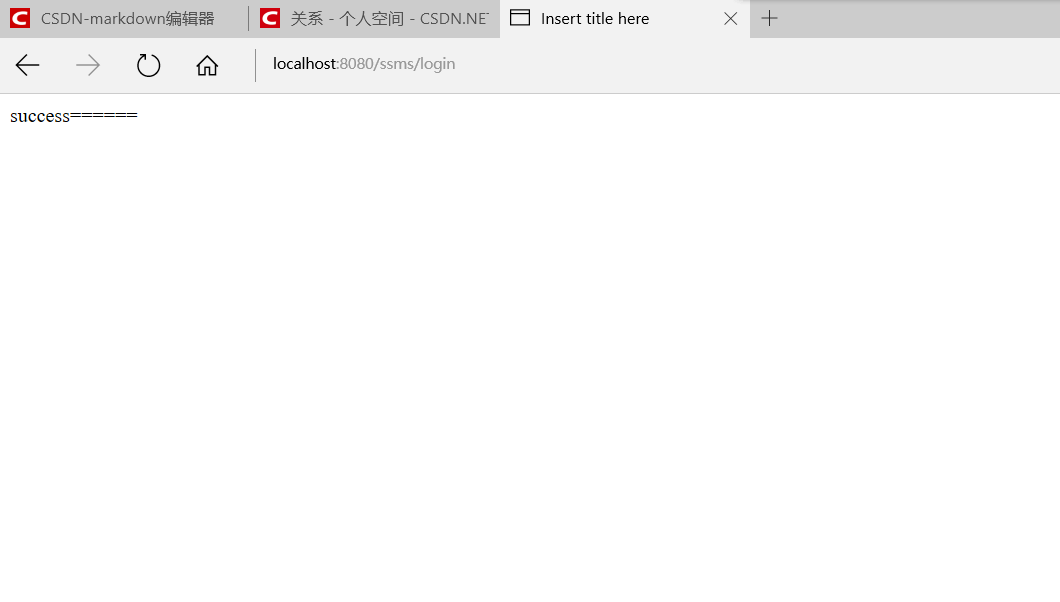

通过浏览器访问http://localhost:8080/ssms 如下
这里写图片描述

在这里插入图片描述
最后注意：
1、Java Build Path 选“Libraries”，将JRE System Library改为安装的javase-1.8
2、Java Compile 中的JDK Compliance 中Compiler Compliance level 改为 1.8
3、Project Facets 中将Dynamic Web Module 改为3.0及以上
，Java中的版本改为 1.8
