腾讯云位置服务地图+规则引擎Drools

腾讯云位置服务地图

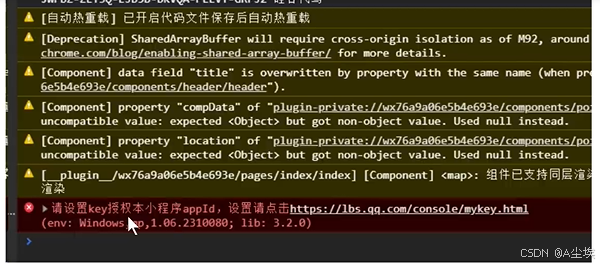

如果未开通，前端会报错

开通腾讯位置服务

①、腾讯官网https://lbs.qq.com

②、进行注册，并登录

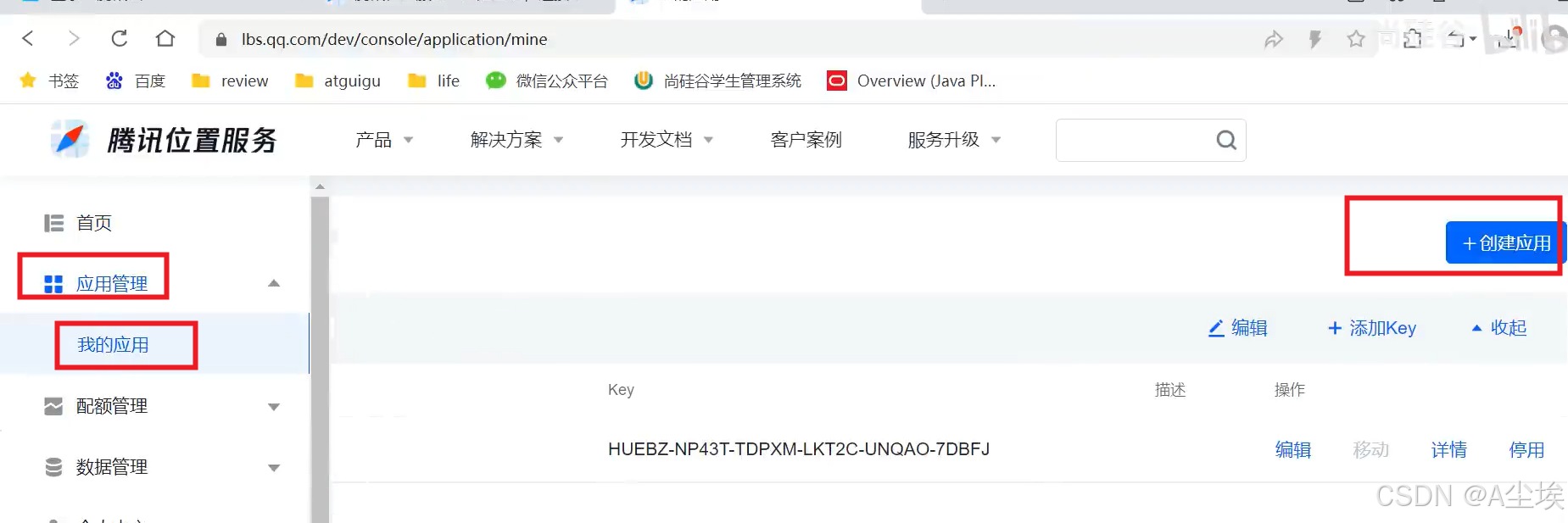

③、进入控制台

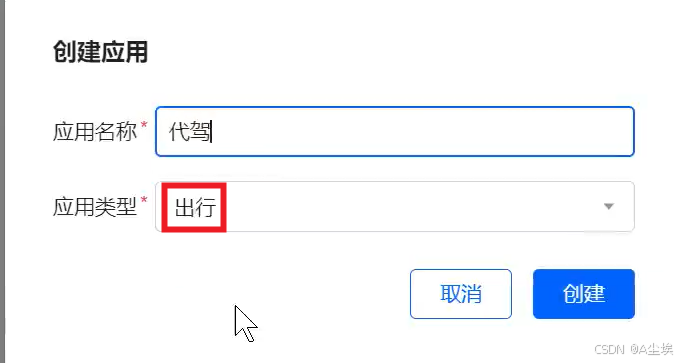

④、创建应用，应用类型选择出行

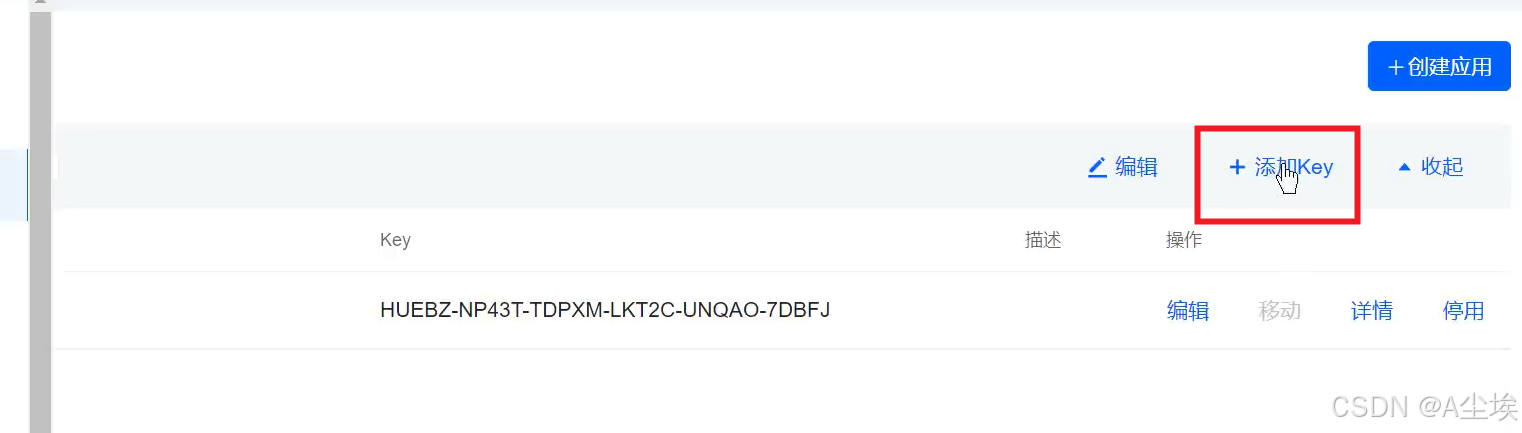

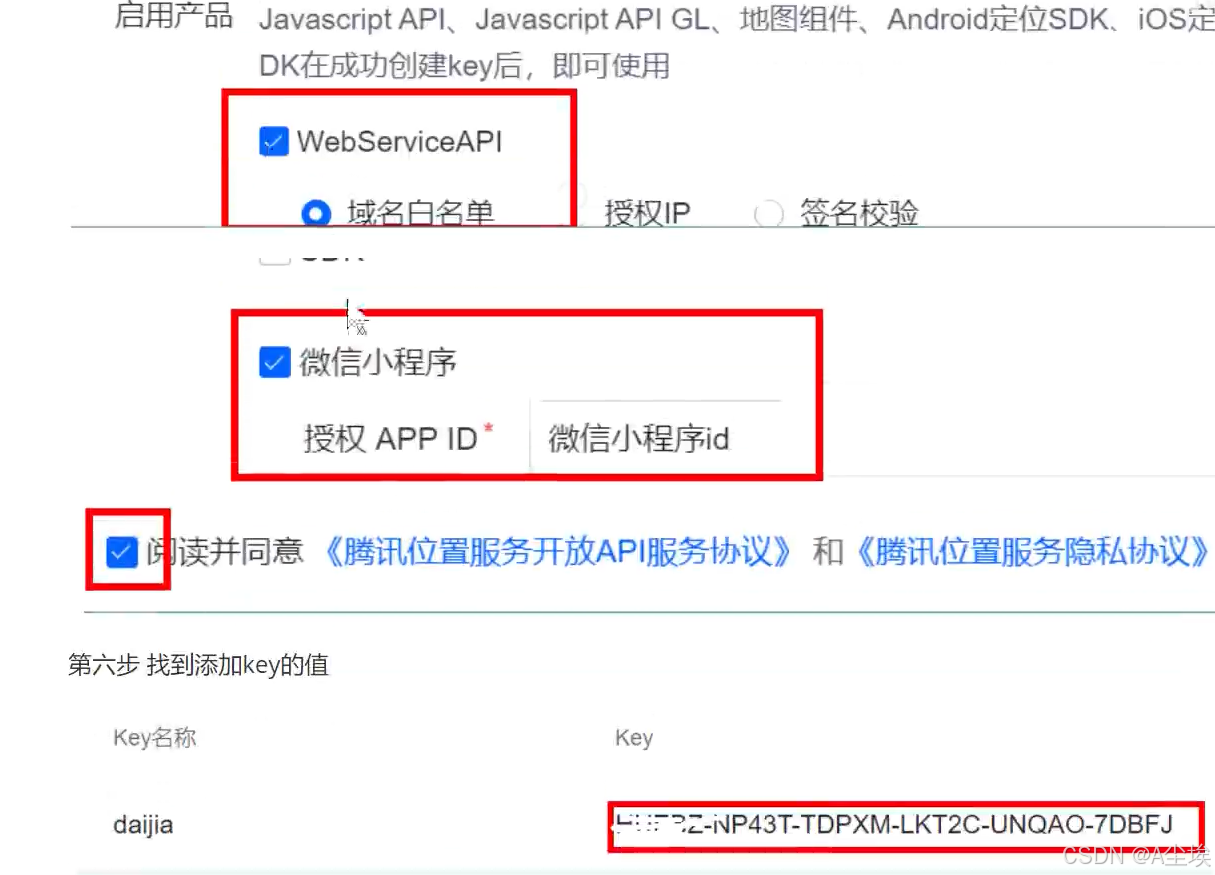

⑤、为创建的应用添加key

代码开发

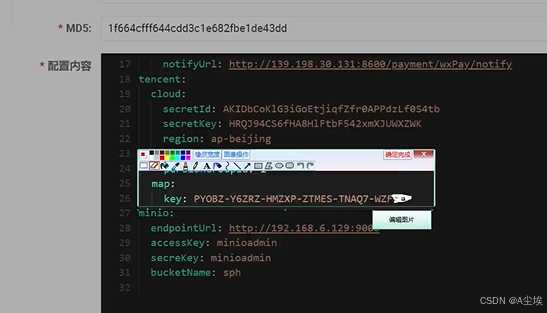

①、配置文件common-account.yaml

②、对应的service-map模块中

@Slf4j
@Tag(name="地图API接口管理")
@RestController
@RequestMapping("/map")
public class MapController{

	@Autowired
	private MapService mapService;

	@Operation(summary = "计算驾驶线路")
	@PostMapping("/calculateDrivingLine")
	public Result<DrivingLineVo> calculateDrivingLine(@RequestBody CalculateDrivingLineForm calculateDrivingLineForm){
		DrivingLineVo drivingLineVo = mapService.calculateDrivingLine(calculateDrivingLineForm);
		return Result.ok(drivingLineVo);
	}
}

传递的参数类型

public class CalculateDrivingLineForm{

	@Schema(description = "起始地点经度")
	private BigDecimal startPointLongitude;

	@Schema(description = "起始地点纬度")
	private BigDecimal startPointLatitude;

	@Schema(description = "结束地点经度")
	private BigDecimal endPointLongitude;

	@Schema(description = "结束地点经度")
	private BigDecimal endPointLatitude;
}

返回的结果类型

@Data
public class DrivingLineVo{

	@Schema(description = "方案总距离，单位：千米")
	private BigDecimal distance;

	@Schema(description = "方案估算时间（结合路况），单位：分钟")
	private BigDecimal duration;

	@Schema(description = "方案路线坐标点串")
	private JSONArray polyline
}

service实现类

@Slf4j
@Service
public class MapServiceImpl implements MapService{

	@Autowired
	private RestTemplate restTemplate;

	@Value("${tencent.map.key}")
	private String key;

	//计算驾驶路线
	@Override
	public DrivingLineVo calculateDrivingLine(CalculateDrivingLineForm calculateDrivingLineForm){

		//请求腾讯提供的接口，按照接口要求传递相关参数，返回需要的结果
		//调用第三方的项目，可以通过HttpClient
		//也可以通过Spring封装的工具RestTemplate

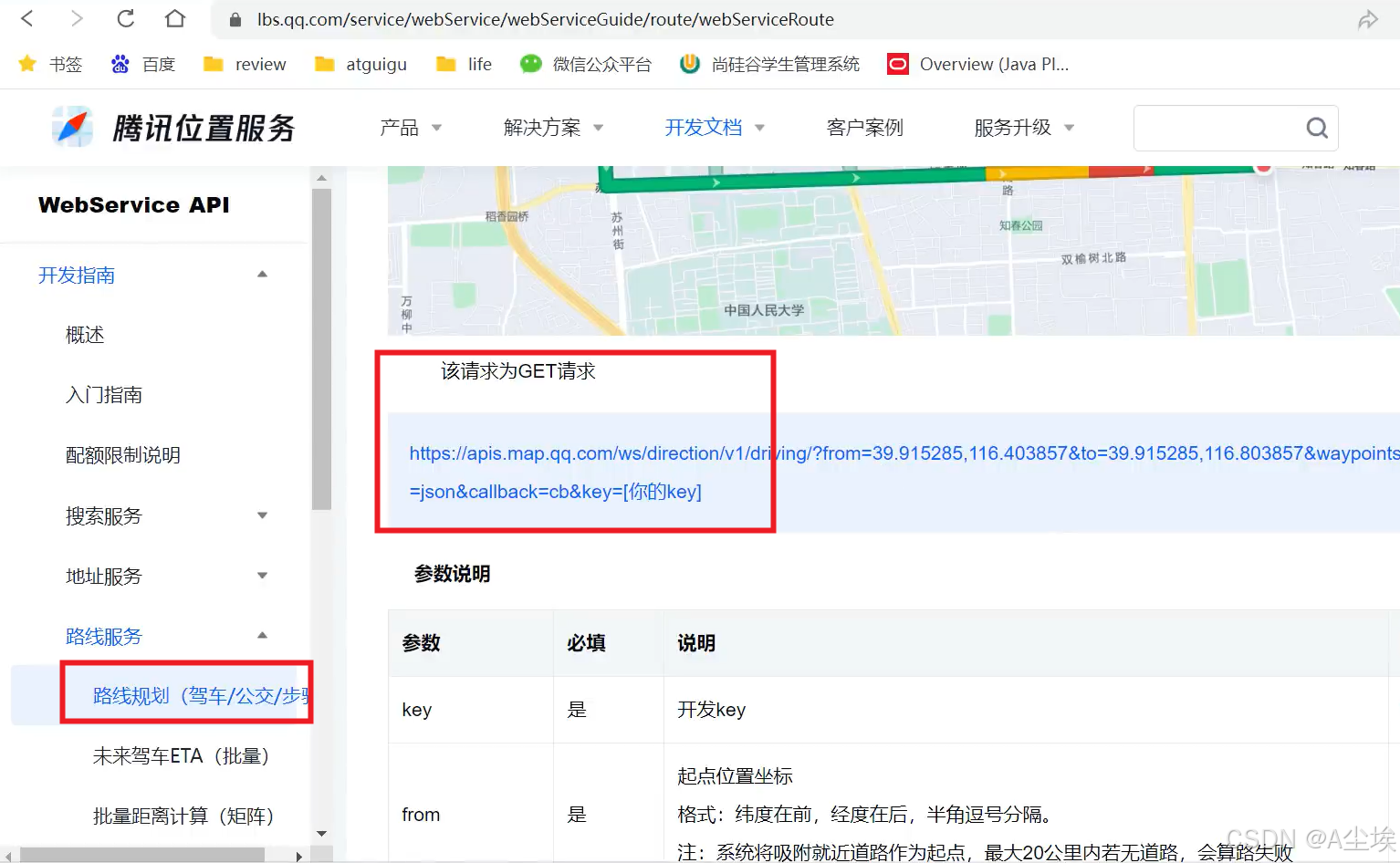

		String url = "https://apis.map.qq.com/ws/direction/v1/driving/?from={from}&to={to}&key={key}";

		Map<String,String> map = new HashMap<>();
		map.put("from",calcalateDrivingLineForm.getStartPointLatitude()+","+calcalateDrivingLineForm.getStartPointLongitude());
		map.put("to",calcalateDrivingLineForm.getEndPointLatitude()+","+calcalateDrivingLineForm.getEndPointLongitude());
		map.put("key",key);

		JSONObject result = restTemplate.getForObject(url,JSONObject.class,map);
		if(result.getIntValue("status")!=0){
			throw new GuiguException(ResultCodeEnum.MAP_FAIL);
		}
		//获取返回路线信息(第一条)
		JSONObject route = result.getJSONObject("result").getJSONArray("routes").getJSONObject(0);

		//封装到返回对象(封装预估时间和距离、路线)
		DrivingLineVo drivingLineVo = new DrivingLineVo();
		drivingLineVo.setDuration(route.getBigDecimal("duration"));
		drivingLineVo.setDistance(route.getBigDecimal("distance")
									.divideToIntEgralValue(new BigDecimal(1000))
									.setScale(2,RoundingMode.HALF_UP));//米转换成千米，保留两位小数，向上取值
		divingLineVo.setPolyline(route.getJSONArray("polyline"));
		return divingLineVo;
	}
}

@Configuration
public class MapConfig{

	@Bean
	public RestTemplate restTemplate(){
		return new RestTemplate();
	}
}

规则引擎Drools

入门案例

drools官网地址：https://drools.org
源码下载地址：https://github.com/kiegroup/drools

①、依赖

drools-core drools-compiler drools-decisiontables drools-mvel

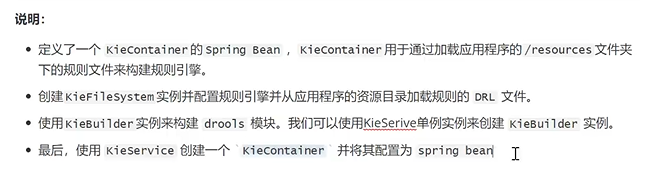

②、配置类

@Configuration
public class DroolsConfig{

	private static final KieServices kieServices = KieServices.Factory.get();

	//指定规则文件的路径
	@Bean
	public KieContainer kieContainer(){

		KieFileSystem kieFileSystem = kieServices.newKieFileSystem();
		kieFileSystem.write(ResourceFactory.newClassPathResource(RULES_CUSTOMER_RULES_DRL));

		KieBuilder kieBuilder = kieServices.newKieBuilder(kieFileSystem);
		kieBuilder.buildAll();

		KieModle kieModule = kieBuilder.getKieModule();
		KieContainer kieContainer = kieService.newKieContainer(kieModule.getReleaseId());

		return kieContainer;
	}
}

③、实体类和规则文件

public class Order{
	private double amout;//订单金额
	private double score;//积分

	//省略get set方法
}

规则文件order.drl

//订单积分规则
package com.atguigu.order
import com.atguitu.drools.model.Order

//规则一：100元以下，不加分
rule "order_rule_1"
	when
		$order:Order(amout < 100)
	then
		$order.setScore(0);
		System.out.println("成功匹配到规则一：100元以下 不加分");
end

//规则二：100元-500元 加100分
rule "order_rule_2"
	when
		$order:Order(amout >=100 && amout < 100)
	then
		$order.setScore(100);
		System.out.println("成功匹配到规则二：100元-500元 加100分");
end

//规则三：500元-1000元 加500分
rule "order_rule_3"
	when
		$order:Order(amout >=500 && amout < 1000)
	then
		$order.setScore(500);
		System.out.println("成功匹配到规则三：500元-1000元 加500分");
end

//规则四：1000元以上 加1000分
rule "order_rule_4"
	when
		$order:Order(amout >= 1000)
	then
		$order.setScore(1000);
		System.out.println("成功匹配到规则四：1000元以上 加1000分");
end

④、应用

@SpringBootTest
public class DroolsDemosApplicationTests{

	@Autowired
	private KieContainer kieContainer;

	@Test
	public void test(){
		//从kie容器对象中获取会话对象
		KieSession session = KieContainer.newKieSession();

		//Fact对象，事实对象
		Order order = new Order();
		order.setAmout(1300);

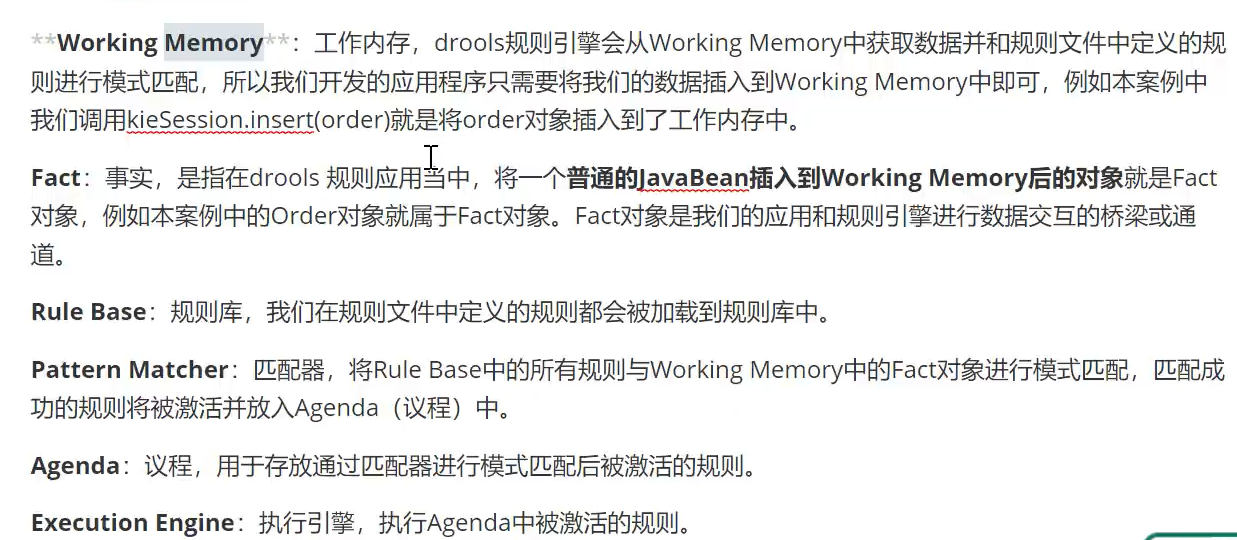

		//将Order对象插入到工作内存中
		session.insert(order);

		//激活规则，由Drols框架自动进行规则匹配，如果规则匹配成功，执行当前规则
		session.fireAllRules();

		//关闭会话
		session.dispose();

		System.out.println("订单金额："+ order.getAmout() + "，添加积分：" + order.getScore());
	}
}

Drools内置方法

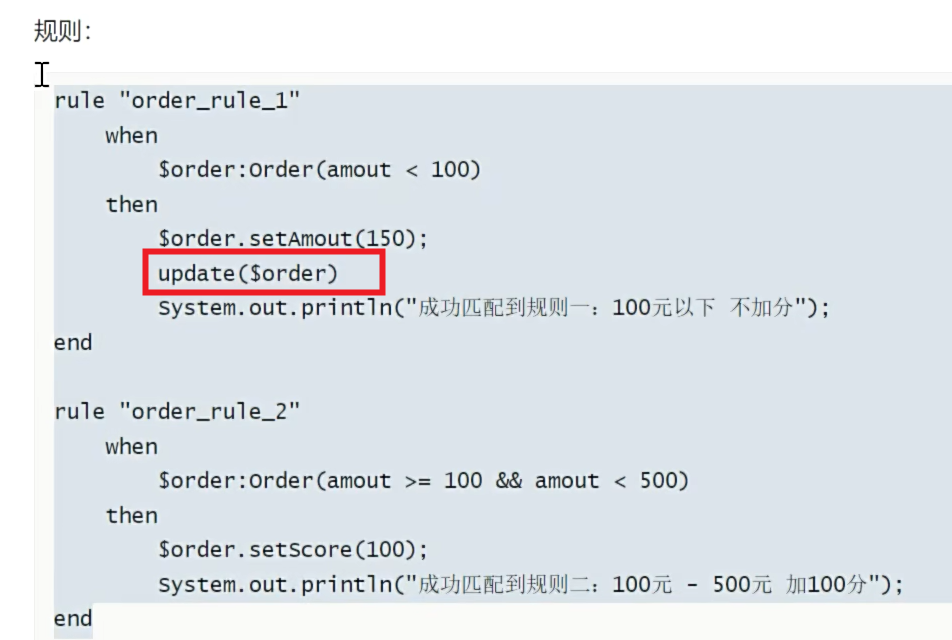

update 更新工作内存中的数据，并让相关的规则重新匹配

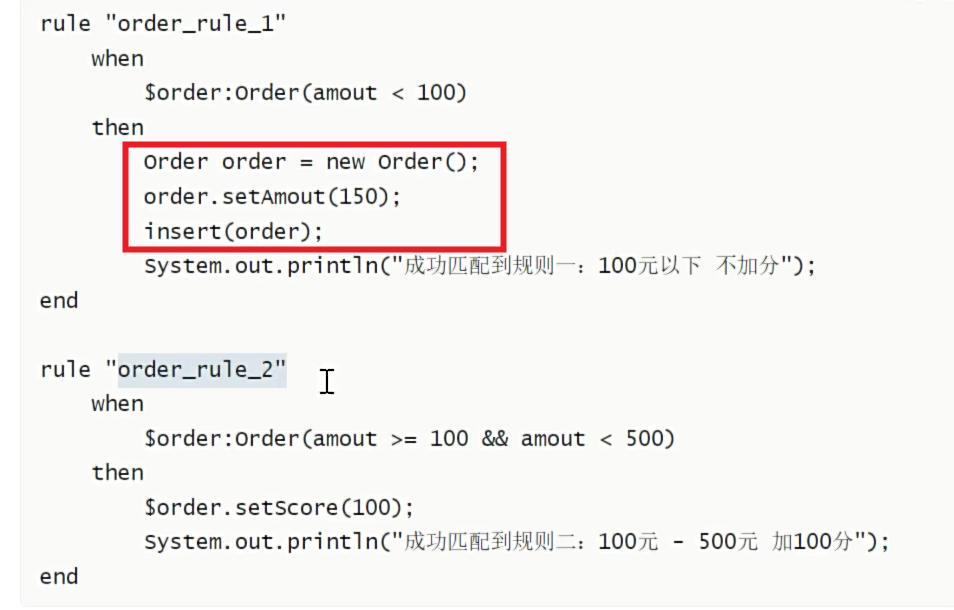

insert 向工作内存中插入数据，并让相关的规则重新匹配

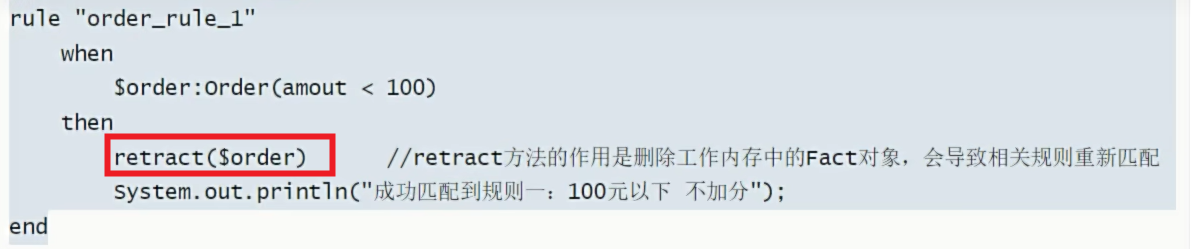

retract 删除工作内存中的数据，并让规则重新匹配

规则属性

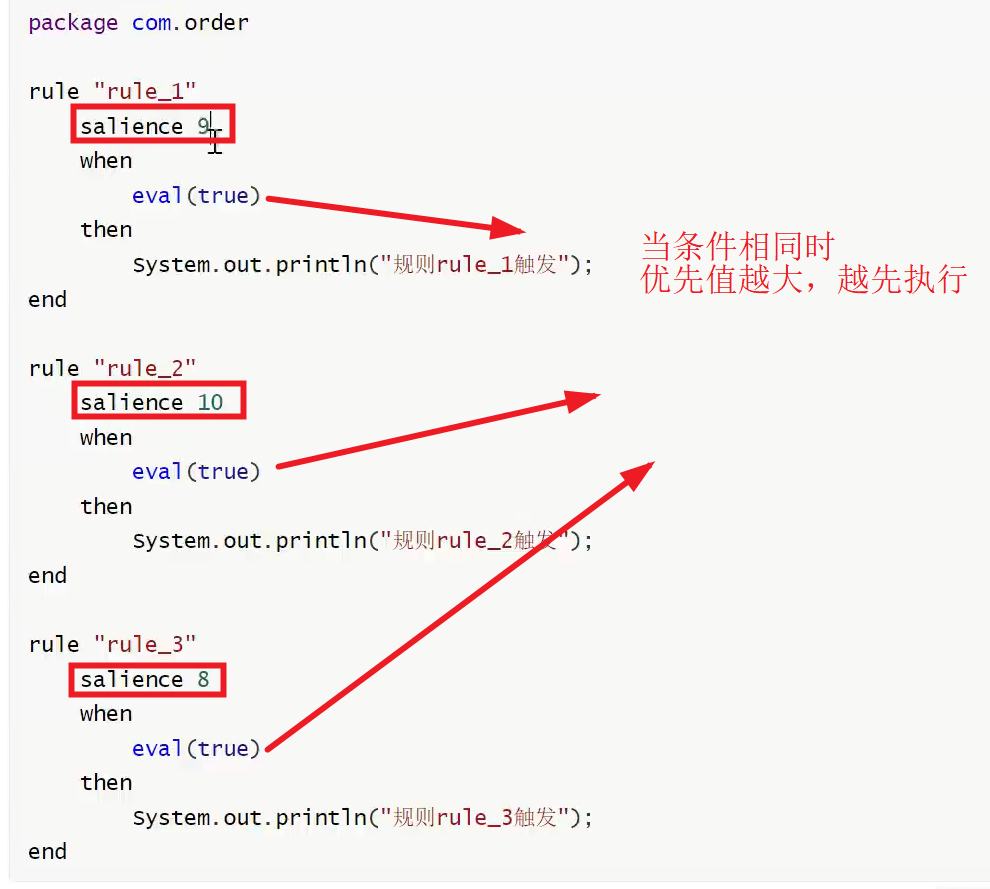

• salience 执行优先级

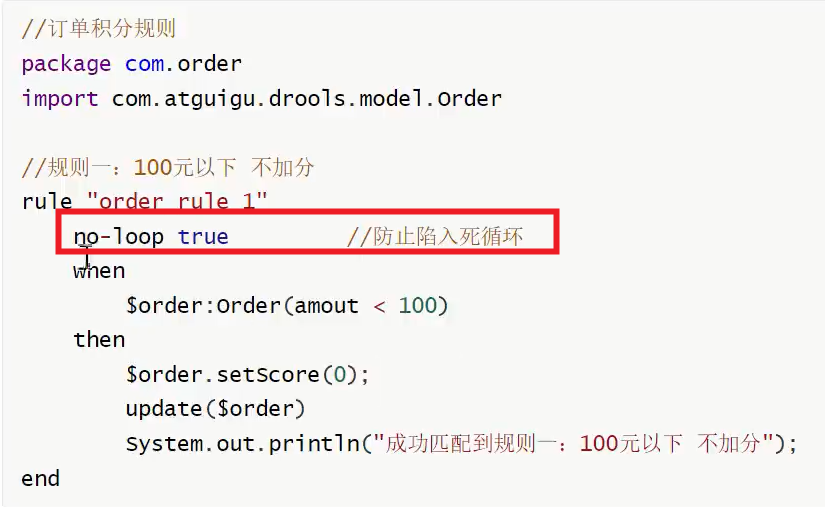

• no-loop 放置死循环

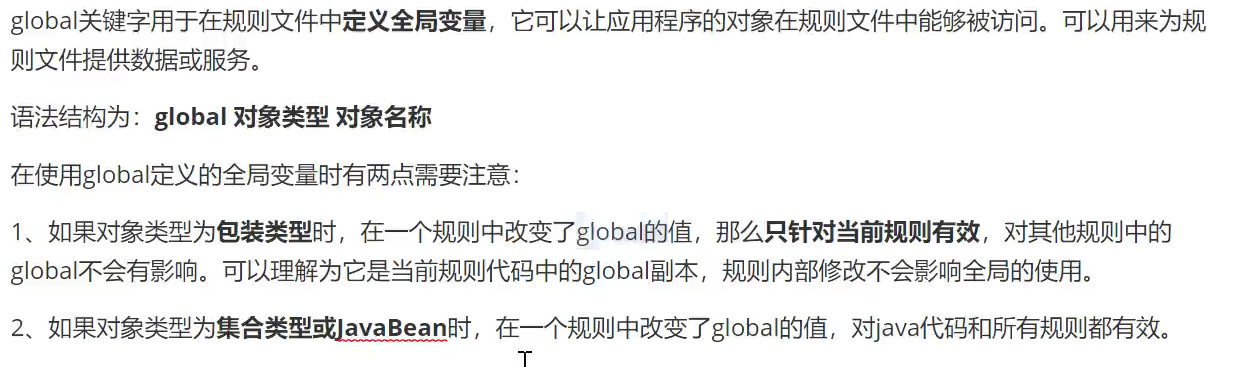

global全局变量

订单Order

public class Order{

	private double amout;//金额

	//省略get set方法
}

积分Integral

public class Integral{

	private double score;

	//省略get set 方法
}

规则文件

package com.order
import com.atguigu.drools.model.Order

global com.atguigu.drools.model.Integral integral; //全局变量

rule "order_rule_1"
	no-loop true //防止死循环
	when
		$order:Order(amout < 100)
	then
		integral.setScore(10);
		update($order);
		System.out.println("成功匹配到规则一：100元以下 不加分");

end

测试

@Test
public void test(){

	KieSession session = kieContainer.newKieSession();

	Order order = new Order();
	order.setAmout(30);

	//全局变量的设置
	Integral integral = new Integral();
	session.setGlobal("integral",integral);//"integral"必需与规则文件中的 保持一致

	session.insert(order);

	session.fireAllRules();

	session.dispose();

	System.out.println("订单金额"+ order.getAmout() + ",添加积分：" + order.getScore());
}

项目中整合规则引擎实现预估订单功能

①、依赖

drools-core drools-compiler drools-decisiontables drools-mvel

②、Drools配置类

@Slf4j
@Configuration
public class DroolsConfig{

	//指定规则文件路径
	private static final String RULES_CUSTOMER_RULES_DRL = "rules/FeeRule.drl"

	@Bean
	public KieContainer kieContainer(){

		KieServices kieServices = KieServices.Factory.get();

		KieFileSystem kieFileSystem = kieServices.newKieFileSystem();

		kieFileSystem.write(ResourceFactory.newClassPathResource(RULES_CUSTOMER_RULES_DRL));
		KieBuilder kb = kieServies.newKieBuilder(keiFileSystem);
		kb.buildAll();

		KieModule kieModule = kb.getKieModule();
		KieContainer kieContainer = kieServices.newKieContainer(kieModule.getReleaseId());

		return kieContainer;
	}
}

③、创建规则文件

package com.atguigu.daijia

import com.atguigu.daijia.model.form.rules.FeeRuleRequest;
import java.math.BigDecimal;
import java.math.RoundingMode;

global com.atguigu.daijia.model.vo.rules.FeeRuleRsponse feeRuleResponse;

/**

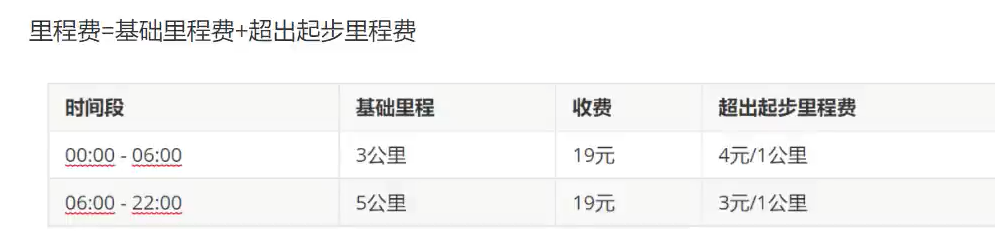

	起步价
		00:00:00-06:59:59  19元（含3公里）
		07:00:00-23:59:59  19元（含5公里）
*/
rule "起步价 00:00:00-06:59:59  19元（含3公里"
	salience 10 //指定优先级，数值越大，优先级越高，不指定的情况下由上到下执行
	no-loop true  //防止陷入死循环
	when
		/**

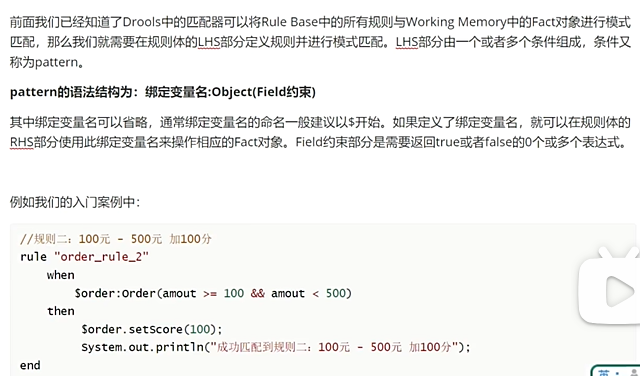

			$rule是绑定变量名 可以任意命名
			到工作内存中查找FeeRuleRequest对象
			可以在then部分操作fact对象
		*/
		$rule:FeeRuleRequest(startTime>= "00:00:00" && startTime <= "06:59:59")
	then
		feeRuleResponse.setBaseDistance(new BigDecimal("3.0"));
		feeRuleResponse.setBaseDistanceFee(new BigDecimal("19.0"));
		feeRuleResponse.setExceedDistance(new BigDecimal("0.0"));
		feeRuleResponse.setExceedDistancePrice(new BigDecimal("4.0"));
		System.out.println("00:00:00-06:59:59" + feeRuleResponse.getBaseDistance() + "公里，起步价："+ feeRuleResponse.getBaseDistanceFee() + "元");
end

rule "起步价  07:00:00-23:59:59 19元（含5公里）"
	salience 10
	no-loop true
	when
		$rule:FeeRuleRequest(startTime >= "07:00:00" && startTime <= "23:59:59")
	then
		feeRuleResponse.setBaseDistance(new BigDecimal("5.0"));
		feeRuleResponse.setBaseDistanceFee(new BigDeciml(19.0));

		feeRuleResponse.setExceedDistance(new BigDecimal("0.0"));
		feeRuleResponse.setExceedDistancePrice(new BigDecimal("3.0"));
		System.out.println("07:00:00-23:59:59" + feeRuleResponse.getBaseDistance() + "公里，起步价：")
end

rule ""
	when
	then
end

rule ""
	when
	then
end

输入对象

@Data
public class FeeRuleRequest{

	@Schema(description="代驾里程")
	private BigDecimal distance;

	@Schema(description="代驾时间")
	private String startTime;

	@Schema(description="等候分钟")
	private Integer waitMinute;
}

输出对象

@Data
public class FeeRuleResponse{

	@Schema(description="总金额")
	private BigDecimal totalAmount;

	@Schema(description="里程费")
	private BigDecimal distanceFee;

	@Schema(description="等时费用")
	private BigDecimal waitFee;

	@Schema(description="远程费")
	private BigDecimal longDistanceFee;

	@Schema(description="基础里程（公里）")
	private BigDecimal baseDistance;

	@Schema(description="超出基础里程的里程（公里）")

	//.......
}

④、预估订单金额接口

@Slf4j
@RestController
@RequestMapping("/rules/fee")
public class FeeRuleController{

	@Autowired
	private FeeRuleService feeRuleService;

	@Operation(summary="计算订单费用")
	@PostMapping("/calculateOrderFee")
	public Rest<FeeRuleResponseVo> calculateOrderFee(@RequestBody FeeRuleRequestForm calculateOrderFeeForm){
		return Result.ok(feeRuleService.calculateOrderFee(calculateOrderFeeForm));
	}
}

实现类方法

@Autowired
private KieContainer kieContainer;

@Override
public FeeRuleResponseVo calculateOrderFee(FeeRuleRequestForm feeRuleRequestForm){

	//封装输入对象
	FeeRuleRequest feeRuleRequest = new FeeRuleRequest();
	feeRuleRequest.setDistance(calculateOrderFeeForm.getDistance());
	Date startTime = calculateOrderFeeForm.getStartTime();
	feeRuleRequest.setStartTime(new DateTime(startTime).toString("HH:mm:ss"));
	feeRuleRequest.setWaitMinute(calculateOrderFeeForm.getWaitMinute());

	//Drools使用
	KieSession keiSession = kieContainner.newKieSession();

	//封装返回对象
	FeeRuleResponse feeRuleResponse = new FeeRuleResponse();
	kieSession.setGlobal("feeRuleResponse",feeRuleResponse);//操作规则文件中全局

	kieSession.insert(feeRuleRequest);
	kieSession.fireAllRules();
	kieSession.dispose();

	//封装数据FeeRuleResponseVo返回
	FeeRuleResponseVo feeRuleResponseVo = new FeeRuleResponseVo();
	BeanUtils.copyProperties(feeRuleResponse,feeRuleResponseVo);
	return feeRuleResponseVo;
}

⑤、定义远程调用接口

@PostMapping("/rules/fee/calculateOrderFee")
Result<FeeRuleResponseVo> calcalateOrderFee(@RequestBody FeeRuleRequestForm calculateOrderFeeForm);

⑥、乘客调用web

@Autowired
private OrderService orderService

@Operation(summary="预估订单数据")
@GuiguLogin
@PostMapping()
public Result<ExpectOrderVo> expectOrder(@RequestBody ExpectOrderForm expectOrderForm){
	return Reusslt.ok(orderService.expectOrder(expectOrderForm));
}

@Autowired
private MapFeignClient mapFeignClient;

@Autowired
private FeeRuleFeignClient feeRuleFeignClient;

@Override
public ExpectOrderVo expectOrder(ExpectOrderForm expectOrderForm){

	//获取驾驶线路
	CalculateDrivingLineForm calculateDrivingLineForm = new CalculateDrivingLineForm();
	BeanUtils.copyProperties(expectOrderForm,calculateDrivingLineForm);
	Result<DrivingLineVo> drivingLineVoResult = mapFeignClient.calculateDrivingLine();
	DrivingLineVo drivingLineVo = drivingLineVoResult.getData();

	//获取订单费用
	FeeRuleRequestForm calculateOrderFeeForm = new FeeRuleRequestForm();
	calculateOrderFeeForm.setDietance(drivingLineVo.getDietance());
	calculateOrderFeeForm.setStartTime(new Date());
	calculateOrderFeeForm.setWaitMinute(0);
	Result<FeeRuleResponseVo> feeRuleResponseVoResult = feeRuleFeignClient.calculateOrerFee(calculateOrderFeeForm);
	feeRuleResponseVo feeRuleResponseVo = feeRuleResponseVoResult.getData();

	//封装ExpectOrderVo
	ExpectOrderVo expectOrderVo = new ExpectOrderVo();
	expectOrderVo.setDrivingLineVo(drivinLineVo);
	expectOrderVo.setFeeRuleResponseVo(feeRuleResponseVo);
	return expectOrderVo;
}

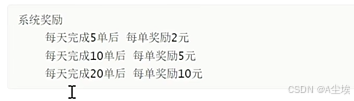

项目中整合规则引擎实现系统奖励

①、输入、输出参数的类

@Data
public class RewardRuleRequestForm{

	@Schema(description="订单个数")
	private Long orderNum;
}

@Data
public class RewardRuleResponseVo{

	@Schema(description="奖励规则ID")
	private Long rewardRuleId;

	@Schema(description="奖励金额")
	private BigDecimal rewardAmount;
}

②、规则文件RewardRule.drl

package com.atguigu.daijia

import com.atguigu.daijia.model.form.rules.RewardRuleRequest;
import java.math.BigDecimal;
import java.math.RoundingMode;

global com.atguigu.daijia.moel.vo.rules.RewardRuleResponse rewardRuleResponse;

/**
	00:00:00-06:59:59 完成5单后，每单奖励5元
	07:00:00-23:59:59 完成10单后，每单奖励2元
*/
rule "00:00:00-06:59:59 完成5单后，每单奖励5元"
	salience 10
	no-loop true
	when
		$rule:RewardRuleRequest(startTime>="" && startTime<="" && orderNum>5)
	then
		rewardRuleResponse.etRewardAmount(new BigDecimal("5.0"));
		System.out.println("00:00:00-06:59:59 奖励：" + rewardRuleResponse.getRewardAmount()+ "元");
end
rule "07:00:00-23:59:59 完成10单后，每单奖励2元"
	salience 10
	no-loop true
	when
		$rule:RewardRuleRequest(startTime >= "07:00:00" && startTime <= "23:59:59" && orderNum>10)
	then
		rewardRuleResponse.setRewardAmount(new BigDecimal("2.0"));
		System.out.println("07:00:00-23:59:59 奖励：" + rewardRuleResponse.getRewardAmount()+ "元");
end

③、添加规则引擎工具类

public class DroolsHelper{

	private static final String RULES_CUSTOMER_RULES_DRL = "rules/FeeRule.drl";

	public static KieSession loadForRule(String drlStr){

		//获取KieServices
		KieServices kieServices = KieServices.Factory.get();

		//通过KieServices获取kieFileSystem，然后通过kieFileSystem读取规则文件RewardRule.drl
		KieFileSystem kieFileSystem = kieServices.newKieFileSystem();
		kieFileSystem.write(ResourceFactory.newClassPathResource(drlStr));

		//通过KieServices获取获取KieBuilder
		KieBuilder kb = kieServices.newKieBuilder(kieFileSystem);
		kb.build();

		//通过KieBuilder获取KieModule
		KieModule kieModule = kb.getKieModule();

		//通过KieServices和KieModule获取KieContainer，最终获取KieSession
		KieContainer kieContainer = kieServices.newKieContainer(kieModule.getReleaseId());
		return kieContainer.newKieSession();
	}
}

④、编写系统奖励接口

@Autowired
private RewardRuleService rewardRuleService;

@Operation(summary="计算订单奖励费用")
@PostMapping("/calculateOrderRewardFee")
public Result<RewardRuleResponseVo> calculateOrderRewardFee(@RequestBody RewardRuleRequestForm rewardRuleRequestForm){
	return Result.ok(rewardRuleService.calculateOrderRewardFee(rewardRuleRequestForm));
}

private static final String RULES_CUSTOMER_RULES_DRL = "rules/RewardRule.drl";

@Override
public RewardRuleResponseVo calculateOrderRewardFee(RewardRuleRequestForm rewardRuleRequestForm){

	//封装传入参数对象
	RewardRuleRequest rewardRuleRequest = new RewardRuleRequest();
	rewardRuleRequest.setOrderNum(rewardRuleRequestForm.getOrderNum());

	//创建规则引擎对象
	KieSession kieSession = DroolsHelper.loadForRule(RULES_CUSTOMER_RULES_DRL);

	//封装返回对象
	RewardRuleResponse rewardRuleResponse = new RewardRuleResponse();
	kieSession.setGlobal("rewardRuleResponse",rewardRuleResponse);

	kieSession.insert(rewardRuleRequest);
	kieSession.fireAllRules();

	//终止会话
	kieSession.dispose();

	//封装
	RewardRuleResponseVo rewardRuleResponseVo = new RewardRuleResponseVo();
	rewardRuleResponseVo.setRewardAmount(rewardRuleResponse.getRewardAmount());

	return rewardRuleResponseVo;
}

项目中整合规则引擎实现平台抽成

①、规则文件profitshardingRule.drl（略）

//package对应的不一定是真正的目录，可以任意写com.abc，同一个包下的drl文件可以互相访问
package.com.atguigu.daijia

import com.atguigu.daijia.model.form.rules.ProfitshardingRuleRequest;
import java.math.BigDecimal;
import java.math.RoudingMode;

global com.atguigu.daijia.model.vo.rules.ProfitsharingRuleResponse;

/**
	支付微信平台费率：0.6%
	global BigDecimal paymentRate = new BigDecimal(0.006);
*/
rule "支付微信平台费用 平台费率：0.6%"
	salience 10
	no-loop true
	when
		$rule:ProfitsharingRuleRequest()
	then
		profitsharingRuleResponse.setOrderAmount($rule.getOrderAmount());
		profitsharingRuleResponse.setPaymentRate(new BigDecimal("0.006"));
		BigDecimal paymentFee = profitshardingRuleResponse.getOrderAmount().multiply(profitshardingRuleResponse.getPaymentRate())
															.setScale(2,RoundingModel.HALF_UP);
		profitsharingRuleResponse.setPaymentFee(paymentFee);
		System.out.println("支付微信平添费用"+profitsharingRuleResponse.getPaymentFee()+"元");
end

rule "订单金额小于等于100 当天完成订单＜"
	when
	then
end
