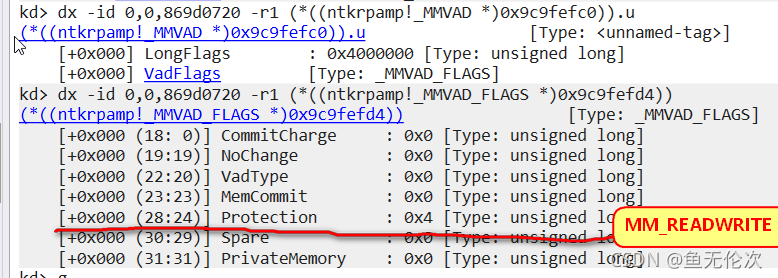

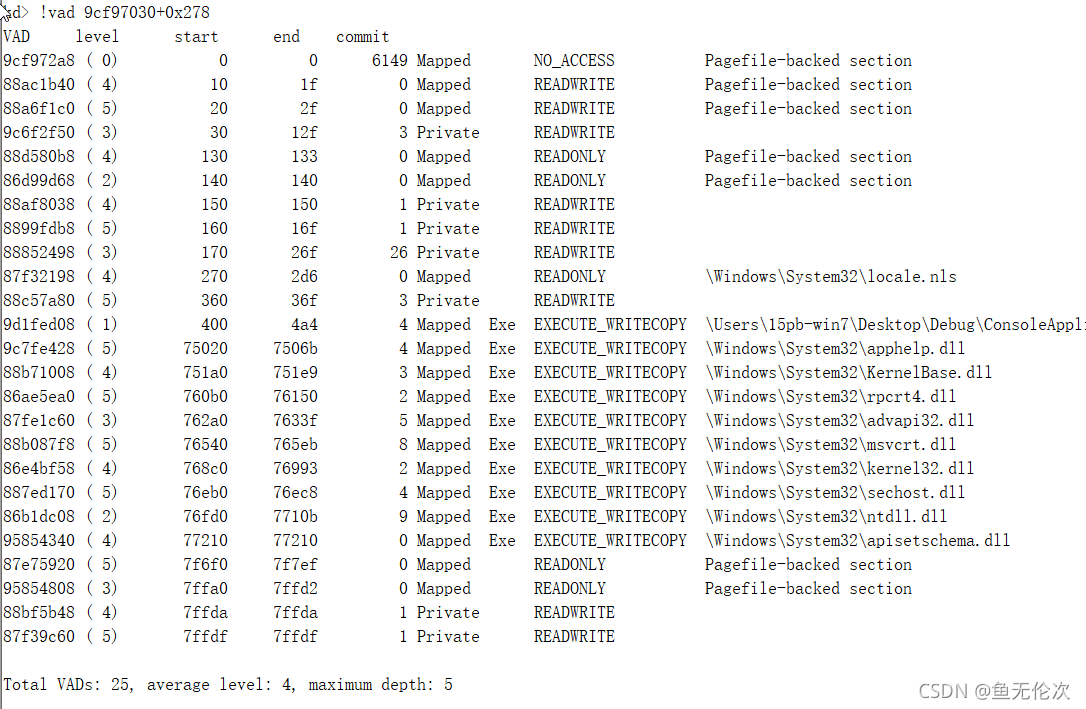

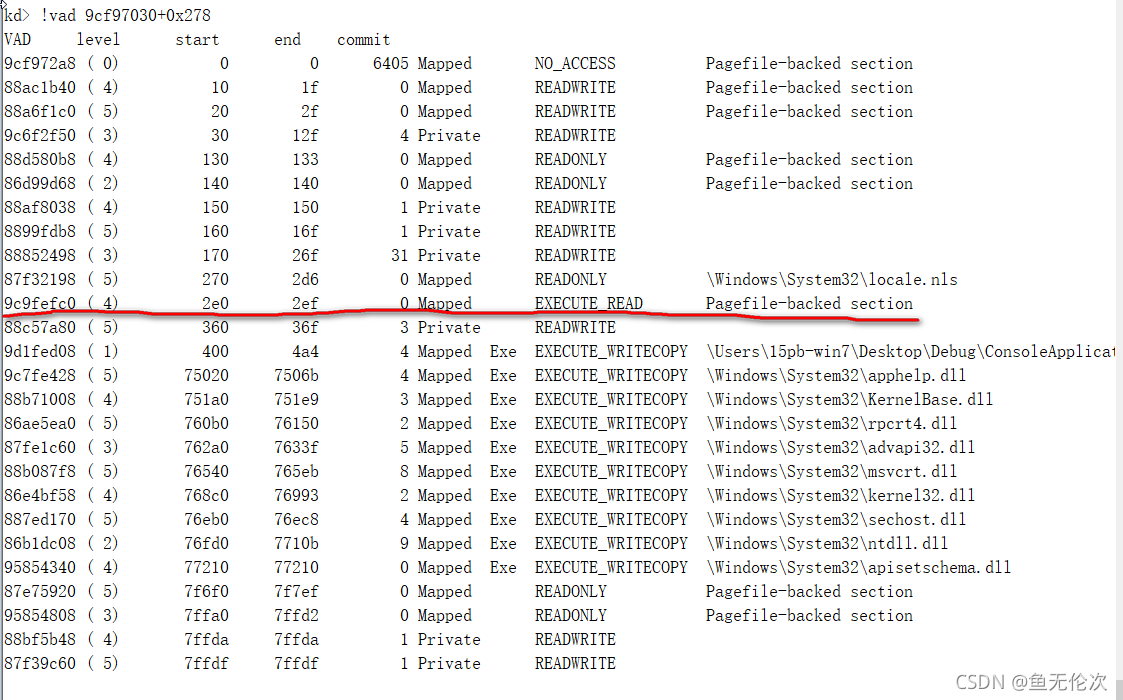

本文探讨了一种在Windows环境下通过修改VAD属性和MMVAD_FLAGS.Protection值，如何绕过内存保护机制，实现对内存的正常修改。具体步骤涉及NTDLL库的ZwCreateSection和ZwMapViewOfSection函数，适用于32位Win7系统和VS2019编译器环境。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

参考资料：

1、PUBG 2018.3.9更新的代码页防止更改

2、通过修改VAD属性破除锁页机制

3、R3环申请内存时页面保护与_MMVAD_FLAGS.Protection位的对应关系

4、64位CreateProcess逆向:（四）创建进程的过程

5、深入浅析Windows内核——VAD篇

6、Self-Remapping-Code

虚拟机：VM15

系统：Win7 32位

编译器：VS2019

工具：CE6.5

代码如下：

#include <stdio.h>
#include <Windows.h>
#include <stdlib.h>

#define InitializeObjectAttributes( p, n, a, r, s ) { \
    (p)->Length = sizeof( OBJECT_ATTRIBUTES );          \
    (p)->RootDirectory = r;                             \
    (p)->Attributes = a;                                \
    (p)->ObjectName = n;                                \
    (p)->SecurityDescriptor = s;                        \
    (p)->SecurityQualityOfService = NULL;               \
    }
typedef struct _UNICODE_STRING {
        USHORT Length;
        USHORT MaximumLength;
        PWSTR  Buffer;

} UNICODE_STRING, * PUNICODE_STRING;

 typedef struct _OBJECT_ATTRIBUTES {
        ULONG           Length;
        HANDLE          RootDirectory;
        PUNICODE_STRING ObjectName;
        ULONG           Attributes;
        PVOID           SecurityDescriptor;
        PVOID           SecurityQualityOfService;

}  OBJECT_ATTRIBUTES, * POBJECT_ATTRIBUTES;

 typedef  DWORD(WINAPI* ZwCreateSectionProc)(
        PHANDLE            SectionHandle,
        ACCESS_MASK        DesiredAccess,
        POBJECT_ATTRIBUTES ObjectAttributes,
        PLARGE_INTEGER     MaximumSize,
        ULONG              SectionPageProtection,
        ULONG              AllocationAttributes,
        HANDLE             FileHandle
);

 typedef enum _SECTION_INHERIT {
        ViewShare = 1,
        ViewUnmap = 2

} SECTION_INHERIT;

 typedef DWORD(WINAPI* ZwMapViewOfSectionProc)(
        HANDLE SectionHandle,
        HANDLE ProcessHandle,
        PVOID* BaseAddress,
        ULONG_PTR ZeroBits,
        SIZE_T CommitSize,
        PLARGE_INTEGER SectionOffset,
        PSIZE_T ViewSize,
        SECTION_INHERIT InheritDisposition,
        ULONG AllocationType,
        ULONG Win32Protect
);
int main()
{
        system("pause");
        HMODULE h = LoadLibraryA("ntdll.dll");
        ZwCreateSectionProc ZwCreateSection = (ZwCreateSectionProc)GetProcAddress(h, "NtCreateSection");
        ZwMapViewOfSectionProc ZwMapViewOfSection = (ZwMapViewOfSectionProc)GetProcAddress(h, "ZwMapViewOfSection");
        HANDLE SectionHandle;
        LARGE_INTEGER MaximumSize = { 0 };
        MaximumSize.QuadPart = 0x10000;
        OBJECT_ATTRIBUTES obj = { 0 };
        InitializeObjectAttributes(&obj, NULL, 0x40, 0, 0);
        DWORD error = ZwCreateSection(&SectionHandle, SECTION_ALL_ACCESS, NULL, &MaximumSize, PAGE_EXECUTE_READ, SEC_COMMIT, NULL);
        PVOID BaseAddress = NULL;
        SIZE_T ViewSize = 0;
        error = ZwMapViewOfSection(SectionHandle, GetCurrentProcess(), &BaseAddress, 0,
                     0x10000, NULL, &ViewSize, (SECTION_INHERIT)1, 0, PAGE_EXECUTE_READ);
        printf("%x,%x\r\n", BaseAddress, SectionHandle);
        DWORD p = 0;
        error = VirtualProtect(BaseAddress, 0x10000, PAGE_EXECUTE_READWRITE, &p);
        system("pause");
        return 0;
 }

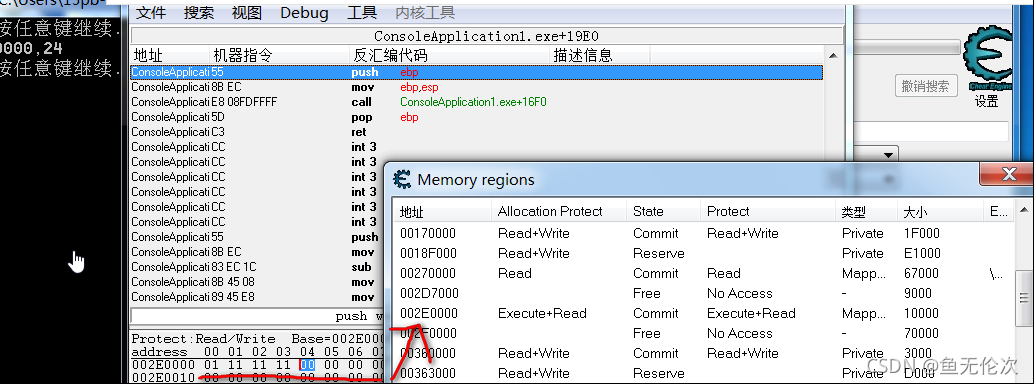

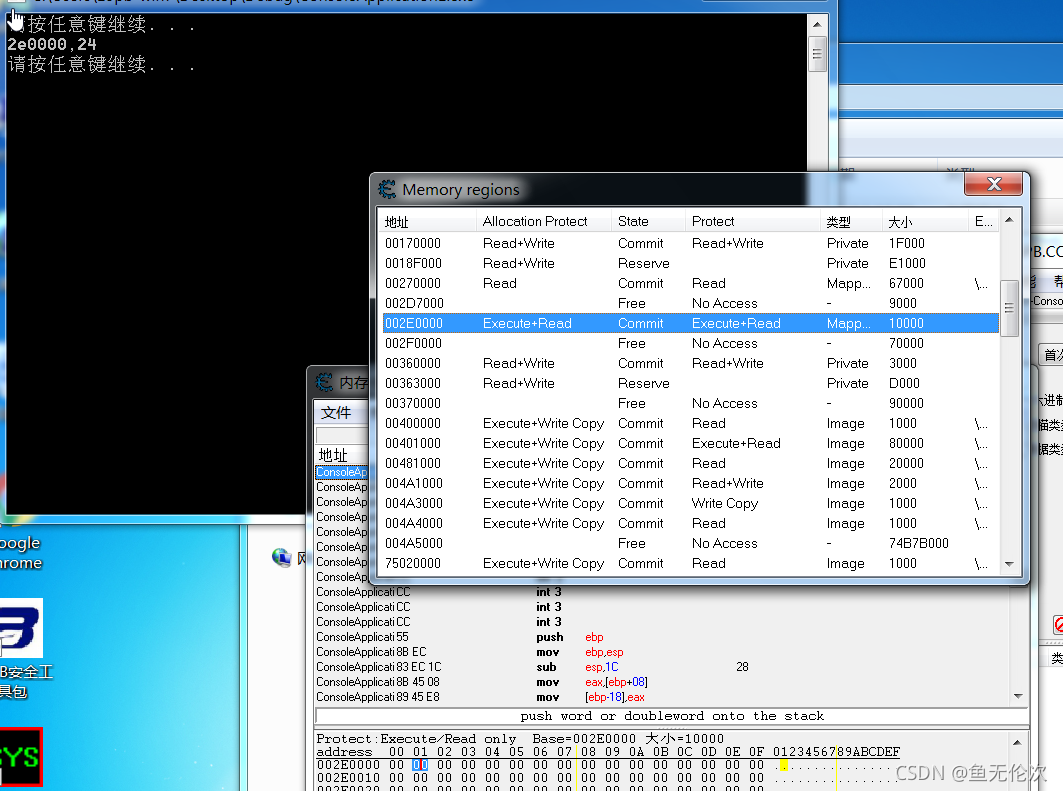

现在CE工具就无法修改内存了
