【七】RocketMQ源码之-Broker

1.路由注册

RocketMQ路由注册是通过Broker与NameServer的心跳功能实现的。Broker启动时向集群中所有的NameServer发送心跳信息，每隔30s向集群中所有NameServer发送心跳包，NameServer收到心跳包时会更新brokerLiveTable缓存中BrokerLiveInfo的lastUpdataTimeStamp信息，然后NameServer每隔10s扫描brokerLiveTable，如果连续120S没有收到心跳包，NameServer将移除Broker的路由信息同时关闭Socket连接。

2.Broker 启动流程

核心代码

BrokerStartup.java

    public static void main(String[] args) {
        start(createBrokerController(args));
    }

    public static BrokerController start(BrokerController controller) {
        try {

            controller.start();

            String tip = "The broker[" + controller.getBrokerConfig().getBrokerName() + ", "
                + controller.getBrokerAddr() + "] boot success. serializeType=" + RemotingCommand.getSerializeTypeConfigInThisServer();

            if (null != controller.getBrokerConfig().getNamesrvAddr()) {
                tip += " and name server is " + controller.getBrokerConfig().getNamesrvAddr();
            }

            log.info(tip);
            System.out.printf("%s%n", tip);
            return controller;
        } catch (Throwable e) {
            e.printStackTrace();
            System.exit(-1);
        }

        return null;
    }

    public static void shutdown(final BrokerController controller) {
        if (null != controller) {
            controller.shutdown();
        }
    }

    public static BrokerController createBrokerController(String[] args) {
        System.setProperty(RemotingCommand.REMOTING_VERSION_KEY, Integer.toString(MQVersion.CURRENT_VERSION));

        if (null == System.getProperty(NettySystemConfig.COM_ROCKETMQ_REMOTING_SOCKET_SNDBUF_SIZE)) {
            NettySystemConfig.socketSndbufSize = 131072;
        }

        if (null == System.getProperty(NettySystemConfig.COM_ROCKETMQ_REMOTING_SOCKET_RCVBUF_SIZE)) {
            NettySystemConfig.socketRcvbufSize = 131072;
        }

        try {
            //PackageConflictDetect.detectFastjson();
            Options options = ServerUtil.buildCommandlineOptions(new Options());
            commandLine = ServerUtil.parseCmdLine("mqbroker", args, buildCommandlineOptions(options),
                new PosixParser());
            if (null == commandLine) {
                System.exit(-1);
            }

            final BrokerConfig brokerConfig = new BrokerConfig();
            final NettyServerConfig nettyServerConfig = new NettyServerConfig();
            final NettyClientConfig nettyClientConfig = new NettyClientConfig();

            nettyClientConfig.setUseTLS(Boolean.parseBoolean(System.getProperty(TLS_ENABLE,
                String.valueOf(TlsSystemConfig.tlsMode == TlsMode.ENFORCING))));
            //设置netty服务器的监听端口10911
            nettyServerConfig.setListenPort(10911);
            //封装消息存储的配置信息
            final MessageStoreConfig messageStoreConfig = new MessageStoreConfig();

            if (BrokerRole.SLAVE == messageStoreConfig.getBrokerRole()) {
                int ratio = messageStoreConfig.getAccessMessageInMemoryMaxRatio() - 10;
                messageStoreConfig.setAccessMessageInMemoryMaxRatio(ratio);
            }
            //判断命令行参数是否包含-c,解析并加载配置
            if (commandLine.hasOption('c')) {
                String file = commandLine.getOptionValue('c');
                if (file != null) {
                    configFile = file;
                    InputStream in = new BufferedInputStream(new FileInputStream(file));
                    properties = new Properties();
                    properties.load(in);

                    properties2SystemEnv(properties);
                    MixAll.properties2Object(properties, brokerConfig);
                    MixAll.properties2Object(properties, nettyServerConfig);
                    MixAll.properties2Object(properties, nettyClientConfig);
                    MixAll.properties2Object(properties, messageStoreConfig);

                    BrokerPathConfigHelper.setBrokerConfigPath(file);
                    in.close();
                }
            }
             //将命令行参数封装到brokerConfig
            MixAll.properties2Object(ServerUtil.commandLine2Properties(commandLine), brokerConfig);
            //验证Rocketmq的环境变量是否存在，不存在退出
            if (null == brokerConfig.getRocketmqHome()) {
                System.out.printf("Please set the %s variable in your environment to match the location of the RocketMQ installation", MixAll.ROCKETMQ_HOME_ENV);
                System.exit(-2);
            }
            //获取getNamesrvAddr 获取Namesrv地址
            String namesrvAddr = brokerConfig.getNamesrvAddr();
            if (null != namesrvAddr) {
                try {
                    String[] addrArray = namesrvAddr.split(";");
                    for (String addr : addrArray) {
                        RemotingUtil.string2SocketAddress(addr);
                    }
                } catch (Exception e) {
                    System.out.printf(
                        "The Name Server Address[%s] illegal, please set it as follows, \"127.0.0.1:9876;192.168.0.1:9876\"%n",
                        namesrvAddr);
                    System.exit(-3);
                }
            }
            //判断Broker的角色BrokerRole，setBrokerId 为0L.   < 0退出
            switch (messageStoreConfig.getBrokerRole()) {
                case ASYNC_MASTER:
                case SYNC_MASTER:
                    brokerConfig.setBrokerId(MixAll.MASTER_ID);
                    break;
                case SLAVE:
                    if (brokerConfig.getBrokerId() <= 0) {
                        System.out.printf("Slave's brokerId must be > 0");
                        System.exit(-3);
                    }

                    break;
                default:
                    break;
            }
            //10911  用于与客户端的通信
            //10912  用于与Slave的通信
            messageStoreConfig.setHaListenPort(nettyServerConfig.getListenPort() + 1);
            LoggerContext lc = (LoggerContext) LoggerFactory.getILoggerFactory();
            JoranConfigurator configurator = new JoranConfigurator();
            configurator.setContext(lc);
            lc.reset();
            configurator.doConfigure(brokerConfig.getRocketmqHome() + "/conf/logback_broker.xml");
            //判断命令行是否包含-p ，包含打印信息,打印完退出
            if (commandLine.hasOption('p')) {
                InternalLogger console = InternalLoggerFactory.getLogger(LoggerName.BROKER_CONSOLE_NAME);
                MixAll.printObjectProperties(console, brokerConfig);
                MixAll.printObjectProperties(console, nettyServerConfig);
                MixAll.printObjectProperties(console, nettyClientConfig);
                MixAll.printObjectProperties(console, messageStoreConfig);
                System.exit(0);
                //判断命令行是否包含-m ，包含打印重要信息，打印完退出
            } else if (commandLine.hasOption('m')) {
                InternalLogger console = InternalLoggerFactory.getLogger(LoggerName.BROKER_CONSOLE_NAME);
                MixAll.printObjectProperties(console, brokerConfig, true);
                MixAll.printObjectProperties(console, nettyServerConfig, true);
                MixAll.printObjectProperties(console, nettyClientConfig, true);
                MixAll.printObjectProperties(console, messageStoreConfig, true);
                System.exit(0);
            }

            log = InternalLoggerFactory.getLogger(LoggerName.BROKER_LOGGER_NAME);
            MixAll.printObjectProperties(log, brokerConfig);
            MixAll.printObjectProperties(log, nettyServerConfig);
            MixAll.printObjectProperties(log, nettyClientConfig);
            MixAll.printObjectProperties(log, messageStoreConfig);
            //初始化BrokerController
            final BrokerController controller = new BrokerController(
                brokerConfig,
                nettyServerConfig,
                nettyClientConfig,
                messageStoreConfig);
            // remember all configs to prevent discard
            //将BrokerController的配置写入类变量里。
            controller.getConfiguration().registerConfig(properties);
            //初始化BrokerController
            boolean initResult = controller.initialize();
            if (!initResult) {
                controller.shutdown();
                System.exit(-3);
            }

            Runtime.getRuntime().addShutdownHook(new Thread(new Runnable() {
                private volatile boolean hasShutdown = false;
                private AtomicInteger shutdownTimes = new AtomicInteger(0);

                @Override
                public void run() {
                    synchronized (this) {
                        log.info("Shutdown hook was invoked, {}", this.shutdownTimes.incrementAndGet());
                        if (!this.hasShutdown) {
                            this.hasShutdown = true;
                            long beginTime = System.currentTimeMillis();
                            controller.shutdown();
                            long consumingTimeTotal = System.currentTimeMillis() - beginTime;
                            log.info("Shutdown hook over, consuming total time(ms): {}", consumingTimeTotal);
                        }
                    }
                }
            }, "ShutdownHook"));

            return controller;
        } catch (Throwable e) {
            e.printStackTrace();
            System.exit(-1);
        }

        return null;
    }

总结

1. BrokerStartup 执行main()方法，调用createBrokerController方法执行创建
2. BrokerStartup 调用BrokerConfig，创建BrokerConfig
3. BrokerStartup 调用nettyServerConfig，创建nettyServerConfig
4. BrokerStartup 调用NettyClientConfig，创建nettyClientConfig
5. nettyServerConfig监听10911端口
6. BrokerStartup 解析命令行参数是否包含-c命令，和解析并加载
7. BrokerStartup 调用MixAll，填充brokerConfig nettyServerConfig nettyClientConfig
8. BrokerStartup 调用BrokerConfig，获取NamesrvAddr
9. BrokerStartup 调用BrokerController，创建BrokerController
10. BrokerStartup 执行钩子函数释放资源
11. BrokerStartup 执行start方法，调用 BrokerController，BrokerController调用BrokerOuterAPI注册路由信息

3.注册broker到Namesrv

核心代码

BrokerOuterAPI.java

 public List<RegisterBrokerResult> registerBrokerAll(
        final String clusterName,
        final String brokerAddr,
        final String brokerName,
        final long brokerId,
        final String haServerAddr,
        final TopicConfigSerializeWrapper topicConfigWrapper,
        final List<String> filterServerList,
        final boolean oneway,
        final int timeoutMills,
        final boolean compressed) {

        final List<RegisterBrokerResult> registerBrokerResultList = Lists.newArrayList();
        List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
        if (nameServerAddressList != null && nameServerAddressList.size() > 0) {

            final RegisterBrokerRequestHeader requestHeader = new RegisterBrokerRequestHeader();
            requestHeader.setBrokerAddr(brokerAddr);
            requestHeader.setBrokerId(brokerId);
            requestHeader.setBrokerName(brokerName);
            requestHeader.setClusterName(clusterName);
            requestHeader.setHaServerAddr(haServerAddr);
            requestHeader.setCompressed(compressed);

            RegisterBrokerBody requestBody = new RegisterBrokerBody();
            requestBody.setTopicConfigSerializeWrapper(topicConfigWrapper);
            requestBody.setFilterServerList(filterServerList);
            final byte[] body = requestBody.encode(compressed);
            final int bodyCrc32 = UtilAll.crc32(body);
            requestHeader.setBodyCrc32(bodyCrc32);

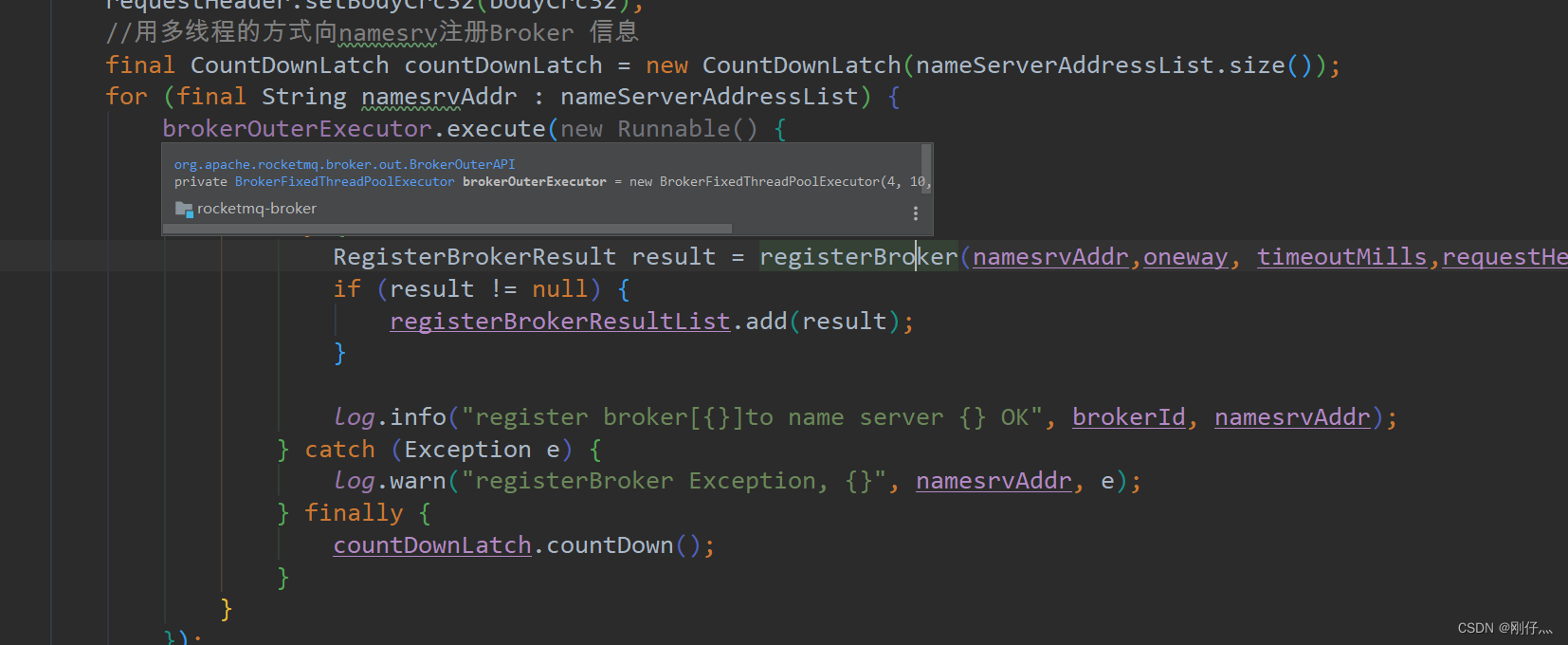

            //用多线程的方式向namesrv注册Broker 信息
            final CountDownLatch countDownLatch = new CountDownLatch(nameServerAddressList.size());
            for (final String namesrvAddr : nameServerAddressList) {
                brokerOuterExecutor.execute(new Runnable() {
                    @Override
                    public void run() {
                        try {
                            RegisterBrokerResult result = registerBroker(namesrvAddr,oneway, timeoutMills,requestHeader,body);
                            if (result != null) {
                                registerBrokerResultList.add(result);
                            }

                            log.info("register broker[{}]to name server {} OK", brokerId, namesrvAddr);
                        } catch (Exception e) {
                            log.warn("registerBroker Exception, {}", namesrvAddr, e);
                        } finally {
                            countDownLatch.countDown();
                        }
                    }
                });
            }

            try {
                countDownLatch.await(timeoutMills, TimeUnit.MILLISECONDS);
            } catch (InterruptedException e) {
            }
        }

        return registerBrokerResultList;
    }
