工业缺陷检测实战——KTH-TIPS纹理图像识别分类系统

第一步：准备数据

KTH-TIPS 是一个纹理图像数据集，在不同的光照、角度和尺度下拍摄的不同材质表面纹理图片。类型包括砂纸、铝箔、发泡胶、海绵、灯芯绒、亚麻、棉、黑面包、橙皮和饼干共10类。

第二步：搭建模型

本文选择一个MobileNetV4网络，其原理介绍如下：

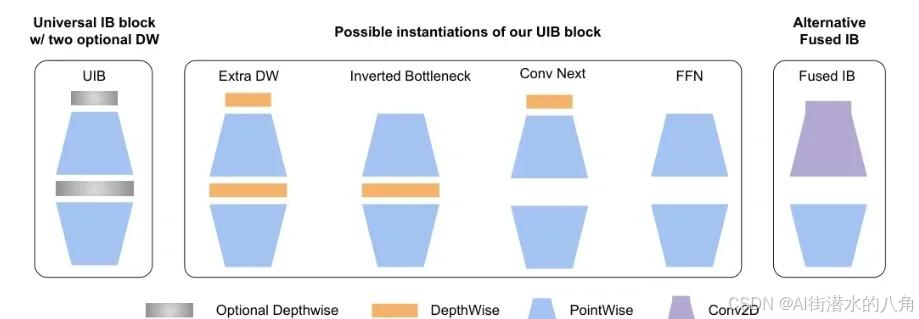

MobileNetV4（MNv4）引入了通用倒置瓶颈（UIB）搜索块，这是一个统一而灵活的结构，融合了倒置瓶颈（IB）、ConvNext、前馈网络（FFN）和一种新颖的额外深度卷积（ExtraDW）变体。除了UIB，还提出了Mobile MQA，这是一个专为移动加速器量身定制的注意力块，提供了显著的39%加速。还介绍了一种经过优化的神经架构搜索（NAS）配方，提高了MNv4搜索的有效性。UIB、Mobile MQA和经过精细调整的NAS配方的整合导致了一套新的MNv4模型，这些模型在移动CPU、DSP、GPU以及专用加速器（如苹果神经引擎和谷歌Pixel EdgeTPU）中大多数情况下都是帕累托最优的，这是其他测试模型中没有的特征。最后，为了进一步提高准确性，引入了一种新颖的蒸馏技术。通过这种技术的增强，MNv4-Hybrid-Large模型在ImageNet-1K准确率达到了87%，在Pixel 8 EdgeTPU上的运行时间仅为3.8ms。

第三步：部分代码

1）损失函数为：交叉熵损失函数

2）模型代码：

from typing import Any, Callable, Dict, List, Mapping, Optional, Tuple, Union

import torch
import torch.nn as nn
import torch.nn.functional as F

from mobilenet.model_config import MODEL_SPECS

def make_divisible(
        value: float,
        divisor: int,
        min_value: Optional[float] = None,
        round_down_protect: bool = True,
    ) -> int:
    """
    This function is copied from here
    "https://github.com/tensorflow/models/blob/master/official/vision/modeling/layers/nn_layers.py"

    This is to ensure that all layers have channels that are divisible by 8.

    Args:
        value: A `float` of original value.
        divisor: An `int` of the divisor that need to be checked upon.
        min_value: A `float` of  minimum value threshold.
        round_down_protect: A `bool` indicating whether round down more than 10%
        will be allowed.

    Returns:
        The adjusted value in `int` that is divisible against divisor.
    """
    if min_value is None:
        min_value = divisor
    new_value = max(min_value, int(value + divisor / 2) // divisor * divisor)
    # Make sure that round down does not go down by more than 10%.
    if round_down_protect and new_value < 0.9 * value:
        new_value += divisor
    return int(new_value)

def conv_2d(inp, oup, kernel_size=3, stride=1, groups=1, bias=False, norm=True, act=True):
    conv = nn.Sequential()
    padding = (kernel_size - 1) // 2
    conv.add_module('conv', nn.Conv2d(inp, oup, kernel_size, stride, padding, bias=bias, groups=groups))
    if norm:
        conv.add_module('BatchNorm2d', nn.BatchNorm2d(oup))
    if act:
        conv.add_module('Activation', nn.ReLU6())
    return conv

class InvertedResidual(nn.Module):
    def __init__(self, inp, oup, stride, expand_ratio, act=False, squeeze_excitation=False):
        super(InvertedResidual, self).__init__()
        self.stride = stride
        assert stride in [1, 2]
        hidden_dim = int(round(inp * expand_ratio))
        self.block = nn.Sequential()
        if expand_ratio != 1:
            self.block.add_module('exp_1x1', conv_2d(inp, hidden_dim, kernel_size=3, stride=stride))
        if squeeze_excitation:
            self.block.add_module('conv_3x3', conv_2d(hidden_dim, hidden_dim, kernel_size=3, stride=stride, groups=hidden_dim))
        self.block.add_module('red_1x1', conv_2d(hidden_dim, oup, kernel_size=1, stride=1, act=act))
        self.use_res_connect = self.stride == 1 and inp == oup

    def forward(self, x):
        if self.use_res_connect:
            return x + self.block(x)
        else:
            return self.block(x)

class UniversalInvertedBottleneckBlock(nn.Module):
    def __init__(self,
            inp,
            oup,
            start_dw_kernel_size,
            middle_dw_kernel_size,
            middle_dw_downsample,
            stride,
            expand_ratio
        ):
        """An inverted bottleneck block with optional depthwises.
        Referenced from here https://github.com/tensorflow/models/blob/master/official/vision/modeling/layers/nn_blocks.py
        """
        super().__init__()
        # Starting depthwise conv.
        self.start_dw_kernel_size = start_dw_kernel_size
        if self.start_dw_kernel_size:
            stride_ = stride if not middle_dw_downsample else 1
            self._start_dw_ = conv_2d(inp, inp, kernel_size=start_dw_kernel_size, stride=stride_, groups=inp, act=False)
        # Expansion with 1x1 convs.
        expand_filters = make_divisible(inp * expand_ratio, 8)
        self._expand_conv = conv_2d(inp, expand_filters, kernel_size=1)
        # Middle depthwise conv.
        self.middle_dw_kernel_size = middle_dw_kernel_size
        if self.middle_dw_kernel_size:
            stride_ = stride if middle_dw_downsample else 1
            self._middle_dw = conv_2d(expand_filters, expand_filters, kernel_size=middle_dw_kernel_size, stride=stride_, groups=expand_filters)
        # Projection with 1x1 convs.
        self._proj_conv = conv_2d(expand_filters, oup, kernel_size=1, stride=1, act=False)

        # Ending depthwise conv.
        # this not used
        # _end_dw_kernel_size = 0
        # self._end_dw = conv_2d(oup, oup, kernel_size=_end_dw_kernel_size, stride=stride, groups=inp, act=False)

    def forward(self, x):
        if self.start_dw_kernel_size:
            x = self._start_dw_(x)
            # print("_start_dw_", x.shape)
        x = self._expand_conv(x)
        # print("_expand_conv", x.shape)
        if self.middle_dw_kernel_size:
            x = self._middle_dw(x)
            # print("_middle_dw", x.shape)
        x = self._proj_conv(x)
        # print("_proj_conv", x.shape)
        return x

class MultiQueryAttentionLayerWithDownSampling(nn.Module):
    def __init__(self, inp, num_heads, key_dim, value_dim, query_h_strides, query_w_strides, kv_strides, dw_kernel_size=3, dropout=0.0):
        """Multi Query Attention with spatial downsampling.
        Referenced from here https://github.com/tensorflow/models/blob/master/official/vision/modeling/layers/nn_blocks.py

        3 parameters are introduced for the spatial downsampling:
        1. kv_strides: downsampling factor on Key and Values only.
        2. query_h_strides: vertical strides on Query only.
        3. query_w_strides: horizontal strides on Query only.

        This is an optimized version.
        1. Projections in Attention is explict written out as 1x1 Conv2D.
        2. Additional reshapes are introduced to bring a up to 3x speed up.
        """
        super().__init__()
        self.num_heads = num_heads
        self.key_dim = key_dim
        self.value_dim = value_dim
        self.query_h_strides = query_h_strides
        self.query_w_strides = query_w_strides
        self.kv_strides = kv_strides
        self.dw_kernel_size = dw_kernel_size
        self.dropout = dropout

        self.head_dim = key_dim // num_heads

        if self.query_h_strides > 1 or self.query_w_strides > 1:
            self._query_downsampling_norm = nn.BatchNorm2d(inp)
        self._query_proj = conv_2d(inp, num_heads*key_dim, 1, 1, norm=False, act=False)

        if self.kv_strides > 1:
            self._key_dw_conv = conv_2d(inp, inp, dw_kernel_size, kv_strides, groups=inp, norm=True, act=False)
            self._value_dw_conv = conv_2d(inp, inp, dw_kernel_size, kv_strides, groups=inp, norm=True, act=False)
        self._key_proj = conv_2d(inp, key_dim, 1, 1, norm=False, act=False)
        self._value_proj = conv_2d(inp, key_dim, 1, 1, norm=False, act=False)

        self._output_proj = conv_2d(num_heads*key_dim, inp, 1, 1, norm=False, act=False)
        self.dropout = nn.Dropout(p=dropout)

    def forward(self, x):
        batch_size, seq_length, _, _ = x.size()
        if self.query_h_strides > 1 or self.query_w_strides > 1:
            q = F.avg_pool2d(self.query_h_stride, self.query_w_stride)
            q = self._query_downsampling_norm(q)
            q = self._query_proj(q)
        else:
            q = self._query_proj(x)
        px = q.size(2)
        q = q.view(batch_size, self.num_heads, -1, self.key_dim) # [batch_size, num_heads, seq_length, key_dim]

        if self.kv_strides > 1:
            k = self._key_dw_conv(x)
            k = self._key_proj(k)
            v = self._value_dw_conv(x)
            v = self._value_proj(v)
        else:
            k = self._key_proj(x)
            v = self._value_proj(x)
        k = k.view(batch_size, 1, self.key_dim, -1) # [batch_size, 1, key_dim, seq_length]
        v = v.view(batch_size, 1, -1, self.key_dim) # [batch_size, 1, seq_length, key_dim]

        # calculate attn score
        attn_score = torch.matmul(q, k) / (self.head_dim ** 0.5)
        attn_score = self.dropout(attn_score)
        attn_score = F.softmax(attn_score, dim=-1)

        context = torch.matmul(attn_score, v)
        context = context.view(batch_size, self.num_heads * self.key_dim, px, px)
        output = self._output_proj(context)
        return output

class MNV4LayerScale(nn.Module):
    def __init__(self, inp, init_value):
        """LayerScale as introduced in CaiT: https://arxiv.org/abs/2103.17239
        Referenced from here https://github.com/tensorflow/models/blob/master/official/vision/modeling/layers/nn_blocks.py

        As used in MobileNetV4.

        Attributes:
            init_value (float): value to initialize the diagonal matrix of LayerScale.
        """
        super().__init__()
        self.init_value = init_value
        self._gamma = nn.Parameter(self.init_value * torch.ones(inp, 1, 1))

    def forward(self, x):
        return x * self._gamma

class MultiHeadSelfAttentionBlock(nn.Module):
    def __init__(
            self,
            inp,
            num_heads,
            key_dim,
            value_dim,
            query_h_strides,
            query_w_strides,
            kv_strides,
            use_layer_scale,
            use_multi_query,
            use_residual = True
        ):
        super().__init__()
        self.query_h_strides = query_h_strides
        self.query_w_strides = query_w_strides
        self.kv_strides = kv_strides
        self.use_layer_scale = use_layer_scale
        self.use_multi_query = use_multi_query
        self.use_residual = use_residual

        self._input_norm = nn.BatchNorm2d(inp)
        if self.use_multi_query:
            self.multi_query_attention = MultiQueryAttentionLayerWithDownSampling(
                inp, num_heads, key_dim, value_dim, query_h_strides, query_w_strides, kv_strides
            )
        else:
            self.multi_head_attention = nn.MultiheadAttention(inp, num_heads, kdim=key_dim)

        if self.use_layer_scale:
            self.layer_scale_init_value = 1e-5
            self.layer_scale = MNV4LayerScale(inp, self.layer_scale_init_value)

    def forward(self, x):
        # Not using CPE, skipped
        # input norm
        shortcut = x
        x = self._input_norm(x)
        # multi query
        if self.use_multi_query:
            x = self.multi_query_attention(x)
        else:
            x = self.multi_head_attention(x, x)
        # layer scale
        if self.use_layer_scale:
            x = self.layer_scale(x)
        # use residual
        if self.use_residual:
            x = x + shortcut
        return x

def build_blocks(layer_spec):
    if not layer_spec.get('block_name'):
        return nn.Sequential()
    block_names = layer_spec['block_name']
    layers = nn.Sequential()
    if block_names == "convbn":
        schema_ = ['inp', 'oup', 'kernel_size', 'stride']
        for i in range(layer_spec['num_blocks']):
            args = dict(zip(schema_, layer_spec['block_specs'][i]))
            layers.add_module(f"convbn_{i}", conv_2d(**args))
    elif block_names == "uib":
        schema_ =  ['inp', 'oup', 'start_dw_kernel_size', 'middle_dw_kernel_size', 'middle_dw_downsample', 'stride', 'expand_ratio', 'mhsa']
        for i in range(layer_spec['num_blocks']):
            args = dict(zip(schema_, layer_spec['block_specs'][i]))
            mhsa = args.pop("mhsa") if "mhsa" in args else 0
            layers.add_module(f"uib_{i}", UniversalInvertedBottleneckBlock(**args))
            if mhsa:
                mhsa_schema_ = [
                    "inp", "num_heads", "key_dim", "value_dim", "query_h_strides", "query_w_strides", "kv_strides",
                    "use_layer_scale", "use_multi_query", "use_residual"
                ]
                args = dict(zip(mhsa_schema_, [args['oup']] + (mhsa)))
                layers.add_module(f"mhsa_{i}", MultiHeadSelfAttentionBlock(**args))
    elif block_names == "fused_ib":
        schema_ = ['inp', 'oup', 'stride', 'expand_ratio', 'act']
        for i in range(layer_spec['num_blocks']):
            args = dict(zip(schema_, layer_spec['block_specs'][i]))
            layers.add_module(f"fused_ib_{i}", InvertedResidual(**args))
    else:
        raise NotImplementedError
    return layers


class MobileNetV4(nn.Module):
    def __init__(self, model):
        # MobileNetV4ConvSmall  MobileNetV4ConvMedium  MobileNetV4ConvLarge
        # MobileNetV4HybridMedium  MobileNetV4HybridLarge
        """Params to initiate MobilenNetV4
        Args:
            model : support 5 types of models as indicated in
            "https://github.com/tensorflow/models/blob/master/official/vision/modeling/backbones/mobilenet.py"
        """
        super().__init__()
        assert model in MODEL_SPECS.keys()
        self.model = model
        self.spec = MODEL_SPECS[self.model]

        # conv0
        self.conv0 = build_blocks(self.spec['conv0'])
        # layer1
        self.layer1 = build_blocks(self.spec['layer1'])
        # layer2
        self.layer2 = build_blocks(self.spec['layer2'])
        # layer3
        self.layer3 = build_blocks(self.spec['layer3'])
        # layer4
        self.layer4 = build_blocks(self.spec['layer4'])
        # layer5
        self.layer5 = build_blocks(self.spec['layer5'])

    def forward(self, x):
        x0 = self.conv0(x)
        x1 = self.layer1(x0)
        x2 = self.layer2(x1)
        x3 = self.layer3(x2)
        x4 = self.layer4(x3)
        x5 = self.layer5(x4)
        x5 = nn.functional.adaptive_avg_pool2d(x5, 1)
        x5 = x5.squeeze(dim=3).squeeze(dim=2)
        return x5

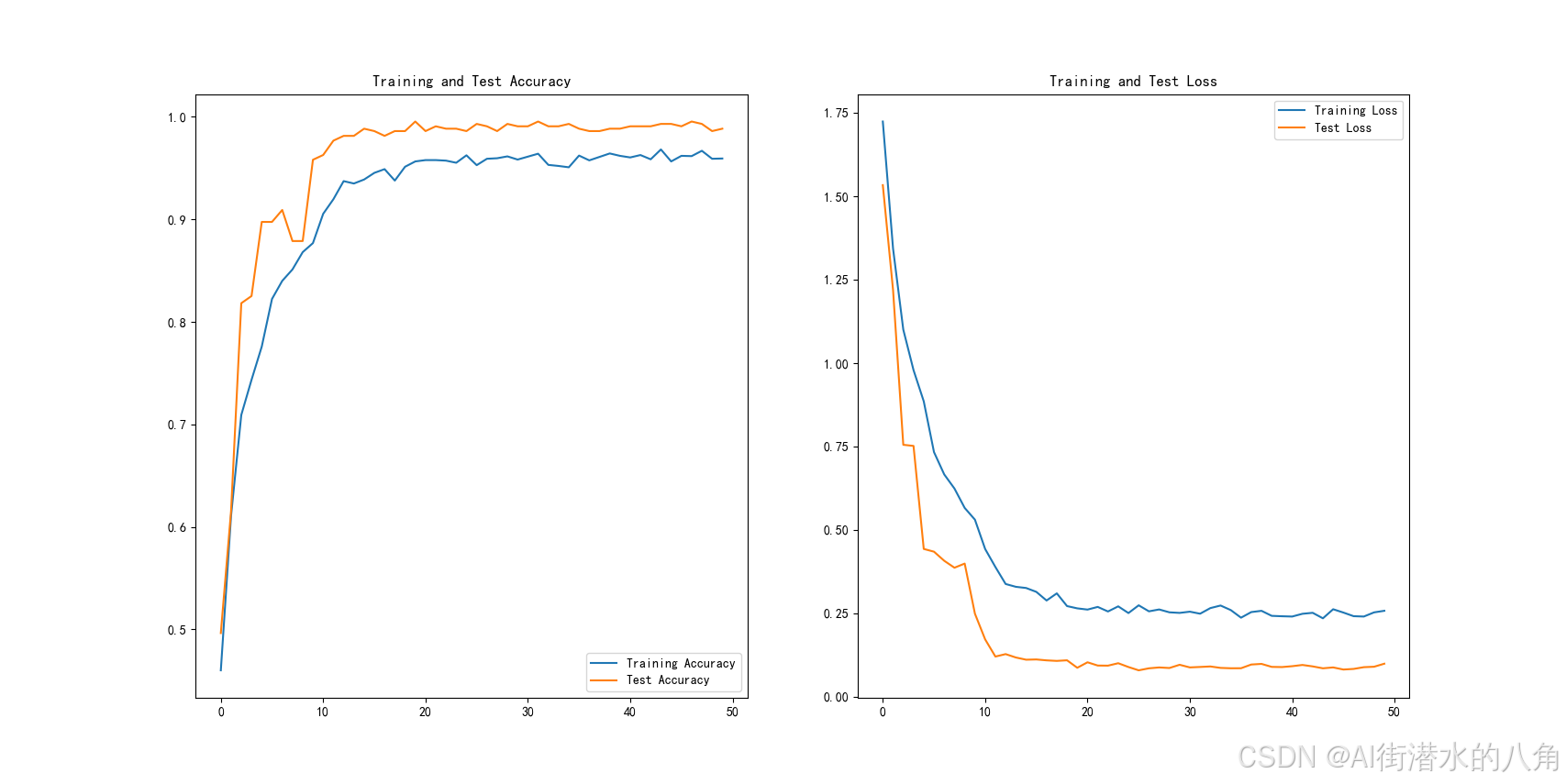

第四步：统计训练过程的loss和正确率变化

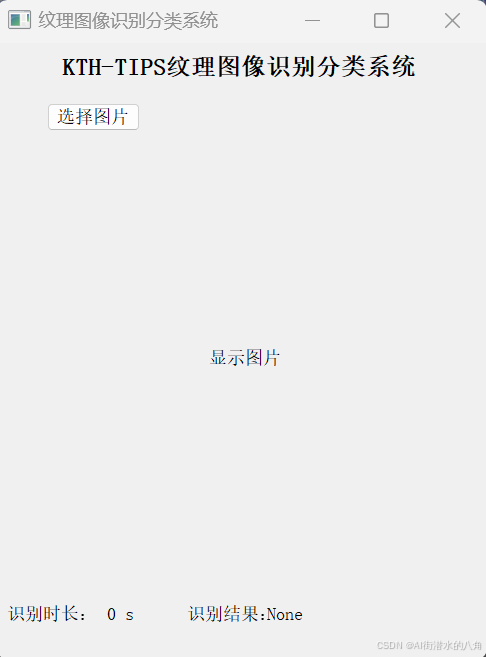

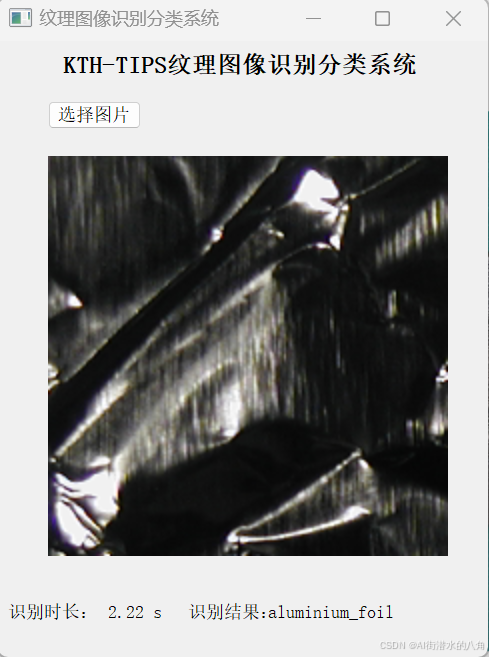

第五步：搭建GUI界面

第六步：整个工程的内容

有训练代码和训练好的模型以及训练过程，提供数据，提供GUI界面代码

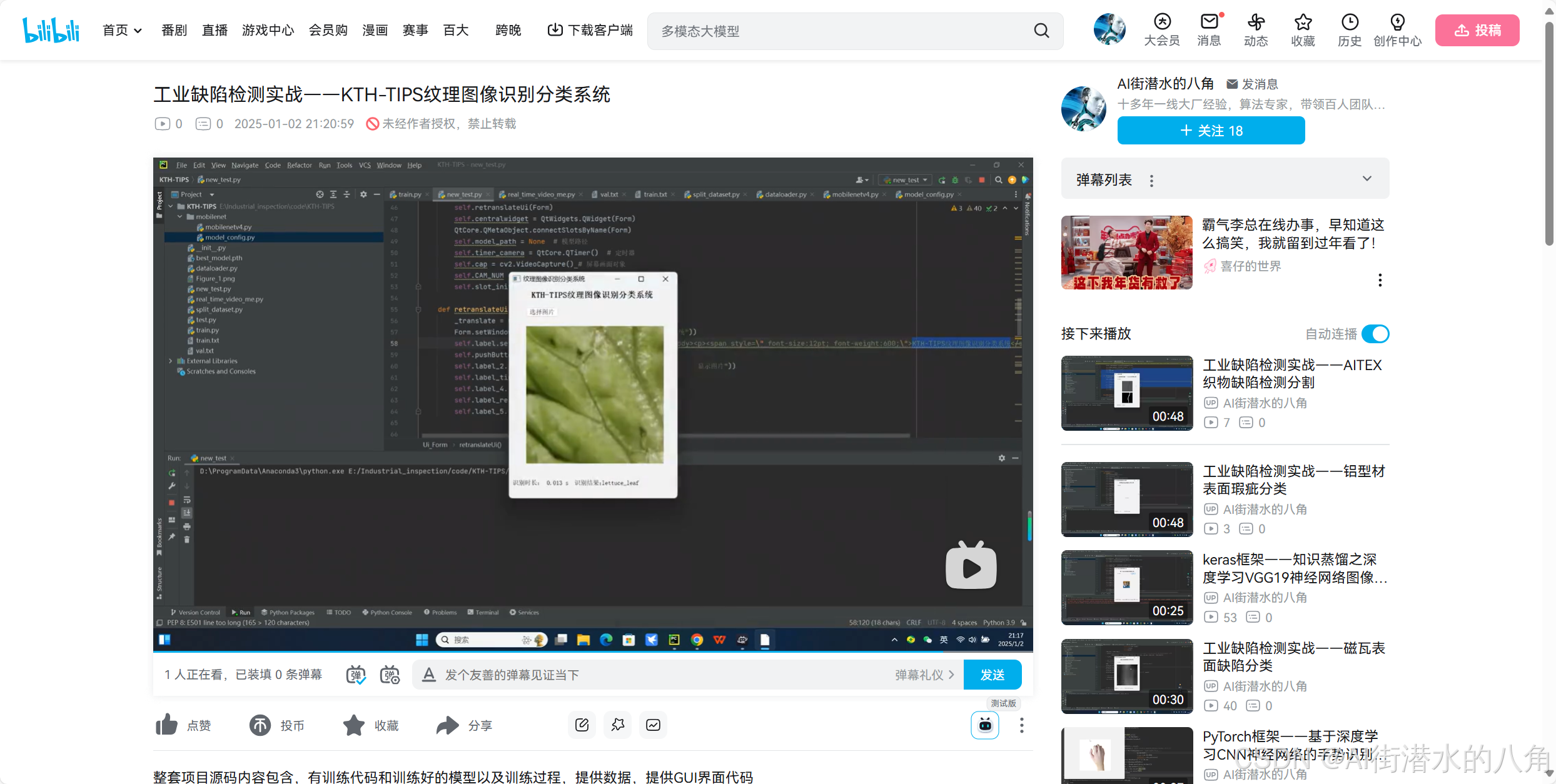

项目完整文件下载请见演示与介绍视频的简介处给出：➷➷➷

工业缺陷检测实战——KTH-TIPS纹理图像识别分类系统_哔哩哔哩_bilibili

​
