一，Eureka Client概述

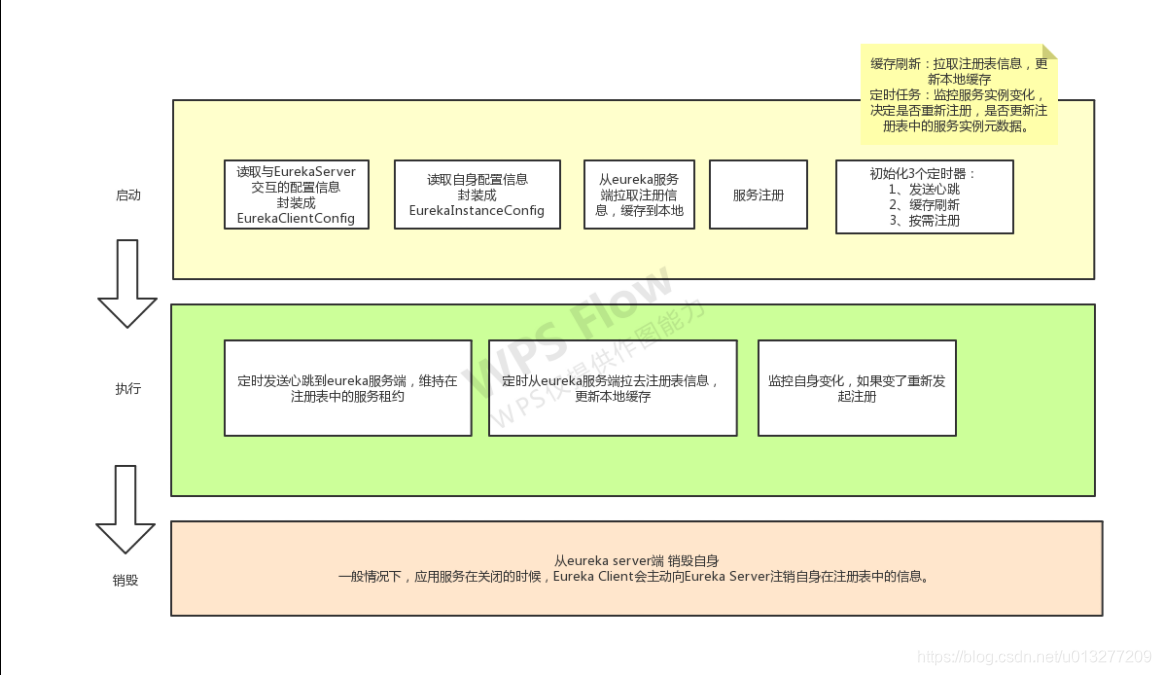

1，Eureka Client工作流程图
2，@EnableDiscoveryClient注解
@SpringBootApplication
@EnableDiscoveryClient
public class EurekaClientApplication {
public static void main(String[] args) {
SpringApplication.run(EurekaClientApplication.class, args);
}
}
注意：Eureka Client在1版本是必须要加@EnableDiscoveryClient注解的，2版本@EnableDiscoveryClient注解加不加都没有影响。
3，EurekaClientConfig和EurekaInstanceConfig
@Configuration(proxyBeanMethods = false)
@EnableConfigurationProperties
@ConditionalOnClass(EurekaClientConfig.class)
@ConditionalOnProperty(value = "eureka.client.enabled", matchIfMissing = true)
@ConditionalOnDiscoveryEnabled
@AutoConfigureBefore({ NoopDiscoveryClientAutoConfiguration.class,
CommonsClientAutoConfiguration.class, ServiceRegistryAutoConfiguration.class })
@AutoConfigureAfter(name = {
"org.springframework.cloud.netflix.eureka.config.DiscoveryClientOptionalArgsConfiguration",
"org.springframework.cloud.autoconfigure.RefreshAutoConfiguration",
"org.springframework.cloud.netflix.eureka.EurekaDiscoveryClientConfiguration",
"org.springframework.cloud.client.serviceregistry.AutoServiceRegistrationAutoConfiguration" })
public class EurekaClientAutoConfiguration {
//省略部分代码
@Bean
@ConditionalOnMissingBean(value = EurekaClientConfig.class,
search = SearchStrategy.CURRENT)
public EurekaClientConfigBean eurekaClientConfigBean(ConfigurableEnvironment env) {
return new EurekaClientConfigBean();
}
@Bean
@ConditionalOnMissingBean(value = EurekaInstanceConfig.class,
search = SearchStrategy.CURRENT)
public EurekaInstanceConfigBean eurekaInstanceConfigBean(InetUtils inetUtils,
ManagementMetadataProvider managementMetadataProvider) {
String hostname = getProperty("eureka.instance.hostname");
boolean preferIpAddress = Boolean
.parseBoolean(getProperty("eureka.instance.prefer-ip-address"));
String ipAddress = getProperty("eureka.instance.ip-address");
boolean isSecurePortEnabled = Boolean
.parseBoolean(getProperty("eureka.instance.secure-port-enabled"));
String serverContextPath = env.getProperty("server.servlet.context-path", "/");
int serverPort = Integer.parseInt(
env.getProperty("server.port", env.getProperty("port", "8080")));
Integer managementPort = env.getProperty("management.server.port", Integer.class);
String managementContextPath = env
.getProperty("management.server.servlet.context-path");
Integer jmxPort = env.getProperty("com.sun.management.jmxremote.port",
Integer.class);
EurekaInstanceConfigBean instance = new EurekaInstanceConfigBean(inetUtils);
instance.setNonSecurePort(serverPort);
instance.setInstanceId(getDefaultInstanceId(env));
instance.setPreferIpAddress(preferIpAddress);
instance.setSecurePortEnabled(isSecurePortEnabled);
if (StringUtils.hasText(ipAddress)) {
instance.setIpAddress(ipAddress);
}
if (isSecurePortEnabled) {
instance.setSecurePort(serverPort);
}
if (StringUtils.hasText(hostname)) {
instance.setHostname(hostname);
}
String statusPageUrlPath = getProperty("eureka.instance.status-page-url-path");
String healthCheckUrlPath = getProperty("eureka.instance.health-check-url-path");
if (StringUtils.hasText(statusPageUrlPath)) {
instance.setStatusPageUrlPath(statusPageUrlPath);
}
if (StringUtils.hasText(healthCheckUrlPath)) {
instance.setHealthCheckUrlPath(healthCheckUrlPath);
}
ManagementMetadata metadata = managementMetadataProvider.get(instance, serverPort,
serverContextPath, managementContextPath, managementPort);
if (metadata != null) {
instance.setStatusPageUrl(metadata.getStatusPageUrl());
instance.setHealthCheckUrl(metadata.getHealthCheckUrl());
if (instance.isSecurePortEnabled()) {
instance.setSecureHealthCheckUrl(metadata.getSecureHealthCheckUrl());
}
Map<String, String> metadataMap = instance.getMetadataMap();
metadataMap.computeIfAbsent("management.port",
k -> String.valueOf(metadata.getManagementPort()));
}
else {
// without the metadata the status and health check URLs will not be set
// and the status page and health check url paths will not include the
// context path so set them here
if (StringUtils.hasText(managementContextPath)) {
instance.setHealthCheckUrlPath(
managementContextPath + instance.getHealthCheckUrlPath());
instance.setStatusPageUrlPath(
managementContextPath + instance.getStatusPageUrlPath());
}
}
setupJmxPort(instance, jmxPort);
return instance;
}
//省略部分代码
}
EurekaClientConfig
EurekaClientConfig是个接口，其实现类是EurekaClientConfigBean，此类封装了以"eureka.client"开头的配置信息如：application.yaml中
eureka:
client:
# Eureka服务器的地址，类型为HashMap，缺省的Key为 defaultZone；缺省的Value为 http://localhost:8761/eureka
# 如果服务注册中心为高可用集群时，多个注册中心地址以逗号分隔。
service-url:
defaultZone: http://euk-server1:7001/eureka/
# 是否向注册中心注册自己，缺省：true
register-with-eureka: true
# 是否从Eureka获取注册信息，缺省：true
fetch-registry: true
# 客户端拉取服务注册信息间隔，单位：秒，缺省：30
registry-fetch-interval-seconds: 30
# 是否启用客户端健康检查
healthcheck:
enabled: true
# 连接Eureka服务器的超时时间，单位：秒，缺省：5
eureka-server-connect-timeout-seconds: 5
# 从Eureka服务器读取信息的超时时间，单位：秒，缺省：8
eureka-server-read-timeout-seconds: 8
# 获取实例时是否只保留状态为 UP 的实例，缺省：true
filter-only-up-instances: true
# Eureka服务端连接空闲时的关闭时间，单位：秒，缺省：30
eureka-connection-idle-timeout-seconds: 30
# 从Eureka客户端到所有Eureka服务端的连接总数，缺省：200
eureka-server-total-connections: 200
# 从Eureka客户端到每个Eureka服务主机的连接总数，缺省：50
eureka-server-total-connections-per-host: 50
EurekaInstanceConfig
EurekaInstanceConfig是个接口，其实现类是EurekaInstanceConfigBean，此类封装了以"eureka.instance"开头的配置信息，主要用于构建InstanceInfo。如：application.yaml中
eureka:
instance:
# 应用实例主机名
hostname: euk-client1
# 服务名，默认取 spring.application.name 配置值，如果没有则为 unknown
appname: EurekaClient
# 实例ID
instance-id: EurekaClientInstance1
# 服务失效时间，失效的服务将被剔除。单位：秒，默认：90
lease-expiration-duration-in-seconds: 90
# 服务续约（心跳）频率，单位：秒，缺省30
lease-renewal-interval-in-seconds: 30
4，InstanceInfo
InstanceInfo封装了将被发送到Eureka Server进行注册的服务实例元数据。它在Eureka Server列表中代表一个服务实例，其他服务可以通过instanceInfo了解到该服务的实例相关信息，包括地址等，从而发起请求。
public class InstanceInfo {
//省略部分代码
public InstanceInfo(
@JsonProperty("instanceId") String instanceId,
@JsonProperty("app") String appName,
@JsonProperty("appGroupName") String appGroupName,
@JsonProperty("ipAddr") String ipAddr,
@JsonProperty("sid") String sid,
@JsonProperty("port") PortWrapper port,
@JsonProperty("securePort") PortWrapper securePort,
@JsonProperty("homePageUrl") String homePageUrl,
@JsonProperty("statusPageUrl") String statusPageUrl,
@JsonProperty("healthCheckUrl") String healthCheckUrl,
@JsonProperty("secureHealthCheckUrl") String secureHealthCheckUrl,
@JsonProperty("vipAddress") String vipAddress,
@JsonProperty("secureVipAddress") String secureVipAddress,
@JsonProperty("countryId") int countryId,
@JsonProperty("dataCenterInfo") DataCenterInfo dataCenterInfo,
@JsonProperty("hostName") String hostName,
@JsonProperty("status") InstanceStatus status,
@JsonProperty("overriddenstatus") InstanceStatus overriddenStatus,
@JsonProperty("overriddenStatus") InstanceStatus overriddenStatusAlt,
@JsonProperty("leaseInfo") LeaseInfo leaseInfo,
@JsonProperty("isCoordinatingDiscoveryServer") Boolean isCoordinatingDiscoveryServer,
@JsonProperty("metadata") HashMap<String, String> metadata,
@JsonProperty("lastUpdatedTimestamp") Long lastUpdatedTimestamp,
@JsonProperty("lastDirtyTimestamp") Long lastDirtyTimestamp,
@JsonProperty("actionType") ActionType actionType,
@JsonProperty("asgName") String asgName) {
this.instanceId = instanceId;
this.sid = sid;
this.appName = StringCache.intern(appName);
this.appGroupName = StringCache.intern(appGroupName);
this.ipAddr = ipAddr;
this.port = port == null ? 0 : port.getPort();
this.isUnsecurePortEnabled = port != null && port.isEnabled();
this.securePort = securePort == null ? 0 : securePort.getPort();
this.isSecurePortEnabled = securePort != null && securePort.isEnabled();
this.homePageUrl = homePageUrl;
this.statusPageUrl = statusPageUrl;
this.healthCheckUrl = healthCheckUrl;
this.secureHealthCheckUrl = secureHealthCheckUrl;
this.vipAddress = StringCache.intern(vipAddress);
this.secureVipAddress = StringCache.intern(secureVipAddress);
this.countryId = countryId;
this.dataCenterInfo = dataCenterInfo;
this.hostName = hostName;
this.status = status;
this.overriddenStatus = overriddenStatus == null ? overriddenStatusAlt : overriddenStatus;
this.leaseInfo = leaseInfo;
this.isCoordinatingDiscoveryServer = isCoordinatingDiscoveryServer;
this.lastUpdatedTimestamp = lastUpdatedTimestamp;
this.lastDirtyTimestamp = lastDirtyTimestamp;
this.actionType = actionType;
this.asgName = StringCache.intern(asgName);
// ---------------------------------------------------------------
// for compatibility
if (metadata == null) {
this.metadata = Collections.emptyMap();
} else if (metadata.size() == 1) {
this.metadata = removeMetadataMapLegacyValues(metadata);
} else {
this.metadata = metadata;
}
if (sid == null) {
this.sid = SID_DEFAULT;
}
}
//省略部分代码
}
在ApplicationInfoManager中有一个方法：
public class ApplicationInfoManager {
//省略部分代码
public void initComponent(EurekaInstanceConfig config) {
try {
this.config = config;
this.instanceInfo = new EurekaConfigBasedInstanceInfoProvider(config).get();
} catch (Throwable e) {
throw new RuntimeException("Failed to initialize ApplicationInfoManager", e);
}
}
//省略部分代码
}
通过EurekaInstanceConfig构造instanceInfo。
5，服务发现
DiscoveryClient是在spring cloud中定义的，用于服务发现的顶级接口：
package org.springframework.cloud.client.discovery;
public interface DiscoveryClient extends Ordered {
// 获取实现类的描述。
String description();
// 通过服务id查询服务实例信息列表。
List<ServiceInstance> getInstances(String serviceId);
// 获取所有服务实例id
List<String> getServices();
}

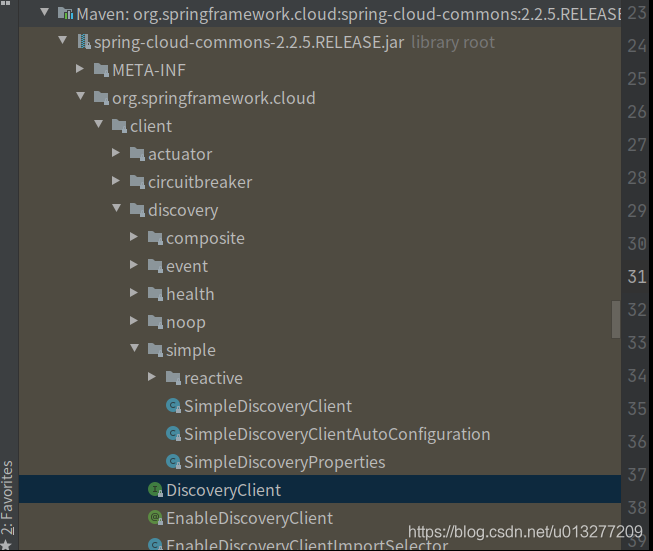

spring-cloud-commons-2.2.1.realease包下，org.springframework.cloud.client.discovery.DiscoveryClient接口。定义用来服务发现的客户端接口，是客户端进行服务发现的核心接口，在common中可以看到其地位。在Netflix Eureka和Consul中都有具体的实现类。
我们来看Spring Cloud中Eureka的实现：
package org.springframework.cloud.netflix.eureka;
public class EurekaDiscoveryClient implements DiscoveryClient {
/**
* Client description {@link String}.
*/
public static final String DESCRIPTION = "Spring Cloud Eureka Discovery Client";
private final EurekaClient eurekaClient;
private final EurekaClientConfig clientConfig;
@Deprecated
public EurekaDiscoveryClient(EurekaInstanceConfig config, EurekaClient eurekaClient) {
this(eurekaClient, eurekaClient.getEurekaClientConfig());
}
public EurekaDiscoveryClient(EurekaClient eurekaClient,
EurekaClientConfig clientConfig) {
this.clientConfig = clientConfig;
this.eurekaClient = eurekaClient;
}
@Override
public String description() {
return DESCRIPTION;
}
@Override
public List<ServiceInstance> getInstances(String serviceId) {
List<InstanceInfo> infos = this.eurekaClient.getInstancesByVipAddress(serviceId,
false);
List<ServiceInstance> instances = new ArrayList<>();
for (InstanceInfo info : infos) {
instances.add(new EurekaServiceInstance(info));
}
return instances;
}
@Override
public List<String> getServices() {
Applications applications = this.eurekaClient.getApplications();
if (applications == null) {
return Collections.emptyList();
}
List<Application> registered = applications.getRegisteredApplications();
List<String> names = new ArrayList<>();
for (Application app : registered) {
if (app.getInstances().isEmpty()) {
continue;
}
names.add(app.getName().toLowerCase());
}
return names;
}
@Override
public int getOrder() {
return clientConfig instanceof Ordered ? ((Ordered) clientConfig).getOrder()
: DiscoveryClient.DEFAULT_ORDER;
}
/**
* An Eureka-specific {@link ServiceInstance} implementation. Extends
* {@link org.springframework.cloud.netflix.eureka.EurekaServiceInstance} for
* backwards compatibility.
*
* @deprecated In favor of
* {@link org.springframework.cloud.netflix.eureka.EurekaServiceInstance}.
*/
@Deprecated
public static class EurekaServiceInstance
extends org.springframework.cloud.netflix.eureka.EurekaServiceInstance {
public EurekaServiceInstance(InstanceInfo instance) {
super(instance);
}
}
}
EurekaDiscoveryClient类实现了DiscoveryClient接口，类的逻辑是通过组合了com.netflix.discovery.EurekaClient来实现。也就是说spring cloud中通过组合了netflix的eureka-client包来实现服务发现的。
下面我们来走进netflix的eureka-client包下看EurekaClient接口以及它的实现类DiscoveryClient：
package com.netflix.discovery;
public class DiscoveryClient implements EurekaClient {
// 省略部分代码
// 服务注册
boolean register() throws Throwable {
logger.info(PREFIX + "{}: registering service...", appPathIdentifier);
EurekaHttpResponse<Void> httpResponse;
try {
httpResponse = eurekaTransport.registrationClient.register(instanceInfo);
} catch (Exception e) {
logger.warn(PREFIX + "{} - registration failed {}", appPathIdentifier, e.getMessage(), e);
throw e;
}
if (logger.isInfoEnabled()) {
logger.info(PREFIX + "{} - registration status: {}", appPathIdentifier, httpResponse.getStatusCode());
}
return httpResponse.getStatusCode() == Status.NO_CONTENT.getStatusCode();
}
// 服务续约
boolean renew() {
EurekaHttpResponse<InstanceInfo> httpResponse;
try {
httpResponse = eurekaTransport.registrationClient.sendHeartBeat(instanceInfo.getAppName(), instanceInfo.getId(), instanceInfo, null);
logger.debug(PREFIX + "{} - Heartbeat status: {}", appPathIdentifier, httpResponse.getStatusCode());
if (httpResponse.getStatusCode() == Status.NOT_FOUND.getStatusCode()) {
REREGISTER_COUNTER.increment();
logger.info(PREFIX + "{} - Re-registering apps/{}", appPathIdentifier, instanceInfo.getAppName());
long timestamp = instanceInfo.setIsDirtyWithTime();
boolean success = register();
if (success) {
instanceInfo.unsetIsDirty(timestamp);
}
return success;
}
return httpResponse.getStatusCode() == Status.OK.getStatusCode();
} catch (Throwable e) {
logger.error(PREFIX + "{} - was unable to send heartbeat!", appPathIdentifier, e);
return false;
}
}
// 服务下线
@PreDestroy
@Override
public synchronized void shutdown() {
if (isShutdown.compareAndSet(false, true)) {
logger.info("Shutting down DiscoveryClient ...");
if (statusChangeListener != null && applicationInfoManager != null) {
applicationInfoManager.unregisterStatusChangeListener(statusChangeListener.getId());
}
cancelScheduledTasks();
// If APPINFO was registered
if (applicationInfoManager != null
&& clientConfig.shouldRegisterWithEureka()
&& clientConfig.shouldUnregisterOnShutdown()) {
applicationInfoManager.setInstanceStatus(InstanceStatus.DOWN);
unregister();
}
if (eurekaTransport != null) {
eurekaTransport.shutdown();
}
heartbeatStalenessMonitor.shutdown();
registryStalenessMonitor.shutdown();
Monitors.unregisterObject(this);
logger.info("Completed shut down of DiscoveryClient");
}
}
// 省略部分代码
}
EurekaClient有一个注解@ImplementedBy(DiscoveryClient.class)，此类的默认实现类：com.netflix.discovery.DiscoveryClient。提供了:
- 服务注册到server方法register()。
- 续约boolean renew()。
- 下线public synchronized void shutdown()。
- 查询服务列表 等功能。
此类DiscoveryClient正是上面spring cloud包下EurekaDiscoveryClient类成员变量EurekaClient接口的具体实现。
EurekaClient继承了LookupService：
LookupService作用：发现活跃的服务实例。
package com.netflix.discovery.shared;
public interface LookupService<T> {
// 根据服务实例注册的appName来获取封装有相同appName的服务实例信息容器
Application getApplication(String appName);
// 获取所有的服务实例信息
Applications getApplications();
//根据实例id，获取服务实例信息
List<InstanceInfo> getInstancesById(String id);
}
- 上面提到一个
Application，它持有服务实例信息列表。它是同一个服务的集群信息。比如EurekaClient1的所有服务信息，这些服务都在EurekaClient1服务名下面。 Applications是注册表中，所有服务实例信息的集合。- 而
InstanceInfo代表一个服务实例的信息。
二，Eureka Client启动
我们回到启动类EurekaClientAutoConfiguration中
@Configuration(proxyBeanMethods = false)
@EnableConfigurationProperties
@ConditionalOnClass(EurekaClientConfig.class)
@ConditionalOnProperty(value = "eureka.client.enabled", matchIfMissing = true)
@ConditionalOnDiscoveryEnabled
@AutoConfigureBefore({ NoopDiscoveryClientAutoConfiguration.class,
CommonsClientAutoConfiguration.class, ServiceRegistryAutoConfiguration.class })
@AutoConfigureAfter(name = {
"org.springframework.cloud.netflix.eureka.config.DiscoveryClientOptionalArgsConfiguration",
"org.springframework.cloud.autoconfigure.RefreshAutoConfiguration",
"org.springframework.cloud.netflix.eureka.EurekaDiscoveryClientConfiguration",
"org.springframework.cloud.client.serviceregistry.AutoServiceRegistrationAutoConfiguration" })
public class EurekaClientAutoConfiguration {
@Configuration(proxyBeanMethods = false)
@ConditionalOnMissingRefreshScope
protected static class EurekaClientConfiguration {
@Autowired
private ApplicationContext context;
@Autowired
private AbstractDiscoveryClientOptionalArgs<?> optionalArgs;
@Bean(destroyMethod = "shutdown")
@ConditionalOnMissingBean(value = EurekaClient.class,
search = SearchStrategy.CURRENT)
public EurekaClient eurekaClient(ApplicationInfoManager manager,
EurekaClientConfig config) {
return new CloudEurekaClient(manager, config, this.optionalArgs,
this.context);
}
// 省略部分代码
}
//省略部分代码
}
向spring容器注入了CloudEurekaClient，我们看其构造函数：
public class CloudEurekaClient extends DiscoveryClient {
public CloudEurekaClient(ApplicationInfoManager applicationInfoManager,
EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs<?> args,
ApplicationEventPublisher publisher) {
// 调用父类构造函数
super(applicationInfoManager, config, args);
this.applicationInfoManager = applicationInfoManager;
this.publisher = publisher;
this.eurekaTransportField = ReflectionUtils.findField(DiscoveryClient.class,
"eurekaTransport");
ReflectionUtils.makeAccessible(this.eurekaTransportField);
}
}
看其父类DiscoveryClient构造函数：
public class DiscoveryClient implements EurekaClient {
// 省略部分代码
@Inject
DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args,
Provider<BackupRegistry> backupRegistryProvider, EndpointRandomizer endpointRandomizer) {
if (args != null) {
this.healthCheckHandlerProvider = args.healthCheckHandlerProvider;
this.healthCheckCallbackProvider = args.healthCheckCallbackProvider;
this.eventListeners.addAll(args.getEventListeners());
this.preRegistrationHandler = args.preRegistrationHandler;
} else {
this.healthCheckCallbackProvider = null;
this.healthCheckHandlerProvider = null;
this.preRegistrationHandler = null;
}
this.applicationInfoManager = applicationInfoManager;
InstanceInfo myInfo = applicationInfoManager.getInfo();
clientConfig = config;
staticClientConfig = clientConfig;
transportConfig = config.getTransportConfig();
instanceInfo = myInfo;
if (myInfo != null) {
appPathIdentifier = instanceInfo.getAppName() + "/" + instanceInfo.getId();
} else {
logger.warn("Setting instanceInfo to a passed in null value");
}
this.backupRegistryProvider = backupRegistryProvider;
this.endpointRandomizer = endpointRandomizer;
this.urlRandomizer = new EndpointUtils.InstanceInfoBasedUrlRandomizer(instanceInfo);
localRegionApps.set(new Applications());
fetchRegistryGeneration = new AtomicLong(0);
remoteRegionsToFetch = new AtomicReference<String>(clientConfig.fetchRegistryForRemoteRegions());
remoteRegionsRef = new AtomicReference<>(remoteRegionsToFetch.get() == null ? null : remoteRegionsToFetch.get().split(","));
// shouldFetchRegistry，点其实现类EurekaClientConfigBean，找到它其实对应于：
// eureka.client.fetch-register，true：表示client从server拉取注册表信息。
if (config.shouldFetchRegistry()) {
this.registryStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRY_PREFIX + "lastUpdateSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
} else {
this.registryStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
}
if (config.shouldRegisterWithEureka()) {
this.heartbeatStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRATION_PREFIX + "lastHeartbeatSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
} else {
this.heartbeatStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
}
logger.info("Initializing Eureka in region {}", clientConfig.getRegion());
// 如果以下两个都为false，则直接返回，构造方法执行结束，既不服务注册，也不服务发现。
if (!config.shouldRegisterWithEureka() && !config.shouldFetchRegistry()) {
logger.info("Client configured to neither register nor query for data.");
scheduler = null;
heartbeatExecutor = null;
cacheRefreshExecutor = null;
eurekaTransport = null;
instanceRegionChecker = new InstanceRegionChecker(new PropertyBasedAzToRegionMapper(config), clientConfig.getRegion());
DiscoveryManager.getInstance().setDiscoveryClient(this);
DiscoveryManager.getInstance().setEurekaClientConfig(config);
initTimestampMs = System.currentTimeMillis();
initRegistrySize = this.getApplications().size();
registrySize = initRegistrySize;
logger.info("Discovery Client initialized at timestamp {} with initial instances count: {}",
initTimestampMs, initRegistrySize);
return; // no need to setup up an network tasks and we are done
}
try {
/**
* 两个定时任务
*/
// 定义了一个基于线程池的定时器线程池，大小为2。
scheduler = Executors.newScheduledThreadPool(2,
new ThreadFactoryBuilder()
.setNameFormat("DiscoveryClient-%d")
.setDaemon(true)
.build());
// 用于发送心跳
heartbeatExecutor = new ThreadPoolExecutor(
1, clientConfig.getHeartbeatExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
new SynchronousQueue<Runnable>(),
new ThreadFactoryBuilder()
.setNameFormat("DiscoveryClient-HeartbeatExecutor-%d")
.setDaemon(true)
.build()
); // use direct handoff
// 用于刷新缓存
cacheRefreshExecutor = new ThreadPoolExecutor(
1, clientConfig.getCacheRefreshExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
new SynchronousQueue<Runnable>(),
new ThreadFactoryBuilder()
.setNameFormat("DiscoveryClient-CacheRefreshExecutor-%d")
.setDaemon(true)
.build()
); // use direct handoff
/**
* client和server交互的Jersey客户端
*/
// 它是eureka Client和eureka server进行http交互jersey客户端。
// 点开EurekaTransport，看到许多httpclient相关的属性。
eurekaTransport = new EurekaTransport();
scheduleServerEndpointTask(eurekaTransport, args);
AzToRegionMapper azToRegionMapper;
if (clientConfig.shouldUseDnsForFetchingServiceUrls()) {
azToRegionMapper = new DNSBasedAzToRegionMapper(clientConfig);
} else {
azToRegionMapper = new PropertyBasedAzToRegionMapper(clientConfig);
}
if (null != remoteRegionsToFetch.get()) {
azToRegionMapper.setRegionsToFetch(remoteRegionsToFetch.get().split(","));
}
instanceRegionChecker = new InstanceRegionChecker(azToRegionMapper, clientConfig.getRegion());
} catch (Throwable e) {
throw new RuntimeException("Failed to initialize DiscoveryClient!", e);
}
/**
* 拉取注册信息
*/
// eureka.client.fetch-register，true：表示client从server拉取注册表信息。
if (clientConfig.shouldFetchRegistry()) {
try {
// 从eureka server拉取注册表中的信息。
boolean primaryFetchRegistryResult = fetchRegistry(false);
if (!primaryFetchRegistryResult) {
logger.info("Initial registry fetch from primary servers failed");
}
boolean backupFetchRegistryResult = true;
// fetchRegistryFromBackup()：将注册表缓存到本地，可以就近获取其他服务信息，减少于server的交互。
if (!primaryFetchRegistryResult && !fetchRegistryFromBackup()) {
backupFetchRegistryResult = false;
logger.info("Initial registry fetch from backup servers failed");
}
if (!primaryFetchRegistryResult && !backupFetchRegistryResult && clientConfig.shouldEnforceFetchRegistryAtInit()) {
throw new IllegalStateException("Fetch registry error at startup. Initial fetch failed.");
}
} catch (Throwable th) {
logger.error("Fetch registry error at startup: {}", th.getMessage());
throw new IllegalStateException(th);
}
}
if (this.preRegistrationHandler != null) {
this.preRegistrationHandler.beforeRegistration();
}
/**
* 服务注册
*/
if (clientConfig.shouldRegisterWithEureka() && clientConfig.shouldEnforceRegistrationAtInit()) {
try {
// 注册失败抛异常。
if (!register() ) {
throw new IllegalStateException("Registration error at startup. Invalid server response.");
}
} catch (Throwable th) {
logger.error("Registration error at startup: {}", th.getMessage());
throw new IllegalStateException(th);
}
}
/**
* 启动定时任务
*/
// 此方法中，启动3个定时任务。方法内有statusChangeListener，
// 按需注册是一个事件StatusChangeEvent，状态改变，则向server注册。
initScheduledTasks();
try {
Monitors.registerObject(this);
} catch (Throwable e) {
logger.warn("Cannot register timers", e);
}
// This is a bit of hack to allow for existing code using DiscoveryManager.getInstance()
// to work with DI'd DiscoveryClient
DiscoveryManager.getInstance().setDiscoveryClient(this);
DiscoveryManager.getInstance().setEurekaClientConfig(config);
initTimestampMs = System.currentTimeMillis();
initRegistrySize = this.getApplications().size();
registrySize = initRegistrySize;
logger.info("Discovery Client initialized at timestamp {} with initial instances count: {}",
initTimestampMs, initRegistrySize);
}
// 省略部分代码
}
此函数中依次执行了 从eureka server中拉取注册表，服务注册，初始化发送心跳，缓存刷新（定时拉取注册表信息），按需注册定时任务等，贯穿了Eureka Client启动阶段的各项工作。
总结DiscoveryClient构造关键过程：
- 初始化一堆信息。
- 拉取注册表信息。
- 向server注册自己。
- 初始化3个任务。
下面我们来详细看一下这几个过程：
1，拉取注册表信息
上面的fetchRegistry(false)，点进去：
public class DiscoveryClient implements EurekaClient {
// 省略部分代码
//拉取服务信息
private boolean fetchRegistry(boolean forceFullRegistryFetch) {
Stopwatch tracer = FETCH_REGISTRY_TIMER.start();
try {
Applications applications = getApplications();
// 如果增量式拉取被禁止或第一次拉取注册表，则进行全量拉取
if (clientConfig.shouldDisableDelta()
|| (!Strings.isNullOrEmpty(clientConfig.getRegistryRefreshSingleVipAddress()))
|| forceFullRegistryFetch
|| (applications == null)
|| (applications.getRegisteredApplications().size() == 0)
|| (applications.getVersion() == -1)) //Client application does not have latest library supporting delta
{
// 全量拉去
getAndStoreFullRegistry();
} else {
// 否则进行增量拉取注册表信息
getAndUpdateDelta(applications);
}
} catch (Throwable e) {
return false;
} finally {
if (tracer != null) {
tracer.stop();
}
}
// 在更新实例远程状态之前通知有关缓存刷新的信息
onCacheRefreshed();
// 根据缓存中保存的刷新数据更新远程状态
updateInstanceRemoteStatus();
// 拉取成功，返回true
return true;
}
// 全量拉取
private void getAndStoreFullRegistry() throws Throwable {
long currentUpdateGeneration = fetchRegistryGeneration.get();
logger.info("Getting all instance registry info from the eureka server");
Applications apps = null;
EurekaHttpResponse<Applications> httpResponse = clientConfig.getRegistryRefreshSingleVipAddress() == null
? eurekaTransport.queryClient.getApplications(remoteRegionsRef.get())
: eurekaTransport.queryClient.getVip(clientConfig.getRegistryRefreshSingleVipAddress(), remoteRegionsRef.get());
if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) {
apps = httpResponse.getEntity();
}
logger.info("The response status is {}", httpResponse.getStatusCode());
if (apps == null) {
logger.error("The application is null for some reason. Not storing this information");
} else if (fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)) {
localRegionApps.set(this.filterAndShuffle(apps));
logger.debug("Got full registry with apps hashcode {}", apps.getAppsHashCode());
} else {
logger.warn("Not updating applications as another thread is updating it already");
}
}
}
1，全量拉取
// 全量拉取
private void getAndStoreFullRegistry() throws Throwable {
long currentUpdateGeneration = fetchRegistryGeneration.get();
logger.info("Getting all instance registry info from the eureka server");
Applications apps = null;
EurekaHttpResponse<Applications> httpResponse = clientConfig.getRegistryRefreshSingleVipAddress() == null
? eurekaTransport.queryClient.getApplications(remoteRegionsRef.get())
: eurekaTransport.queryClient.getVip(clientConfig.getRegistryRefreshSingleVipAddress(), remoteRegionsRef.get());
if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) {
apps = httpResponse.getEntity();
}
logger.info("The response status is {}", httpResponse.getStatusCode());
if (apps == null) {
logger.error("The application is null for some reason. Not storing this information");
} else if (fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)) {
localRegionApps.set(this.filterAndShuffle(apps));
logger.debug("Got full registry with apps hashcode {}", apps.getAppsHashCode());
} else {
logger.warn("Not updating applications as another thread is updating it already");
}
}
有一方法：eurekaTransport.queryClient.getApplications。通过debug发现 实现类是AbstractJerseyEurekaHttpClient，点开，debug出 webResource地址为：http://root:root@eureka-7900:7900/eureka/apps/，此端点用于获取server中所有的注册表信息。
getAndStoreFullRegistry()可能被多个线程同时调用，导致新拉取的注册表被旧的覆盖(如果新拉取的动作设置apps阻塞的情况下）。
此时用了AutomicLong来进行版本管理，如果更新时版本不一致，不保存apps。
通过这个判断fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)，如果版本一致，并设置新版本（+1），接着执行localRegionApps.set(this.filterAndShuffle(apps));过滤并洗牌apps。
点开this.filterAndShuffle(apps)实现，继续点apps.shuffleAndIndexInstances，继续点shuffleInstances，继续点application.shuffleAndStoreInstances，继续点_shuffleAndStoreInstances，发现if (filterUpInstances && InstanceStatus.UP != instanceInfo.getStatus())。只保留状态为UP的服务。
2，增量拉取
private void getAndUpdateDelta(Applications applications) throws Throwable {
long currentUpdateGeneration = fetchRegistryGeneration.get();
Applications delta = null;
EurekaHttpResponse<Applications> httpResponse = eurekaTransport.queryClient.getDelta(remoteRegionsRef.get());
if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) {
delta = httpResponse.getEntity();
}
if (delta == null) {
logger.warn("The server does not allow the delta revision to be applied because it is not safe. "
+ "Hence got the full registry.");
getAndStoreFullRegistry();
} else if (fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)) {
logger.debug("Got delta update with apps hashcode {}", delta.getAppsHashCode());
String reconcileHashCode = "";
if (fetchRegistryUpdateLock.tryLock()) {
try {
updateDelta(delta);
reconcileHashCode = getReconcileHashCode(applications);
} finally {
fetchRegistryUpdateLock.unlock();
}
} else {
logger.warn("Cannot acquire update lock, aborting getAndUpdateDelta");
}
// There is a diff in number of instances for some reason
if (!reconcileHashCode.equals(delta.getAppsHashCode()) || clientConfig.shouldLogDeltaDiff()) {
reconcileAndLogDifference(delta, reconcileHashCode); // this makes a remoteCall
}
} else {
logger.warn("Not updating application delta as another thread is updating it already");
logger.debug("Ignoring delta update with apps hashcode {}, as another thread is updating it already", delta.getAppsHashCode());
}
}
- 通过
getDelta方法，看到实际拉取的地址是：apps/delta，如果获取到的delta为空，则全量拉取。 - 通常来讲是3分钟之内注册表的信息变化（在server端判断），获取到delta后，会更新本地注册表。
- 增量式拉取是为了维护client和server端 注册表的一致性，防止本地数据过久，而失效，采用增量式拉取的方式，减少了client和server的通信量。
- client有一个注册表缓存刷新定时器，专门负责维护两者之间的信息同步，但是当增量出现意外时，定时器将执行，全量拉取以更新本地缓存信息。
更新本地注册表方法updateDelta，有一个细节。
if (ActionType.ADDED.equals(instance.getActionType())) ，public enum ActionType {
ADDED, // Added in the discovery server
MODIFIED, // Changed in the discovery server
DELETED
// Deleted from the discovery server
}
在InstanceInfo instance中有一个instance.getActionType()，ADDED和MODIFIED状态的将更新本地注册表applications.addApplication，DELETED将从本地剔除掉existingApp.removeInstance(instance)。
2，服务注册
好了拉取完eureka server中的注册表了，接着进行服务注册。回到DiscoveryClient构造函数。
拉取fetchRegistry完后进行register注册。由于构造函数开始时已经将服务实例元数据封装好了instanceInfo，所以此处之间向server发送instanceInfo：
public class DiscoveryClient implements EurekaClient {
// 省略部分代码
//服务注册
boolean register() throws Throwable {
logger.info(PREFIX + "{}: registering service...", appPathIdentifier);
EurekaHttpResponse<Void> httpResponse;
try {
httpResponse = eurekaTransport.registrationClient.register(instanceInfo);
} catch (Exception e) {
logger.warn(PREFIX + "{} - registration failed {}", appPathIdentifier, e.getMessage(), e);
throw e;
}
if (logger.isInfoEnabled()) {
logger.info(PREFIX + "{} - registration status: {}", appPathIdentifier, httpResponse.getStatusCode());
}
// 204状态码，则注册成功。
return httpResponse.getStatusCode() == Status.NO_CONTENT.getStatusCode();
}
// 省略部分代码
}
3，初始化3个定时任务
initScheduledTasks()方法初始化3个定时任务。
- client会定时向server发送心跳，维持自己服务租约的有效性，用心跳定时任务实现;
- 而server中会有不同的服务实例注册进来，一进一出，就需要数据的同步。所以client需要定时从server拉取注册表信息，用缓存定时任务实现;
- client如果有变化，也会及时更新server中自己的信息，用按需注册定时任务实现。
没错就是这三个定时任务，进 initScheduledTasks()方法中：
public class DiscoveryClient implements EurekaClient {
// 省略部分代码
//初始化心跳定时任务，缓存定时任务，按需注册定时任务
private void initScheduledTasks() {
//从server拉取注册表信息。
if (clientConfig.shouldFetchRegistry()) {
// 拉取的时间间隔，通过eureka.client.registry-fetch-interval-seconds进行设置。
int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds();
int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound();
// 缓存刷新定时任务
cacheRefreshTask = new TimedSupervisorTask(
"cacheRefresh",
scheduler,
cacheRefreshExecutor,
registryFetchIntervalSeconds,
TimeUnit.SECONDS,
expBackOffBound,
new CacheRefreshThread()
);
scheduler.schedule(
cacheRefreshTask,
registryFetchIntervalSeconds, TimeUnit.SECONDS);
}
if (clientConfig.shouldRegisterWithEureka()) {
// 心跳定时器，默认30秒。
int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();
int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();
logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);
// 心跳定时任务
heartbeatTask = new TimedSupervisorTask(
"heartbeat",
scheduler,
heartbeatExecutor,
renewalIntervalInSecs,
TimeUnit.SECONDS,
expBackOffBound,
new HeartbeatThread()
);
scheduler.schedule(
heartbeatTask,
renewalIntervalInSecs, TimeUnit.SECONDS);
// 按需注册定时任务实现
instanceInfoReplicator = new InstanceInfoReplicator(
this,
instanceInfo,
clientConfig.getInstanceInfoReplicationIntervalSeconds(),
2); // burstSize
statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
@Override
public String getId() {
return "statusChangeListener";
}
@Override
public void notify(StatusChangeEvent statusChangeEvent) {
if (InstanceStatus.DOWN == statusChangeEvent.getStatus() ||
InstanceStatus.DOWN == statusChangeEvent.getPreviousStatus()) {
// log at warn level if DOWN was involved
logger.warn("Saw local status change event {}", statusChangeEvent);
} else {
logger.info("Saw local status change event {}", statusChangeEvent);
}
instanceInfoReplicator.onDemandUpdate();
}
};
if (clientConfig.shouldOnDemandUpdateStatusChange()) {
applicationInfoManager.registerStatusChangeListener(statusChangeListener);
}
instanceInfoReplicator.start(clientConfig.getInitialInstanceInfoReplicationIntervalSeconds());
} else {
logger.info("Not registering with Eureka server per configuration");
}
}
// 省略部分代码
}
1，缓存刷新定时任务
public class DiscoveryClient implements EurekaClient {
// 省略部分代码
class CacheRefreshThread implements Runnable {
public void run() {
refreshRegistry();
}
}
void refreshRegistry() {
// 省略部分代码
boolean success = fetchRegistry(remoteRegionsModified);
// 省略部分代码
}
/**
* 最后回到了我们上面讲过的拉取注册表信息的方法
*/
//拉取服务信息
private boolean fetchRegistry(boolean forceFullRegistryFetch) {
Stopwatch tracer = FETCH_REGISTRY_TIMER.start();
try {
Applications applications = getApplications();
// 如果增量式拉取被禁止或第一次拉取注册表，则进行全量拉取
if (clientConfig.shouldDisableDelta()
|| (!Strings.isNullOrEmpty(clientConfig.getRegistryRefreshSingleVipAddress()))
|| forceFullRegistryFetch
|| (applications == null)
|| (applications.getRegisteredApplications().size() == 0)
|| (applications.getVersion() == -1)) //Client application does not have latest library supporting delta
{
// 全量拉去
getAndStoreFullRegistry();
} else {
// 否则进行增量拉取注册表信息
getAndUpdateDelta(applications);
}
} catch (Throwable e) {
return false;
} finally {
if (tracer != null) {
tracer.stop();
}
}
// 在更新实例远程状态之前通知有关缓存刷新的信息
onCacheRefreshed();
// 根据缓存中保存的刷新数据更新远程状态
updateInstanceRemoteStatus();
// 拉取成功，返回true
return true;
}
// 省略部分代码
}
2，心跳定时任务
public class DiscoveryClient implements EurekaClient {
// 省略部分代码
private class HeartbeatThread implements Runnable {
public void run() {
if (renew()) {
lastSuccessfulHeartbeatTimestamp = System.currentTimeMillis();
}
}
}
boolean renew() {
EurekaHttpResponse<InstanceInfo> httpResponse;
try {
httpResponse = eurekaTransport.registrationClient.sendHeartBeat(instanceInfo.getAppName(), instanceInfo.getId(), instanceInfo, null);
// 看到如果遇到404，server没有此实例，则重新发起注册。如果续约成功返回 200.
if (httpResponse.getStatusCode() == Status.NOT_FOUND.getStatusCode()) {
REREGISTER_COUNTER.increment();
long timestamp = instanceInfo.setIsDirtyWithTime();
boolean success = register();
if (success) {
instanceInfo.unsetIsDirty(timestamp);
}
return success;
}
return httpResponse.getStatusCode() == Status.OK.getStatusCode();
} catch (Throwable e) {
logger.error(PREFIX + "{} - was unable to send heartbeat!", appPathIdentifier, e);
return false;
}
}
//省略部分代码
}
3，按需注册定时任务
当instanceinfo和status发生变化时，需要向server同步，去更新自己在server中的实例信息。保证server注册表中服务实例信息的有效和可用。
instanceInfoReplicator = new InstanceInfoReplicator(
this,
instanceInfo,
clientConfig.getInstanceInfoReplicationIntervalSeconds(),
2); // burstSize
statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
@Override
public String getId() {
return "statusChangeListener";
}
@Override
public void notify(StatusChangeEvent statusChangeEvent) {
if (InstanceStatus.DOWN == statusChangeEvent.getStatus() ||
InstanceStatus.DOWN == statusChangeEvent.getPreviousStatus()) {
// log at warn level if DOWN was involved
logger.warn("Saw local status change event {}", statusChangeEvent);
} else {
logger.info("Saw local status change event {}", statusChangeEvent);
}
instanceInfoReplicator.onDemandUpdate();
}
};
if (clientConfig.shouldOnDemandUpdateStatusChange()) {
applicationInfoManager.registerStatusChangeListener(statusChangeListener);
}
instanceInfoReplicator.start(clientConfig.getInitialInstanceInfoReplicationIntervalSeconds());
此定时任务有2个部分：
1，定时刷新服务实例信息和检查应用状态的变化，在服务实例信息发生改变的情况下向server重新发起注册。InstanceInfoReplicator点进去。看到一个方法 ：
class InstanceInfoReplicator implements Runnable {
// 省略部分代码
public void run() {
try {
// 刷新instanceinfo，如果有变化，在下次心跳时，同步向server。
discoveryClient.refreshInstanceInfo();
// 如果实例信息有变，返回数据更新时间
Long dirtyTimestamp = instanceInfo.isDirtyWithTime();
if (dirtyTimestamp != null) {
discoveryClient.register();
instanceInfo.unsetIsDirty(dirtyTimestamp);
}
} catch (Throwable t) {
logger.warn("There was a problem with the instance info replicator", t);
} finally {
// 延时执行下一个检查任务。用于再次调用run方法，继续检查服务实例信息和状态的变化
Future next = scheduler.schedule(this, replicationIntervalSeconds, TimeUnit.SECONDS);
scheduledPeriodicRef.set(next);
}
}
// 省略部分代码
}
2，注册状态改变监听器，在应用状态发生变化时，刷新服务实例信息，在服务实例信息发生改变时向server注册。
statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
@Override
public String getId() {
return "statusChangeListener";
}
@Override
public void notify(StatusChangeEvent statusChangeEvent) {
if (InstanceStatus.DOWN == statusChangeEvent.getStatus() ||
InstanceStatus.DOWN == statusChangeEvent.getPreviousStatus()) {
// log at warn level if DOWN was involved
logger.warn("Saw local status change event {}", statusChangeEvent);
} else {
logger.info("Saw local status change event {}", statusChangeEvent);
}
如果状态发生改变，调用onDemandUpdate（），点onDemandUpdate进去，看到InstanceInfoReplicator.this.run();
instanceInfoReplicator.onDemandUpdate();
}
};
总结：两部分，一部分自己去检查，一部分等待状态监听事件。
三，服务下线
服务下线：在应用关闭时，client会向server注销自己，在Discoveryclient销毁前，会执行下面清理方法。
public class DiscoveryClient implements EurekaClient {
// 省略部分代码
@PreDestroy
@Override
public synchronized void shutdown() {
if (isShutdown.compareAndSet(false, true)) {
logger.info("Shutting down DiscoveryClient ...");
if (statusChangeListener != null && applicationInfoManager != null) {
// 注销监听器
applicationInfoManager.unregisterStatusChangeListener(statusChangeListener.getId());
}
// 取消定时任务
cancelScheduledTasks();
// If APPINFO was registered
if (applicationInfoManager != null
&& clientConfig.shouldRegisterWithEureka()
&& clientConfig.shouldUnregisterOnShutdown()) {
applicationInfoManager.setInstanceStatus(InstanceStatus.DOWN);
// 服务下线
unregister();
}
// 关闭jersy客户端
if (eurekaTransport != null) {
eurekaTransport.shutdown();
}
heartbeatStalenessMonitor.shutdown();
registryStalenessMonitor.shutdown();
Monitors.unregisterObject(this);
logger.info("Completed shut down of DiscoveryClient");
}
}
// 省略部分代码
}
扫一扫
1327
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
