SparkContext原理分析与源码分析

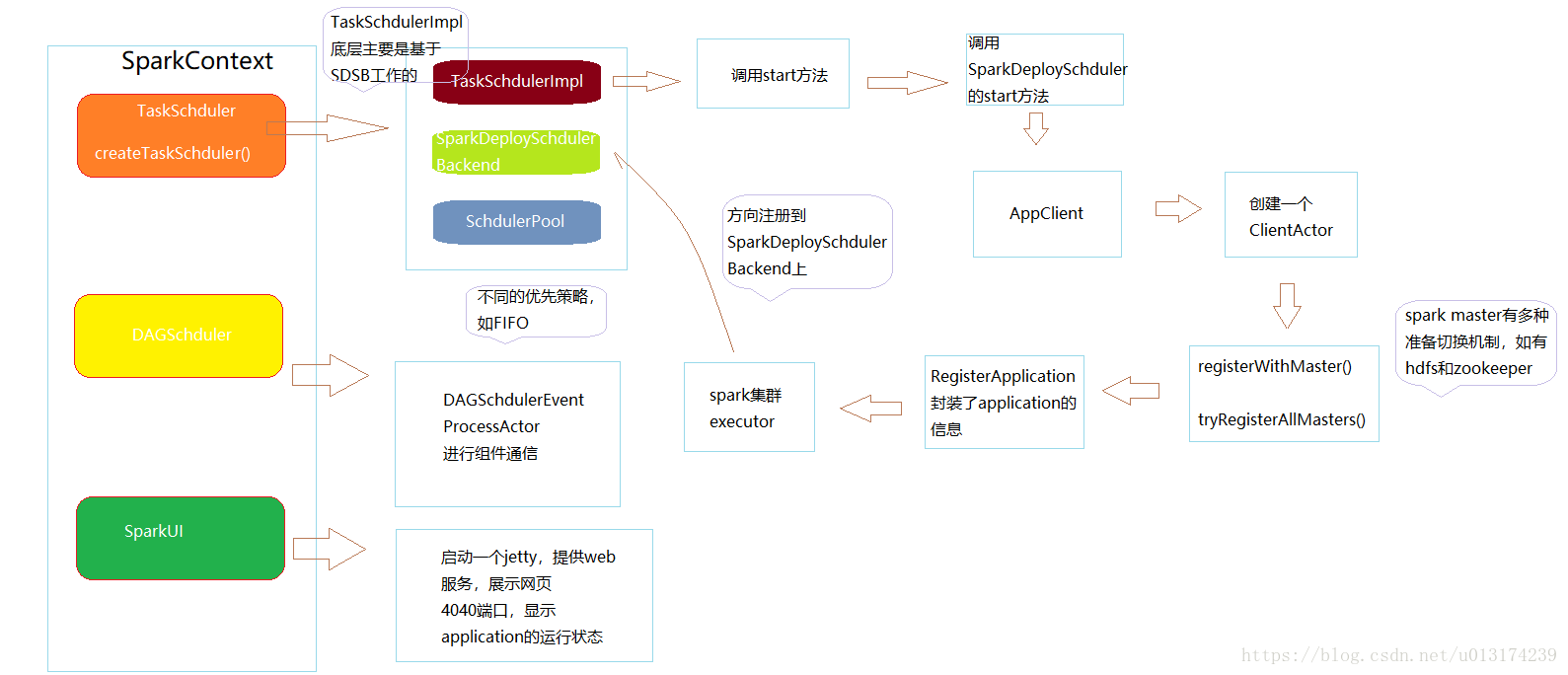

①SparkContext的运行原理

②SparkContext.scala

/**
  * 1、通过操作schdulerBackend，对不同的cluster（local、standalone、spark-on-yarn）调度task
  * 2、处理一些通用的逻辑，决定多个job的调度顺序，启动推测任务执行
  * 3、客户端首先调用initialize()方法和start()方法，调用runTasks()方法提交taskset
  */

    1、创建taskSchduler

val (sched, ts) = SparkContext.createTaskScheduler(this, master, deployMode)
    _schedulerBackend = sched
    _taskScheduler = ts
    _dagScheduler = new DAGScheduler(this)
    _heartbeatReceiver.ask[Boolean](TaskSchedulerIsSet)

    // start TaskScheduler after taskScheduler sets DAGScheduler reference in DAGScheduler's
    // constructor
    _taskScheduler.start()

 这里讨论standalone模式，其他部分代码省略

  /**
   * Create a task scheduler based on a given master URL.
   * Return a 2-tuple of the scheduler backend and the task scheduler.
    * 匹配不同的提交启动模式，本地启动模式、Standalone、集群spark-on-yarn
   */
  private def createTaskScheduler(
      sc: SparkContext,
      master: String,
      deployMode: String): (SchedulerBackend, TaskScheduler) = {
    import SparkMasterRegex._

    // When running locally, don't try to re-execute tasks on failure.
    val MAX_LOCAL_TASK_FAILURES = 1

    master match {
      case "local" =>
      ...
      case LOCAL_N_REGEX(threads) =>
      ...
       case LOCAL_N_FAILURES_REGEX(threads, maxFailures) =>
      ...
       // standalone启动模式
      case SPARK_REGEX(sparkUrl) =>
        val scheduler = new TaskSchedulerImpl(sc)
        val masterUrls = sparkUrl.split(",").map("spark://" + _)
        val backend = new StandaloneSchedulerBackend(scheduler, sc, masterUrls)
        scheduler.initialize(backend)
        (backend, scheduler)

 case LOCAL_CLUSTER_REGEX(numSlaves, coresPerSlave, memoryPerSlave) =>
     ...

  case masterUrl =>
     ...

    TaskSchdulerImpl.scala

  def initialize(backend: SchedulerBackend) {
    this.backend = backend
    // temporarily set rootPool name to empty
    rootPool = new Pool("", schedulingMode, 0, 0) // 调度池
    schedulableBuilder = {
      schedulingMode match {
        case SchedulingMode.FIFO =>
          new FIFOSchedulableBuilder(rootPool)
        case SchedulingMode.FAIR =>
          new FairSchedulableBuilder(rootPool, conf)
        case _ =>
          throw new IllegalArgumentException(s"Unsupported spark.scheduler.mode: $schedulingMode")
      }
    }
    schedulableBuilder.buildPools()
  }

StandaloneSchdulerBackend.scala/SparkDeploySchdulerBackend.scala

override def start() {
    super.start()
    launcherBackend.connect()

    // The endpoint for executors to talk to us
    // 基本参数的准备 jvm之类的
    val driverUrl = RpcEndpointAddress(
      sc.conf.get("spark.driver.host"),
      sc.conf.get("spark.driver.port").toInt,
      CoarseGrainedSchedulerBackend.ENDPOINT_NAME).toString
    val args = Seq(
      "--driver-url", driverUrl,
      "--executor-id", "{{EXECUTOR_ID}}",
      "--hostname", "{{HOSTNAME}}",
      "--cores", "{{CORES}}",
      "--app-id", "{{APP_ID}}",
      "--worker-url", "{{WORKER_URL}}")
    val extraJavaOpts = sc.conf.getOption("spark.executor.extraJavaOptions")
      .map(Utils.splitCommandString).getOrElse(Seq.empty)
    val classPathEntries = sc.conf.getOption("spark.executor.extraClassPath")
      .map(_.split(java.io.File.pathSeparator).toSeq).getOrElse(Nil)
    val libraryPathEntries = sc.conf.getOption("spark.executor.extraLibraryPath")
      .map(_.split(java.io.File.pathSeparator).toSeq).getOrElse(Nil)

    // When testing, expose the parent class path to the child. This is processed by
    // compute-classpath.{cmd,sh} and makes all needed jars available to child processes
    // when the assembly is built with the "*-provided" profiles enabled.
    val testingClassPath =
      if (sys.props.contains("spark.testing")) {
        sys.props("java.class.path").split(java.io.File.pathSeparator).toSeq
      } else {
        Nil
      }

    // Start executors with a few necessary configs for registering with the scheduler
    val sparkJavaOpts = Utils.sparkJavaOpts(conf, SparkConf.isExecutorStartupConf)
    val javaOpts = sparkJavaOpts ++ extraJavaOpts
    val command = Command("org.apache.spark.executor.CoarseGrainedExecutorBackend",
      args, sc.executorEnvs, classPathEntries ++ testingClassPath, libraryPathEntries, javaOpts)
    val appUIAddress = sc.ui.map(_.appUIAddress).getOrElse("")
    val coresPerExecutor = conf.getOption("spark.executor.cores").map(_.toInt)
    // If we're using dynamic allocation, set our initial executor limit to 0 for now.
    // ExecutorAllocationManager will send the real initial limit to the Master later.
    val initialExecutorLimit =
      if (Utils.isDynamicAllocationEnabled(conf)) {
        Some(0)
      } else {
        None
      }

    // 描述当前应用程序, 这个对象非常重要，它包含了当前运行程序的一些信息
    val appDesc = new ApplicationDescription(sc.appName, maxCores, sc.executorMemory, command,
      appUIAddress, sc.eventLogDir, sc.eventLogCodec, coresPerExecutor, initialExecutorLimit)


// 与集群通信的客户端
 client = new StandaloneAppClient(sc.env.rpcEnv, masters, appDesc, this, conf)
    client.start()
    launcherBackend.setState(SparkAppHandle.State.SUBMITTED)
    waitForRegistration()
    launcherBackend.setState(SparkAppHandle.State.RUNNING)

private[spark] case class ApplicationDescription(
    name: String,
    maxCores: Option[Int],
    memoryPerExecutorMB: Int,
    command: Command,
    appUiUrl: String,
    eventLogDir: Option[URI] = None,
    // short name of compression codec used when writing event logs, if any (e.g. lzf)
    eventLogCodec: Option[String] = None,
    coresPerExecutor: Option[Int] = None,
    // number of executors this application wants to start with,
    // only used if dynamic allocation is enabled
    initialExecutorLimit: Option[Int] = None,
    user: String = System.getProperty("user.name", "<unknown>")) {

  override def toString: String = "ApplicationDescription(" + name + ")"
}

/bin/spark-submit \ --class cn.spar.sparktest.core.WorldCount \ --num-executors 3 \ --executor-cores 100m \ --executor-memory 100m \ --executor-cores 3 \ /usr/local/SparkTest-0.0.1.jar

StandaloneAppDescription.scala/AppDescription.scala

/**
  * 1、负责与spark集群的通信
  * 2、接受sparkMaster的地址一节AppDescription的描述信息和一个集群事件监听器和各类事件的监听器
  */

override def onStart(): Unit = {
      try {
        registerWithMaster(1)
      } catch {
        case e: Exception =>
          logWarning("Failed to connect to master", e)
          markDisconnected()
          stop()
      }
    }

    /**
      *  spark支持2种不通机制的主备切换，①hdfs ②zookeeper动态HA
     */
    private def tryRegisterAllMasters(): Array[JFuture[_]] = {
      for (masterAddress <- masterRpcAddresses) yield {
        registerMasterThreadPool.submit(new Runnable {
          override def run(): Unit = try {
            if (registered.get) {
              return
            }
            logInfo("Connecting to master " + masterAddress.toSparkURL + "...")
            val masterRef = rpcEnv.setupEndpointRef(masterAddress, Master.ENDPOINT_NAME)
            masterRef.send(RegisterApplication(appDescription, self))
          } catch {
            case ie: InterruptedException => // Cancelled
            case NonFatal(e) => logWarning(s"Failed to connect to master $masterAddress", e)
          }
        })
      }
    }

    /**
     * Register with all masters asynchronously. It will call `registerWithMaster` every
     * REGISTRATION_TIMEOUT_SECONDS seconds until exceeding REGISTRATION_RETRIES times.
     * Once we connect to a master successfully, all scheduling work and Futures will be cancelled.
     *
     * nthRetry means this is the nth attempt to register with master.
     */
    private def registerWithMaster(nthRetry: Int) {
      registerMasterFutures.set(tryRegisterAllMasters())
      registrationRetryTimer.set(registrationRetryThread.schedule(new Runnable {
        override def run(): Unit = {
          if (registered.get) {
            registerMasterFutures.get.foreach(_.cancel(true))
            registerMasterThreadPool.shutdownNow()
          } else if (nthRetry >= REGISTRATION_RETRIES) {
            markDead("All masters are unresponsive! Giving up.")
          } else {
            registerMasterFutures.get.foreach(_.cancel(true))
            registerWithMaster(nthRetry + 1)
          }
        }
      }, REGISTRATION_TIMEOUT_SECONDS, TimeUnit.SECONDS))
    }

2、DAGSchduler

/**
  * 1、实现面向stage的调度机制
  * 2、为每一个job计算一个stage
  * 3、追踪RDD的stage输出，是否写入磁盘或者内存等存储介质中
  * 4、寻找最小消耗（最优、最小）调度机制运行job
  * 5、将stage作为taskset提交到TaskSchdulerImpl，通过集群来运行task
  * 6、负责每个task运行的最佳位置，根据当前缓存状态，将这些最佳位置提交给TaskSchdulerImpl；
  * 7、处理由于shuffle导致文件输出丢失导致的失败，该stage会被重新提交；如果不是由于
  *   shuffle内部导致的失败，例如OOM，会被TaskSchdulerImpl处理，多次重试每一个task，如果
  *   最后还是不行，取消stage。
  */

3、SparkUI

导入了jetty web服务器

import org.apache.spark.ui.JettyUtils._

绑定了默认的4040端口

private[spark] object SparkUI {
  val DEFAULT_PORT = 4040
  val STATIC_RESOURCE_DIR = "org/apache/spark/ui/static"
  val DEFAULT_POOL_NAME = "default"
  val DEFAULT_RETAINED_STAGES = 1000
  val DEFAULT_RETAINED_JOBS = 1000

def createLiveUI(
      sc: SparkContext,
      conf: SparkConf,
      listenerBus: SparkListenerBus,
      jobProgressListener: JobProgressListener,
      securityManager: SecurityManager,
      appName: String,
      startTime: Long): SparkUI = {
    create(Some(sc), conf, listenerBus, securityManager, appName,
      jobProgressListener = Some(jobProgressListener), startTime = startTime)
  }

  private def create(
      sc: Option[SparkContext],
      conf: SparkConf,
      listenerBus: SparkListenerBus,
      securityManager: SecurityManager,
      appName: String,
      basePath: String = "",
      jobProgressListener: Option[JobProgressListener] = None,
      startTime: Long): SparkUI = {

    ...

    new SparkUI(sc, conf, securityManager, environmentListener, storageStatusListener,
      executorsListener, _jobProgressListener, storageListener, operationGraphListener,
      appName, basePath, startTime)
  }
