在开发android webview的过程中经常会碰到这样的需求

1、点击webview上的数字手机跳到电话页面或自动播打电话

2、无网络出错，出现自定义本地出错页面，点击页面按钮重新加载

3、点击页面的某段话，自动发送短信

4、点击图片能放大显示

、、、

要完成上面的功能，基本上都要涉及webview 和 js 的交互，下面简单举几个小例子

涉及的过程：

1、html的js脚本调用本地android中的java方法-->无参

2、android中的java代码调用html的js脚本-->无参

3、html的js脚本调用本地android中的java方法-->有参

4、android中的java代码调用html的js脚本-->有参

例1、自定义本地出错页面，点击页面按钮重新加载（使用过程1）

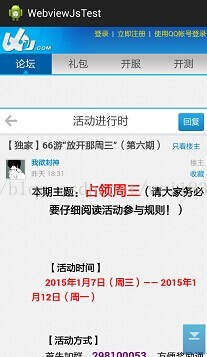

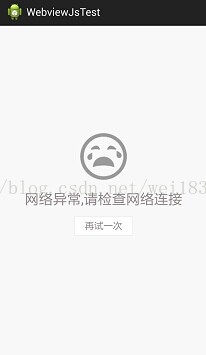

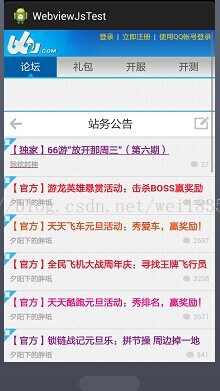

效果图（本人比较懒，就不搞gif了）：

具体代码实现：

package com.xwj.webviewjstest;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.content.res.Configuration;
import android.graphics.Bitmap;
import android.os.Build;
import android.os.Bundle;
import android.os.Handler;
import android.os.Looper;
import android.view.KeyEvent;
import android.view.MotionEvent;
import android.view.View;
import android.webkit.JavascriptInterface;
import android.webkit.WebSettings.PluginState;
import android.webkit.WebView;
import android.webkit.WebViewClient;
import com.xwj.webviewjsdemo.R;
@SuppressLint("SetJavaScriptEnabled")
public class Test1Activity extends Activity {
private WebView mWebView;
private static final String URL = "http://bbs.66u.com";
// 用于记录出错页面的url 方便重新加载
private String mFailingUrl = null;
/*private Handler handler = new Handler(){ //对应方法3
@Override
public void handleMessage(Message msg) {
if (msg.what == 1) {
if (mFailingUrl != null) {
mWebView.loadUrl(mFailingUrl);
}
}
super.handleMessage(msg);
}
};*/
private Handler handler1 = new Handler();
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_test1);
mWebView = (WebView) findViewById(R.id.wv_test1);
initWebViewSettings();
initWebview();
}
private void initWebViewSettings() {
mWebView.setWebViewClient(new MyWebViewClient());
mWebView.setOnTouchListener(new View.OnTouchListener() {
@Override
public boolean onTouch(View v, MotionEvent event) {
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
case MotionEvent.ACTION_UP:
if (!v.hasFocus()) {
v.requestFocus();
v.requestFocusFromTouch();
}
break;
}
return false;
}
});
// 启用JavaScript
mWebView.getSettings().setJavaScriptEnabled(true);
mWebView.getSettings().setSupportZoom(true);
mWebView.getSettings().setUseWideViewPort(true);
mWebView.getSettings().setLoadWithOverviewMode(true);
mWebView.getSettings().setJavaScriptCanOpenWindowsAutomatically(true);
if (Build.VERSION.SDK_INT < 19) {
if (Build.VERSION.SDK_INT >8) {
mWebView.getSettings().setPluginState(PluginState.ON);
}
}
}
private void initWebview() {
mWebView.addJavascriptInterface(new JsInterface(), "jsinterface");
mWebView.loadUrl(URL);
}
class MyWebViewClient extends WebViewClient {
@Override
public boolean shouldOverrideUrlLoading(WebView view, String url) {
// 在webview加载下一页，而不会打开浏览器
view.loadUrl(url);
return true;
}
@Override
public void onPageStarted(WebView view, String url, Bitmap favicon) {
super.onPageStarted(view, url, favicon);
}
@Override
public void onPageFinished(WebView view, String url) {
super.onPageFinished(view, url);
}
@Override
public void onReceivedError(WebView view, int errorCode,
String description, String failingUrl) {
super.onReceivedError(view, errorCode, description, failingUrl);
mFailingUrl = failingUrl;
//加载出错的自定义界面
view.loadUrl("file:///android_asset/error.html");
}
}
class JsInterface {
@JavascriptInterface
public void errorReload() {
//方法1
/*new Handler().post(new Runnable() { //此方法最好不用，因为在webview中最好不要在工作线程中声明handler
@Override
public void run() {
if (mFailingUrl != null) {
mWebView.loadUrl(mFailingUrl);
}
}
});
可将方法1修改成如下：Returns the application's main looper, which lives in the main thread of the application.
参考blog：http://blog.youkuaiyun.com/mylzc/article/details/6771331
*/
new Handler(Looper.getMainLooper()).post(new Runnable() {
@Override
public void run() {
if (mFailingUrl != null) {
mWebView.loadUrl(mFailingUrl);
}
}
});
/*//方法2
handler1.post(new Runnable() {
@Override
public void run() {
if (mFailingUrl != null) {
//当点击出错界面的按钮时，重新加载
mWebView.loadUrl(mFailingUrl);
}
}
});*/
//方法3
/*new Thread(){
public void run() {
Message msg = Message.obtain();
msg.what = 1;
handler.sendMessage(msg);
};
}.start();*/
//方法4
/*
* runOnUiThread(new Runnable() {
public void run() {
if (mFailingUrl != null) {
mWebView.loadUrl(mFailingUrl);
}
}
});*/
}
}
@Override
public void onConfigurationChanged(Configuration newConfig) {
super.onConfigurationChanged(newConfig);
}
public void onResume() {
super.onResume();
if (mWebView != null) {
mWebView.onResume();
mWebView.resumeTimers();
}
}
@Override
public void onPause() {
if (mWebView != null) {
mWebView.onPause();
mWebView.pauseTimers();
}
super.onPause();
}
@Override
public boolean onKeyDown(int keyCode, KeyEvent event) {
// 返回键监听点击返回如果有上一页面不会马上退出
if (keyCode == KeyEvent.KEYCODE_BACK && mWebView.canGoBack()) {
mWebView.goBack();
return true;
}
return super.onKeyDown(keyCode, event);
}
}

html端代码：

<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>无标题文档</title>
<meta name="viewport" content= "width=device-width,initial-scale=1,minimum-scale=1.0,maximum-scale=1.0,user-scalable=no" />
<meta content="yes" name="apple-mobile-web-app-capable">
<meta content="yes" name="apple-touch-fullscreen">
<meta content="telephone=no" name="format-detection">
<meta content="black" name="apple-mobile-web-app-status-bar-style">
<style type="text/css">
*{
margin:0;
padding:0;
}
body{
color: #928B8B;
min-width:320px;
text-align:center;
font-family:'Microsoft YaHei';
}
.content{
background:#f8f8f8;
overflow:hidden;
width:100%;
position:relative;
}
.mainbody{
width:100%;
position:absolute;
top:50%;
margin-top:-100px;
}
.mainbody img{
width:80px;
height:80px;
}
.mainbody p{
width:100%;
display:block;
text-align:center;
font-size:24px;
margin:15px 0;
}
.try{
width:100px;
text-align:center;
padding:6px 0;
border-style:none;
color:#928B8B;
border:1px solid #F0EBEB;
background:#fff;
font-size:16px;
}
.try:hover{
background:#f2f2f2;
}
</style>
</head>
<body>
<div class="content" id="id">
<div class="mainbody">
<img src="img/error_icon.png" />
<p id="id_wei">网络异常,请检查网络连接</p>
<button id="btn" class="try" onClick="window.jsinterface.errorReload()">再试一次</button>
</div>
</div>
<script type="text/javascript">
var a = document.documentElement.clientHeight;
document.getElementById("id").style.height = a+"px";
</script>
</body>
</html>

onClick="window.jsinterface.errorReload()"

mWebView.addJavascriptInterface(new JsInterface(), "jsinterface");

通过webview绑定javascriptInterface，js脚本通过这个接口(jsinterface)来调用java代码

例2、

例3、

例4、运用过程4

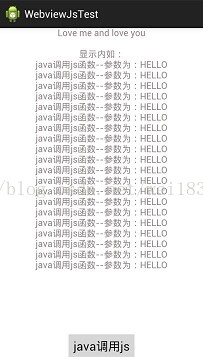

效果图：

java代码：

package com.xwj.webviewjstest;
import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.webkit.WebView;
import android.widget.Button;
import com.xwj.webviewjsdemo.R;
public class Test2Activity extends Activity {
private WebView mWebView;
private Button mBtn;
private static final String URL = "file:///android_asset/test2.html";
private static final String NAME = "HELLO";
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_test2);
mWebView = (WebView) findViewById(R.id.wv_test2);
mBtn = (Button) findViewById(R.id.btn_test2);
initWebViewSettings();
initWebview();
}
private void initWebViewSettings() {
// 启用JavaScript
mWebView.getSettings().setJavaScriptEnabled(true);
mWebView.getSettings().setSupportZoom(true);
mWebView.getSettings().setUseWideViewPort(true);
mWebView.getSettings().setLoadWithOverviewMode(true);
mWebView.getSettings().setDefaultTextEncodingName("utf-8");
mWebView.getSettings().setJavaScriptCanOpenWindowsAutomatically(true);
}
private void initWebview() {
mWebView.loadUrl(URL);
mBtn.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
// 注：传的参数NAME一定要加''，否则不能调用
mWebView.loadUrl("javascript:sayhello(" + "'" + NAME + "')");
}
});
}
public void onResume() {
super.onResume();
if (mWebView != null) {
mWebView.onResume();
mWebView.resumeTimers();
}
}
@Override
public void onPause() {
if (mWebView != null) {
mWebView.onPause();
mWebView.pauseTimers();
}
super.onPause();
}
}

html代码：

<html>
<head>
<meta http-equiv="Content-Type" content="text/html;charset=gb2312">
<style type="text/css">
*{
margin:0;
padding:0;
}
body{
color: #928B8B;
min-width:320px;
text-align:center;
font-family:'Microsoft YaHei';
font-size:42px;
}
</style>
<script type="text/javascript">
function sayhello(namejs){
document.getElementById("content").innerHTML +=
("<br\>java调用js函数--参数为："+namejs);
}
</script>
</head>
<body>
Love me and love you<br/>
<br/>
<div id="content">显示内如：</div>
</body>
</html>

注：参数类型要注意（如果为String类型，参数一定要有单引号，多个参数则自己拼接）
