该博客验证了darknet在图像处理中使用双线性内插值法进行NV12格式图像缩放的效果。通过一系列的图像缩放操作，包括352x352、100x200、32x32和16x16，展示了算法在不同尺寸下对图像的缩放能力。同时，还讨论了FFMPEG在像素格式转换中的作用，以及在特定嵌入式平台上的应用。
关于图形scale原理的介绍可以参考下面的文章
Darknet框架解读_papaofdoudou的博客-优快云博客1.test_detector的调用路径：这里重点介绍load_alphabet函数：根据代码，这里是从data/labels/目录装载png图片，图片有8*95=760这些图片都是ASCII码，比如我们打开编号为65和97的PNG图片，看以下内容,分别是A和a.怀疑最后绘框上面的Label字母就是来源于这里，这样就不依赖于系统字库了，我们确认一下，用反证法。如果我们将所有b的图片替换成a的图片，那么bicycle应该能变成aicycle的，我们测试一下：我们..
https://blog.youkuaiyun.com/tugouxp/article/details/120941276?spm=1001.2014.3001.5502DARKNET中使用的缩放算法是双线性内插值法，这里就实际验证一把DARKNET 中scale的工作原理与效果：

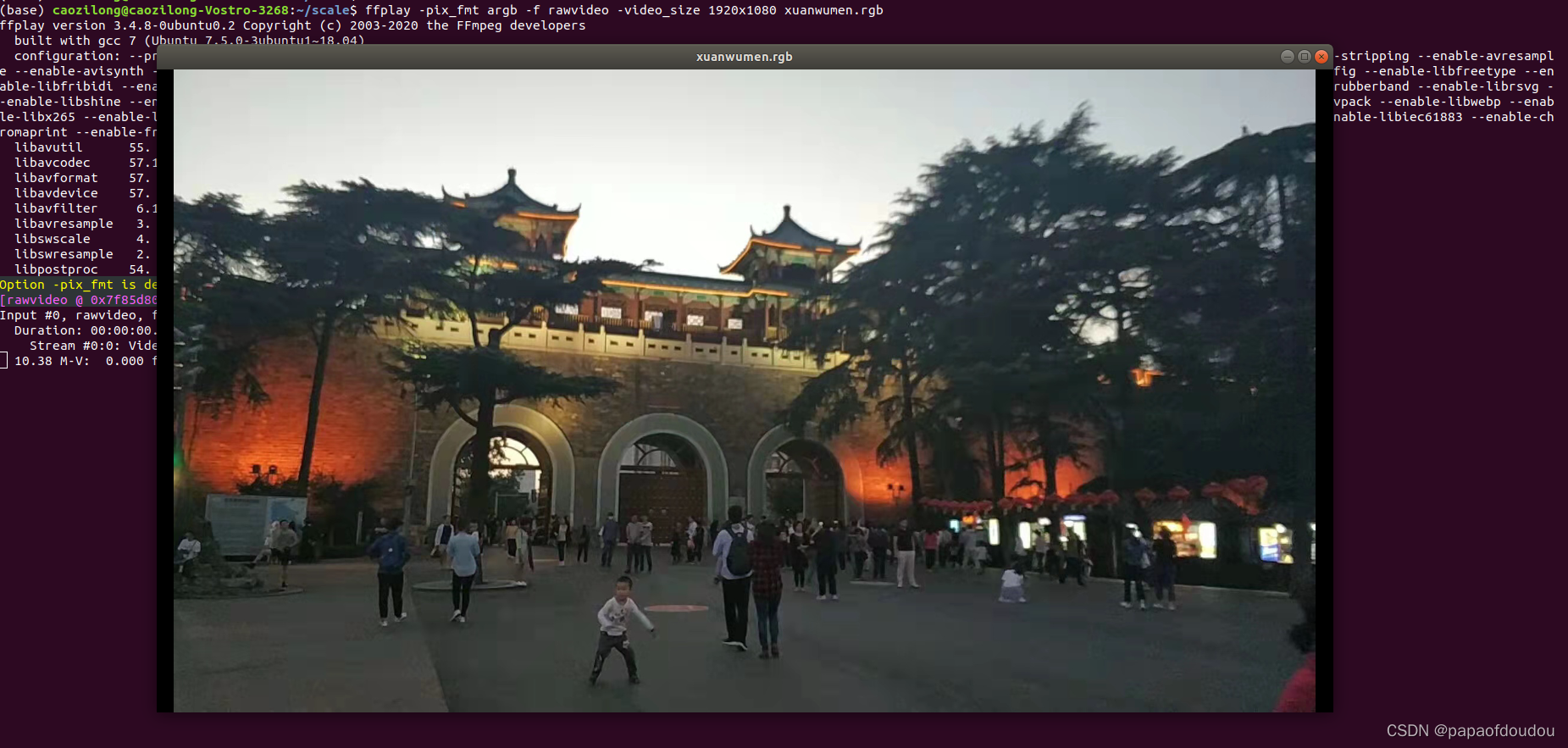

首先这是一张原图，画面中的是南京明城墙玄武门，玄武湖的正门。18年国庆带娃回学校的时候留念，一段令人怀念的岁月。

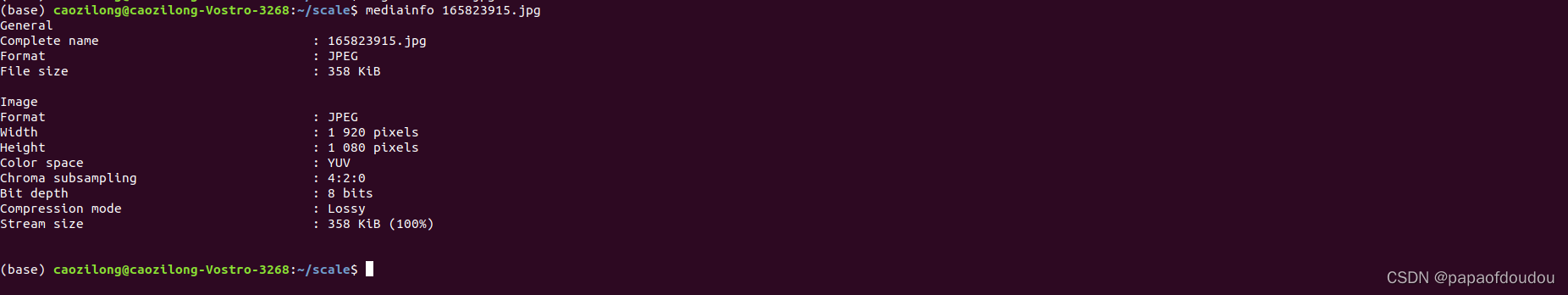

图像参数如下,可以看到是YUV420格式的，尺寸为1920*1080。
首先我们将其转换为RAW YUV444P 格式，目的是为了方便做SCALE，转换工具就用FFMPEG

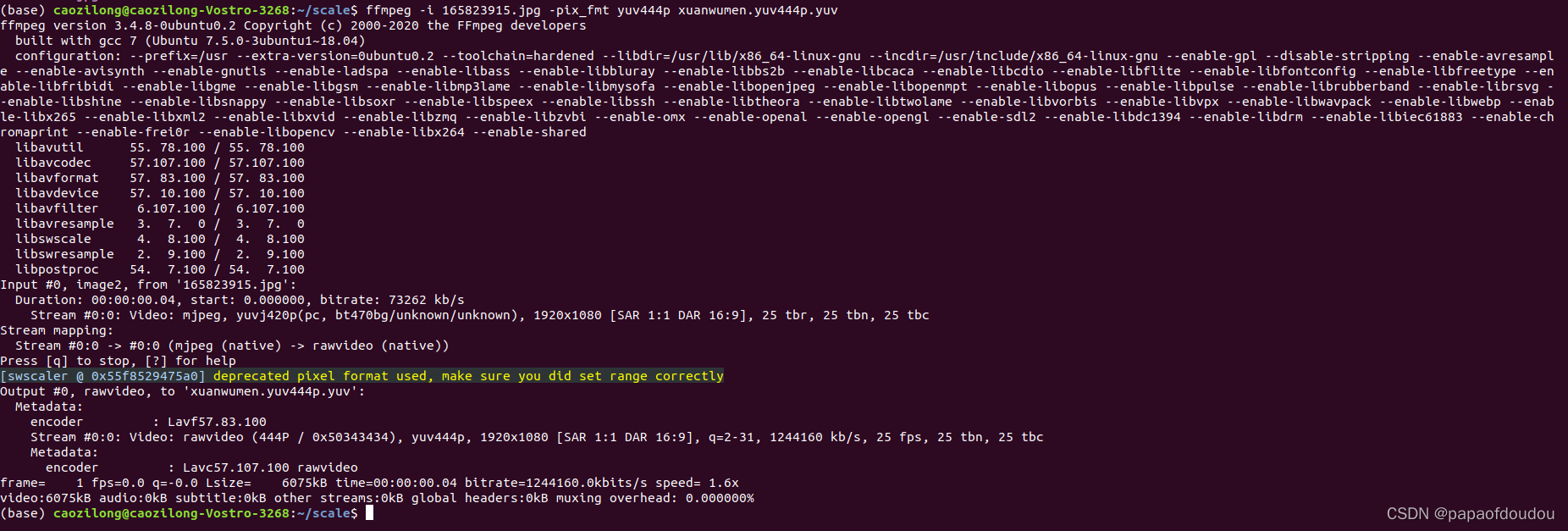

ffmpeg -i 165823915.jpg -pix_fmt yuv444p xuanwumen.yuv444p.yuv
转换后的RAW YUV图像，可以通过ffplay命令查看，只是由于这个时候没有PARSER信息，需要手动输入图像的分辨率：

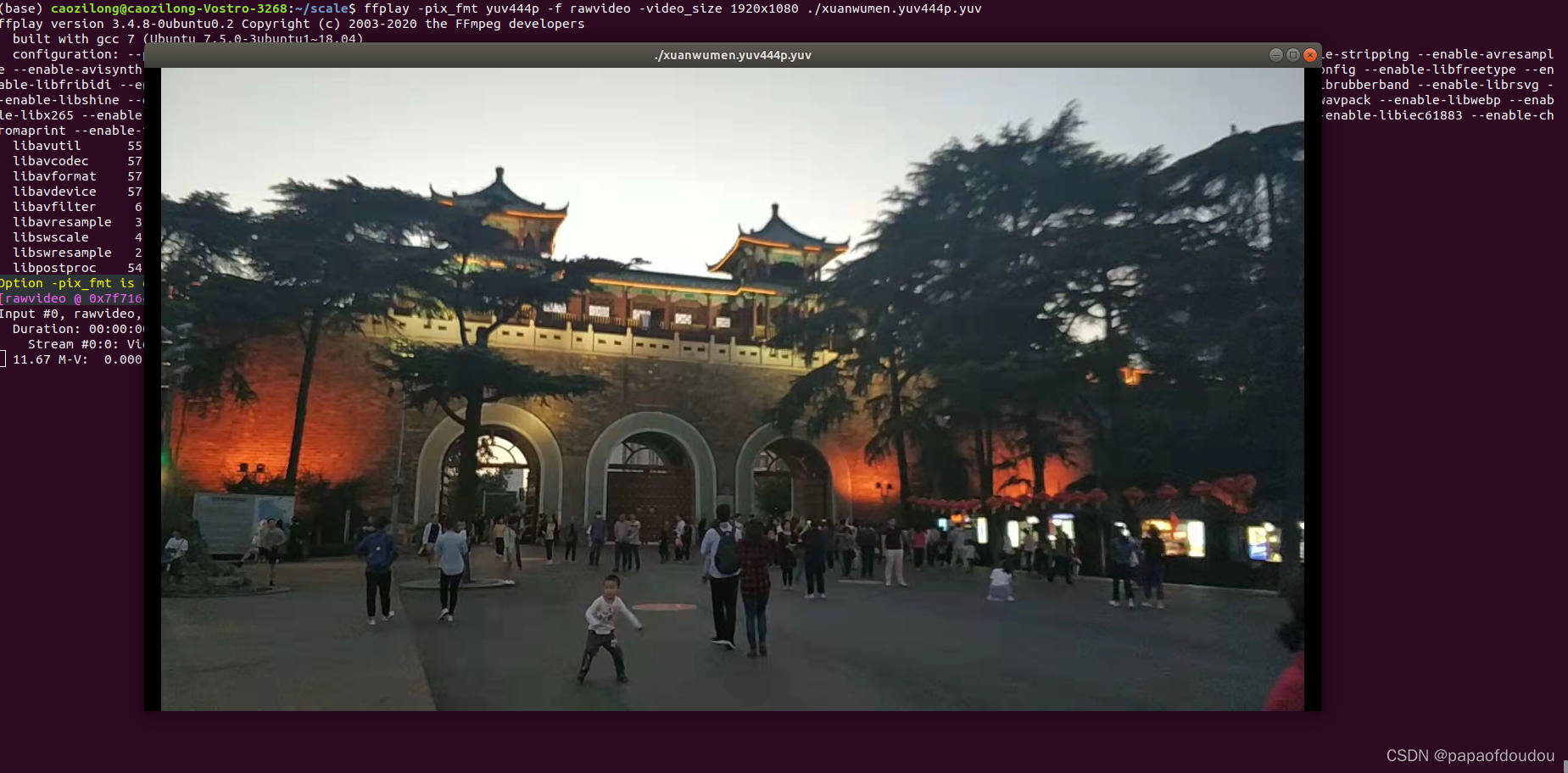

ffplay -pix_fmt yuv444p -f rawvideo -video_size 1920x1080 ./xuanwumen.yuv444p.yuv
至此，万事俱备，只欠代码了。

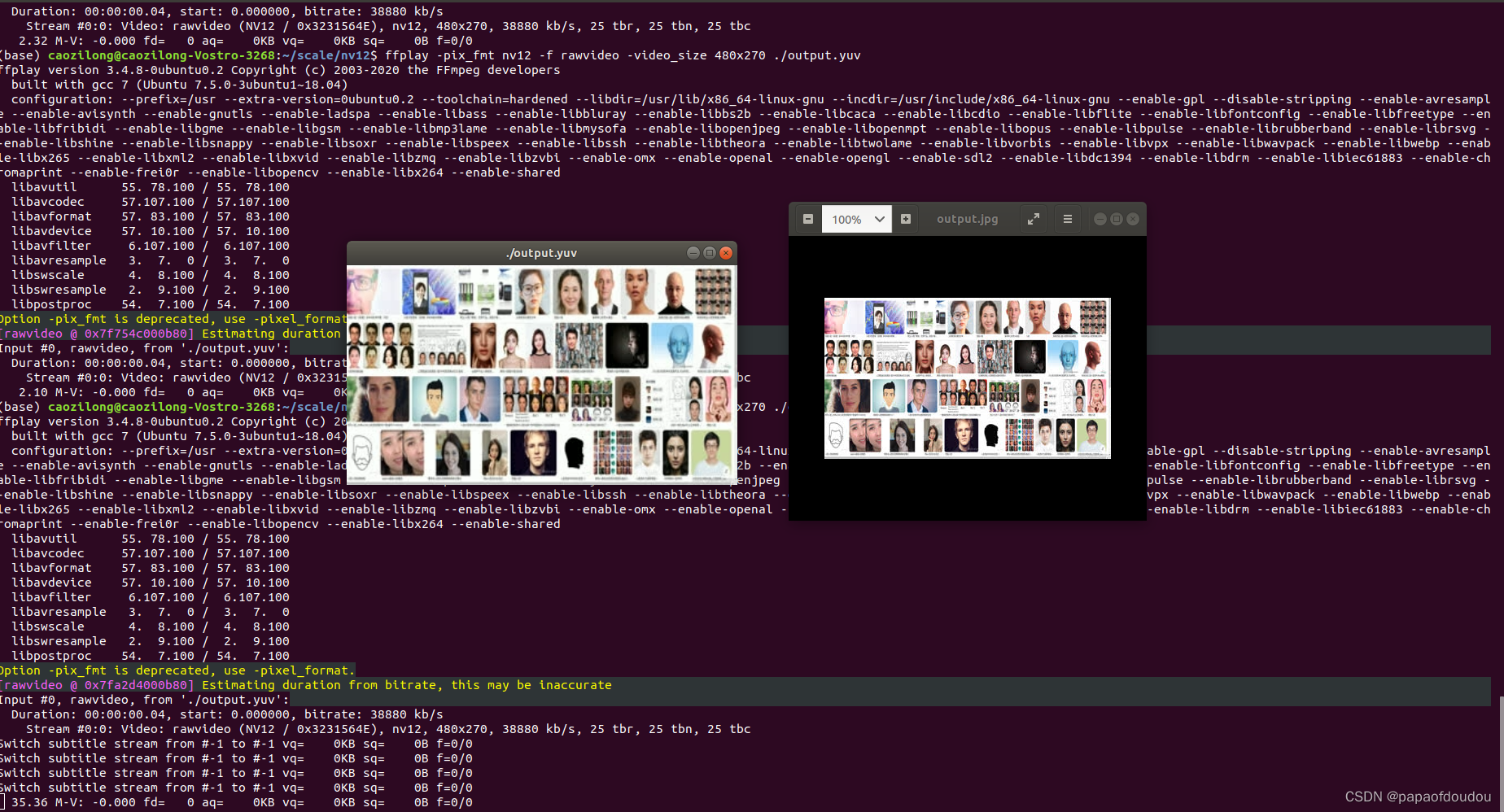

我们目的是要对YUV图作SCALE，由于YUV图形是NV12格式的，我们需要对Y和U部分和V部分分别作SCALE。
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stddef.h>
#include <stdint.h>
#include <fcntl.h>
#include <unistd.h>
#include <assert.h>
#include <sys/ioctl.h>
#define DBG(fmt, ...) do { printf("%s line %d, "fmt"\n", __func__, __LINE__, ##__VA_ARGS__); } while (0)
typedef struct image {
int w;
int h;
int c;
unsigned char *data;
} image;
static void dump_memory(uint8_t *buf, int32_t len)
{
int i;
printf("\n\rdump file memory:");
for (i = 0; i < len; i ++)
{
if ((i % 16) == 0)
{
printf("\n\r%p: ", buf + i);
}
printf("0x%02x ", buf[i]);
}
printf("\n\r");
return;
}
image make_empty_image(int w, int h, int c)
{
image out;
out.data = 0;
out.h = h;
out.w = w;
out.c = c;
return out;
}
image copy_image(image p)
{
image copy = p;
copy.data = (unsigned char*)calloc(p.h * p.w * p.c, sizeof(float));
memcpy(copy.data, p.data, p.h*p.w*p.c*sizeof(float));
return copy;
}
image make_image(int w, int h, int c)
{
image out = make_empty_image(w,h,c);
out.data = (unsigned char*)calloc(h * w * c, sizeof(char));
return out;
}
static void set_pixel(image m, int x, int y, int c, float val)
{
if (x < 0 || y < 0 || c < 0 || x >= m.w || y >= m.h || c >= m.c) return;
assert(x < m.w && y < m.h && c < m.c);
m.data[c*m.h*m.w + y*m.w + x] = val;
}
static float get_pixel(image m, int x, int y, int c)
{
assert(x < m.w && y < m.h && c < m.c);
return m.data[c*m.h*m.w + y*m.w + x];
}
void free_image(image m)
{
if(m.data){
free(m.data);
}
}
static void add_pixel(image m, int x, int y, int c, float val)
{
assert(x < m.w && y < m.h && c < m.c);
m.data[c*m.h*m.w + y*m.w + x] += val;
}
image resize_image(image im, int w, int h)
{
if (im.w == w && im.h == h) return copy_image(im);
image resized = make_image(w, h, im.c);
image part = make_image(w, im.h, im.c);
int r, c, k;
float w_scale = (float)(im.w - 1) / (w - 1);
float h_scale = (float)(im.h - 1) / (h - 1);
for(k = 0; k < im.c; ++k){
for(r = 0; r < im.h; ++r){
for(c = 0; c < w; ++c){
float val = 0;
if(c == w-1 || im.w == 1){
val = get_pixel(im, im.w-1, r, k);
} else {
float sx = c*w_scale;
int ix = (int) sx;
float dx = sx - ix;
val = (1 - dx) * get_pixel(im, ix, r, k) + dx * get_pixel(im, ix+1, r, k);
}
set_pixel(part, c, r, k, val);
}
}
}
for(k = 0; k < im.c; ++k){
for(r = 0; r < h; ++r){
float sy = r*h_scale;
int iy = (int) sy;
float dy = sy - iy;
for(c = 0; c < w; ++c){
float val = (1-dy) * get_pixel(part, c, iy, k);
set_pixel(resized, c, r, k, val);
}
if(r == h-1 || im.h == 1) continue;
for(c = 0; c < w; ++c){
float val = dy * get_pixel(part, c, iy+1, k);
add_pixel(resized, c, r, k, val);
}
}
}
free_image(part);
return resized;
}
int main(int argc, char **argv)
{
FILE *file;
int width, height;
DBG("in");
if(argc != 4)
{
DBG("input error, you should use this program like that: program xxxx.yuv width height.");
exit(-1);
}
width = atoi(argv[2]);
height = atoi(argv[3]);
DBG("scale to width %d, height %d.", width, height);
file = fopen(argv[1], "rb");
if(file == NULL)
{
DBG("fatal error, open file %s failure, please check the file status.", argv[1]);
exit(-1);
}
fseek(file, 0, SEEK_END);
int filelen = ftell(file);
DBG("file %s len %d byets.", argv[1], filelen);
unsigned char *p = malloc(filelen);
if(p == NULL)
{
DBG("malloc buffer failure for %s len %d.", argv[1], filelen);
exit(-1);
}
memset(p, 0x00, filelen);
fseek(file, 0, SEEK_SET);
if(fread(p, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
fclose(file);
dump_memory(p, 32);
dump_memory(p + filelen - 32, 32);

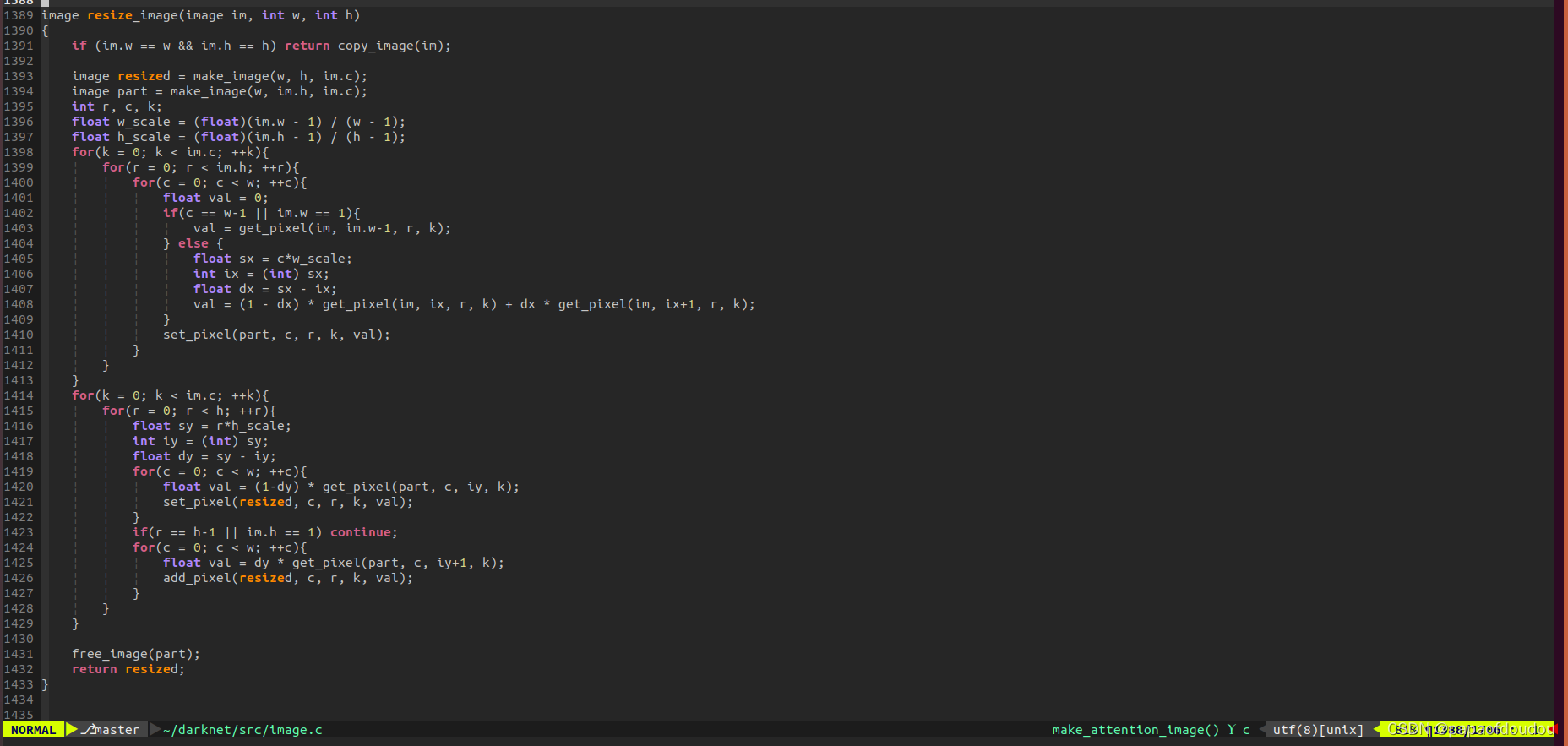

image orig_Y = make_image(1920,1080, 1);
image orig_U = make_image(1920,1080, 1);
image orig_V = make_image(1920,1080, 1);
memcpy(orig_Y.data, p + 0*1920*1080,1920*1080);
memcpy(orig_U.data, p + 1*1920*1080,1920*1080);
memcpy(orig_V.data, p + 2*1920*1080,1920*1080);
image outputy = resize_image(orig_Y, width,height);
image outputu = resize_image(orig_U, width,height);
image outputv = resize_image(orig_V, width,height);
file = fopen("./output.yuv", "wb+");
if(file == NULL)
{
DBG("fatal error, open output file failure, please check the file status.");
exit(-1);
}
unsigned char *o = malloc(width * height);
if(o == NULL)
{
DBG("malloc output buffer failure.");
exit(-1);
}
memset(o, 0x00, width * height);
memcpy(o, outputy.data, width * height);
filelen = width * height;
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
memset(o, 0xb0, width * height);
memcpy(o, outputu.data, width * height);
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
memset(o, 0xb0, width * height);
memcpy(o, outputv.data, width * height);
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
fflush(file);
fsync(fileno(file));
fclose(file);
return 0;
}执行如下命令：
$gcc main.c
$ffmpeg -i 165823915.jpg -pix_fmt yuv444p xuanwumen.yuv444p.yuv
$./a.out xuanwumen.yuv444p.yuv 352 352
$ffplay -pix_fmt yuv444p -f rawvideo -video_size 352x352 ./output.yuvSCALE 352X352后输出结果：

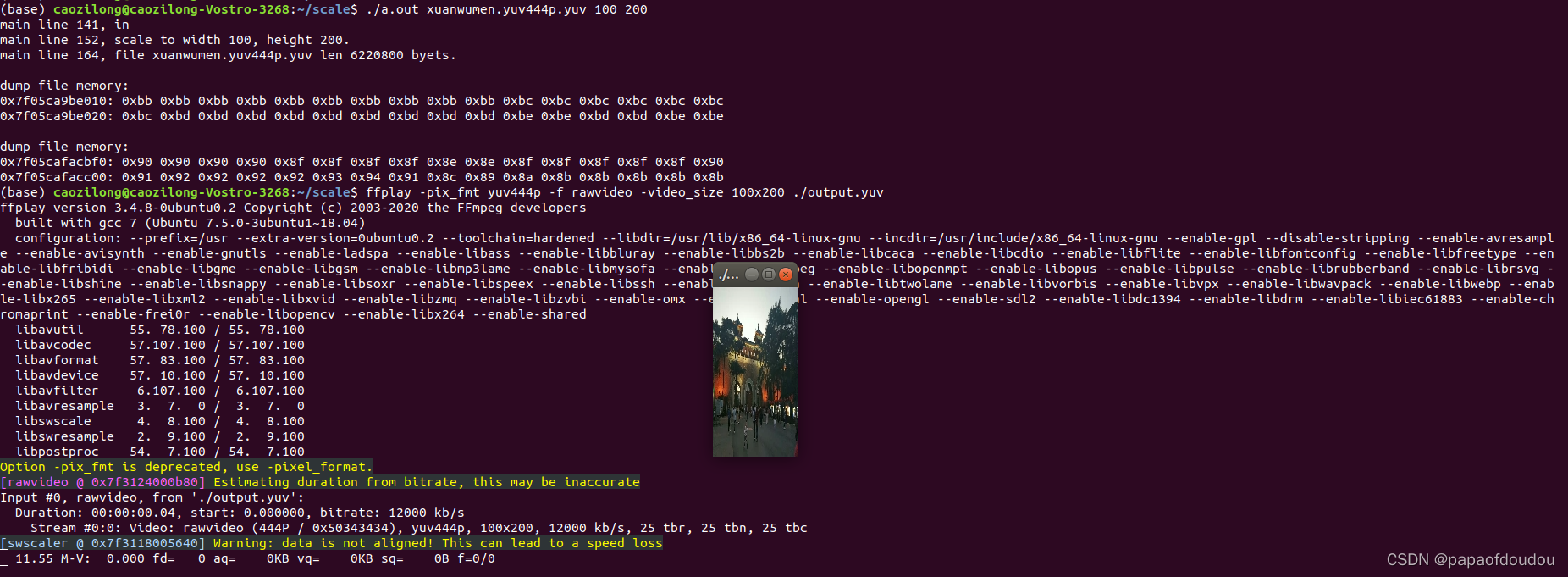

SCALE到 100*200的大小：
$./a.out xuanwumen.yuv444p.yuv 100 200
$ffplay -pix_fmt yuv444p -f rawvideo -video_size 100x200 ./output.yuv

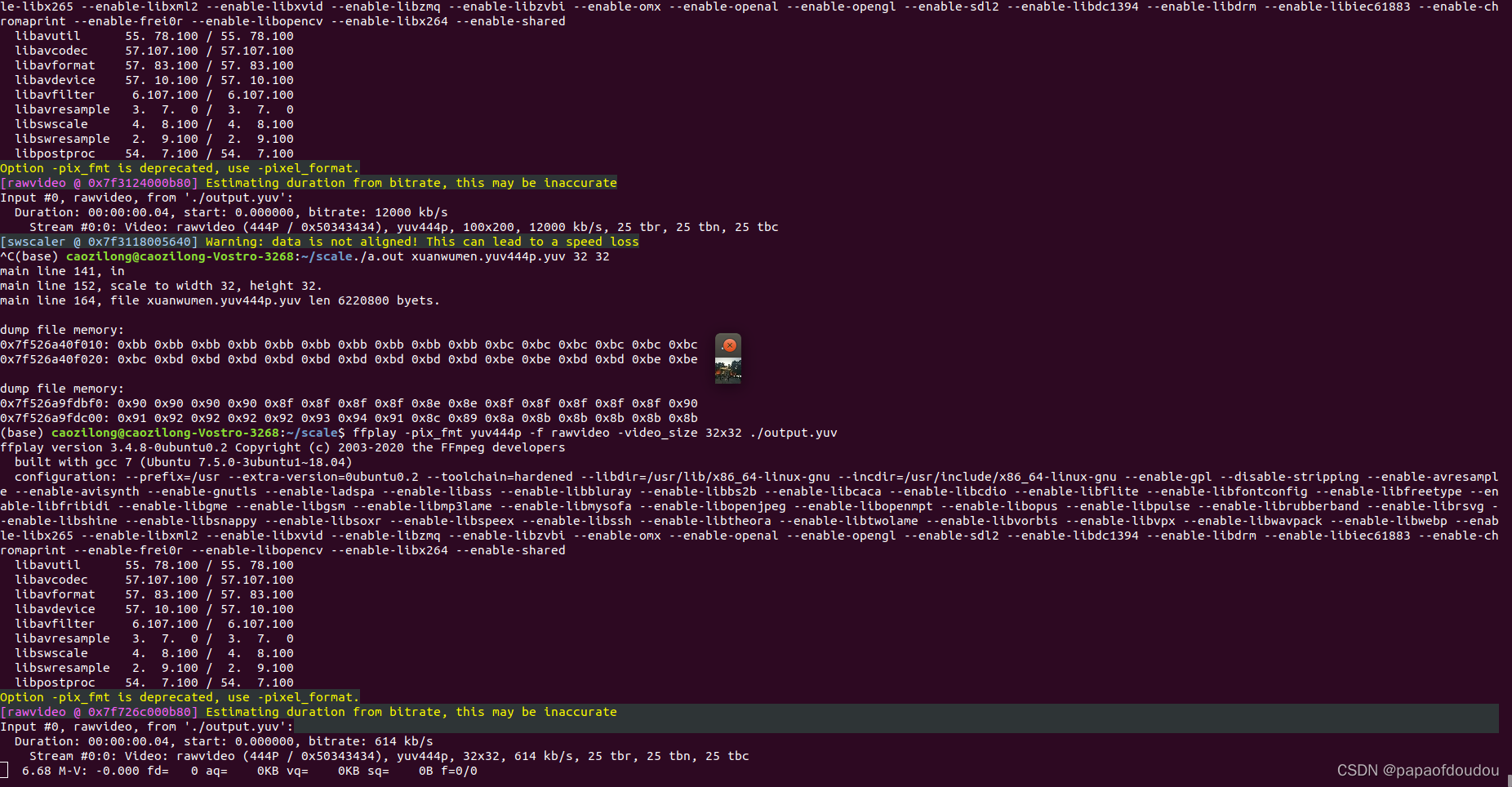

scale 32*32大小：

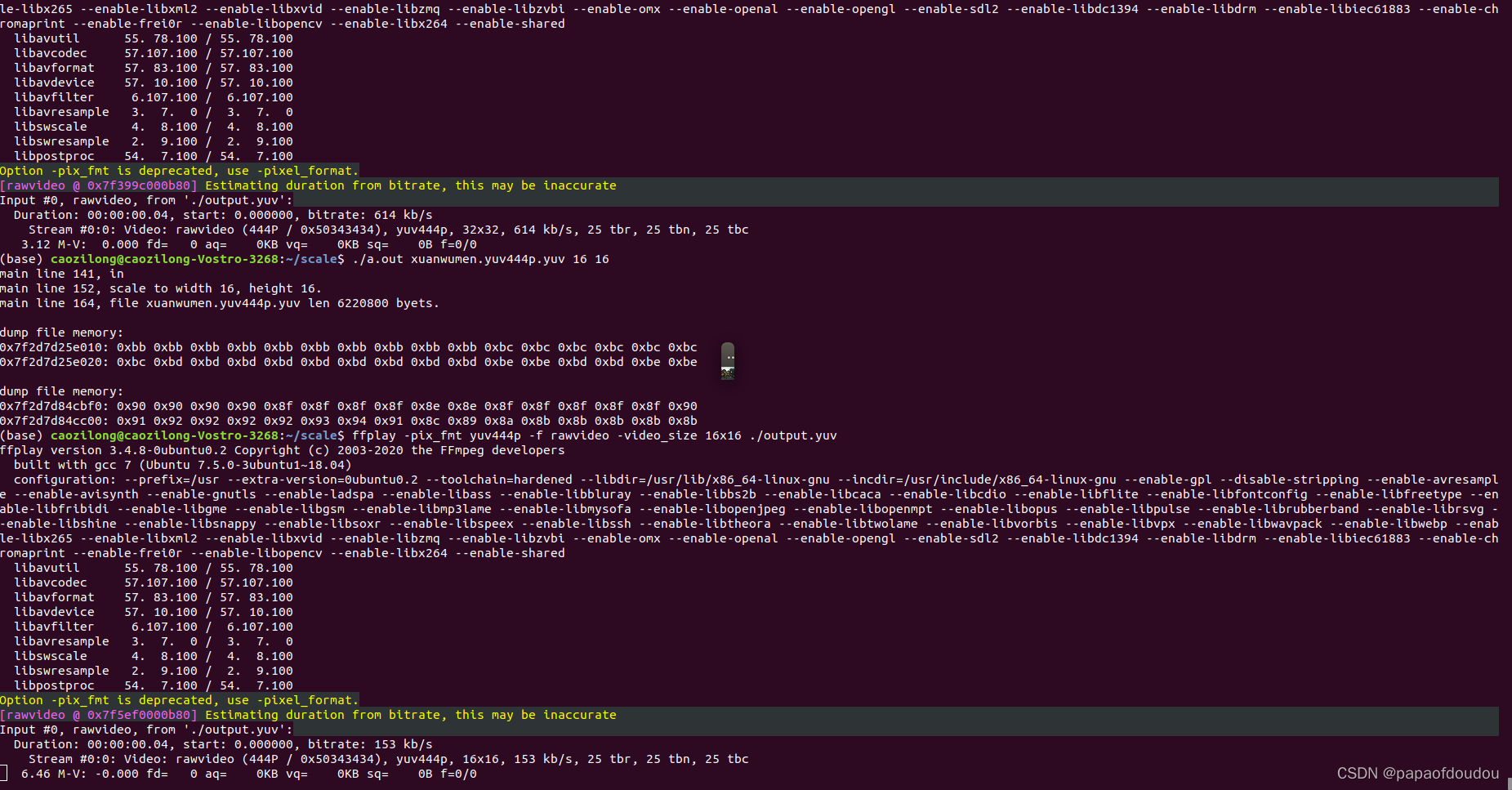

scale 16*16大小：
上面在程序中固定写死了输入图像的尺寸，这不是一个好做法，下面的程序将输入尺寸设置为可变的，由程序输入。
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stddef.h>
#include <stdint.h>
#include <fcntl.h>
#include <unistd.h>
#include <assert.h>
#include <sys/ioctl.h>
#define DBG(fmt, ...) do { printf("%s line %d, "fmt"\n", __func__, __LINE__, ##__VA_ARGS__); } while (0)
typedef struct image {
int w;
int h;
int c;
unsigned char *data;
} image;
static void dump_memory(uint8_t *buf, int32_t len)
{
int i;
printf("\n\rdump file memory:");
for (i = 0; i < len; i ++)
{
if ((i % 16) == 0)
{
printf("\n\r%p: ", buf + i);
}
printf("0x%02x ", buf[i]);
}
printf("\n\r");
return;
}
image make_empty_image(int w, int h, int c)
{
image out;
out.data = 0;
out.h = h;
out.w = w;
out.c = c;
return out;
}
image copy_image(image p)
{
image copy = p;
copy.data = (unsigned char*)calloc(p.h * p.w * p.c, sizeof(float));
memcpy(copy.data, p.data, p.h*p.w*p.c*sizeof(float));
return copy;
}
image make_image(int w, int h, int c)
{
image out = make_empty_image(w,h,c);
out.data = (unsigned char*)calloc(h * w * c, sizeof(char));
return out;
}
static void set_pixel(image m, int x, int y, int c, float val)
{
if (x < 0 || y < 0 || c < 0 || x >= m.w || y >= m.h || c >= m.c) return;
assert(x < m.w && y < m.h && c < m.c);
m.data[c*m.h*m.w + y*m.w + x] = val;
}
static float get_pixel(image m, int x, int y, int c)
{
assert(x < m.w && y < m.h && c < m.c);
return m.data[c*m.h*m.w + y*m.w + x];
}
void free_image(image m)
{
if(m.data){
free(m.data);
}
}
static void add_pixel(image m, int x, int y, int c, float val)
{
assert(x < m.w && y < m.h && c < m.c);
m.data[c*m.h*m.w + y*m.w + x] += val;
}
image resize_image(image im, int w, int h)
{
if (im.w == w && im.h == h) return copy_image(im);
image resized = make_image(w, h, im.c);
image part = make_image(w, im.h, im.c);
int r, c, k;
float w_scale = (float)(im.w - 1) / (w - 1);
float h_scale = (float)(im.h - 1) / (h - 1);
for(k = 0; k < im.c; ++k){
for(r = 0; r < im.h; ++r){
for(c = 0; c < w; ++c){
float val = 0;
if(c == w-1 || im.w == 1){
val = get_pixel(im, im.w-1, r, k);
} else {
float sx = c*w_scale;
int ix = (int) sx;
float dx = sx - ix;
val = (1 - dx) * get_pixel(im, ix, r, k) + dx * get_pixel(im, ix+1, r, k);
}
set_pixel(part, c, r, k, val);
}
}
}
for(k = 0; k < im.c; ++k){
for(r = 0; r < h; ++r){
float sy = r*h_scale;
int iy = (int) sy;
float dy = sy - iy;
for(c = 0; c < w; ++c){
float val = (1-dy) * get_pixel(part, c, iy, k);
set_pixel(resized, c, r, k, val);
}
if(r == h-1 || im.h == 1) continue;
for(c = 0; c < w; ++c){
float val = dy * get_pixel(part, c, iy+1, k);
add_pixel(resized, c, r, k, val);
}
}
}
free_image(part);
return resized;
}
int main(int argc, char **argv)
{
FILE *file;
int width, height, input_width, input_height;
DBG("in");
if(argc != 6)
{
DBG("input error, you should use this program like that: program xxxx.yuv width height.");
exit(-1);
}
width = atoi(argv[2]);
height = atoi(argv[3]);
input_width = atoi(argv[4]);
input_height = atoi(argv[5]);
DBG("scale to width %d, height %d.", width, height);
file = fopen(argv[1], "rb");
if(file == NULL)
{
DBG("fatal error, open file %s failure, please check the file status.", argv[1]);
exit(-1);
}
fseek(file, 0, SEEK_END);
int filelen = ftell(file);
DBG("file %s len %d byets.", argv[1], filelen);
unsigned char *p = malloc(filelen);
if(p == NULL)
{
DBG("malloc buffer failure for %s len %d.", argv[1], filelen);
exit(-1);
}
memset(p, 0x00, filelen);
fseek(file, 0, SEEK_SET);
if(fread(p, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
fclose(file);
dump_memory(p, 32);
dump_memory(p + filelen - 32, 32);
image orig_Y = make_image(input_width,input_height, 1);
image orig_U = make_image(input_width,input_height, 1);
image orig_V = make_image(input_width,input_height, 1);
memcpy(orig_Y.data, p + 0*input_width*input_height,input_width*input_height);
memcpy(orig_U.data, p + 1*input_width*input_height,input_width*input_height);
memcpy(orig_V.data, p + 2*input_width*input_height,input_width*input_height);
image outputy = resize_image(orig_Y, width,height);
image outputu = resize_image(orig_U, width,height);
image outputv = resize_image(orig_V, width,height);
file = fopen("./output.yuv", "wb+");
if(file == NULL)
{
DBG("fatal error, open output file failure, please check the file status.");
exit(-1);
}
unsigned char *o = malloc(width * height);
if(o == NULL)
{
DBG("malloc output buffer failure.");
exit(-1);
}
memset(o, 0x00, width * height);
memcpy(o, outputy.data, width * height);
filelen = width * height;
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
memset(o, 0xb0, width * height);
memcpy(o, outputu.data, width * height);
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
memset(o, 0xb0, width * height);
memcpy(o, outputv.data, width * height);
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
fflush(file);
fsync(fileno(file));
fclose(file);
return 0;
}拓展
ffmpeg是图像除了领域的瑞士军刀，总是在最关键的地方发挥关键的作用。上面我们用FFMPEG命令对图像的像素格式进行转换，那么FFMPEG支持哪些像素格式之间的转换呢？貌似HELP命令或者帮助文档中没有给出明显的信息，只能看代码了，根据关键词"YUV444P",我们在pixdesc.c中找到了AVPixFmtDescriptor这个结构体的定义，根据名字来看，我们找的是正确的：

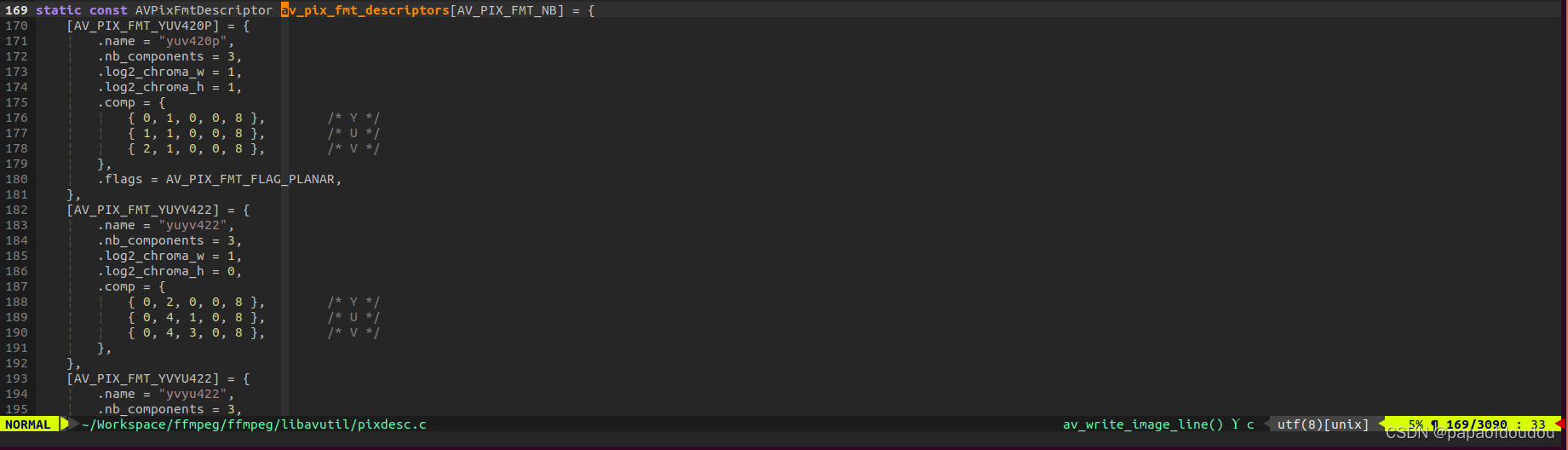

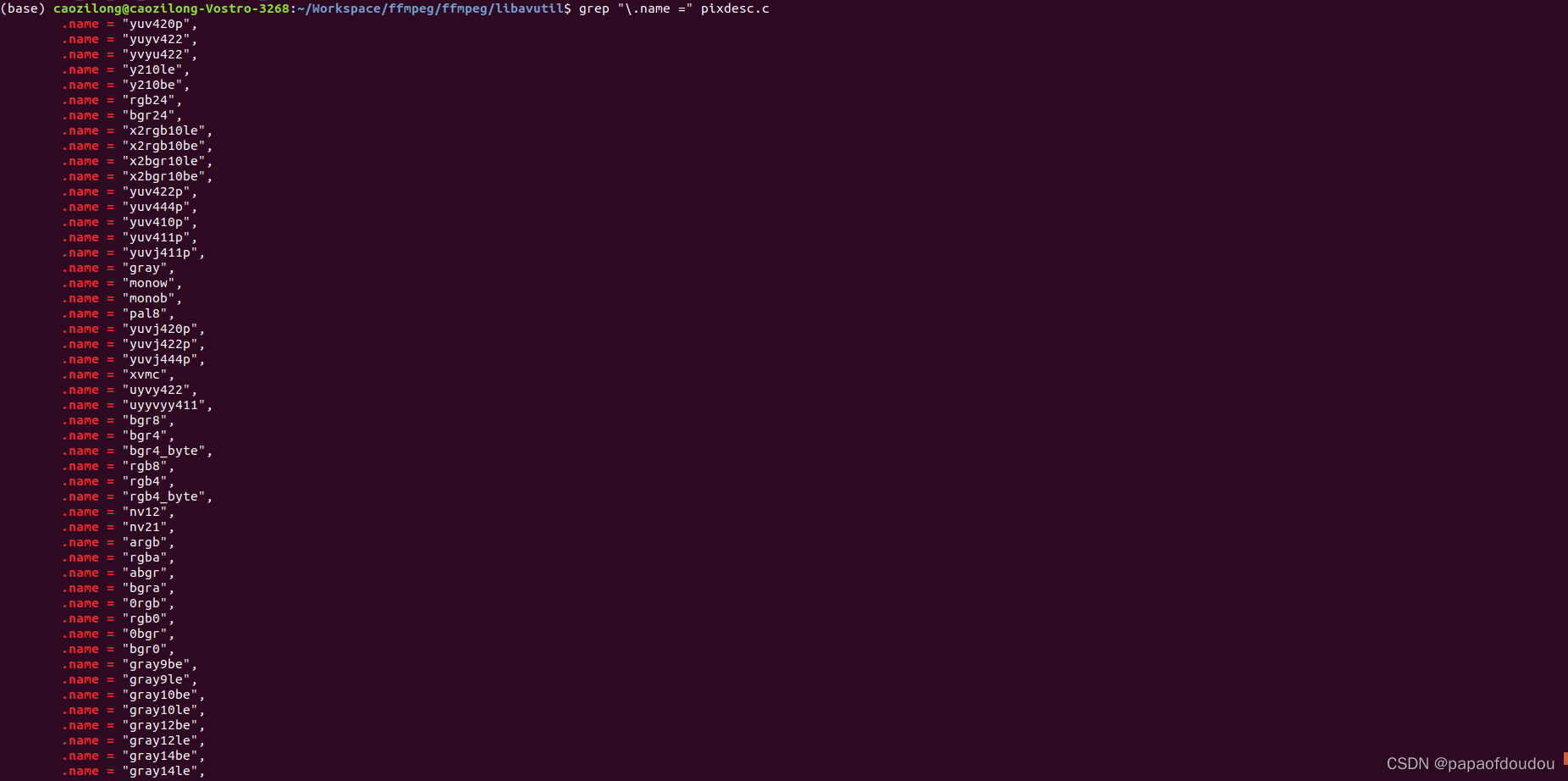

经过整理后，得到的像素格式结果如下，竟然有这么多。
.name = "yuv420p",
.name = "yuyv422",
.name = "yvyu422",
.name = "y210le",
.name = "y210be",
.name = "rgb24",
.name = "bgr24",
.name = "x2rgb10le",
.name = "x2rgb10be",
.name = "x2bgr10le",
.name = "x2bgr10be",
.name = "yuv422p",
.name = "yuv444p",
.name = "yuv410p",
.name = "yuv411p",
.name = "yuvj411p",
.name = "gray",
.name = "monow",
.name = "monob",
.name = "pal8",
.name = "yuvj420p",
.name = "yuvj422p",
.name = "yuvj444p",
.name = "xvmc",
.name = "uyvy422",
.name = "uyyvyy411",
.name = "bgr8",
.name = "bgr4",
.name = "bgr4_byte",
.name = "rgb8",
.name = "rgb4",
.name = "rgb4_byte",
.name = "nv12",
.name = "nv21",
.name = "argb",
.name = "rgba",
.name = "abgr",
.name = "bgra",
.name = "0rgb",
.name = "rgb0",
.name = "0bgr",
.name = "bgr0",
.name = "gray9be",
.name = "gray9le",
.name = "gray10be",
.name = "gray10le",
.name = "gray12be",
.name = "gray12le",
.name = "gray14be",
.name = "gray14le",
.name = "gray16be",
.name = "gray16le",
.name = "yuv440p",
.name = "yuvj440p",
.name = "yuv440p10le",
.name = "yuv440p10be",
.name = "yuv440p12le",
.name = "yuv440p12be",
.name = "yuva420p",
.name = "yuva422p",
.name = "yuva444p",
.name = "yuva420p9be",
.name = "yuva420p9le",
.name = "yuva422p9be",
.name = "yuva422p9le",
.name = "yuva444p9be",
.name = "yuva444p9le",
.name = "yuva420p10be",
.name = "yuva420p10le",
.name = "yuva422p10be",
.name = "yuva422p10le",
.name = "yuva444p10be",
.name = "yuva444p10le",
.name = "yuva420p16be",
.name = "yuva420p16le",
.name = "yuva422p16be",
.name = "yuva422p16le",
.name = "yuva444p16be",
.name = "yuva444p16le",
.name = "rgb48be",
.name = "rgb48le",
.name = "rgba64be",
.name = "rgba64le",
.name = "rgb565be",
.name = "rgb565le",
.name = "rgb555be",
.name = "rgb555le",
.name = "rgb444be",
.name = "rgb444le",
.name = "bgr48be",
.name = "bgr48le",
.name = "bgra64be",
.name = "bgra64le",
.name = "bgr565be",
.name = "bgr565le",
.name = "bgr555be",
.name = "bgr555le",
.name = "bgr444be",
.name = "bgr444le",
.name = "vaapi",
.name = "yuv420p9le",
.name = "yuv420p9be",
.name = "yuv420p10le",
.name = "yuv420p10be",
.name = "yuv420p12le",
.name = "yuv420p12be",
.name = "yuv420p14le",
.name = "yuv420p14be",
.name = "yuv420p16le",
.name = "yuv420p16be",
.name = "yuv422p9le",
.name = "yuv422p9be",
.name = "yuv422p10le",
.name = "yuv422p10be",
.name = "yuv422p12le",
.name = "yuv422p12be",
.name = "yuv422p14le",
.name = "yuv422p14be",
.name = "yuv422p16le",
.name = "yuv422p16be",
.name = "yuv444p16le",
.name = "yuv444p16be",
.name = "yuv444p10le",
.name = "yuv444p10be",
.name = "yuv444p9le",
.name = "yuv444p9be",
.name = "yuv444p12le",
.name = "yuv444p12be",
.name = "yuv444p14le",
.name = "yuv444p14be",
.name = "d3d11va_vld",
.name = "dxva2_vld",
.name = "ya8",
.name = "ya16le",
.name = "ya16be",
.name = "videotoolbox_vld",
.name = "gbrp",
.name = "gbrp9le",
.name = "gbrp9be",
.name = "gbrp10le",
.name = "gbrp10be",
.name = "gbrp12le",
.name = "gbrp12be",
.name = "gbrp14le",
.name = "gbrp14be",
.name = "gbrp16le",
.name = "gbrp16be",
.name = "gbrap",
.name = "gbrap16le",
.name = "gbrap16be",
.name = "vdpau",
.name = "xyz12le",
.name = "xyz12be",
.name = "bayer_bggr8",
.name = "bayer_bggr16le",
.name = "bayer_bggr16be",
.name = "bayer_rggb8",
.name = "bayer_rggb16le",
.name = "bayer_rggb16be",
.name = "bayer_gbrg8",
.name = "bayer_gbrg16le",
.name = "bayer_gbrg16be",
.name = "bayer_grbg8",
.name = "bayer_grbg16le",
.name = "bayer_grbg16be",
.name = "nv16",
.name = "nv20le",
.name = "nv20be",
.name = "qsv",
.name = "mediacodec",
.name = "mmal",
.name = "cuda",
.name = "ayuv64le",
.name = "ayuv64be",
.name = "p010le",
.name = "p010be",
.name = "p016le",
.name = "p016be",
.name = "gbrap12le",
.name = "gbrap12be",
.name = "gbrap10le",
.name = "gbrap10be",
.name = "d3d11",
.name = "gbrpf32be",
.name = "gbrpf32le",
.name = "gbrapf32be",
.name = "gbrapf32le",
.name = "drm_prime",
.name = "grayf32be",
.name = "grayf32le",
.name = "yuva422p12be",
.name = "yuva422p12le",
.name = "yuva444p12be",
.name = "yuva444p12le",
.name = "nv24",
.name = "nv42",
.name = "vulkan",
.name = "p210be",
.name = "p210le",
.name = "p410be",
.name = "p410le",
.name = "p216be",
.name = "p216le",
.name = "p416be",
.name = "p416le",
以ARGB为例：
ffmpeg -i 165823915.jpg -pix_fmt argb xuanwumen.rgb
ffplay -pix_fmt argb -f rawvideo -video_size 1920x1080 xuanwumen.rgb
NV12格式缩放
前面验证的都是测试YUV三planner数据长度相等的格式，下面验证一下NV12。
首先，将一张图像转为NV12格式：
ffmpeg -i e253d6bd7ac64bde9e7f1fb09dc908b2.png -vf scale=1920:1080 output.jpg
ffmpeg -i output.jpg -pix_fmt nv12 sousuo.nv12.yuv

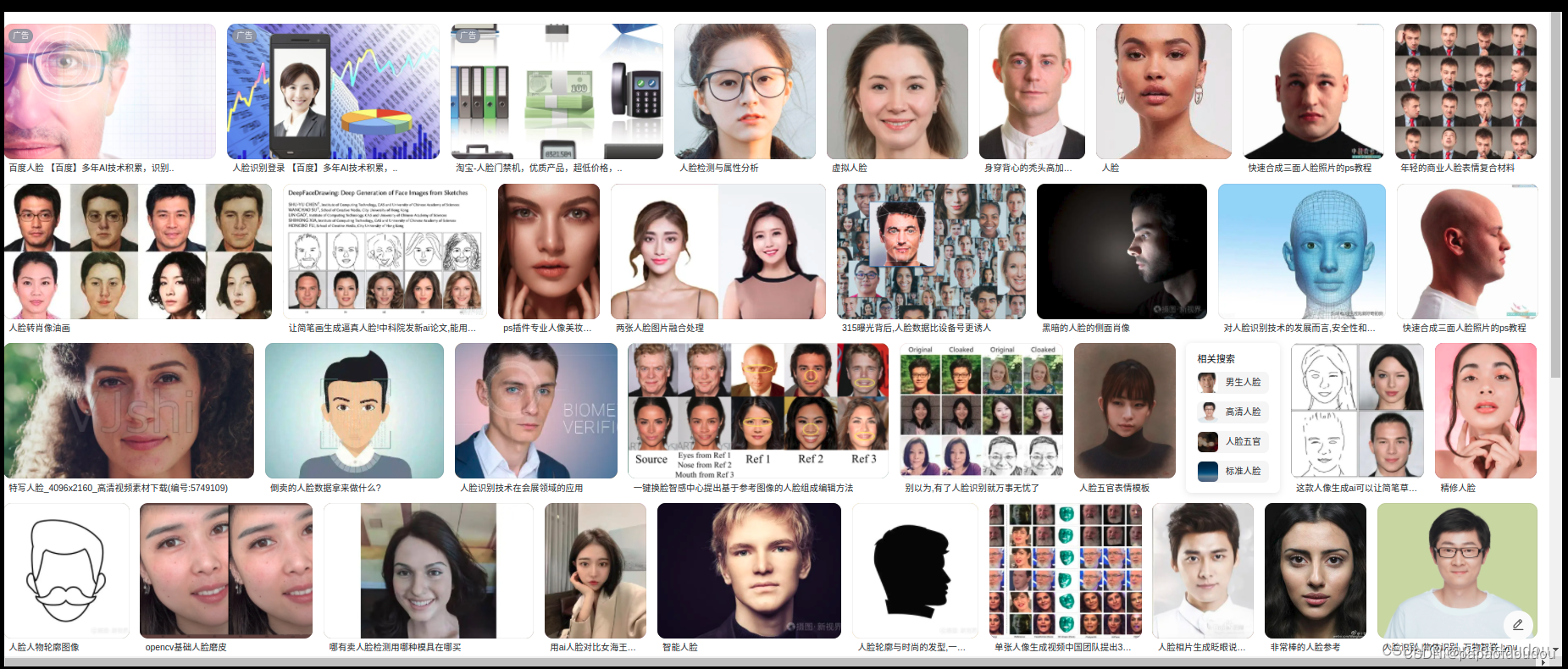

原图如下：
转为1920X1080的YUV后如下：
ffplay -pix_fmt nv12 -f rawvideo -video_size 1920x1080 ./sousuo.nv12.yuv
运行NV12缩放程序,将1920X1080的NV12转换为1280X720的NV12
./a.out sousuo.nv12.yuv 1280 720 1920 1080#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stddef.h>
#include <stdint.h>
#include <fcntl.h>
#include <unistd.h>
#include <assert.h>
#include <sys/ioctl.h>
#define DBG(fmt, ...) do { printf("%s line %d, "fmt"\n", __func__, __LINE__, ##__VA_ARGS__); } while (0)
typedef struct image {
int w;
int h;
int c;
unsigned char *data;
} image;
static void dump_memory(uint8_t *buf, int32_t len)
{
int i;
printf("\n\rdump file memory:");
for (i = 0; i < len; i ++)
{
if ((i % 16) == 0)
{
printf("\n\r%p: ", buf + i);
}
printf("0x%02x ", buf[i]);
}
printf("\n\r");
return;
}
image make_empty_image(int w, int h, int c)
{
image out;
out.data = 0;
out.h = h;
out.w = w;
out.c = c;
return out;
}
image copy_image(image p)
{
image copy = p;
copy.data = (unsigned char*)calloc(p.h * p.w * p.c, sizeof(float));
memcpy(copy.data, p.data, p.h*p.w*p.c*sizeof(float));
return copy;
}
image make_image(int w, int h, int c)
{
image out = make_empty_image(w,h,c);
out.data = (unsigned char*)calloc(h * w * c, sizeof(char));
return out;
}
static void set_pixel(image m, int x, int y, int c, float val)
{
if (x < 0 || y < 0 || c < 0 || x >= m.w || y >= m.h || c >= m.c) return;
assert(x < m.w && y < m.h && c < m.c);
m.data[c*m.h*m.w + y*m.w + x] = val;
}
static float get_pixel(image m, int x, int y, int c)
{
assert(x < m.w && y < m.h && c < m.c);
return m.data[c*m.h*m.w + y*m.w + x];
}
void free_image(image m)
{
if(m.data){
free(m.data);
}
}
static void add_pixel(image m, int x, int y, int c, float val)
{
assert(x < m.w && y < m.h && c < m.c);
m.data[c*m.h*m.w + y*m.w + x] += val;
}
image resize_image(image im, int w, int h)
{
if (im.w == w && im.h == h) return copy_image(im);
image resized = make_image(w, h, im.c);
image part = make_image(w, im.h, im.c);
int r, c, k;
float w_scale = (float)(im.w - 1) / (w - 1);
float h_scale = (float)(im.h - 1) / (h - 1);
for(k = 0; k < im.c; ++k){
for(r = 0; r < im.h; ++r){
for(c = 0; c < w; ++c){
float val = 0;
if(c == w-1 || im.w == 1){
val = get_pixel(im, im.w-1, r, k);
} else {
float sx = c*w_scale;
int ix = (int) sx;
float dx = sx - ix;
val = (1 - dx) * get_pixel(im, ix, r, k) + dx * get_pixel(im, ix+1, r, k);
}
set_pixel(part, c, r, k, val);
}
}
}
for(k = 0; k < im.c; ++k){
for(r = 0; r < h; ++r){
float sy = r*h_scale;
int iy = (int) sy;
float dy = sy - iy;
for(c = 0; c < w; ++c){
float val = (1-dy) * get_pixel(part, c, iy, k);
set_pixel(resized, c, r, k, val);
}
if(r == h-1 || im.h == 1) continue;
for(c = 0; c < w; ++c){
float val = dy * get_pixel(part, c, iy+1, k);
add_pixel(resized, c, r, k, val);
}
}
}
free_image(part);
return resized;
}
int main(int argc, char **argv)
{
FILE *file;
int width, height, input_width, input_height;
DBG("in");
if(argc != 6)
{
DBG("input error, you should use this program like that: program xxxx.yuv width height.");
exit(-1);
}
width = atoi(argv[2]);
height = atoi(argv[3]);
input_width = atoi(argv[4]);
input_height = atoi(argv[5]);
DBG("scale to width %d, height %d.", width, height);
file = fopen(argv[1], "rb");
if(file == NULL)
{
DBG("fatal error, open file %s failure, please check the file status.", argv[1]);
exit(-1);
}
fseek(file, 0, SEEK_END);
int filelen = ftell(file);
DBG("file %s len %d byets.", argv[1], filelen);
unsigned char *p = malloc(filelen);
if(p == NULL)
{
DBG("malloc buffer failure for %s len %d.", argv[1], filelen);
exit(-1);
}
memset(p, 0x00, filelen);
fseek(file, 0, SEEK_SET);
if(fread(p, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
fclose(file);
dump_memory(p, 32);
dump_memory(p + filelen - 32, 32);
image orig_Y = make_image(input_width,input_height, 1);
image orig_U = make_image(input_width/2,input_height/2, 1);
image orig_V = make_image(input_width/2,input_height/2, 1);
memcpy(orig_Y.data, p + 0*input_width*input_height,input_width*input_height);
/*memcpy(orig_U.data, p + 1*input_width*input_height,input_width*input_height/4);*/
/*memcpy(orig_V.data, p + input_width*input_height *5/4,input_width*input_height/4);*/
int i;
int j = 0, k = 0;
for(i = input_width * input_height; i < input_width * input_height * 3 /2 ; i ++)
{
if(i % 2 == 0)
orig_V.data[j++] = p[i];
else
orig_U.data[k++] = p[i];
}
image outputy = resize_image(orig_Y, width,height);
image outputu = resize_image(orig_U, width/2,height/2);
image outputv = resize_image(orig_V, width/2,height/2);
int ksize = width * height / 2;
unsigned char *uv = malloc(ksize);
memset(uv, 0x00, ksize);
j = k = 0;
for(i = 0; i < ksize; i ++)
{
if(i % 2 == 0)
uv[i] = outputv.data[j++];
else
uv[i] = outputu.data[k++];
}
file = fopen("./output.yuv", "wb+");
if(file == NULL)
{
DBG("fatal error, open output file failure, please check the file status.");
exit(-1);
}
unsigned char *o = malloc(width * height);
if(o == NULL)
{
DBG("malloc output buffer failure.");
exit(-1);
}
memset(o, 0x00, width * height);
memcpy(o, outputy.data, width * height);
filelen = width * height;
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
filelen = ksize;
memset(o, 0xb0, filelen);
memcpy(o, uv, filelen);
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
#if 0
memset(o, 0xb0, filelen);
memcpy(o, outputv.data, filelen);
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
#endif
fflush(file);
fsync(fileno(file));
fclose(file);
return 0;
}输出output.yuv,执行如下命令查看，缩放效果真的不错！
ffplay -pix_fmt nv12 -f rawvideo -video_size 1280x720 ./output.yuv
480/270->352/198
ffmpeg -i e253d6bd7ac64bde9e7f1fb09dc908b2.png -vf scale=480:270 output.jpg
ffmpeg -i output.jpg -pix_fmt nv12 sousuo.nv12.yuv
ffplay -pix_fmt nv12 -f rawvideo -video_size 480x270 ./sousuo.nv12.yuv
./a.out sousuo.nv12.yuv 352 198 480 270

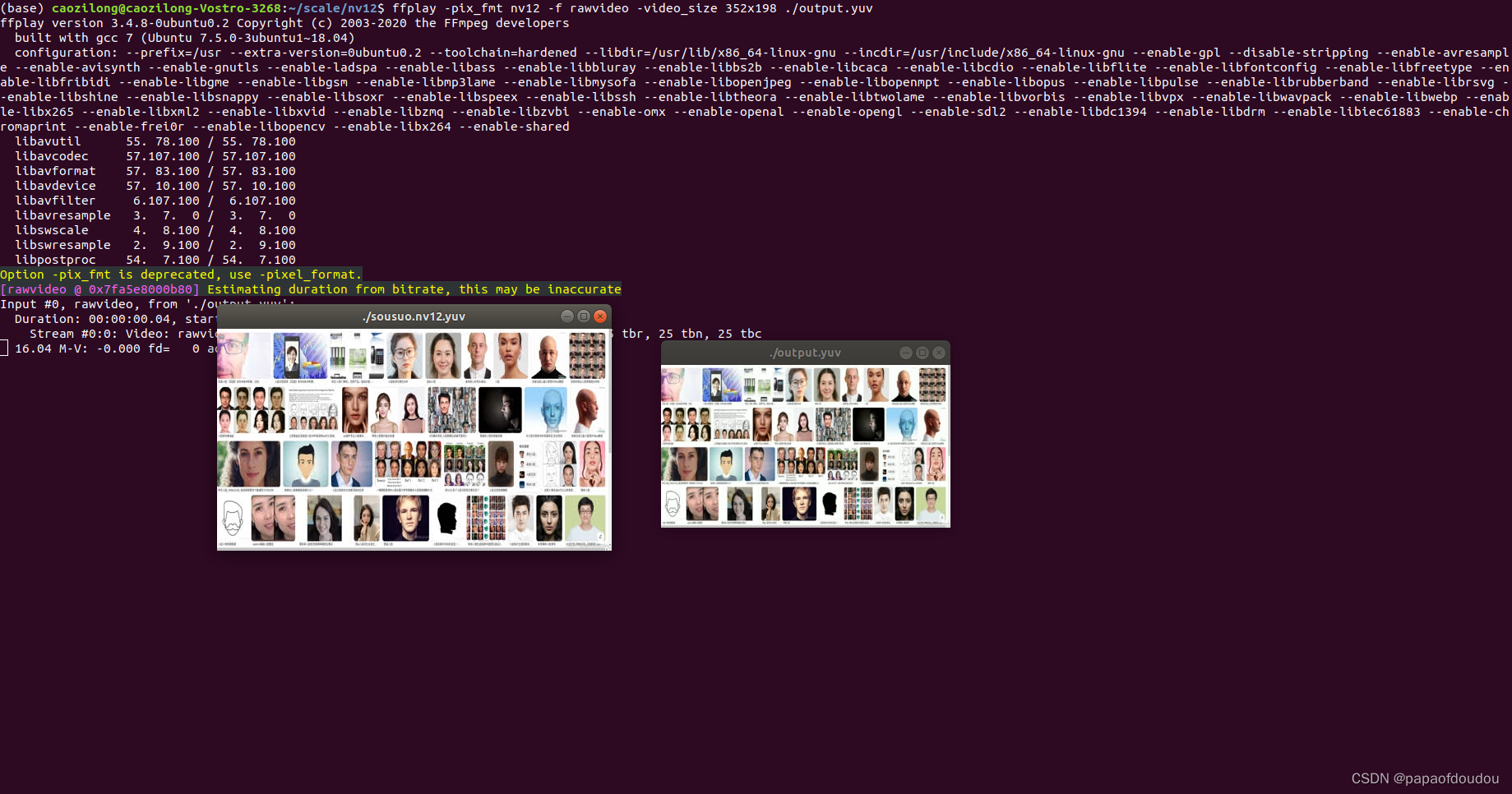

ffplay -pix_fmt nv12 -f rawvideo -video_size 352x198 ./output.yuv
352/198->480/270
ffmpeg -i e253d6bd7ac64bde9e7f1fb09dc908b2.png -vf scale=352:198 output.jpg
ffmpeg -i output.jpg -pix_fmt nv12 sousuo.nv12.yuv
ffplay -pix_fmt nv12 -f rawvideo -video_size 352x198 ./sousuo.nv12.yuv
./a.out sousuo.nv12.yuv 480 270 352 198
ffplay -pix_fmt nv12 -f rawvideo -video_size 480x270 ./output.yuv
在某款嵌入式平台上成功应用的scale算法
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stddef.h>
#include <stdint.h>
#include <fcntl.h>
#include <unistd.h>
#include <assert.h>
#include <sys/ioctl.h>
#define DBG(fmt, ...) do { printf("%s line %d, "fmt"\n", __func__, __LINE__, ##__VA_ARGS__); } while (0)
typedef struct image {
int w;
int h;
int c;
unsigned char *data;
} image;
static void dump_memory(uint8_t *buf, int32_t len)
{
int i;
printf("\n\rdump file memory:");
for (i = 0; i < len; i ++)
{
if ((i % 16) == 0)
{
printf("\n\r%p: ", buf + i);
}
printf("0x%02x ", buf[i]);
}
printf("\n\r");
return;
}
image make_empty_image(int w, int h, int c)
{
image out;
out.data = 0;
out.h = h;
out.w = w;
out.c = c;
return out;
}
image copy_image(image p)
{
image copy = p;
copy.data = (unsigned char*)calloc(p.h * p.w * p.c, sizeof(float));
memcpy(copy.data, p.data, p.h*p.w*p.c*sizeof(float));
return copy;
}
image make_image(int w, int h, int c)
{
image out = make_empty_image(w,h,c);
out.data = (unsigned char*)calloc(h * w * c, sizeof(char));
return out;
}
static void set_pixel(image m, int x, int y, int c, float val)
{
if (x < 0 || y < 0 || c < 0 || x >= m.w || y >= m.h || c >= m.c) return;
assert(x < m.w && y < m.h && c < m.c);
m.data[c*m.h*m.w + y*m.w + x] = val;
}
static float get_pixel(image m, int x, int y, int c)
{
assert(x < m.w && y < m.h && c < m.c);
return m.data[c*m.h*m.w + y*m.w + x];
}
void free_image(image m)
{
if(m.data){
free(m.data);
}
}
static void add_pixel(image m, int x, int y, int c, float val)
{
assert(x < m.w && y < m.h && c < m.c);
m.data[c*m.h*m.w + y*m.w + x] += val;
}
image resize_image(image im, int w, int h)
{
if (im.w == w && im.h == h) return copy_image(im);
image resized = make_image(w, h, im.c);
image part = make_image(w, im.h, im.c);
int r, c, k;
float w_scale = (float)(im.w - 1) / (w - 1);
float h_scale = (float)(im.h - 1) / (h - 1);
for(k = 0; k < im.c; ++k){
for(r = 0; r < im.h; ++r){
for(c = 0; c < w; ++c){
float val = 0;
if(c == w-1 || im.w == 1){
val = get_pixel(im, im.w-1, r, k);
} else {
float sx = c*w_scale;
int ix = (int) sx;
float dx = sx - ix;
val = (1 - dx) * get_pixel(im, ix, r, k) + dx * get_pixel(im, ix+1, r, k);
}
set_pixel(part, c, r, k, val);
}
}
}
for(k = 0; k < im.c; ++k){
for(r = 0; r < h; ++r){
float sy = r*h_scale;
int iy = (int) sy;
float dy = sy - iy;
for(c = 0; c < w; ++c){
float val = (1-dy) * get_pixel(part, c, iy, k);
set_pixel(resized, c, r, k, val);
}
if(r == h-1 || im.h == 1) continue;
for(c = 0; c < w; ++c){
float val = dy * get_pixel(part, c, iy+1, k);
add_pixel(resized, c, r, k, val);
}
}
}
free_image(part);
return resized;
}
int main(int argc, char **argv)
{
FILE *file;
int width, height, input_width, input_height;
DBG("in");
if(argc != 6)
{
DBG("input error, you should use this program like that: program xxxx.yuv width height.");
exit(-1);
}
width = atoi(argv[2]);
height = atoi(argv[3]);
input_width = atoi(argv[4]);
input_height = atoi(argv[5]);
DBG("scale to width %d, height %d.", width, height);
file = fopen(argv[1], "rb");
if(file == NULL)
{
DBG("fatal error, open file %s failure, please check the file status.", argv[1]);
exit(-1);
}
fseek(file, 0, SEEK_END);
int filelen = ftell(file);
DBG("file %s len %d byets.", argv[1], filelen);
unsigned char *p = malloc(filelen);
if(p == NULL)
{
DBG("malloc buffer failure for %s len %d.", argv[1], filelen);
exit(-1);
}
memset(p, 0x00, filelen);
fseek(file, 0, SEEK_SET);
if(fread(p, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
fclose(file);
dump_memory(p, 32);
dump_memory(p + filelen - 32, 32);
image orig_Y = make_image(input_width,input_height, 1);
image orig_U = make_image(input_width/2,input_height/2, 1);
image orig_V = make_image(input_width/2,input_height/2, 1);
memcpy(orig_Y.data, p + 0*input_width*input_height,input_width*input_height);
/*memcpy(orig_U.data, p + 1*input_width*input_height,input_width*input_height/4);*/
/*memcpy(orig_V.data, p + input_width*input_height *5/4,input_width*input_height/4);*/
int i;
int j = 0, k = 0;
for(i = input_width * input_height; i < input_width * input_height * 3 /2 ; i ++)
{
if(i % 2 == 0)
orig_U.data[j++] = p[i];
else
orig_V.data[k++] = p[i];
}
image outputy = resize_image(orig_Y, width,height);
image outputu = resize_image(orig_U, width/2,height/2);
image outputv = resize_image(orig_V, width/2,height/2);
int ksize = width * height / 2;
unsigned char *uv = malloc(ksize);
memset(uv, 0x00, ksize);
j = k = 0;
for(i = 0; i < ksize; i ++)
{
if(i % 2 == 0)
uv[i] = outputu.data[j++];
else
uv[i] = outputv.data[k++];
}
file = fopen("./output.yuv", "wb+");
if(file == NULL)
{
DBG("fatal error, open output file failure, please check the file status.");
exit(-1);
}
unsigned char *o = malloc(width * height);
if(o == NULL)
{
DBG("malloc output buffer failure.");
exit(-1);
}
memset(o, 0x00, width * height);
memcpy(o, outputy.data, width * height);
filelen = width * height;
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
filelen = ksize;
memset(o, 0xb0, filelen);
memcpy(o, uv, filelen);
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
#if 0
memset(o, 0xb0, filelen);
memcpy(o, outputv.data, filelen);
if(fwrite(o, 1, filelen, file) != filelen)
{
DBG("read file failure, size wrong.");
exit(-1);
}
#endif
fflush(file);
fsync(fileno(file));
fclose(file);
return 0;
}基于G2D硬件加速的SUNXI平台缩放实现代码：
下面代码已经应用在人脸检测模型算法中。
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stddef.h>
#include <stdint.h>
#include <fcntl.h>
#include <unistd.h>
#include <assert.h>
#include <memoryAdapter.h>
#include <ion_memmanager.h>
#include <plat_math.h>
#include <plat_log.h>
#include <utils/PIXEL_FORMAT_E_g2d_format_convert.h>
#include <linux/g2d_driver.h>
#include "hw_scale.h"
typedef struct
{
unsigned long *p_virtaddr_y;
unsigned long *p_virtaddr_uv;
unsigned long *p_physaddr_y;
unsigned long *p_physaddr_uv;
}ion_img_buff_t;
int g2d_mem_open(void)
{
return ion_memOpen();
}
int g2d_mem_close(void)
{
return ion_memClose();
}
static unsigned char* g2d_alloc_mem(unsigned int size)
{
IonAllocAttr alloc_attr;
memset(&alloc_attr, 0, sizeof(IonAllocAttr));
alloc_attr.mLen = size;
alloc_attr.mAlign = 0;
alloc_attr.mIonHeapType = IonHeapType_IOMMU;
alloc_attr.mbSupportCache = 0;
return ion_allocMem_extend(&alloc_attr);
}
static int g2d_free_mem(void *vir_ptr)
{
return ion_freeMem(vir_ptr);
}
static unsigned int g2d_getphyaddr_by_viraddr(void *vir_ptr)
{
return ion_getMemPhyAddr(vir_ptr);
}
static int g2d_flush_cache(void *vir_ptr, unsigned int size)
{
return ion_flushCache(vir_ptr, size);
}
static ion_img_buff_t src;
static ion_img_buff_t dst;
int scale_picture_nv12_to_nv12_byg2d(const unsigned char *srcpic, int src_width, int src_height, unsigned char *dstpic, int dst_width, int dst_height, int g2d_fd)
{
int ret = 0;
static int mem_inited = 0;
int size;
g2d_blt_h blit;
g2d_fmt_enh src_fmt, dst_fmt;
if(mem_inited == 0)
{
size = ALIGN(src_width, 16) * ALIGN(src_height, 16);
src.p_virtaddr_y = (void*)g2d_alloc_mem(size);
src.p_virtaddr_uv = (void*)g2d_alloc_mem(size/2);
if(!src.p_virtaddr_y || !src.p_virtaddr_uv )
{
aloge("fatal error, ion malloc for src image failure.");
goto EXIT;
}
src.p_physaddr_y = (void *)g2d_getphyaddr_by_viraddr(src.p_virtaddr_y);
src.p_physaddr_uv = (void *)g2d_getphyaddr_by_viraddr(src.p_virtaddr_uv);
size = ALIGN(dst_width, 16) * ALIGN(dst_height, 16);
dst.p_virtaddr_y = (void*)g2d_alloc_mem(size);
dst.p_virtaddr_uv = (void*)g2d_alloc_mem(size/2);
if(!dst.p_virtaddr_y || !dst.p_virtaddr_uv )
{
aloge("fatal error, ion malloc for dst image failure.");
goto EXIT;
}
dst.p_physaddr_y = (void *)g2d_getphyaddr_by_viraddr(dst.p_virtaddr_y);
dst.p_physaddr_uv = (void *)g2d_getphyaddr_by_viraddr(dst.p_virtaddr_uv);
mem_inited = 1;
}
if(!src.p_virtaddr_y || !src.p_virtaddr_uv || !dst.p_virtaddr_y || !dst.p_virtaddr_uv)
{
aloge("src or dst buffer addr corrupted?");
goto EXIT;
}
size = src_width*src_height;
memcpy(src.p_virtaddr_y, srcpic, size);
memcpy(src.p_virtaddr_uv, srcpic + size , size / 2);
g2d_flush_cache(src.p_virtaddr_y, size);
g2d_flush_cache(src.p_virtaddr_uv, size / 2);
// MM_PIXEL_FORMAT_YUV_SEMIPLANAR_420. nv12 format.
ret = convert_PIXEL_FORMAT_E_to_g2d_fmt_enh(MM_PIXEL_FORMAT_YUV_SEMIPLANAR_420 , &src_fmt);
if(ret != SUCCESS)
{
aloge("fatal error, convert pixel fmt from video to g2d failure.");
goto EXIT;
}
ret = convert_PIXEL_FORMAT_E_to_g2d_fmt_enh(MM_PIXEL_FORMAT_YUV_SEMIPLANAR_420, &dst_fmt);
if(ret != SUCCESS)
{
aloge("fatal error, convert pixel fmt from video to g2d failure.");
goto EXIT;
}
memset(&blit, 0, sizeof(g2d_blt_h));
blit.flag_h = G2D_BLT_NONE_H;
blit.src_image_h.format = src_fmt;
blit.src_image_h.laddr[0] = (unsigned long)src.p_physaddr_y;
blit.src_image_h.laddr[1] = (unsigned long)src.p_physaddr_uv;
blit.src_image_h.laddr[2] = (unsigned long)0;
blit.src_image_h.width = src_width;
blit.src_image_h.height = src_height;
blit.src_image_h.align[0] = 0;
blit.src_image_h.align[1] = 0;
blit.src_image_h.align[2] = 0;
blit.src_image_h.clip_rect.x = 0;
blit.src_image_h.clip_rect.y = 0;
blit.src_image_h.clip_rect.w = src_width;
blit.src_image_h.clip_rect.h = src_height;
blit.src_image_h.gamut = G2D_BT601;
blit.src_image_h.bpremul = 0;
blit.src_image_h.mode = G2D_PIXEL_ALPHA;
blit.src_image_h.fd = -1;
blit.src_image_h.use_phy_addr = 1;
blit.dst_image_h.format = dst_fmt;
blit.dst_image_h.laddr[0] = (unsigned long)dst.p_physaddr_y;
blit.dst_image_h.laddr[1] = (unsigned long)dst.p_physaddr_uv;
blit.dst_image_h.laddr[2] = (unsigned long)0;
blit.dst_image_h.width = dst_width;
blit.dst_image_h.height = dst_height;
blit.dst_image_h.align[0] = 0;
blit.dst_image_h.align[1] = 0;
blit.dst_image_h.align[2] = 0;
blit.dst_image_h.clip_rect.x = 0;
blit.dst_image_h.clip_rect.y = 0;
blit.dst_image_h.clip_rect.w = dst_width;
blit.dst_image_h.clip_rect.h = dst_height;
blit.dst_image_h.gamut = G2D_BT601;
blit.dst_image_h.bpremul = 0;
blit.dst_image_h.mode = G2D_PIXEL_ALPHA;
blit.dst_image_h.fd = -1;
blit.dst_image_h.use_phy_addr = 1;
ret = ioctl(g2d_fd, G2D_CMD_BITBLT_H, (unsigned long)&blit);
if(ret < 0)
{
aloge("fatal error! bit-block(image) transfer failed[%d]", ret);
goto EXIT;
}
size = dst_width*dst_height;
g2d_flush_cache(dst.p_virtaddr_y, size);
g2d_flush_cache(dst.p_virtaddr_uv, size / 2);
memcpy(dstpic, dst.p_virtaddr_y, size);
memcpy(dstpic + size, dst.p_virtaddr_uv, size / 2);
return 0;
EXIT:
if(src.p_virtaddr_y)
{
g2d_free_mem(src.p_virtaddr_y);
}
if(src.p_virtaddr_uv)
{
g2d_free_mem(src.p_virtaddr_uv);
}
if(dst.p_virtaddr_y)
{
g2d_free_mem(dst.p_virtaddr_y);
}
if(dst.p_virtaddr_uv)
{
g2d_free_mem(dst.p_virtaddr_uv);
}
memset(&src, 0x00, sizeof(src));
memset(&dst, 0x00, sizeof(dst));
return -1;
}
// dummy function,nothing need todo.
void scale_create_buffer(void)
{
return;
}
void scale_destory_buffer(void)
{
if(src.p_virtaddr_y)
{
g2d_free_mem(src.p_virtaddr_y);
}
if(src.p_virtaddr_uv)
{
g2d_free_mem(src.p_virtaddr_uv);
}
if(dst.p_virtaddr_y)
{
g2d_free_mem(dst.p_virtaddr_y);
}
if(dst.p_virtaddr_uv)
{
g2d_free_mem(dst.p_virtaddr_uv);
}
memset(&src, 0x00, sizeof(src));
memset(&dst, 0x00, sizeof(dst));
return;
}
名词释义：
像素格式中看到很多格式后面紧跟着字母P，SP，它们是什么意思呢？P代表planer,也就是平面，SP就是Semi Planer，翻译过来就是半平面。具体代表什么呢？
以YUV444P为例，P的意思是Y,U,V三个元素个占用一个平面，也就是三个平面，几何布局和内存中布局就是如下这个样子的：
而SP代表的半平面，顾名思义，就是平面不到3个，但也不能是1个，1个，因为YUV毕竟存在不同元，所以实际上就是2个平面，Y一个，UV合起来站占用一个.
YUV420SP格式的图像阵列，首先是所有Y值，然后是UV或者VU交替存储，NV12和NV21属于YUV420SP格式，是一种two-plane模式，即Y和UV分为两个plane，但是UV(CbCr)为交错存储，而不是分为三个平面,我们常用的NV12或者NV21都属于YUV420SP。
布局如下图所示：
我们最常见的YUV420P和YUV420SP都是基于4:2:0采样的，所以如果图片的宽为width，高为heigth，在内存中占的空间为width * height * 3 / 2。
YUV420P又叫plane平面模式，Y , U , V分别在不同平面，也就是有三个平面，它是YUV标准格式4：2：0，主要分为：YU12和YV12, YUV420P其中前width * height的空间存放Y分量，接着width * height / 4存放U或者V分量，最后width * height / 4存放V或者U分量，根据UV顺序的不同，YUV420P又可以分为YV12和YU12
神经网络的输入一般是RGB24格式，而非ARGB格式，这点要注意。
参考：
图解YU12、I420、YV12、NV12、NV21、YUV420P、YUV420SP、YUV422P、YUV444P的区别_handy周的博客-优快云博客_yv12
扫一扫
3506
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
