HCIA-WLAN V3.0 无线局域网_2.1_WLAN配置应用

本文链接：https://blog.youkuaiyun.com/tjjingpan/article/details/146292434

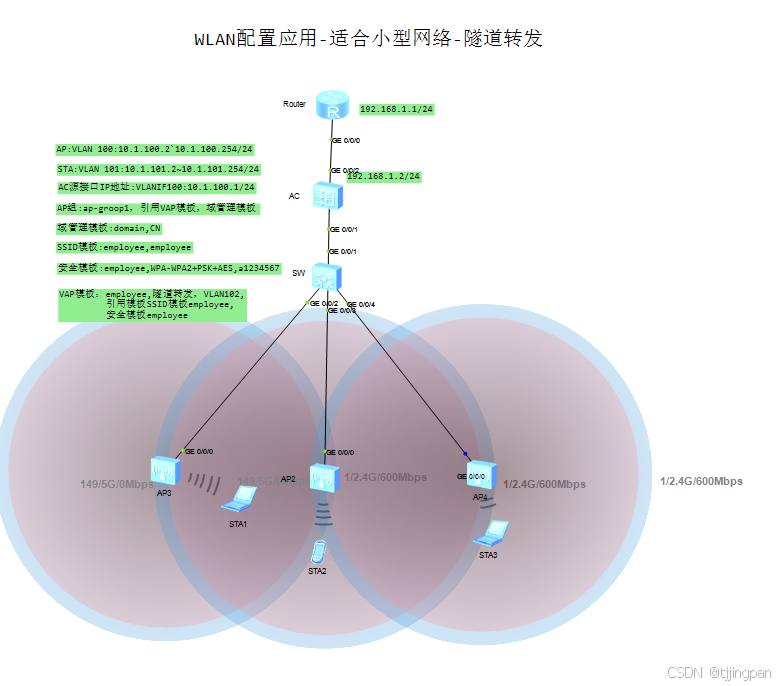

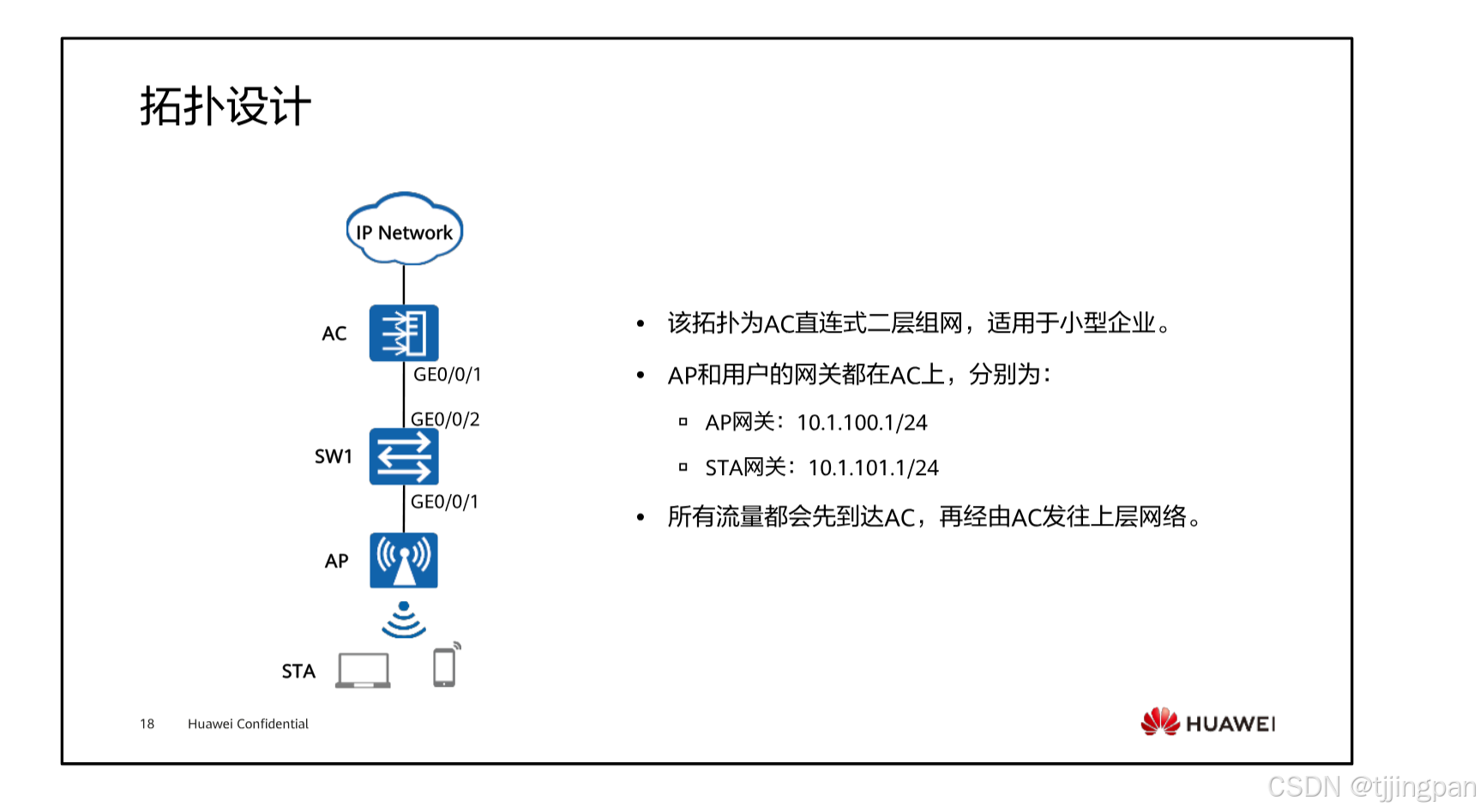

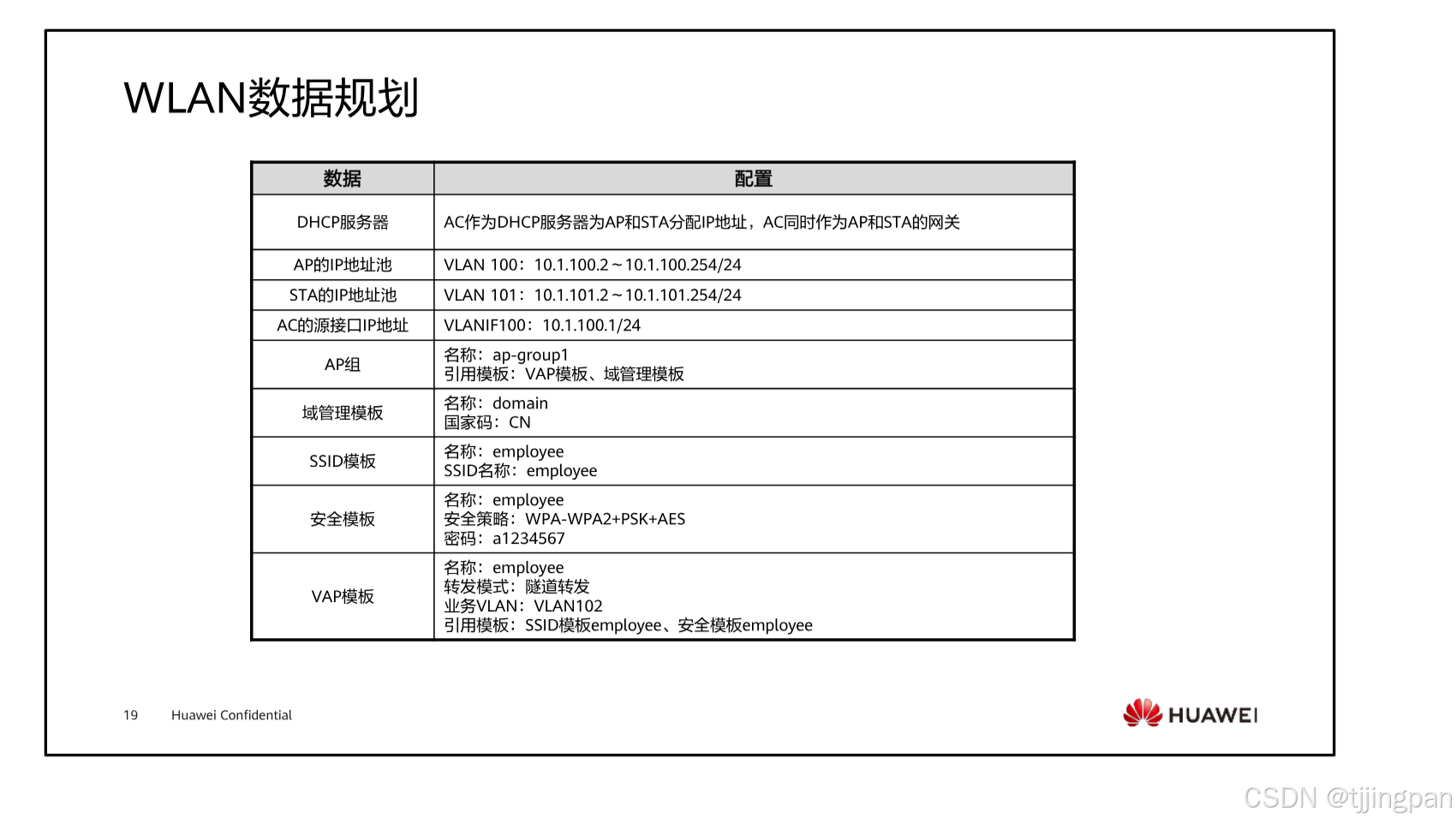

实验

AC配置

[V200R007C10SPC300]
#
 sysname AC

#
vlan batch 100 to 101 200
#

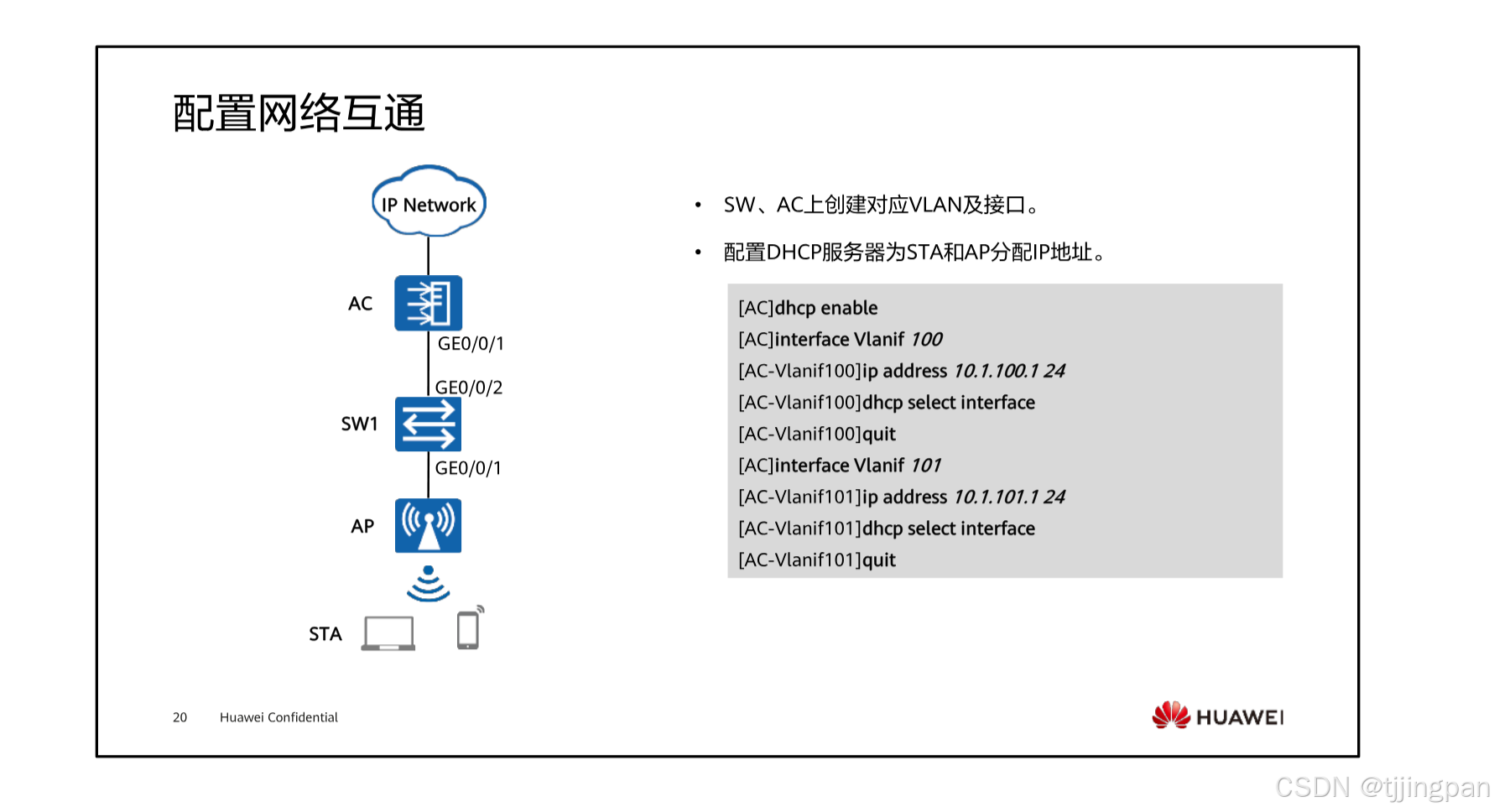

dhcp enable
#


interface Vlanif100
 ip address 10.1.100.1 255.255.255.0
 dhcp select interface
#
interface Vlanif101
 ip address 10.1.101.1 255.255.255.0
 dhcp select interface
#
interface Vlanif200
 ip address 192.168.1.2 255.255.255.0
#

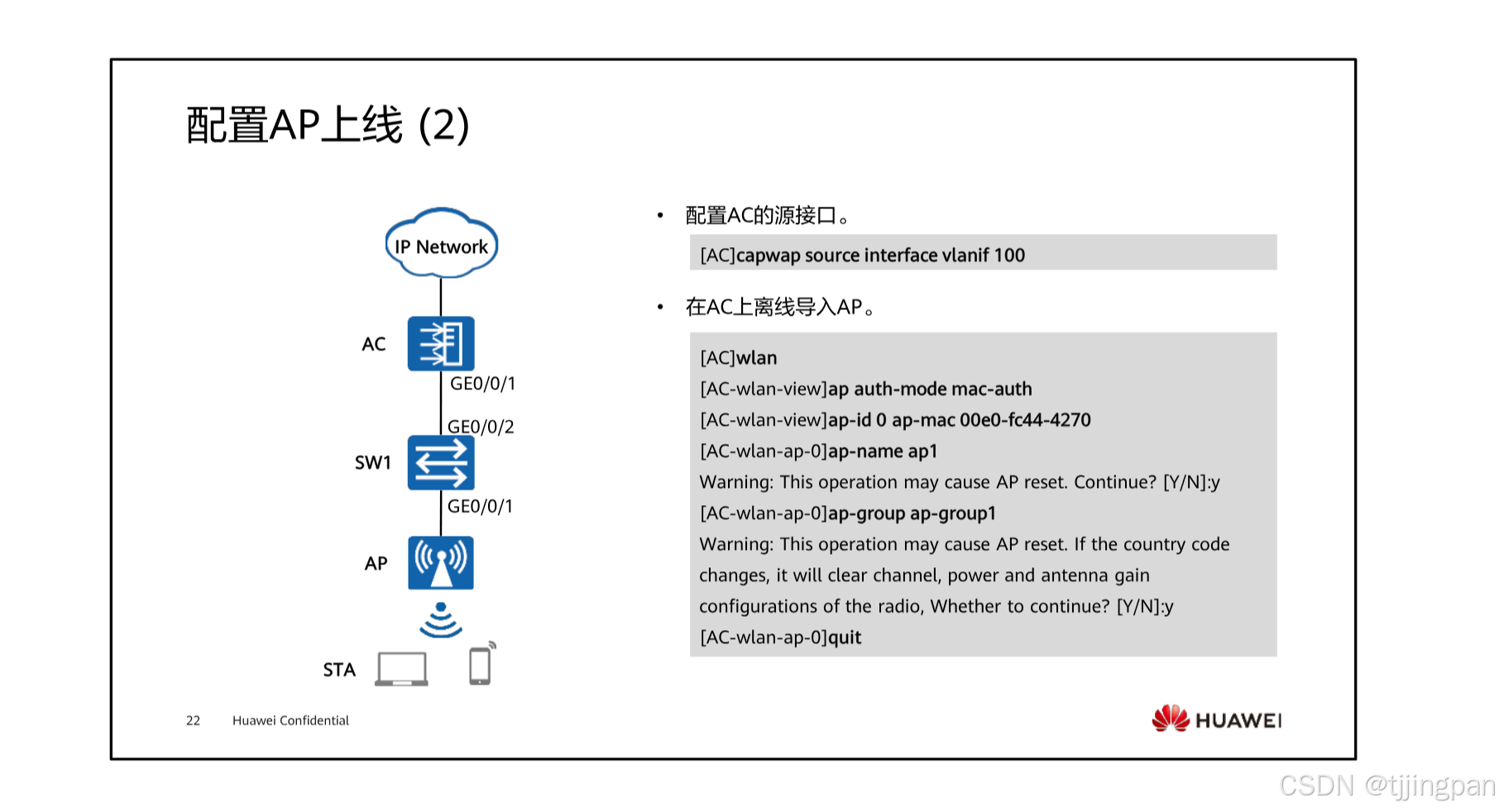

capwap source interface vlanif100
#
wlan

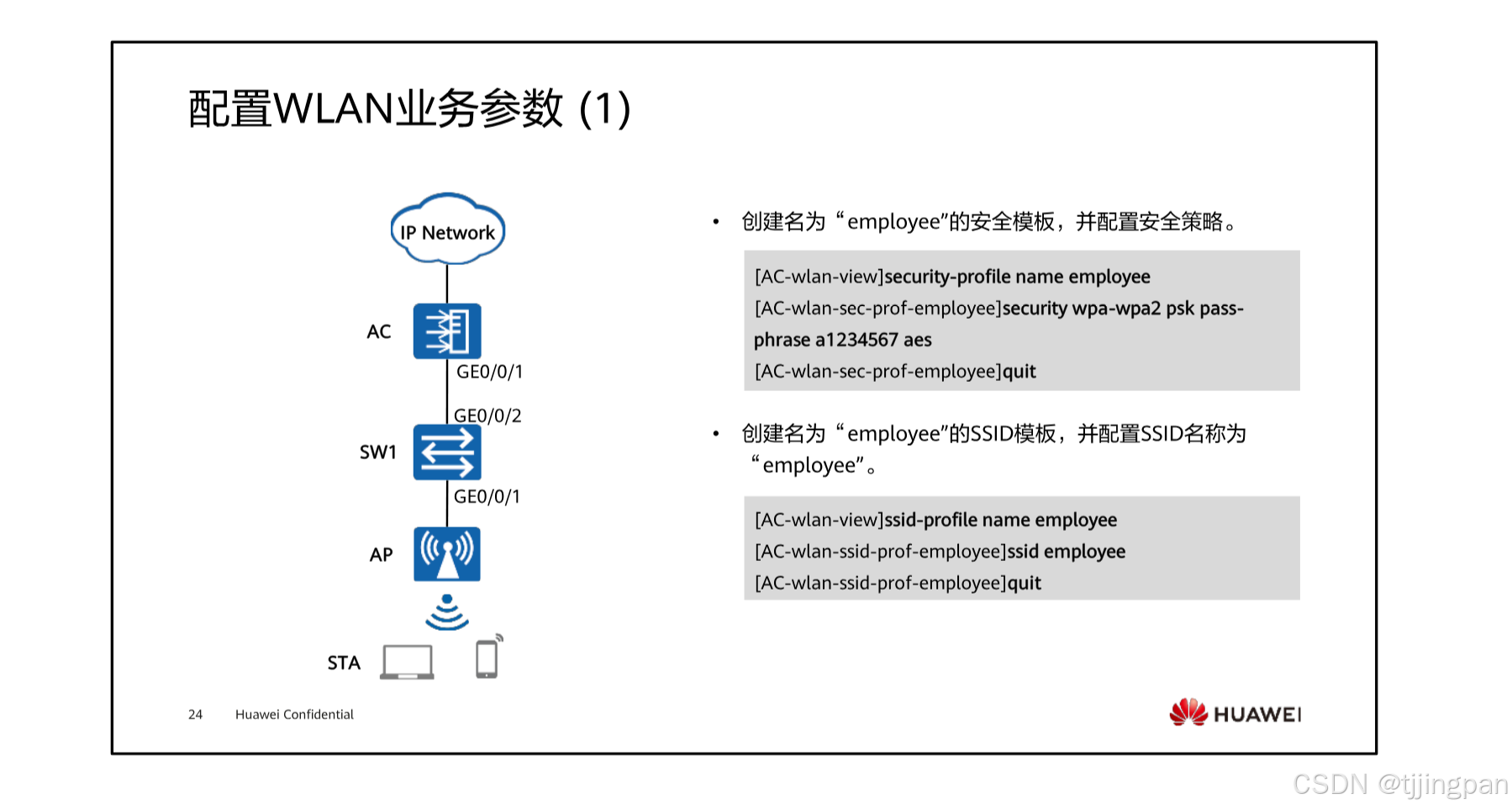

 security-profile name employee
  security wpa-wpa2 psk pass-phrase %^%#$Em#Jn]UDEZGr^"L:*"+Ui>f'AR[#:+VK61)3A"0%^%# aes
 ssid-profile name employee
  ssid employee

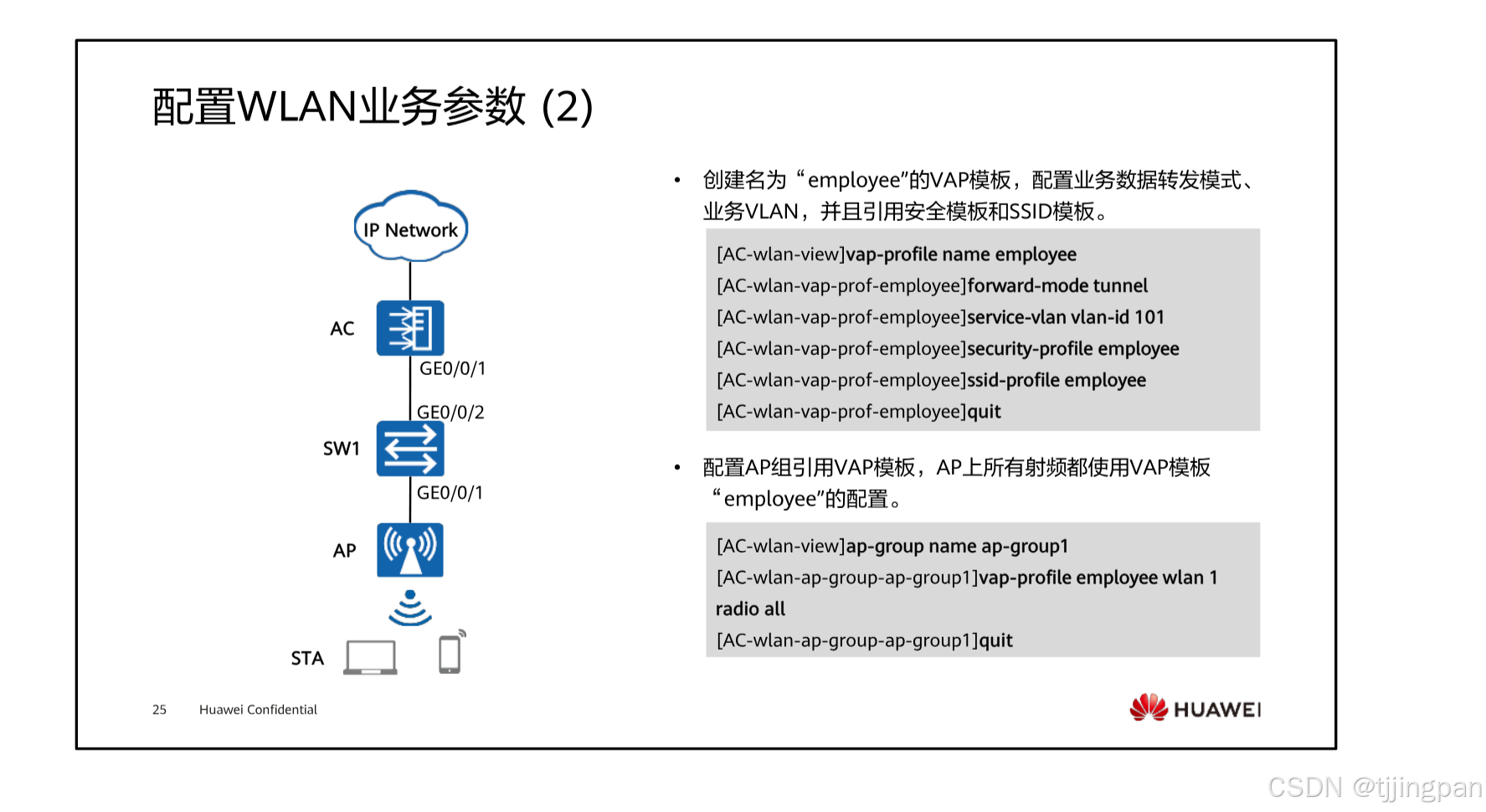

 vap-profile name employee
  forward-mode tunnel
  service-vlan vlan-id 101
  ssid-profile employee
  security-profile employee

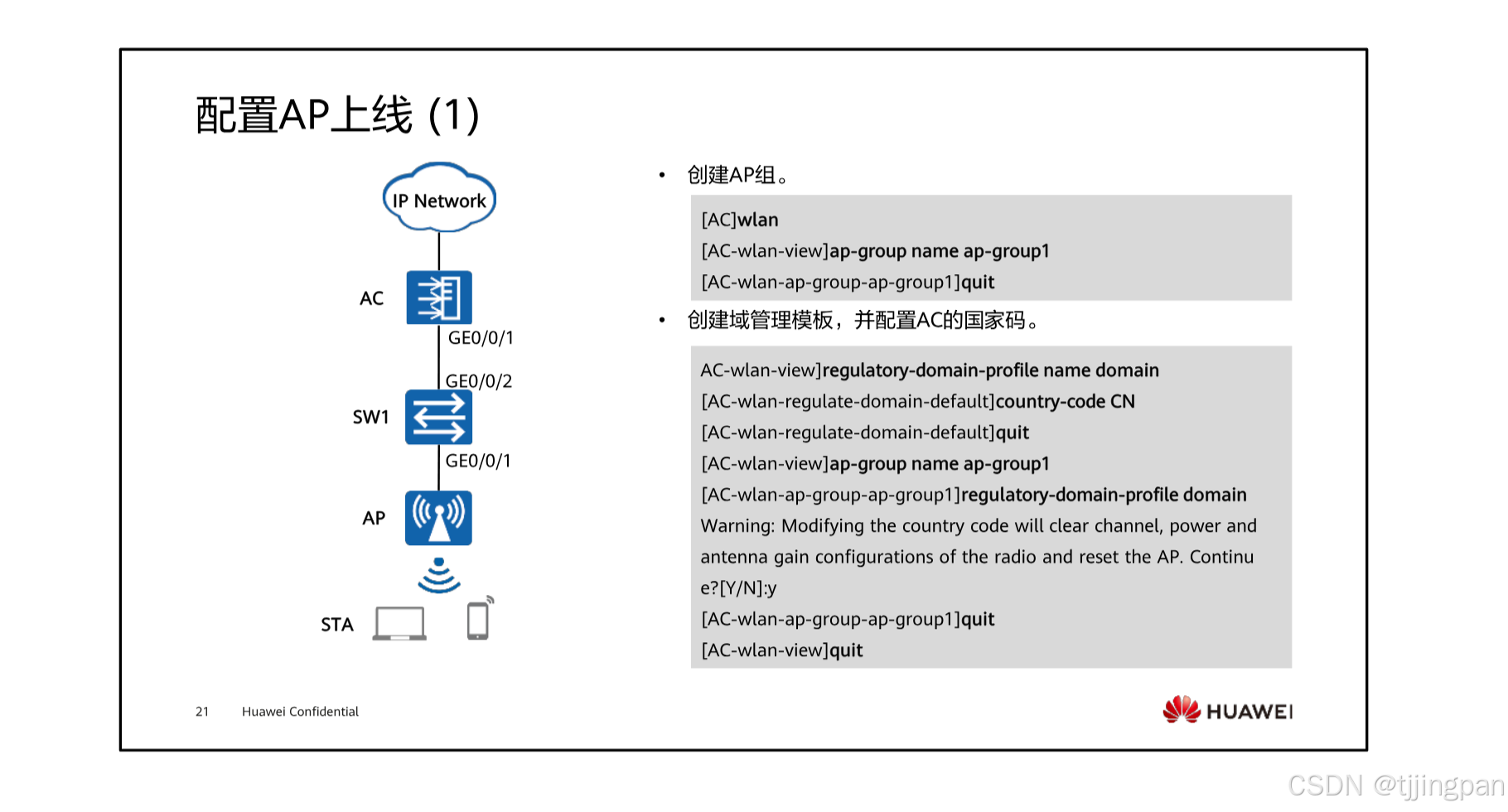

 regulatory-domain-profile name domain
 ap-group name ap-group1
  regulatory-domain-profile domain
  radio 0
   vap-profile employee wlan 1
  radio 1
   vap-profile employee wlan 1
  radio 2
   vap-profile employee wlan 1
 ap-id 0 type-id 56 ap-mac 00e0-fcdb-6810 ap-sn 2102354483109814F33F
  ap-name ap1
  ap-group ap-group1
 ap-id 1 type-id 56 ap-mac 00e0-fc41-67c0 ap-sn 2102354483109D4A6D16
  ap-name ap2
  ap-group ap-group1
 ap-id 2 type-id 69 ap-mac 00e0-fcaf-2d70 ap-sn 2102354483101F6F9D7C
  ap-group ap-group1

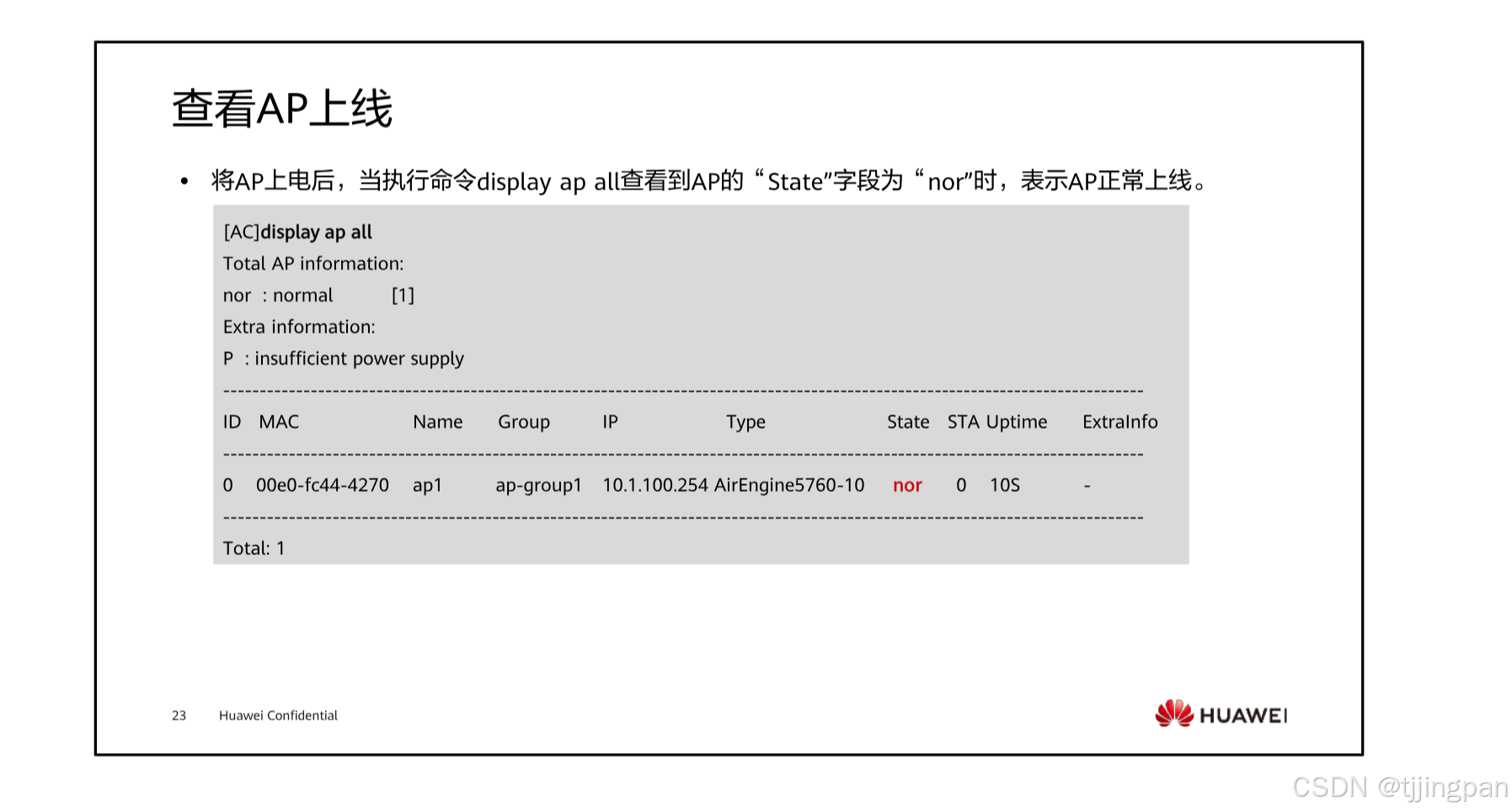

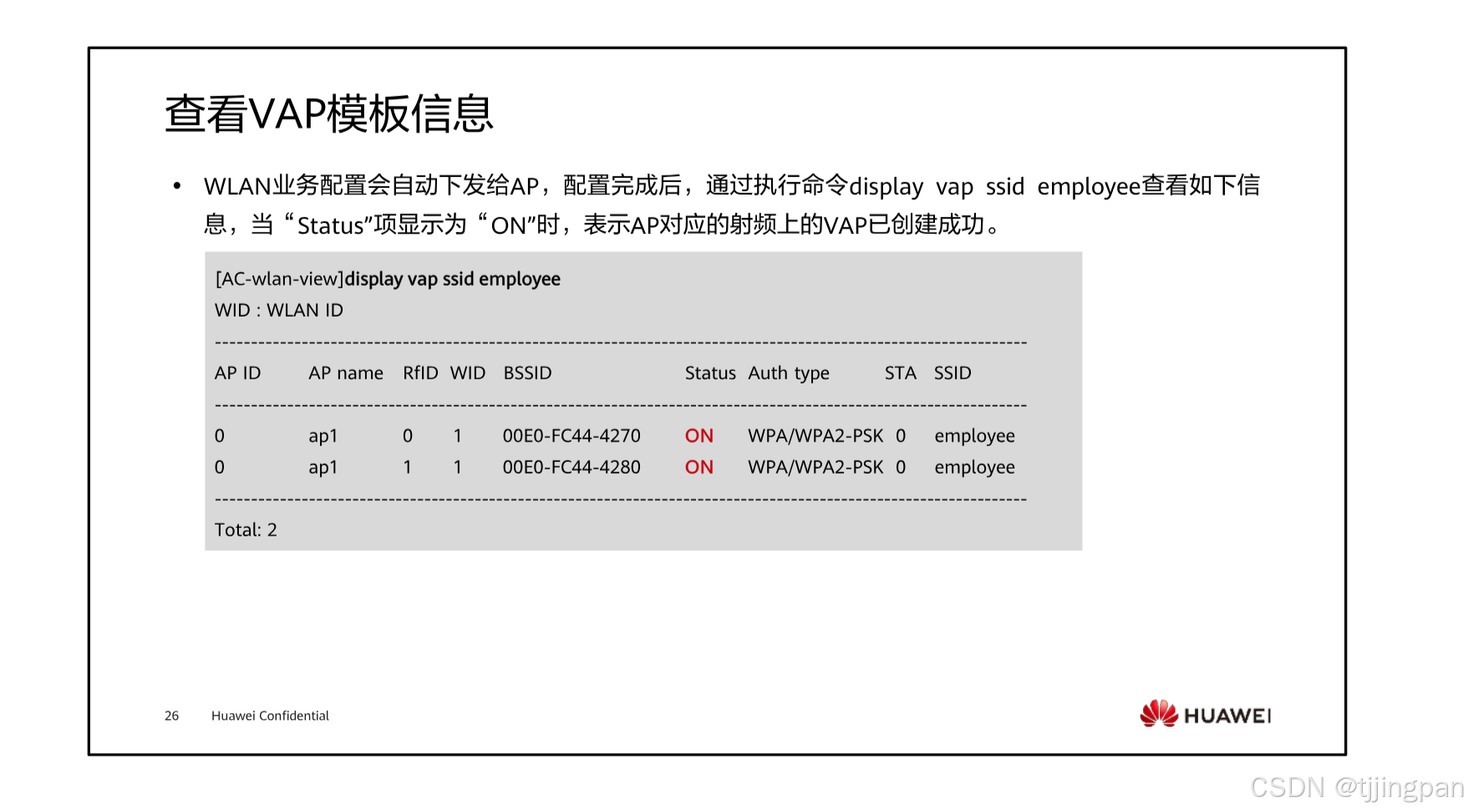

SW配置


interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 100 to 101
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk pvid vlan 100
 port trunk allow-pass vlan 100 to 101
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 100
#
interface GigabitEthernet0/0/4
 port link-type access
 port default vlan 100
#
