嵌入式RTOS编程

重庆交通大学信息科学与工程学院

《嵌入式系统基础A》课程

作业报告（第九周）

班 级： 物联网工程2002

姓名-学号 ： 吴泽霖-632007060217

实验项目名称： 嵌入式RTOS编程

实验项目性质： 设计性

实验所属课程： 《嵌入式系统基础》

实验室(中心)： 南岸校区语音大楼

指 导 教 师 ： 娄路

完成时间： 2022 年 11 月 7 日

---

一、实验内容和任务

使用TIM3和TIM4，分别输出一个PWM波形，PWM的占空比随时间变化，去驱动你外接的一个LED以及最小开发板上已焊接的LED（固定接在 PC13 GPIO端口），实现2个 LED呼吸灯的效果。 学习嵌入式实时操作系统（RTOS）,以uc/OS为例，将其移植到stm32F103上，构建至少3个任务（task）:其中两个task分别以1s和3s周期对LED等进行点亮-熄灭的控制；另外一个task以2s周期通过串口发送“hello uc/OS! 欢迎来到RTOS多任务环境！”。记录详细的移植过程。

二、实验要求

1. 分组要求：每个学生独立完成，即1人1组。

2. 程序及报告文档要求：具有较好的可读性，如叙述准确、标注明确、截图清晰等。

3.项目代码上传github，同时把项目完整打包为zip文件，与实验报告（Markdown源码及PDF文件）、作业博客地址一起提交到学习通。

三. 实验过程介绍 （此处可以填博客内容）

一、实现2个 LED呼吸灯的效果，并输出波形图

1.STM32CubeMx创建工程

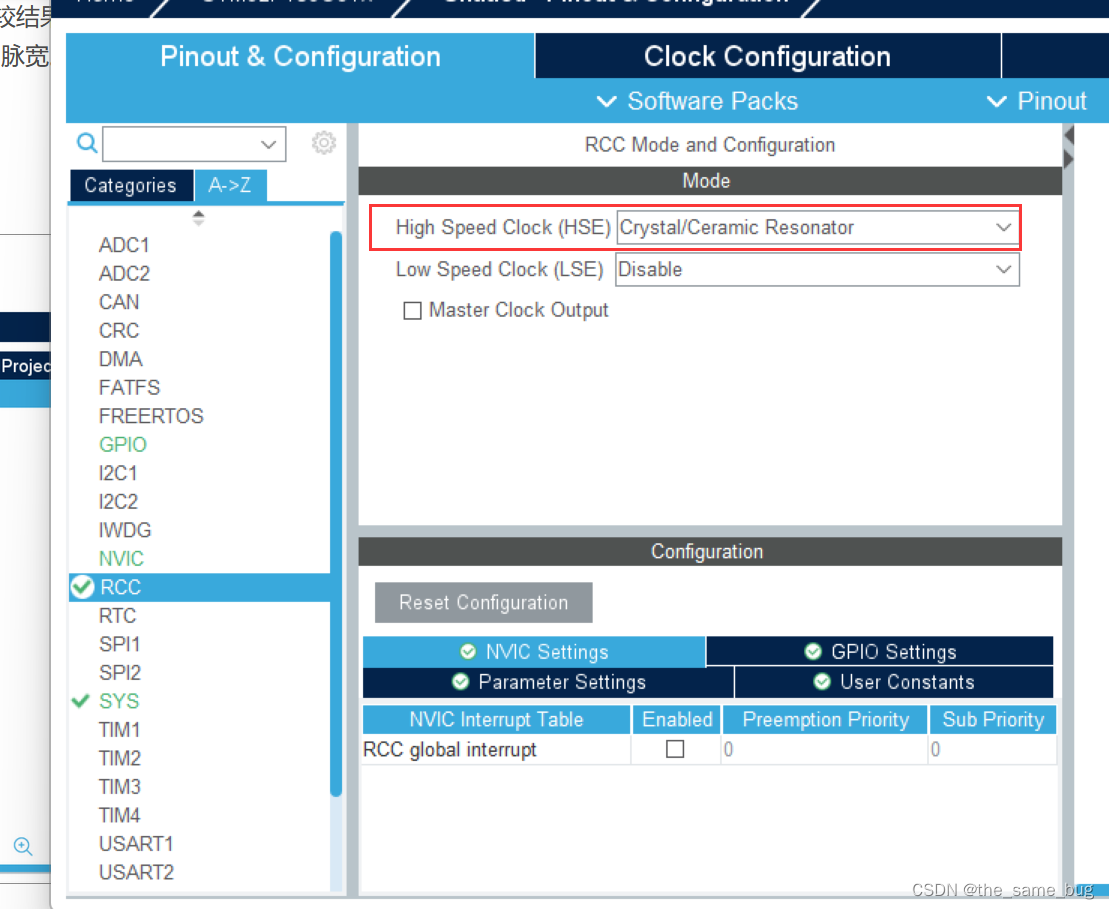

配置RCC

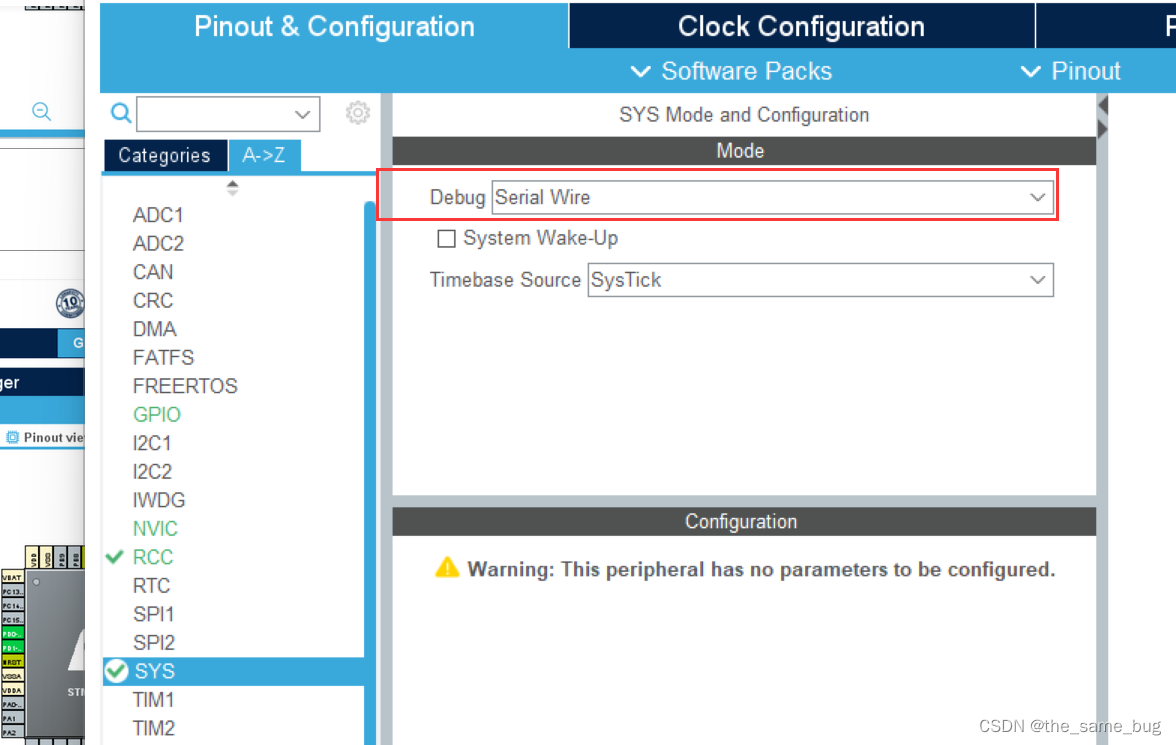

配置SYS

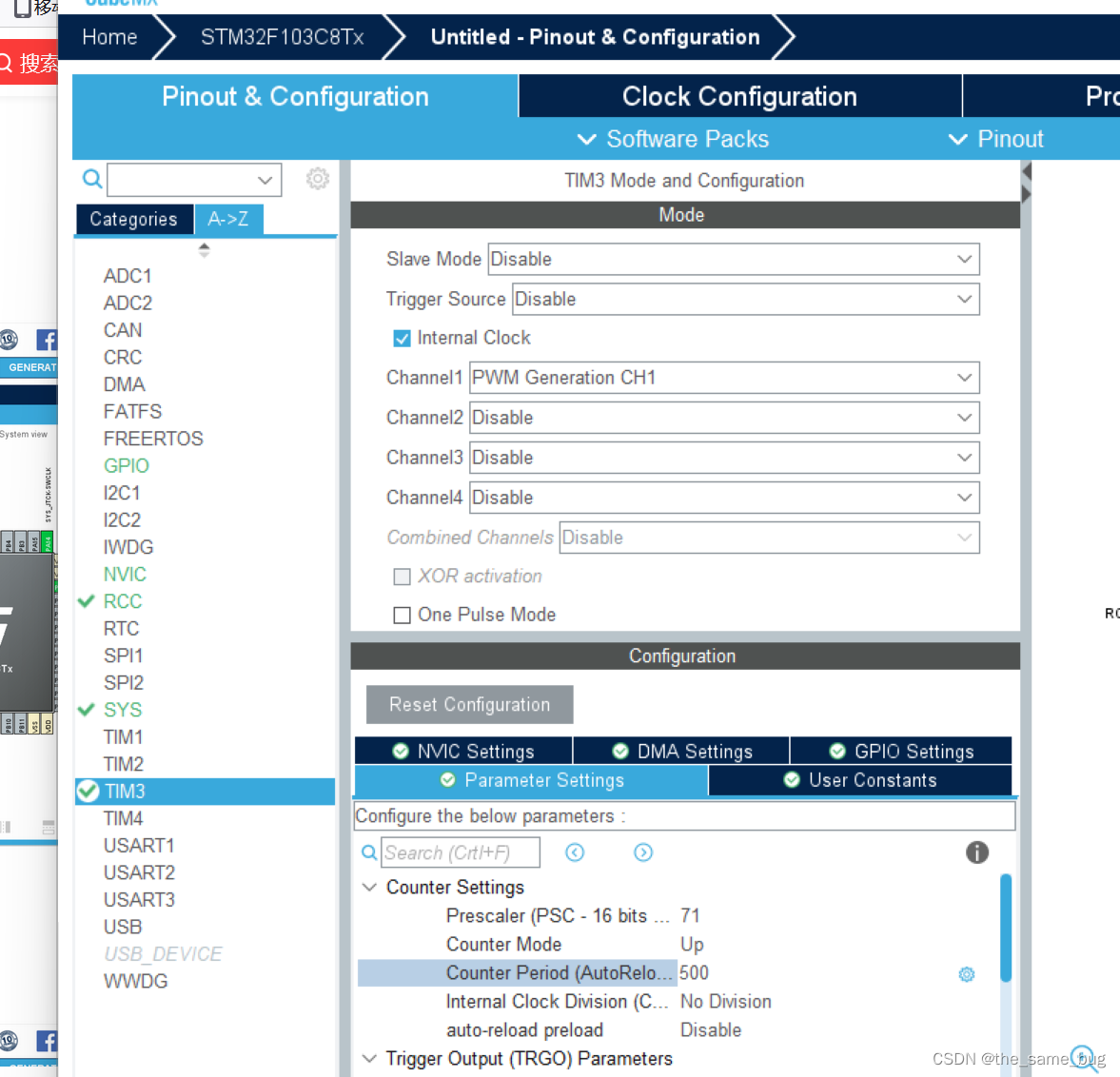

配置TIM3,TIM4
TIM4配置与TIM3一致时钟数配置

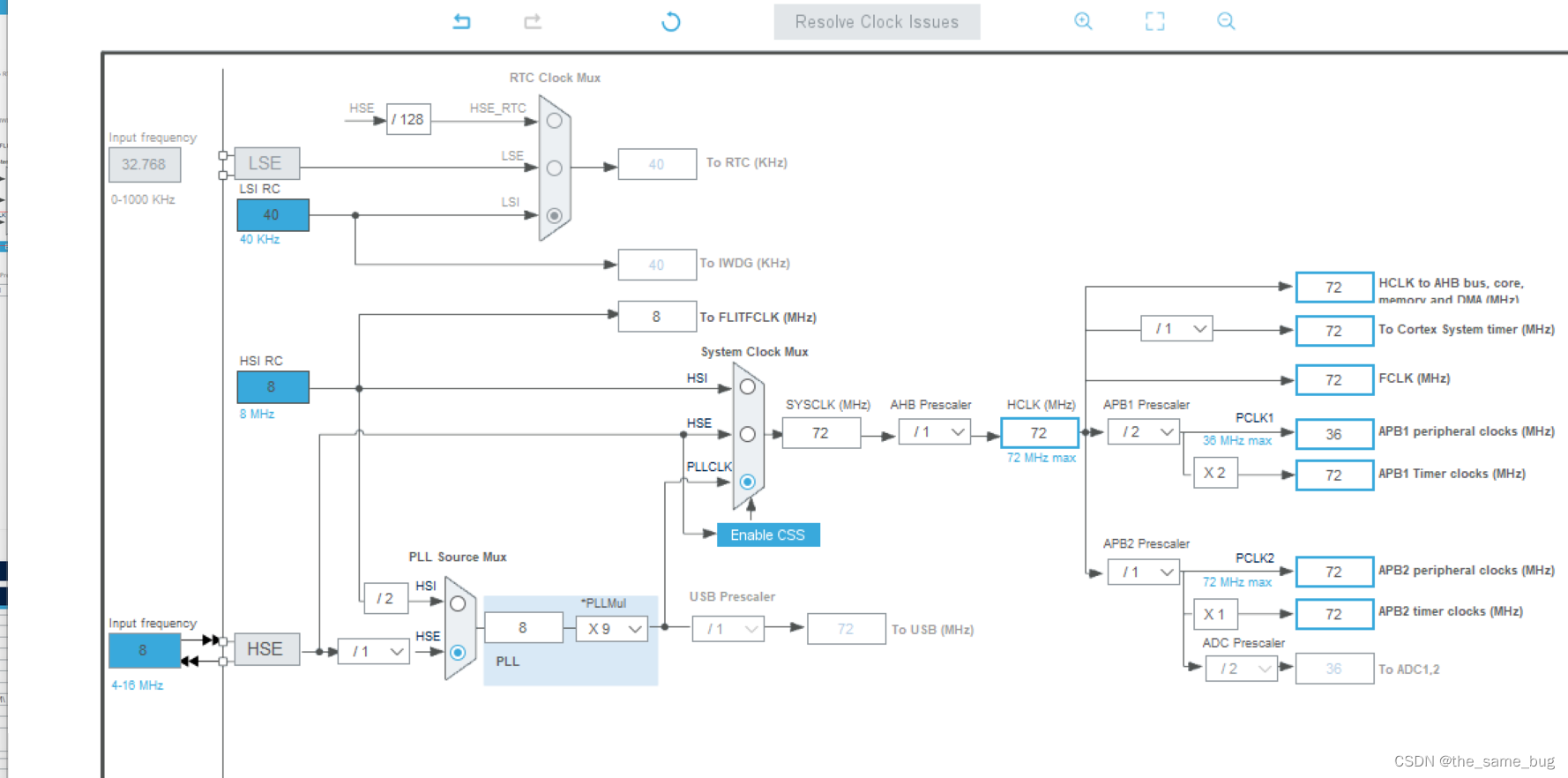

时钟数配置

生成项目

2.代码编写

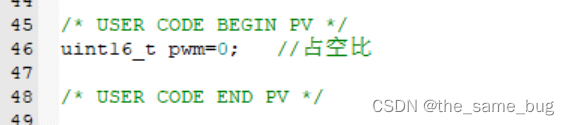

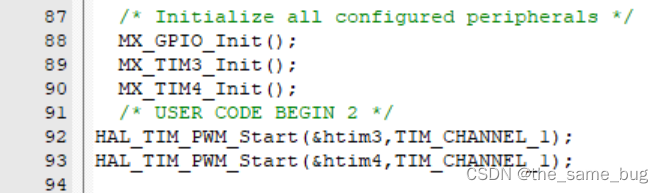

在main.c编写代码

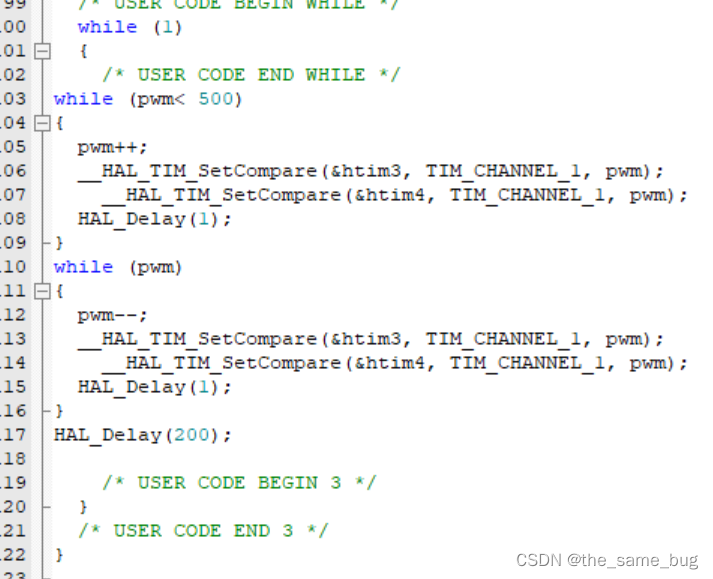

在while循环中写入调用代码

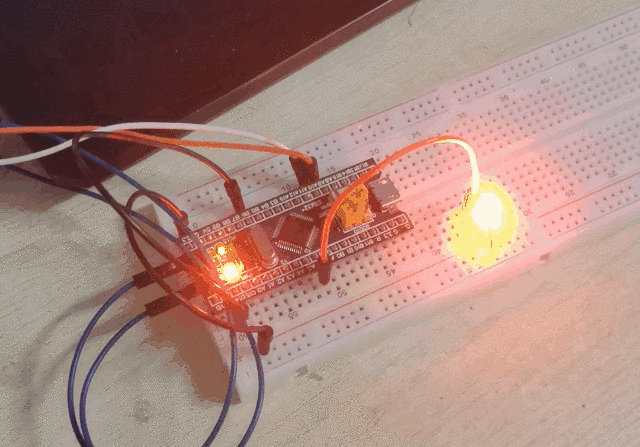

3、效果展示

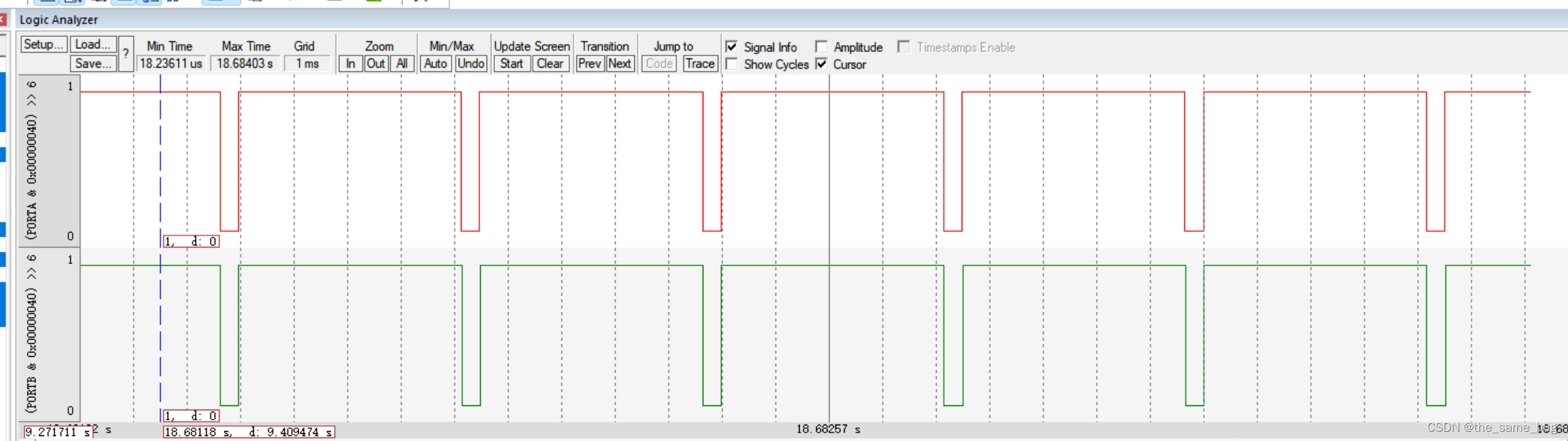

波形图输出

二、 学习嵌入式实时操作系统（RTOS）,以uc/OS为例，将其移植到stm32F103上，构建至少3个任务（task）:其中两个task分别以1s和3s周期对LED等进行点亮-熄灭的控制；另外一个task以2s周期通过串口发送“hello uc/OS!

1、STM32CubeMx创建工程

配置RCC

配置SYS
设置PC13为GPIO_Output用于点亮LED灯

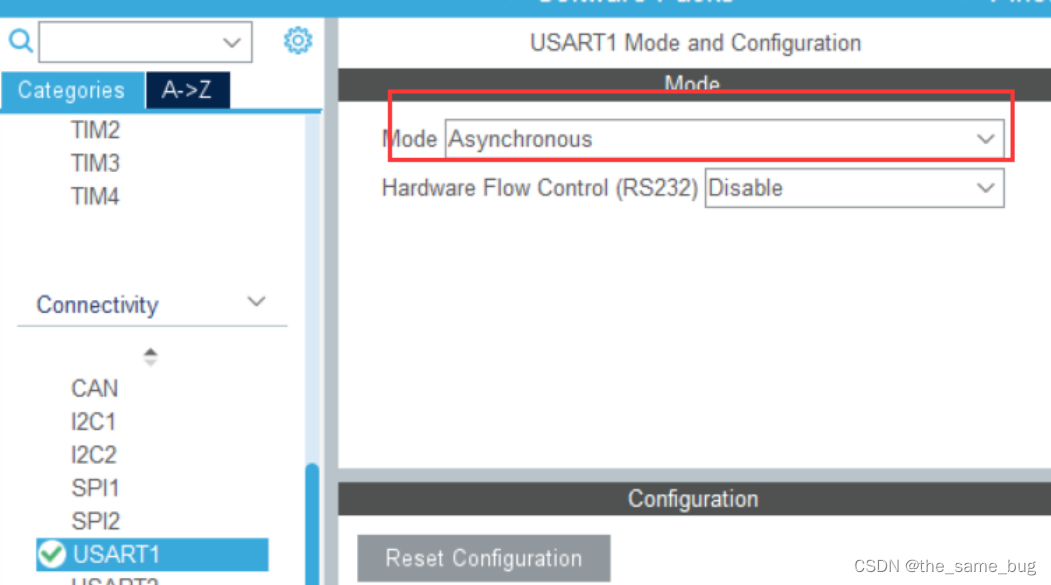

设置串口USART1

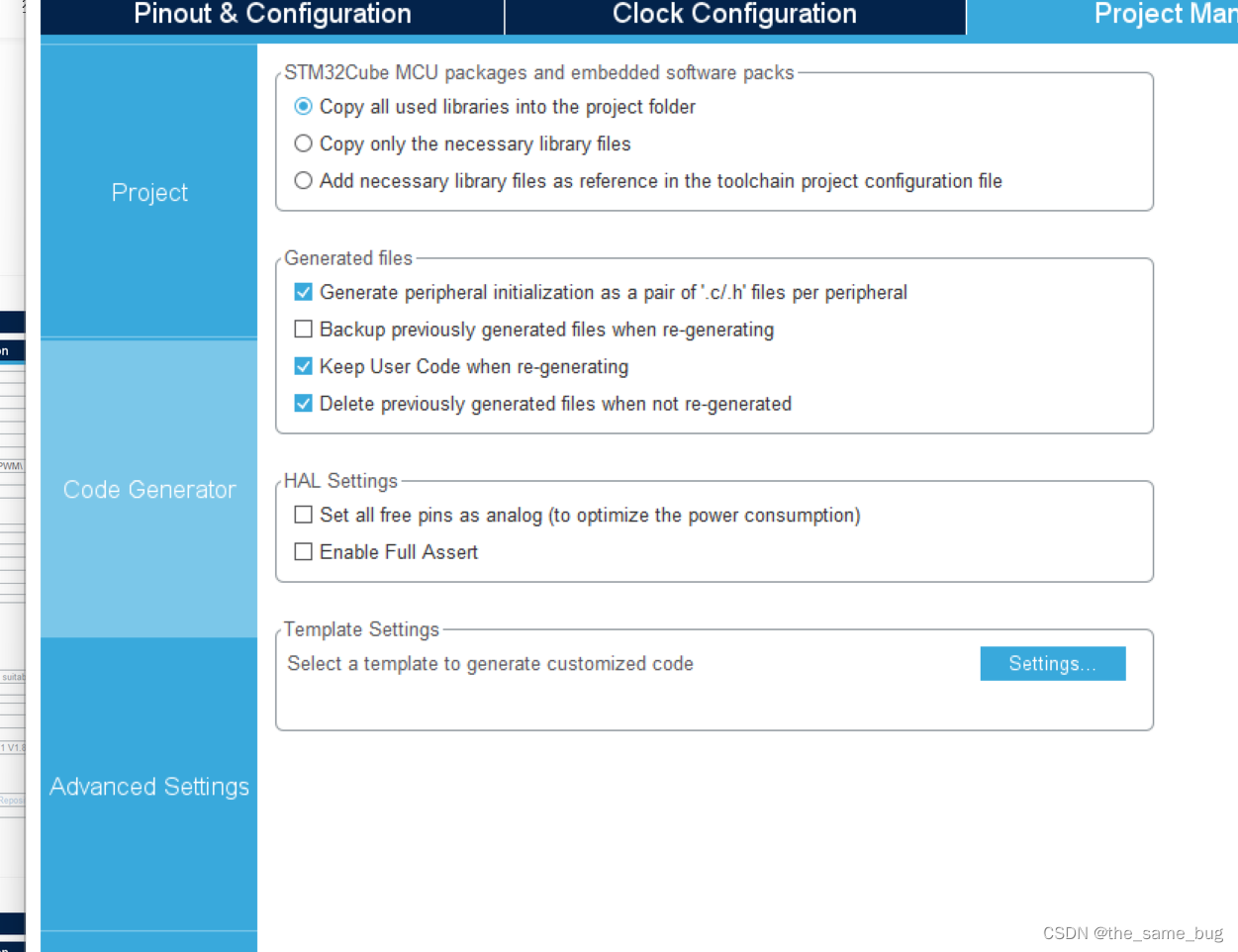

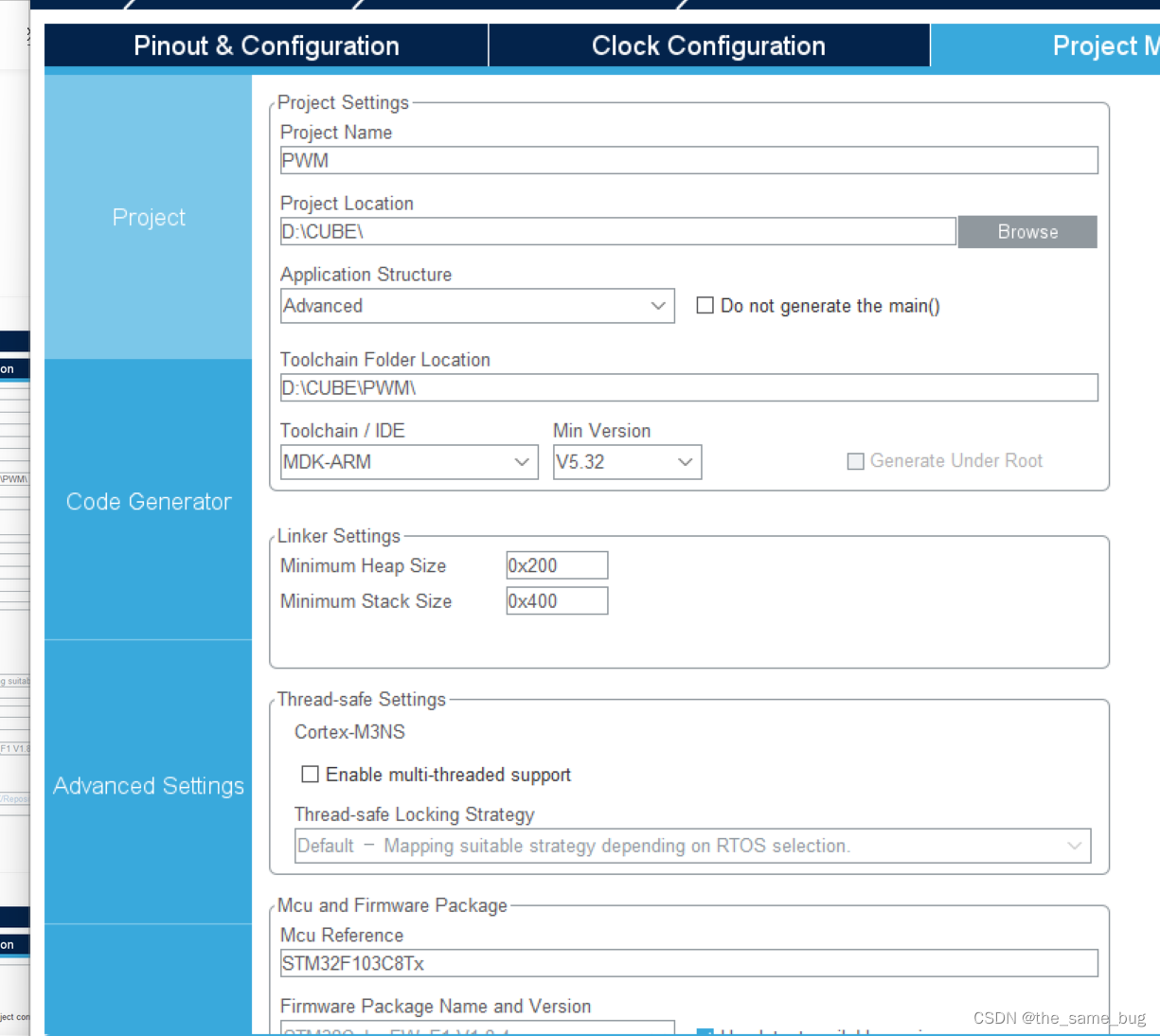

工程配置

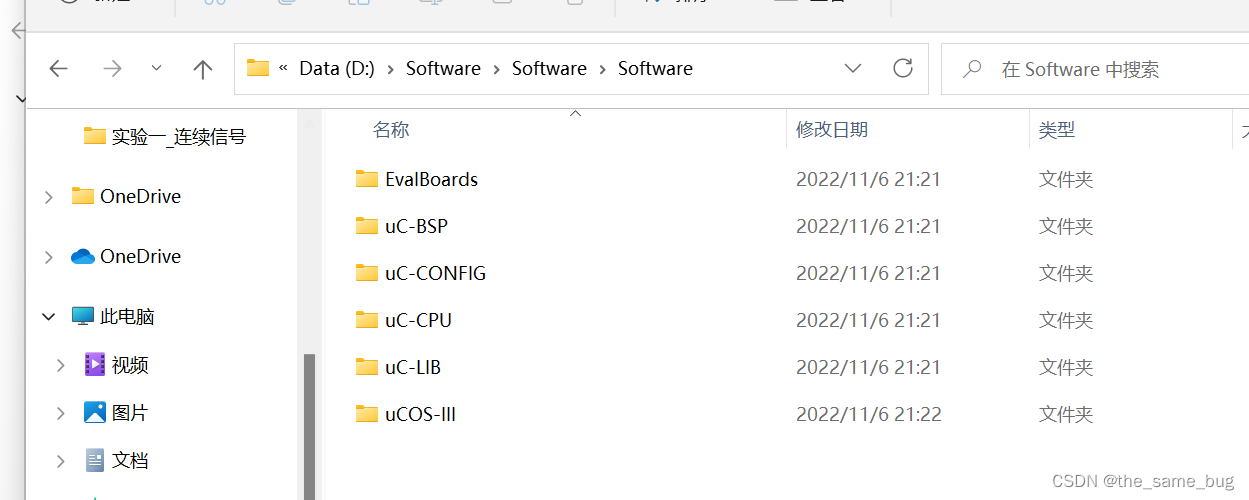

2、准备uCOSIII源码

3、开始移植

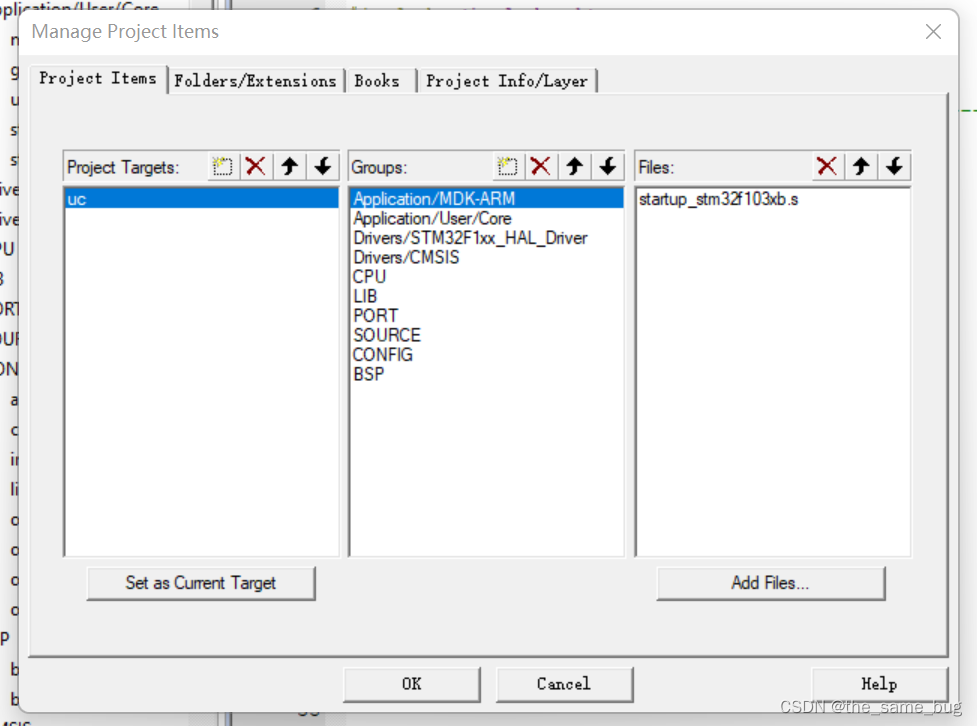

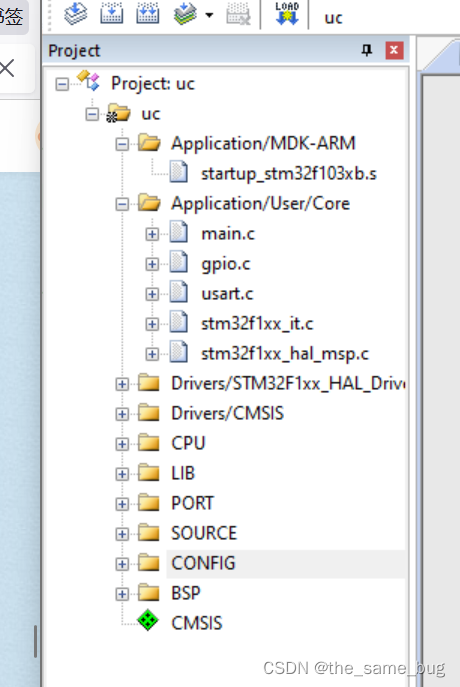

为项目新建文件夹如下项目结构变化

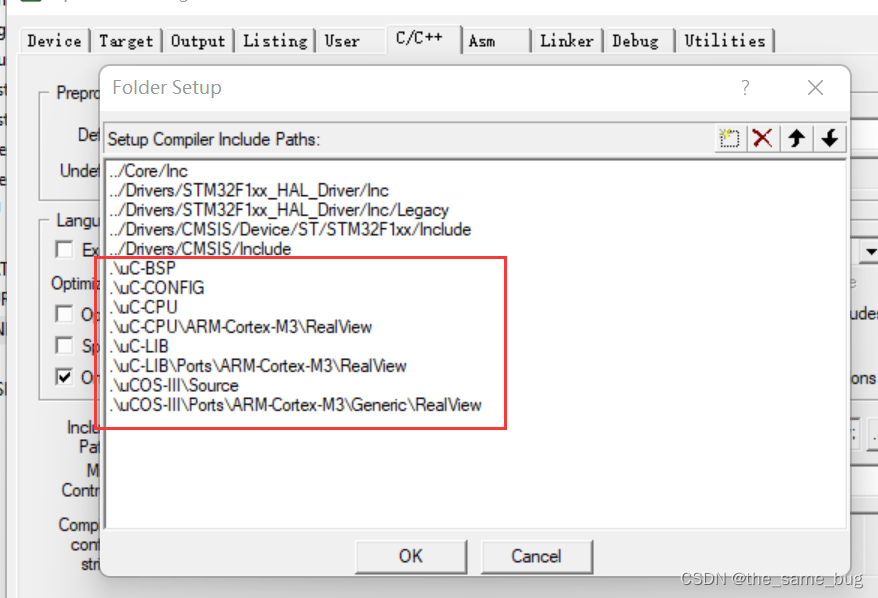

导入文件路径

找到BSP下的bsp.c和bsp.h文件

// bsp.h
#ifndef  __BSP_H__
#define  __BSP_H__

#include "stm32f1xx_hal.h"

void BSP_Init(void);

#endif

// bsp.c
#include "includes.h"

#define  DWT_CR      *(CPU_REG32 *)0xE0001000
#define  DWT_CYCCNT  *(CPU_REG32 *)0xE0001004
#define  DEM_CR      *(CPU_REG32 *)0xE000EDFC
#define  DBGMCU_CR   *(CPU_REG32 *)0xE0042004

#define  DEM_CR_TRCENA                   (1 << 24)
#define  DWT_CR_CYCCNTENA                (1 <<  0)

CPU_INT32U  BSP_CPU_ClkFreq (void)
{
    return HAL_RCC_GetHCLKFreq();
}

void BSP_Tick_Init(void)
{
	CPU_INT32U cpu_clk_freq;
	CPU_INT32U cnts;
	cpu_clk_freq = BSP_CPU_ClkFreq();

	#if(OS_VERSION>=3000u)
		cnts = cpu_clk_freq/(CPU_INT32U)OSCfg_TickRate_Hz;
	#else
		cnts = cpu_clk_freq/(CPU_INT32U)OS_TICKS_PER_SEC;
	#endif
	OS_CPU_SysTickInit(cnts);
}



void BSP_Init(void)
{
	BSP_Tick_Init();
	MX_GPIO_Init();
}


#if (CPU_CFG_TS_TMR_EN == DEF_ENABLED)
void  CPU_TS_TmrInit (void)
{
    CPU_INT32U  cpu_clk_freq_hz;


    DEM_CR         |= (CPU_INT32U)DEM_CR_TRCENA;                /* Enable Cortex-M3's DWT CYCCNT reg.                   */
    DWT_CYCCNT      = (CPU_INT32U)0u;
    DWT_CR         |= (CPU_INT32U)DWT_CR_CYCCNTENA;

    cpu_clk_freq_hz = BSP_CPU_ClkFreq();
    CPU_TS_TmrFreqSet(cpu_clk_freq_hz);
}
#endif


#if (CPU_CFG_TS_TMR_EN == DEF_ENABLED)
CPU_TS_TMR  CPU_TS_TmrRd (void)
{
    return ((CPU_TS_TMR)DWT_CYCCNT);
}
#endif


#if (CPU_CFG_TS_32_EN == DEF_ENABLED)
CPU_INT64U  CPU_TS32_to_uSec (CPU_TS32  ts_cnts)
{
	CPU_INT64U  ts_us;
  CPU_INT64U  fclk_freq;


  fclk_freq = BSP_CPU_ClkFreq();
  ts_us     = ts_cnts / (fclk_freq / DEF_TIME_NBR_uS_PER_SEC);

  return (ts_us);
}
#endif


#if (CPU_CFG_TS_64_EN == DEF_ENABLED)
CPU_INT64U  CPU_TS64_to_uSec (CPU_TS64  ts_cnts)
{
	CPU_INT64U  ts_us;
	CPU_INT64U  fclk_freq;


  fclk_freq = BSP_CPU_ClkFreq();
  ts_us     = ts_cnts / (fclk_freq / DEF_TIME_NBR_uS_PER_SEC);

  return (ts_us);
}
#endif

修改main.c文件代码

/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "gpio.h"
#include "usart.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include <includes.h>
#include "stm32f1xx_hal.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* 任务优先级 */
#define START_TASK_PRIO		3
#define LED0_TASK_PRIO		4
#define MSG_TASK_PRIO		5

/* 任务堆栈大小	*/
#define START_STK_SIZE 		64
#define LED0_STK_SIZE 		64
#define MSG_STK_SIZE 		64//任务堆大小过大会报错，可以试着改小一点

/* 任务栈 */
CPU_STK START_TASK_STK[START_STK_SIZE];
CPU_STK LED0_TASK_STK[LED0_STK_SIZE];
CPU_STK MSG_TASK_STK[MSG_STK_SIZE];
/* 任务控制块 */
OS_TCB StartTaskTCB;
OS_TCB Led0TaskTCB;
OS_TCB MsgTaskTCB;
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* 任务函数定义 */
void start_task(void *p_arg);
static  void  AppTaskCreate(void);
static  void  AppObjCreate(void);
static  void  led_pc13(void *p_arg);
static  void  send_msg(void *p_arg);
/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /**Initializes the CPU, AHB and APB busses clocks
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /**Initializes the CPU, AHB and APB busses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
	OS_ERR  err;
	OSInit(&err);
  HAL_Init();
	SystemClock_Config();
	//MX_GPIO_Init(); 这个在BSP的初始化里也会初始化
  MX_USART1_UART_Init();
	/* 创建任务 */
	OSTaskCreate((OS_TCB     *)&StartTaskTCB,                /* Create the start task                                */
				 (CPU_CHAR   *)"start task",
				 (OS_TASK_PTR ) start_task,
				 (void       *) 0,
				 (OS_PRIO     ) START_TASK_PRIO,
				 (CPU_STK    *)&START_TASK_STK[0],
				 (CPU_STK_SIZE) START_STK_SIZE/10,
				 (CPU_STK_SIZE) START_STK_SIZE,
				 (OS_MSG_QTY  ) 0,
				 (OS_TICK     ) 0,
				 (void       *) 0,
				 (OS_OPT      )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
				 (OS_ERR     *)&err);
	/* 启动多任务系统，控制权交给uC/OS-III */
	OSStart(&err);            /* Start multitasking (i.e. give control to uC/OS-III). */

}


void start_task(void *p_arg)
{
	OS_ERR err;
	CPU_SR_ALLOC();
	p_arg = p_arg;

	/* YangJie add 2021.05.20*/
  BSP_Init();                                                   /* Initialize BSP functions */
  //CPU_Init();
  //Mem_Init();                                                 /* Initialize Memory Management Module */

#if OS_CFG_STAT_TASK_EN > 0u
   OSStatTaskCPUUsageInit(&err);  		//统计任务
#endif

#ifdef CPU_CFG_INT_DIS_MEAS_EN			//如果使能了测量中断关闭时间
    CPU_IntDisMeasMaxCurReset();
#endif

#if	OS_CFG_SCHED_ROUND_ROBIN_EN  		//当使用时间片轮转的时候
	 //使能时间片轮转调度功能,时间片长度为1个系统时钟节拍，既1*5=5ms
	OSSchedRoundRobinCfg(DEF_ENABLED,1,&err);
#endif

	OS_CRITICAL_ENTER();	//进入临界区
	/* 创建LED0任务 */
	OSTaskCreate((OS_TCB 	* )&Led0TaskTCB,
				 (CPU_CHAR	* )"led_pc13",
                 (OS_TASK_PTR )led_pc13,
                 (void		* )0,
                 (OS_PRIO	  )LED0_TASK_PRIO,
                 (CPU_STK   * )&LED0_TASK_STK[0],
                 (CPU_STK_SIZE)LED0_STK_SIZE/10,
                 (CPU_STK_SIZE)LED0_STK_SIZE,
                 (OS_MSG_QTY  )0,
                 (OS_TICK	  )0,
                 (void   	* )0,
                 (OS_OPT      )OS_OPT_TASK_STK_CHK|OS_OPT_TASK_STK_CLR,
                 (OS_ERR 	* )&err);

	/* 创建LED1任务 */
	OSTaskCreate((OS_TCB 	* )&MsgTaskTCB,
				 (CPU_CHAR	* )"send_msg",
                 (OS_TASK_PTR )send_msg,
                 (void		* )0,
                 (OS_PRIO	  )MSG_TASK_PRIO,
                 (CPU_STK   * )&MSG_TASK_STK[0],
                 (CPU_STK_SIZE)MSG_STK_SIZE/10,
                 (CPU_STK_SIZE)MSG_STK_SIZE,
                 (OS_MSG_QTY  )0,
                 (OS_TICK	  )0,
                 (void   	* )0,
                 (OS_OPT      )OS_OPT_TASK_STK_CHK|OS_OPT_TASK_STK_CLR,
                 (OS_ERR 	* )&err);

	OS_TaskSuspend((OS_TCB*)&StartTaskTCB,&err);		//挂起开始任务
	OS_CRITICAL_EXIT();	//进入临界区
}
/**
  * 函数功能: 启动任务函数体。
  * 输入参数: p_arg 是在创建该任务时传递的形参
  * 返 回 值: 无
  * 说    明：无
  */
static  void  led_pc13 (void *p_arg)
{
  OS_ERR      err;

  (void)p_arg;

  BSP_Init();                                                 /* Initialize BSP functions                             */
  CPU_Init();

  Mem_Init();                                                 /* Initialize Memory Management Module                  */

#if OS_CFG_STAT_TASK_EN > 0u
  OSStatTaskCPUUsageInit(&err);                               /* Compute CPU capacity with no task running            */
#endif

  CPU_IntDisMeasMaxCurReset();

  AppTaskCreate();                                            /* Create Application Tasks                             */

  AppObjCreate();                                             /* Create Application Objects                           */

  while (DEF_TRUE)
  {
		HAL_GPIO_WritePin(GPIOC,GPIO_PIN_13,GPIO_PIN_RESET);
		OSTimeDlyHMSM(0, 0, 0, 500,OS_OPT_TIME_HMSM_STRICT,&err);
		HAL_GPIO_WritePin(GPIOC,GPIO_PIN_13,GPIO_PIN_SET);
		OSTimeDlyHMSM(0, 0, 0, 500,OS_OPT_TIME_HMSM_STRICT,&err);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}
static  void  send_msg (void *p_arg)
{
  OS_ERR      err;

  (void)p_arg;

  BSP_Init();                                                 /* Initialize BSP functions                             */
  CPU_Init();

  Mem_Init();                                                 /* Initialize Memory Management Module                  */

#if OS_CFG_STAT_TASK_EN > 0u
  OSStatTaskCPUUsageInit(&err);                               /* Compute CPU capacity with no task running            */
#endif

  CPU_IntDisMeasMaxCurReset();

  AppTaskCreate();                                            /* Create Application Tasks                             */

  AppObjCreate();                                             /* Create Application Objects                           */

  while (DEF_TRUE)
  {
			printf("hello world \r\n");
		OSTimeDlyHMSM(0, 0, 0, 500,OS_OPT_TIME_HMSM_STRICT,&err);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}


/* USER CODE BEGIN 4 */
/**
  * 函数功能: 创建应用任务
  * 输入参数: p_arg 是在创建该任务时传递的形参
  * 返 回 值: 无
  * 说    明：无
  */
static  void  AppTaskCreate (void)
{

}


/**
  * 函数功能: uCOSIII内核对象创建
  * 输入参数: 无
  * 返 回 值: 无
  * 说    明：无
  */
static  void  AppObjCreate (void)
{

}

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */

  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

修改其余文件部分代码

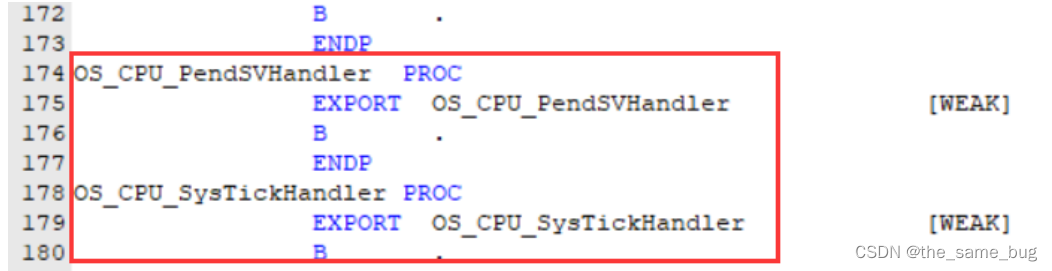

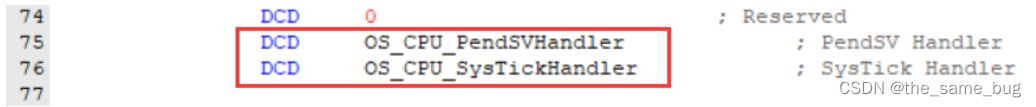

在以下位置处将PendSV_Handler和SysTick_Handler改为OS_CPU_PendSVHandler和OS_CPU_SysTickHandler

找到文件app_cfg.h

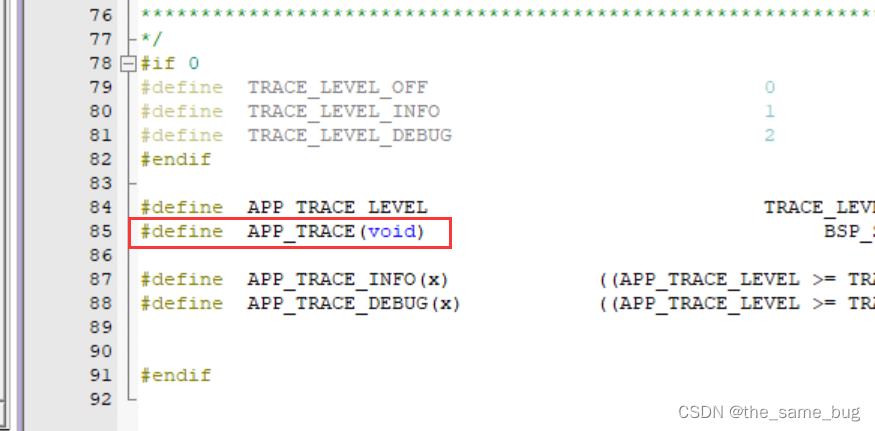

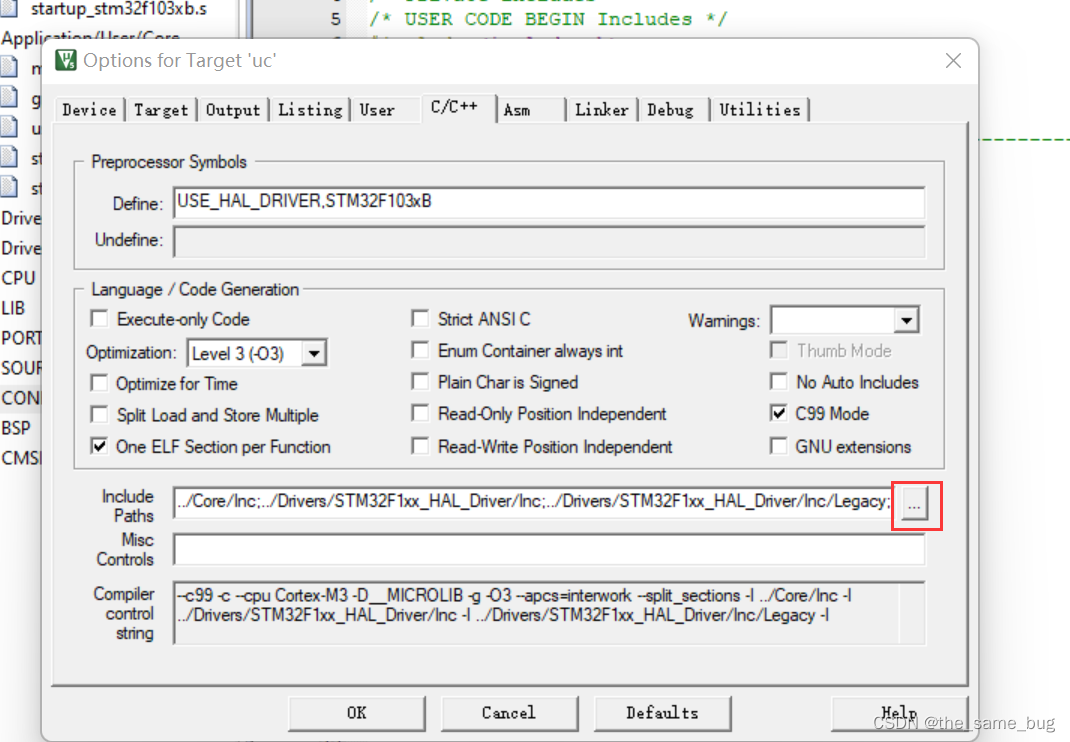

找到文件includes.h

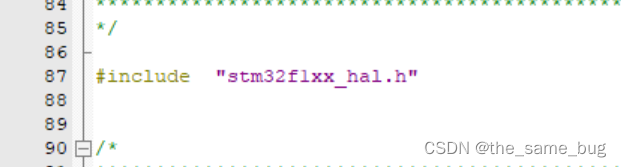

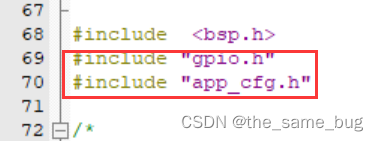

添加头文件修改头文件
找到lib_cfg.h
如图修改为5

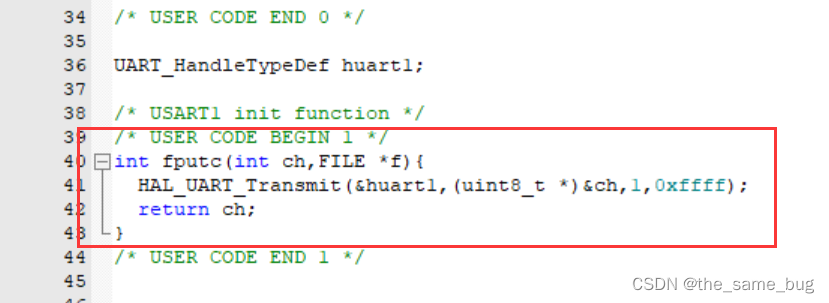

我们使用了printf函数，需要在usart.c文件中添加以下代码完成printf重定向

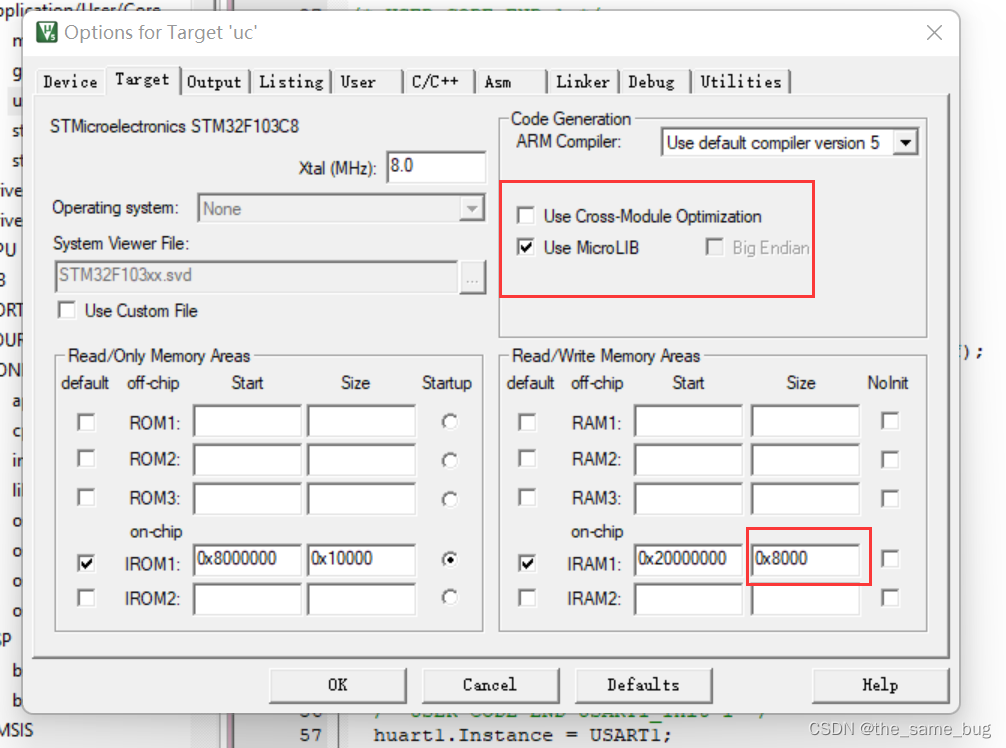

参数配置

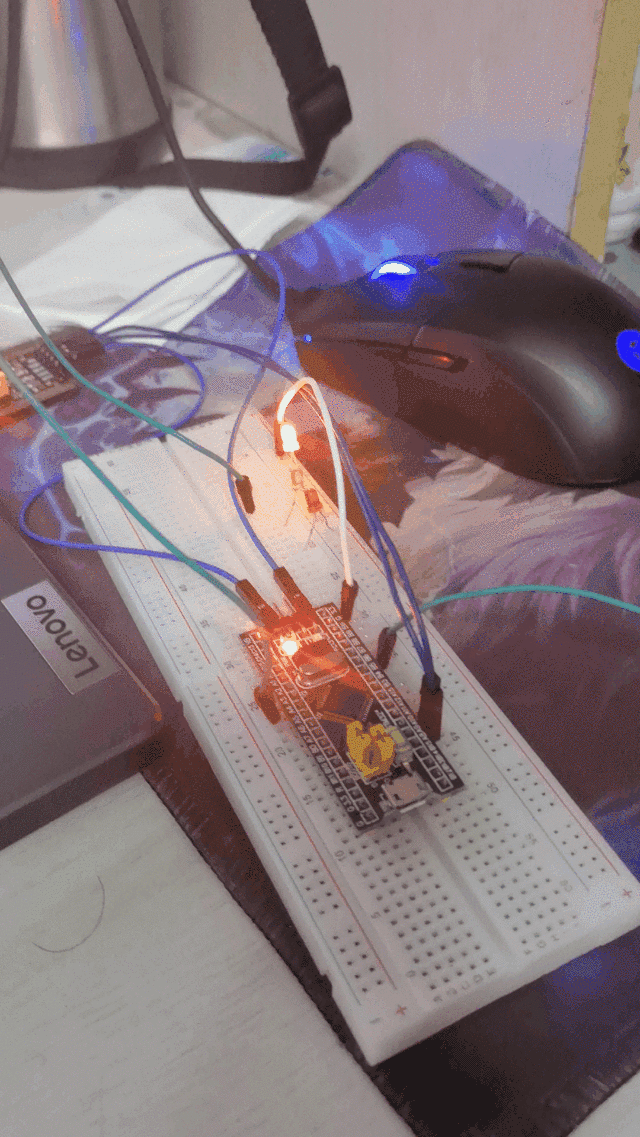

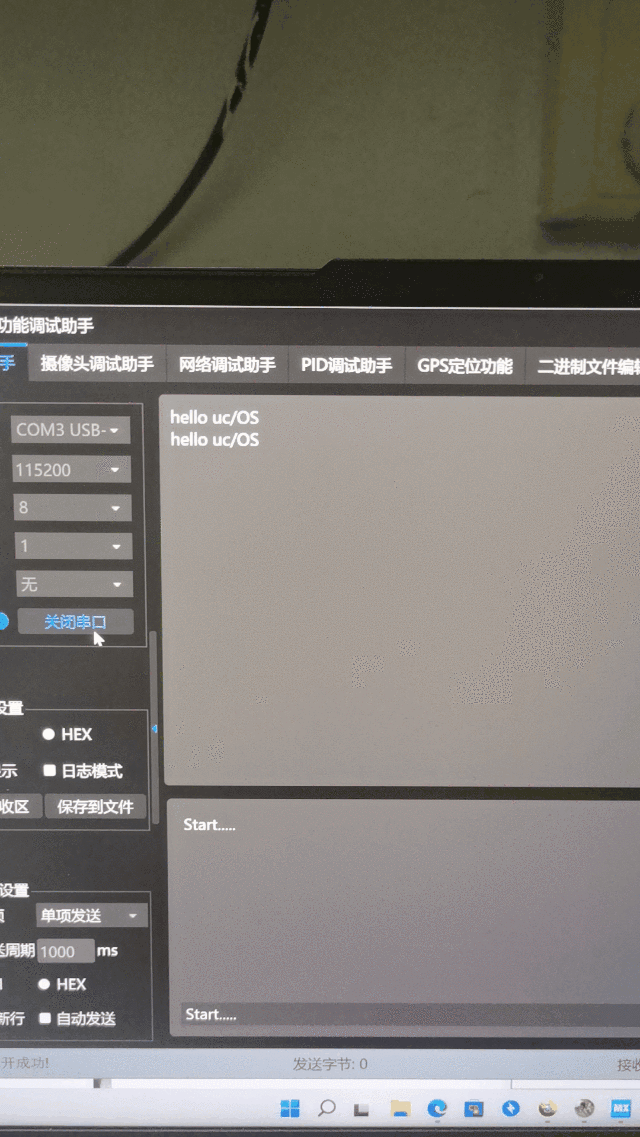

4、效果展示

5、实现三个任务

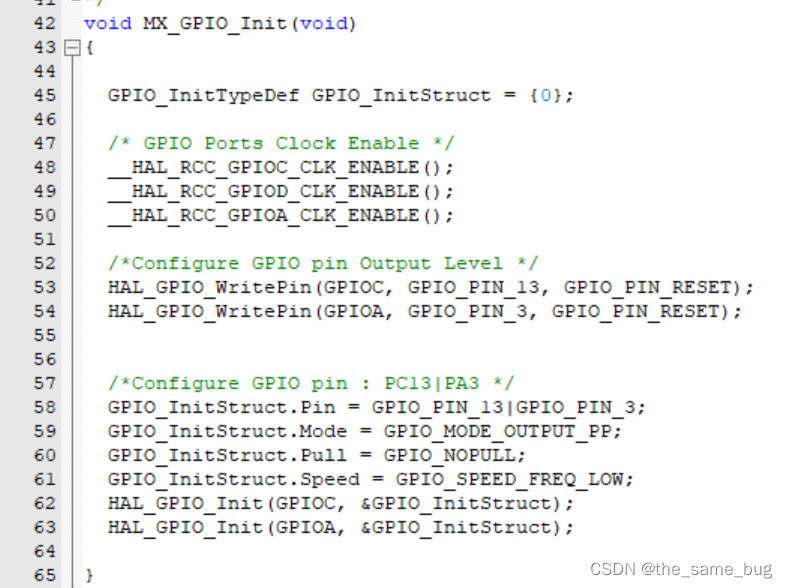

gpio.c中修改代码（添加初始化PA3）
改写main.c文件

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* 任务优先级 */
#define START_TASK_PRIO		3
#define LED0_TASK_PRIO		4
#define MSG_TASK_PRIO		5
#define LED1_TASK_PRIO		6

/* 任务堆栈大小	*/
#define START_STK_SIZE 		96
#define LED0_STK_SIZE 		64
#define MSG_STK_SIZE 		64
#define LED1_STK_SIZE 		64

/* 任务栈 */
CPU_STK START_TASK_STK[START_STK_SIZE];
CPU_STK LED0_TASK_STK[LED0_STK_SIZE];
CPU_STK MSG_TASK_STK[MSG_STK_SIZE];
CPU_STK LED1_TASK_STK[LED1_STK_SIZE];

/* 任务控制块 */
OS_TCB StartTaskTCB;
OS_TCB Led0TaskTCB;
OS_TCB MsgTaskTCB;
OS_TCB Led1TaskTCB;

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* 任务函数定义 */
void start_task(void *p_arg);
static  void  AppTaskCreate(void);
static  void  AppObjCreate(void);
static  void  led_pc13(void *p_arg);
static  void  send_msg(void *p_arg);
static  void  led_pa3(void *p_arg);
/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /**Initializes the CPU, AHB and APB busses clocks
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /**Initializes the CPU, AHB and APB busses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
	OS_ERR  err;
	OSInit(&err);
  HAL_Init();
	SystemClock_Config();
	//MX_GPIO_Init(); 这个在BSP的初始化里也会初始化
  MX_USART1_UART_Init();
	/* 创建任务 */
	OSTaskCreate((OS_TCB     *)&StartTaskTCB,                /* Create the start task                                */
				 (CPU_CHAR   *)"start task",
				 (OS_TASK_PTR ) start_task,
				 (void       *) 0,
				 (OS_PRIO     ) START_TASK_PRIO,
				 (CPU_STK    *)&START_TASK_STK[0],
				 (CPU_STK_SIZE) START_STK_SIZE/10,
				 (CPU_STK_SIZE) START_STK_SIZE,
				 (OS_MSG_QTY  ) 0,
				 (OS_TICK     ) 0,
				 (void       *) 0,
				 (OS_OPT      )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
				 (OS_ERR     *)&err);
	/* 启动多任务系统，控制权交给uC/OS-III */
	OSStart(&err);            /* Start multitasking (i.e. give control to uC/OS-III). */

}


void start_task(void *p_arg)
{
	OS_ERR err;
	CPU_SR_ALLOC();
	p_arg = p_arg;

	/* YangJie add 2021.05.20*/
  BSP_Init();                                                   /* Initialize BSP functions */
  //CPU_Init();
  //Mem_Init();                                                 /* Initialize Memory Management Module */

#if OS_CFG_STAT_TASK_EN > 0u
   OSStatTaskCPUUsageInit(&err);  		//统计任务
#endif

#ifdef CPU_CFG_INT_DIS_MEAS_EN			//如果使能了测量中断关闭时间
    CPU_IntDisMeasMaxCurReset();
#endif

#if	OS_CFG_SCHED_ROUND_ROBIN_EN  		//当使用时间片轮转的时候
	 //使能时间片轮转调度功能,时间片长度为1个系统时钟节拍，既1*5=5ms
	OSSchedRoundRobinCfg(DEF_ENABLED,1,&err);
#endif

	OS_CRITICAL_ENTER();	//进入临界区
	/* 创建LED0任务 */
	OSTaskCreate((OS_TCB 	* )&Led0TaskTCB,
				 (CPU_CHAR	* )"led_pc13",
                 (OS_TASK_PTR )led_pc13,
                 (void		* )0,
                 (OS_PRIO	  )LED0_TASK_PRIO,
                 (CPU_STK   * )&LED0_TASK_STK[0],
                 (CPU_STK_SIZE)LED0_STK_SIZE/10,
                 (CPU_STK_SIZE)LED0_STK_SIZE,
                 (OS_MSG_QTY  )0,
                 (OS_TICK	  )0,
                 (void   	* )0,
                 (OS_OPT      )OS_OPT_TASK_STK_CHK|OS_OPT_TASK_STK_CLR,
                 (OS_ERR 	* )&err);

/* 创建LED1任务 */
	OSTaskCreate((OS_TCB 	* )&Led1TaskTCB,
				 (CPU_CHAR	* )"led_pa3",
                 (OS_TASK_PTR )led_pa3,
                 (void		* )0,
                 (OS_PRIO	  )LED1_TASK_PRIO,
                 (CPU_STK   * )&LED1_TASK_STK[0],
                 (CPU_STK_SIZE)LED1_STK_SIZE/10,
                 (CPU_STK_SIZE)LED1_STK_SIZE,
                 (OS_MSG_QTY  )0,
                 (OS_TICK	  )0,
                 (void   	* )0,
                 (OS_OPT      )OS_OPT_TASK_STK_CHK|OS_OPT_TASK_STK_CLR,
                 (OS_ERR 	* )&err);

	/* 创建MSG任务 */
	OSTaskCreate((OS_TCB 	* )&MsgTaskTCB,
				 (CPU_CHAR	* )"send_msg",
                 (OS_TASK_PTR )send_msg,
                 (void		* )0,
                 (OS_PRIO	  )MSG_TASK_PRIO,
                 (CPU_STK   * )&MSG_TASK_STK[0],
                 (CPU_STK_SIZE)MSG_STK_SIZE/10,
                 (CPU_STK_SIZE)MSG_STK_SIZE,
                 (OS_MSG_QTY  )0,
                 (OS_TICK	  )0,
                 (void   	* )0,
                 (OS_OPT      )OS_OPT_TASK_STK_CHK|OS_OPT_TASK_STK_CLR,
                 (OS_ERR 	* )&err);

	OS_TaskSuspend((OS_TCB*)&StartTaskTCB,&err);		//挂起开始任务
	OS_CRITICAL_EXIT();	//进入临界区
}
/**
  * 函数功能: 启动任务函数体。
  * 输入参数: p_arg 是在创建该任务时传递的形参
  * 返 回 值: 无
  * 说    明：无
  */
static  void  led_pc13 (void *p_arg)
{
  OS_ERR      err;

  (void)p_arg;

  BSP_Init();                                                 /* Initialize BSP functions                             */
  CPU_Init();

  Mem_Init();                                                 /* Initialize Memory Management Module                  */

#if OS_CFG_STAT_TASK_EN > 0u
  OSStatTaskCPUUsageInit(&err);                               /* Compute CPU capacity with no task running            */
#endif

  CPU_IntDisMeasMaxCurReset();

  AppTaskCreate();                                            /* Create Application Tasks                             */

  AppObjCreate();                                             /* Create Application Objects                           */

  while (DEF_TRUE)
  {
		HAL_GPIO_WritePin(GPIOC,GPIO_PIN_13,GPIO_PIN_RESET);
		OSTimeDlyHMSM(0, 0, 1, 0,OS_OPT_TIME_HMSM_STRICT,&err);
		HAL_GPIO_WritePin(GPIOC,GPIO_PIN_13,GPIO_PIN_SET);
		OSTimeDlyHMSM(0, 0, 1, 0,OS_OPT_TIME_HMSM_STRICT,&err);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

static  void  led_pa3 (void *p_arg)
{
  OS_ERR      err;

  (void)p_arg;

  BSP_Init();                                                 /* Initialize BSP functions                             */
  CPU_Init();

  Mem_Init();                                                 /* Initialize Memory Management Module                  */

#if OS_CFG_STAT_TASK_EN > 0u
  OSStatTaskCPUUsageInit(&err);                               /* Compute CPU capacity with no task running            */
#endif

  CPU_IntDisMeasMaxCurReset();

  AppTaskCreate();                                            /* Create Application Tasks                             */

  AppObjCreate();                                             /* Create Application Objects                           */

  while (DEF_TRUE)
  {
		HAL_GPIO_WritePin(GPIOA,GPIO_PIN_3,GPIO_PIN_RESET);
		OSTimeDlyHMSM(0, 0, 3, 0,OS_OPT_TIME_HMSM_STRICT,&err);
		HAL_GPIO_WritePin(GPIOA,GPIO_PIN_3,GPIO_PIN_SET);
		OSTimeDlyHMSM(0, 0, 3, 0,OS_OPT_TIME_HMSM_STRICT,&err);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

static  void  send_msg (void *p_arg)
{
  OS_ERR      err;

  (void)p_arg;

  BSP_Init();                                                 /* Initialize BSP functions                             */
  CPU_Init();

  Mem_Init();                                                 /* Initialize Memory Management Module                  */

#if OS_CFG_STAT_TASK_EN > 0u
  OSStatTaskCPUUsageInit(&err);                               /* Compute CPU capacity with no task running            */
#endif

  CPU_IntDisMeasMaxCurReset();

  AppTaskCreate();                                            /* Create Application Tasks                             */

  AppObjCreate();                                             /* Create Application Objects                           */

  while (DEF_TRUE)
  {
			printf("hello uc/OS \r\n");
		OSTimeDlyHMSM(0, 0, 2, 0,OS_OPT_TIME_HMSM_STRICT,&err);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}


/* USER CODE BEGIN 4 */
/**
  * 函数功能: 创建应用任务
  * 输入参数: p_arg 是在创建该任务时传递的形参
  * 返 回 值: 无
  * 说    明：无
  */
static  void  AppTaskCreate (void)
{

}


/**
  * 函数功能: uCOSIII内核对象创建
  * 输入参数: 无
  * 返 回 值: 无
  * 说    明：无
  */
static  void  AppObjCreate (void)
{

}

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */

  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

6、效果展示
