最后平移就是12 、13 、14

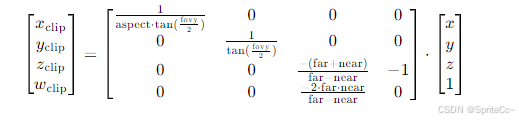

透视投影


    // 设置投影矩阵（透视投影）
    setPerspectiveProjectionMatrix() {
        let canvas = Renderer.instance.canvas;
        const fovy = Math.PI / 3; // 45度
        const tanHalfFovy = Math.tan(fovy / 2);
        const aspect = canvas.width / canvas.height;
        const near = 0.51;
        const far = 1000.0;

        const projectionMatrix = new Float32Array(16);
        projectionMatrix[0] = 1.0 / (aspect * tanHalfFovy);
        projectionMatrix[5] = 1.0 / tanHalfFovy;
        projectionMatrix[10] = -(far + near) / (far - near);
        projectionMatrix[11] = -1.0;
        projectionMatrix[14] = -(2.0 * far * near) / (far - near);
        projectionMatrix[15] = 0.0;
        return projectionMatrix;
    }
    // 设置投影矩阵（正交投影）
    setOrthographicProjectionMatrix() {
        let canvas = Renderer.instance.canvas;
        const left = -canvas.width / 2;
        const right = canvas.width / 2;
        const bottom = -canvas.height / 2;
        const top = canvas.height / 2;
        const near = 0.1;
        const far = 100000.0;
        const projectionMatrix = new Float32Array(16);
        projectionMatrix[0] = 2.0 / (right - left);
        projectionMatrix[5] = 2.0 / (top - bottom);
        projectionMatrix[10] = -2.0 / (far - near);
        projectionMatrix[12] = -(right + left) / (right - left);
        projectionMatrix[13] = -(top + bottom) / (top - bottom);
        projectionMatrix[14] = -(far + near) / (far - near);
        projectionMatrix[15] = 1.0;
        return projectionMatrix;
    }
