这里讲讲SpringMVC如何处理Controller的相关知识点，本文基于Spring4.x源码分析，直接从request映射到Controller中方法切入，前后内容不做解释，先有必要说明几个类型，我们可以猜想，映射关系的数据结构很可能是一个Map，那么key和value就是我们关心的，

RequestMappingInfo：Map的value，结构中主要包含请求协议相关情况，如请求类型，参数等；

HandelMethod：Map的key，用来封装handler中handler方法，包含方法的必要数据；

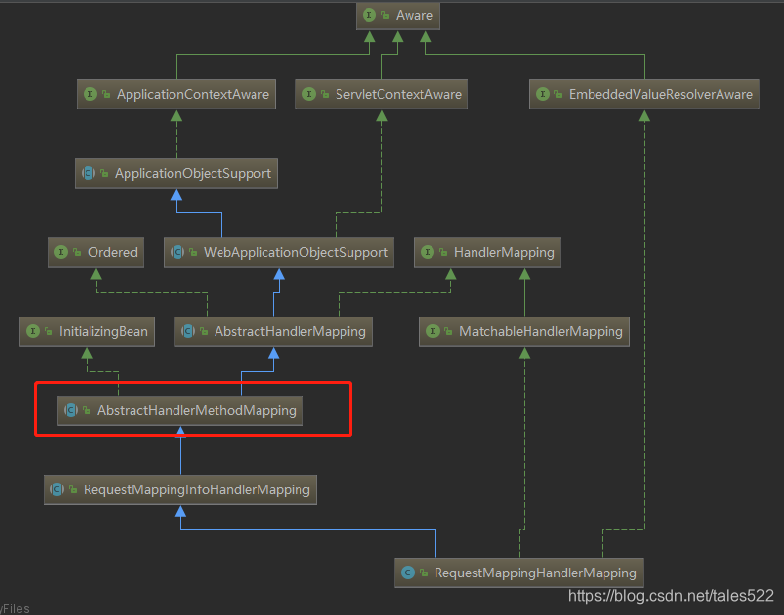

整个流程的入口是InitializingBean#afterPropertiesSet()方法，InitializingBean是Spring Bean生命周期中的一个环节，我们应该是很熟悉的，这个方法会在Spring Bean初始化时被调用。

@Override
public void afterPropertiesSet() {
	initHandlerMethods();
}

直接看AbstractHandlerMethodMapping#initHandlerMethods()

protected void initHandlerMethods() {
	if (logger.isDebugEnabled()) {
		logger.debug("Looking for request mappings in application context: " + getApplicationContext());
	}
	// 遍历IOC中所有Bean
	String[] beanNames = (this.detectHandlerMethodsInAncestorContexts ?
			BeanFactoryUtils.beanNamesForTypeIncludingAncestors(getApplicationContext(), Object.class) :
			getApplicationContext().getBeanNamesForType(Object.class));

	for (String beanName : beanNames) {
// scopedTarget.前缀的bean不管
		if (!beanName.startsWith(SCOPED_TARGET_NAME_PREFIX)) {
			Class<?> beanType = null;
			try {
				beanType = getApplicationContext().getType(beanName);
			}
			catch (Throwable ex) {
                // 懒加载的bean不管
				// An unresolvable bean type, probably from a lazy bean - let's ignore it.
				if (logger.isDebugEnabled()) {
					logger.debug("Could not resolve target class for bean with name '" + beanName + "'", ex);
				}
			}
			// 如果有@Controller或者@RequestMapping
			if (beanType != null && isHandler(beanType)) {
				// 处理handler中的handler方法
				detectHandlerMethods(beanName);
			}
		}
	}
	handlerMethodsInitialized(getHandlerMethods());
}

protected void detectHandlerMethods(final Object handler) {
	Class<?> handlerType = (handler instanceof String ?
			getApplicationContext().getType((String) handler) : handler.getClass());
	// 处理可能有代理的情况，获取代理类型的原始类型
	final Class<?> userType = ClassUtils.getUserClass(handlerType);
	// 根据handler的Class提取其指定方法到Map
	Map<Method, T> methods = MethodIntrospector.selectMethods(userType,
			new MethodIntrospector.MetadataLookup<T>() {
				@Override
				public T inspect(Method method) {
					try {
						return getMappingForMethod(method, userType);
					}
					catch (Throwable ex) {
						throw new IllegalStateException("Invalid mapping on handler class [" +
								userType.getName() + "]: " + method, ex);
					}
				}
			});
	if (logger.isDebugEnabled()) {
		logger.debug(methods.size() + " request handler methods found on " + userType + ": " + methods);
	}
	// 遍历所有handler方法
	for (Map.Entry<Method, T> entry : methods.entrySet()) {
		Method invocableMethod = AopUtils.selectInvocableMethod(entry.getKey(), userType);
		T mapping = entry.getValue();
		registerHandlerMethod(handler, invocableMethod, mapping);
	}
}

// 生成Map的Value，如果方法没有@RequestMapping则返回null
@Override
protected RequestMappingInfo getMappingForMethod(Method method, Class<?> handlerType) {
	RequestMappingInfo info = createRequestMappingInfo(method);
	if (info != null) {
		RequestMappingInfo typeInfo = createRequestMappingInfo(handlerType);
		if (typeInfo != null) {
			info = typeInfo.combine(info);
		}
	}
	return info;
}

public static <T> Map<Method, T> selectMethods(Class<?> targetType, final MetadataLookup<T> metadataLookup) {
// key是Method，value是封装类型
	final Map<Method, T> methodMap = new LinkedHashMap<Method, T>();
	Set<Class<?>> handlerTypes = new LinkedHashSet<Class<?>>();
	Class<?> specificHandlerType = null;
	// 只处理非代理类型的handler
	if (!Proxy.isProxyClass(targetType)) {
		handlerTypes.add(targetType);
		specificHandlerType = targetType;
	}
	// 添加直接接口类型
	handlerTypes.addAll(Arrays.asList(targetType.getInterfaces()));
	// 遍历所有handler类型
	for (Class<?> currentHandlerType : handlerTypes) {
		final Class<?> targetClass = (specificHandlerType != null ? specificHandlerType : currentHandlerType);
		// 将handler方法放入methodMap
		ReflectionUtils.doWithMethods(currentHandlerType, new ReflectionUtils.MethodCallback() {
// 往Map中put值
			@Override
			public void doWith(Method method) {
				Method specificMethod = ClassUtils.getMostSpecificMethod(method, targetClass);
// 生成Map的Value
				T result = metadataLookup.inspect(specificMethod);
				if (result != null) {
// BridgeMethodResolver是为了处理泛型相关
					Method bridgedMethod = BridgeMethodResolver.findBridgedMethod(specificMethod);
					if (bridgedMethod == specificMethod || metadataLookup.inspect(bridgedMethod) == null) {
						methodMap.put(specificMethod, result);
					}
				}
			}
		}, ReflectionUtils.USER_DECLARED_METHODS);
	}
	return methodMap;
}

// 递归方法，检测方法并加入Map的具体操作
public static void doWithMethods(Class<?> clazz, MethodCallback mc, MethodFilter mf) {
	// Keep backing up the inheritance hierarchy.
	Method[] methods = getDeclaredMethods(clazz);
	for (Method method : methods) {
		if (mf != null && !mf.matches(method)) {
			continue;
		}
		try {
			mc.doWith(method);
		}
		catch (IllegalAccessException ex) {
			throw new IllegalStateException("Not allowed to access method '" + method.getName() + "': " + ex);
		}
	}
	if (clazz.getSuperclass() != null) {
		doWithMethods(clazz.getSuperclass(), mc, mf);
	}
	else if (clazz.isInterface()) {
		for (Class<?> superIfc : clazz.getInterfaces()) {
			doWithMethods(superIfc, mc, mf);
		}
	}
}

protected void registerHandlerMethod(Object handler, Method method, T mapping) {
	this.mappingRegistry.register(mapping, handler, method);
}

public void register(T mapping, Object handler, Method method) {
	this.readWriteLock.writeLock().lock();
	try {
		HandlerMethod handlerMethod = createHandlerMethod(handler, method);
		assertUniqueMethodMapping(handlerMethod, mapping);

		if (logger.isInfoEnabled()) {
			logger.info("Mapped \"" + mapping + "\" onto " + handlerMethod);
		}
		this.mappingLookup.put(mapping, handlerMethod);
		// 获取方法上所有路径
		List<String> directUrls = getDirectUrls(mapping);
		for (String url : directUrls) {
			this.urlLookup.add(url, mapping);
		}

		String name = null;
		if (getNamingStrategy() != null) {
			name = getNamingStrategy().getName(handlerMethod, mapping);
			addMappingName(name, handlerMethod);
		}

		CorsConfiguration corsConfig = initCorsConfiguration(handler, method, mapping);
		if (corsConfig != null) {
			this.corsLookup.put(handlerMethod, corsConfig);
		}
		this.registry.put(mapping, new MappingRegistration<T>(mapping, handlerMethod, directUrls, name));
	}
	finally {
		this.readWriteLock.writeLock().unlock();
	}
}

下面来看看调用者是如何操作的：

DispatcherServlet#doDispatch(HttpServletRequest request, HttpServletResponse response)

DispatcherServlet#getHandler(HttpServletRequest request)

AbstractHandlerMapping#getHandler(HttpServletRequest request)

AbstractHandlerMethodMapping#getHandlerInternal(HttpServletRequest request)

可以看到这个最终又到了AbstractHandlerMethodMapping这个类型，也就是我们上面初始化时的类，和我们预想的一样，

@Override
protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
	String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
	if (logger.isDebugEnabled()) {
		logger.debug("Looking up handler method for path " + lookupPath);
	}
	this.mappingRegistry.acquireReadLock();
	try {
		HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);
		if (logger.isDebugEnabled()) {
			if (handlerMethod != null) {
				logger.debug("Returning handler method [" + handlerMethod + "]");
			}
			else {
				logger.debug("Did not find handler method for [" + lookupPath + "]");
			}
		}
		return (handlerMethod != null ? handlerMethod.createWithResolvedBean() : null);
	}
	finally {
		this.mappingRegistry.releaseReadLock();
	}
}

protected HandlerMethod lookupHandlerMethod(String lookupPath, HttpServletRequest request) throws Exception {
	List<Match> matches = new ArrayList<Match>();
	List<T> directPathMatches = this.mappingRegistry.getMappingsByUrl(lookupPath);
	if (directPathMatches != null) {
		addMatchingMappings(directPathMatches, matches, request);
	}
	if (matches.isEmpty()) {
		// No choice but to go through all mappings...
		addMatchingMappings(this.mappingRegistry.getMappings().keySet(), matches, request);
	}

	if (!matches.isEmpty()) {
		Comparator<Match> comparator = new MatchComparator(getMappingComparator(request));
		Collections.sort(matches, comparator);
		if (logger.isTraceEnabled()) {
			logger.trace("Found " + matches.size() + " matching mapping(s) for [" +
					lookupPath + "] : " + matches);
		}
		Match bestMatch = matches.get(0);
		if (matches.size() > 1) {
			if (CorsUtils.isPreFlightRequest(request)) {
				return PREFLIGHT_AMBIGUOUS_MATCH;
			}
			Match secondBestMatch = matches.get(1);
			if (comparator.compare(bestMatch, secondBestMatch) == 0) {
				Method m1 = bestMatch.handlerMethod.getMethod();
				Method m2 = secondBestMatch.handlerMethod.getMethod();
				throw new IllegalStateException("Ambiguous handler methods mapped for HTTP path '" +
						request.getRequestURL() + "': {" + m1 + ", " + m2 + "}");
			}
		}
		handleMatch(bestMatch.mapping, lookupPath, request);
		return bestMatch.handlerMethod;
	}
	else {
		return handleNoMatch(this.mappingRegistry.getMappings().keySet(), lookupPath, request);
	}
}

# 内部类
private class Match {

	private final T mapping;

	private final HandlerMethod handlerMethod;

	public Match(T mapping, HandlerMethod handlerMethod) {
		this.mapping = mapping;
		this.handlerMethod = handlerMethod;
	}

	@Override
	public String toString() {
		return this.mapping.toString();
	}
}
