STM32CubeMX生成工程 SWD无法下载



问题现象：

使用STM32CubeMX生成工程后，使用SWD下载，第二次无法下载。

错误提示：

* JLink Info: STM32 (connect): Can not attach to CPU. Trying connect under reset.
* JLink Info: STM32 (connect): Can not attach to CPU. Trying connect under reset.
***JLink Error: STM32: Connecting to CPU via connect under reset failed.
Error: Flash Download failed  -  Target DLL has been cancelled

原因分析：

使用STM32CubeMX生成的工程，使用SWD下载，需要配置。

解决办法：



步骤：

更改STM32CubeMX配置

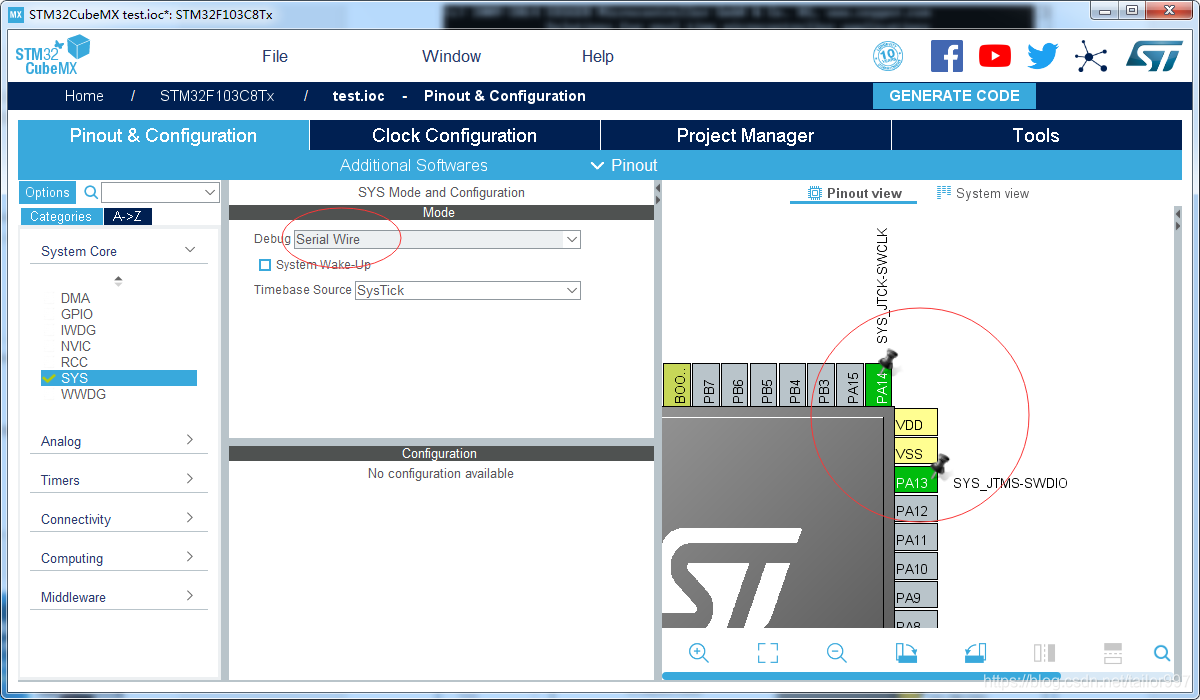

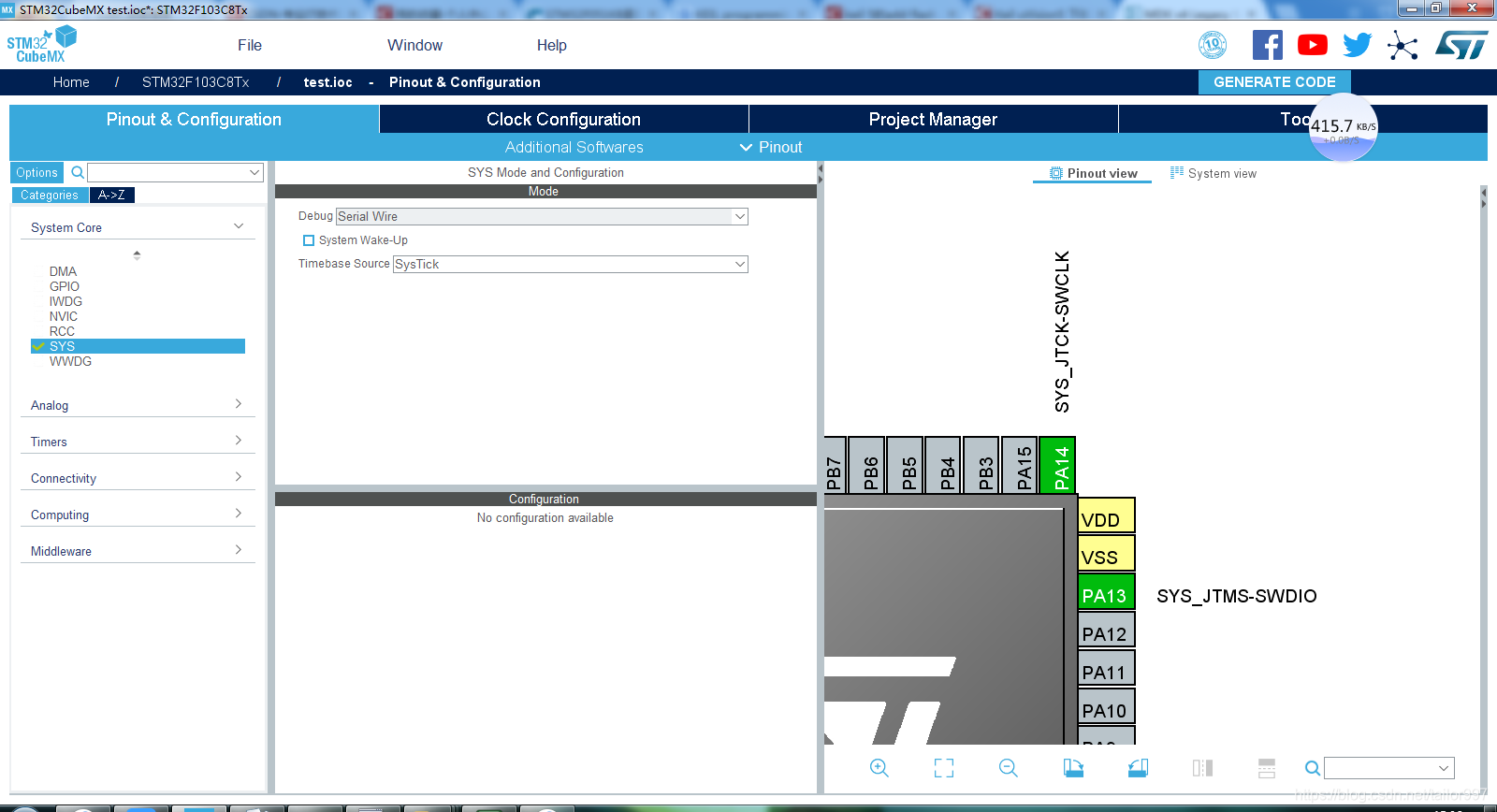

SYS>Debug>SerialWire

---

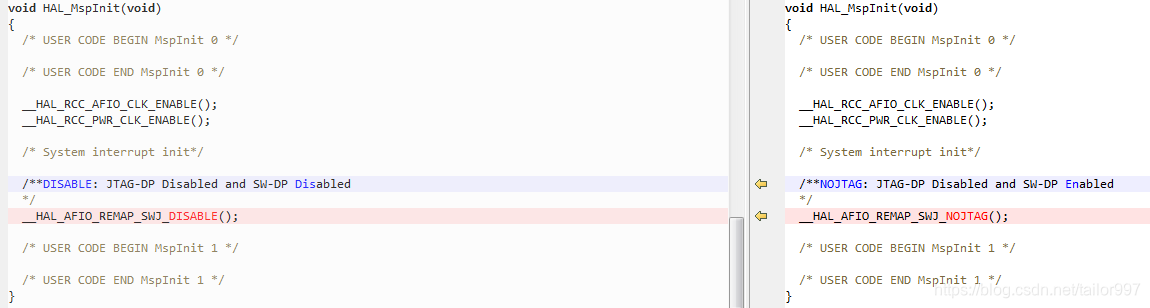

 使用 Compare Beyond 比较两个工程代码:



HAL_Init();
    > HAL_MspInit();
        >>    <stm32f1xx_hal_msp.c>
             /**NOJTAG: JTAG-DP Disabled and SW-DP Enabled */
              __HAL_AFIO_REMAP_SWJ_NOJTAG();

异常工程：
        >>    <stm32f1xx_hal_msp.c>
              /**DISABLE: JTAG-DP Disabled and SW-DP Disabled */
              __HAL_AFIO_REMAP_SWJ_DISABLE();

---

固件下载操作：

按住复位键 > 点击 Download > 提示框更新 如下内容 > 松开复位键 > 正常下载

（期间复位键一定要按住，否则会有警告提示框，再次重复上述操作即可）
