Android Fence timeout

本文详细介绍了Android系统中的Fence同步机制,包括sync_timeline、sync_pt与sync_fence等核心概念,阐述了如何利用这些机制来实现多线程间的任务同步及资源保护。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

Fence的中文意思可以理解为栅栏,但是Android fence是一个用来同步的东西,可以形象的理解为栅栏,把不同的动作拦截区分,A fence sync object is used to wait for completion of the corresponding fence command,这个意思是说这是一个用来等待响应fence命令完成的对象。用来做同步用的。The fence sync object is used to synchronize tasks and protect resources among multiple threads,fence被用来在多线程中做任务的同步。

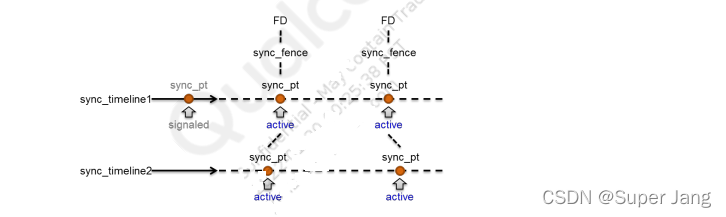

sync_timeline :An abstract monotonically increasing counter.一个抽象的单调递增的计数器

sync_pt :An abstract value which marks a point on a sync_timeline.一个抽象值,用来标记在sync_timeline上的一个点

sync_fence: The primary primitives used by drivers to coordinate synchronization of their buffers.用来驱动协调缓冲区同步的主要原语对象

如果一个fence没有被提前的信号标记(signaled),那么这时候fence time out就发生了。

为了标记一个fence我们必须让每个绑定到sync_fence的sync_pt退休retired。否则无法完成新标价。

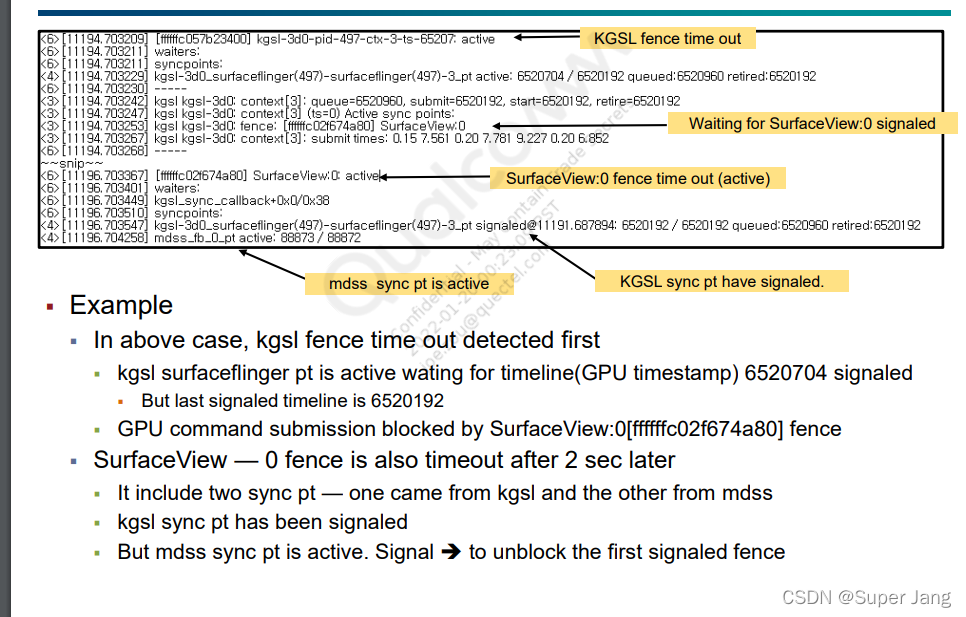

当fence time out发生了以后我们要确定是哪个sync_pt没有retired,

通过上面的示例可以作为一个简单的分析过程。

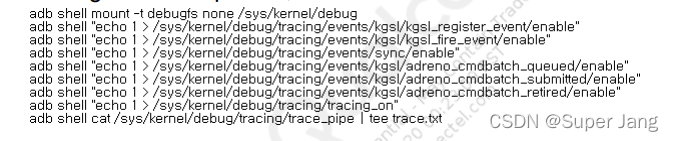

 Trace points are the primary way to debug KGSL fence timeouts  Enable below trace points to trace kgsl events related with fence issue  With this configuration we can check how long each GPU command batch is taking between queued, submitted and retired

  kgsl_register_event — to confirm event callback function registered  kgsl callback function eventually calls sync_timeline_signal()  kgsl_fire_event — to confirm callback is called after cmd batch retired  adreno_cmdbatch_queued/submitted/retired — to confirm GPU command is properly queued, submitted and retired
