View-＞可拖拽滑动的ImageView + Fling惯性滑动效果 + 回弹效果

`XML`文件

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center">
    <com.gallery20.app.MyImageView
        android:id="@+id/real_iv"
        android:layout_width="300dp"
        android:layout_height="300dp"
        android:layout_marginTop="30dp"
        android:layout_marginBottom="30dp"
        android:layout_marginLeft="30dp"
        android:layout_marginRight="30dp"
        android:background="#00000000"/>
</LinearLayout>

`Activity`代码

const val TAG = "Yang"
class MainActivity : AppCompatActivity() {
    var mRealView: MyImageView? = null
    var tempBitmap: Bitmap? = null
    var screenWidth = 0
    var screenHeight = 0
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        mRealView = findViewById(R.id.real_iv)
        // 屏幕宽高的一半作为临时RectF, 用于压缩Bitmap
        screenWidth = resources.displayMetrics.widthPixels
        screenHeight = resources.displayMetrics.heightPixels
        val tempRect = RectF(0f, 0f, screenWidth.toFloat() / 2, screenHeight.toFloat() / 2)

        CoroutineScope(Dispatchers.IO).launch {
            tempBitmap = getBitmap(resources, tempRect, R.drawable.fake)
            withContext(Dispatchers.Main) {
                mRealView?.setImageBitmap(tempBitmap)
            }
        }
    }
}
fun getBitmap(resources : Resources, destRect : RectF, imageId: Int): Bitmap? {
    var imageWidth = -1
    var imageHeight = -1
    val preOption = BitmapFactory.Options().apply {
        // 只获取图片的宽高
        inJustDecodeBounds = true
        BitmapFactory.decodeResource(resources, imageId, this)
    }
    imageWidth = preOption.outWidth
    imageHeight = preOption.outHeight
    // 计算缩放比例
    val scaleMatrix = Matrix()
    // 确定未缩放Bitmap的RectF
    var srcRect = RectF(0f, 0f, imageWidth.toFloat(), imageHeight.toFloat())
    // 通过目标RectF, 确定缩放数值，存储在scaleMatrix中
    scaleMatrix.setRectToRect(srcRect, destRect, Matrix.ScaleToFit.CENTER)
    // 缩放数值再映射到原始Bitmap上，得到缩放后的RectF
    scaleMatrix.mapRect(srcRect)

    val finalOption = BitmapFactory.Options().apply {
        if (imageHeight > 0 && imageWidth > 0) {
            inPreferredConfig = Bitmap.Config.ARGB_8888
            inSampleSize = calculateInSampleSize(
                imageWidth,
                imageHeight,
                srcRect.width().toInt(),
                srcRect.height().toInt()
            )
        }
    }
    return BitmapFactory.decodeResource(resources, imageId, finalOption)
}

fun calculateInSampleSize(fromWidth: Int, fromHeight: Int, toWidth: Int, toHeight: Int): Int {
    var bitmapWidth = fromWidth
    var bitmapHeight = fromHeight
    if (fromWidth > toWidth|| fromHeight > toHeight) {
        var inSampleSize = 1
        // 计算最大的inSampleSize值，该值是2的幂，并保持原始宽高大于目标宽高
        while (bitmapWidth >= toWidth && bitmapHeight >= toHeight) {
            bitmapWidth /= 2
            bitmapHeight /= 2
            inSampleSize *= 2
        }
        return inSampleSize
    }
    return 1
}

自定义`View`代码

class MyImageView @JvmOverloads constructor(
    context: Context, attrs: AttributeSet? = null, defStyleAttr: Int = 0
) : AppCompatImageView(context, attrs, defStyleAttr){

    private var lastX = 0f
    private var lastY = 0f
    private val scroller = Scroller(context)
	// private val scroller = OverScroller(context)
    override fun onTouchEvent(event: MotionEvent): Boolean {
        when (event.action) {
            MotionEvent.ACTION_DOWN -> {
                lastX = event.rawX
                lastY = event.rawY
            }
            MotionEvent.ACTION_MOVE -> {
                val dx = event.rawX - lastX
                val dy = event.rawY - lastY
                val left = left + dx.toInt()
                val top = top + dy.toInt()
                val right = right + dx.toInt()
                val bottom = bottom + dy.toInt()
                layout(left, top, right, bottom)
                lastX = event.rawX
                lastY = event.rawY
            }
            MotionEvent.ACTION_UP -> {
                // 手指抬起时，根据速度进行惯性滑动
                // (int startX, int startY, int velocityX, int velocityY, int minX, int maxX, int minY, int maxY)
                // startX, startY：开始滑动的位置
                // velocityX, velocityY：滑动的速度
                // minX, maxX, minY, maxY：滑动的范围
                val parentView = (parent as? View)
                scroller.fling(left, top, 500, 500, 0, parentView?.width!!-width, 0, parentView?.height!!-height)
                invalidate()  // 请求重绘View，这会导致computeScroll()被调用
            }
        }
        return true
    }

    override fun computeScroll() {
        if (scroller.computeScrollOffset()) {
            // 更新View的位置
            val left = scroller.currX
            val top = scroller.currY
            val right = left + width
            val bottom = top + height
            layout(left, top, right, bottom)
            if (!scroller.isFinished) {
                invalidate()  // 继续请求重绘View，直到滑动结束
                Log.i("yang", "computeScroll: $left, $top, $right, $bottom")
            }
        }
    }
}

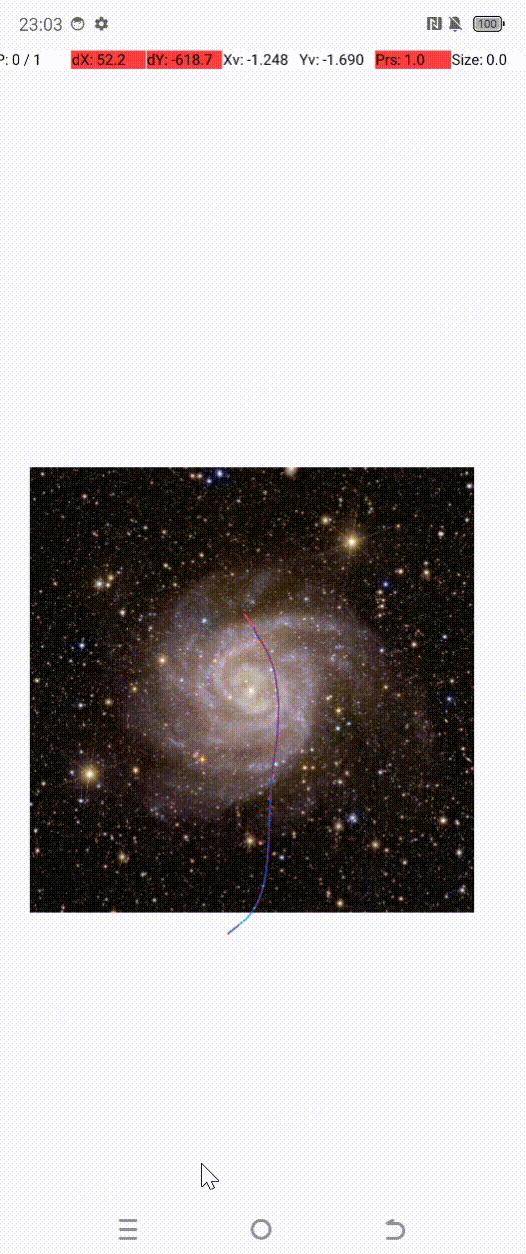

Fling惯性滑动效果是指在手指抬起后，即ACTION_UP事件中计算惯性滑动后，当前View移动的距离
回弹效果的实现在调用Scroller.fling()方法或者OverScroller.fling()方法时定义minX, maxX, minY, maxY定义四个参数的大小。一般minX和minY为0，如果能在父View中进行拖拽滑动，不超出边界，则 maxX和maxY为父View的宽高减去需要拖拽滑动View的宽高
Scroller在进行越界滑动时没有提供弹性滑动，Scroller会直接闪烁回指定滑动范围内
OverScroller在进行越界滑动时提供弹性滑动，OverScroller会继续滑动一段距离，然后慢慢回弹，OverScroller.fling()方法最后两个参数定义了超出滑动范围后水平和竖直方向可弹性减速滑动的最大距离，一般为当前滑动View的宽高
