Xenics相机+Matrox采集卡调试

1.硬件型号：

        1.1 相机：Xenics Lynx-2048-CL

        1.2 采集卡：Matrox Radient ev-CL

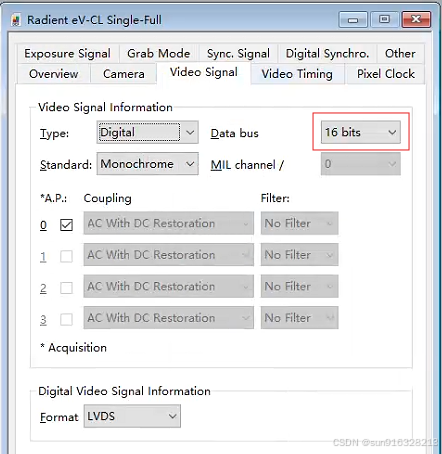

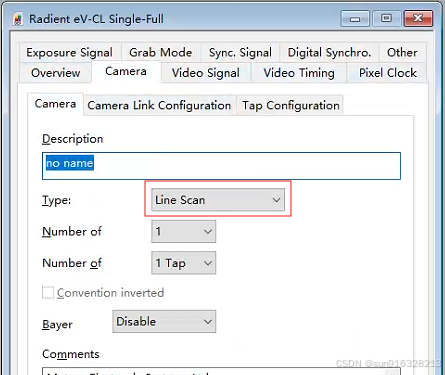

2.采集卡参数

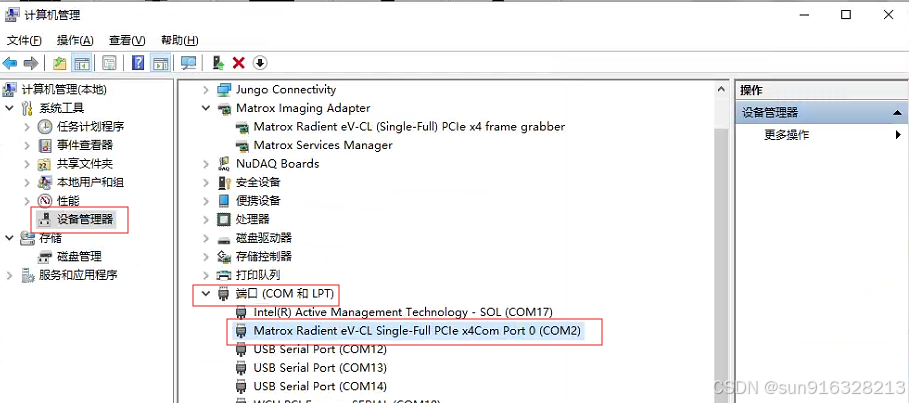

        2.1 在设备管理器调整端口号：设备管理器》端口》Matrox Radient eV-CL Single-Full x4Com Port 0 ,端口号设置越小越好，后续相机连接需要扫描端口号，越小连接越快。







3.相机参数

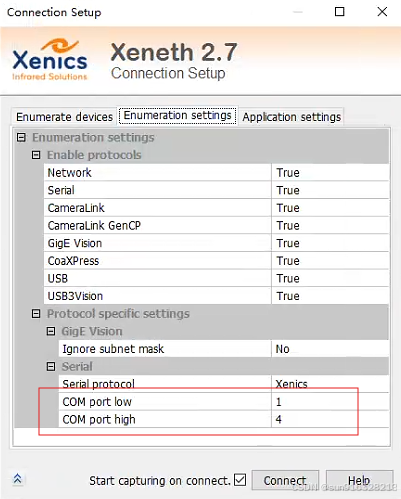

        3.1 COM口扫描上下限，步骤2中采集卡的端口号需要符合要求。

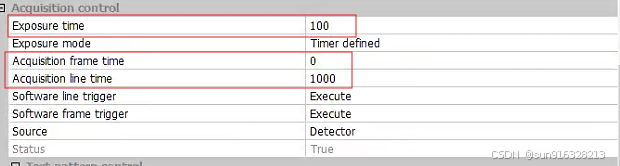

        3.2 相机曝光，相机帧触发最小时间，相机行触发最小时间

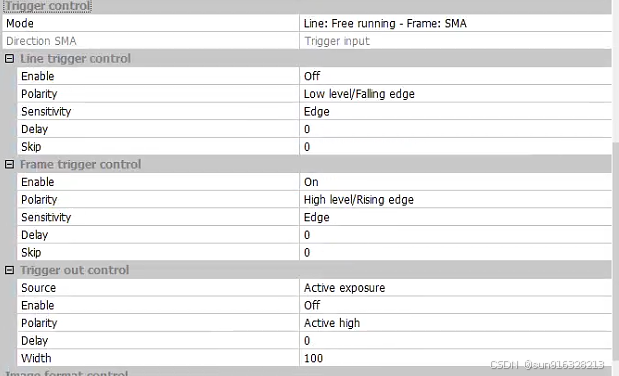

        3.3 相机触发方式

(0) Line: Free running - Frame: Free running

(1) Line: Free running - Frame: CC1

(2) Line: Free running - Frame: SMA

(3) Line: CC1 - Frame: Free running

(4) Line: CC1 - Frame: SMA

(5) Line: SMA - Frame: Free running

(6) Line: SMA - Frame: CC1

        3.4 图像校准参数

RawMode(该参数无法在配置文件保存， 需要在代码中修改)	Raw Mode [Read/Write] When enabled FPNCorrection, PRNUCorrection, BPRCorrection, ImageOffsetEnabled and ImageGainEnabled are disabled internally. Values: Off(0), On(1)
FPNCorrection	FPN Correction [Read/Write] Enables \ disables the fixed pattern noise correction.Values: Off(0), On(1)
PRNUCorrection	FPN Correction [Read/Write] Enables \ disables the photon response non-uniformity correction.Values: Off(0), On(1)
BPRCorrection	BPR Correction [Read/Write] Enables \ disables the bad pixel replacement correction.Values: Off(0), On(1)
ClipCorrection	Clip correction [Read/Write] Enables \ disables the clip correction.Values: Off(0), On(1)
ImageCorrectionBlackClip	Black clipping level [Read/Write] Set the black clipping level.Values: 0 - 65535
ImageCorrectionWhiteClip	White clipping level [Read/Write] Set the white clipping level.Values: 0 - 65535

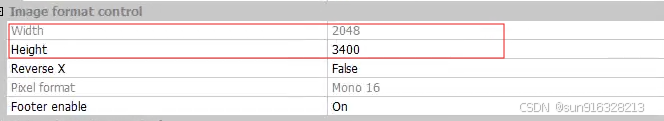

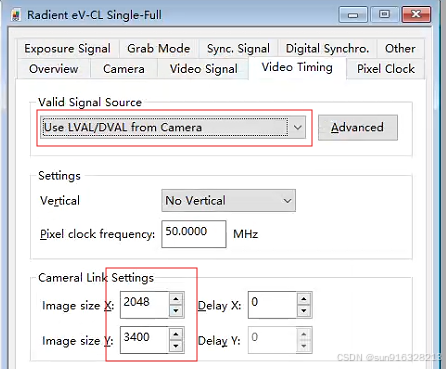

        3.5 图像大小：主要需要和采集卡设置的图像大小保存一致
