Nginx+keepalived

部署过程

nginx高可用主  192.168.217.100

nginx高可用备  192.168.217.110

客户端  192.168.217.200

VIP 192.168.217.50

#先将两台服务器和客户端w7防火墙关掉
systemctl stop firewalld
systemctl disable firewalld
setenforce 0

nginx配置（主备相同）

#yum安装 nginx

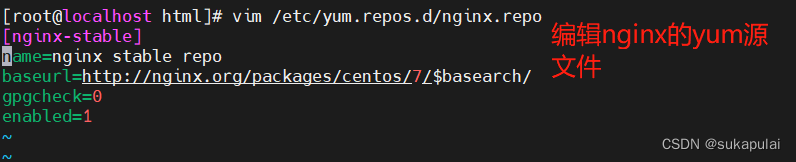

vim /etc/yum.repos.d/nginx.repo
    [nginx-stable]
    name=nginx stable repo
    baseurl=http://nginx.org/packages/centos/7/$basearch/
    gpgcheck=0
    enabled=1

yum install nginx -y

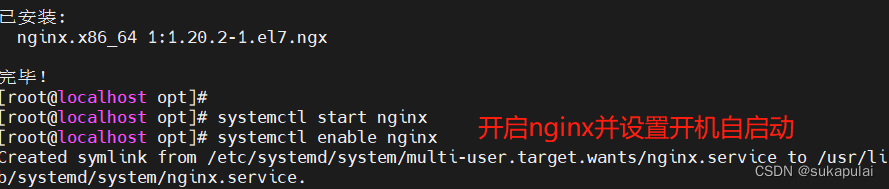

systemctl start nginx
systemctl enable nginx

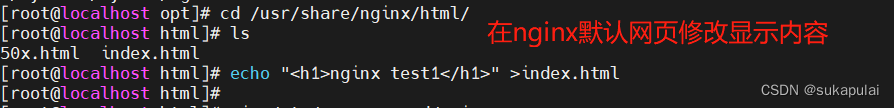

#主备写入不同的网页内容以便测试的时候区分服务器
#主服务器
[root@localhost ~]# cd /usr/share/nginx/html/
[root@localhost html]# ls
50x.html  index.html
[root@localhost html]# echo "<h1>nginx test1</h1>" >index.html

#备服务器
[root@localhost ~]# cd /usr/share/nginx/html/
[root@localhost html]# ls
50x.html  index.html
[root@localhost html]# echo "<h1>nginx test2</h1>" >index.html

keepalived配置（主备相同）

#下载软件包
yum -y install keepalived

#修改配置文件（直接将我下面改好的复制到自己的配置文件）
[root@localhost ~]# cd /etc/keepalived/
[root@localhost keepalived]# cp keepalived.conf keepalived.conf.bak

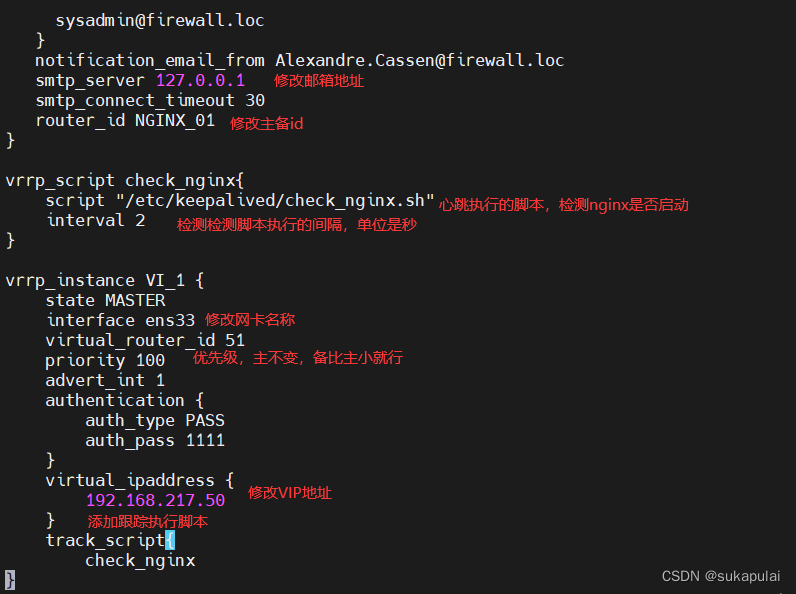

[root@localhost keepalived]# vim keepalived.conf
! Configuration File for keepalived

global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 127.0.0.1     #修改邮箱地址
   smtp_connect_timeout 30
   router_id NGINX_01       #修改主备id
   #删掉这里的四行vrrp
}

#加入周期性检测nginx服务脚本的相关配置
vrrp_script check_nginx{
    script "/etc/keepalived/check_nginx.sh" #心跳执行的脚本，检测nginx是否启动
    interval 2                           #（检测脚本执行的间隔，单位是秒）
}

vrrp_instance VI_1 {
    state MASTER
    interface ens33   #修改网卡名称
    virtual_router_id 51
    priority 100   #优先级，主不改，备改成比100小就行
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.109.100   #修改VIP地址
    }
    #添加跟踪(执行脚本)
    track_script{
        check_nginx
    }
}


#重启服务
[root@localhost keepalived]# systemctl restart keepalived.service

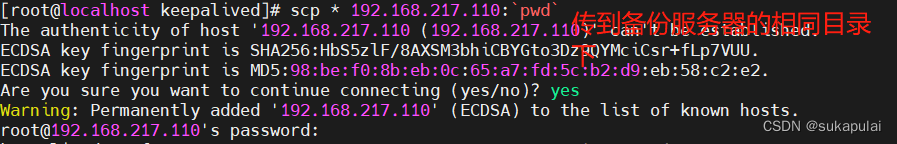

#备服务器下载好keepalived后，在主服务器上将脚本和keepalived配置文件传过去
[root@localhost keepalived]# scp * 192.168.217.110:`pwd`
The authenticity of host '192.168.109.135 (192.168.109.135)' can't be established.
ECDSA key fingerprint is SHA256:PLvVWFCir2fqvmTtENtRy6s3XlMimSaoeNHEa+3O2qw.
ECDSA key fingerprint is MD5:b4:76:d5:84:03:7f:b5:d8:55:0a:5d:f3:b9:12:fa:a9.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.217.110' (ECDSA) to the list of known hosts.
root@192.168.217.110's password:
check_nginx.sh                       100%  398   730.1KB/s   00:00
keepalived.conf                      100% 1054     2.5MB/s   00:00
keepalived.conf.bak                  100% 3598     3.1MB/s   00:00
[root@localhost keepalived]#

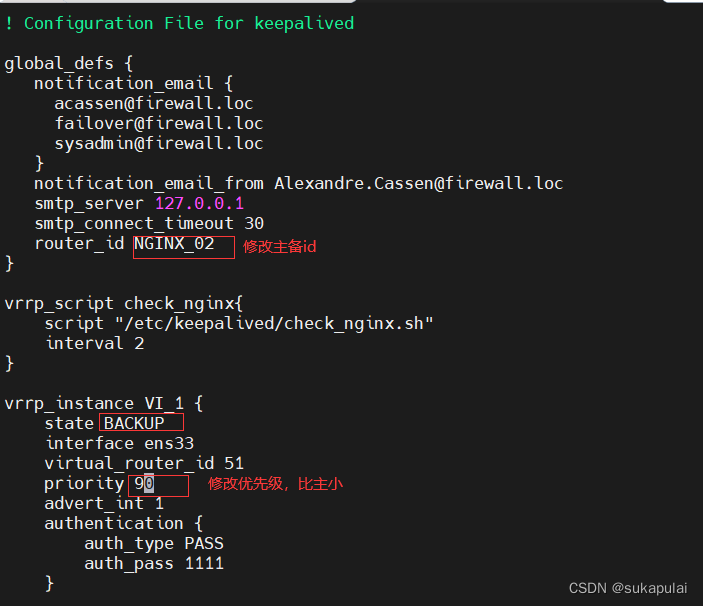

#传过去后修改三处
router_id NGINX_02
state BACKUP
priority 90

#然后重启服务
[root@localhost keepalived]# systemctl restart keepalived.service

检测nginx脚本

由于keepalived是通过内核转发请求判断主备服务器是否在线，而nginx是应用程序，它有进程意外退出的可能性，不涉及内核，所以nginx挂了keepalived并不能作出相应的判断来切换备服务器，这时需要使用一个脚本来实时监控nginx进程是否存在，如果不存在则重启开启，重启开启不了杀掉当前主机中的keepalived服务来实现故障切换。开启keepalived后脚本自动执行

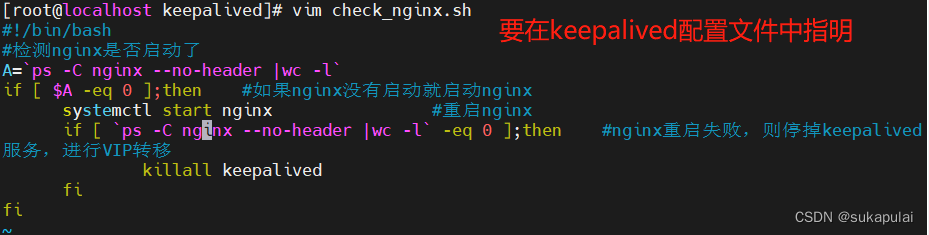

#在/etc/keepalived目录下创建nginx检测脚本
[root@localhost keepalived]# vim check_nginx.sh
#!/bin/bash
#检测nginx是否启动了
A=`ps -C nginx --no-header |wc -l`
if [ $A -eq 0 ];then    #如果nginx没有启动就启动nginx
      systemctl start nginx                #重启nginx
      if [ `ps -C nginx --no-header |wc -l` -eq 0 ];then    #nginx重启失败，则停掉keepalived服务，进行VIP转移
              killall keepalived
      fi
fi

#给脚本执行权限
[root@localhost keepalived]# chmod +x check_nginx.sh

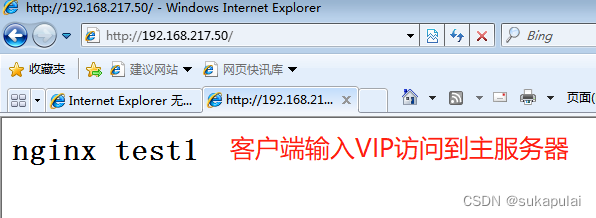

客户端测试

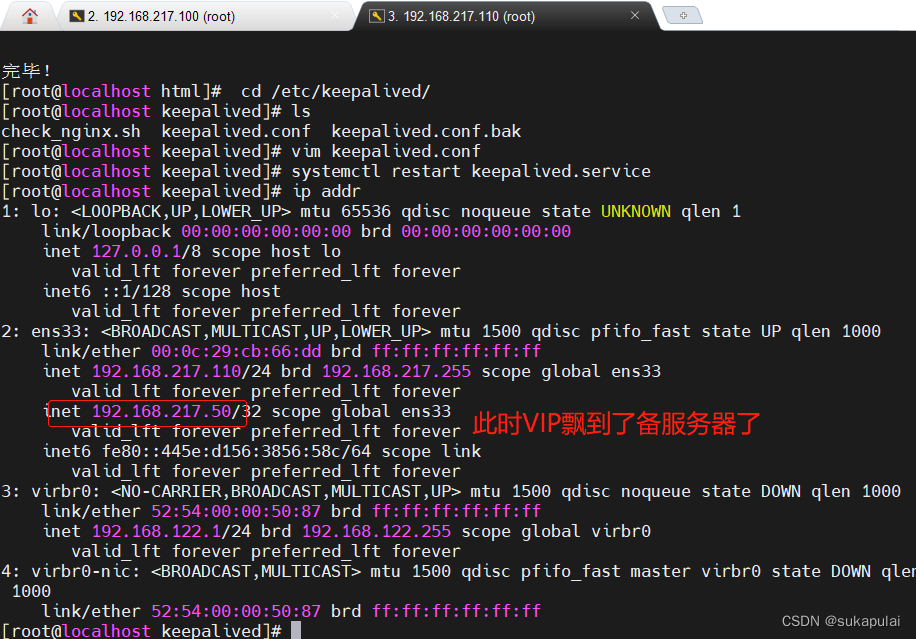

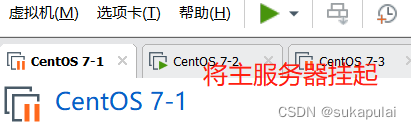

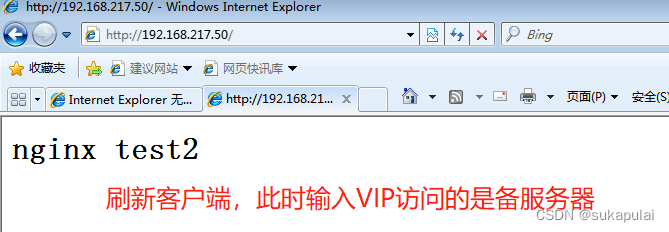

因为我这个监控脚本里面会自动启动挂断的nginx，所以我们直接将192.168.217.100服务器关掉，模拟宕机，这个时候keepalived就自动故障转移了，VIP飘到备服务器了
