工作流Flowable实战 （六）自定义身份

---

一、重写Flowable接口

系统中肯定有自己的一套用户，而flowable默认用户和用户组无法和自己系统中的用户统一，所以重写floeable用户和用户组接口，让flowable直接查自己的用户数据。
EditorUsersResource，EditorGroupsResource

二、自定义审核人

1、前端增加选项

flowable默认有分配给流程发起人，想自定义一个分配给流程发起人上级领导，如何实现。

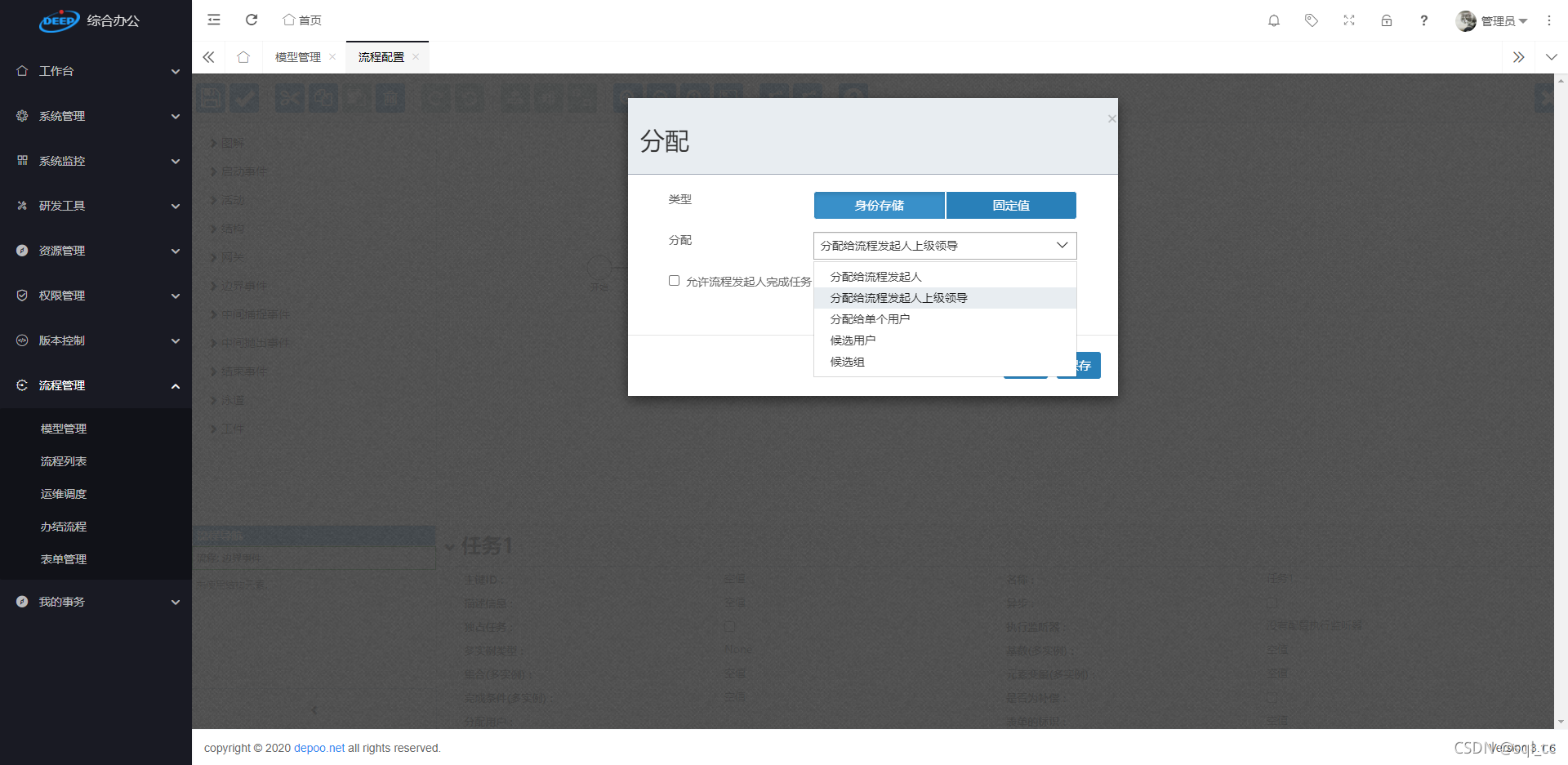

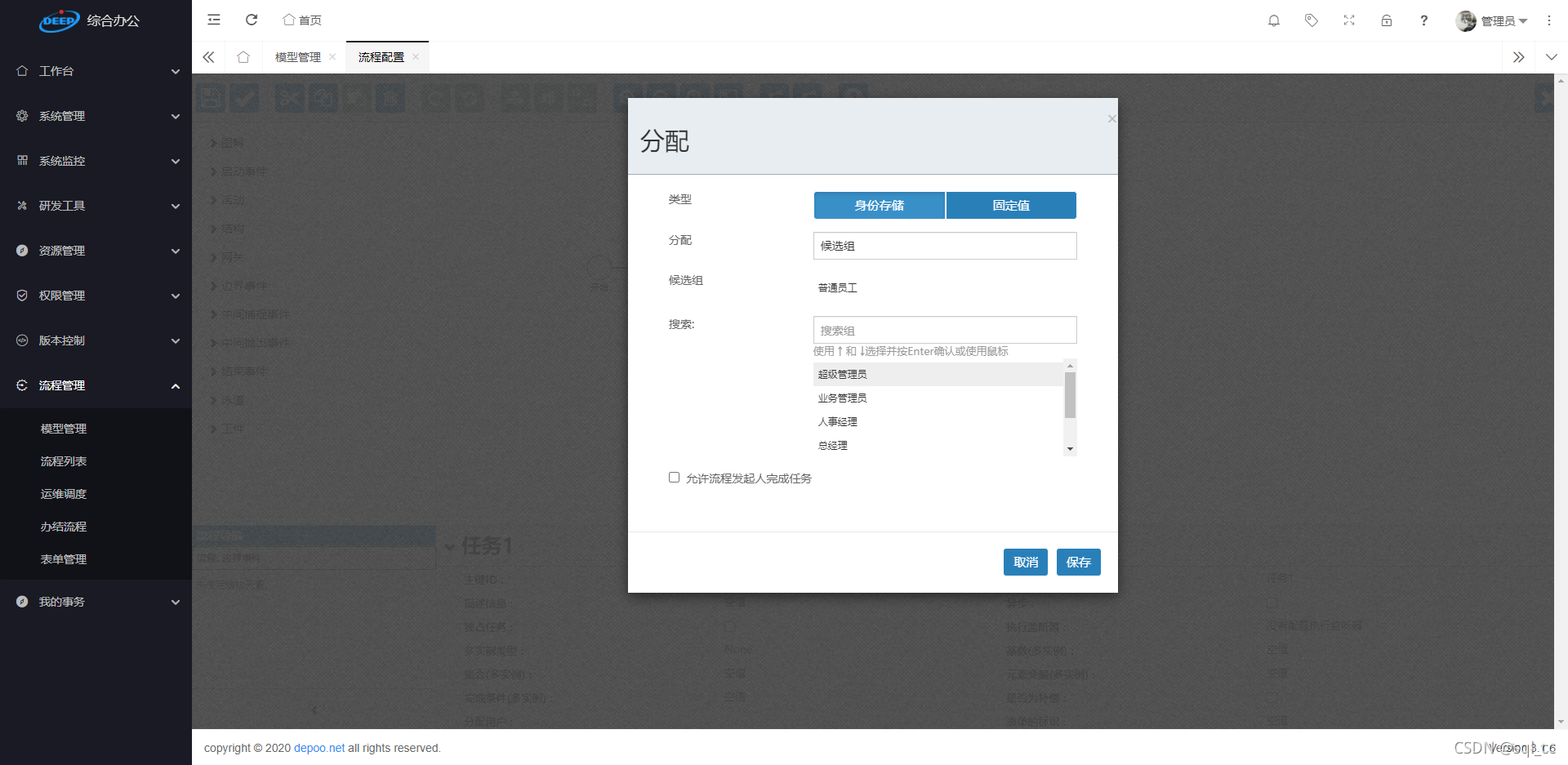

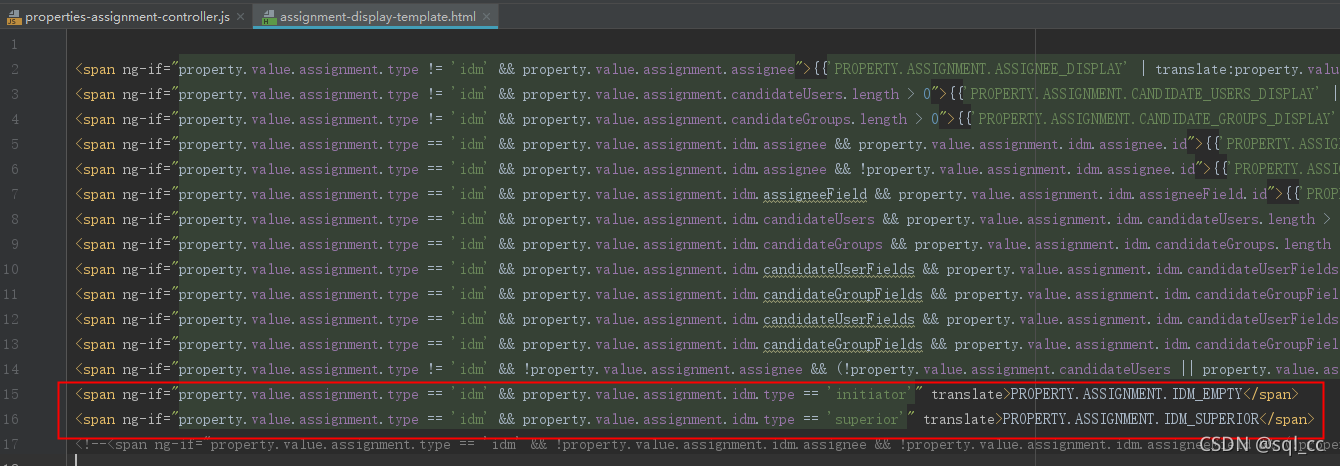

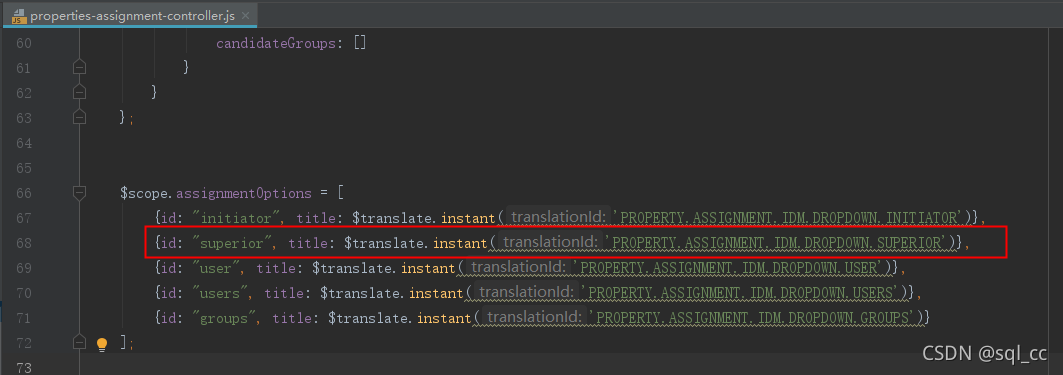

修改flowable-modeler源码，此时页面中会多出一个选项。

1、后端监听

后端监听器监听任务的创建事件，动态赋值任务的审核人。

@Configuration
public class FlowableGlobListenerConfig implements ApplicationListener<ContextRefreshedEvent> {
	@Autowired
	private SpringProcessEngineConfiguration configuration;

	@Autowired
	private GlobalTaskCreatedListener globalTaskCreatedListener;

	@Override
	public void onApplicationEvent(ContextRefreshedEvent contextRefreshedEvent) {
		FlowableEventDispatcher dispatcher = configuration.getEventDispatcher();
		dispatcher.addEventListener(globalTaskCreatedListener, FlowableEngineEventType.TASK_CREATED);
	}
}

@Component
@Slf4j
public class GlobalTaskCreatedListener implements FlowableEventListener {
	@Autowired
	private TaskService taskService;
	@Autowired
	private RuntimeService runtimeService;
	@Autowired
	private RepositoryService repositoryService;

	@Override
	public void onEvent(FlowableEvent event) {
		FlowableEntityEventImpl entityEvent = (FlowableEntityEventImpl) event;
		TaskEntity taskEntity = (TaskEntity) entityEvent.getEntity();
		String processInstanceId = taskEntity.getProcessInstanceId();
		BpmnModel bpmnModel = repositoryService.getBpmnModel(taskEntity.getProcessDefinitionId());
		List<Process> processes = bpmnModel.getProcesses();

		processes.forEach(process -> process.findFlowElementsOfType(UserTask.class).forEach(userTask -> {
			if (StringUtil.equals(userTask.getId(), taskEntity.getTaskDefinitionKey()) && StringUtil.isNotBlank(userTask.getAssignee())) {
				ProcessInstance processInstance = runtimeService.createProcessInstanceQuery().processInstanceId(processInstanceId).singleResult();
				if (StringUtil.equals(userTask.getAssignee().toLowerCase(), FlowAssigneeEnum.INITIATOR.getKey())) {
					taskService.setAssignee(taskEntity.getId(), processInstance.getStartUserId());
				} else if (StringUtil.equals(userTask.getAssignee().toLowerCase(), FlowAssigneeEnum.SUPERIOR.getKey())) {
					String startUserId = processInstance.getStartUserId();
					User startUser = UserCache.getUser(Long.parseLong(startUserId));
					startUser.getDeptId();
					// TODO 自行实现获取上级领导用户id
				}
			}
		}));
	}
}
