Flink-Table Streaming 时间属性-Processing time-实践编程（五）中

针对Flink-Table Streaming时间Processing time属性对应的，实践编程如下，演示编码如下：
需要依赖的公共实体类：

import lombok.Data;
@Data
public class StudentInfo {
    private String name;
    private String sex;
    private String course;
    private Float score;
    private Long timestamp;
}

1、在数据流到表转换期间
具体实现代码如下：

@Data
public class StudentScoreResult {
    public String name;
    public float sum_total_score;
    public Long current5SecondTime;
    public StudentScoreResult() {}
}

public class TableStreamFlinkStudentTimerTest1 {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment streamTableEnvironment = StreamTableEnvironment.create(env);
        env.setStreamTimeCharacteristic(TimeCharacteristic.ProcessingTime); // default 设置时间属性
        //采用socket信息模拟输入数据流
        DataStreamSource<String> text = env.socketTextStream("127.0.0.1", 9999, "\n");
        //转换输入数据流到StudentInfo，便于后面计算
        SingleOutputStreamOperator<StudentInfo> dataStreamStudent = text.flatMap(new FlatMapFunction<String, StudentInfo>() {
            @Override
            public void flatMap(String s, Collector<StudentInfo> collector){
                String infos[] = s.split(",");
                if(StringUtils.isNotBlank(s) && infos.length==4){
                    StudentInfo studentInfo = new StudentInfo();
                    studentInfo.setName(infos[0]);
                    studentInfo.setSex(infos[1]);
                    studentInfo.setCourse(infos[2]);
                    studentInfo.setScore(Float.parseFloat(infos[3]));
                    studentInfo.setTimestamp(System.currentTimeMillis());
                    collector.collect(studentInfo);
                }
            }
        });

        //ProcessingTime 设置5秒为一个时间窗口
        Table table = streamTableEnvironment.fromDataStream(dataStreamStudent, "name,score,process_time.proctime"); //使用.proctime做后缀，且必须放到最后面
        Table windowedTable = table
                .window(Tumble.over("5.seconds")
                        .on("process_time")
                        .as("userActionWindow"))
                        .groupBy("userActionWindow,name")
                        .select("name,sum(score) as sum_total_score,0L as current5SecondTime");

        DataStream<Tuple2<Boolean, StudentScoreResult>> studentScoreResultDataStream = streamTableEnvironment.toRetractStream(windowedTable,StudentScoreResult.class);
        //多增加一层数据转换，增加时间信息，便于结果对比，时间统计
        SingleOutputStreamOperator<Object> result = studentScoreResultDataStream.flatMap(new FlatMapFunction<Tuple2<Boolean, StudentScoreResult>, Object>() {

            @Override
            public void flatMap(Tuple2<Boolean, StudentScoreResult> booleanStudentScoreResultTuple2, Collector<Object> collector) throws Exception {
                booleanStudentScoreResultTuple2.f1.setCurrent5SecondTime(System.currentTimeMillis());
                collector.collect(booleanStudentScoreResultTuple2);
            }
        });

        result.print();
        env.execute("studentScoreAnalyse");
    }
}

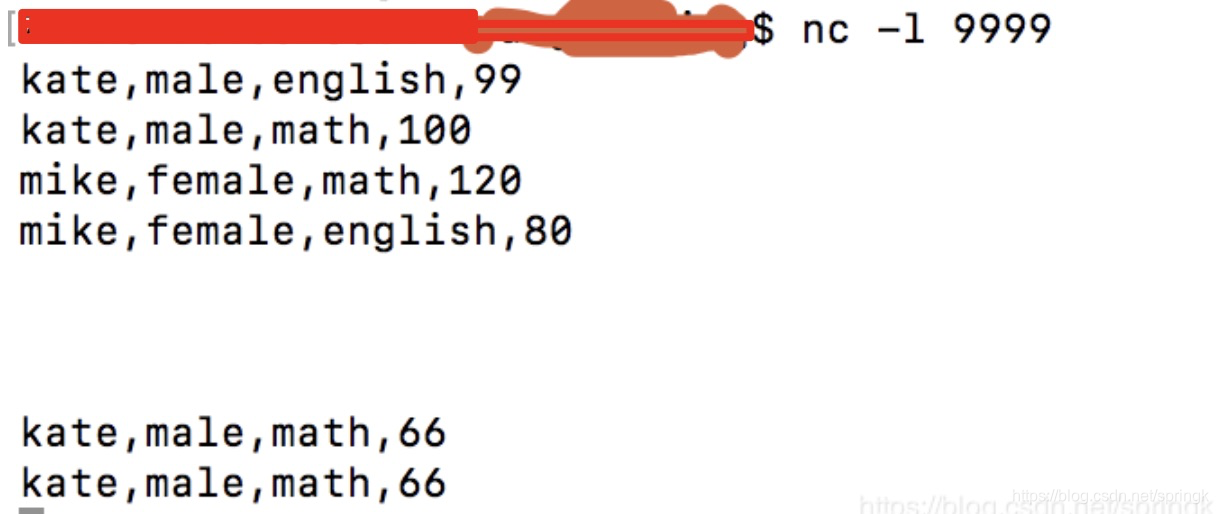

输入数据信息：前四个为同一个时间段，输出结果汇总在一起，后面的两条记录分属在不同的时间窗口中

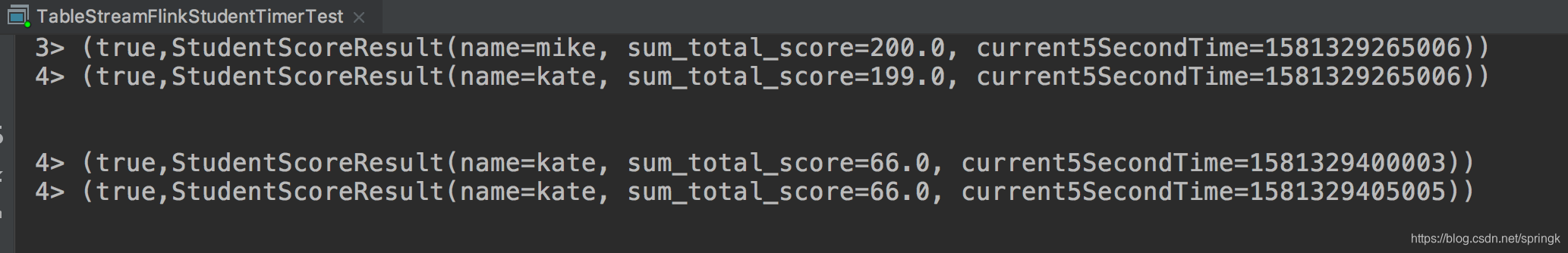

输出汇总数据信息：

2、使用TableSource具体实现
具体代码实现如下：

import lombok.Data;
@Data
public class StudentScoreResult {
    public String name;
    public float sum_total_score;
}

import org.apache.commons.lang3.StringUtils;
import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.api.java.typeutils.TypeExtractor;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.TableSchema;
import org.apache.flink.table.api.Types;
import org.apache.flink.table.sources.DefinedProctimeAttribute;
import org.apache.flink.table.sources.StreamTableSource;
import org.apache.flink.util.Collector;

import javax.annotation.Nullable;

public class StudentActionSource implements StreamTableSource<StudentInfo>, DefinedProctimeAttribute {

    @Nullable
    @Override
    public String getProctimeAttribute() {
        return "timestamp";
    }

    @Override
    public DataStream<StudentInfo> getDataStream(StreamExecutionEnvironment execEnv) {

        DataStreamSource<String> text = execEnv.socketTextStream("127.0.0.1", 9999, "\n");

        SingleOutputStreamOperator<StudentInfo> dataStreamStudent = text.flatMap(new FlatMapFunction<String, StudentInfo>() {
            @Override
            public void flatMap(String s, Collector<StudentInfo> collector){
                String infos[] = s.split(",");
                if(StringUtils.isNotBlank(s) && infos.length==4){
                    StudentInfo studentInfo = new StudentInfo();
                    studentInfo.setName(infos[0]);
                    studentInfo.setSex(infos[1]);
                    studentInfo.setCourse(infos[2]);
                    studentInfo.setScore(Float.parseFloat(infos[3]));
                    collector.collect(studentInfo);
                }
            }
        });
        return dataStreamStudent;
    }

    //重要：timestamp作为proctimeAttribute返回类型，必须设置为SQL_TIMESTAMP类型
    @Override
    public TableSchema getTableSchema() {
        String[] names = new String[] {"name" , "sex" , "course" , "score" , "timestamp"};
        TypeInformation<StudentInfo>[] types = new TypeInformation[] {Types.STRING(), Types.STRING(), Types.STRING(), Types.FLOAT(), Types.SQL_TIMESTAMP()};
        TableSchema tableSchema = new TableSchema(names,types);
        return  tableSchema;
    }

    @Override
    public TypeInformation<StudentInfo> getReturnType() {
        return TypeExtractor.createTypeInfo(StudentInfo.class);
    }
}

import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.Tumble;
import org.apache.flink.table.api.java.StreamTableEnvironment;

public class TableStreamFlinkStudentTableSourceTimerTest {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment streamTableEnvironment = StreamTableEnvironment.create(env);
//        env.setStreamTimeCharacteristic(TimeCharacteristic.ProcessingTime); // default 设置时间属性

        // register table source
        streamTableEnvironment.registerTableSource("StudentActions", new StudentActionSource());

        Table windowedTable = streamTableEnvironment
                        .scan("StudentActions")
                        .window((Tumble.over("5.seconds")).on("timestamp").as("studentActionWindow"))
                        .groupBy("studentActionWindow,name")
                        .select("name,sum(score) as sum_total_score");

        DataStream<StudentScoreResult> studentScoreResultDataStream = streamTableEnvironment.toAppendStream(windowedTable,StudentScoreResult.class);
        studentScoreResultDataStream.print();

        env.execute("studentScoreAnalyse");
    }
}

输入数据信息：分两次输入，上面为前五秒，后五秒之后再次输入两条数据

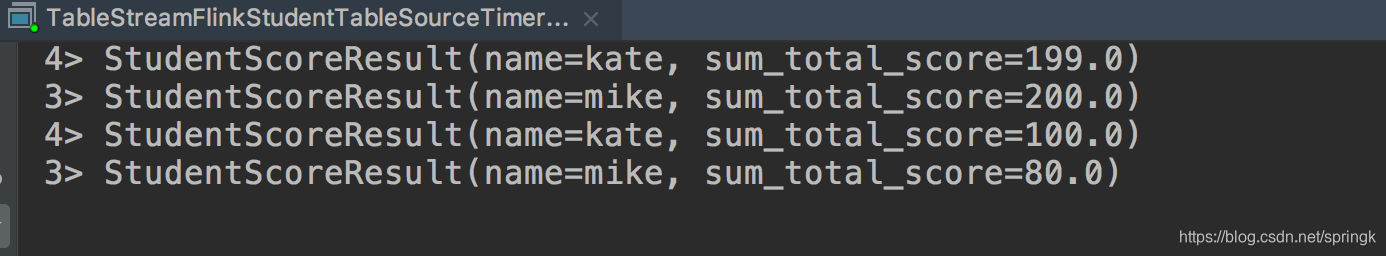

输出结果信息：
