/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * <h2><center>&copy; Copyright (c) 2021 STMicroelectronics.
  * All rights reserved.</center></h2>
  *
  * This software component is licensed by ST under BSD 3-Clause license,
  * the "License"; You may not use this file except in compliance with the
  * License. You may obtain a copy of the License at:
  *                        opensource.org/licenses/BSD-3-Clause
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */

#include "delay.h"
#include "bsp_printf.h"
#include "bsp_key.h"
#include "string.h"
#include "bsp_sdram.h"
#include "bsp_malloc.h"
#include "bsp_sdmmc.h"
#include "ff.h"			/* Obtains integer types */

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

SD_HandleTypeDef hsd1;

UART_HandleTypeDef huart1;

SDRAM_HandleTypeDef hsdram1;

/* USER CODE BEGIN PV */

volatile uint8_t rx_done, tx_done;

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_USART1_UART_Init(void);
static void MX_SDMMC1_SD_Init(void);
static void MX_FMC_Init(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

//通过串口打印SD卡相关信息
void show_sdcard_info(void)
{
	HAL_SD_CardCIDTypeDef cid;

	switch(hsd1.SdCard.CardVersion)
	{
		case CARD_V1_X:printf("Card Version:CARD_V1_X\r\n");break;
		case CARD_V2_X:printf("Card Version:CARD_V2_X\r\n");break;

	}
	switch(hsd1.SdCard.CardType)
	{
		case CARD_SDSC:printf("Card Type:CARD_SDSC\r\n");break;
		case CARD_SDHC_SDXC:printf("Card Type:CARD_SDHC_SDXC\r\n");break;
		case CARD_SECURED:printf("Card Type:CARD_SECURED\r\n");break;
	}

	if(HAL_OK != HAL_SD_GetCardCID(&hsd1, &cid))
	{
		Error_Handler();
	}

  printf("Card ManufacturerID:%d\r\n",cid.ManufacturerID);	//制造商ID
 	printf("Card RCA:%d\r\n",hsd1.SdCard.RelCardAdd );								//卡相对地址
	printf("Card Capacity:%d MB\r\n",(uint32_t)(((uint64_t)hsd1.SdCard.BlockNbr*hsd1.SdCard.BlockSize)>>20));	//显示容量
 	printf("Card BlockSize:%d\r\n\r\n",hsd1.SdCard.BlockSize);			//显示块大小
	printf("Card LogBlockNbr:%d\r\n\r\n",hsd1.SdCard.LogBlockNbr);
	printf("Card LogBlockSize:%d\r\n\r\n",hsd1.SdCard.LogBlockSize);
}


static void Sdram_SendCommand(uint32_t CommandMode, uint32_t CommandTarget, uint32_t AutoRefreshNumber, uint32_t ModeRegisterDefinition)
{
	FMC_SDRAM_CommandTypeDef Command;

	Command.AutoRefreshNumber = AutoRefreshNumber;
	Command.CommandMode = CommandMode;
	Command.CommandTarget = CommandTarget;
	Command.ModeRegisterDefinition = ModeRegisterDefinition;

	HAL_SDRAM_SendCommand(&hsdram1, &Command, 0);
}

static void Sdram_Init_Sequence(void)
{
	uint32_t ModeRegisterDefinition;
//	uint16_t Mode_WB;
//	uint16_t Mode_Op;
//	uint16_t Mode_CasLatency;
//	uint16_t Mode_Bt;
//	uint16_t Mode_BurstLength;

	Sdram_SendCommand(FMC_SDRAM_CMD_CLK_ENABLE, FMC_SDRAM_CMD_TARGET_BANK1, 0, 0);

	delay_us(200);

	Sdram_SendCommand(FMC_SDRAM_CMD_PALL, FMC_SDRAM_CMD_TARGET_BANK1, 0, 0);

	Sdram_SendCommand(FMC_SDRAM_CMD_AUTOREFRESH_MODE, FMC_SDRAM_CMD_TARGET_BANK1, 1, 0);

	//SDRAM????2?êy
	#define SDRAM_MODEREG_BURST_LENGTH_1             ((uint16_t)0x0000)
	#define SDRAM_MODEREG_BURST_LENGTH_2             ((uint16_t)0x0001)
	#define SDRAM_MODEREG_BURST_LENGTH_4             ((uint16_t)0x0002)
	#define SDRAM_MODEREG_BURST_LENGTH_8             ((uint16_t)0x0004)
	#define SDRAM_MODEREG_BURST_TYPE_SEQUENTIAL      ((uint16_t)0x0000)
	#define SDRAM_MODEREG_BURST_TYPE_INTERLEAVED     ((uint16_t)0x0008)
	#define SDRAM_MODEREG_CAS_LATENCY_2              ((uint16_t)0x0020)
	#define SDRAM_MODEREG_CAS_LATENCY_3              ((uint16_t)0x0030)
	#define SDRAM_MODEREG_OPERATING_MODE_STANDARD    ((uint16_t)0x0000)
	#define SDRAM_MODEREG_WRITEBURST_MODE_PROGRAMMED ((uint16_t)0x0000)
	#define SDRAM_MODEREG_WRITEBURST_MODE_SINGLE     ((uint16_t)0x0200)

	ModeRegisterDefinition=(uint32_t)SDRAM_MODEREG_BURST_LENGTH_1          |	//éè??í?·￠3¤?è:1(?éò?ê?1/2/4/8)
              SDRAM_MODEREG_BURST_TYPE_SEQUENTIAL   |	//éè??í?·￠ààDí:á?D?(?éò?ê?á?D?/??′í)
              SDRAM_MODEREG_CAS_LATENCY_3           |	//éè??CAS?μ:3(?éò?ê?2/3)
              SDRAM_MODEREG_OPERATING_MODE_STANDARD |   //éè??2ù×÷?￡ê?:0,±ê×??￡ê?
              SDRAM_MODEREG_WRITEBURST_MODE_SINGLE;     //éè??í?·￠D′?￡ê?:1,μ￥μ?·??ê

	Sdram_SendCommand(FMC_SDRAM_CMD_LOAD_MODE, FMC_SDRAM_CMD_TARGET_BANK1, 1, ModeRegisterDefinition);

	HAL_SDRAM_ProgramRefreshRate(&hsdram1, 824);
}



char QSPIPath[4]; /* QSPI flash logical drive path */
FATFS fs;						/* FatFs文件系统对象 */
FIL fnew;						/* 文件对象 */
FRESULT res_flash;              /* 文件操作结果 */
UINT fnum;            			/* 文件成功读写数量 */
char fpath[100];                /* 保存当前扫描路径 */
char readbuffer[512];           /*  */

/* FatFs多项功能测试 */
DIR dir;
FATFS *pfs;
DWORD fre_clust, fre_sect, tot_sect;
static FRESULT miscellaneous(void)
{
  printf("\n*************** 设备信息获取 ***************\r\n");
  /* 获取设备信息和空簇大小 */
  res_flash = f_getfree("0:", &fre_clust, &pfs);

  /* 计算得到总的扇区个数和空扇区个数 */
  tot_sect = (pfs->n_fatent - 2) * pfs->csize;
  fre_sect = fre_clust * pfs->csize;

  /* 打印信息(4096 字节/扇区) */
  printf("》设备总空间：%10lu KB。\n》可用空间：  %10lu KB。\n", tot_sect /2, fre_sect /2);

  printf("\n******** 文件定位和格式化写入功能测试 ********\r\n");
  res_flash = f_open(&fnew, "0:FatFs读写测试文件.txt",
                            FA_OPEN_ALWAYS|FA_WRITE|FA_READ );
	if ( res_flash == FR_OK )
	{
    /*  文件定位 */
    res_flash = f_lseek(&fnew,f_size(&fnew));
    if (res_flash == FR_OK)
    {
      /* 格式化写入，参数格式类似printf函数 */
      f_printf(&fnew,"\n在原来文件新添加一行内容\n");
      f_printf(&fnew,"》设备总空间：%10lu KB。\n》可用空间：  %10lu KB。\n", tot_sect /2, fre_sect /2);
      /*  文件定位到文件起始位置 */
      res_flash = f_lseek(&fnew,0);
      /* 读取文件所有内容到缓存区 */
      res_flash = f_read(&fnew,readbuffer,f_size(&fnew),&fnum);
      if(res_flash == FR_OK)
      {
        printf("》文件内容：\n%s\n",readbuffer);
      }
    }
    f_close(&fnew);

    printf("\n********** 目录创建和重命名功能测试 **********\r\n");
    /* 尝试打开目录 */
    res_flash=f_opendir(&dir,"0:TestDir");
    if(res_flash!=FR_OK)
    {
      /* 打开目录失败，就创建目录 */
      res_flash=f_mkdir("0:TestDir");
    }
    else
    {
      /* 如果目录已经存在，关闭它 */
      res_flash=f_closedir(&dir);
      /* 删除文件 */
      f_unlink("0:TestDir/testdir.txt");
    }
    if(res_flash==FR_OK)
    {
      /* 重命名并移动文件 */
      res_flash=f_rename("0:FatFs读写测试文件.txt","0:TestDir/testdir.txt");
    }
	}
  else
  {
    printf("!! 打开文件失败：%d\n",res_flash);
    printf("!! 或许需要再次运行“FatFs移植与读写测试”工程\n");
  }
  return res_flash;
}

/**
  * 文件信息获取
  */
static FRESULT file_check(void)
{
  FILINFO fno;

  /* 获取文件信息 */
  res_flash=f_stat("0:TestDir/testdir.txt",&fno);
  if(res_flash==FR_OK)
  {
    printf("“testdir.txt”文件信息：\n");
    printf("》文件大小: %ld(字节)\n", fno.fsize);
    printf("》时间戳: %u/%02u/%02u, %02u:%02u\n",
           (fno.fdate >> 9) + 1980, fno.fdate >> 5 & 15, fno.fdate & 31,fno.ftime >> 11, fno.ftime >> 5 & 63);
    printf("》属性: %c%c%c%c%c\n\n",
           (fno.fattrib & AM_DIR) ? 'D' : '-',      // 是一个目录
           (fno.fattrib & AM_RDO) ? 'R' : '-',      // 只读文件
           (fno.fattrib & AM_HID) ? 'H' : '-',      // 隐藏文件
           (fno.fattrib & AM_SYS) ? 'S' : '-',      // 系统文件
           (fno.fattrib & AM_ARC) ? 'A' : '-');     // 档案文件
  }
  return res_flash;
}

/**
  * @brief  scan_files 递归扫描FatFs内的文件
  * @param  path:初始扫描路径
  * @retval result:文件系统的返回值
  */
static FRESULT scan_files (char* path)
{
  FRESULT res; 		//部分在递归过程被修改的变量，不用全局变量
  FILINFO fno;
  DIR dir;
  int i;
  char *fn;        // 文件名

#if _USE_LFN
  /* 长文件名支持 */
  /* 简体中文需要2个字节保存一个“字”*/
  static char lfn[_MAX_LFN*2 + 1];
  fno.lfname = lfn;
  fno.lfsize = sizeof(lfn);
#endif
  //打开目录
  res = f_opendir(&dir, path);
  if (res == FR_OK)
	{
    i = strlen(path);
    for (;;)
		{
      //读取目录下的内容，再读会自动读下一个文件
      res = f_readdir(&dir, &fno);
      //为空时表示所有项目读取完毕，跳出
      if (res != FR_OK || fno.fname[0] == 0) break;
#if _USE_LFN
      fn = *fno.lfname ? fno.lfname : fno.fname;
#else
      fn = fno.fname;
#endif
      //点表示当前目录，跳过
      if (*fn == '.') continue;
      //目录，递归读取
      if (fno.fattrib & AM_DIR)
			{
        //合成完整目录名
        sprintf(&path[i], "/%s", fn);
        //递归遍历
        res = scan_files(path);
        path[i] = 0;
        //打开失败，跳出循环
        if (res != FR_OK)
					break;
      }
			else
			{
				printf("%s/%s\r\n", path, fn);								//输出文件名
        /* 可以在这里提取特定格式的文件路径 */
      }//else
    } //for
  }
  return res;
}


/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

	SCB_EnableICache();//使能I-Cache
	SCB_EnableDCache();//使能D-Cache
	SCB->CACR|=1<<2;   //强制D-Cache透写,如不开启,实际使用中可能遇到各种问题

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_USART1_UART_Init();
  MX_SDMMC1_SD_Init();
  MX_FMC_Init();
  /* USER CODE BEGIN 2 */

	delay_init(216);
	delay_ms(5000);

	Sdram_Init_Sequence();
	my_mem_init(SRAMIN);            //初始化内部内存池
	my_mem_init(SRAMEX);            //初始化外部SDRAM内存池

	show_sdcard_info();	//打印SD卡相关信息

	uint8_t key;
	uint8_t buf[512];
	uint32_t sd_size;
	uint32_t i;
	BYTE work[FF_MAX_SS]; /* Work area (larger is better for processing time) */

	//在外部SPI Flash挂载文件系统，文件系统挂载时会对SPI设备初始化
	res_flash = f_mount(&fs,"0:",1);
  if(res_flash == FR_NO_FILESYSTEM)
	{
		printf("》FLASH还没有文件系统，即将进行格式化...\r\n");
		/* 格式化 */
		res_flash=f_mkfs("0:",0, work, sizeof work);

		if(res_flash == FR_OK)
		{
			printf("》FLASH已成功格式化文件系统。\r\n");
			/* 格式化后，先取消挂载 */
			res_flash = f_mount(NULL,"0:",1);
			/* 重新挂载	*/
			res_flash = f_mount(&fs,"0:",1);
		}
		else
		{
			printf("《《格式化失败。》》\r\n");
			while(1);
		}
	}
	else if(res_flash!=FR_OK)
	{
		printf("！！外部Flash挂载文件系统失败。(%d)\r\n",res_flash);
		printf("！！可能原因：SPI Flash初始化不成功。\r\n");
		while(1);
	}
	else
	{
		printf("》文件系统挂载成功，可以进行读写测试\r\n");
	}

  /* FatFs多项功能测试 */
  res_flash = miscellaneous();


  printf("\n*************** 文件信息获取测试 **************\r\n");
  res_flash = file_check();


  printf("***************** 文件扫描测试 ****************\r\n");
  strcpy(fpath,"0:");
  scan_files(fpath);


	/* 不再使用文件系统，取消挂载文件系统 */
	f_mount(NULL,"0:",1);



  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {

		delay_ms(1000);
		printf("hello world!\r\n");

    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
  RCC_PeriphCLKInitTypeDef PeriphClkInitStruct = {0};

  /** Configure LSE Drive Capability
  */
  HAL_PWR_EnableBkUpAccess();
  /** Configure the main internal regulator output voltage
  */
  __HAL_RCC_PWR_CLK_ENABLE();
  __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);
  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLM = 25;
  RCC_OscInitStruct.PLL.PLLN = 432;
  RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
  RCC_OscInitStruct.PLL.PLLQ = 9;
  RCC_OscInitStruct.PLL.PLLR = 2;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /** Activate the Over-Drive mode
  */
  if (HAL_PWREx_EnableOverDrive() != HAL_OK)
  {
    Error_Handler();
  }
  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV4;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV2;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_7) != HAL_OK)
  {
    Error_Handler();
  }
  PeriphClkInitStruct.PeriphClockSelection = RCC_PERIPHCLK_USART1|RCC_PERIPHCLK_SDMMC1
                              |RCC_PERIPHCLK_CLK48;
  PeriphClkInitStruct.Usart1ClockSelection = RCC_USART1CLKSOURCE_PCLK2;
  PeriphClkInitStruct.Clk48ClockSelection = RCC_CLK48SOURCE_PLL;
  PeriphClkInitStruct.Sdmmc1ClockSelection = RCC_SDMMC1CLKSOURCE_CLK48;
  if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /** Enables the Clock Security System
  */
  HAL_RCC_EnableCSS();
}

/**
  * @brief SDMMC1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_SDMMC1_SD_Init(void)
{

  /* USER CODE BEGIN SDMMC1_Init 0 */

  /* USER CODE END SDMMC1_Init 0 */

  /* USER CODE BEGIN SDMMC1_Init 1 */

  /* USER CODE END SDMMC1_Init 1 */
  hsd1.Instance = SDMMC1;
  hsd1.Init.ClockEdge = SDMMC_CLOCK_EDGE_RISING;
  hsd1.Init.ClockBypass = SDMMC_CLOCK_BYPASS_DISABLE;
  hsd1.Init.ClockPowerSave = SDMMC_CLOCK_POWER_SAVE_DISABLE;
  hsd1.Init.BusWide = SDMMC_BUS_WIDE_1B;
  hsd1.Init.HardwareFlowControl = SDMMC_HARDWARE_FLOW_CONTROL_DISABLE;
  hsd1.Init.ClockDiv = 0;
  if (HAL_SD_Init(&hsd1) != HAL_OK)
  {
    Error_Handler();
  }
  if (HAL_SD_ConfigWideBusOperation(&hsd1, SDMMC_BUS_WIDE_4B) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN SDMMC1_Init 2 */

  /* USER CODE END SDMMC1_Init 2 */

}

/**
  * @brief USART1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_USART1_UART_Init(void)
{

  /* USER CODE BEGIN USART1_Init 0 */

  /* USER CODE END USART1_Init 0 */

  /* USER CODE BEGIN USART1_Init 1 */

  /* USER CODE END USART1_Init 1 */
  huart1.Instance = USART1;
  huart1.Init.BaudRate = 115200;
  huart1.Init.WordLength = UART_WORDLENGTH_8B;
  huart1.Init.StopBits = UART_STOPBITS_1;
  huart1.Init.Parity = UART_PARITY_NONE;
  huart1.Init.Mode = UART_MODE_TX_RX;
  huart1.Init.HwFlowCtl = UART_HWCONTROL_NONE;
  huart1.Init.OverSampling = UART_OVERSAMPLING_16;
  huart1.Init.OneBitSampling = UART_ONE_BIT_SAMPLE_DISABLE;
  huart1.AdvancedInit.AdvFeatureInit = UART_ADVFEATURE_NO_INIT;
  if (HAL_UART_Init(&huart1) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN USART1_Init 2 */

  /* USER CODE END USART1_Init 2 */

}

/* FMC initialization function */
static void MX_FMC_Init(void)
{

  /* USER CODE BEGIN FMC_Init 0 */

  /* USER CODE END FMC_Init 0 */

  FMC_SDRAM_TimingTypeDef SdramTiming = {0};

  /* USER CODE BEGIN FMC_Init 1 */

  /* USER CODE END FMC_Init 1 */

  /** Perform the SDRAM1 memory initialization sequence
  */
  hsdram1.Instance = FMC_SDRAM_DEVICE;
  /* hsdram1.Init */
  hsdram1.Init.SDBank = FMC_SDRAM_BANK1;
  hsdram1.Init.ColumnBitsNumber = FMC_SDRAM_COLUMN_BITS_NUM_9;
  hsdram1.Init.RowBitsNumber = FMC_SDRAM_ROW_BITS_NUM_13;
  hsdram1.Init.MemoryDataWidth = FMC_SDRAM_MEM_BUS_WIDTH_16;
  hsdram1.Init.InternalBankNumber = FMC_SDRAM_INTERN_BANKS_NUM_4;
  hsdram1.Init.CASLatency = FMC_SDRAM_CAS_LATENCY_3;
  hsdram1.Init.WriteProtection = FMC_SDRAM_WRITE_PROTECTION_DISABLE;
  hsdram1.Init.SDClockPeriod = FMC_SDRAM_CLOCK_PERIOD_2;
  hsdram1.Init.ReadBurst = FMC_SDRAM_RBURST_ENABLE;
  hsdram1.Init.ReadPipeDelay = FMC_SDRAM_RPIPE_DELAY_0;
  /* SdramTiming */
  SdramTiming.LoadToActiveDelay = 2;
  SdramTiming.ExitSelfRefreshDelay = 7;
  SdramTiming.SelfRefreshTime = 4;
  SdramTiming.RowCycleDelay = 7;
  SdramTiming.WriteRecoveryTime = 4;
  SdramTiming.RPDelay = 2;
  SdramTiming.RCDDelay = 2;

  if (HAL_SDRAM_Init(&hsdram1, &SdramTiming) != HAL_OK)
  {
    Error_Handler( );
  }

  /* USER CODE BEGIN FMC_Init 2 */

  /* USER CODE END FMC_Init 2 */
}

/**
  * @brief GPIO Initialization Function
  * @param None
  * @retval None
  */
static void MX_GPIO_Init(void)
{
  GPIO_InitTypeDef GPIO_InitStruct = {0};

  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOC_CLK_ENABLE();
  __HAL_RCC_GPIOF_CLK_ENABLE();
  __HAL_RCC_GPIOH_CLK_ENABLE();
  __HAL_RCC_GPIOA_CLK_ENABLE();
  __HAL_RCC_GPIOB_CLK_ENABLE();
  __HAL_RCC_GPIOG_CLK_ENABLE();
  __HAL_RCC_GPIOE_CLK_ENABLE();
  __HAL_RCC_GPIOD_CLK_ENABLE();

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(GPIOB, GPIO_PIN_0|GPIO_PIN_1|GPIO_PIN_5, GPIO_PIN_RESET);

  /*Configure GPIO pin : PC13 */
  GPIO_InitStruct.Pin = GPIO_PIN_13;
  GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
  GPIO_InitStruct.Pull = GPIO_PULLUP;
  HAL_GPIO_Init(GPIOC, &GPIO_InitStruct);

  /*Configure GPIO pin : PA0 */
  GPIO_InitStruct.Pin = GPIO_PIN_0;
  GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
  GPIO_InitStruct.Pull = GPIO_PULLDOWN;
  HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

  /*Configure GPIO pins : PH2 PH3 */
  GPIO_InitStruct.Pin = GPIO_PIN_2|GPIO_PIN_3;
  GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
  GPIO_InitStruct.Pull = GPIO_PULLUP;
  HAL_GPIO_Init(GPIOH, &GPIO_InitStruct);

  /*Configure GPIO pins : PB0 PB5 */
  GPIO_InitStruct.Pin = GPIO_PIN_0|GPIO_PIN_5;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(GPIOB, &GPIO_InitStruct);

  /*Configure GPIO pin : PB1 */
  GPIO_InitStruct.Pin = GPIO_PIN_1;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_OD;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(GPIOB, &GPIO_InitStruct);

  /*Configure GPIO pin : PD6 */
  GPIO_InitStruct.Pin = GPIO_PIN_6;
  GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
  GPIO_InitStruct.Pull = GPIO_PULLUP;
  HAL_GPIO_Init(GPIOD, &GPIO_InitStruct);

}

/* USER CODE BEGIN 4 */

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/


/**
  * @brief This function handles SDMMC1 global interrupt.
  */
void SDMMC1_IRQHandler(void)
{
  /* USER CODE BEGIN SDMMC1_IRQn 0 */

  /* USER CODE END SDMMC1_IRQn 0 */
  HAL_SD_IRQHandler(&hsd1);
  /* USER CODE BEGIN SDMMC1_IRQn 1 */

  /* USER CODE END SDMMC1_IRQn 1 */
}

/* USER CODE BEGIN 1 */

/**
  * @brief Tx Transfer completed callbacks
  * @param hsd: Pointer to SD handle
  * @retval None
  */
void HAL_SD_TxCpltCallback(SD_HandleTypeDef *hsd)
{
	HAL_GPIO_TogglePin(GPIOB, GPIO_PIN_1);
	tx_done = 1;
}

/**
  * @brief Rx Transfer completed callbacks
  * @param hsd: Pointer SD handle
  * @retval None
  */
void HAL_SD_RxCpltCallback(SD_HandleTypeDef *hsd)
{
	HAL_GPIO_TogglePin(GPIOB, GPIO_PIN_1);
	rx_done = 1;
}

/**
  * @brief SD error callbacks
  * @param hsd: Pointer SD handle
  * @retval None
  */
void HAL_SD_ErrorCallback(SD_HandleTypeDef *hsd)
{
//	rx_done = 1;
//	tx_done = 1;
	HAL_GPIO_TogglePin(GPIOB, GPIO_PIN_0);
}

#include "bsp_sdmmc.h"
#include <string.h>
#include "delay.h"

//SD_ReadDisk/SD_WriteDisk函数专用buf,当这两个函数的数据缓存区地址不是4字节对齐的时候,
//需要用到该数组,确保数据缓存区地址是4字节对齐的.
__align(4) uint8_t SDIO_DATA_BUFFER[512];


//读SD卡
//buf:读数据缓存区
//sector:扇区地址
//cnt:扇区个数
//返回值:错误状态;0,正常;其他,错误代码;
uint8_t SD_ReadDisk(uint8_t* buf,uint32_t sector,uint8_t cnt)
{
	uint8_t sta=HAL_OK;
	uint8_t n;
//	__set_PRIMASK(0);
	if((uint32_t)buf%4!=0)
	{
		for(n=0;n<cnt;n++)
		{
			rx_done = 0;
			sta=HAL_SD_ReadBlocks_IT(&hsd1, SDIO_DATA_BUFFER, sector+n, 1);//单个sector的读操作
			while(!rx_done);
			memcpy(buf,SDIO_DATA_BUFFER,BLOCKSIZE);
			buf+=512;
		}
	}else
	{
		rx_done = 0;
		sta=HAL_SD_ReadBlocks_IT(&hsd1, buf, sector, cnt);//单个sector的读操作
		while(!rx_done);
	}
//	__set_PRIMASK(1);

	while(1)
	{
		if(4 == HAL_SD_GetCardState(&hsd1))
		{
			break;
		}
		delay_us(100);
	}

	return sta;
}

//写SD卡
//buf:写数据缓存区
//sector:扇区地址
//cnt:扇区个数
//返回值:错误状态;0,正常;其他,错误代码;
uint8_t SD_WriteDisk(uint8_t *buf,uint32_t sector,uint8_t cnt)
{
	uint8_t sta=HAL_OK;
	uint8_t n;
//	__set_PRIMASK(0);
	if((uint32_t)buf%4!=0)
	{
		for(n=0;n<cnt;n++)
		{
			memcpy(SDIO_DATA_BUFFER,buf,BLOCKSIZE);
			tx_done = 0;
			sta=HAL_SD_WriteBlocks_IT(&hsd1, SDIO_DATA_BUFFER, sector+n, 1);
			while(!tx_done);
			buf+=BLOCKSIZE;
		}
	}else
	{
		tx_done = 0;
		sta=HAL_SD_WriteBlocks_IT(&hsd1, buf, sector, cnt);
		while(!tx_done);
	}
//	__set_PRIMASK(1);

	while(1)
	{
		if(4 == HAL_SD_GetCardState(&hsd1))
		{
			break;
		}
		delay_us(100);
	}

	return sta;
}

//while(1)
//{
//	if(4 == HAL_SD_GetCardState(&hsd1))
//	{
//		break;
//	}
//	delay_us(100);
//}



/*------------------------------------------------------------------------*/
/* Sample Code of OS Dependent Functions for FatFs                        */
/* (C)ChaN, 2018                                                          */
/*------------------------------------------------------------------------*/


#include "ff.h"
#include "bsp_malloc.h"


#if FF_USE_LFN == 3	/* Dynamic memory allocation */

/*------------------------------------------------------------------------*/
/* Allocate a memory block                                                */
/*------------------------------------------------------------------------*/

void* ff_memalloc (	/* Returns pointer to the allocated memory block (null if not enough core) */
	UINT msize		/* Number of bytes to allocate */
)
{
	//return malloc(msize);	/* Allocate a new memory block with POSIX API */

	return (void*)mymalloc(SRAMIN,msize);
}


/*------------------------------------------------------------------------*/
/* Free a memory block                                                    */
/*------------------------------------------------------------------------*/

void ff_memfree (
	void* mblock	/* Pointer to the memory block to free (nothing to do if null) */
)
{
	//free(mblock);	/* Free the memory block with POSIX API */

	myfree(SRAMIN,mblock);
}

#endif



#if FF_FS_REENTRANT	/* Mutal exclusion */

/*------------------------------------------------------------------------*/
/* Create a Synchronization Object                                        */
/*------------------------------------------------------------------------*/
/* This function is called in f_mount() function to create a new
/  synchronization object for the volume, such as semaphore and mutex.
/  When a 0 is returned, the f_mount() function fails with FR_INT_ERR.
*/

//const osMutexDef_t Mutex[FF_VOLUMES];	/* Table of CMSIS-RTOS mutex */


int ff_cre_syncobj (	/* 1:Function succeeded, 0:Could not create the sync object */
	BYTE vol,			/* Corresponding volume (logical drive number) */
	FF_SYNC_t* sobj		/* Pointer to return the created sync object */
)
{
	/* Win32 */
	*sobj = CreateMutex(NULL, FALSE, NULL);
	return (int)(*sobj != INVALID_HANDLE_VALUE);

	/* uITRON */
//	T_CSEM csem = {TA_TPRI,1,1};
//	*sobj = acre_sem(&csem);
//	return (int)(*sobj > 0);

	/* uC/OS-II */
//	OS_ERR err;
//	*sobj = OSMutexCreate(0, &err);
//	return (int)(err == OS_NO_ERR);

	/* FreeRTOS */
//	*sobj = xSemaphoreCreateMutex();
//	return (int)(*sobj != NULL);

	/* CMSIS-RTOS */
//	*sobj = osMutexCreate(&Mutex[vol]);
//	return (int)(*sobj != NULL);
}


/*------------------------------------------------------------------------*/
/* Delete a Synchronization Object                                        */
/*------------------------------------------------------------------------*/
/* This function is called in f_mount() function to delete a synchronization
/  object that created with ff_cre_syncobj() function. When a 0 is returned,
/  the f_mount() function fails with FR_INT_ERR.
*/

int ff_del_syncobj (	/* 1:Function succeeded, 0:Could not delete due to an error */
	FF_SYNC_t sobj		/* Sync object tied to the logical drive to be deleted */
)
{
	/* Win32 */
	return (int)CloseHandle(sobj);

	/* uITRON */
//	return (int)(del_sem(sobj) == E_OK);

	/* uC/OS-II */
//	OS_ERR err;
//	OSMutexDel(sobj, OS_DEL_ALWAYS, &err);
//	return (int)(err == OS_NO_ERR);

	/* FreeRTOS */
//  vSemaphoreDelete(sobj);
//	return 1;

	/* CMSIS-RTOS */
//	return (int)(osMutexDelete(sobj) == osOK);
}


/*------------------------------------------------------------------------*/
/* Request Grant to Access the Volume                                     */
/*------------------------------------------------------------------------*/
/* This function is called on entering file functions to lock the volume.
/  When a 0 is returned, the file function fails with FR_TIMEOUT.
*/

int ff_req_grant (	/* 1:Got a grant to access the volume, 0:Could not get a grant */
	FF_SYNC_t sobj	/* Sync object to wait */
)
{
	/* Win32 */
	return (int)(WaitForSingleObject(sobj, FF_FS_TIMEOUT) == WAIT_OBJECT_0);

	/* uITRON */
//	return (int)(wai_sem(sobj) == E_OK);

	/* uC/OS-II */
//	OS_ERR err;
//	OSMutexPend(sobj, FF_FS_TIMEOUT, &err));
//	return (int)(err == OS_NO_ERR);

	/* FreeRTOS */
//	return (int)(xSemaphoreTake(sobj, FF_FS_TIMEOUT) == pdTRUE);

	/* CMSIS-RTOS */
//	return (int)(osMutexWait(sobj, FF_FS_TIMEOUT) == osOK);
}


/*------------------------------------------------------------------------*/
/* Release Grant to Access the Volume                                     */
/*------------------------------------------------------------------------*/
/* This function is called on leaving file functions to unlock the volume.
*/

void ff_rel_grant (
	FF_SYNC_t sobj	/* Sync object to be signaled */
)
{
	/* Win32 */
	ReleaseMutex(sobj);

	/* uITRON */
//	sig_sem(sobj);

	/* uC/OS-II */
//	OSMutexPost(sobj);

	/* FreeRTOS */
//	xSemaphoreGive(sobj);

	/* CMSIS-RTOS */
//	osMutexRelease(sobj);
}

#endif



/*-----------------------------------------------------------------------*/
/* Low level disk I/O module SKELETON for FatFs     (C)ChaN, 2019        */
/*-----------------------------------------------------------------------*/
/* If a working storage control module is available, it should be        */
/* attached to the FatFs via a glue function rather than modifying it.   */
/* This is an example of glue functions to attach various exsisting      */
/* storage control modules to the FatFs module with a defined API.       */
/*-----------------------------------------------------------------------*/


#include "diskio.h"		/* Declarations of disk functions */

#include "bsp_sdmmc.h"

/* Definitions of physical drive number for each drive */
#define DEV_RAM		0	/* Example: Map Ramdisk to physical drive 0 */
#define DEV_MMC		1	/* Example: Map MMC/SD card to physical drive 1 */
#define DEV_USB		2	/* Example: Map USB MSD to physical drive 2 */


/*-----------------------------------------------------------------------*/
/* Get Drive Status                                                      */
/*-----------------------------------------------------------------------*/

DSTATUS disk_status (
	BYTE pdrv		/* Physical drive nmuber to identify the drive */
)
{
	DSTATUS stat;
	int result;

	return RES_OK;


//	switch (pdrv) {
//	case DEV_RAM :
//		result = RAM_disk_status();

//		// translate the reslut code here

//		return stat;

//	case DEV_MMC :
//		result = MMC_disk_status();

//		// translate the reslut code here

//		return stat;

//	case DEV_USB :
//		result = USB_disk_status();

//		// translate the reslut code here

//		return stat;
//	}
//	return STA_NOINIT;
}



/*-----------------------------------------------------------------------*/
/* Inidialize a Drive                                                    */
/*-----------------------------------------------------------------------*/

DSTATUS disk_initialize (
	BYTE pdrv				/* Physical drive nmuber to identify the drive */
)
{
	DSTATUS stat;
	int result;

	return RES_OK;

//	switch (pdrv) {
//	case DEV_RAM :
//		result = RAM_disk_initialize();

//		// translate the reslut code here

//		return stat;

//	case DEV_MMC :
//		result = MMC_disk_initialize();

//		// translate the reslut code here

//		return stat;

//	case DEV_USB :
//		result = USB_disk_initialize();

//		// translate the reslut code here

//		return stat;
//	}
//	return STA_NOINIT;
}



/*-----------------------------------------------------------------------*/
/* Read Sector(s)                                                        */
/*-----------------------------------------------------------------------*/

DRESULT disk_read (
	BYTE pdrv,		/* Physical drive nmuber to identify the drive */
	BYTE *buff,		/* Data buffer to store read data */
	LBA_t sector,	/* Start sector in LBA */
	UINT count		/* Number of sectors to read */
)
{
	DRESULT res;
	int result;

	switch (pdrv) {
	case 0 :
		// translate the arguments here

		res = SD_ReadDisk(buff, sector, count);

		// translate the reslut code here

		return res;
	}

//	switch (pdrv) {
//	case DEV_RAM :
//		// translate the arguments here

//		result = RAM_disk_read(buff, sector, count);

//		// translate the reslut code here

//		return res;

//	case DEV_MMC :
//		// translate the arguments here

//		result = MMC_disk_read(buff, sector, count);

//		// translate the reslut code here

//		return res;

//	case DEV_USB :
//		// translate the arguments here

//		result = USB_disk_read(buff, sector, count);

//		// translate the reslut code here

//		return res;
//	}

	return RES_PARERR;
}



/*-----------------------------------------------------------------------*/
/* Write Sector(s)                                                       */
/*-----------------------------------------------------------------------*/

#if FF_FS_READONLY == 0

DRESULT disk_write (
	BYTE pdrv,			/* Physical drive nmuber to identify the drive */
	const BYTE *buff,	/* Data to be written */
	LBA_t sector,		/* Start sector in LBA */
	UINT count			/* Number of sectors to write */
)
{
	DRESULT res;
	int result;

	switch (pdrv) {
	case 0 :
		// translate the arguments here

		res = SD_WriteDisk((uint8_t *)buff, sector, count);

		// translate the reslut code here

		return res;
	}

//	switch (pdrv) {
//	case DEV_RAM :
//		// translate the arguments here

//		result = RAM_disk_write(buff, sector, count);

//		// translate the reslut code here

//		return res;

//	case DEV_MMC :
//		// translate the arguments here

//		result = MMC_disk_write(buff, sector, count);

//		// translate the reslut code here

//		return res;

//	case DEV_USB :
//		// translate the arguments here

//		result = USB_disk_write(buff, sector, count);

//		// translate the reslut code here

//		return res;
//	}

	return RES_PARERR;
}

#endif


/*-----------------------------------------------------------------------*/
/* Miscellaneous Functions                                               */
/*-----------------------------------------------------------------------*/

DRESULT disk_ioctl (
	BYTE pdrv,		/* Physical drive nmuber (0..) */
	BYTE cmd,		/* Control code */
	void *buff		/* Buffer to send/receive control data */
)
{
	DRESULT res;
	int result;

	switch (pdrv) {
	case 0 :

		// Process of the command for the RAM drive
		switch(cmd)
		{
			case CTRL_SYNC:
				res = RES_OK;
			break;

			case GET_SECTOR_SIZE:
				*(DWORD*)buff = 512;
				res = RES_OK;
			break;

			case GET_BLOCK_SIZE:
				*(WORD*)buff = hsd1.SdCard.BlockSize;
				res = RES_OK;
			break;

			case GET_SECTOR_COUNT:
				*(DWORD*)buff = ((uint64_t)hsd1.SdCard.BlockNbr*hsd1.SdCard.BlockSize) / 512;
				res = RES_OK;
			break;

			default:
				res = RES_PARERR;
			break;
		}

		return res;
	}

//	switch (pdrv) {
//	case DEV_RAM :

//		// Process of the command for the RAM drive

//		return res;

//	case DEV_MMC :

//		// Process of the command for the MMC/SD card

//		return res;

//	case DEV_USB :

//		// Process of the command the USB drive

//		return res;
//	}

	return RES_PARERR;
}

DWORD get_fattime (void)
{
	return 0;

//	time_t t;
//	struct tm *stm;


//	t = time(0);
//	stm = localtime(&t);

//	return (DWORD)(stm->tm_year - 80) << 25 |
//				 (DWORD)(stm->tm_mon + 1) << 21 |
//				 (DWORD)stm->tm_mday << 16 |
//				 (DWORD)stm->tm_hour << 11 |
//				 (DWORD)stm->tm_min << 5 |
//				 (DWORD)stm->tm_sec >> 1;
}





/*---------------------------------------------------------------------------/
/  FatFs Functional Configurations
/---------------------------------------------------------------------------*/

#define FFCONF_DEF	86631	/* Revision ID */

/*---------------------------------------------------------------------------/
/ Function Configurations
/---------------------------------------------------------------------------*/

#define FF_FS_READONLY	0
/* This option switches read-only configuration. (0:Read/Write or 1:Read-only)
/  Read-only configuration removes writing API functions, f_write(), f_sync(),
/  f_unlink(), f_mkdir(), f_chmod(), f_rename(), f_truncate(), f_getfree()
/  and optional writing functions as well. */


#define FF_FS_MINIMIZE	0
/* This option defines minimization level to remove some basic API functions.
/
/   0: Basic functions are fully enabled.
/   1: f_stat(), f_getfree(), f_unlink(), f_mkdir(), f_truncate() and f_rename()
/      are removed.
/   2: f_opendir(), f_readdir() and f_closedir() are removed in addition to 1.
/   3: f_lseek() function is removed in addition to 2. */


#define FF_USE_FIND		0
/* This option switches filtered directory read functions, f_findfirst() and
/  f_findnext(). (0:Disable, 1:Enable 2:Enable with matching altname[] too) */


#define FF_USE_MKFS		1
/* This option switches f_mkfs() function. (0:Disable or 1:Enable) */


#define FF_USE_FASTSEEK	1
/* This option switches fast seek function. (0:Disable or 1:Enable) */


#define FF_USE_EXPAND	0
/* This option switches f_expand function. (0:Disable or 1:Enable) */


#define FF_USE_CHMOD	0
/* This option switches attribute manipulation functions, f_chmod() and f_utime().
/  (0:Disable or 1:Enable) Also FF_FS_READONLY needs to be 0 to enable this option. */


#define FF_USE_LABEL	0
/* This option switches volume label functions, f_getlabel() and f_setlabel().
/  (0:Disable or 1:Enable) */


#define FF_USE_FORWARD	0
/* This option switches f_forward() function. (0:Disable or 1:Enable) */


#define FF_USE_STRFUNC	1
#define FF_PRINT_LLI	0
#define FF_PRINT_FLOAT	0
#define FF_STRF_ENCODE	0
/* FF_USE_STRFUNC switches string functions, f_gets(), f_putc(), f_puts() and
/  f_printf().
/
/   0: Disable. FF_PRINT_LLI, FF_PRINT_FLOAT and FF_STRF_ENCODE have no effect.
/   1: Enable without LF-CRLF conversion.
/   2: Enable with LF-CRLF conversion.
/
/  FF_PRINT_LLI = 1 makes f_printf() support long long argument and FF_PRINT_FLOAT = 1/2
   makes f_printf() support floating point argument. These features want C99 or later.
/  When FF_LFN_UNICODE >= 1 with LFN enabled, string functions convert the character
/  encoding in it. FF_STRF_ENCODE selects assumption of character encoding ON THE FILE
/  to be read/written via those functions.
/
/   0: ANSI/OEM in current CP
/   1: Unicode in UTF-16LE
/   2: Unicode in UTF-16BE
/   3: Unicode in UTF-8
*/


/*---------------------------------------------------------------------------/
/ Locale and Namespace Configurations
/---------------------------------------------------------------------------*/

#define FF_CODE_PAGE	936
/* This option specifies the OEM code page to be used on the target system.
/  Incorrect code page setting can cause a file open failure.
/
/   437 - U.S.
/   720 - Arabic
/   737 - Greek
/   771 - KBL
/   775 - Baltic
/   850 - Latin 1
/   852 - Latin 2
/   855 - Cyrillic
/   857 - Turkish
/   860 - Portuguese
/   861 - Icelandic
/   862 - Hebrew
/   863 - Canadian French
/   864 - Arabic
/   865 - Nordic
/   866 - Russian
/   869 - Greek 2
/   932 - Japanese (DBCS)
/   936 - Simplified Chinese (DBCS)
/   949 - Korean (DBCS)
/   950 - Traditional Chinese (DBCS)
/     0 - Include all code pages above and configured by f_setcp()
*/


#define FF_USE_LFN		3
#define FF_MAX_LFN		255
/* The FF_USE_LFN switches the support for LFN (long file name).
/
/   0: Disable LFN. FF_MAX_LFN has no effect.
/   1: Enable LFN with static  working buffer on the BSS. Always NOT thread-safe.
/   2: Enable LFN with dynamic working buffer on the STACK.
/   3: Enable LFN with dynamic working buffer on the HEAP.
/
/  To enable the LFN, ffunicode.c needs to be added to the project. The LFN function
/  requiers certain internal working buffer occupies (FF_MAX_LFN + 1) * 2 bytes and
/  additional (FF_MAX_LFN + 44) / 15 * 32 bytes when exFAT is enabled.
/  The FF_MAX_LFN defines size of the working buffer in UTF-16 code unit and it can
/  be in range of 12 to 255. It is recommended to be set it 255 to fully support LFN
/  specification.
/  When use stack for the working buffer, take care on stack overflow. When use heap
/  memory for the working buffer, memory management functions, ff_memalloc() and
/  ff_memfree() exemplified in ffsystem.c, need to be added to the project. */


#define FF_LFN_UNICODE	0
/* This option switches the character encoding on the API when LFN is enabled.
/
/   0: ANSI/OEM in current CP (TCHAR = char)
/   1: Unicode in UTF-16 (TCHAR = WCHAR)
/   2: Unicode in UTF-8 (TCHAR = char)
/   3: Unicode in UTF-32 (TCHAR = DWORD)
/
/  Also behavior of string I/O functions will be affected by this option.
/  When LFN is not enabled, this option has no effect. */


#define FF_LFN_BUF		255
#define FF_SFN_BUF		12
/* This set of options defines size of file name members in the FILINFO structure
/  which is used to read out directory items. These values should be suffcient for
/  the file names to read. The maximum possible length of the read file name depends
/  on character encoding. When LFN is not enabled, these options have no effect. */


#define FF_FS_RPATH		0
/* This option configures support for relative path.
/
/   0: Disable relative path and remove related functions.
/   1: Enable relative path. f_chdir() and f_chdrive() are available.
/   2: f_getcwd() function is available in addition to 1.
*/


/*---------------------------------------------------------------------------/
/ Drive/Volume Configurations
/---------------------------------------------------------------------------*/

#define FF_VOLUMES		1
/* Number of volumes (logical drives) to be used. (1-10) */


#define FF_STR_VOLUME_ID	0
#define FF_VOLUME_STRS		"RAM","NAND","CF","SD","SD2","USB","USB2","USB3"
/* FF_STR_VOLUME_ID switches support for volume ID in arbitrary strings.
/  When FF_STR_VOLUME_ID is set to 1 or 2, arbitrary strings can be used as drive
/  number in the path name. FF_VOLUME_STRS defines the volume ID strings for each
/  logical drives. Number of items must not be less than FF_VOLUMES. Valid
/  characters for the volume ID strings are A-Z, a-z and 0-9, however, they are
/  compared in case-insensitive. If FF_STR_VOLUME_ID >= 1 and FF_VOLUME_STRS is
/  not defined, a user defined volume string table needs to be defined as:
/
/  const char* VolumeStr[FF_VOLUMES] = {"ram","flash","sd","usb",...
*/


#define FF_MULTI_PARTITION	0
/* This option switches support for multiple volumes on the physical drive.
/  By default (0), each logical drive number is bound to the same physical drive
/  number and only an FAT volume found on the physical drive will be mounted.
/  When this function is enabled (1), each logical drive number can be bound to
/  arbitrary physical drive and partition listed in the VolToPart[]. Also f_fdisk()
/  funciton will be available. */


#define FF_MIN_SS		512
#define FF_MAX_SS		512
/* This set of options configures the range of sector size to be supported. (512,
/  1024, 2048 or 4096) Always set both 512 for most systems, generic memory card and
/  harddisk, but a larger value may be required for on-board flash memory and some
/  type of optical media. When FF_MAX_SS is larger than FF_MIN_SS, FatFs is configured
/  for variable sector size mode and disk_ioctl() function needs to implement
/  GET_SECTOR_SIZE command. */


#define FF_LBA64		0
/* This option switches support for 64-bit LBA. (0:Disable or 1:Enable)
/  To enable the 64-bit LBA, also exFAT needs to be enabled. (FF_FS_EXFAT == 1) */


#define FF_MIN_GPT		0x10000000
/* Minimum number of sectors to switch GPT as partitioning format in f_mkfs and
/  f_fdisk function. 0x100000000 max. This option has no effect when FF_LBA64 == 0. */


#define FF_USE_TRIM		0
/* This option switches support for ATA-TRIM. (0:Disable or 1:Enable)
/  To enable Trim function, also CTRL_TRIM command should be implemented to the
/  disk_ioctl() function. */



/*---------------------------------------------------------------------------/
/ System Configurations
/---------------------------------------------------------------------------*/

#define FF_FS_TINY		0
/* This option switches tiny buffer configuration. (0:Normal or 1:Tiny)
/  At the tiny configuration, size of file object (FIL) is shrinked FF_MAX_SS bytes.
/  Instead of private sector buffer eliminated from the file object, common sector
/  buffer in the filesystem object (FATFS) is used for the file data transfer. */


#define FF_FS_EXFAT		0
/* This option switches support for exFAT filesystem. (0:Disable or 1:Enable)
/  To enable exFAT, also LFN needs to be enabled. (FF_USE_LFN >= 1)
/  Note that enabling exFAT discards ANSI C (C89) compatibility. */


#define FF_FS_NORTC		0
#define FF_NORTC_MON	1
#define FF_NORTC_MDAY	1
#define FF_NORTC_YEAR	2020
/* The option FF_FS_NORTC switches timestamp functiton. If the system does not have
/  any RTC function or valid timestamp is not needed, set FF_FS_NORTC = 1 to disable
/  the timestamp function. Every object modified by FatFs will have a fixed timestamp
/  defined by FF_NORTC_MON, FF_NORTC_MDAY and FF_NORTC_YEAR in local time.
/  To enable timestamp function (FF_FS_NORTC = 0), get_fattime() function need to be
/  added to the project to read current time form real-time clock. FF_NORTC_MON,
/  FF_NORTC_MDAY and FF_NORTC_YEAR have no effect.
/  These options have no effect in read-only configuration (FF_FS_READONLY = 1). */


#define FF_FS_NOFSINFO	0
/* If you need to know correct free space on the FAT32 volume, set bit 0 of this
/  option, and f_getfree() function at first time after volume mount will force
/  a full FAT scan. Bit 1 controls the use of last allocated cluster number.
/
/  bit0=0: Use free cluster count in the FSINFO if available.
/  bit0=1: Do not trust free cluster count in the FSINFO.
/  bit1=0: Use last allocated cluster number in the FSINFO if available.
/  bit1=1: Do not trust last allocated cluster number in the FSINFO.
*/


#define FF_FS_LOCK		0
/* The option FF_FS_LOCK switches file lock function to control duplicated file open
/  and illegal operation to open objects. This option must be 0 when FF_FS_READONLY
/  is 1.
/
/  0:  Disable file lock function. To avoid volume corruption, application program
/      should avoid illegal open, remove and rename to the open objects.
/  >0: Enable file lock function. The value defines how many files/sub-directories
/      can be opened simultaneously under file lock control. Note that the file
/      lock control is independent of re-entrancy. */


/* #include <somertos.h>	// O/S definitions */
#define FF_FS_REENTRANT	0
#define FF_FS_TIMEOUT	1000
#define FF_SYNC_t		HANDLE
/* The option FF_FS_REENTRANT switches the re-entrancy (thread safe) of the FatFs
/  module itself. Note that regardless of this option, file access to different
/  volume is always re-entrant and volume control functions, f_mount(), f_mkfs()
/  and f_fdisk() function, are always not re-entrant. Only file/directory access
/  to the same volume is under control of this function.
/
/   0: Disable re-entrancy. FF_FS_TIMEOUT and FF_SYNC_t have no effect.
/   1: Enable re-entrancy. Also user provided synchronization handlers,
/      ff_req_grant(), ff_rel_grant(), ff_del_syncobj() and ff_cre_syncobj()
/      function, must be added to the project. Samples are available in
/      option/syscall.c.
/
/  The FF_FS_TIMEOUT defines timeout period in unit of time tick.
/  The FF_SYNC_t defines O/S dependent sync object type. e.g. HANDLE, ID, OS_EVENT*,
/  SemaphoreHandle_t and etc. A header file for O/S definitions needs to be
/  included somewhere in the scope of ff.h. */



/*--- End of configuration options ---*/

总结：
1、

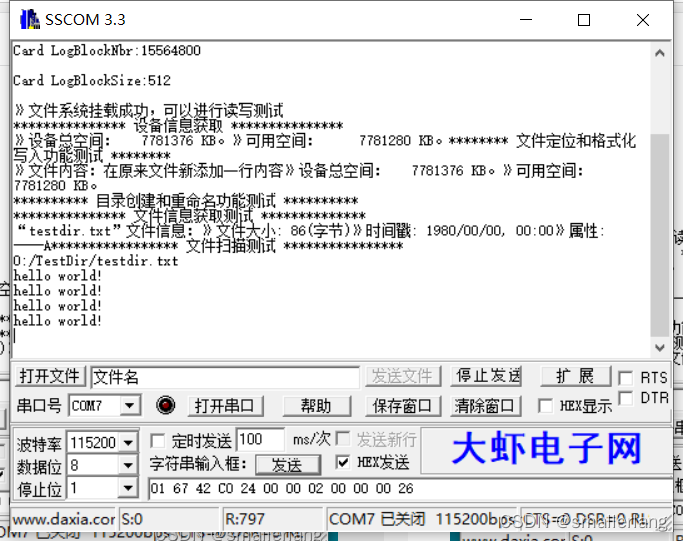

在这里插入图片描述
2、

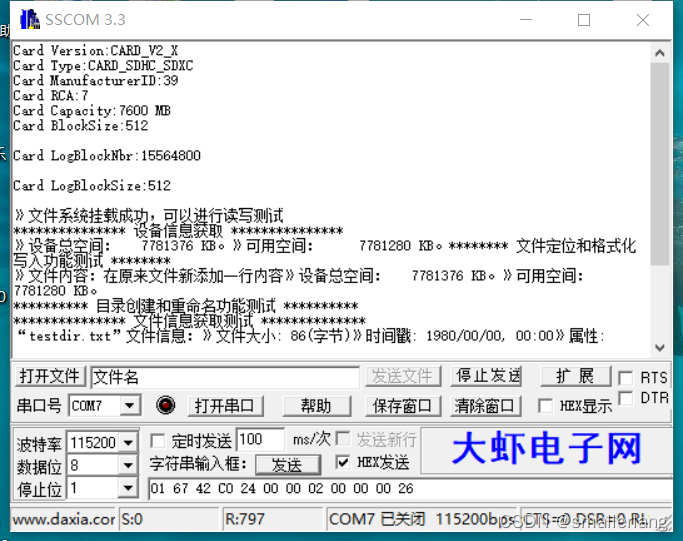

在这里插入图片描述
3、
#define FF_FS_NORTC 0
diskio.c中增加了DWORD get_fattime (void)函数

FatFs文件系统
雩风廿二YJ的博客
04-06 2044
本文介绍了FatFs文件操作系统，以及FatFs文件系统的移植。 FatFs是面向小型嵌入式系统的一种通用的FAT文件系统。它完全是由AISIC语言编写并且完全独立于底层的I/O介质。因此它可以很容易地不加修改地移植到其他的处理器当中，如8051、PIC、AVR、SH、Z80、H8、ARM等。
STM32CubeMX配置SD+DMA+Fatfs（正点原子F767开发板）
05-27
在这个项目中，我们重点讨论如何使用STM32CubeMX配置STM32F767微控制器，集成SD卡、DMA（直接存储器访问）以及Fatfs文件系统，以便在正点原子F767开发板上实现SD卡的读写功能。 1. **STM32CubeMX的使用** 首先，...
【FatFs】文件系统常见应用
cppJav的博客
09-05 3814
文件系统大小 之所以不是6M是因为有目录和文件信息分配表的存在，这些也会占用空间。 关于返回实时时间需要RTC 设备信息获取 从文件系统应用层调用文件系统层的函数。 f_getfree:获取空余空间 路径，指向剩余扇区地址指针，指向文件系统指针（句柄） 2.计算得到总的扇区个数和空扇区个数 （1）计算总的扇区 n_fatent:簇的数目+2； 1簇 = n 个扇区； csize = n; tot_sect = 簇的数目*cisze = 扇区数目； fre_clust（通过f_getfree获得）；
STM32L4新版HAL库SDIO（DMA）、FatFs使用教程（四）
zl199203的博客
10-29 4932
添加FreeRtos支持。 FreeRtos中使用FATFS是强制要求使用DMA模式的SDIO驱动。步骤如下： 1、打开工程配置文件，添加FreeRtos支持 2、配置参数 发现configuration选项卡SDMMC1报错，信息如下，意思是中断优先级问题。 打开NVIC配置界面，修改中断优先级，注意，DMA优先级要比SD中断优先级低。 打开FREERTOS选项，如图所示...
STM32+SD卡 利用FATFS文件系统创建文件夹并新建txt文件
热门推荐
qq_16883903的博客
11-03 2万+
这几天在移植FATFS文件系统，在移植过程中需要新建文件夹下创建新的cfg文件，查找资料后发现需要用到以下函数： f_mkdir("0:/2017110223");//新建文件夹，其中2017110223是文件夹名称 f_open(filescr1, "0:2017110223/201711011.txt", FA_OPEN_NEW_COVER);//在新建的文件夹下创建新的txt文本文件
FAT 文件系统 创建
cxtian55555的博客
05-12 1587
FAT 文件系统 在嵌入式系统中常用.这里提供使用FAT文件系统的说明.
stm32H750VB+sd卡+fatfs+freertos.zip
06-15
在本项目中，STM32H750VB被用于实现SD卡的读写功能，同时结合了FATFS文件系统和FreeRTOS实时操作系统，构建了一个完整的测试工程。 FATFS，全称File Allocation Table File System，是一种流行的文件系统驱动库，由...
stm32f767移植LVGL8.1-正点原子阿波罗
11-20
STM32F767移植LVGL8.1与正点原子阿波罗开发板的整合，是一项在嵌入式系统领域中常见的图形用户界面（GUI）开发工作。在这个项目中，开发者成功地将LVGL库应用到STM32F767微控制器上，并在正点原子阿波罗开发板上进行...
STM32F767实现FATFS文件管理【支持STM32F7系列单片机_HAL库驱动】.zip
12-26
STM32F767实现FATFS文件管理，意味着开发者可以利用HAL库（Hardware Abstraction Layer，硬件抽象层）驱动STM32F767与存储设备交互，执行创建、删除、读取和写入文件等操作。 在具体实现中，首先需要配置STM32F767...
STM32F767制作音乐播放器【支持STM32F7系列单片机_HAL库驱动】.zip
12-26
总的来说，STM32F767音乐播放器项目是一个综合性的嵌入式开发实践，涵盖了音频处理、文件系统、用户交互、存储和调试等多个方面，展示了STM32F767的强大功能和HAL库的易用性。开发者可以通过该项目深入理解STM32F7...
stm32f103的SDIO+2016fatfs文件系统移植支持读写文件 创建文件夹 格式化串口输出
05-16
stm32f103的SDIO+2016fatfs文件系统移植支持读写文件 创建文件夹 格式化串口输出打印信息等操作 用的是最新的fatfs文件系统 能支持4g内存卡 8g未测试 格式化后pc同样支持 amount，最新的下载下来的文件系统有bug自己格式化的sd卡自己还不认 不过本人已纠正 目前测试没啥问题
1.6 Cubemx_STM32F103_NOOS SDIO_DMA_FATFS基于SD卡的FATFS测试(一)
oDuanYanGuHong的博客
09-28 2259
一、遇到的问题： 1、刚开始挂载成功，f_open一直不行。 ；后面发现新版cubemx FATFS->configuration->Platform Setting里有一个BSP设置函数，用来检测SD卡是否插入。 2、解决上面问题，发现还是不太行，后面就降低了频率。SDIOCLK clock divide factor设置为4。 SDIO DMA中断高于SDIO 中断。 3、加上上面问题后，f_open f_write f_read都可以,但是偶尔会出差；f_mkfs报错 FS_DISK_E
stm32cube fatfs tf卡读写 文件系统创建文件 调试笔记 f205
赵撵猪的博客
12-05 2807
文件系统比想象中的要简单，步骤也简单。想要使用主要分为以下几步 配置生成代码 编写代码 封装类似printf 到文件 配置生成代码 文件系统参数配置第一眼看很多，其实一点都不复杂，使能就是有些函数的开关，直接用起来就理解了。 编写代码 void MX_FATFS_Init(void) { /*## FatFS: Link the SD driver ################...
FatFs文件系统创建文件夹，在文件夹里创建文件
华温 templogic
08-01 5343
 最新版 FatFS f_chdir 详解 作者：fly 发布于：2014-3-24 16:36 分类：嵌入式 f_chdir f_chdir函数改变一个驱动器的当前目录。 FRESULT f_chdir ( const XCHAR* Path /* 路径名的指针 */ ); 参数 Path '\0'结尾的字符串的指针，该字符串指定了将要进去的目录。 返回值 F...
Fatfs
m0_74307146的博客
06-03 2179
fatfs
利用fatfs进行文件管理
snowpang的博客
08-14 3279
STM32 fatfs库进行文件管理 在嵌入式系统开发中，经常需要利用SD卡存储一些系统配置文件、系统log文件。查阅一些资料发现fatfs库有很多例程，而且官方文档也非常清晰，但是仍然会遇到很多。套用天下无贼里的一句台词，21世纪什么最可靠，—记博客最可靠！ 废话不多说，开始上干货！利用fatfs，做一个基于时间的文件管理系统。 格式： 根目录下创建项目文件夹，表明你这个文件是干嘛的 ...
FATFS系统分别以当前日期、时间命名创建文件夹及该目录下TXT文件
dbzq_R10的博客
04-16 988
获取当前日期、时间信息并放入对应变量内，再分别将日期、时间拼接成两个字符串作为文件名称。（temp1存放文件夹名称、temp2存放TXT文件名称）由于f_open函数需要绝对路径，因此存放TXT文件名的字符串变量temp2需要按照上图来写，否则会报错路径格式无效。（先打开文件夹，再打开文件）首先需要配置好RTC时钟（能够获取当前日期、时间），然后先定义存放日期、时间、文件夹名以及文件名的变量。接下来只需要在对应函数里填入对应字符串变量作为参数就行。
STM32-FATFS文件系统
最新发布
zhuimeng_1234的博客
12-11 877
FATFS 是一个完全免费开源的 FAT/exFAT 文件系统模块，专门为小型的嵌入式系统而设计。它完全用标准 C 语言（ANSI C C89）编写，所以具有良好的硬件平台独立性，只需做简单的修改就可以移植到 8051、PIC、AVR、ARM、Z80、RX 等系列单片机上。它支持 FATl2、FATl6 和FAT32，支持多个存储媒介；有独立的缓冲区，可以对多个文件进行读／写，并特别对 8 位单片机和 16 位单片机做了优化。
FatFs检测并建立多层目录并更改文件名
xfxuezhang.cn
06-28 1万+
FatFs检测文件路径是否存在，不存在就建立多层目录，最后更改文件名 if(W_Dresult==FR_OK) { wifi_dp_wav_file_status=0; start_downloading=0; /*************************************遍历创建文件夹*****************************...
STM32F767单片机FATFS文件管理驱动程序开发
- 配置和使用STM32F767的FSMC（灵活的静态存储控制器）等外设进行存储媒体（如SD卡、外部存储器）的访问。 #### 4. 寄存器驱动程序开发： 寄存器驱动程序的开发是指直接通过操作单片机的寄存器来控制硬件资源，不...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
