ElementUI table树形数据

本文介绍了如何使用Element UI库在Vue.js应用中创建一个带有序号的树形表格。通过设置`row-key`、`default-expand-all`和`tree-props`属性,可以实现表格的树形结构,并自定义序号显示。同时,通过CSS样式移除了默认的小三角图标。示例代码详细展示了数据结构和方法,用于生成父节点的序号。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

一、概述

官方链接:https://element.eleme.cn/#/zh-CN/component/table

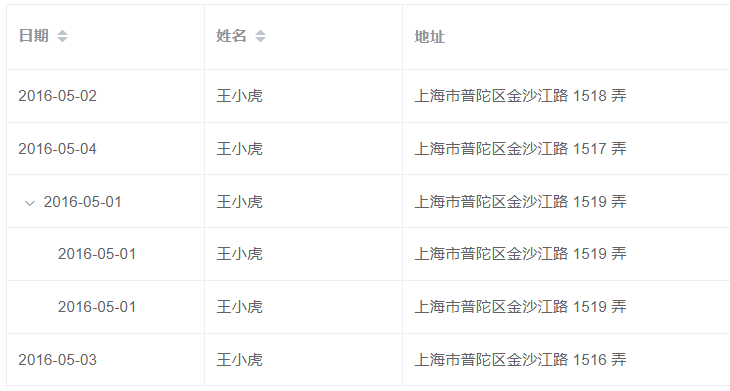

官方效果:

二、demo演示

test.vue

<template>
  <div>
    <el-table
      :data="tableData"
      style="width: 100%;margin-bottom: 20px;"
      row-key="id"
      default-expand-all
      :tree-props="{children: 'children'}">
      <el-table-column type="index" label="序号" width="50">
        <template slot-scope="scope">
          <span v-if="scope.row.children">{{scope.row.index}}</span>
        </template>
      </el-table-column>
      <el-table-column
        prop="date"
        label="日期"
        sortable
        width="180">
        <template slot-scope="scope">
          <div v-if="scope.row.children" style="display: inline-block;margin 0">
            <span>{{scope.row.date}}</span>
            <span v-if="scope.row.type" style="color: red">{{scope.row.type}}</span>
          </div>
          <div v-else style="display: inline-block;margin 0;color: #999999">
            <i class="el-icon-caret-right"></i>
            <span>{{scope.row.date}}</span>
          </div>
        </template>
      </el-table-column>
      <el-table-column
        prop="name"
        label="姓名"
        sortable
        width="180">
      </el-table-column>
      <el-table-column
        prop="address"
        label="地址">
      </el-table-column>
    </el-table>
  </div>
</template>
<script>
  export default {
    data() {
      return {
        indexList:[],
        tableData: [{
          id: 1,
          date: '2016-05-02',
          name: '王小虎',
          address: '上海市普陀区金沙江路 1518 弄',
          type:'',
          children:[]
        }, {
          id: 2,
          date: '2016-05-04',
          name: '王小虎',
          address: '上海市普陀区金沙江路 1517 弄',
          type:'',
          children:[]
        }, {
          id: 3,
          date: '2016-05-01',
          name: '王小虎',
          address: '上海市普陀区金沙江路 1519 弄',
          type:'拆',
          children: [{
            id: 31,
            date: '2016-05-01',
            name: '王小虎',
            address: '上海市普陀区金沙江路 1519 弄'
          }, {
            id: 32,
            date: '2016-05-01',
            name: '王小虎',
            address: '上海市普陀区金沙江路 1519 弄'
          }]
        }, {
          id: 4,
          date: '2016-05-03',
          name: '王小虎',
          address: '上海市普陀区金沙江路 1516 弄',
          type:'',
          children: [{
            id: 41,
            date: '2016-05-01',
            name: '王小虎41',
            address: '上海市普陀区金沙江路 1520 弄'
          }, {
            id: 42,
            date: '2016-05-01',
            name: '王小虎42',
            address: '上海市普陀区金沙江路 1521 弄'
          }]
        }],
        tableData1: [{
          id: 1,
          date: '2016-05-02',
          name: '王小虎',
          address: '上海市普陀区金沙江路 1518 弄',
          type:'',
          children:[]
        }, {
          id: 2,
          date: '2016-05-04',
          name: '王小虎',
          address: '上海市普陀区金沙江路 1517 弄',
          type:'',
          children:[]
        }, {
          id: 3,
          date: '2016-05-01',
          name: '王小虎',
          address: '上海市普陀区金沙江路 1519 弄',
          hasChildren: true,
          type:'',
          children:[]
        }, {
          id: 4,
          date: '2016-05-03',
          name: '王小虎4',
          address: '上海市普陀区金沙江路 1516 弄',
          type:'拆',

        }]
      }
    },
    mounted() {
      this.getTableIndex()
    },
    methods: {
      // 获取index
      getTableIndex(){
        this.indexList=[]
        let index=0
        for (let val of this.tableData) {
          if(val.children){
            // console.log(val.id)
            index+=1
            val.index=index
          }
        }
        // console.log(this.indexList)
      },
    },
  }
</script>
<style rel="stylesheet/scss" lang="scss" scoped>
  /deep/ .el-table__placeholder {
    display: inline-block;
    width: 20px;
    padding-left: -35px;
    margin-left: -16px;
  }
  /*去除三角符号*/
  /deep/ .el-table .el-table__expand-icon {
    display: none;
    width: 20px;
    line-height: 20px;
    height: 20px;
    text-align: center;
    margin-right: 3px;
  }
</style>
View Code

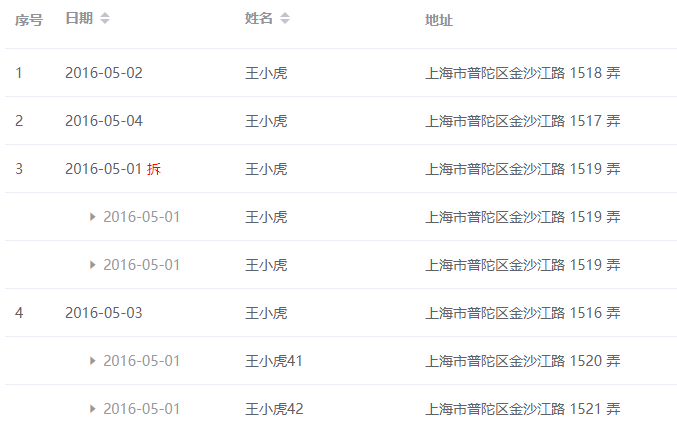

访问页面,效果如下:

代码说明:

row-key="id" 指定每一行的唯一id,必须要指定,否则报错。

default-expand-all 默认展开

:tree-props="{children: 'children'}" 指定子节点的字段。我在tableData中,已经添加了children字段,所以它会遍历children里面的每一行数据。

上面代码中,定义了一个方法getTableIndex。主要是用来生成table的序列号的,其实table组件中,也可以生成序列号,但那不是我想要的。

我要求的是,必须是父节点,才有序号,子节点没有序号,不需要显示。

默认会有一个小三角符号,如果需要去掉,用css样式即可去掉,见上面的代码。
