本文详细介绍了如何使用Maven和Docker将SpringBoot应用程序打包，并通过Nexus私有仓库进行发布，包括配置Nexus服务器、设置Docker插件和Mavensettings.xml文件，以及执行各种构建和推送操作。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

打包镜像并发布到nexus上

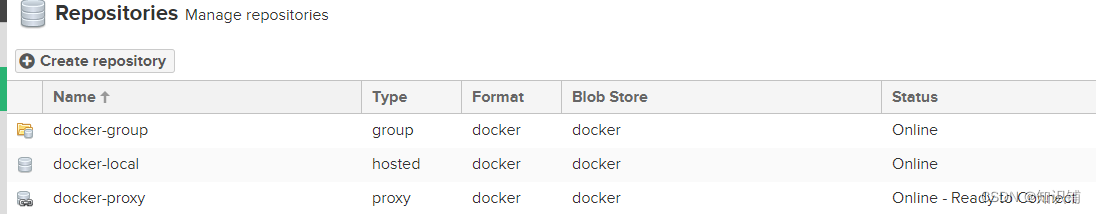

1. nexus 配置

在这里插入图片描述
启动8082端口

2. docker 启动2375端口

3. 工程配置maven

maven 内配置 settings.xml

<servers>
	<server>
         <id>docker-local</id>
        <username>admin</username>
        <password>admin123</password>
     </server>
  </servers>

pom.xml 添加打包插件

       <plugin>
                <groupId>com.spotify</groupId>
                <artifactId>docker-maven-plugin</artifactId>
                <version>1.2.2</version>

                <configuration>
                    <!-- 必须是 registryUrl nexus 中的Repositories  name 对应好-->
                    <serverId>docker-local</serverId>
                    <registryUrl>http://192.168.9.82:8082</registryUrl>
                    <!--必须配置dockerHost标签（除非配置系统环境变量DOCKER_HOST）-->
                    <dockerHost>http://192.168.9.158:2375</dockerHost>
                    <!--指定基础镜像jdk1.8-->
                    <baseImage>openjdk:8</baseImage>
                    <imageName>192.168.9.82:8082/${project.artifactId}</imageName>
                    <!--指定标签 这里指定的是镜像的版本，默认版本是latest-->
                    <imageTags>
                        <imageTag>${project.version}</imageTag>
                    </imageTags>
                    <!-- 指定 Dockerfile 路径-->
                    <!--镜像制作人本人信息 -->
                    <maintainer>admin@admin.com</maintainer>
                    <!--切换到工作目录-->
                    <workdir>/ROOT</workdir>
                    <cmd>["java", "-version"]</cmd>
                    <entryPoint>["java", "-jar", "-Xms512m", "-Xmx512m", "${project.build.finalName}.jar"]</entryPoint>
                    <!-- jar包位置-->
                    <resources>
                        <resource>
                            <targetPath>/ROOT</targetPath>
                            <!-- target目录下-->
                            <directory>${project.build.directory}</directory>
                            <!--通过jar包名找到jar包-->
                            <include>${project.build.finalName}.jar</include>
                        </resource>
                    </resources>
                </configuration>

                <executions>
                    <!-- package之前清除上一次构建的image -->
                    <execution>
                        <id>remove-image</id>
                        <phase>package</phase>
                        <goals>
                            <goal>removeImage</goal>
                        </goals>
                        <configuration>
                            <imageName>
                                192.168.9.82:8082/${project.artifactId}
                            </imageName>
                            <imageTags>
                                <imageTag>${project.version}</imageTag>
                                <imageTag>latest</imageTag>
                            </imageTags>
                        </configuration>
                    </execution>
                    <execution>
                        <id>remove-tag-image</id>
                        <phase>package</phase>
                        <goals>
                            <goal>removeImage</goal>
                        </goals>
                        <configuration>
                            <imageName>
                                192.168.9.82:8082/${project.artifactId}
                            </imageName>
                            <imageTags>
                                <imageTag>${project.version}</imageTag>
                                <imageTag>latest</imageTag>
                            </imageTags>
                        </configuration>
                    </execution>
                    <!-- 将docker:build绑定到package这个phase  -->
                    <execution>
                        <id>build-image</id>
                        <phase>package</phase>
                        <goals>
                            <goal>build</goal>
                        </goals>
                        <configuration>
                            <!-- imageName中若不指定tag，则会打上latest -->
                            <imageName>192.168.9.82:8082/${project.artifactId}:${project.version}</imageName>
                            <!-- 可以使用<imageTags>标签打其他额外的tag -->
                        </configuration>
                    </execution>
                    <!-- 将docker:tag绑定到package这个phase  -->
                    <execution>
                        <id>tag-image</id>
                        <phase>package</phase>
                        <goals>
                            <goal>tag</goal>
                        </goals>
                        <configuration>
                            <!-- docker tag IMAGE[:TAG] [REGISTRY_HOST[:REGISTRY_PORT]/]REPOSITORY[:TAG]  -->
                            <!-- images与IMAGE[:TAG]对应，必须在build阶段已经构建了 -->
                            <image>192.168.9.82:8082/${project.artifactId}:${project.version}</image>
                            <!-- newName与tag命令的第二个参数对应 -->
                            <newName>
                                192.168.9.82:8082/${project.artifactId}:${project.version}
                            </newName>
                        </configuration>
                    </execution>
                    <execution>
                        <id>tag-image-latest</id>
                        <phase>package</phase>
                        <goals>
                            <goal>tag</goal>
                        </goals>
                        <configuration>
                            <!-- docker tag IMAGE[:TAG] [REGISTRY_HOST[:REGISTRY_PORT]/]REPOSITORY[:TAG]  -->
                            <!-- images与IMAGE[:TAG]对应，必须在build阶段已经构建了 -->
                            <image>192.168.9.82:8082/${project.artifactId}:${project.version}</image>
                            <!-- newName与tag命令的第二个参数对应 -->
                            <newName>
                                192.168.9.82:8082/${project.artifactId}:latest
                            </newName>
                        </configuration>
                    </execution>
                    <!-- 将docker:push绑定到deploy这个phase  -->
                    <execution>
                        <id>push-image</id>
                        <phase>package</phase>
                        <goals>
                            <goal>push</goal>
                        </goals>
                        <configuration>
                            <imageName>
                                192.168.9.82:8082/${project.artifactId}:${project.version}
                            </imageName>
                        </configuration>
                    </execution>
                    <execution>
                        <id>push-image-latest</id>
                        <phase>package</phase>
                        <goals>
                            <goal>push</goal>
                        </goals>
                        <configuration>
                            <imageName>
                                192.168.9.82:8082/${project.artifactId}:latest
                            </imageName>
                        </configuration>
                    </execution>
                </executions>
            </plugin>

Spring boot application-ad.properties

server.port=2040
debug=true
logging.level.root=debug
logging.level.com.hello.b2c.user.mapper=trace

spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.clickhouse-db.url=jdbc:mysql://${MYSQL_HOST}:${MYSQL_PORT}/${MYSQL_DATABASE}?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT%2B8
spring.datasource.clickhouse-db.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.clickhouse-db.password=${MYSQL_PASSWORD}
spring.datasource.clickhouse-db.username=${MYSQL_USER}
spring.datasource.clickhouse-db.initialSize=10
spring.datasource.clickhouse-db.maxActive=10
spring.datasource.clickhouse-db.maxWait=6000
spring.datasource.clickhouse-db.validationQuery=select 1
spring.datasource.mysql-db.url=jdbc:mysql://${MYSQL_HOST}:${MYSQL_PORT}/${MYSQL_DATABASE}?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT%2B8
spring.datasource.mysql-db.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.mysql-db.password=${MYSQL_PASSWORD}
spring.datasource.mysql-db.username=${MYSQL_USER}
spring.datasource.mysql-db.initialSize=10
spring.datasource.mysql-db.maxActive=10
spring.datasource.mysql-db.maxWait=6000
spring.datasource.mysql-db.validationQuery=select 1

spring.redis.host=${REDIS_HOST}
spring.redis.port=${REDIS_PORT}
spring.redis.password=admin
spring.redis.database=1


pacs.host=${PACS_HOST}
pacs.hostout=${PACS_HOSTOUT}

rocketmq.host=${ROCKETMQ_HOST}:${ROCKETMQ_PORT_TCP}

rocketmq.fileGroup=fileTest
rocketmq.fileTags=fileTest
rocketmq.fileTopic=fileTest


zookeeper.host=${ZOOKEEPER_HOST}:${ZOOKEEPER_PORT}


rocketmq.name-server=${ROCKETMQ_HOST}:${ROCKETMQ_PORT_TCP}
rocketmq.producer.sendMessageTimeout=300000
