在RT-Thread使用-----TouchGfx（7)----移动Touchgfx文件到外部flash中，我们将屏幕的图片文件存储到了外部的SPI flash中，GFX通过文件系统对flash中的文件进行访问，进行显示内容的更新。如此操作我们屏幕每次更新时都需要进行外部FLASH的读取操作，并且需要提供缓冲区用来进行屏幕内容的缓冲。本章节中我们直接将显示内容存储到SRAM中，在启动GFX前将文件信息拷贝到SRAM中，GFX便可以每次直接寻址SRAM减少读取文件等操作时间。

首先进行链接文件的修改。在.ld文件中增加ExtFlashSection，FontFlashSection，FontSearchFlashSection，TextFlashSection。并将这4个section存储到SDRAM中。

/*
 * linker script for STM32F429IG with GNU ld
 */

/* Program Entry, set to mark it as "used" and avoid gc */
MEMORY
{
	ROM (rx) : ORIGIN =0x08000000,LENGTH =1024k
	RAM (rw) : ORIGIN =0x20000000,LENGTH =192k
	SPIFLASH (rwx) : ORIGIN =0x9A000000,LENGTH =32768k
	SDRAM_GFX_PIC (rwx) : ORIGIN =0xC0000000,LENGTH =20480k
}
ENTRY(Reset_Handler)
_system_stack_size = 0x400;

SECTIONS
{
	ExtFlashSection :
	{
		KEEP(*(ExtFlashSection.*))
		. = ALIGN(4);
	} > SDRAM_GFX_PIC

	FontFlashSection :
	{
		KEEP(*(FontFlashSection.*))
		. = ALIGN(4);
	} > SDRAM_GFX_PIC

	FontSearchFlashSection :
	{
		KEEP(*(FontSearchFlashSection.*))
		. = ALIGN(4);
	} > SDRAM_GFX_PIC

	TextFlashSection :
	{
		KEEP(*(TextFlashSection.*))
		. = ALIGN(4);
	} > SDRAM_GFX_PIC


    .text :
    {
        . = ALIGN(4);
        _stext = .;
        KEEP(*(.isr_vector))            /* Startup code */

        . = ALIGN(4);
        *(.text)                        /* remaining code */
        *(.text.*)                      /* remaining code */
        *(.rodata)                      /* read-only data (constants) */
        *(.rodata*)
        *(.glue_7)
        *(.glue_7t)
        *(.gnu.linkonce.t*)

        /* section information for finsh shell */
        . = ALIGN(4);
        __fsymtab_start = .;
        KEEP(*(FSymTab))
        __fsymtab_end = .;

        . = ALIGN(4);
        __vsymtab_start = .;
        KEEP(*(VSymTab))
        __vsymtab_end = .;

        /* section information for utest */
        . = ALIGN(4);
        __rt_utest_tc_tab_start = .;
        KEEP(*(UtestTcTab))
        __rt_utest_tc_tab_end = .;

        /* section information for at server */
        . = ALIGN(4);
        __rtatcmdtab_start = .;
        KEEP(*(RtAtCmdTab))
        __rtatcmdtab_end = .;
        . = ALIGN(4);

        /* section information for initial. */
        . = ALIGN(4);
        __rt_init_start = .;
        KEEP(*(SORT(.rti_fn*)))
        __rt_init_end = .;

        . = ALIGN(4);

        PROVIDE(__ctors_start__ = .);
        KEEP (*(SORT(.init_array.*)))
        KEEP (*(.init_array))
        PROVIDE(__ctors_end__ = .);

        . = ALIGN(4);

        _etext = .;
    } > ROM = 0

    /* .ARM.exidx is sorted, so has to go in its own output section.  */
    __exidx_start = .;
    .ARM.exidx :
    {
        *(.ARM.exidx* .gnu.linkonce.armexidx.*)

        /* This is used by the startup in order to initialize the .data secion */
        _sidata = .;
    } > ROM
    __exidx_end = .;

    /* .data section which is used for initialized data */

    .data : AT (_sidata)
    {
        . = ALIGN(4);
        /* This is used by the startup in order to initialize the .data secion */
        _sdata = . ;

        *(.data)
        *(.data.*)
        *(.gnu.linkonce.d*)


        PROVIDE(__dtors_start__ = .);
        KEEP(*(SORT(.dtors.*)))
        KEEP(*(.dtors))
        PROVIDE(__dtors_end__ = .);

        . = ALIGN(4);
        /* This is used by the startup in order to initialize the .data secion */
        _edata = . ;
    } >RAM

    .stack :
    {
        . = ALIGN(4);
        _sstack = .;
        . = . + _system_stack_size;
        . = ALIGN(4);
        _estack = .;
    } >RAM

    __bss_start = .;
    .bss :
    {
        . = ALIGN(4);
        /* This is used by the startup in order to initialize the .bss secion */
        _sbss = .;

        *(.bss)
        *(.bss.*)
        *(COMMON)

        . = ALIGN(4);
        /* This is used by the startup in order to initialize the .bss secion */
        _ebss = . ;

        *(.bss.init)
    } > RAM
    __bss_end = .;

    _end = .;

    /* Stabs debugging sections.  */
    .stab          0 : { *(.stab) }
    .stabstr       0 : { *(.stabstr) }
    .stab.excl     0 : { *(.stab.excl) }
    .stab.exclstr  0 : { *(.stab.exclstr) }
    .stab.index    0 : { *(.stab.index) }
    .stab.indexstr 0 : { *(.stab.indexstr) }
    .comment       0 : { *(.comment) }
    /* DWARF debug sections.
     * Symbols in the DWARF debugging sections are relative to the beginning
     * of the section so we begin them at 0.  */
    /* DWARF 1 */
    .debug          0 : { *(.debug) }
    .line           0 : { *(.line) }
    /* GNU DWARF 1 extensions */
    .debug_srcinfo  0 : { *(.debug_srcinfo) }
    .debug_sfnames  0 : { *(.debug_sfnames) }
    /* DWARF 1.1 and DWARF 2 */
    .debug_aranges  0 : { *(.debug_aranges) }
    .debug_pubnames 0 : { *(.debug_pubnames) }
    /* DWARF 2 */
    .debug_info     0 : { *(.debug_info .gnu.linkonce.wi.*) }
    .debug_abbrev   0 : { *(.debug_abbrev) }
    .debug_line     0 : { *(.debug_line) }
    .debug_frame    0 : { *(.debug_frame) }
    .debug_str      0 : { *(.debug_str) }
    .debug_loc      0 : { *(.debug_loc) }
    .debug_macinfo  0 : { *(.debug_macinfo) }
    /* SGI/MIPS DWARF 2 extensions */
    .debug_weaknames 0 : { *(.debug_weaknames) }
    .debug_funcnames 0 : { *(.debug_funcnames) }
    .debug_typenames 0 : { *(.debug_typenames) }
    .debug_varnames  0 : { *(.debug_varnames) }
}

恢复TouchGFXHAL文件为默认

启动阶段不进行bitmap操作

void TouchGFXHAL::initialize()
{
    // Calling parent implementation of initialize().
    //
    // To overwrite the generated implementation, omit call to parent function
    // and implemented needed functionality here.
    // Please note, HAL::initialize() must be called to initialize the framework.

    TouchGFXGeneratedHAL::initialize();

//    uint16_t* cacheStartAddr =(uint16_t *)TOUCHGFX_BUFFER_ADDR;
//    uint32_t cacheSize = TOUCHGFX_BUFFER_SIZE;
//
//    Bitmap::removeCache();
//    Bitmap::setCache(cacheStartAddr,cacheSize,1024);
//    Bitmap::cacheAll();
}

blocpcopy恢复到默认

//#include "dfs_posix.h"
bool TouchGFXHAL::blockCopy(void* RESTRICT dest, const void* RESTRICT src, uint32_t numBytes)
{
//    uint32_t dataOffset = (uint32_t) src;
//    if (dataOffset >= 0x9A000000 && dataOffset < 0xA0000000)
//    {
//        int fd;
//        struct statfs buffer;
//        if (dfs_statfs("/w25qxx", &buffer) == RT_EOK)
//        {
//            fd = open("/w25qxx/images.bin", O_RDONLY, 0);
//            if (fd < 0)
//            {
//                rt_kprintf("open file for read failed\n");
//                return false;
//            }
//            dataOffset = dataOffset - 0x9A000000;
//            lseek(fd, dataOffset, SEEK_SET);
//            // for copying data from there.
//            read(fd, (uint8_t *) dest, numBytes);
//            close(fd);
//            return true;
//        }
//        else
//        {
//            return false;
//        }
//    }
//    else
//    {
//        // For all other addresses, just use the default implementation.
//        // This is important, as blockCopy is also used for other things in the core framework.
        return TouchGFXGeneratedHAL::blockCopy(dest, src, numBytes);
//    }
}

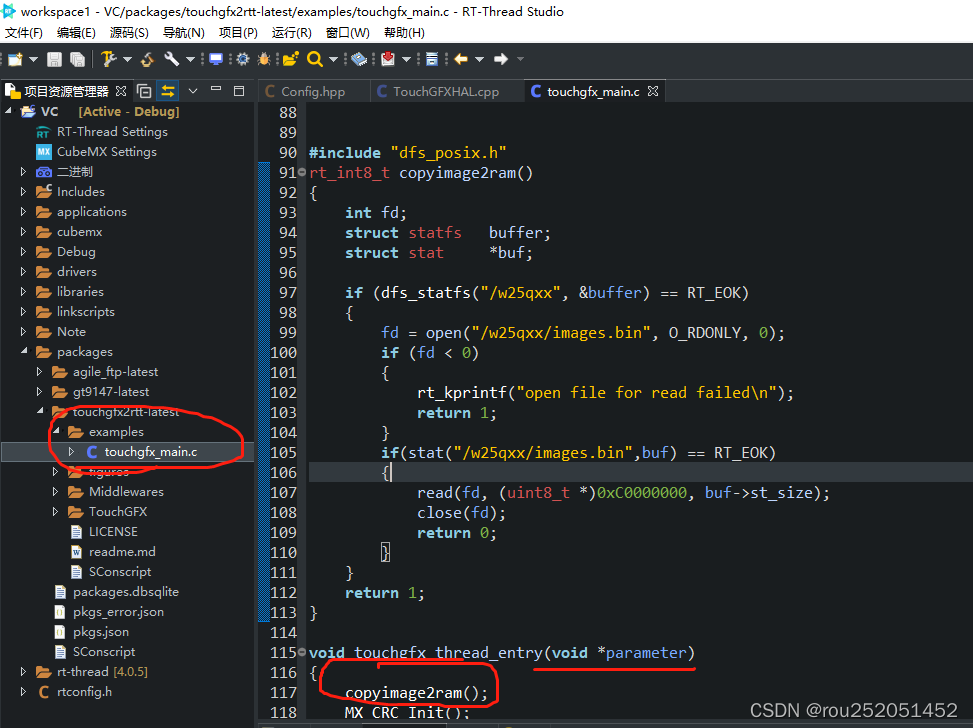

GFX初始化阶段将image拷贝到SRAM

#include "dfs_posix.h"
rt_int8_t copyimage2ram()
{
    int fd;
    struct statfs   buffer;
    struct stat     *buf;

    if (dfs_statfs("/w25qxx", &buffer) == RT_EOK)
    {
        fd = open("/w25qxx/images.bin", O_RDONLY, 0);
        if (fd < 0)
        {
            rt_kprintf("open file for read failed\n");
            return 1;
        }
        if(stat("/w25qxx/images.bin",buf) == RT_EOK)
        {
            read(fd, (uint8_t *)0xC0000000, buf->st_size);
            close(fd);
            return 0;
        }
    }
    return 1;
}

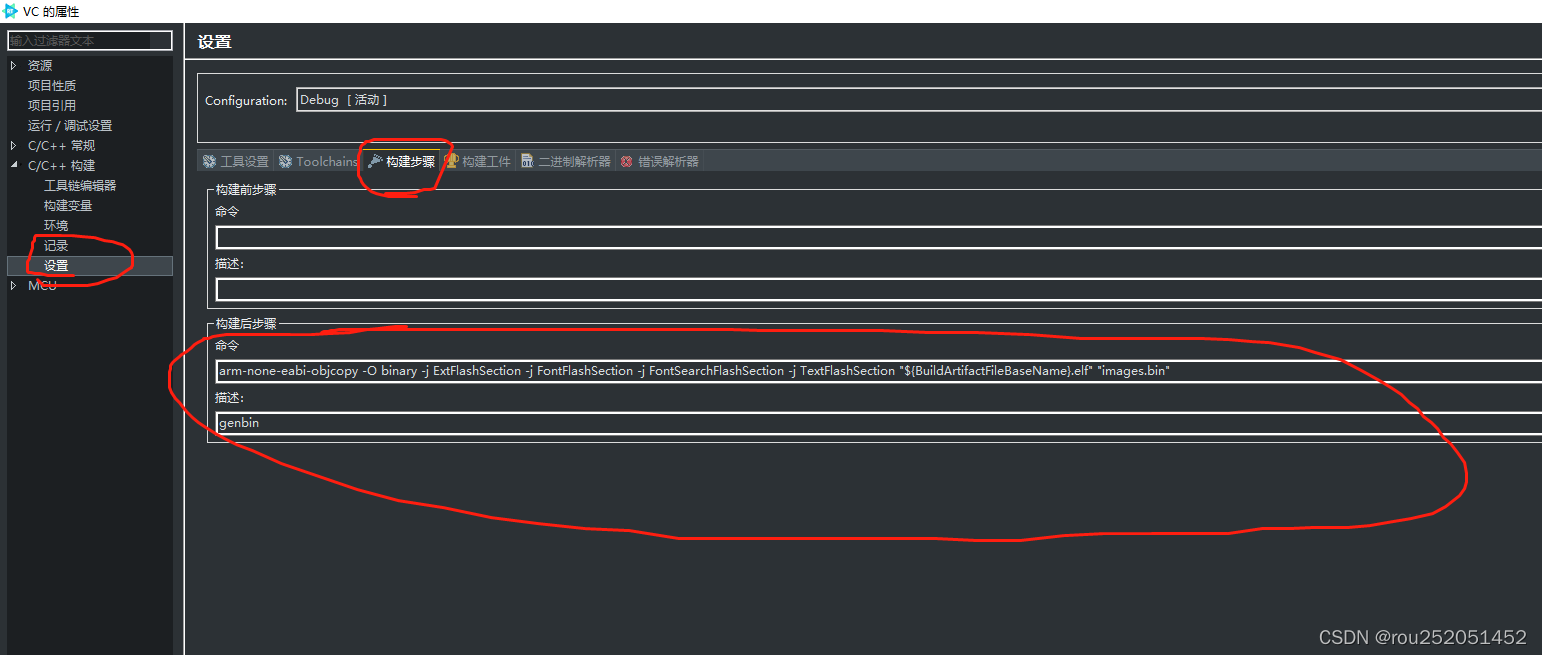

点击工程属性进行设置

arm-none-eabi-objcopy -O binary -j ExtFlashSection -j FontFlashSection -j FontSearchFlashSection -j TextFlashSection "${BuildArtifactFileBaseName}.elf" "images.bin"

编译文件，通过FTP将bin文件传输到SPI flash系统
