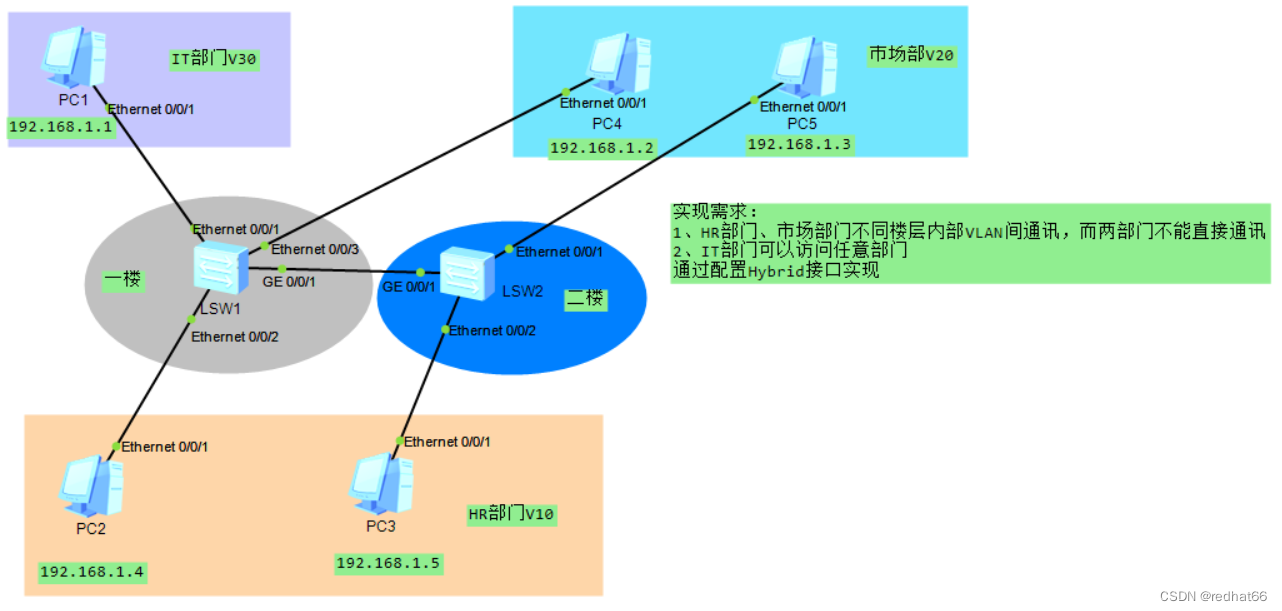

一、实验拓扑结构及实验要求

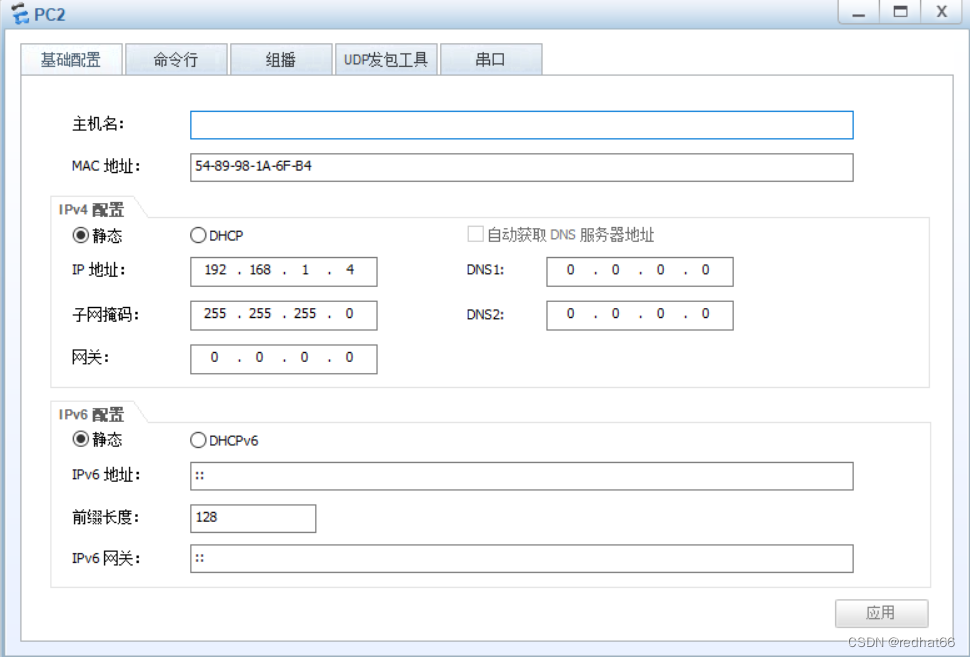

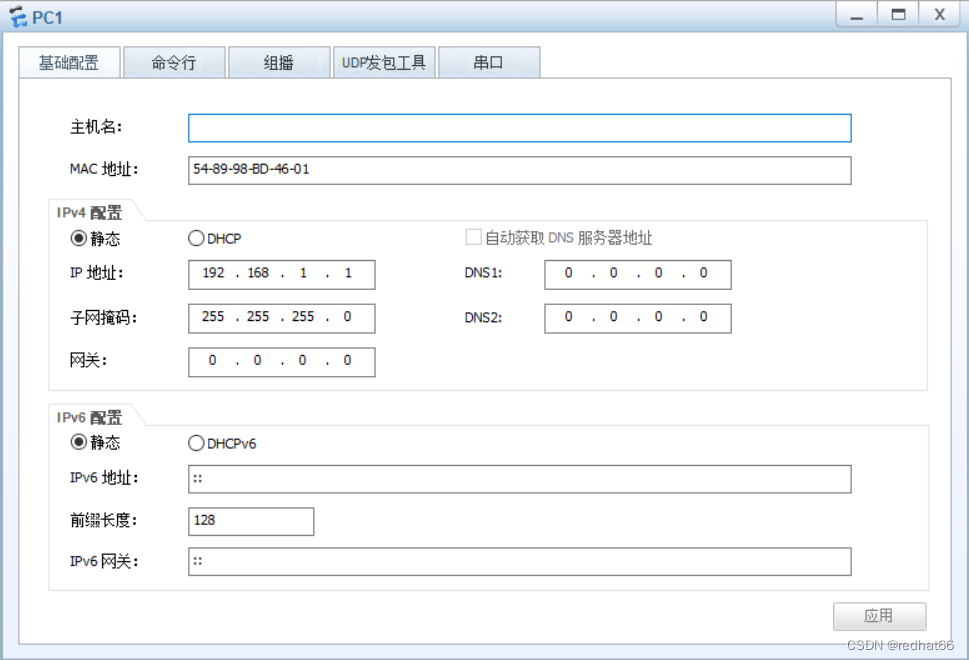

二、基础网络配置（只列举一二）

二、交换机必配参数

<Huawei>undo terminal monitor             //防止输入命令时会被打断
Info: Current terminal monitor is off.
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname SW1
[SW1]user-interface console 0
[SW1-ui-console0]idle-timeout 0            //设置会话永不超时

<Huawei>undo terminal monitor             //防止输入命令时会被打断
Info: Current terminal monitor is off.
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname SW2
[SW2]user-interface console 0
[SW2-ui-console0]idle-timeout 0            //设置会话永不超时

三、配置SW1的VLAN信息

[SW1]vlan batch 10 20 30            //批量创建VLAN
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW1]int e0/0/1
[SW1-Eth
