数字图像处理知识

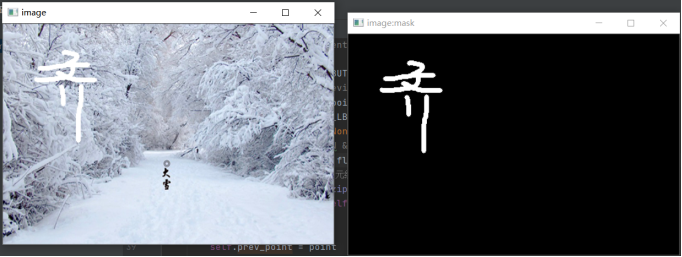

一、一个画笔修复的例子

import numpy as np
import cv2 as cv
import time
#导入要使用的各类包

#opencv Class for Mouse (Version for python) set mouse...
class Sketcher:
    def __init__(self, windowname, dests, colors_func):
        self.prev_point = None
        self.windowname = windowname
        # dests is a set of images: copy & mask
        self.dests = dests
        self.colors_func = colors_func
        self.dirty = False
        self.show()
        cv.setMouseCallback(self.windowname, self.on_mouse)

    def show(self):
        cv.imshow(self.windowname, self.dests[0])
        cv.imshow(self.windowname + ":mask", self.dests[1])

    # on mouse function
    def on_mouse(self, event, x, y, flags, param):
        # point store the current position of the mouse
        point = (x, y)
        if event == cv.EVENT_LBUTTONDOWN:
            # assignment of previous point
            self.prev_point = point
        elif event == cv.EVENT_LBUTTONUP:
            self.prev_point = None
        # cv.EVENT_FLAG_LBUTTON & flags 代表按住左键拖拽
        if self.prev_point and flags & cv.EVENT_FLAG_LBUTTON:
            # zip 把前后参数打包为元组
            for dst, color in zip(self.dests, self.colors_func()):
                cv.line(dst, self.prev_point, point, color, 5)
        # Record this dirt
        self.dirty = True
        self.prev_point = point
        self.show()
#主函数
def main():
    print("Usage: python inpaint <image_path>")
    print("Keys: ")
    print("t - inpaint using FMM")  # Fast Marching method
    print("n - inpaint using NS technique")
    print("r - reset the inpainting mask")
    print("ESC - exit")

    # Read image in color mode 读取图片
    img = cv.imread("Snowtext.jpg", cv.IMREAD_COLOR)

    # 没有找到图片则读取失败
    if img is None:
        print("Failed to read the image")
        return

    # Create the copy of the original image
    img_mask = img.copy()

    # Create a black mask of the image
    inpaintMask = np.zeros(img.shape[:2], np.uint8)
    # Create a Sketch
    # dests= img_mask, inpaintMask
    # color_func is a tuple : white with BGR and white on gray
    sketch = Sketcher('image', [img_mask, inpaintMask], lambda: ((255, 255, 255), 255))

    while True:
        ch = cv.waitKey()
        # Esc
        if ch == 27:
            break
        # 判断是否是名字为‘t’的图片
        if ch == ord('t'):
            t1 = time.time()
            res = cv.inpaint(src=img_mask, inpaintMask=inpaintMask, inpaintRadius=3, flags=cv.INPAINT_TELEA)
            res = np.hstack((img, res))
            t2 = time.time()
            cv.imshow('Inpaint with FMM', res) #显示图片
        # 判断是否是名字为‘n’的图片
        if ch == ord('n'):
            t1 = time.time()
            res = cv.inpaint(src=img_mask, inpaintMask=inpaintMask, inpaintRadius=3, flags=cv.INPAINT_NS)
            res = np.hstack((img, res))
            t2 = time.time()
            cv.imshow('Inpaint Output using NS Technique', res)
        # 创建名字为‘r’的图片
        if ch == ord('r'):
            # 复制一个图片的原因
            img_mask[:] = img
            inpaintMask[:] = 0
            sketch.show()
    print('Completed')
if __name__ == '__main__':
    main()
    cv.destroyAllWindows()
