VLAN实验

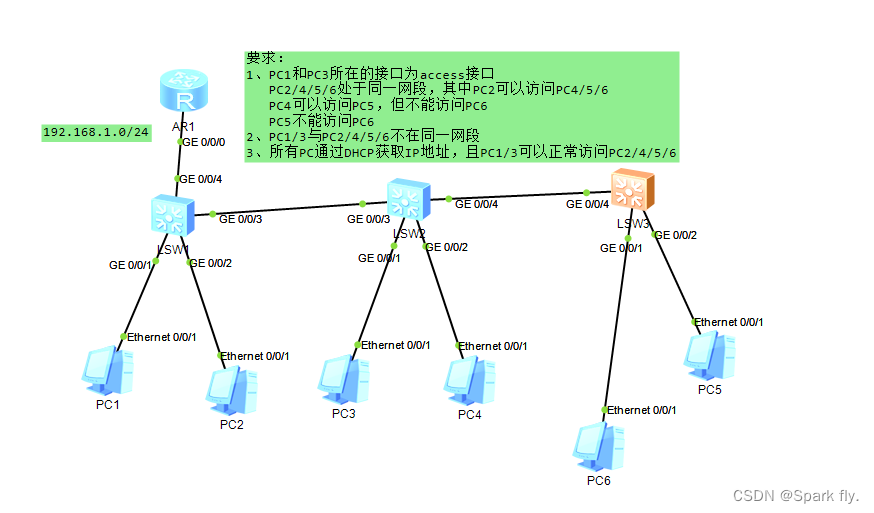

实验拓扑图

实验要求

要求：
1、PC1和PC3所在的接口为access接口
   PC2/4/5/6处于同一网段，其中PC2可以访问PC4/5/6
   PC4可以访问PC5，但不能访问PC6
   PC5不能访问PC6
2、PC1/3与PC2/4/5/6不在同一网段
3、所有PC通过DHCP获取IP地址，且PC1/3可以正常访问PC2/4/5/6

配置内容

因为配置过程中日志太多，不方便截图，所以只留下了命令行

交换机1

[sw1]vlan batch 2 3 4 5

[sw1-GigabitEthernet0/0/1]port link-type access

[sw1-GigabitEthernet0/0/1]port default vlan 2

[sw1-GigabitEthernet0/0/1]int g 0/0/2

[sw1-GigabitEthernet0/0/2]port link-type hybrid

[sw1-GigabitEthernet0/0/2]port hybrid untagged vlan 2 to 5

[sw1-GigabitEthernet0/0/2]int g 0/0/3

[sw1-GigabitEthernet0/0/3]port link-type trunk

[sw1-GigabitEthernet0/0/3]port trunk allow-pass vlan 2

[sw1-GigabitEthernet0/0/3]int g 0/0/4

[sw1-GigabitEthernet0/0/4]port hybrid tagged vlan 2

[sw1-GigabitEthernet0/0/4]port hybrid untagged vlan 3 to 5

交换机2

[sw2]int g 0/0/1

[sw2-GigabitEthernet0/0/1]port link-type access

[sw2-GigabitEthernet0/0/1]port default vlan 2

[sw2-GigabitEthernet0/0/1]int g 0/0/2

[sw2-GigabitEthernet0/0/2]port hybrid pvid vlan 4

[sw2-GigabitEthernet0/0/2]port hybrid untagged vlan 2 to 5

[sw2-GigabitEthernet0/0/2]int g 0/0/3

[sw2-GigabitEthernet0/0/3]port link-type trunk

[sw2-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 to 5

[sw2-GigabitEthernet0/0/3]int g 0/0/4

[sw2-GigabitEthernet0/0/4]port hybrid tagged vlan 2 to 5

交换机3

[sw3]int g 0/0/1

[sw3-GigabitEthernet0/0/1]port hybrid pvid vlan 5

[sw3-GigabitEthernet0/0/1]port hybrid untagged vlan 2 3 5

[sw3-GigabitEthernet0/0/1]int g 0/0/2

[sw3-GigabitEthernet0/0/2]port hybrid pvid vlan 4

[sw3-GigabitEthernet0/0/2]port hybrid untagged vlan 2 to 5

[sw3-GigabitEthernet0/0/2]int g 0/0/3

[sw3-GigabitEthernet0/0/3]port link-type trunk

[sw3-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 to 5

[sw3-GigabitEthernet0/0/3]int g 0/0/4
[sw3-GigabitEthernet0/0/4]port link-type trunk
[sw3-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 to 5

R1配置DHCP地址池和子接口

接口配置

[r1]int g 0/0/0.1
[r1-GigabitEthernet0/0/0.1]do
[r1-GigabitEthernet0/0/0.1]dot1q t
[r1-GigabitEthernet0/0/0.1]dot1q termination vid 2
[r1-GigabitEthernet0/0/0.1]ip add 192.168.2.1 24

[r1-GigabitEthernet0/0/0.1]int g 0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.1.1 24

地址池

[r1]ip pool aa                        -----------------给物理接口0/0/0
Info: It's successful to create an IP address pool.
[r1-ip-pool-aa]network 192.168.1.0 mask 24
[r1-ip-pool-aa]gateway-list 192.168.1.1

[r1-ip-pool-aa]q

[r1]int g 0/0/0

[r1-GigabitEthernet0/0/0]dhcp select global

[r1]ip pool bb                        -----------------给虚拟子接口0/0/0.1（vlan2）
Info: It's successful to create an IP address pool.
[r1-ip-pool-bb]network 192.168.2.0 mask 24
[r1-ip-pool-bb]gateway-list 192.168.2.1

[r1-ip-pool-bb]q

[r1]int g 0/0/0.1

[r1-GigabitEthernet0/0/0.1]dhcp select global

PC1

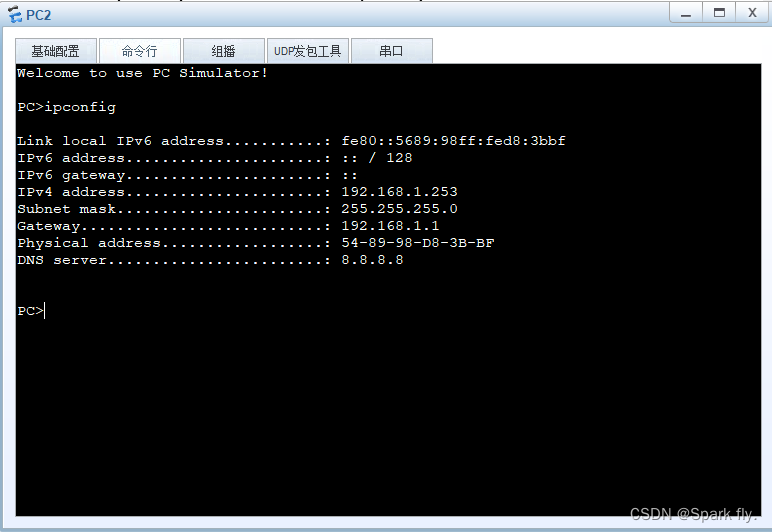

PC2

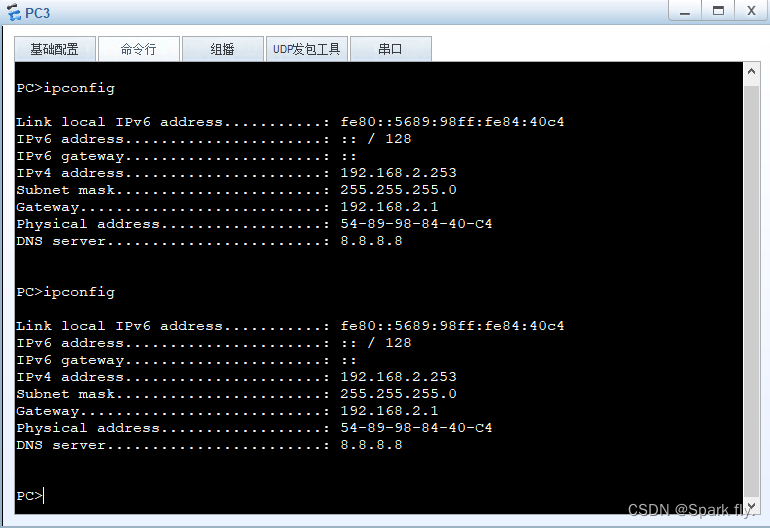

PC3

PC4

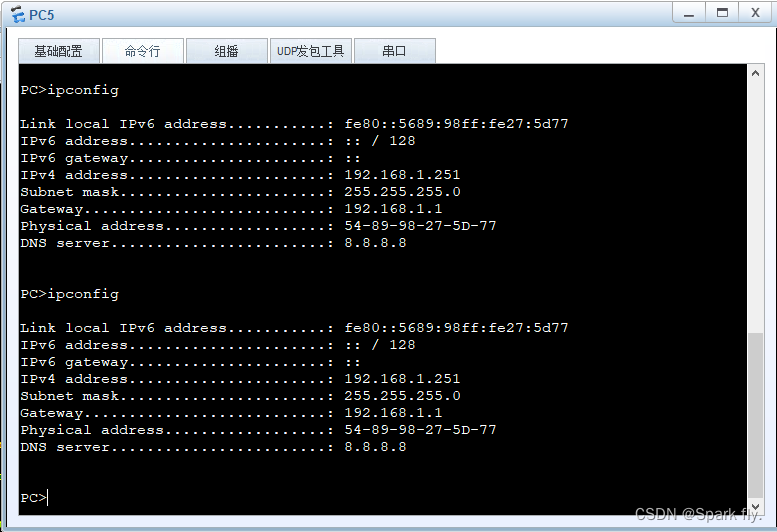

PC5

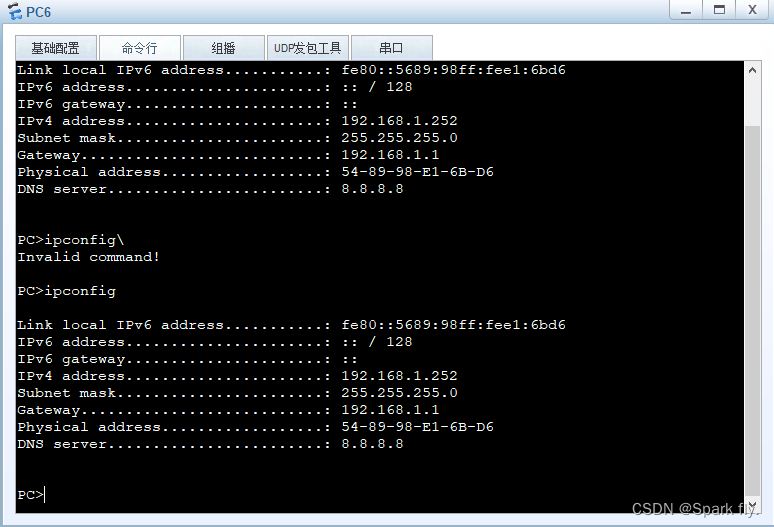

PC6

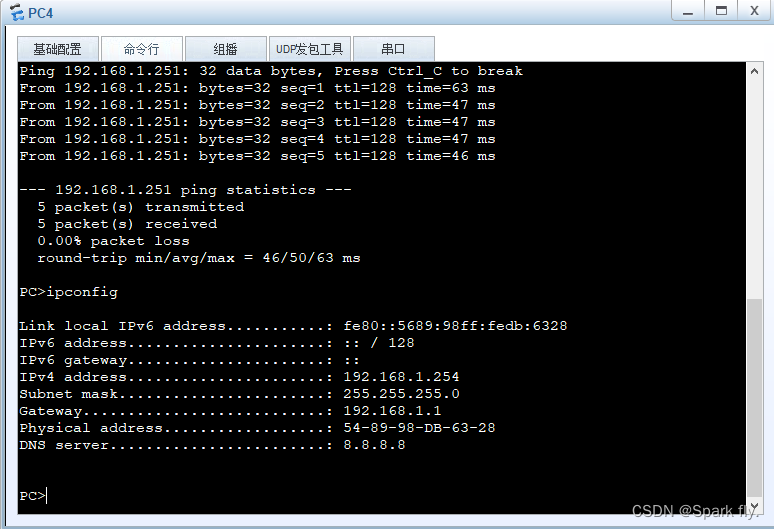

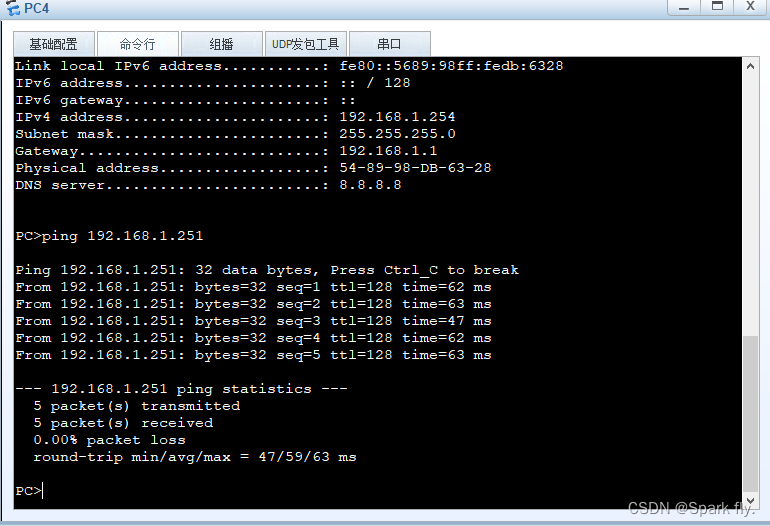

PC4 ping PC5

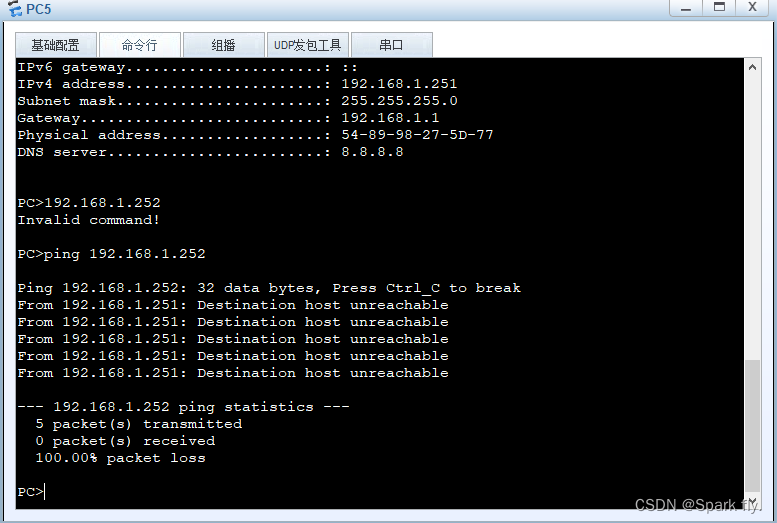

PC5 ping PC6

因为vlan隔离广播域，所以PC5（vlan4）ping不通PC6（vlan5）

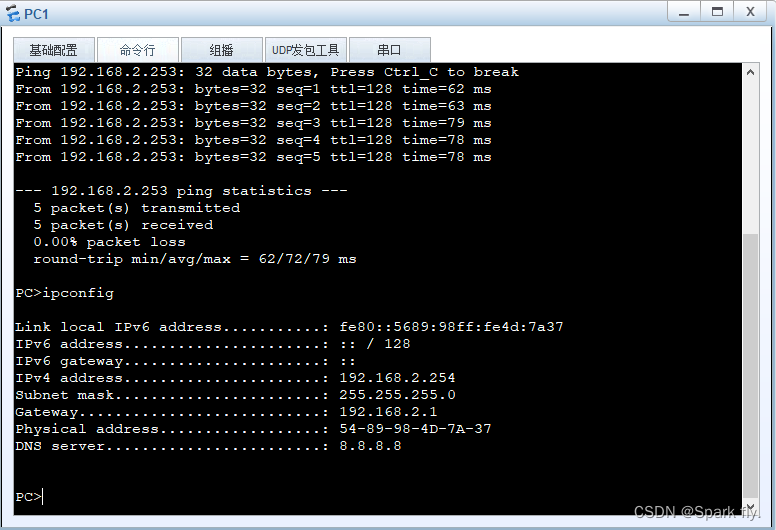

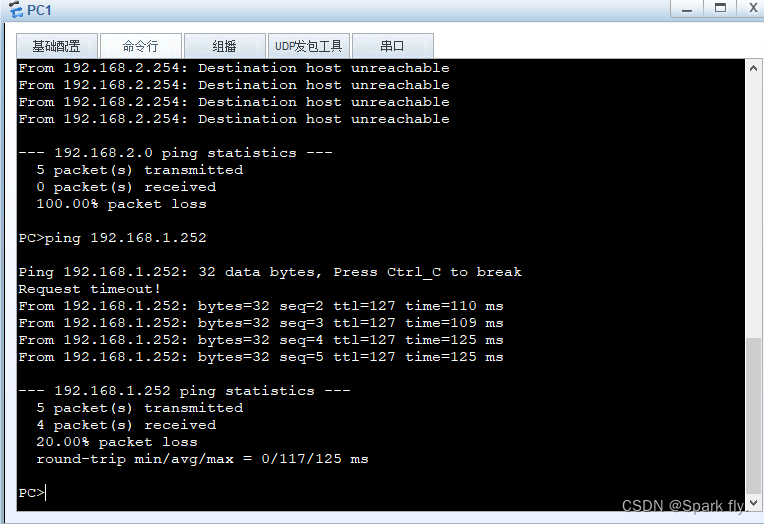

PC1 ping PC2/4/5/6

例如PC1pingPC6，能通

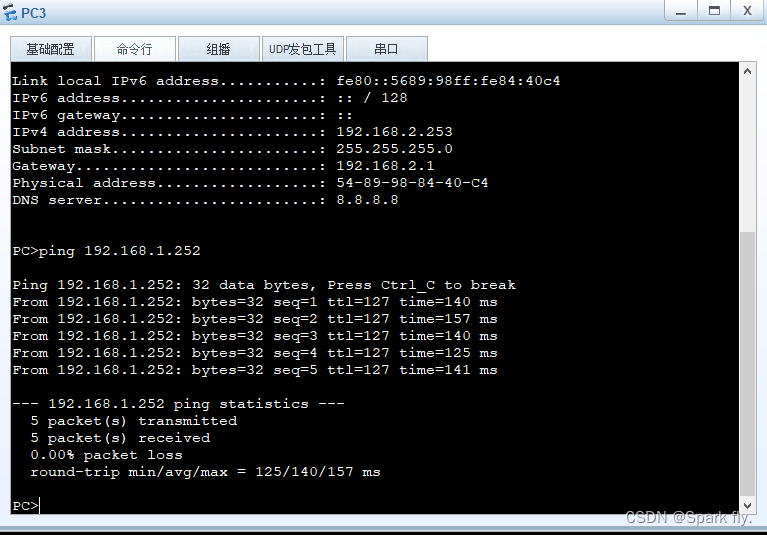

PC3 ping PC/2/4/5/6

例如PC3pingPC6，能通

至此，实验完成
