[HDLBits]Sim/circuit6

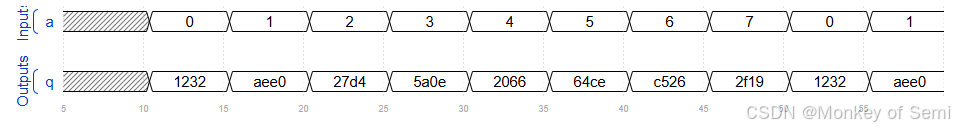

This is a combinational circuit. Read the simulation waveforms to determine what the circuit does, then implement it.

---

module top_module (
    input [2:0] a,
    output [15:0] q );
    always@(*) begin
        case(a)
            3'd0: q = 16'h1232;
            3'd1: q = 16'haee0;
            3'd2: q = 16'h27d4;
            3'd3: q = 16'h5a0e;
            3'd4: q = 16'h2066;
            3'd5: q = 16'h64ce;
            3'd6: q = 16'hc526;
            3'd7: q = 16'h2f19;
            default: q = 4'h0000;
        endcase
    end
endmodule


---

According to these waveforms,we can find it is easy to do it if we use grammer of case.
