CUDA C 网格跨度循环之二维线程

宏定义：

1. 一维网络线程：

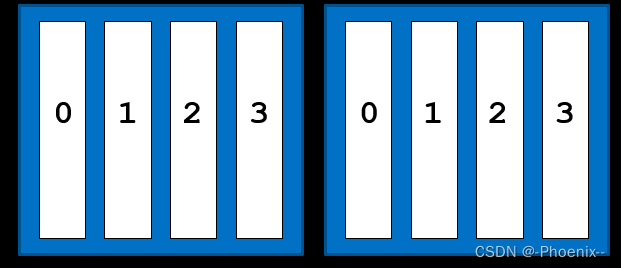

   这里是两个block（线程块），block为线性排列；每个block中的线程（thread）也是线性排列。
2. 二维网络线程/三维网络线程（z = 1）

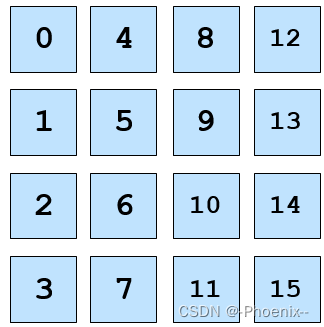

   图中为一个线程块内部的线程(这里不用管内部的索引顺序,我的这张图片只是为了说明它是二维排列的,实际的索引顺序不要看这张图.).定义为：

dim3 theards_per_block(4,4,1);

4. 三维网络线程（z ！= 1） 留白

首先我先介绍一下，在一维的网络线程下，网络总线程数与数据量大小关系的三种情况:

一维网络线程

这里赘述一维网络线程是为了抛砖引玉,如此循序渐进地就可以推出二维网络线程的循环思路了.

网络总线程数大于数据量

这时候直接可以用threadIdx.x + blockDim.x*blockIdx.x 遍历所有了.
注意: 不要越界访问数组索引,使用if

网络总线程数小于数据量

这时候,引入for

int stride = gridDim.x*blockDim.x;
for(int i=threadIdx.x + blockDim.x*blockIdx.x;i<len(Array);i+=stride)
{
	/*
	*/
}

二维网络线程

这里我把今上午成功解决问题的代码放在这里,花太多时间讲思路对我来说没必要,主要思路也很简单。
但首先要理解的一点是：我这里是把一个一维数组看成二维数组来进行操作的。

#define _CRT_SECURE_NO_WARNINGS
#include "stdio.h"
#include "cuda_runtime.h"
#include "device_functions.h"
#include "device_launch_parameters.h"
#include "driver_types.h"
#include "assert.h"
#define Num 64
/*
@Author Chi
@brief a dim1 Array that can be turned into dim3(z=1) is inited by not enough dim3(z=1)threads_per_block and not enough num_of_blocks.
@param N:dim(matrix)
@param <<<>>>
@return void
*/
__global__ void initArray(int* a, int N, int initValue);

/*
@Author Chi
@brief show the ArrayValue
@param N:dim(matrix)
@param <<<>>>
@return void
*/
__global__ void viewArray(int* a, int N);

inline cudaError_t checkCuda(cudaError_t result);
//矩阵乘法GPU计算(dim3(z=1))
__global__ void matrixMulGPU(int* a, int* b, int* c)
{
	int val = 0;

	int row = blockIdx.x * blockDim.x + threadIdx.x;
	int col = blockIdx.y * blockDim.y + threadIdx.y;
	int stridex = gridDim.x * blockDim.x;
	int stridey = gridDim.y * blockDim.y;

	for (; row < Num && col < Num; row += stridex, col += stridey)
	{
		for (int k = 0; k < Num; ++k)
		{
			val += a[row * Num + k] * b[k * Num + col];
			c[row * Num + col] = val;
		}
	/*
		|1|1|1|1|	   |-|-|1|1|
		|1|1|1|1|--->  |-|-|1|1|
		|1|1|1|1|	   |1|1|1|1|
		|1|1|1|1|	   |1|1|1|1|
		*/
		int rowtemp = row;
		int coltemp = col;
		for (val = 0; row < Num; row += stridex)//索引右移
		{
			for (int k = 0; k < Num; ++k)
				val += a[row * Num + k] * b[k * Num + col];
			c[row * Num + col] = val;
			val = 0;
		}
	/*
		|-|-|1|1|	   |-|-|-|-|
		|-|-|1|1|--->  |-|-|-|-|
		|1|1|1|1|	   |1|1|1|1|
		|1|1|1|1|	   |1|1|1|1|
		*/

		row = rowtemp;
		for (val=0; col < Num; col += stridey)//索引下移
		{
			for (int k = 0; k < Num; ++k)
			{
				val += a[row * Num + k] * b[k * Num + col];
				c[row * Num + col] = val;
			}
			val = 0;
		}
		col = coltemp;
		}
	/*
		|-|-|-|-|	   |-|-|-|-|
		|-|-|-|-|--->  |-|-|-|-|
		|1|1|1|1|	   |-|-|1|1|
		|1|1|1|1|	   |-|-|1|1|
		*/
	/*
	将初始位置转移到剩余矩阵左上角，在剩余矩阵中重复操作。
	|1|1|
	|1|1|
	*/

}

int main()
{
	//这里是把二维矩阵a和b拉伸开成为了一维矩阵。
	int* a, * b, * c_gpu;
	int size = Num * Num * sizeof(int);
	cudaMallocManaged(&a, size);
	cudaMallocManaged(&b, size);
	cudaMallocManaged(&c_gpu, size);

	dim3 threads_per_block(16, 16, 1);
	dim3 num_of_blocks((Num / threads_per_block.x)+ 1, (Num / threads_per_block.y) + 1, 1);

	initArray << <num_of_blocks, threads_per_block >> > (a, Num, 3);
	initArray << <num_of_blocks, threads_per_block >> > (b, Num, 5);
	//matrixMulGPU << <num_of_blocks, threads_per_block >> > (a, b, c_gpu);
	matrixMulGPU << <2, threads_per_block >> > (a, b, c_gpu);
	cudaError_t err1 = cudaGetLastError();
	checkCuda(err1);
	checkCuda(cudaDeviceSynchronize());
	cudaDeviceSynchronize();
	viewArray<<<num_of_blocks,threads_per_block>>>(c_gpu, Num);
	cudaFree(a);
	cudaFree(b);
	cudaFree(c_gpu);
}
//@param N:矩阵维度
__global__ void initArray(int* a, int N, int initValue)
{

	int row = blockIdx.x * blockDim.x + threadIdx.x;
	int col = blockIdx.y * blockDim.y + threadIdx.y;
	int stridex = gridDim.x * blockDim.x;
	int stridey = gridDim.y * blockDim.y;

	for (; row < N && col < N; row += stridex, col += stridey)
	{
		a[row * N + col] = initValue;
	/*
		|1|1|1|1|	   |-|-|1|1|
		|1|1|1|1|--->  |-|-|1|1|
		|1|1|1|1|	   |1|1|1|1|
		|1|1|1|1|	   |1|1|1|1|
		*/
		int rowtemp = row;
		int coltemp = col;
		for (; row < N; row += stridex)//索引右移
		{
			a[row * N + col] = initValue;
		}
	/*
		|-|-|1|1|	   |-|-|-|-|
		|-|-|1|1|--->  |-|-|-|-|
		|1|1|1|1|	   |1|1|1|1|
		|1|1|1|1|	   |1|1|1|1|
		*/

		row = rowtemp;
		for (; col < N; col += stridey)//索引下移
		{
			a[row * N + col] = initValue;
		}
		col = coltemp;
		}
	/*
		|-|-|-|-|	   |-|-|-|-|
		|-|-|-|-|--->  |-|-|-|-|
		|1|1|1|1|	   |-|-|1|1|
		|1|1|1|1|	   |-|-|1|1|
		*/
	/*
	将初始位置转移到剩余矩阵，在剩余矩阵中重复操作。
	*/

}
__global__ void viewArray(int* a, int N)
{

	int row = blockIdx.x * blockDim.x + threadIdx.x;
	int col = blockIdx.y * blockDim.y + threadIdx.y;
	int stridex = gridDim.x * blockDim.x;
	int stridey = gridDim.y * blockDim.y;

	for (; row < N && col < N; row += stridex, col += stridey)
	{
		printf("%d: %d \n",row*N+col, a[row * N + col]);
	/*
		|1|1|1|1|	   |-|-|1|1|
		|1|1|1|1|--->  |-|-|1|1|
		|1|1|1|1|	   |1|1|1|1|
		|1|1|1|1|	   |1|1|1|1|
		*/
		int rowtemp = row;
		int coltemp = col;
		for (; row < N; row += stridex)//索引右移
		{
			printf("%d: %d \n",row*N+col, a[row * N + col]);
		}
	/*
		|-|-|1|1|	   |-|-|-|-|
		|-|-|1|1|--->  |-|-|-|-|
		|1|1|1|1|	   |1|1|1|1|
		|1|1|1|1|	   |1|1|1|1|
		*/

		row = rowtemp;
		for (; col < N; col += stridey)//索引下移
		{
			printf("%d: %d \n",row*N+col, a[row * N + col]);
		}
		col = coltemp;
		}
	/*
		|-|-|-|-|	   |-|-|-|-|
		|-|-|-|-|--->  |-|-|-|-|
		|1|1|1|1|	   |-|-|1|1|
		|1|1|1|1|	   |-|-|1|1|
		*/
	/*
	将初始位置转移到剩余矩阵，在剩余矩阵中重复操作。
	*/


}
cudaError_t checkCuda(cudaError_t result)
{
	if (result != cudaSuccess) {
		fprintf(stderr, "CUDA Runtime Error: %s\n", cudaGetErrorString(result));
		assert(result == cudaSuccess);
	}
	return result;
}

---

到此结束

---

---
